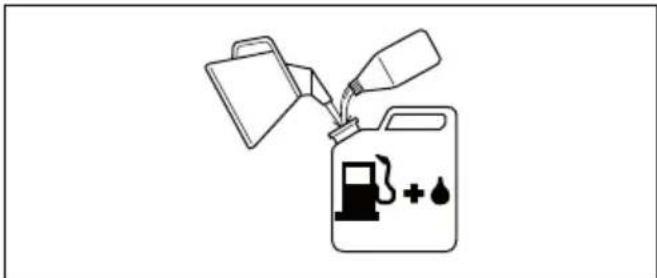

Fuel safety. 11

Technical data. 25

Assembly. 11

Accessories 27

Operation 15

Declaration of Conformity 28

Introduction

Product description

This product is a brushcutter with a combustion engine.

Work is constantly in progress to increase your safety and efficiency during operation. Speak to your servicing dealer for more information.

Note: National or local regulations can regulate the use. Comply to given regulations.

Only use the product with accessories that are approved by the manufacturer. See Accessories on page 27.

Intended use

Use the product with a grass blade or a trimmer head to cut different types of vegetation. Do not use the product for other tasks than grass trimming and grass clearing.

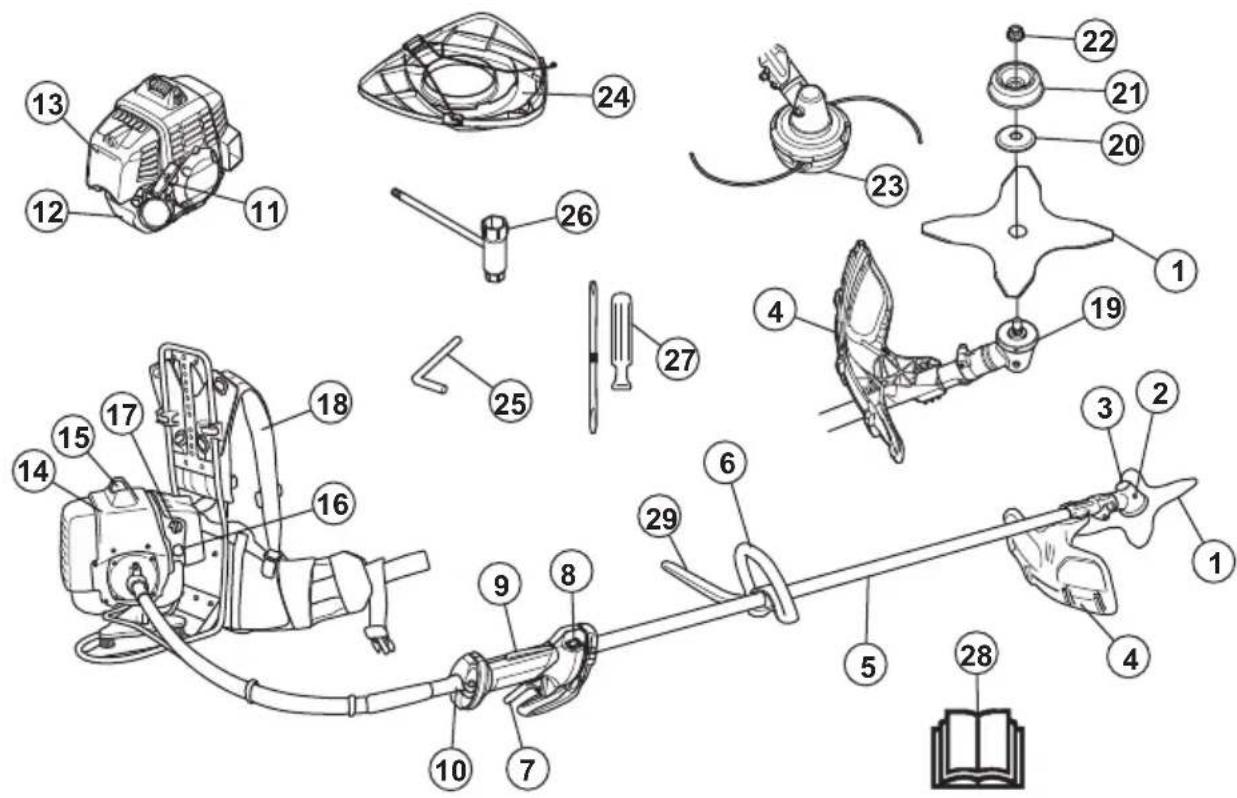

Product overview

1. Blade
2. Grease filler cap, bevel gear
3. Bevel gear

4. Cutting attachment guard

5. Shaft

6. Loop handle
7. Throttle trigger

8. Stop switch

9. Throttle trigger lockout

10. Flexible drive shaft coupling
11. Starter rope handle
12. Fuel tank

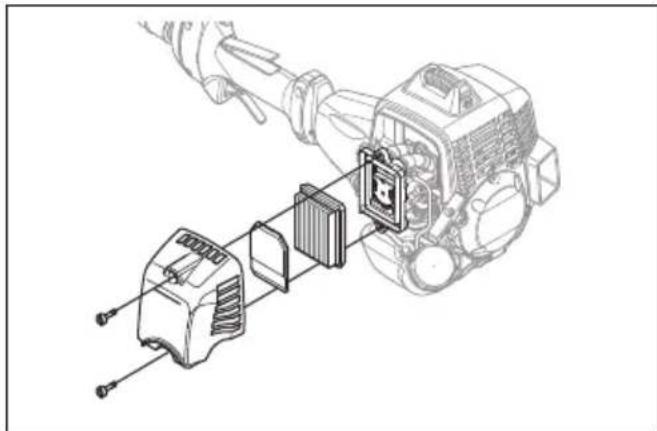

13. Air filter cover
14. Cylinder cover
15. Spark plug cap and spark plug
16. Air purge bulb
17. Choke control
18. Harness
19. Drive disc
20. Support flange
21. Support cup
22. Locknut
23. Trimmer head
24. Transport guard
25. Locking pin
26. Socket wrench
27. Screwdriver
28. Operator's manual

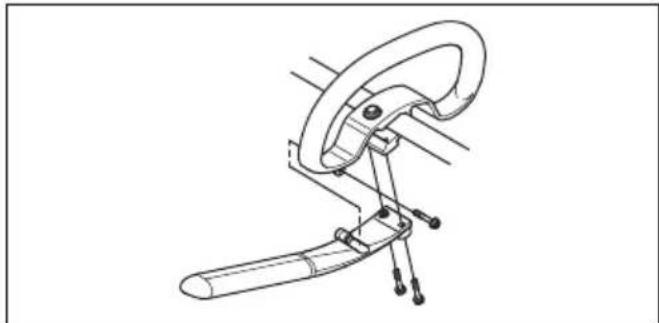

29. J-handle

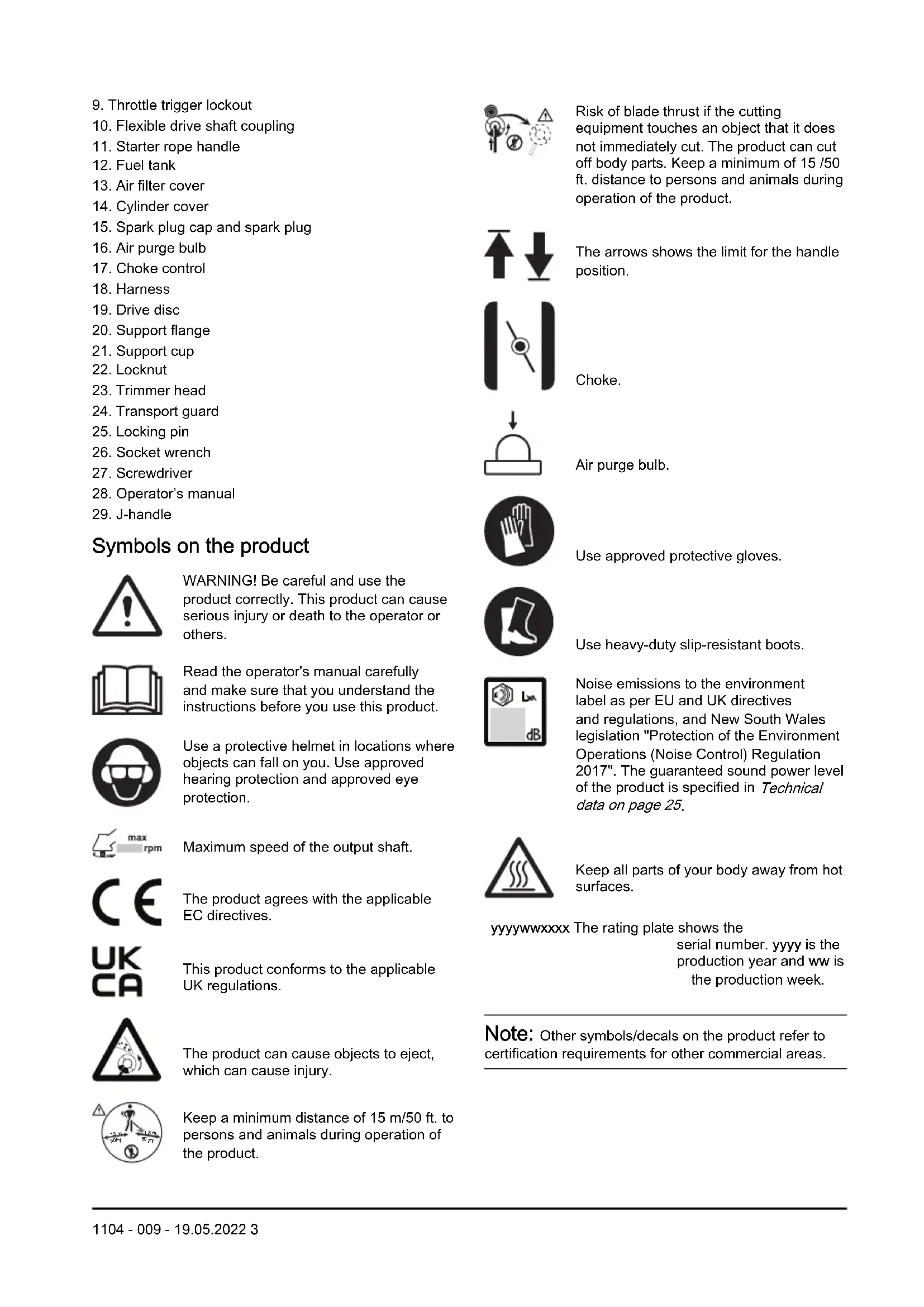

Symbols on the product

WARNING! Be careful and use the product correctly. This product can cause serious injury or death to the operator or others.

Read the operator's manual carefully and make sure that you understand the instructions before you use this product.

Use a protective helmet in locations where objects can fall on you. Use approved hearing protection and approved eye protection.

Maximum speed of the output shaft.

The product agrees with the applicable EC directives.

This product conforms to the applicable UK regulations.

The product can cause objects to eject, which can cause injury.

Keep a minimum distance of 15m / 50 ft. to persons and animals during operation of the product.

Risk of blade thrust if the cutting equipment touches an object that it does not immediately cut. The product can cut off body parts. Keep a minimum of 15/50 ft. distance to persons and animals during operation of the product.

The arrows show the limit for the handle position.

Choke.

Air purge bulb.

Use approved protective gloves.

Use heavy-duty slip-resistant boots.

Noise emissions to the environment label as per EU and UK directives and regulations, and New South Wales legislation "Protection of the Environment Operations (Noise Control) Regulation 2017". The guaranteed sound power level of the product is specified in Technical data on page 25.

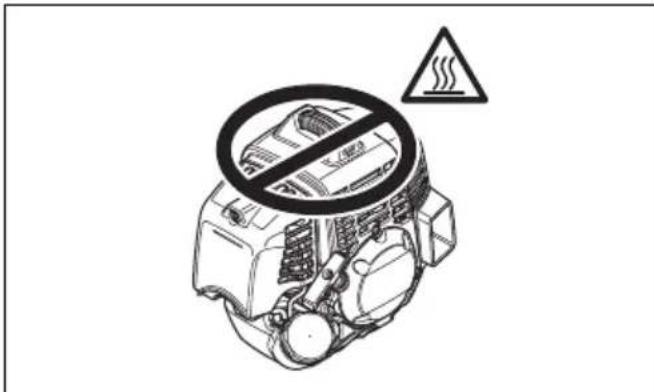

Keep all parts of your body away from hot surfaces.

yyyywwxxx The rating plate shows the

serial number. yyy is the production year and ww is the production week.

Note: Other symbols/decals on the product refer to certification requirements for other commercial areas.

WARNING: Tampering with the engine voids the EU type-approval of this product.

Product liability

As referred to in the product liability laws, we are not liable for damages that our product causes if:

• the product is incorrectly repaired.
• the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.
• the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service center or by an approved authority.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

• Do not do changes to the product without approval from the manufacturer and always use original accessories. Not approved modifications and/or accessories can result in serious injury or the death of the operator or others.
• The inner side of the muffler contains chemicals that may be carcinogenic. Do not touch the muffler if it is damaged.
• This product produces an electromagnetic field during operation, which can cause interference with medical implants. This can cause serious injury or death. Speak to your physician and the medical implant manufacturer before use.
• Do not touch the spark plug or spark plug cord when the engine is on. Risk of electrical shock.
• Your warranty may not be approved for damages caused by accessories or spare parts that are not approved.

Safety instructions for assembly

WARNING: Read the warning instructions that follow before you use the product.

• Remove the spark plug cap from the spark plug before you assemble the product.
• Use approved protective gloves.
• Make sure that you assemble the cover and shaft correctly before you start the engine.
• The drive disc and support flange must engage correctly in the center hole of the cutting attachment. A cutting attachment that is attached incorrectly can cause serious injury or death of the operator or others.
• To operate the product safely and prevent injury to the operator or other persons, the product must always be attached correctly to the harness.

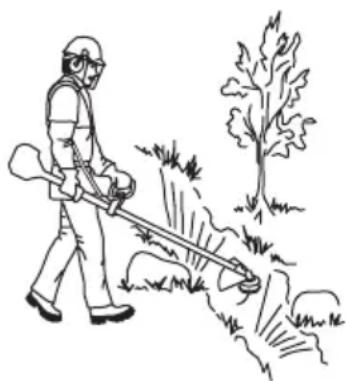

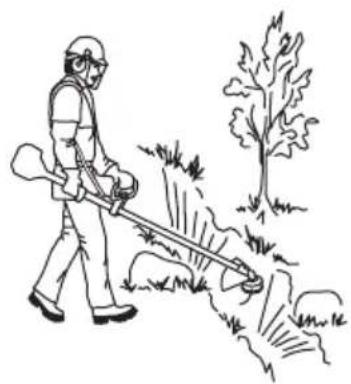

Safety instructions for operation

WARNING: Read the warning instructions that follow before you use the product.

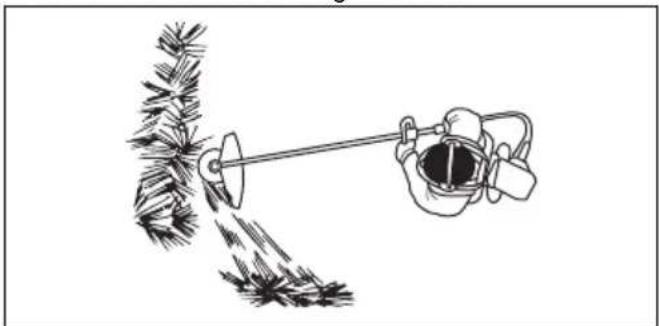

• You must understand the difference between grass clearing and grass trimming before use.
• If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop. Avoid all usage which you consider to be beyond your capability.
• Never use a product that is faulty. Carry out the safety checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. See instructions under Safety devices on the product on page 6
• All covers, guards and handles must be fitted before you start the product. Ensure that the spark plug cap and ignition lead are undamaged to avoid the risk of electric shock.
• Never use the product if you are fatigued, while under the influence of alcohol or drugs, medication

or anything that could affect your vision, alertness, coordination or judgement.

• Do not use the product in bad weather such as dense fog, heavy rain, strong wind, intense cold, etcetera. Working in bad weather is tiring and often brings added risks, such as icy ground, unpredictable felling direction, etcetera.
• The only accessories you can operate with this engine unit are the cutting attachments that we recommend in the chapter Accessories on page 27.
• Never allow children to use or be in the vicinity of the product. As the product is equipped with a spring-loaded start/stop switch and can be started by low speed and force on the starter handle, even small children under some circumstances can produce the force necessary to start the product. This can mean a risk of serious personal injury. Therefore remove the spark plug cap when the product is not under close supervision.
• Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning.

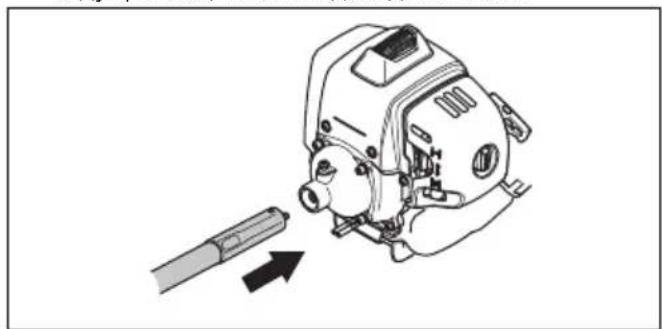

• The complete clutch cover and shaft must be fitted before the product is started, otherwise the clutch can come loose and cause personal injury.
• Ensure that no people or animals come closer than 15 metres while you work. When several operators are working in the same area the safety distance should be at least 15 metres. Otherwise there is a risk of serious personal injury. Stop the product immediately if anyone approaches. Never swing the product around without first checking behind you to make sure that noone is within the safety zone.
• Ensure that people, animals or other things can not affect your control of the product or that they do not come in contact with the cutting attachment or loose objects that are thrown out by the cutting attachment. However, do not the product unless you are able to call for help in the event of an accident.
• Always inspect the working area. Remove all loose objects such as stones, broken glass, nails, steel wire, string, etcetera, that could be thrown out or become wrapped around the cutting attachment.
• Make sure that you can move and stand safely. Check the area around you for possible obstacles (roots, rocks, branches, ditches, etcetera) in case

you have to move suddenly. Take great care when you work on sloping ground.

• Keep a good balance and a firm foothold at all times. Do not overreach.
  Always use the harness and keep the shaft on the right side of your body when you operate the product.
• Keep the cutting attachment below waist level.
• Switch off the engine before you move to another area. Fit the transportation guard before you carry or transport the equipment any distance.
• Never put the product down with the engine running unless you have it in clear sight.
• Stop the engine and cutting equipment before you remove material that has wound around the blade shaft. Neither the operator of the product nor anyone else may attempt to remove the cut material while the engine is running or the cutting equipment is rotating, as this can result in serious injury. The bevel gear can get hot during use and may remain so for a while afterwards. You could get burnt if you touch it.
• Watch out for thrown objects. Always wear approved eye protection. Never lean over the cutting attachment guard. Stones, rubbish, etcetera, can be thrown up into the eyes which can cause blindness or serious injury.
• Sometimes branches or grass get caught between the guard and cutting attachment. Always stop the engine before you clean the product.
• Products that are fitted with saw blades or grass blades can be thrown violently to the side when the blade comes into contact with a fired object. This is called blade thrust. A blade thrust can be violent enough to cause the product and/or operator to be propelled in any direction, and possibly lose control of the product. Blade thrust can occur without warning if the product snags, stalls or binds. Blade thrust is more likely to occur in areas where it is difficult to see the material being cut.

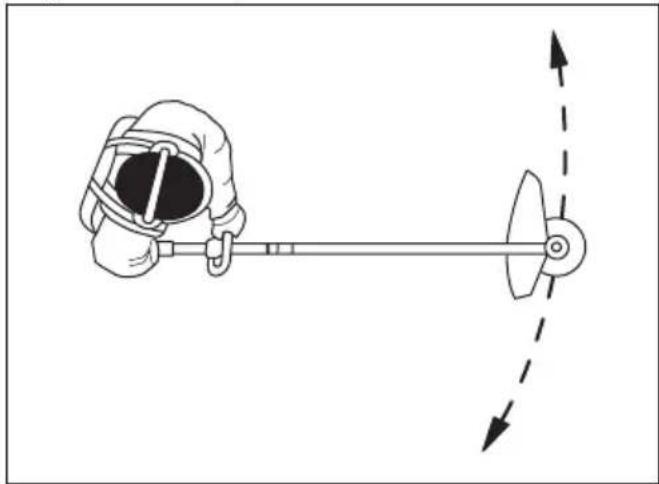

• Avoid to cut with the area of the blade between the 12 o'clock and 3 o'clock positions. Because of the speed of rotation of the blade, blade thrust can occur if you attempt to cut thick stems with this area of the blade.

• Always slow the engine to idle speed after each working operation. Long periods at full throttle without any load on the engine can lead to serious engine damage.

• Listen out for warning signals or shouts when you wear hearing protection. Always remove your hearing protection as soon as the engine stops.
• Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation. Contact your doctor if you experience symptoms of overexposure to vibration. These symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally appear in the fingers, hands or wrists.
• Do not use a product with a damaged spark plug cap.
• Do not use a product with a defective muffler.
• Keep all parts of your body away from the rotating cutting attachment and hot surfaces.
  Always wear gloves when you handle the grass blade.

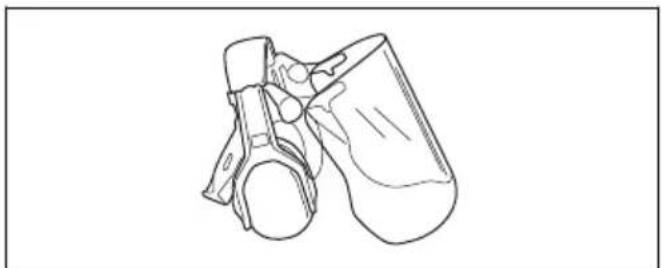

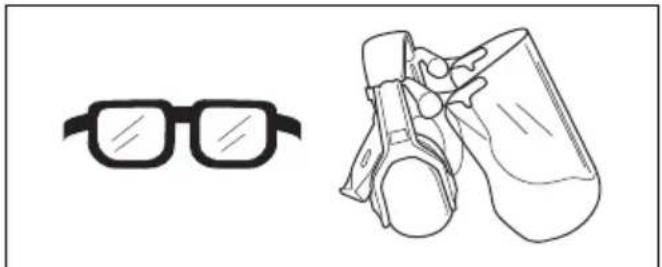

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

• Always use approved personal protective equipment when you use the product. Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.
• Use a protective helmet where there is a risk of falling objects.
• Use approved hearing protection that provides adequate noise reduction. Long-term exposure to noise can result in permanent hearing impairment.
• Use approved eye protection. If you use a visor, you must also use approved protective goggles. Approved protective goggles must comply with the ANSI Z87.1 standard in the USA or EN 166 in EU countries.
• Use a visor for face protection. A visor is not enough for protection of the eyes.

• Use gloves when necessary, for example when you attach, examine or clean the cutting equipment.
• Use sturdy non-slip boots.
• Use clothing made of a strong fabric. Always use heavy, long pants and long sleeves. Do not use

loose clothing that can catch on twigs and branches. Do not wear jewelry, short pants, sandals or go with bare feet. Put your hair up safely above shoulder level.

• Keep first aid equipment close at hand.

Safety devices on the product

For information about where to find the safety devices, see Product overview on page 2.

WARNING: Read the warning instructions that follow before you use the product.

• Do not use a product with defective safety devices. Do a check of and do maintenance on the safety devices regularly. If the safety devices are defective, speak to your Husqvarna service agent.
• Do not make changes to safety devices. Do not use the product if protective covers, safety switches or other protective devices are not attached or are defective.
• For all service and repair work on the product, especially for the safety devices, special training is necessary. If the safety devices fail the checks given in this operator's manual, you must let a service agent help you. We guarantee that professional repairs and service is available. If your dealer is not a service agent, speak to them for information about the nearest service agent.
• Do not use a cutting attachment without an approved and correctly attached cutting attachment guard. See Accessories on page 27.

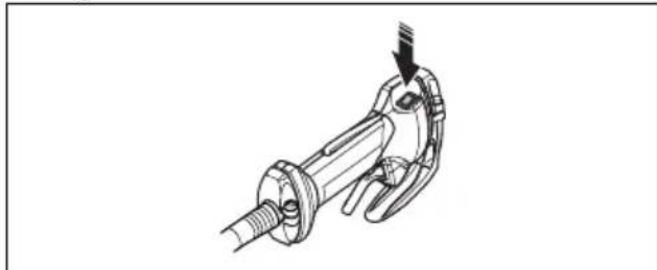

To do a check of the stop switch

1. Start the engine.

2. Move the stop switch to the stop position and make sure that the engine stops.

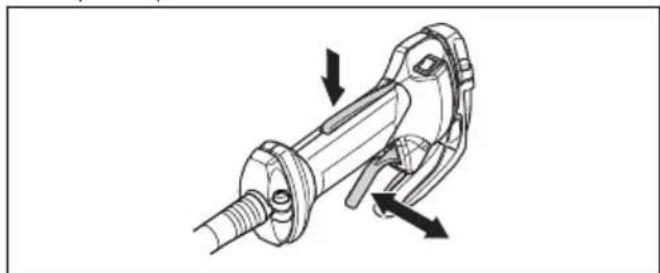

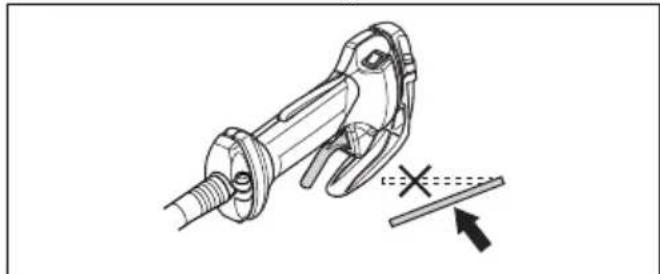

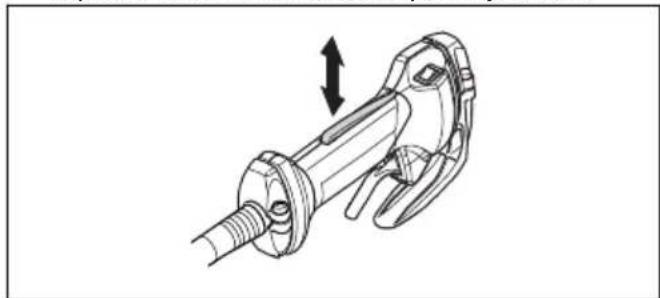

To do a check of the throttle trigger lockout

The throttle trigger lockout locks the throttle trigger at the idle position to prevent accidental operation of the throttle trigger. When you release the handle of the throttle trigger and the throttle trigger lockout the two move back to their initial positions.

1. Push the throttle trigger lockout (A). Make sure that the throttle trigger (B) is released.

1. Make sure that the throttle trigger (B) is locked at the idle position when the throttle trigger lockout is released.

1. Push the throttle trigger lockout (A) and make sure that it goes back to its initial position when you release it.

1. Make sure that the throttle trigger lockout (A) and the throttle trigger (B) move freely.

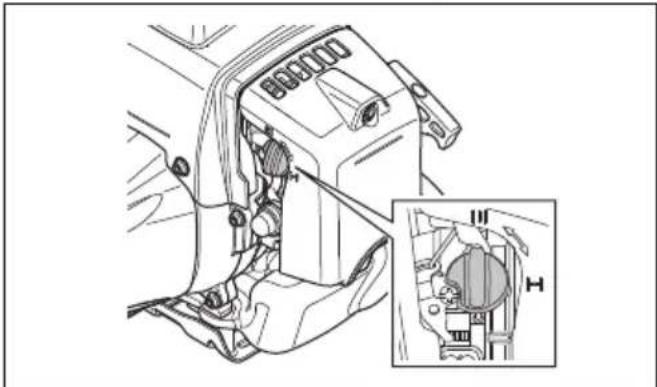

1. Start the product and apply full throttle. Refer to To start the engine on page 18
2. Release the throttle trigger (B) and make sure that the cutting attachment stops and stays stationary.

WARNING: If the cutting attachment moves when the throttle trigger is in the idle position, adjust the idle speed. Refer to To adjust the idle speed on page 21.

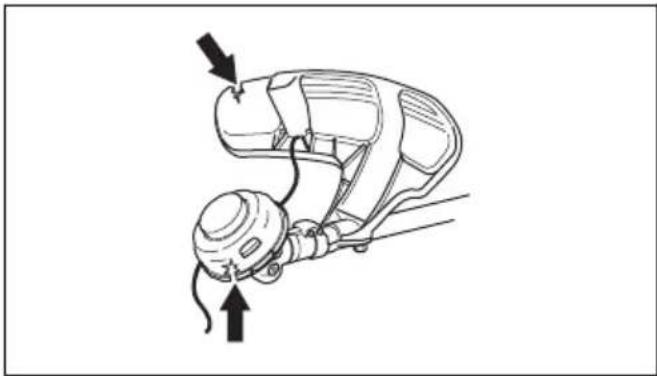

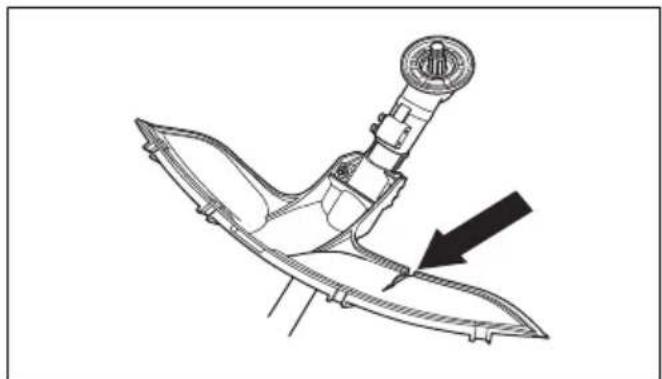

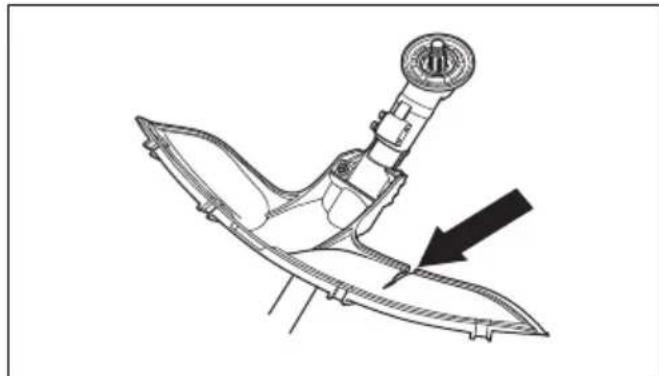

To do a check of the cutting attachment guard

WARNING: An incorrect or defective cutting attachment guard can cause serious injury. Refer to Accessories on page 27.

WARNING: Always use the recommended cutting attachment guard for the cutting attachment that you use. If an incorrect or defective cutting attachment guard is installed, this can cause serious injury. Refer to Accessories on page 27.

The cutting attachment guard prevents injuries from objects that eject in the direction of the operator. It also prevents injuries that occur if you touch the cutting attachment.

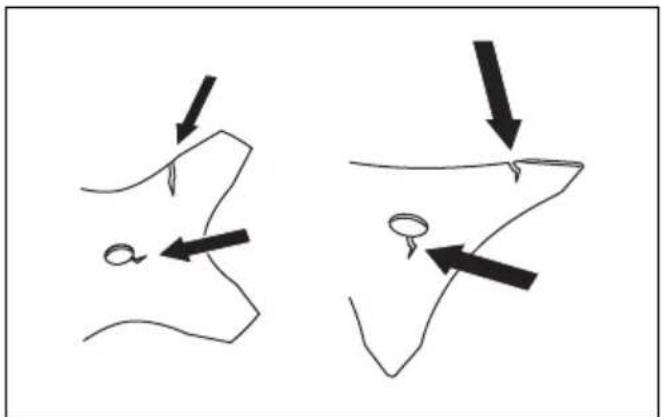

1. Do a visual check for damages, for example cracks.

1. Replace the cutting attachment guard if it is damaged.

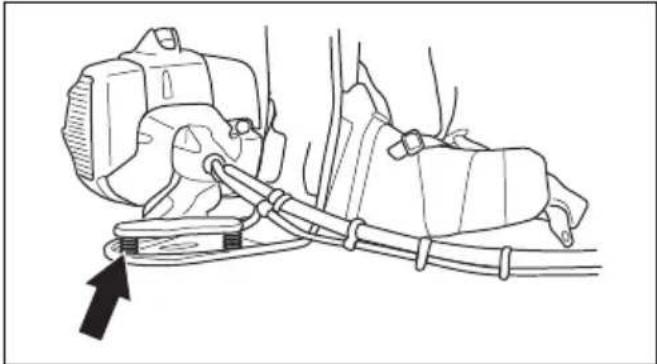

To do a check of the vibration damping system

The vibration damping system decreases vibration in the handles to a minimum which makes the operation easier.

1. Stop the engine.
2. Do a visual check for deformation and damage, for example cracks.
3. Make sure that the elements of the vibration damping system are attached correctly.

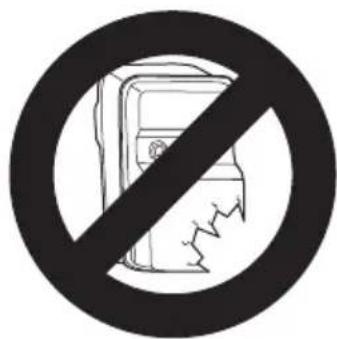

To do a check of the muffler

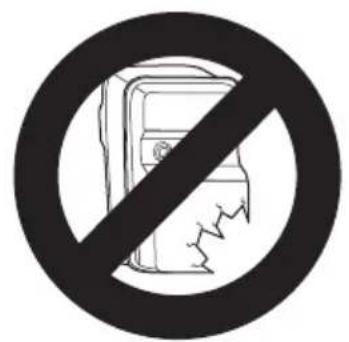

WARNING: Never use a product with a faulty muffler.

WARNING: Bear in mind that the exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the product indoors or near combustible material!

The muffler keeps noise levels to a minimum and sends exhaust fumes away from the operator. For mufflers it is very important that you follow the instructions on how to check, maintain and service your product.

• Regularly check that the muffler is securely attached to the product.

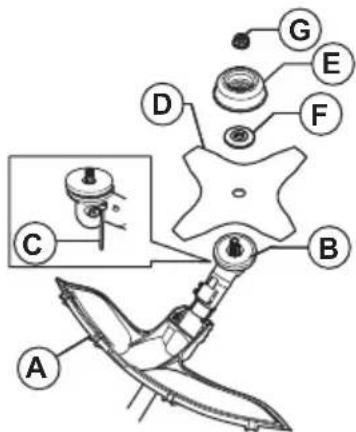

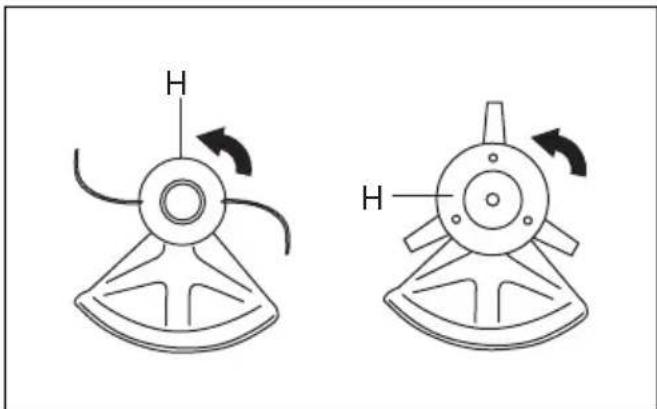

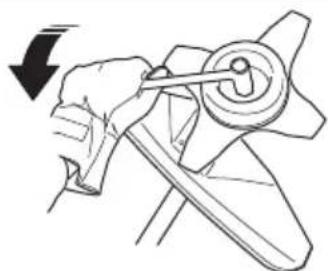

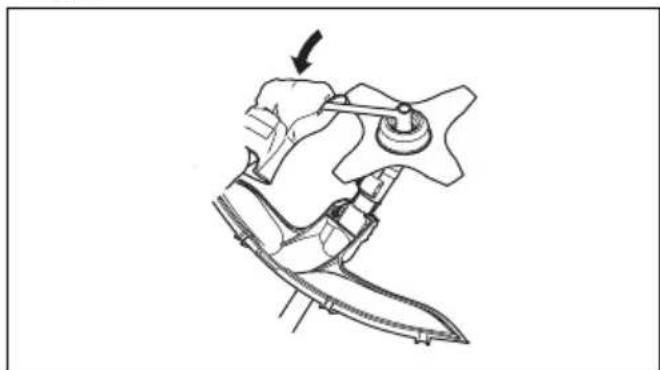

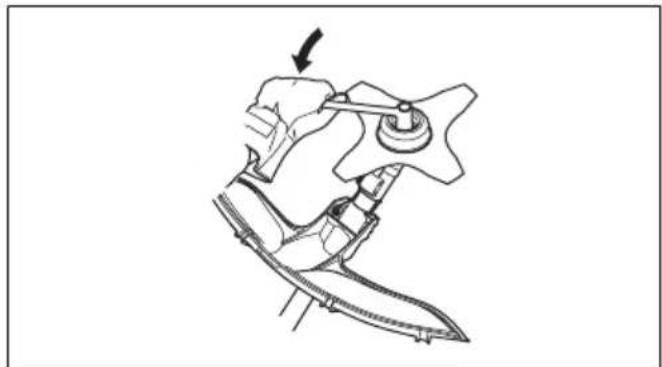

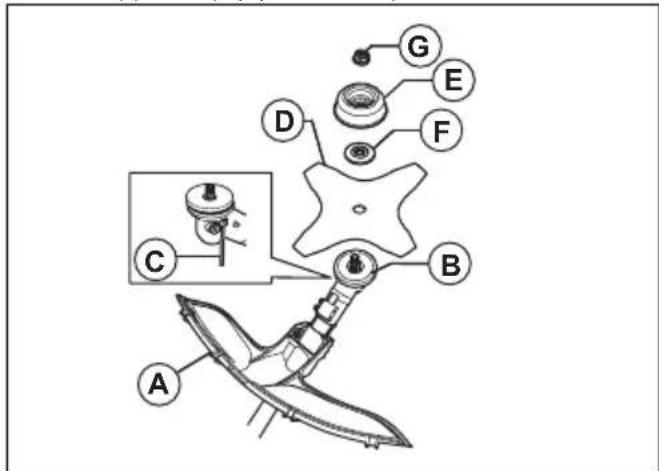

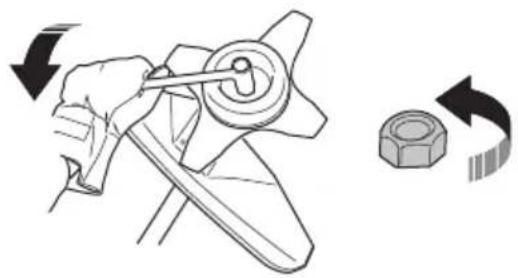

To attach and remove the locknut

WARNING: Stop the engine, use protective gloves and be careful around the sharp edges of the cutting attachment.

A locknut is used to attach some types of cutting attachments. The locknut has a left thread.

• To attach, tighten the locknut in the opposite direction to the direction of turning of the cutting attachment.
• To remove the locknut, loosen the locknut in the same direction as the cutting attachment rotates.
• To loosen and tighten the locknut, use a socket wrench with a long shaft. The arrow in the picture shows the area where you can operate the socket wrench.

WARNING: When you loosen and tighten the locknut, there is a risk of injury from the blade. You must always make sure that the blade guard prevents injury to your hand when you do this.

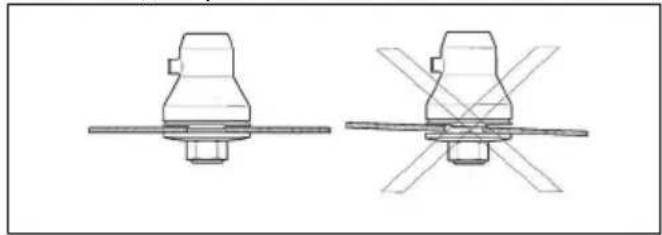

Note: Make sure that you can not turn the locknut by hand. Replace the nut if the nylon lining does not have a resistance of a minimum of 1.5 Nm. The locknut must be replaced after it has been put on approximately 10 times.

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

• Always use approved personal protective equipment when you use the product. Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.
• Use a protective helmet where there is a risk of falling objects.

• Use approved hearing protection that provides adequate noise reduction. Long-term exposure to noise can result in permanent hearing impairment.

• Use approved eye protection. If you use a visor, you must also use approved protective goggles. Approved protective goggles must comply with the ANSI Z87.1 standard in the USAs or EN 166 in EU countries.

• Use gloves when necessary, for example when you attach, examine or clean the cutting equipment.

• Use protective boots with steel toes and non-slip soles.

• Use clothing made of a strong fabric. Always use heavy, long pants and long sleeves. Do not use loose clothing that can catch on twigs and branches. Do not wear jewelry, short pants, sandals or go with bare feet. Put your hair up safely above shoulder level.
• Keep first aid equipment close at hand.

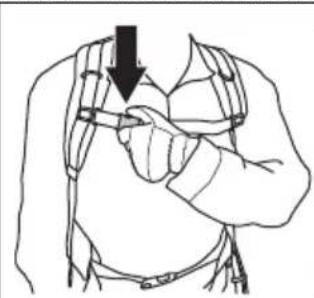

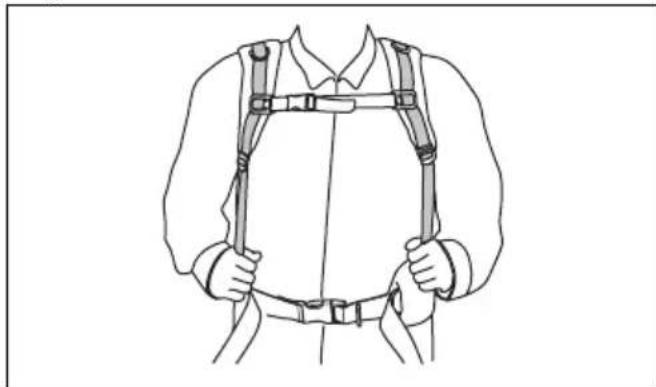

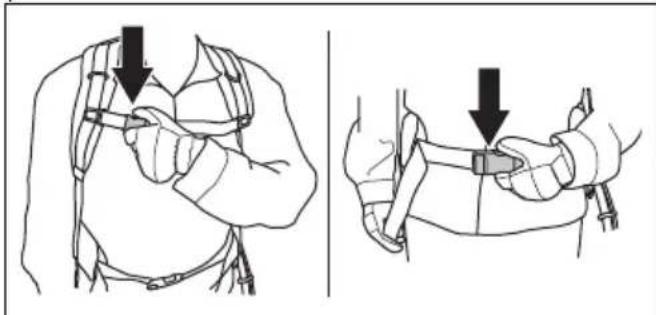

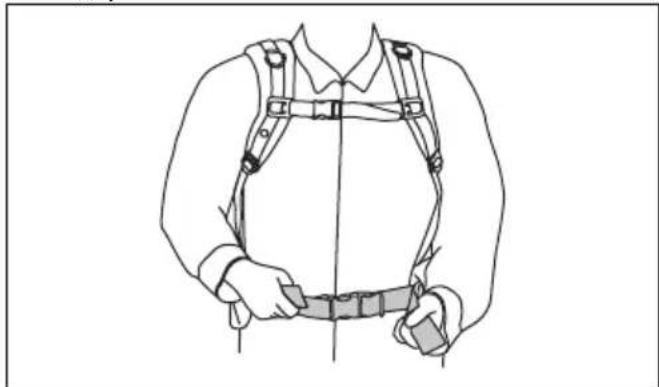

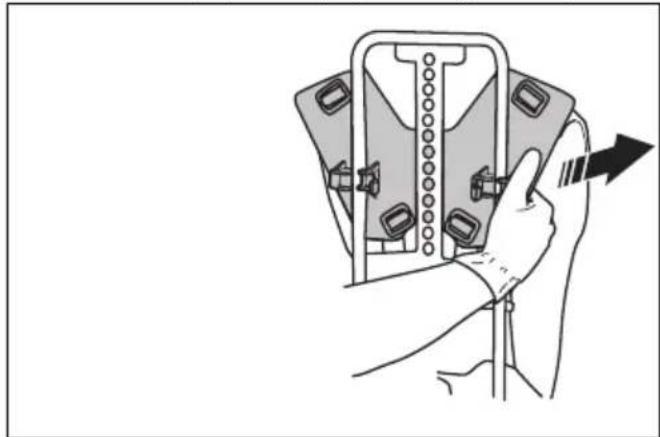

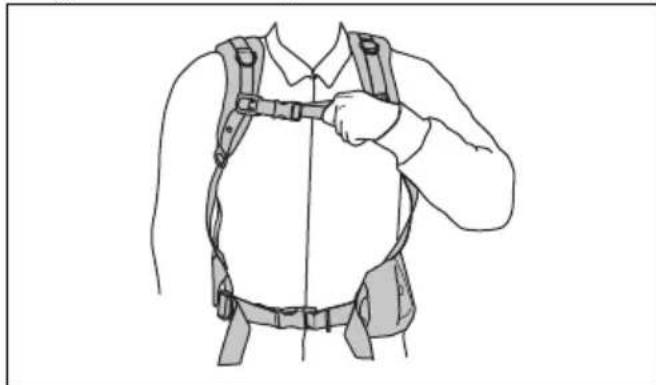

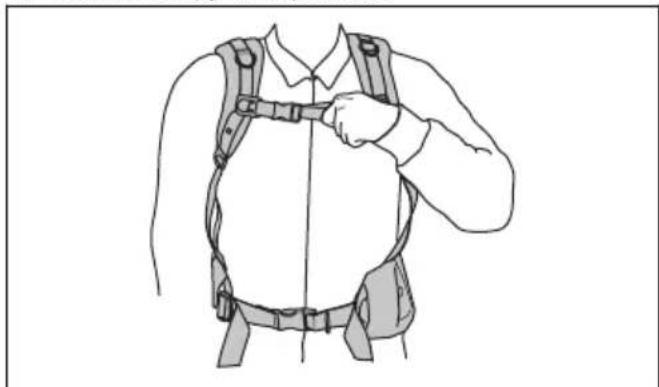

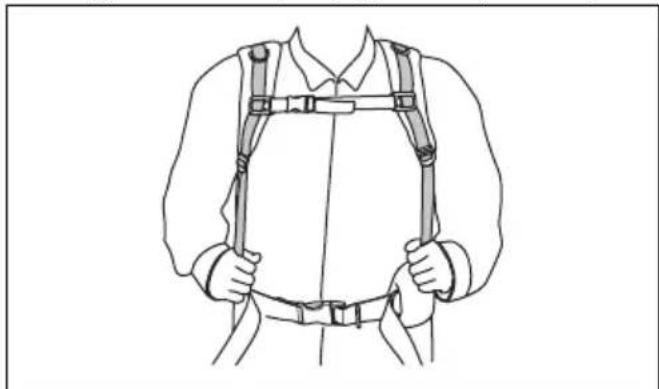

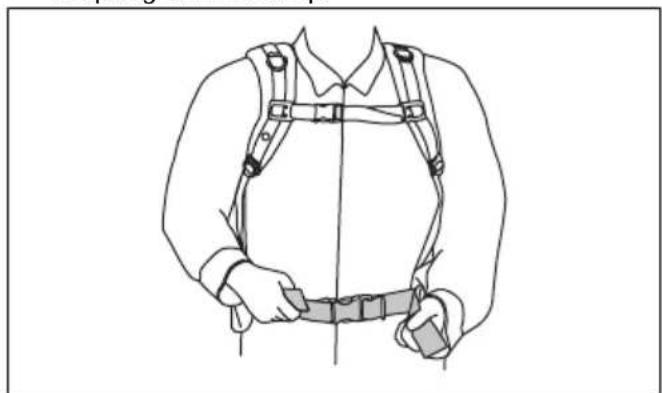

Harness quick release

WARNING: Do not use the harness if the quick release function is defective. Make sure that the quick release function operates correctly when you adjust the product.

WARNING: Make sure that the product is attached safely to the harness when you operate the product. If not, you can not control the product safely and result in injury to you or others.

The quick release function is at the front of the harness. The harness straps must always stay at the correct position.

In an emergency, the quick release function helps you to safely release from the product.

Cutting attachment

WARNING: The cutting attachment must not rotate when you do work on it. Make sure that the engine has stopped. Remove the spark plug cap before you do work on the cutting attachment.

WARNING: Make sure that the cutting attachment is not damaged. A damaged cutting attachment can cause accidents. Replace a damaged cutting attachment.

WARNING: Use the correct cutting attachment. Only use the cutting attachment with the guards we recommend, refer to Accessories on page 27.

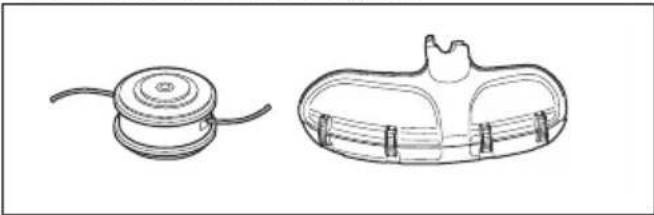

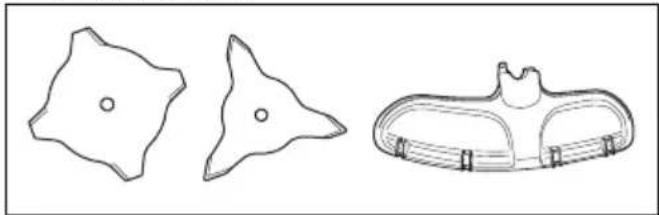

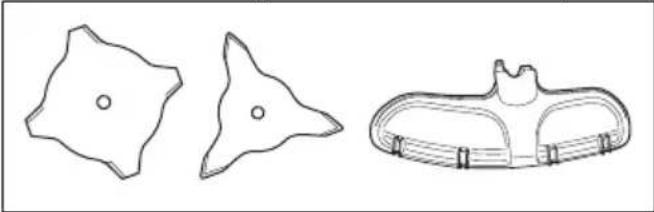

Cutting equipment

• Use the blades and grass knives to cut coarse grass.

• Use the trimmer head to cut grass.

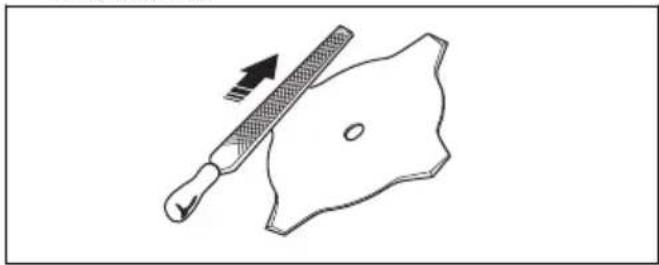

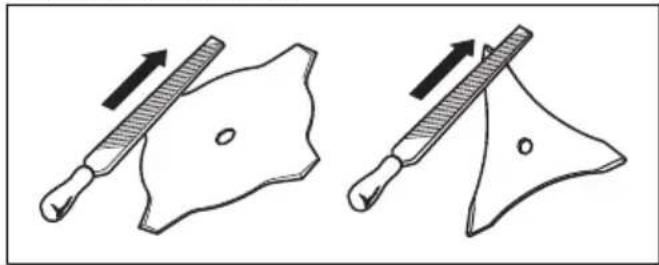

• An incorrectly sharpened or damaged blade increases the risk of accidents. Keep the teeth of the blade correctly sharpened. Follow the instructions in To sharpen the grass knife and grass blade on page 23 and use the recommended file gauge.

• Examine the cutting attachment for damage and cracks. Replace the damaged cutting attachment.
• Only use cutting attachments with recommended guards. See Accessories on page 27.

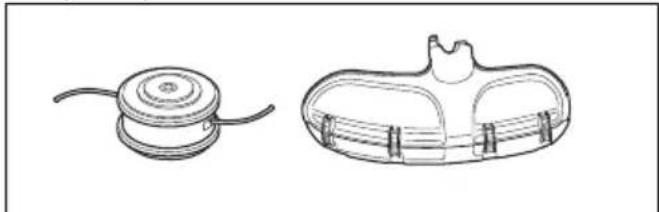

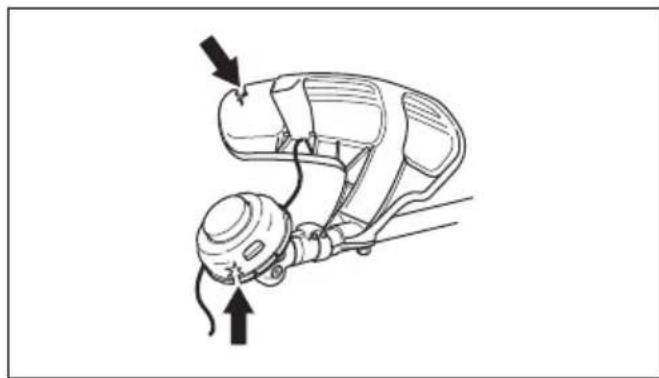

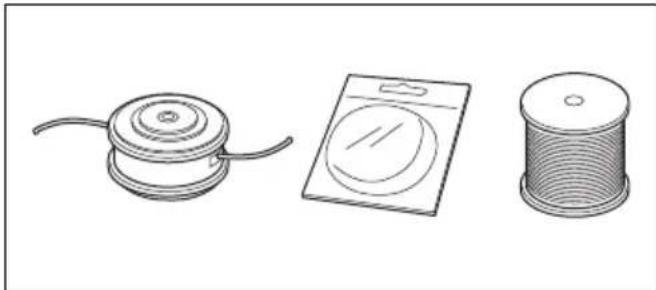

Trimmer head

WARNING: Always make sure the trimmer line is wound tightly and evenly around the drum to prevent harmful vibration.

• Only use recommended trimmer heads and trimmer lines.
• Only use recommended cutting attachments.
• Smaller machines requires small trimmer heads and vice versa.
• The length of the trimmer line is important. A longer trimmer line requires greater engine power than a shorter trimmer line of the same diameter.
• Make sure that the cutter on the trimmer guard is intact. This cuts the trimmer line to the correct length.
• Soak the trimmer line in water for a couple of days before use to increase the life length.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you use the product.

• Stop the engine, make sure that the cutting attachment stops and let the product cool down before you do the maintenance.

• Disconnect the spark plug cap before you do the maintenance.

• The exhaust fumes from the engine contain carbon monoxide, an odorless, poisonous and very dangerous gas that can cause death. Do not run the product indoors or in closed spaces.

• The exhaust fumes from the engine are hot and can contain sparks. Do not run the product indoors or near flammable material.

• Accessories and changes to the product that are not approved by the manufacturer, can cause serious injury or death. Do not change the product. Always use original accessories.

• If the maintenance is not done correctly and regularly, there is an increased risk of injury and damage to the product.

• Only do the maintenance as this operator's manual recommends. Let an approved Husqvarna service agent do all other servicing.
• Let an approved Husqvarna service agent do servicing on the product regularly.
• Replace damaged, worn or broken parts.

Fuel safety

WARNING: Read the warning instructions that follow before you use the product.

• Do not mix the fuel indoor or near a heat source.
• Do not start the product if there is fuel or engine oil on the product. Remove the unwanted fuel/oil and let the product dry. Remove unwanted fuel from the product.
• If you spill fuel on your clothing, change clothing immediately.
• Do not get fuel on your body, it can cause injury. If you get fuel on your body, use a soap and water to remove the fuel.
• Do not start the engine if you spill oil or fuel on the product or on your body.
• Do not start the product if the engine has a leak.
  Examine the engine for leaks regularly.
• Be careful with fuel. Fuel is flammable and the fumes are explosive and can cause injuries or death.
• Do not breathe in the fuel fumes, it can cause injury.
  Make sure that there is sufficient airflow.
• Do not smoke near the fuel or the engine.
• Do not put warm objects near the fuel or the engine.
• Do not add the fuel when the engine is on.
• Make sure that the engine is cool before you refuel.

• Before you refuel, open the fuel tank cap slowly and release the pressure carefully.

• Make sure there are sufficient airflow when refueling and mixing fuel (petrol and two-stroke oil) or draining the fuel tank.

• Fuel and fuel vapor are highly flammable and can cause serious injury when inhaled or allowed to come into contact with the skin. For this reason, observe caution when handling fuel and make sure there is sufficient airflow.
• Tighten the fuel tank cap carefully or a fire can occur.
• Move the product at a minimum of 3m (10 ft) from the position where you filled the tank before a start.
• Do not put too much fuel in the fuel tank.
• Make sure that a leak cannot occur when you move the product or fuel container.
• Do not put the product or a fuel container where there is an open flame, spark or pilot light. Make sure that the storage area does not contain an open flame.
• Only use approved containers when you move the fuel or put the fuel into storage.
• Empty the fuel tank before long-term storage. Obey the local law on where to dispose fuel.
• Clean the product before long-term storage.
• Remove the spark plug cap before you put the product into storage to make sure that the engine does not start accidentally.

Assembly

Introduction

WARNING: Before you assemble the product, you must read and understand the safety chapter.

WARNING: Remove the spark plug cable from the spark plug before you assemble the product.

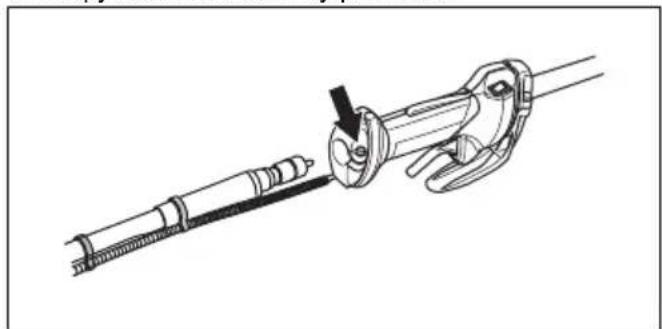

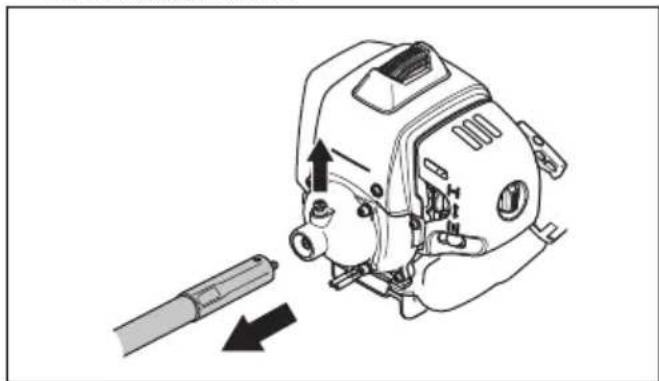

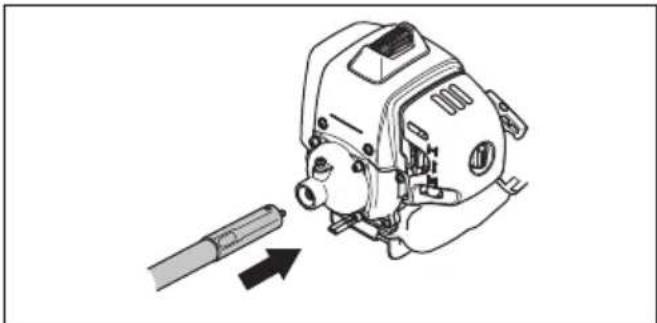

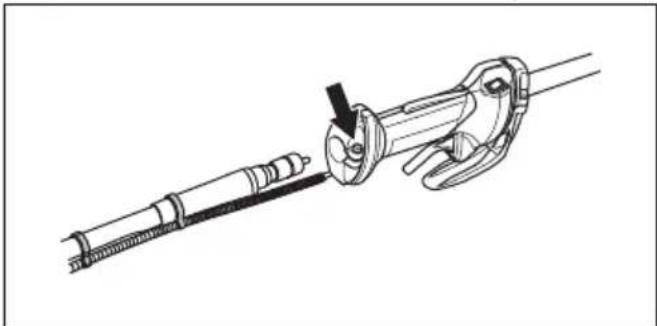

To assemble the flexible drive shaft

1. Remove the 2 screws at the shaft coupling.

1. Put the flexible drive shaft through the loops at the wire harness.

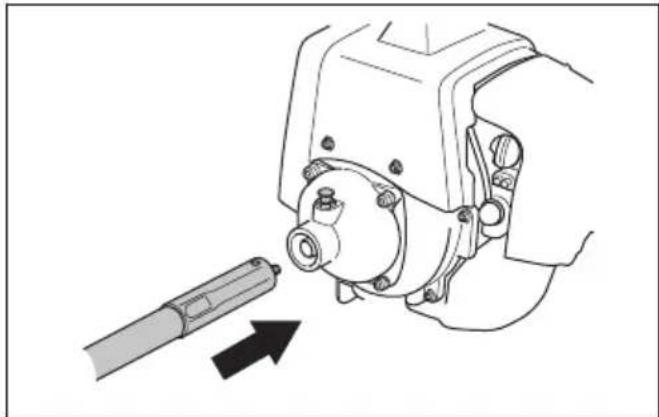

2. Turn and push the flexible drive shaft at the same time to connect it.
3. Tighten the 2 screws.
4. Assemble the drive shaft sleeve in the clutch cover. Turn and push the drive shaft at the same time to connect it.

1. Make sure that the locking pin goes back to its initial position.

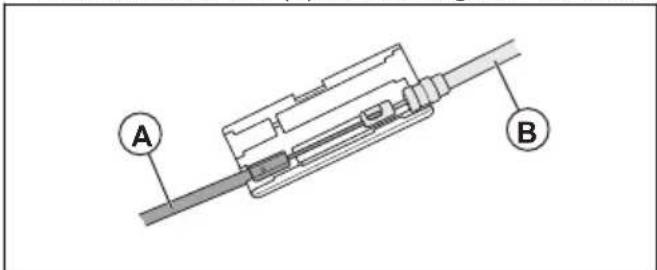

To connect the throttle cable and the stop switch wires

1. Open the cover.

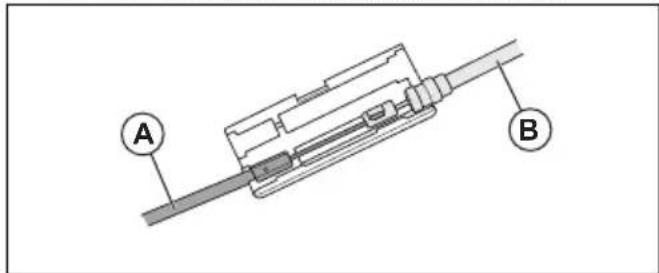

2. Connect the throttle wire from the wire harness (A) and the throttle wire (B) from the engine in the cover.

1. Close the cover.

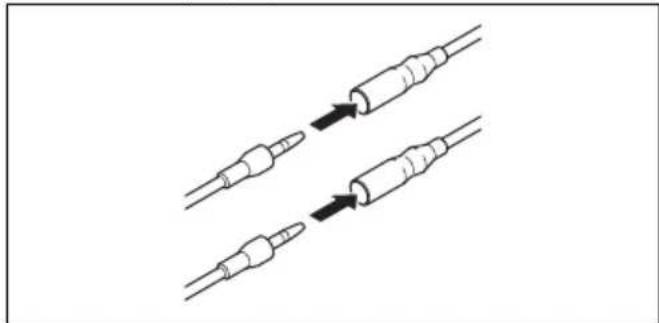

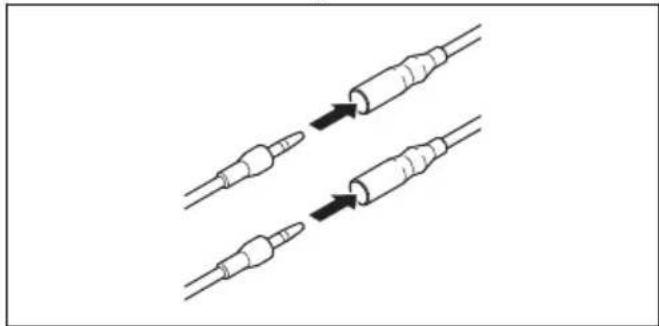

2. Connect the stop switch wires into the related connectors from the engine.

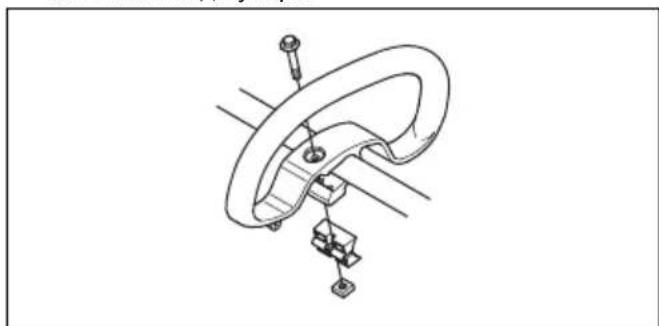

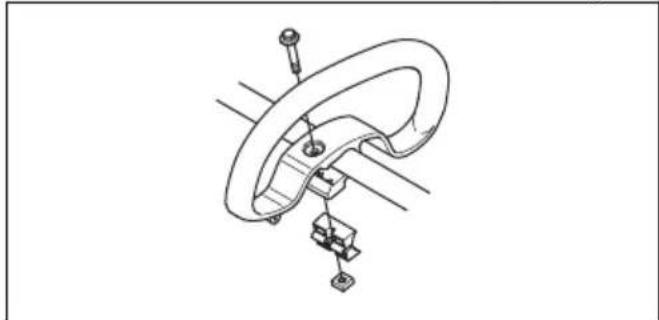

To assemble the loop handle

1. Put the loop handle on the shaft.
2. Attach the spacer into the slot in the loop handle. Attach the nut and the screw. Do not tighten fully.

1. Adjust the product to an applicable work position.
2. Tighten the nut and the screw.

To assemble the J-handle

WARNING: Use the J-handle with grass blades/grass cutters or trimmer heads/ plastic blades. Do not use saw blades or clearing blades with the J-handle.

1. Attach the J-handle to the loop handle with 3 screws.

1. Adjust the product to an applicable work position.
2. Tighten the screws.

To assemble the cutting equipment

The cutting equipment includes a cutting attachment and a cutting attachment guard.

WARNING: Use protective gloves.

WARNING: Always use the cutting attachment guard that is recommended for the cutting attachment. See Accessories on page 27.

WARNING: An incorrectly attached cutting attachment can result in injury or death.

To attach the guard extension

CAUTION: Use the guard extension when you use a trimmer head/plastic blade. Do not use the guard extension when you use a grass blade.

1. Put the guard extension in the groove of the cutting attachment guard.

1. Put the guard extension into position on the cutting attachment guard with the 4 locking hooks.

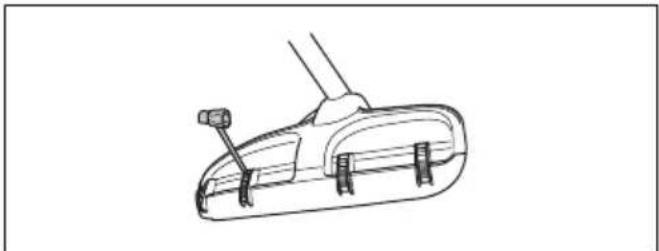

To remove the guard extension

• Release the locking hooks with the spark plug wrench.

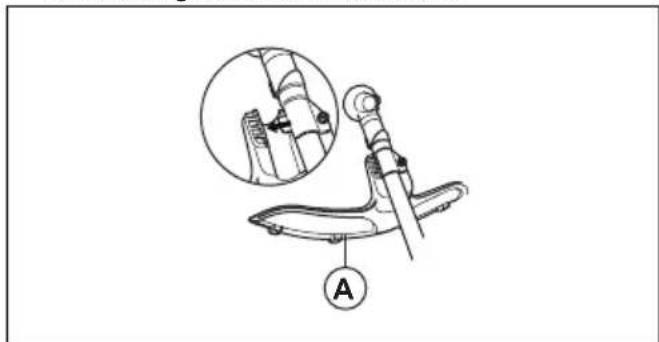

To attach the grass blade and the grass blade guard/combination guard

1. Put the blade guard/combination guard (A) onto the shaft and tighten the bolt to attach it.

1. Make sure that the guard extension is removed.
2. Turn the output shaft to align one of the holes in the drive disc (B) with the related hole in the gear housing.
3. Put the locking pin (C) in the hole to lock the shaft.
4. Put the grass blade (D), the support flange (F) and the support cup (E) on the output shaft.

1. Make sure that the drive disc and support flange engages correctly in the centre hole of the grass blade.

1. Attach the nut (G).

2. Tighten the nut with the socket wrench. Hold the shaft of the socket wrench near the blade guard. Tighten in the opposite direction to how the cutting attachment rotates. Tighten it to a torque of 35-50 Nm.

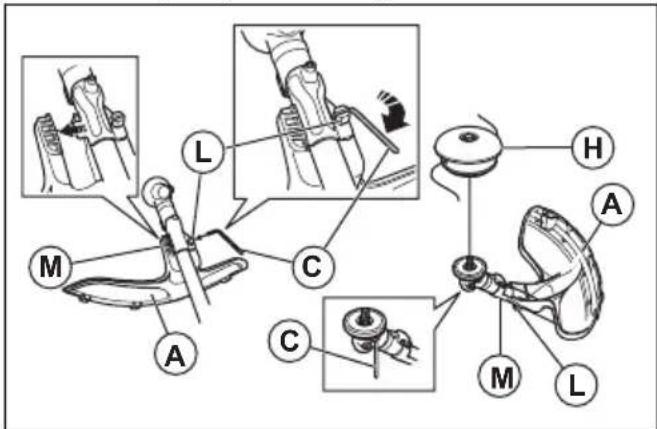

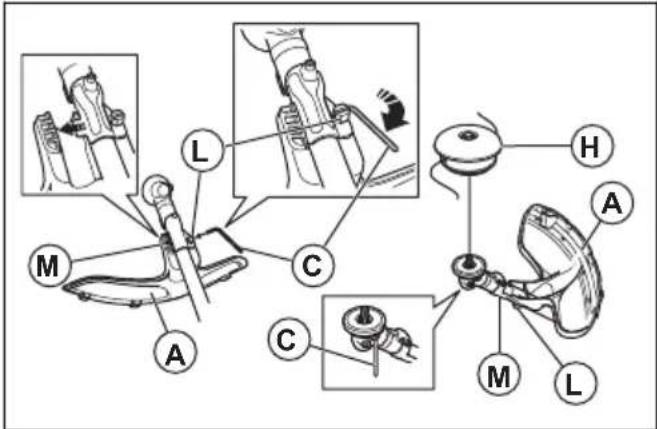

To assemble and disassemble the cutting attachment guard and trimmer head

CAUTION: Make sure that the guard extension is attached.

1. Attach the correct cutting attachment guard (A) for the trimmer head. Refer to Accessories on page 27.
2. Put the cutting attachment guard onto the fitting on the shaft.
3. Attach the cutting attachment guard with the bolt.
4. Install the drive disc (B) on the output shaft.
5. Turn the output shaft until one of the holes in the drive disc aligns with the related hole in the gear housing.
6. Put the locking pin (C) in the hole to lock the shaft.

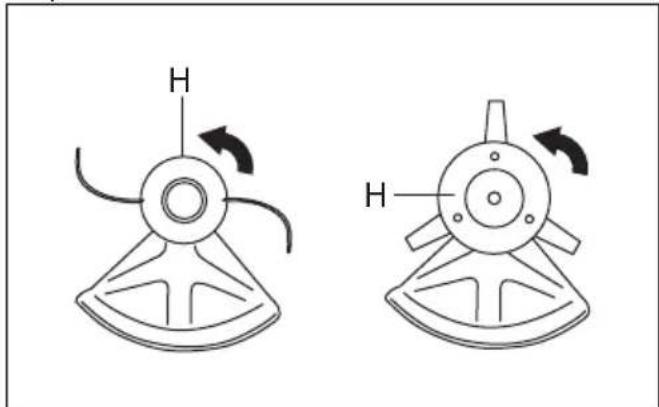

1. Turn the trimmer head /plastic blades (H) in the opposite direction from which the trimmer head/ plastic blades rotate.

1. To disassemble, follow the instructions in the opposite sequence.

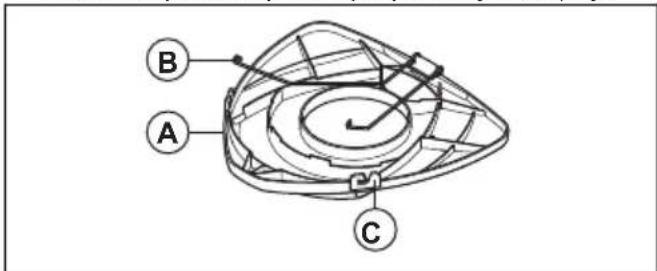

To install the transport guard

1. Install the blade in the transport guard (A).
2. Put the two fasteners (B) into the slots (C) to attach the transport guard.

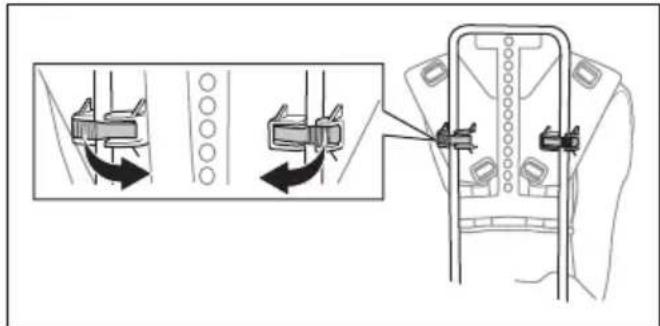

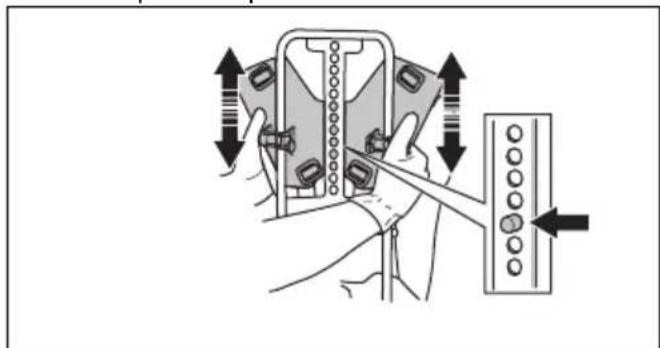

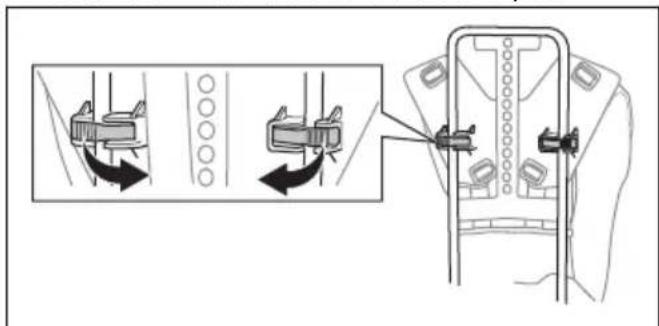

To adjust the backplate height

1. Loosen the 2 fasteners that hold the backplate.

1. Loosen the backplate from the frame on 1 side.

1. Adjust the backplate to the correct height. Make sure that the pin aligns with 1 of the holes on the frame.

To adjust the harness

1. Put on the harness of the product.
2. Tighten the hip strap tightly. Make sure that the hip strap aligns with the hip.

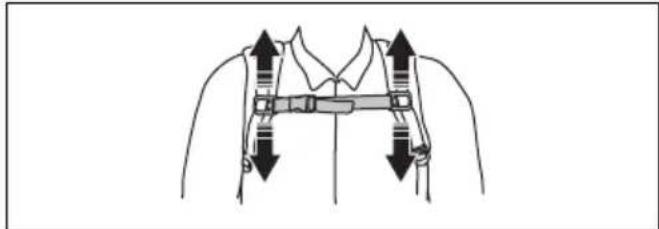

1. Tighten the chest strap.

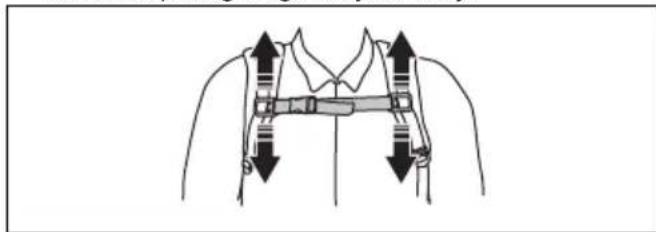

1. Adjust the chest strap vertically. Make sure that the chest strap is tight against your body.

1. Adjust the shoulder strap until the weight is equal on your shoulders.

Operation

Introduction

WARNING: Before you operate the product, you must read and understand the safety chapter.

Before you operate the product

• Examine the work area to make sure that you know the type of terrain, the slope of the ground and if

there are obstacles such as stones, branches and ditches.

• Do an overhaul inspection of the product.
• Do the safety inspections, maintenance and servicing that are given in this manual.

• Make sure that all covers, guards, handles and the cutting equipment are correctly attached and not damaged.

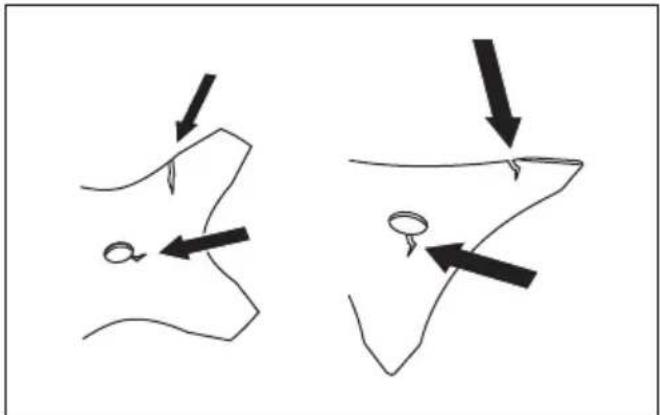

• Make sure that there are no cracks at the bottom of the grass blade teeth or by the center hole of the blade. Replace the blade if it is damaged.

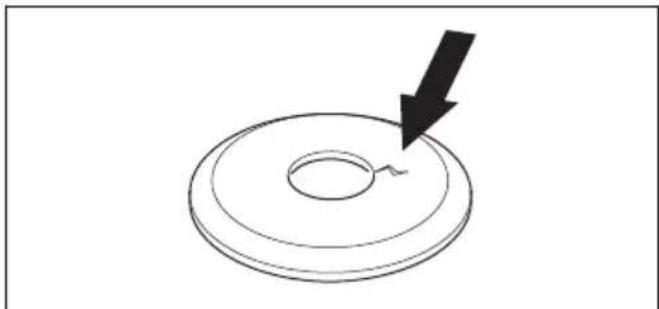

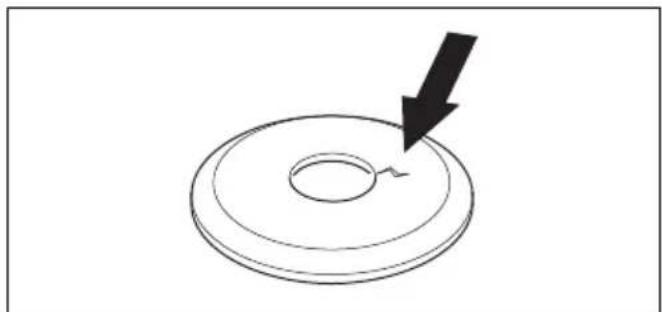

• Examine the support flange for cracks. Replace the support flange if it is damaged.

• Make sure that the locknut can not be removed by hand. If you can remove it by hand, it does not lock the cutting attachment sufficiently and you must replace it.

• Examine the blade guard for damages or cracks. Replace the blade guard if it has been hit or if it has cracks.

• Examine the trimmer head and cutting attachment guard for damages or cracks. Replace the trimmer

head and cutting attachment guard if they have been hit or if they have cracks.

Fuel

This product has a two-stroke engine.

CAUTION: Incorrect type of fuel can result in engine damage. Use a mixture of gasoline and two-stroke oil.

Gasoline

CAUTION: Always use a quality gasoline/oil mixture of at least 90 octane (RON). There is a risk that use of lower octane grade causes knocking. This gives rise to high engine temperature, which can result in serious engine damage.

CAUTION: If your product is equipped with a catalytic converter use a good quality unleaded gasoline/oil mixture. Leaded gasoline will destroy the catalytic converter.

• Use low-emission gasoline, also know as alkylate gasoline, if it is available.

• Ethanol blended fuel, E10 may be used (max 10% ethanol blend). Using ethanol blends higher than E10 will cause lean running condition which can damage the engine.
• We recommend a higher octane rating when you do work at continuous high speed.

Husqvarna alkylate fuel

We recommend you to use Husqvarna alkylate fuel for best performance. The fuel contains less dangerous

material compared to regular fuel, which decreases dangerous exhaust fumes. The fuel gives a low quantity of dangerous remainings when it is combusted, which keeps the components of the engine more clean. This extends the life of the engine. Husqvarna alkylate fuel is not available in all markets.

Two-stroke oil

CAUTION: Unsatisfactory oil quality and/or incorrect oil/fuel ratio can damage the product and decrease the life time of catalytic converters.

CAUTION: Do not use two-stroke oil for water-cooled outboard engines, also referred to as outboard oil.

CAUTION: Do not use oil for four-stroke engines.

• For best results and performance use Husqvarna two-stroke oil.
• If Husqvarna two-stroke oil is not available, use a different two-stroke oil of good quality for air-cooled engines. Speak to your servicing dealer to select the correct oil.

Gasoline, I	Two-stroke oil, I
	2% (50:1)
5 0.10
10 0.20
15 0.30
20 0.40

To mix gasoline and two-stroke oil

CAUTION: There is a risk that small errors influence the ratio of the mixture drastically when you mix small quantities of fuel. Carefully measure the quantity of oil to be mixed to make sure that you get the correct mixture.

1. Fill half the quantity of the gasoline to be used.
2. Add the full quantity of oil and mix (shake) the fuel mixture.
3. Add the remaining quantity of gasoline.
4. Carefully mix (shake) the fuel mixture and fill the fuel tank of the product.
5. Empty and clean the fuel tank if you do not use the product for some time.

Note: Do not mix fuel for more than 1 month at a time and always mix gasoline and oil in a clean container intended for fuel.

To fill the fuel tank

1. Clean the area around the fuel tank cap.
2. Shake the container and make sure that the fuel is fully mixed. Use a fuel container with an anti-spill valve.
3. Remove the fuel tank cap.
4. Fill the fuel tank.
5. Tighten the fuel tank cap carefully.

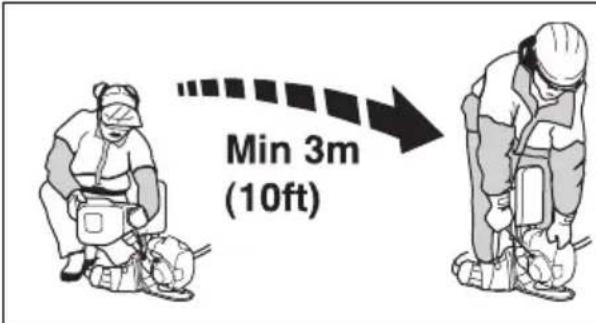

6. Move the product 3m (10 ft) or more away from the refueling area and fuel source before starting.

CAUTION: Contamination in the tanks causes malfunction. Clean the fuel tank and chain oil tank regularly and replace the fuel filter one time a year or more.

Work position

• Hold the product with 2 hands.

• Hold the product on the right side of your body.

• Keep the cutting attachment below waist level.
  Always keep the product attached to the harness.

• Keep body parts away from the hot surfaces.
• Keep body parts away from the cutting attachment.

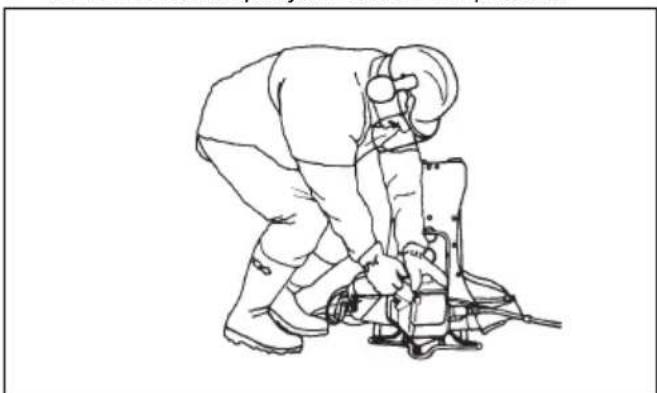

To start the engine

WARNING: Keep the safety distance of 15m / 49 ft when the engine starts. There is a risk that the cutting attachment starts to rotate.

1. Set the stop switch to the start position.

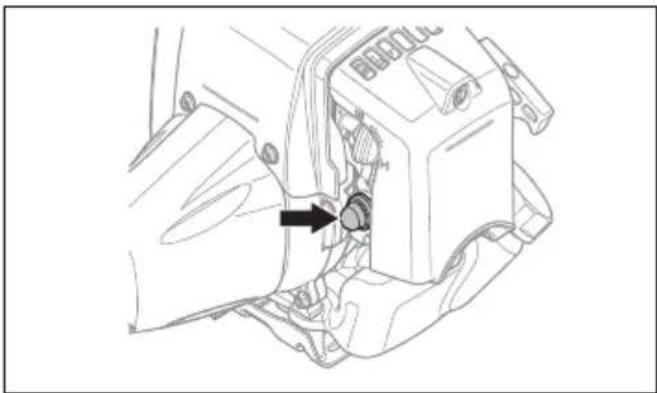

2. Push the air purge bulb until the bulb starts to fill with fuel.

1. Set the choke control in the choke position.

1. Hold the body of the product on the ground with your left hand. Do not put your feet on the product.

1. Pull the starter rope handle slowly until you feel some resistance, then pull the starter rope handle with force.

WARNING: Do not wind the starter rope around your hand.

1. Continue to pull the starter rope handle until the engine starts.

CAUTION: Do not pull the starter rope until it stops. Do not let go of the starter rope when it is fully extended. Release the starter rope slowly. Risk of damage to the product.

1. When the engine starts, put the choke control in the run position and apply full throttle. The throttle trigger automatically disengages from the start position.
2. Make sure that the engine runs smoothly.

WARNING: Keep body parts away from the spark plug cap to prevent burn injuries. Risk of burn injuries. Do not use the product with a damaged spark plug cap. Risk of electrical shock.

To stop the product

• Move the stop switch to the stop position to stop the engine.

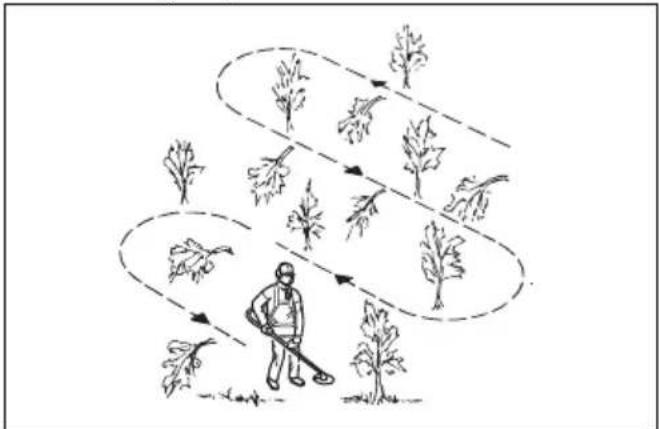

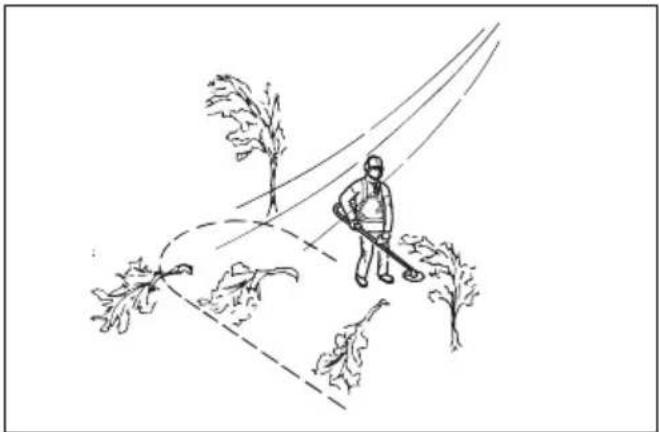

General work instructions

WARNING: Be careful when you cut a tree that is in tension. It can spring back to its normal position before or after the cut and hit you or the product, and cause injury.

• Clear an open space at one end of the work area, and start the work from there.

• Move in a regular pattern across the work area.

• Move the product fully to the left and right, to clear a width of 4-5 m on each turn.
• Clear a length of 75m before you turn and go back. Move the fuel can along with you as you continue.
• Move in a direction where you do not go across ditches and obstacles more than necessary.
• Move in a direction where the wind makes the cut vegetation fall in the cleared area.

• Move along slopes, not up and down.

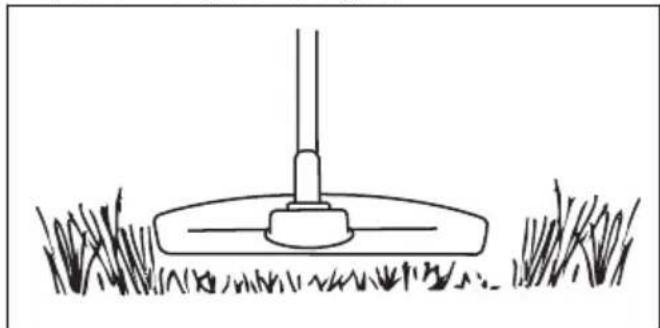

Grass clearing with a grass blade

CAUTION: Do not use grass blades and grass knives on wood. Use grass blades and grass knives for long or heavy grass only.

• Move the product from side to side.
• Start the movement from right to left when you cut. Move the product to the right before you cut again.
• Cut with the left side of the grass blade.

• Tilt the grass blade to the left to make the grass fall in a line. This makes it easy to collect the grass.
• Keep a stable position with your feet apart.
• Move forward after each right movement and make sure that you have a stable position again before you cut again.
• Keep the support cup with a light pressure against the ground to make sure that the grass blade does not hit the ground.
• Obey these instructions to decrease the risk that cut material winds around the grass blade:

a) Apply full throttle.
b) Do not move the grass blade through cut material when you move the product from left to right.

• Before you collect the cut material, stop the engine and remove the product from the harness. Put the product down on the ground.

Grass trimming with a trimmer head

To trim the grass

1. Hold the trimmer head immediately above the ground at an angle. Do not push the trimmer line into the grass.

1. Decrease the length of the trimmer line by 10-12 cm/4-4.75 in.
2. Decrease the engine speed to decrease the risk of damage to plants.
3. Use 80% throttle when you cut grass near objects.

To clear grass with a grass blade

1. Grass blades and grass cutters must not be used on woody stems.

2. A grass blade is used for all types of tall or coarse grass.

3. The grass is cut down with a sideways, swinging movement, where the movement from right-to-left is the clearing stoke and the movement from left-to-right is the return stoke. Let the left-hand side of the blade (between 8 and 12 o'clock) do the cutting.

4. if the blade is angled to the left when clearing grass, the grass will collect in a line, which makes it easier to collect, e.g. by raking.
5. Try to work rhythmically. Stand firmly with your feet apart. Move forward after the return stoke and stand firmly again.
6. Let the support cup rest lightly against the ground. It is used to protect the blade from hitting the ground.
7. Reduce the risk of material wrapping around the blade by always work at full throttle and avoid the previously cut material during the return stoke.
8. Stop the engine, unclip the harness and place the machine on the ground before you start to collect the cut material.

To cut the grass

1. Make sure that the trimmer line is parallel to the ground when you cut the grass.

1. Do not push the trimmer head to the ground. This can cause damage to the product.

2. Move the product from side to side when you cut grass. Use full speed.

To sweep the grass

The airflow from the rotating trimmer line can be used to remove cut grass from an area.

1. Hold the trimmer head and the trimmer line parallel to the ground and above the ground.
2. Apply full throttle.
3. Move the trimmer head from side to side and sweep the grass.

WARNING: Clean the trimmer head cover each time you assemble new trimmer line to prevent unbalance and vibrations in the handles. Also do a check of the other parts of the trimmer head and clean it if necessary.

Maintenance
Introduction	professional repairs and servicing. If your dealer is not a service agent, speak to them for information about the nearest service agent.
WARNING: Before you do maintenance, you must read and understand the safety chapter.	Maintenance schedule
For all servicing and repair work on the product, special training is necessary. We guarantee the availability of

Maintenance Daily Weekly Monthly
Clean the external surface. X
Examine the harness for damages. X
Do a check of the handle and the handlebar to make sure that they are attached correctly and not damaged.	X
Make sure that the throttle trigger lock and the throttle operates correctly. X
Do a check of the stop switch to make sure that it operates correctly. X
Make sure that the cutting attachment does not rotate at idle speed. X
Clean the air filter. Replace if it is necessary. X
Make sure that the blade is sharp and put correctly in the center, look for cracks. If the blade is not in the center correctly, it can cause damage to the product.	X
Examine the cutting attachment guard for damages and cracks. Replace it if it is damaged.	X
Examine the trimmer head for damages and cracks. Replace it if it is damaged. X
Make sure that the screws and nuts are tight. X
Examine the engine, the fuel tank and the fuel lines for leaks. X
Examine the transport guard. Make sure that the blade is not damaged and that the transport guard can be attached correctly.	X
Clean the cooling system. X
Examine the starter and the starter rope for damages. X
Examine the vibration damping units for damages and cracks. X
Clean the external surface part of the spark plug. Remove it and do a check of the electrode gap. Adjust the electrode gap to the correct distance (refer to Technical data on page 25) or replace the spark plug. Make sure that the spark plug has a suppressor.		X
Clean the external surface of the carburetor and the area around it. X
Do a check of the bevel gear to make sure that it is filled ¾ with lubricant. Use special grease to fill if it is necessary.		X
Clean or replace the spark arrester mesh on the muffler. X
Do a check of the fuel filter for contamination and the fuel hose for cracks or other defects. Replace if it is necessary.			X
Do a check of all cables and connections. X
Do a check of the clutch, clutch springs and the clutch drum for wear. If it is necessary to replace 1 or more of these units, speak to your servicing dealer.			X
Replace the spark plug. Make sure that the spark plug has a suppressor. X
Examine and clean the spark arrester mesh on the muffler.			X

To adjust the idle speed

WARNING: Read the warning instructions in the safety chapter before you start the product. Refer to Safety on page 4).

WARNING: If the cutting attachment rotates when the engine is at idle speed the idle adjustment screw T must be turned counterclockwise until the cutting attachment stops.

1. Make sure that the air filter is clean.
2. Make sure that the air filter cover is in position.

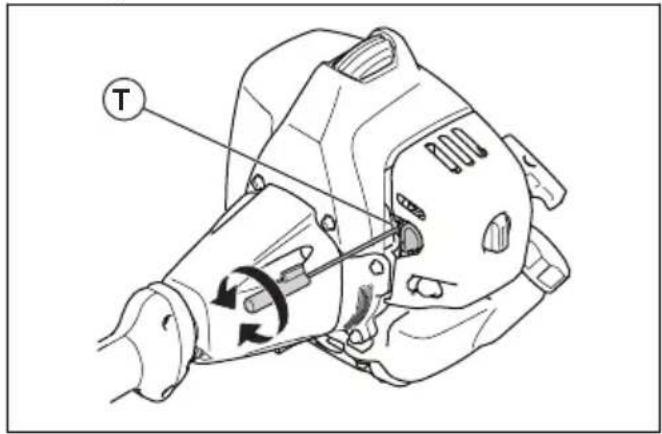

3. Get the idle adjustment screw T.

4. Turn the idle adjustment screw T clockwise until the cutting attachment starts to rotate

1. Turn the screw counterclockwise until the cutting attachment stops.

WARNING: If the cutting attachment does not stop when you adjust the idle speed, turn to your nearest servicing dealer. Do not use the product until it is correctly adjusted or repaired.

1. Make sure the engine run smoothly in all positions.

To clean the cooling system

CAUTION: A dirty or blocked cooling system can make the product too hot, which can cause damage to the product.

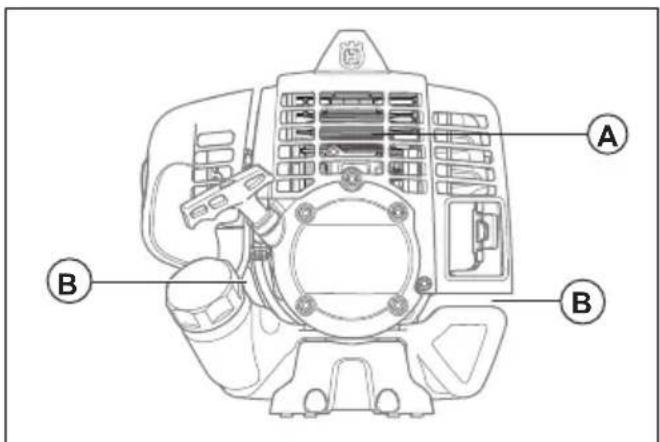

The cooling system includes:

• The cooling fins on the cylinder (A).
  The air intake (B).

Make sure that the cooling system is not dirty or blocked.
Clean the cooling system with a brush weekly or more frequently if it is necessary.

To clean the air filter

CAUTION: An air filter that is damaged must always be replaced.

If you use an air filter for a long time, it cannot be fully cleaned. Replace the air filter with a new one at regular intervals.

1. Remove the air filter cover and remove the air filter.

1. Clean the air filter with compressed air.
2. Clean the inner surface of the filter cover. Use air or a brush.
3. Make sure that the filter is dry.

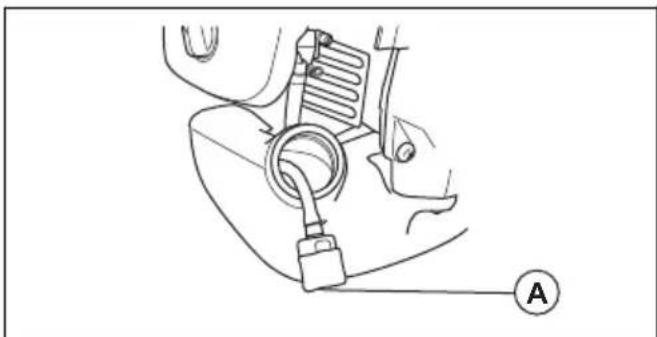

Fuel filter

When the engine runs short of fuel, make sure that the air hole in the fuel tank cap and the fuel filter (A) are clean.

Bevel gear

The bevel gear is filled to 14 with grease at the factory. Before you use the product, make sure that the grease level has not changed. Use Husqvarna special grease if it is necessary to fill up. Do not replace the grease in the

bevel gear. Let servicing personnel do the repair of the bevel gear.

To examine the spark plug

CAUTION: Always use the

recommended spark plug type. Incorrect spark plug type can cause damage to the product.

• Examine the spark plug if the engine is low on power, is not easy to start or does not operate correctly at idle speed.
• To decrease the risk of unwanted material on the spark plug electrodes, obey these instructions:

a) Make sure that the idle speed is correctly adjusted.
b) Make sure that the fuel mixture is correct.
c) Make sure that the air filter is clean.

• If the spark plug is dirty, clean it and make sure that the electrode gap is correct, refer to Technical data on page 25.

• Replace the spark plug if it is necessary.

To adjust the engine

Follow these instructions if the engine does not operate correctly.

1. Attach an approved cutting attachment, see Accessories on page 27.
2. Start the engine.
3. Operate the product in usual conditions for 3 minutes.
4. Lift the cutting attachment in the air and apply full throttle for 30 seconds. If a trimmer head is used, make sure that the trimmer line is cut to correct length by the guard knife.

Note: Do not cut grass or branches during this step.

1. Operate the product in usual conditions to make sure that the engine operates correctly.
2. If the engine does not operate correctly, do step 4 and 5 again 3 times.
3. Let your Husqvarna dealer adjust/repair the product if the engine does not operate correctly after you have done all these steps.

To sharpen the grass knife and grass blade

WARNING: Stop the engine. Use protective gloves.

• To sharpen the grass knife or grass blade correctly, refer to the instructions that come with the cutting attachment.
• Sharpen all edges equally to keep the balance.
• Use a single-cut flat file.

WARNING: Always discard a blade that is damaged. Do not try to make a bent or twisted blade straight and use it again.

To lubricate the flexible drive shaft

1. Pull up the knob and remove the drive shaft sleeve from the clutch cover.

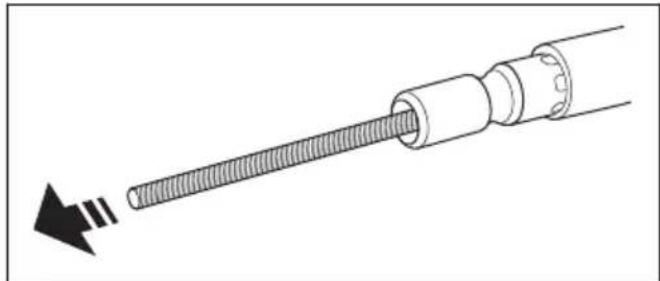

a) Shake or pull the drive shaft out of the drive shaft sleeve.

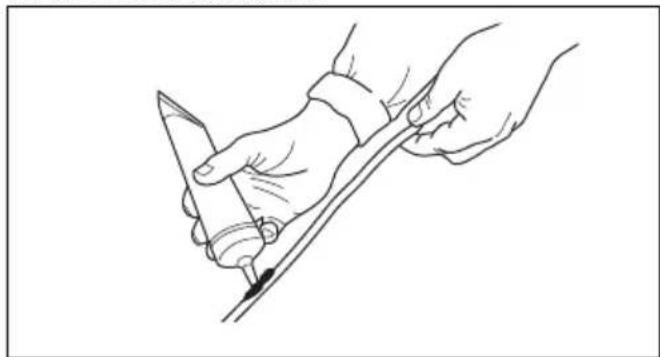

1. Lubricate the drive shaft.

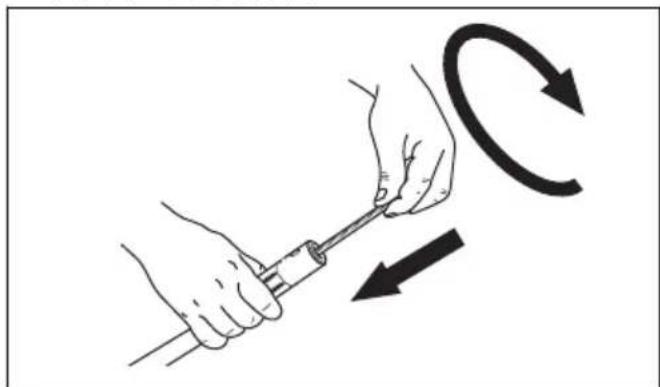

1. Push and turn the drive shaft at the same time to put it back in the drive shaft sleeve. Keep approximately 10mm / 0.40 in. of the drive shaft outside the edge of the drive shaft sleeve.

1. Align the hole in the drive shaft sleeve with the knob on the clutch cover.

1. Push and turn the drive shaft at the same time to connect it.

Troubleshooting

The engine does not start

Check Possible cause Procedure
Stop switch. The stop switch is in the stop position.	Let an approved service agent replace the stop switch.
Starter pawls. The starter pawls cannot move freely.	Remove the starter cover and clean around the starter pawls. See Product overview on page 2.
	Let an approved service agent help you.
Fuel tank. Incorrect fuel type. Drain the fuel tank and fill with cor-rect fuel.
Spark plug. The spark plug is dirty or wet. Make sure that the spark plug is dry and clean.
The spark plug electrode gap is in-correct.	Clean the spark plug. Make sure that the electrode gap is correct. Make sure that the spark plug has a sup-pressor.
	Refer to technical data for correct electrode gap.
The spark plug is loose. Tighten the spark plug.

The engine starts but stops again

Check	Possible cause Procedure
Fuel tank Incorrect fuel	type. Empty the fuel tank and fill it with correct fuel.
Air filter The air filter is	clogged. Clean the air filter.

Transportation, storage and disposal

Transportation and storage

Always allow the product to cool down before storage.
- For storage and transportation of the product and fuel, make sure that there are no leaks or fumes. Sparks or open flames, for example from electrical devices or boilers, can start a fire.
- Always use approved containers for storage and transportation of fuel.
- Empty the fuel before transportation or before long-term storage. Discard the fuel at an applicable disposal location.

• Attach the transport guard during transportation and storage.
• Remove the spark plug cap from the spark plug.
• Attach the product during transportation. Make sure that it cannot move.
• Clean and do servicing on the product before long-term storage.

Technical data

Technical data

	553RBX
Engine
Cylinder displacement, cm3	50.6
Idle speed, rpm 2800
Recommended max. speed, rpm 13000
Speed of output shaft, rpm 9285
Max. engine output, according to ISO 8893, kW/hp @ rpm 2.3/ 3.1 @ 9500
Catalytic converter muffler No
Ignition system
Spark plug NGK CMR7H
Electrode gap, mm 0.6-0.7
Fuel and lubrication system
Fuel tank capacity, l/cm³ 0.8/800
Weight
Without fuel, cutting attachment and guard, kg 12.1
Noise emissions1
Sound power level, measured dB(A) 115
Sound power level, guaranteed LWA dB(A) 118
Noise levels2
Equivalent sound pressure level at the operator's ear, measured according to EN ISO 11806 and ISO 22868, dB(A), min./max.
Equipped with trimmer head (original) 103
Equipped with grass blade (original) 102
Vibration levels3
Equivalent vibration levels (ahv,eq) at handles, measured according to EN ISO 11806 and ISO 22867, m/s2
Equipped with trimmer head, left/right 3.3 / 2.7
Equipped with grass blade (original) 5.3 / 3.4

Accessories

Accessories

Approved accessories Accessory type	Cutting attachment guard, art. no.
Grass blade/grass cutter Multi 300-3 (Ø 300, 3 teeth) 537 33 16-03
		-03
		-03
		-03
		-03
Plastic blades Tricut Ø 300 mm (Separate blades have part number 531 01 77-15)		537 33 16-03
Trimmer head T35, T35X (Ø 2.4 - 3.0 mm cord)
		-03
		-03
		-03
		-03
Support cup Fixed -

Declaration of Conformity

EU Declaration of conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declare on our sole responsibility that the product:

Description Brush cutters
Brand Husqvarna
Type / Model 553RBX
Identification Serial numbers dating from 2022 and onwards

complies fully with the following EU directives and regulations:

Regulation Description
2006/42/EC "relating to machinery"
2014/30/EU "relating to electromagnetic compatibility"
2000/14/EC "relating to the noise emissions in the environment"
2011/65/EU	“on the restriction of the use of certain hazardous substances in electrical and electronic equipment”

and that the following standards and/or technical specifications are applied: EN ISO 12100:2021, CISPR 12:2009, ISO 14982:1998, EN ISO 11806-1:2011, EN ISO 11806-2:2011, EN IEC 63000:2018

RISE SMP Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala, Sweden has performed voluntary type examination on behalf of Husqvarna AB.

Certificate Number: SEC/17/2462

RISE SMP Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala, Sweden, has also verified agreement with appendix V of the council's directive 2000/14/EG.

For information relating to noise emissions, refer to Technical data on page 25.

2022-05-09

Stefan Holmberg, R&D Director, Technology Management, Husqvarna AB

Responsible for technical documentation

UK Declaration of conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel:

[phone], declare on our sole responsibility that

the product:

Description Brush cutters
Brand Husqvarna
Type / Model 553RBX
Identification Serial numbers dating from 2022 and onwards

complies fully with the following UK regulations:

Description

The Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016

The Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001, Schedule 8

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

and that the following standards and/or technical

specifications are applied: EN ISO 12100:2021, CISPR

12:2009, ISO 14982:1998, EN ISO 11806-1:2011, EN

ISO 11806-2:2011, EN IEC 63000:2018

For information relating to noise emissions, refer to Technical data on page 25.

2022-05-09

Stefan Holmberg, R&D Director, Technology

Management, Husqvarna AB

Responsible for technical documentation

UK Importer:

Husqvarna UK Ltd

Preston Road, Co. Durham

DL56UP

Inhalt

Einleitung. 30

Sicherheit. 32

Stefan Holmberg, R&D Director, Technology Management, Husqvarna AB

Personal protective equipment

PRECAUCION: Use someday

Stefan Holmberg, Responsible R&S, Technology Management, Husqvarna AB

NcnoJIb3yIte C 3TNM IHCTpyMeHToM TOIbKO Oo6peHHbIe Ipon3BODHTeIe NpIHaNEXKHOCTN.CM. pa3dE IpnHaJnEKNHOCTNa cTp.227.

O63op n3dennia

1.Hox

1. KolnnaQOK OTBepCTNДЯ 3anpaBKN KOHCNCTeHTHOI Cma3Kn, 3y6uataa nepeDaua

3.YrJIOBa3y6uTaTnepeDaua
4. ΜιΤΟΚ pεχύησεο σόβρυδοῦνη
5.штанга
6.ПeTeNbHa pyKoTka
7.ДрocseьнbийperyJЯТOP
8. BbiknioyateIb
9. Ctonop dpocceBHoro peryIaTopa
10. MyfTa rIbKoro BeDyUero Bana
11. Puyka shhupa cTapTepa
12. TOnJIbHbIb 6aK
13.KpbIka BO3dyuHoroФиJBtpa
14. Kpbiuka cnJinHnpa
15. Kollnachok n cbea 3axnraHna
16. Fryuha Hargeta
17.3acnoHka
18.Ochactka
19. BeDyuyn nnck
20. OnopbIy 47aHeu
21. OnopHbI KOnnak
22. Kontrprainka
23. Fonobka TpumMepa
24. TpaHcnOpTnpoBOuHbI uNTOK
25. Ctonopnbl wtnΦT
26. TopceboKJIIOU
27. OTBepTka
28. RykoBoDCTBO no 3KcIpyaTun
29.ИЗоутая руковая.

CnMBOJbHa n3dEJIIN

PNEyPExEHNIE Co6nOaTe octopoxhoctb npabnna 3Kcnnyataunn n3dJIy. N3dJIe moKeT cTaTB npuHNOI TKeJIo TpaBMII INN CMePTn onepaTopaIOkpyKaIOxIX.

IpeH hauanom pa6oTbI c n3deHnem BHMateJIbHO npOHTaTe pyKOBOCTBO nO 3KcIIpyatauN y6eNTecb, YTO NHMaTe npBedeHHbIe 3Decb HNCTpyKU.

NcnoB3yIte 3aunTHbI uJeM B Tex MeCTax, rde cyuectByeT BEpoarTHoCTb naedHn ppeMeTOB. NcnoB3yIte oO6peHHbI cpeDCTBa 3aunTbI rna3 n opraHOB cnya.

MaKcImaJIbHaJaCTOtaBpaUeHnBAIxoNDHOBaJa.

H3dJIeNc COOTBeTCTByeT DeIcTBYIOUIM DnpeKtNBam EC.

HaHHe n3dennec COOTBcTCTByeT DeIcTByIOUm DnpeKtNBam BeNKo6pTuHn.

H3dennm MoKet OT6paBbTa npeMeTbI, 1TO MoKet CTaTb npuHHoTpaMBbl.

IIOuN JXIBOTHbIE DOnKhbl HaxOINbCnHa paacCToAHn He MeHee 15 M otpa60taUcero n3dennr.

PnCK OTCKaKbAHHN HOXA,ecn pexyuee
obopyoBaHne kacaetc npdeMeTa,
KOTOpBHe pa3pe3aeTcMTHOBeHHO.
Pi npap6Te c n3dennem cyeeCTbyET
pck nonyuehn nope3OB. IIOuN
JKBOTHbIe DOJIKNbI HaxOOnTbcra Ha
pacctOHHn He MeHee 15 M ot
pa6OtaUoJero n3dEINr.

Ctpenkamn 06o3haeHbI KpaHHe noJoxKeHpykoTKn.

Bo3duuHaHa 3acNoHka.

Палмер.

IcnoB3yTe Oo6peHHbIe 3aunTHbIe nepuATKn.

HaedeBaTe 3aunTHbIe 6OTnHKn C HeCKoJIb3Ko NODOuBOi.

Ta6nUcA cyOBHem 3mCCnn Wyma B OKpykaIOuYIO CpeyB COOTBETCTBnC DnpeKTHBaMn H HopMaTHBaMn Ebponeckoro coO3a,BeNko6pntAHn N 3aKHOdaTeNbCTbOM HoBOr IOxHoro YaIbca "PernaMeHT 2017 roDa no 3aunTe OKpykaIOe Cpebl (KOHTpONb yPOBHa Wyma)".FapahTnpoBaHHb yPOBEh MoUHOCTN 3ByKa n3deJnry kA3aH B pa3dJe TeXnueCKne daHHbIe Ha CTp. 226.

Деркпе Всучси Тena Ha 6e3onachompacCTOHH OT HarpetbIX NOBepxHOCTeIn3dJIIN.

yyyywwxxx Ha nacnopTHO Ta6nueKe

yka3an cepinHbH HOMep. yyy 03nauaet rOp-n3BODCTBa,WW- pOn3- BODCTBHeHHU HeJeIIO.

PpmeHne: OcTalbHbIe CmBOLbl/HaKNeiKn Ha 3deJIIM OTBeauHOT Tpe6oBaHnM, PpeBraBIm K cePTnΦnKaun BdpYnx KOMMepecknx 3OHax.

COOTBETCTBNE yPOBnTOKCNHbIX Bbl6pocOB cTaHdapTy Euro V

PPEyPExKDEHNE:B

cnyae BmewaTeJIbCTBaBpa60Ty

DnraTeJnaDaHHoe n3dJeJIne nepectaHET

COOTBETCTBOBaTb HOpMaTnBAM EC.

OTBETCTBEHHOCTb n3ROTOBNTeJIa

B COOTBETCTBUN C 3aKOHAMN O6 OTBETCTBEHHOCTN
N3ROTOBOTTEJRA MBI HE HECEM OTBETCTBEHHOCTN 3a
yuεp6, BblBaHHbI 3Kcπnyatauηe NaWero N3dJIINRA Bpe3yIbTate:

• HeHaIeJaIero pemOnTa I3JeJIra;
• INCINb3OBAHnI DnI peMOHTa N3dEInNHeOpINHaJIbHbIX DeTaJIe IINI DeTaJIe, HeOdo6peHHbIX IpON3BOIDTeJEM;
• INCNoJIb3OBAHnI HeOpnIHNaHbHbIX DOnOJIHnTEJIbHbIX
• PnHaJdJIeXHcOTeI nII nPnHaJdJIeXHcOTeI, He
• ODo6peHHbIX IpnON3BOJNTeIeM;
• pEmoHTa 3dJIINB HeaABTOBaaHHOM cepBnCHOM cHTpe INI IN HeKBaJIINΦuPObaHHbIM CneuaJIInCTOM;

Be30nacHocTb

IHCTpyKznn no Texnke 6e3onacHOCTN

PpeynpeKdHn, npeocTepeKeHn npmueHaHn nCNOJIb3yIOTc dIa BbIeJeHn Oco6o BaXhIx nyHKTOB pykoBOdCTBa.

ПЕДУПЕЖДEHNE:

IcnoIb3yeTc, KOrda Heco6nOHeHne HNCTpyKU pyKOBOCTBa MOKeT pINBeCTu K TpaBMam UIN CMEpTN ONEpATopa UIN HaxOJaXxxCraPdOM NocToPOHHNX IInC.

BHIMAHHE: NcnoJb3yeTc, KOrda HecobJIODeHne IHCTpyKuIN pyKOBOdCTBa MOKeT npVBecTN K NOBpeXdeHNIO N3JeNIA, dpyrNX MaTePnaIOB IIN npnIeRAIoUeI TeppntOpNI.

PpmeHHe: HcnoIb3yETcTn npedocTaBHeHn DONoJIHHTeJIbHbIX CBeDeHn O KOHKpeTHoCtuauN.

Obune HnctpykunnoTexnke 6e3opacchoCTn

ПЕДУПЕЖДECHNE:В

683aTeIbHOMnopAKe npOHTaIte CJeDyUoIe HNCTpyKuIN NO TexHKe 6e30NaChocTn, npExe Yem npncTypaTb K 3KcNlyatauIN N3dEInna.

3anpeaetcBHOCTbHMeHeHnB H3dene 6e3 pa3peuHnI pOn3BODntTe. IcnoJIb3yIte ToIbKO opunHaJIbHbIe npHaJNeKHOCTn. BHeceHne H3MeHnI 6e3 corJaocBaHnI /nnI nCNoJIb3OBAHnE HeoO6peHHbIX npHaJNeKHOCTe MoKeT npUBeCTN K TjXKeIOn TpaBMe IIN CmepTN onepaTopa INI dpyrNX NlC.
BHytpn rnyuHTeJcOepKATcXUMKAtbI, KOTopbIE MOryT 6bITb KaHcEporeHHbIMn. He npNKacaiTecb K rnyuHTeJIIO, ecIN OH NOBpeKdEh.
BoBpempa60tbi daHHOe n3dene co3daet 3neKtpomarHHTHOe NOJe, KOTope MoXeT BbI3BaTb NOMexiB pa6oTe MeuHcknx IMnnaHTaTOB.3To MOxET npUBeCTN K TArKeJIbIM TpaBMam INn CmepTN. IpokOHcyIbTnpuyIteCb C BpaQOM Nn3rOToBnteMe mnnnHaTata nepeHauanom pa60tbl.
3anpeaetcKaacTabcCbeu 3axnraHnIIN Hhypa Cbeu 3axnraHnI npa6oTuOeM Dbratene.PncknopaxKeHn3neKtpueeCKm TOKOM.
-Bo3MeueHne yuepe6a, BbI3BaHHoro nCNoIb3OBAHNEM HeoIo6peHHbIX npHaIeKHOCTe IIN 3anaChbIX Yactei, no rapaHTn MoKeT He BblIOJIHrTbcR.

HnctpykunnoTexnke 6e3oNaCHOCTN BO BpeMa c6OpKn

ПЕДУПЕЖДECHNE:В

683aTeJIbHOM nopJKe npOHTaIte CJeNyUoIe HNCTpyKuIN NO TEXHKe 6e30NaChocTn, npExe Yem npNCtTyNaTb K 3KcNlyatauIN N3dEInna.

-Передсборковидения сншпес co cbeчina 3жиганя колпak сөчни зжиганя.
- NcnoIb3yIte npoBepeHHbIe 3aunTHbIe nepuATkn.
-ПеретауckOMДИгATEЯпpoBepbTe npaBnIbHOCTb yCTaHOBKN KpbIuKN IBaJa.
Beyu n Dnck n onOpHbI fnaHeu dOJXhbl npabNbHO BXoINTb B ceHTpaJIbHoe OTBepCTne pexyUero o6OpyIDOBaHn. HnpabNbHa yCTaHOBA pexyUero o6OpyIDOBaHn MOKeT cTaTb npuHOn cepBe3HO TpaMbI nI IN CMEPTn OepaTopa IIN dpynx IIOdei.
-Дя6e3oNaChOH 3KcPnyatauH N3deJnN BO n36eXaHne TpaBM OpeaTopa NIN NOCTOPOHNX JnC n3deJIne BceIda DOnJHo IpaBnIbHO KpeNITbcr K noDBecke.

HnctpyKuI No TexHKe 6e3oNaCHOCTN BO BpeMg 3KcPnyaTaun

I P E D U N P E X D E H N E: B

6b3aTeBHom npAKe npOHTaTe CNeDyUoIe HNCTpyKuIN NO TEXHKe 6eONaChocTn, npExJe Yem npNCtYnatb K 3KcPnyatauN 3dEJIra.

• NpeH naHOM pa6OtbI c HnCTpyMeHtOM Bbl OJXHbI NOHbTb pa3HNu TY MeKdy KOUHeHEm IN TpMMepHo 6pa60kO TpaBbl.
  B Cnyae BO3HKnHOBeHnCnTyauu, B KOTopoB Bbl NoCyBCTByeTe HeyBepEHNOCTb OTHOCNTbHo DaJIbHeIWe pa6Otbl C n3dJeInem, o6paTNTecb 3a KOHCyIbTaUnei K CneUmaNcTu. CBxKNTecb C dIInepom Hn cepBnCHbIM cHTpOM. He NItaTNeTcpeWntb Kakyo-N6o 3aDaay, ecnn CUnTaTe, YTO OHa HaxODITcra 3a npedeJaMaN BaIINX BO3MOXHOCTeI.
  3anpeaetcnoIb3OBAtbcn3deJIneHm npn HauuHn HeucnpabHocTei. PeryIpaHNo npoBepaTe COCTOAHHe 3aunTHbIX npcncOco6JIeHn I npoBOJIne Texo6cnyKINBaHHe B COOTBeTCTBn C INHCTpyKzHMn HAcTOAeRO pyKOBOdCTBa. OnpedeneHHbe pa6Obl NO pemOnTy n 06cnyKINBaHN DOJKNbI BblONHrTbCn OBueHHBMn KBAIIΦNUPOBaHHBMn CneuaHnCTamn.CM. INHCTpyKzHN B pa3deJe 3aunTHbIE yCTpOJaCTBa Ha n3deHNHa cTp.205
  -ПередзanyckOMиденин HeobxOДIMo yctaHOBNb Ha MeCTO BCE KpbIuKIn, 3aUHTHbIe KOxUxNpykoTKn.Bo n36exaHne pncKa npaxKeHn3JIeKTpUcECKM TOKOM y6eDntEcB,yTO KOJINaQOKCBeu3aXnRaHnI INpoBOd 3aXnRaHnI HeNoBpeJDeHbl.
  HnB Koem cIyae He npncTynaTe K pa6oTe C n3dennm,ecn Bbl yCTaII, HaxoNTecb NOD BO3deNCTBnEM aIKOROBhIX HAnITKOB INn HApKOTIKOB INn pInHnMaTe JeKapCTBa,KOTOpbie MOryt NOBnIaTb Ha 3peHne,peakUHO, KoopDnHaunIO INn OueHKy DeNCTBnTEbHOCTN.

3anpeaaetcncnoB3OBaTb n3deJne BnIOxN NOOrHbIX yCIOBnX, BKIOUyA rYCTO TymAH, cnIbHbI DoKDb, NOpBbNCtBt BeTeP, CnIbHbI XoIoN I T.D. Pa6Ota BnIOxyo nOroDy CNJIbHO yTomJreT upeBaTa DOIOJIHNTeNbHbIMn PnCKAMn, HApnPmEp, OT cKOB3KOrO rpyHTa INIHN HepeDcKa3yEmoR Ho npabNeHn RaDeHn DaPeBa I T.D.
BMeTe CdaHbIM DnBraTeJem DoNyckaetc
NcNoJIb3OBAbT ToJIbKO KOMnOHeHTbI peKyuIeO
obOpyIOBaHnI, peKOMeHIOBaHHbIe HAMN B pa3dJe
PpHaIaNekHOCTn Ha cTp. 227.
HnKOrda He No3BOJnTe DeTAM N0lb3OBaTbCn3dJIeNEM HIN HAXOuNTbC PRAOM C HIM. N3dJIeNEO CHaUeHO NepeKNIouaTeNem 3aNycka/OCTaHOBKn C npyHHbIM B03BpaTom, NO3OTomy DnI erO 3aNycka DOCTaTOUHO NNABHO BbITAHyTB pyky CTapTepa, C YEM B ONPeDEJeHHbIX O6CToRrTeJIbCTbX MOrYT CNpaBHTBC DaKe MaJeHbKne DeTI. 3To CO3DaETPCK NOnyuHenra TjKeJIbIX TpAbM. N03tOMy BCerDa CHImaIte KONNaOpK CBeu 3axKurAHHa, ecnn OCTabJIreTe N3dJIeNe 6e3 npICMOtpa.
Pa6ota DnurataTeB 3akpytOM nIN B nNOxO npoBeTpnaeMOM NOMEuEHN MOKET npNBecTN K CmeptJeHOMy uCXOdy B pe3yNbTaTe ydyuEHN uNn OTPaBJIeHrYraptHbIM ra3OM.
- Ppe3nyckom n3dennna Ha Hero dOnkHbI 6bItb yCTaHOBnEhbl KoxyxCcENneHnB B cOpe n WtHa; B npOTNBOM Cnyae CcENneHnE MoKet OTcoeDHHtbcra n HAnecTn TpaBMy.
CneIte 3a Tem, TTo6bI BO BpeMa pa6oTbIBpaDnCe 15 MeTPOB OT n3dennr He 6bINOJIIOe IJXNBOTbIX. KOrDa Ha OndHom N TOMKcye yUacTKe OndHOBpeMeHHo pa6OtaOT HeCKOJIbKOOnepaTOpOB, Be3Oanachoe pacCTOAHne MeKdy HmNDOJIxHO 6bITb He MeHee 15 M. B npOTnbHOM Cnyae cyuEcTByeT pNCK noJyehnca cepBe3hIXTpABM. Ecnn KTo-H6ydb NoOoiDeT 6nKe, HemeJNeHHO OCTaHOBnTe n3deneH. HnkOrda He NOBopauBaItecB c n3dennm, He nocmOTpeBCHa7aHa3aI n He y6eINBwncb, YTO B 30He PnCKaHnKOro Het.
CneHTe 3a TEM, YTO6bI NIOu, XKIBOTbIe IN NOCTOPOHHe IpeDMtBl HE MORJI NOMEuATb BAM ynpabNtB n3dEInm, a TAKKe NCKJIOHTe BO3MOXHOCTb IX KOHTaTc PexKyUIM O6OpyIDOBaHNm IpeDMeTaMn, OT6paCbIBaEMbIMn peKyuIm O6OpyOBOAHm. IVcNoJIb3OBA Tb n3dEIne B CNTyaUN, B KOTopoB Bbl He CMOxTe n03BaTb Ha NOMoUb IIpu HecuaCTHom clyuae, 3aPpeSeHo.
B O63aTeJbHOM npRdKe npOBepRnTe pa6Ouyo 3Ony. Y6epnte BCE cBO6OJHO Jekaaune npEIMetbl, HApnpMep, KaMHN, pa36nTOe CTeKNO, rBO3n, CTaIbHyIO npOBOJOKy, BepeBKN n np., KOToPbIe MOxET OT6pocuTb HnHaMoTaTb Ha cBOi BAn peKyuuee o6OpyDoBaHne.
- Y6eUNTEcB, cTO Bbl MOKeTe DBNrA TbCn I CTOaTb 6e3OnacHO. PpOBepbTe, HeT Nl BOKpyr Bac BO3MOxHbIX NOMEx n PpeNATCTBn (KOpHeN, KAMHeN, BETOK, yM n T.D.) , Ha cIyua, eCIn Bam Bdpyr 6ydet

HyKHO 6bICrpo nepemecntbCra. BydTe oc6eHHO BHMaTeNbHbI npa6ote Ha cKnohax.

Bcerda coxpaHnTe paHBoBecne u yctOnuHBoe noJIOXeHne Hor. He BbITraBaHTe pyKn c n3dennem CnHsKOM daJeKO.
- Pn pa6oTe c n3dennm Bcerda nCnoNb3ynte OCHaCTky n DepKInTe wTahry cnpaBa ot ce6a.
- Pexyuiee oobopyoBaHne dOJxHo haoOnTbcn HnKe nora.
- Npeep nepenocom n3dennr OTKIOUHTe DnBraTeIb. Npeep nepenocom n3dennr Ha 60nbwoe pacctoHne H TpaHCnpTIpOBKO CJeDyET yCTaHOBNTb Ha Hero TpaHCnpTIpOBOuHb KOKyx.
HbKoemcnyae He onyckaTe n3dJeNe Ha 3emn npu paobotaOeM DbrarTeNe, 3a NckIIOueHENe m cnyaeB, kOrdaeroXopoOo BnHO.
-пекдуем y6nрав МATEРAN,HamOTabuINSC н BAл HOжа, OCTaHOBNTe DBrAteЛь n pekyue obopydOBAHne. Hn ONEpATOp n3dENn, Hn DpyrNe Ntua He DoJIxHbI NbITaTbC8 y6npaTB B CTOpOHy cpe3aHHbIMATEPNAJ pRn pa6OtaIOUeM DBrAteJIe NII BPAaIauOeMCRApeKyuEe M obopydOBAHn, T.K. 3TO MOXET PnIBECTN K TReKeJIbIM TpaBMAM. 3y6uTAR nepeDAya MoKet HArpeBaTbC8 BO BpEma pa60tBI N OCTaBA TbCB rOpaye HeKOTOpoe BpEma nocle OCTaHOBKn n3dENn. 3TO Co3daet puck NoJIyehra OOKOr npR KOHTAKTe.
OCTepeaITeCb O6paCbIbAembIX npEIMTOB. Bcerda nOJIb3yITeCb peKOMeHIOBaHHbIMn cpeiCTBaMn 3aUHTbl rna3. HIKoRJa He HAKIOHOI TeCb HaD KOxYXOM pexyUero o6OpUdoBaHn. Kamn, myCop n Dpyrne npEIMtbl MOrTy IOnaTb B rJl3a N npIBecTu K CJIenOTE INN TRAKeJIbIM TpaBMAM.
ИногаВоблacrMжду кожхOMиpeжуцIMOBopydOBaHnEM3actpeBaOTBETKNINTPaba.BO6ra3aTeNbHOMNOPrKeOCTaHaBJIbBaIteDBNarTaTeNBpePeD OCHCTKoN3deJIN.
-3dennr, OchaueHHbIe peKyuIMn DnCKamn nn JIe3BnMn dIa TpaBbl, MoKet pe3KO 6pocatb B CTOPOHy, KOrdaJe3BVe BXoNT B KOHTaKT C 3aФNKCuPobAHbIM IpeMeTOM. 3To Ha3bBaETcO tDaueH. OTDAuA MoKet 6bITb DOCTaTOHcNlbHO, YTO6bl OT6pocNTb N3dennne H/nn OnepaTopa B IIO6om HAnpaBJIeHN, B pe3yNbTaTe Yero MoKet 6bITb NOTepaH KOnTpOJIb HAD N3dennm.

OTdau MoKet 6bIb HeoXnDaHHo,ecn n3deJeNe 3aueNTcra 3a TTO-ni6o,3actpHET nIN 3anyTaETcra. Pnck OTdau Hn6Oonee Blicok B cnuyax, kOrda cKaunBaemyu TpaBy nIOxO BuHDHO.

ИЗбeraитабоТы усakOM HOKa MeKdny noJOKeHnMa Ha 12 n 3 Yaca. Ппс cpe3aHn 3TmU yactkom HOxA TOJCTbIX CTe6JIe BO3MOxHa OTdaYBCJIeIcTBHe BbICOKO KcopoCTN HOxA.
- Pocne kaxdoi pa6oey onepaunn nepebointe Dbratelb B pexmXoIOCTOx oja. Pa6ota B TeueHne dINTeJbHOrO BpemeHn npnONHom OTkpbltn dpocceJbHo3ACNOHKn 6e3 Harpy3Kn Ha DBiratJIb MOKET nPnBecTn K cepbe3Homy NOBpeJeHHIO Dbratelj.
KordaHaBacHaeTb3aunTHheHayuHKn, npncIyuaBaNTecb K CnHaJAM TpeBOr NIN KpIKam. ChMaTe HayuHKn cpa3y nocJe octaHOBKn DBratela.
ДиTeBHOe BO3DeIcTBHe Bn6paun MOKET npNBecTN K HApUWeHIno KpOBoObpaueHn IIN paCCTpoiCTBaM HepBHOJ CnCTeMbI y IIOdeI c HapUWeHHbIM KpOBoObpaueHnEM. B cIyuae NOBJIeHnCmNTOMOB Ype3MePHoro BO3DeIcTBnBn Bn6paun CneDyeT ObaTtbcR K BpaCy. K TAKIM CmNTOMAM OTHOcTcR OHeMeHne, NOTepaYvBCTBnTEbHOCTN, OUYuEHeN UeKOTKn IN NOKaIbIBaHn, 60N, Notepa Cnbl Nn Cna6ocTb, N3MeHeHne UCBeta Nnn COcTOHnR KOxN. KaK npabINO, NOIObHBe CmNTOMbl PPOBJIaOTcB NaIb4ax, KCTrX NIN 3aIaCTbX.
HnBkoemcnyae He noIb3yItecb n3deJneM C NOBpeXdEHHbIM KONNaKOM CBeu 3aXnHaHna.
3anpeucaetcncnoj3oBaTb n3dne C HeucnpaBbIM IyIHTeJEM.
-Деркinte BCE qactn TeHa Ha 6e3onachompacctoHmOT BpaauueropejyueoobopydOBaHnI ropuNX nobepxHOCTeI.
- Pn pa6oTe c HoxaMn dIra TpaBb I Bcerda HaneBaIte 3auHThIe nepuAtkn.

CpeIcTba INHINBnDyaJIbHOJ 3aunTbI

IPEyPExEHE:OBaTeBHom npAKe npOHTaTeCJeYIOUne HNCTpyKuIN NO TEXHke6eONaCHOCTn, npExe Yem pNCTyNaTb K3KcNlyatauIN 3dEJIa.

Kakdbpa3 npa pa6ote c n3deJinem CneDyET hCNOJb3OBaTb OoOpeHHbIe CpeCTBa INHINBnDyAIBHO 3aunTbI. CpeCTBa INHINBnDyAIBHO 3aunTbI He MOYr NOJIHOCTbIO NCKIIouHTb PnCK NOLyUHeHr TpaBMbl, HO npn HecuactHom Cnyae OHN CHIXaOT TJeXeCTb TpaBMbl. 3a NOMOsbIO NO npaBnIbHOMy Bb6Opy obopyoBDAHnO bpaauTeCb K dInepy.
- IcnoIb3yIte 3aunTHbI JIeM B Tex CnyaX, KOrDa cyIeCTByET BepoAHTHOCTb NaJeHn PpeDMTOB.
CneJyET noJIb3OBAbTcB OoO6peHHbIM 3aUHTbIMn HayuHKAMN C DoCTaTOHbIM yPOBHE NOaBHeHn

Wyma. PpOdoJXKeTJIbHOe BO3DeIcTBne Wyma MoKET NOBNeUb HeN3NeuHMOe yxUdUeHne Cnyxa.

• IcnoIb3yIte OoOpeHHbIe CpeCTBa 3aUHTbI rna3. Pn IcnoJIb3OBaHIM 3aUHTHOJ MACKn CneDyeT NOIb3OBaTbCra TaIOKe OoOpeHHbIMN 3aUHTHBIMN OOKAMn. PoI OoOpeHHbIMN 3aUHTHBIMN OOKAMn IOpa3yMeBAIOTCr OOUK, OTBeuAIOUne Tpe6OBaHmI CTAndapTa ANSI Z87.1 dJa CUSA nEN EN 166 dJa cTpaH EC.
• NcnoIb3yIte Macky dIg 3aunIbI Iuca. IIN 3aunIbI rna3 HeIOCTaTOHIOcNOJb3OBaTb Macky.

• Pn Heo6xOaMocTn HaeBaIte nepuATKn, HanpImep, np3zakpenHIn, npOBepKe nn OuchTe peKyuJero o6OpyDoBaHna.
  HaedeBaIte npOHyIO oSyBb c HeckoJIb3aIe IpoDOWBOI.
  HaedeBaIte OeJy n3 npOHoro MaTePnAna. Bcerda HaeBaIte DnHHbIe npOHyIe 6pIOKn I BepXHIO OeJy C DnHHbIMN pyKaBaMn. 3aIpeuaTcra HaedeBaTb CBOOHyO OeJy, KOtOpA MoKeT 3aUeNTbcra 3a BeTbN nn KyCTapHk. He HaedeBaIte IOBENHPbE yKpaWeHn, WOpTB, CaHdALnn n He XoDITe 6ocNKOM. 3aФHKcpyIte BOIOcbl BblIe yPOBn nIeY.

CpeCTBa OKa3AHn nepBOH NOMOu BCerda donxHb6bTb npyko.

3auntbte yctpoCTBa Ha n3deJINN

HOpMaUO pacnoJKeHH 3aunTHbIX ycTPOiCTB cm.B pa3dene Ob3op n3deJnHa cTp.200.

ПЕДУПЕХДECHИЕ:В

063aTeBbHOM npAKe npOHTaTe CNeIyUoUne IHCTpyKuIN NO TEXHKe 6eOnacHOCTN, IpEKe Yem npNCTyNaTb K 3KcNpyatauIN N3dEnn.

3anpeaetcnaonb3oBaTb n3dne C HncnpaBhbIMN 3aunTHbIMN yCTpoiCTBaMn.

PeryIpaHO BbIIOJIHnTe IpoBepky nTexHnueeckoe 06cIyXuBaHHe 3aIITbIX yCTpOiCTB. Ecnn 3aIINTHbIE yCTpOiCTBa HeICnPpABhI, o6paTntecb B cepBucHbI ueHtp Husqvarna.

He BHOcHTe HnKaKnx N3MeHEnB 3aUHTbIe yCTpOJCTBa.3aPpeuaTeCnOJIb3OBaTbN3dJIne C NOBpejXDeHHbIMN INI OTCyTCTByIOUImN 3aUHTbIMN KpbIuKAMN, 3aUHTbIMN NepeKJIIOvAteJIaMn IN IPOUIMN 3aUHTbIMN yCTpOJCTBaMn.
Дя Выноненя Лббix pa60 no cepBnchomy obcnykinaHIO n peMOHTY KOMnoHETOB N3dJIINRA, oc6eHNO 3aunTHbIX yCTPOIcTB, Heo6xOIMHO npoTn cneuaJIbHoe obyuHne. Пи o6hApyKeHn Ha 3aunTHbIX yCTPOIcTBax IIObIx nOncaHbIX B pyKOBODCTBE NO 3KcIIpyATAuHn HeNCnPabHOCTei obpaTInTEcb 3a NOMoubIO B cepBnCHbI YcHTp. Mbl rapaHTnpyEm DocTyNHOCTb ycIyr No npoPeCCNoHaJIbHOMy peMOHTY n cepBnCHOMy obcnykinaHIO. EcNI BaI dIInep He 3aHmMaETcR cepBnCHbIM obcnykinaHAnEM, obpaTInTEcb K Hemy ДЯ NOlyeHn INΦopMaUIN O 6IlnKaIWeM cepBnCHOM YcHTpe.
3anpeaetca nCnoB3oBaTb peKyuee 606pydoBaHne 6e3 oD6peHHoro n npabNtHo yCTAHOBHeHHoro uHTka peKyuIero 606pydoBaHna. Cm.pa3en PnHaJNeXHOCTNa CTp.227.

PpOBepKa BbIKJIIOuChaTeJIA

1.3anyctnte DnBraTeIb
2.Перемecnte BbIKIOUATEB NOIOXeHne OCTaHOBa n y6eNTecb,TO dBURAteB OCTaHaBJIINBaETcra.

PpOBePkCa cTOnopa dPoCCeIbHoro peryIaTopa

Ctonop DpocceBHOrOp peryIaTopa 6nokpyet perynatop B noLoXeHm XoNocToR OxOa dI npedotbpaueHn CnyauHoro cpaBaTaBaHn A pocceBHOrOp peryIaTopa. KOrDa Bbl OTnyckaTe pykoTky n CTonop DpocceBHOrOp peryIaTopa, OHN BO3BpaAaOTcB NepBOHaayabHoe noLoXeHne.

1. HaxMnte Ha cTOnOp npocceIbHoro peryIaTopa (A). Y6eIInTeCb, yTo dpocceIbHbI peryIaTop (B) pa36JIOKIpOBAH.

2.Y6eIntecb,TO npn OTnyckAHN CTOnopa dpoocelhbi perylTop (B) 6nokpyetcB nnoJoxHeHH XOIOCTORO XoJa.

1. Haxmnte cTOnop dPoCceIbHoro peryIaTopa (A) I yOcTOBepbTeCb, YTO OH BO3BaPauTcB B nepBOHaayJIbHOe NIOJKeHne Pn OTnyckAHIN.

1. Y6eHntecb, yTO cTOnop dPoCCenbHoro peryIaTopa (A) n cam pbUar dpoccen (B) cBo6oJHo nepemEuiaTcra.

1. 3anyctte n3dennne Ha nonHoi MOUHOCTn. CM. 3anyck DBuratena Ha ctp. 217
2. Otnyctte npoccehbl perylTop (B) u ybeintecb, YTOpekyuiee o6OpdyobAHne OCTaHaBnBaetcN octAetcHHeNoDBHXHBIM.

IPEyPExKDEHNE:Ecnn

pejyuee obopyoBaHne Dnuraetc, KOrda dpocceIbHbI peryIaTOp HaxOHTcB NonoKeHHXonocToRo XoJa, OtperyNpyTe xonocTox oJ. Cm. pa3den PerynpobKa obopotOB XOnocToRo XoJa Ha cTp. 221.

I P E D U N P E X K D E H N E: H N B K O E M

Cnyuae He noIb3yITeCb n3dIeNEm C HEnCnpaBHybIM InyuHTeJIeM.

I PEPYNPEKDEHNE: NOMHNTe, YTO BbIXONHbIE Ra3bI DnRrAteJIaHEOT BbICOKyIO TeMnepaTpy I MoryT CoepKaTb NCKpbl, KOTOpBIE B CBOIO OpepeB MOry T pNBecTI K NOxApY. POtomy I3JeIHe H N B KOEM Cnyae He CneDyET 3AnyckTaB B NOMEUeHN NIN PRAOM C JERKOBCPNaMeHHOUIMMC MaTePnaJAM!

InyuHTeN bpEHa3HaueH dI MaKcImaJIbHorO CHNXeHn yPOBn I OTBoA BbIXNoHbIX ra3OB B CTOpOHy OT onepaTopa. IJn HaIpeKaUero fYHKUHOHPOBaHn IpyuHTeN KpaIHe BaXHo CToPoRo coBIOdaT bNCTpyKmI NO pPObEpKe N3dEInr, yXoY 3a HIM IN TexHnueCKOMy OcbNyKuBaHNIO.

OCTaHOBtE DnBaTeIb,HaDeHbTe 3aunTHbIe nepaTkn ObaaauTeCb C OCTpbIM KpaAMpeKyuIero o6OpyDoBaHn C OCTOPoXHOCTbIO.

Ha HeKoTOpbIX Tnax pexyUero 06bOpyDoBaHna dIa KpeJIeHn IcNoJIb3yeTcra KOHTpraKa. KOHTpraKa nMeet IbeOCToPOHHIO pe3b6y.

• Pn c6opke cneyet 3aTgNBaTB KOHTprayky npOTNB HappaBHeHn BpaUeHn peKyuIero o6OpdyoBaHn.
  -Пи рабборк Heo6xOДМО NOBOPaUbAы KOHTprAnkyВ HappaBNeHn BpaueHnpeKyuIero 6obopydOBAHIA.
  IcnoJb3yIe TopeBOK c dINHHo pykoI DnOcna6JIeHn 3aTnBaHn KOHTprAkn. Ha pncyHKe CTpeKNoKoN oKa3AH yAcTOK, OTkyDa Bbl MOxEt eynpaBnTb TopeBBIM KIOYOM.

PPEyPExEHENE: PnOcna6IeHnn 3aTgBaHnn KOHTprAkn CyueCTBye Tpck TpaBMnpoBaHn ne3Bnem. Pn BbINOpHeHH n3Tx OepauN Bcerda oecneuBaTe 3aunTy pyk,ncnoJIb3yJ uNTOK HOJa.

IpnmeaHne:Y6eHTecb,TOBHe MOKeTe npOBepHyTb KOHTpraKy BpyHyU.3aMeHnte raKy,ecnCOnpOtnBleHne HeNIOHOBo NpOKNaKn He coCTabJrEt MmHmym 1,5 Hm.KoHTpraKy cJeDyET 3aMeHntb nocNe npImepHo 10-KpaTHoro NCNoJIb3OBAHnI.

CpeIcTBa INHINBnDyaIbHOJ 3auNTbI

PPEyPExEHEHNE:OBs3aTeJbHom npraKe npouHTaTeCJeDyUoIe HNCTpyKuIN NO TexHKe6eONaChocTn, npexDe yem npicTynatb K3KcNlyatauIN 3dJIIn.

Kakdbpa3 npn pa6ote c n3deJinem CneDyET NcNOJb3OBaTb OoOpeHHbIe CpeCTBa INHINBNUdyaJIbHO 3aunTbI. CpeCTBa INHINBNUdyaJIbHO 3aunTbI He MOYr NOJHOCTbIO NCKNIOHTb PnCK NOLyHeHMy TpaBMbl, HO npn HecuactHom Cnyae OHN CHIXaHOT TJeXeCTb TpaBMbl. 3a NOMOUsIO No npabUNbHOMy Bb6Opy obopydoBaHnroobpaauTeCb K dInepy.
- IcnoIb3yIte 3aunTHbI mIeB Tex cnyaX, KOrda cyuecTByet BepoarTHOCTb naJeHn PpeMeTOB.

CneJyET noJIb3OBAIbC OIO6peHHbIM 3aUHTHbIMn HayuHNKAMN C DOCTaTOUHbIM yPOBHE M NOaABNeHnA Wyma. IpoDOnXHTenbHOe BO3deIcTBne Wyma MoKet NOBNeYb HEn3NeHmOE yXyUWeHne Cnyxa.

-Повьутесь повереHHbIMn cpeCTBaMn 3aunTbI rna3. Пи ИспльбоВани 3aunTHoN MaCKn CneDyET NOlb3OBaTbCЯ TAOKe OdoBpeHHbIMn 3aunTHbIMn OOKAMn.ПОД OdoBpeHHbIMn 3aunTHbIMn OOKAMn NOpa3ymeBAHOTc OOKN,OTBeVAIOUne Tpe6OBaHmMa CTahdapTa ANSI Z87.1 dny CUSA nnn EN 166 dny CTpan EC.

• Pn Heo6xOaMocTn HaeBaIte nepaTkN, HanpImep, np3zakpenHeHH, npOBepKe nnn OoucTke pexyueo o6OpydoBaHna.

-Повьтугсь 3ацитнбим 6OTинкамо CTаьнбим HOCKOMИ HeCKOJB3K0I NOdoWBOI.

HaedeBaIte OeJy n3 npOHO MaTePnAna. Bcerda HaedeBaIte dnnHbIe npOHe 6pIOKn nBepXHIO OeJy C DnHHbIMn pyKaBaMn. 3aIpeuaetc HaeBaTb CBOoDHyO OeJy, KOtOpA MoKeT 3aCenITbcra 3a BeTbN nn KyCTapHnK. He HaedeBaIte IOBeIInpHbIe YkpaSeHnA, WOpTbI, caHaJIIN N He XoJTE BoCnKOM. 3aФнКсИpyTe BOLOcbl Bblse yPOBnI pIeY.

CpeCTBa OKa3AHnI nepBOI NOMOUI BCERda DOJXHbI 6bITb NOI pyKoI.

YcTpoIcTBo 6bIcTporo paucenIIeHnO cHaCTKIN

ПЕДУПЕЖDEHNE:

3anpeaaetcnoIb30BaTbOChactky CHeNCnpaBHOH cyHKnei6bICTporo
pacenIIeHn.Bo BpemperypnopBkn
n3JeINy8eINTecb,yTO cyHKnI
6bICTporo pacenIIeHn OCHACTKn pa6oTaET
ncpabHo.

PPEyPExEHENE: np

3KcnpnyatauHn3dEJnYb6eNTecb,TO OHO HAdExHo 3aKpeIJIeHO Ha OChAcTke. B npotNBHom cnyae Bb He MoXeTe NOHOCtBu ynpabTb N3dEJIeM,TO MOxET PnIBeCTN K TpaBMIpOBaHIO Bac IIN OKpykaUOxN.

ФункцябьстPORo pacuENHn HaxOHTcB npeDHeN yactn OchactKn. JIaMKn OCHACTKn DOJXHbI Bcerda OCTaBaTbCBy I npabNJbHOM NOJOxKeHN.

ФункцябьICTporo paucenHnno3BOJAreT 6e3OnaCHO CHrTB n3dJIne B 3KCTpeHHOu CnTuaun.

Pekyuiee o6opydoBaHne

PPEyPExEHENE:

BbINOJIHeHn pa6oT cpeKyUHM
ObOpyIOBaHNem OHO He DOJXHO
BpaaATbc. Y6eINTEcB, YTO dBNraTeIb
OCTAHOBUNc. B 063aTeNBOM npRKe
CHMITE KOJINaQOK CBeu N 3aJxRHaHn,
IpexJe QEm npNCTUYNTb K pa6Ote C
peKyUHM ObOpyIOBaHNem.

PPEyPExEHENE: PpOBepeTe

pekyuee o6opyoBaHne Ha Hauyue nOBpeKdHn. NObpeKdHHeOe pekyuee o6opyoBaHne MoKeT CTaTb npuHoi

PPEyPPEKDEHNE:

IcnoJb3yIte npaBnIbHoe pexKyUeOobopydOBaHne. IoJb3yIteCb pexKyUmOobopyDObAHMeToIbKO CpeKOMeHDoBaHHo3aUHTOn, CM. pa3deIpInHaIeXHoCTNu Ha cTp. 227.

Pekyuuee obopydobaHne

-ДЯ CTPNKJX JECTKOITpaBbI NcnoJIb3yIteJe3BnHHOKN DJIa TpaBbl.

-Дястпжк ТраБы Исноьу Te roJOBky TpIMMepa.

• HenpaBnIbHO 3aToeHHbI nII NOBpeKDeHHbI HOx yBeIINuBaET pUck HecuaTbIX cnyuaEB. Pexyuee 3y6bI HOka DOJXHbI 6bITb IpaBnIbHO 3aToeHbI. ToHcO CneDyIte IHCTpyKlurnM, INpBEeHHbIM B pa3dene 3aToyKa HOxa I ne3BnI dN TpaBbI Ha CTp. 223, nncnoJIb3yIte peKOMeHDoBaHHbI WabNoH dnn 3aTaYBaHnI.

• Ocmotnte pexyuue o6opydoBaHne Ha hainupe noBpexdHn n TpeunH. 3aMeHnte nobpeXdeHHoe pexyuue o6opydoBaHne.
• POnb3yITeCb peKyuIm o6OpyIOBaHnEm TOnbKO c peKOMeHNIOBaHHo 3aunToi. CM. pa3dJI PpHaNNeXHOCTn Ha cTp. 227.

TOnOBKa TpIMMepa

PPEyPPEXHEHNE: B

6o83aTeIbHOM noprAKe y6eIntecb,yTO pexyuaa necka IIOtHO npaBHomepeHo HamotaHa Ha 6apaban BO n36eKaHne BpeHOBn6paun.

• IcnoIb3yTe ToIbKO peKOMeHDoBaHHble roIobKn TpIMMepa n peKyUne neckn.
• NcnoIb3yIe ToIbKO peKOMeHIOBaHHoe peKyuueo6OpydoBaHne.
  -ДЯ MeHBwero INHCTpyMeNTa Tpe6yOTc rONOBKn TpMMepa MeHBwero pa3mepa n HAObOpOT.
  KpaHbBaxHaDInHapeKyuueJneKn.Bonee DnHHaJeCKa Tpe6yET 60nee MoUHoro DBnIraTeN, Yem KopoTKa JeCKa TaKOrO JKe DnAmEtpa.
• Y6eNTecb,TO HOK,pa3MeUeHHbHa UNTKe Tpmmepa,He NOBpeXdH. OH o6pe3aET peKyUIO Jecky Do Heo6xOuMoN dINHbl.
  -Дя npoDneHnC poka Cnyk6bI peKyuSei neckn ee MOxHO BbIMaUNBaTb B BOe B TeueHne HeCKOJIbKnx DHei npeed INcNoJIb3OBaHNEM.

IHCtpyKcHn IO TexHnke 6e3OpaCHOCTN BO BpeMr TexHnueCKOro 06CJIyXnBaHnY

ПЕДУПЕЖДЕΗΝΕ:В

6o3aTeBbHOM npAKe npOHTaTe CJeDyUOuNE INCTpyKcUNI NO TexHKe 6eOnaCHOCTN, npExe Yem pNCTyNaTb K 3KcPnyataunn N3dJIIn.

• OctaHOBInTe DbInrataJIb, y6eINTEcB TOM, YTO pexyuee o6OpyIOBaHne OCTaHaBnBaETCra, INpeed BbIOnJHeHEm TexHnueCKOrO O6CnyKINBaHnaJaIte N3dEnIO OCTbITb.

-Перд поведенем Тхиеского обслжьаня OTcoeINHInTe KONnak CBeyn 3aKnraHn.
BbIXIbnHbIe ra3bI n3 DnIraTeIa CoepKata OKCb yrIepoDa-He IMeIOuN 3anaxa,TOKcNHybI upe3BbIaHNO onaChbIra3,KOTOpbIMoKETCTaTb npuHHO CMEPTN.3aPpeaaetc3KcNpyaTnpOBaTb N3dJIne B NOMeUeHN INB 3aMkHyTBix npocTpacHCTbax.
BbIXNONHbIe ra3bl DnBraTeIa IMeIOT BbICOKyIO TemnepaTyu MoYr CoIepKaTaB NCKpbl.

3anpeaaetcnaNoJIb3ObaTn3dIeNBeBnOmeueHn nn pRdOM C IerKOBocPnAmEHaUOuMmncr MaTePnAnamn.

• IcnoIb3OBAHHe npHaJaTeJXHoCTeN iIN BHeceHne N3MeHeHn B KOHCTpyKuHIO u3DeHn, He Odo6peHHbIX npoN3BOJNTeJIeM, MOKeT pPUBecTu K cepBe3HbIM INI CMEpTeJIbHbIM TpaBMam. 3aPpeuaetcBHOcHTb N3MeHeHn B KOHCTpyKUHO u3DeHn. Bcerda nolb3yJTEcB TOJbKO opnIHaNbHbIMn npHaJaJeXHoCTaMn.
  -Пи Нecobлкюдени прави и сроков Выногнени Текхобслужьаня рпск полчeyеня Траимы Или Новөрөдени Издүлгь BOЗрactaet.

BbINOHnTe Texo6cnyKuBaHne B CTPOROM COOTBeTCTBnC NHCtpyKUmN, PpNBeDeHHbIMN B PykoBOJCTBe no 3KnIyatauN.ДЯ npOBeDEHnB BCEx Dpynx pa60rNo 6cnyKuBaHnO 6pauaaTeCb B cepBnCHbI ueHTp Husqvarna.
- PeryIaRHO 6paauTecb B ABOTn3OBaHHbI cepBnCHbI ueHtp Husqvarna IJRA npoBeHnra Texo6cnyKuBaHnruN3deJIINr.
3aMeHHTe NOBpeKdEHHbIe, CLOMaHHbIe INN 13HOWeHHbIe DeTaN.

TexHnka 6e3oNaCHOCTN B OTHOSeHn TOnJIbBa

PPEyPPEKDEHNE:B

6b3aTeIbHOMnopAKe npOHTaIte CJeDyUoIe HNCTpyKuIN NO TexHnke 6e30NaChocTn, npExe Yem npNCtTyNaTb K 3KcNlyatauIN n3denn.

He CmeuBaTe TOJIINBO B NOMeUeHIn UIN PRAOM C NCTOCHKOM TEIIa.
3anpeaetc 3anyckaTb n3denie,ecnHa Hero nonaNo TOnNtBO nn MOTOPHOe MacNo. YdaNITE NOCTOPOHHee TOONtBO/MACNO n daTe n3denIO BbICOXHyTb.YdaNITE NOCTOPOHHee TOINtBO C nobepxHocTHn n3denIy.
- Ecnn TOnJIINBO nonaIHO ha Ondexy, HemeDneHNO CMeHnTe ee.
- He donyckaiaTe nonaHaTHa TToIbHa TeIO, 3TO MoKET npuHHTb BpeD 3dOpOBbIO. Pn nOaHaNn TOJIbHa TaIcMoITe erO BDOi C MbJlOM.
3anpeaetc3anyckaTb DniratEnb,ecnBblnpoJInMACIO INI TOINBO Ha n3deJIne INI TEJO.
3anpeaaetc 3anyckaTb n3dennepn Hauynuyn ytekn n3 DBuratela. PeryyraHPO npOBepaTe DBratelb Ha Hauynue yteek.
C6bHJaTeOCTOpOXHOCb npn o6paueHN cToJIINBOM.ToJIINBOYBJIaETcJERKOBOCJIaMeHryIOeNcKNDKOCTbIO CO B3pbIBOONaChbIMnnapAMN NMOKeT pNBecTNI CepBe3HbIMNJNCMEpTeJIbHbIM TpaBMam.
3anpeaetcBbixaTnpblTONINBa,T.K.30MOKET npuHnTB Bpe 3DopOBbIO.Y6eINTECB HAIuHN DOCTaTOHOro NOTOKA BO3dyxa.
3anpeaetcKypntbB6JIn3nTOnJIiBaIIN DBrIaTeIa.
3anpeaetcstabntbTeTnIbe npedMeI pydOM C TONJIUBOM NIN DBNATeJEM.
3anpeaetcdoJnBaTb TOnNBO npn pa6oTaOeM DBrataTeIe.
-П配电дуемЗanpaBntbи3delene,y6eHITecb,чTO DBnraTeNb NOJHOCTbIO OCTblI.

-Перд зарраьков ТОплва MeДпeнHo OТКpoиTe KрИшky TОплвHOrO 6aka И ocToPoхHo CбрocbTe ДавлеНe.
- Y6eNTecb HaNINuIN DOCTaTOUHOB BEHTNJIAuIN npn 3anpaBKe n3dEInra, NOIROTOBKe TOnNIBHOH Cmecn (6eH3nH mAcNo dJa DByXTaKTHbIX DBratenei) nII npn cInBe TOJINBa n3 6aka.
ToTnINBO nncapenHn TOnNbA KpaHne noXapOONacHbI N MOrY TnpBecTn K TAgKeblm TpaBMam npu BbIXaHN N KOHTaKTe C KOKei. I03tOMy 6yDbTe octOpoxHbI npu ObaeHN C TOINBOM n ObecneByte DoCTaTOHyIO BEHTNJRAUIO.
- AkkypaTHo 3aTaNHTe KpbIuKy TOnJIuBHOrO 6aka Bo n36exKaHne BO3ropaHn.
-ПеремecHTe n3dJIne MmHmym Ha 3M (10 cyTOB)OT MeCTa 3aIpaBKn TOnJIbOM, npexKe Yem 3anyCTnTb erO.
- He hαJIiBaIe B TOJIiBHyI 6aK CnIIuKOM MHOrO TOnJIuBa.
- Y6eHTecb, yTo npn nepemeueHnn n3deJnna nn emKoCTn dJa TOnJIInBa HeBO3MOXHO BO3HnKHOBeHne yTeuKn.
3anpeaet pa3meaTaB n3deJnne nn EMKocTb Jn TOnnBa B6nn3N OTKpbIToro ORH, NCKp nn ropaxxΦHTnne. Y6eINTecb, yTO B MeCTe XpaHeHn OTCyTCTByET OTKpbITbI OROh.
- NcnoIb3yIte ToJbKO OoO6peHHbIe EMKOCn IJI peHocKn I XpaHeHr TOnJIInBa.
CnBaTe TOnJIbBO n3 TOnJIbHOrO 6aKa nepeI pa3MeUeHEm n3dJIy Ha dJIteJIbHoe xpaHeHne. Co6JIHOaTe Tpe6oBaHn MeCTHOrO 3aKOHOdaTeJIbCTBa B OTHoWeHn MeCTa yTNIu3aUu NToJIbBA.
OuICTnTe n3dJIne, npexKe Yem nomecTb ero Ha dJIITeJIbHOe XpaHeHne.
- PpexKe Yem NomecTb n3deJIne Ha xpaHeHne, CHIMITE KOJINaYOK CBeuN 3aJInraHn BO n36eKaHne cIyuaHOrO 3aNycka DBrarTeJIa.

C6opka

BVeJeHne

ПЕДУПЕЖДЕНЕ:пегд

c60pko n3dEINrO3HaKOMbTEcB C pa3dJIOM, NocBraueHHbIM 6e3OnaCHOCTN, YcBOIte erO cOdePkaHne.

ПЕДУПЕЖDEHNE:пелегд.

c60pkoH3deJn CHIMMTE CO CBeu 3aKunraHH npOBOD CBeu 3aKunraHH.

C6opka rnbkoRo Bedyuero BaJa

1. BbIKpyTHe 2 BuHTa n3 MyΦTbI BaJa.

2.Пponyctnte r6kBvduuBan uepe3 netnKryTa npoBOdoB.
3. OndHOBpeMeHHo HadaBHTe N nobepHnte r6kn BedyuBaN, YTO6bl NOcOeHNHTb erO.
4.3aTAHNTe 2 BnHTa.
5.YctaHOBnTe Btynky BeyuIero Bana B KpbIuKy cIeNIIeHna. OIOHOBpeMeHHo HAdaBnTe I NOBepHnTe BEyunBn, YTO6bI NODcoEINHTb erO.

1. Y6eIntecb, yTO CTOnOpHbI uTnΦT Bo3BpaUaetcB INCXoIHOe NOJIOKeHne.

IopKnIOUeHne TpOca ApocceJI npOBODOB BbIKIOuataJIa

1. OTKpoIe KpbIiKy.

2. CoeHInHe Tpoc DpocceIa3 kryTa npoBOIOB (A) n Tpoc DpocceIa (B) ot DBnraTeJIHa KpbIuKe.

1. 3akpoTe KpbiUKy.
   4.ПодсоeДинITE npOBODa BbIKIHyoateЯK COOTBETCTBYUcIM pa3beMaM DBuRatEJa.

C6opka nTeIbHoi pyKoITKn

1. YctaHOBHTe neTeIbHyIO pyKoRTky Ha IToHry.
   2.Bctabte npoknaKy B bbiemky B nTeIbHoi pykoTke. YcTaHOBnte raiky u BNHT. He 3aTgNBaTe Do ynpa.

-OTcoeHNHtEΦHKcpyUOuNE3aXBaTbIC NOMOUBCBEYHOrO KJIIOHa.

YcTaHOBkaJe3BnI dIy TpaBbI N cHTKa Je3BnI dIy TpaBbI/KoM6HnHnpOBaHHORO cHTKa

1. UCTaHOBnTe 3aUHTbI NtOK/KOM6uHnpoBaHHbI UNTOK (A) Ha UTaHry u 3aTaNHe 6OJT KpePnEHHa UNTKa.

2.B 063aTeJbHOM IopRKe CHMNTe DOnONHTeJbHoe OrpaKdHeHne.
3.ПовораиВаite BbIXODHOBaIdoTExnop,пoka OДноИЗOTBepCTnBEduyueRoДИSCKa(B) He COBMECTNTcR C COOTBETCTByUOIM OTBepCTnEM B KOpnyce peDyKTopa.
4.BCTaBbTe cTOnOpHbI WTHcT (C) BOTBePcTne, UTO6bl 3aΦnKcnpoBaTb BbIXoHOB Ban.
5.YctaHOBnteJe3BnE DnTpaBbD,OnOpHbI ΦnaHeu(F) nOnOpHyU YaWky (E) Ha BbIXoHOB BaI.

1. Y6eIntecb, yTO BeDyun nnck n onOpHbJnFaHeu npaBnIbHO BxOJaT B ceHTpaIbHoe OTBepCTne ne3BnI dJa TpaBbl.

1. YctaHOBnte raiKy (G).
   8.3aTAHnTe raKy TOPeBIM raeHbIM KIOHOM. Depknte pyKy TOPcEBORO KIOUca prdom C 3aHTbIM UNTKOM. 3aTAHnTe raKy B HApBaJIeHN, IpOTUBONIOJXHom HAnpaBJeHNb BpaIeHnpeKyuIero O6OpYOBaHN. 3aTAHnTe MOMENTOM 35-50 H·M.

C6opka npa36opka uNTka pejxuero 60bopyoBAnn I rOIOBKn TpIMMepa

BHIMAHHE: B O6ra3aTeIbHOM NoprAKe yCTaHOBInTe DOnONHInTeJIbHyIO CEKUIO UNTKa.

1. YctaHOBNTe uHTOK pexyuzero o6opyoBaHnA (A), NOxOJaIzI dIra rONOBKr TpIMMepa.Cm.pa3dI npHaJIeXHocTn Ha cTp.227.
   2.3akpenite uHTOK peKyuero o6OpydoBaHnHa KpeJIeHNuTahn.
2. 3akpennte uHTOK peKyuero o6OpydoBaHn8 6oTOM.
3. HaneBte Ha BbIXoHoi BaI BeyuN nnck (B).
4. ПоворачиBaTe BbIXoHoi BaI Do TeX nop, noka OndHO n3 OTBepCTn BeDyUeRo DnCKa He COBMeCTnTcA C OTBepCTnEM B Kopnyce 3y6uatoN nepedauN.

6.Bctabte cTOnOpHbI WTHcT (C) BOTBepCTne, YTO6bl 3aФнкupOBaTB BbIXOHOB BAN.

7.Повернente rolOBkyТриммepa/плacrMaccobbie Hoxи(H)ВНарравлени,прOTиBOIOnIOxHOM HaprableniBpaueHnRA rolOBKn TpIMMepa/ ПлacrMaccobbIX HOKeI.

8.ДЯСЯТЯВыINONHITe BCE onepaUNB O6paTHOM noprJKe.

YcTaHOBka TpaHcNOpTnPOBOUHO3aUNtbl

1. YcTaHOBInTe Ie3BnE B TpaHcNOpTnpOBOuHyIO 3aunTy (A).
   2.3aФИКСИРУTeДBAЗAMKa(B)ВФИKCatopax(C),TO6bI 3akpenITb TpaHCnOpTnpOBOUHyO 3auNTy.

PerylnpOBKa BbICOTbl ONOPHOIINTBi

1. OTBepHnTe 3 fncatopa onopHOI nIITbI.

1. Chmnte onopHyIO nnIy c pambl c odHoi cTOpHbI.

1. Otperynpyte onopHyIO nnIy Ha Heo6xOmyIO BbICOTy. Y6eIITecb, yTO wTnOCT COBMeueH C ODNHM 3 OTBepCTn Ha pame.

PerynipoBka ochactkn

1. HadehheOchactky n3deJnA.

2. Tyro 3aTaNHTe Ha6epeHHb peMeHb. Y6eNTecb, yTo Ha6epeHHb peMeHb noDBWeH ha ypOBHe 6eep.

1. 3aTAHHTe HarpyHbI peMeHb.

1. OTPerynnpyte HarpdynbHbpeMeHb no BepTknAaY. Y6eDntecb, yTO peMeHb nIOTHO npIneraet K TeNy.

1. OTPerynpuye nneuebo peMeHb, TaK yTo6bI Harpy3ka Ha nneu pacnPepenlaac pbpaBomepHo.

3Kcnpnyatauia

BVeJeHne

PPEyPExEHENE:Pepe3KcNpyatauue npnbopa Heo6xOIMO BnMaTeIbHO n3yUHTb pa3deI 6e30nachoctn.

IpeNd hauanom 3Kcnpyaataunn n3dennr

• PpOBeBpTe pa6oyu 30Hy, TnI yuaCTka, HAKNOH peIbeFa, HANUHe NOCTOPoHHnx IpeMToB, HApPmEp, KAMHei, BeTOK nA.
• Побевпente Татаеловьй OCMOTиЗдения.
• PpOBeIe npOBepky 6e3oNaChocTn n npOeIpypbI TexHnueckoro n cepBnCHoro o6cnyKnBaHn, npNBedeHHbE B daHHOM pyKOBOdCTBE.
  -Поверьтправиьнocь усанOBи n целочнocь BCex KOKyXOB, uNTKOB, pyKoTOK n pekyuzeroобopydobAHn.
• Ocmotpnte ne3Bne nIra TpaBbl y6eHNTecb, YTO Ha 3y6b8x IIN OKOIO ueHTpaBbHO OTBepCTnIe3BnI HeT TpeuH. B cnyae nobpeXdEHHa HOka 3ameHnte erO.

- Ocmotpnte onopnbHn fnaHeu Ha haJInuue TpeunH. B cIyuae nobpeXdEHHa onOpHoro fnaHua 3ameHnTe erO.

- Y6eNTecb, yTO cHrTB KOHTprayKy BpyHyIO HeBO3MOxHO. EcIN BB MoKeTe cHrTB KOHTprayKy BpyHyIO, 3TO 3HaHT, yTO rAka He qKcnpyeT

dONKHBIM o6pa3OM pexyuee 6obopyoBaHne n dONKHa 6bTb 3ameHeHa.

- Ocmotpnte 3aunTHbI uNTOK Ha HAnuHne NOBpeKdEHN I TpeUHN. 3aMeHnTe 3aUNTHbI UINTOK, eCN OH NOBpeKDeH JIN IMeET TpeUnHBI.

- Ocmotpnte roNoBky TpmmMepa n uTOK peKyuIero o6opuyoBaHnHa HauNue NOBpeXdEHN u TpeuH. Ecnr roNoBka TpmmMepa u TOT peKyuIero o6opuyoBaHnN NOBpeXdEhbl IIN IMeOT TpeuHb, 3aMeHnTe ux.

TOnJIInBO

AnHoe n3dJIne o6OpyIOBaHO DByXTaKTHBIM DBnraTeJIeM.

BHIMAHHE:3a npabka HeNOxOJaTMM TINOM TOJIbMa MoKeT npBecTN K NOBpeKDeHIO dBIraTeJI. IcnoJb3yIte Cmec6 BeH3nHa n Macna dIg DByXTaKTbIX dBIraTeJIe.

BeH3nH

BHIMAHNE: Bcerda noIb3yItecB CmecbIO macna n OuyuJeHHoro 6eH3nHa C MInHMaJIbHbIM OKTaHOBBIM YNCJOM 90 (RON).Ppi nCNoJIb3OBaHHn 6eH3nHa C 6OJIee Hn3KIM OKTaHOBBIM YNCJOM CyueCTByET PnCK NORBHeHr CTyKa B DBrarateIe.B pe3yIbTate TempepaTypa DBrarateIe NOBbICITc, yTO MOKeT pINBEcTH K erO cepBe3HOMy NOBpeXdeHIO.

BHIMAHNE: EcnBaWe n3dene OCHaSeHO KaTaN3aTOPOM, NcNoJIb3yIte CMECb MaCna I He3TINnPobAHHOro 6eH3nHa BbICOKOrO KaYeCTBa. 3TNInpOBaHHbI 6eH3nH NOpTIT KaTaN3aTOP.

-ПОВОЗМохноTNIOЛьзУТecь3КОЛOrUYeCKIM，T.H.ajKNJIaTHbIM6eH3nHOM.

Pa3peaetcIncNoJIb3OBAtBToTnINBHyIO CmecbC 6eH3nHOM,coepkaUIM 3TaHON (E10:He 6oJee 10% 3TaHOJa).PpN cNOJIb3OBaHN 3TaHOJOBbIX Cmecen Bblue E10 Bo3MOXHO NOBpeKdHne DBrIgatela.
-Пи постаянй pa6ote Ha BBICOKnx 66opotax Mbl peKOMeHnyem uCNoJIb3OBAt b 6eH3nH c 60onee BBICOKIM OKTaHOBBIM YNCJOM.

Tonnbo-ankunat Husqvarna

Дпяdoctиженя ONTIMamNbHOn npOImBODntelbHocmMbpeKOMeHnyemNCIOJIb3OBaTB TOnNIBo-ANKnIaNtHusqvarna.3TOTTNTOINBA CODepKNT MeHbweeKOINueCTBO BpeHbIX BeIeCTB NO CpabHeHIO CobHybIM TOINBOM, YTO pINBOIDNT K COKpaIeHNIOBpeHbIX BbIbPocOB.Takoe TOnNIBo PnCropaHInOBpa3yET ManOE KOINueCTBO BpeHbIX OCTaTKOB,6lanOraDaprYeMy KOMNoHEHTb I DBnTaTeJIaOCTaIOTcBoJeeYnCTbIM.NTO N03BOJnEITnpOdNtB cPOKcLyKbI DnIatela.TonNIBo-ANKnIaNt HusqvarnaDOCTynHO He BO BCex CTpaHax.

MaCNo DnIyBvXrKaTHbIX DnBraTeJeI

BHIMAHNE: HehaJIeKaaee KaueCTBO Macna n/nn Cmecb Macna/ TOnJIbBA B HnpeBnIbHbIX nponOpqnx MoKeT NOBpeINb N3dEIne N COkpaTNTb cPOK cnJx6bl KataJn3aTopa.

BHIMAHHE: 3anpeucaetcnaOJIb3OBaTb MacNo, npedHa3HaueHHoeIyDByXTakTHbIX DnBnTaTeNe C BHeHIMBOJHBIM OXJaXKeHHeM,T.H."outboard oil".

BHIMAHNE: NcnoJb3ObaTb MacNo Dnay YetblpexTaKTHbIX DBVaTeJeN 3anpeaetc.

ДяdoctиkeHЯ ONTImaNbHbIX pe3yIbTaTOB mOuHocTN NOnb3yIteCb MacJiom Husqvarna dЯ DByXTakTHbIX DBnIaTeJIe.
- Ecni y Bac Het Macna Husqvarna dnia DByXTaKTHbIX DBiRaTeNei, Bbl MoKeTe NcNoIb3ObaTb Dpyroe BBICOKOKaueCTBeHHoe Macno, PpeHa3HaueHHoe Dnla DByXTaKTHbIX DBrAteNei C BO3DyUHbIM OxJaXdHeHem. IJr BaBopa npabunbHoro Macna 6paTntecb K CBOemy DInepy no 06CnykmbAHIO.
