GS33VVIE0N - Freezer SIEMENS - Free user manual and instructions

Product type	Freezer
Brand	Siemens
Model	GS33VVIE0N
Dimensions (H x W x D)	176 cm x 60 cm x 65 cm
Weight	70 kg
Power supply	230 V, 50 Hz
Energy class	A++
Net capacity	220 L
NoFrost function	Yes
Interior lighting	LED
Ice maker	Yes, built-in
Number of drawers	4
Door type	Reversible, with handle
Door gasket	Removable and replaceable
Hinges	Upper and lower, replaceable
Shelves	1 glass shelf
Freezer food container	Removable
Repairability	Repair instructions provided for spare parts
Available spare parts	Gasket, handle, hinges, lighting, shelf, container, ice maker
Cleaning and maintenance	Unplug before cleaning, use a soft cloth
Safety	Unplug the appliance 60 seconds before any intervention

Frequently Asked Questions - GS33VVIE0N SIEMENS

How to replace the door gasket of the Siemens GS33VVIE0N freezer?

To replace the door gasket, open the door and carefully remove the gasket from the groove starting at the corners. Insert the new gasket, heating it slightly with a hairdryer to facilitate installation. Make sure the groove is not damaged. Refer to section 4.1 of the manual.

How to change the door handle?

Use a Torx TX20 bit to remove the two caps and screws. Remove the handle and install the new one in reverse order. Always unplug the appliance first. See section 4.2.

How to replace the upper door hinge?

Place the appliance on its back, remove the hinge cover, unscrew the two screws with a Torx TX20 and remove the hinge. Assembly is done in reverse order. Beware of crushing risks. Section 4.4.

How to replace the upper LED lighting?

Unplug the appliance, remove the upper interior fixtures. Move the lighting to the left to disconnect the connection, then release the hooks and remove it from the front. Install the new one in reverse order. Section 4.10.

How to clean the freezer?

Unplug the appliance and empty it. Clean the interior with a soft cloth and warm soapy water. Do not use abrasive products. Dry thoroughly before plugging back in. Refer to the user manual.

What to do if the door does not close properly?

Check that the door gasket is not deformed or damaged. Adjust the hinges if necessary. The gasket can be heated and reshaped. If the problem persists, replace the gasket. See section 4.1.

How to defrost the freezer?

This model is equipped with the NoFrost function, it does not require manual defrosting. If ice forms, check that the door closes properly and that the gasket is intact.

How to adjust the temperature?

The temperature is adjusted via the control panel (depending on model). The recommended temperature is -18°C for storing frozen food. Refer to the user manual.

How to replace the freezer food container?

Open the door, pull the container completely out towards you, then lift it to remove it. Install the new container by pushing it until it stops. Section 4.8.

Where to find original Siemens spare parts?

Spare parts are available from Siemens after-sales service or from specialized websites. Always use original parts to ensure safety and proper operation. The references are indicated in the manual (e.g., [00340865] for the Torx bit).

USER MANUAL GS33VVIE0N SIEMENS

4.3 Removing the easy opening handle 11

4.3.1 Removing the easy opening handle 11 4.3.2 Installing the easy opening handle 11

4.4 Removing the door panel and the door 12

4.4.1 Removing the door panel 12 4.4.2 Installing the door panel 14

4.5 Removing the top panel of the door (door with display) 15

4.5.1 Removing the door panel 16 4.5.2 Installing the door panel 17

4.6 Removing the bottom panel of the door 18

4.6.1 Removing the bottom panel of the door 18 4.6.2 Installing the bottom panel of the door 19

4.7 Removing the drawer 20

4.7.1 Removing the drawer 20 4.7.2 Installing the drawer 20

4.8 Removing the container for frozen food products 21

4.8.1 Removing the container for frozen food products 21 4.8.2 Installing the container for frozen food products 21

4.9 Removing the defroster 22

4.9.1 Removing the defroster 22 4.9.2 Installing the defroster 22

4.10 Removing the LED lighting from the oven 23

4.10.1 Connecting the LED lighting 23 4.10.2 Mounting the LED lighting separately 24

ABOUT THIS DOCUMENT

1.1 Important information

1.1.1 Purpose

This manual is intended to assist the installer in installing the luminaires in accordance with the regulations for environmentally friendly design of luminaires (OT03.2021).

The information contained herein includes spare parts, including spare parts and risks.

If you have any questions, please contact our customer service department. We are not responsible for damages only if the repair instructions have been followed correctly.

1.2 Explanation of symbols

1.2.1 Danger level

The warning is indicated by the symbol and the signal word. The signal word indicates the severity of the danger.

Ниво на п dedурждени 3начени
ОПАСHОCT	Еспаразы新股у на п dedурждени.TО сбоб Shedени по Смьт ини сернони наразяваим.
ПРEDУПЕЖДЕНЕ	Еспаразы新股у на п dedурждени.TOTСбоб Shedени по Смьт ини сернони наразяваим.
ВИМATEЛНО	Еспаразы新股у на п dedурждени.TOTСбob Shedени по Смьт ини наразяваим.
ВИМАМЕЛ	Еспаразы新股у на п dedурждени.TOTСбob Shedени по Смьт ини смьз. БЕСТВЕНI.YE.TN.

Table 1: Danger levels

1.2.2 Danger symbols

The danger symbols are symbolic representations that provide information about the type of danger.

This document uses the following danger symbols:

Mounting and installation

4.3 Replacing the easy opening handle

Required tools:

Cross-head screwdriver PH2

Removal:

The door is excluded from the closing mechanism. The door is open.

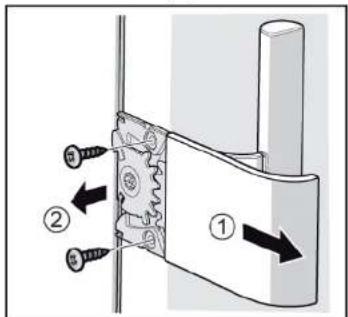

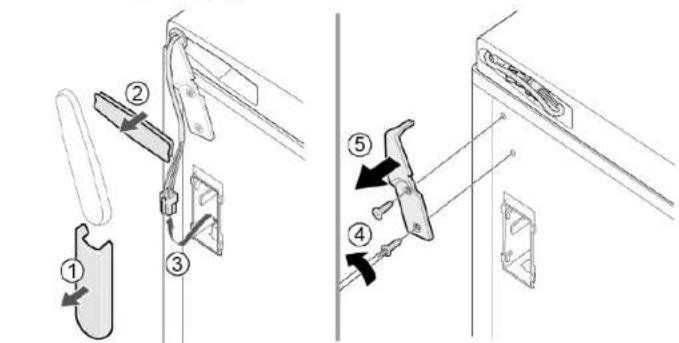

4.3.1 Removing the easy opening handle

1. Remove the cap of the easy opening handle (1).
2. Unscrew the two screws (2).

The easy opening handle is removed.

4.3.2 Installing the easy opening handle

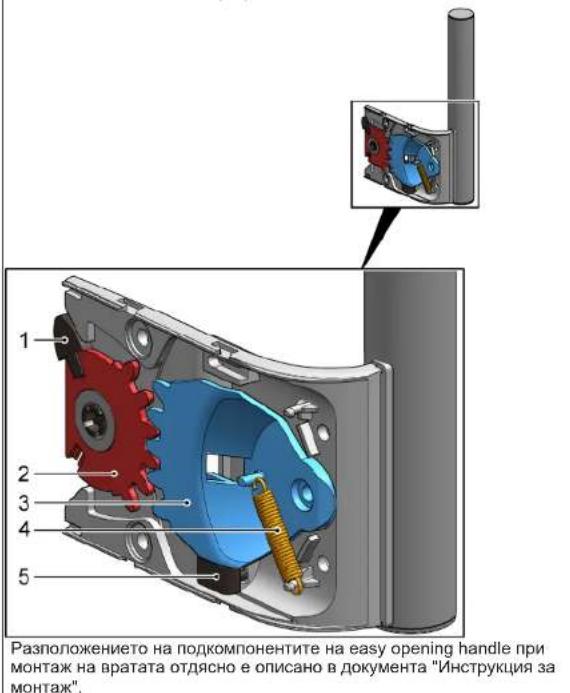

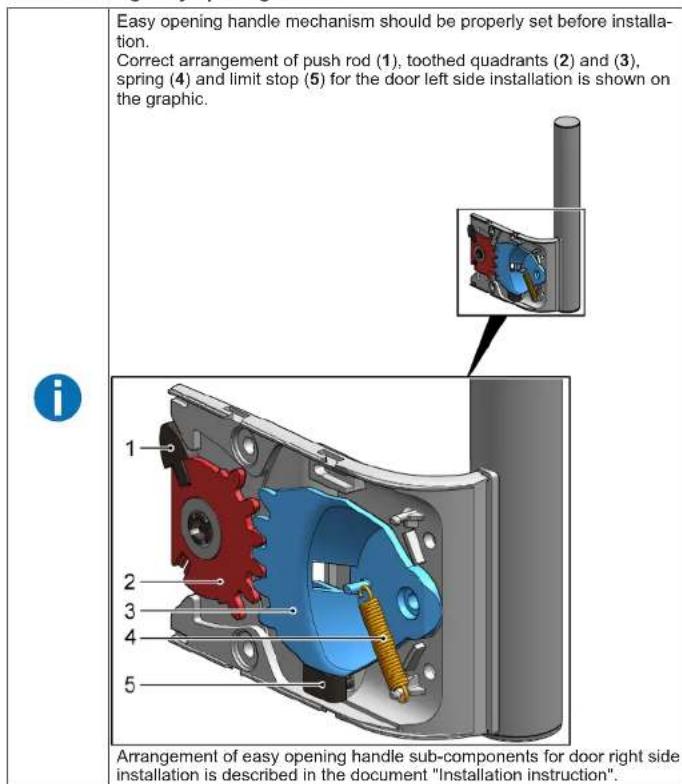

The mechanisms of the easy opening handle must be correctly adjusted before installation. The correct position of the spring (1), the square pins (2) (3), the spring (4) and the limiter (5) for installation of the door is shown in the figure.

Install the handle.

Repair

4.4 Replacing the door hinge

Unique tools:

Socket wrench 206.3 mm (1/4") [00340865]

WARNING

Keep body parts away!

Risk of injury from falling parts!

Bone fractures / bruises from improper use

Secure the device before use.

CAUTION

Risk of injury from falling parts due to loose screws!

Properly tighten all parts of the component, so that it does not fall.

ATTENTION!

Risk of injury from falling parts due to loose screws!

Damage to other parts or to the device if the component falls, e.g., on the floor

TC

Tighten the component so that it does not fall.

The device is switched off. The adjustment of the device is outdated.

4.4.1 Removing the door belt

Repair

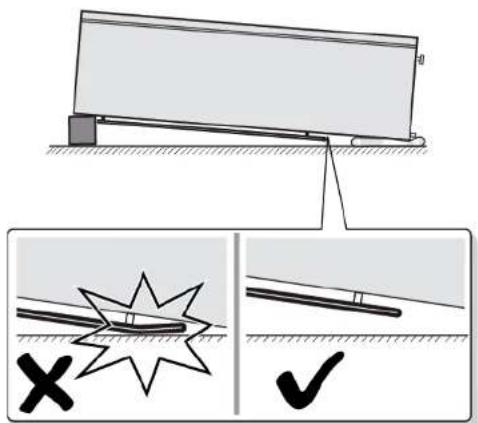

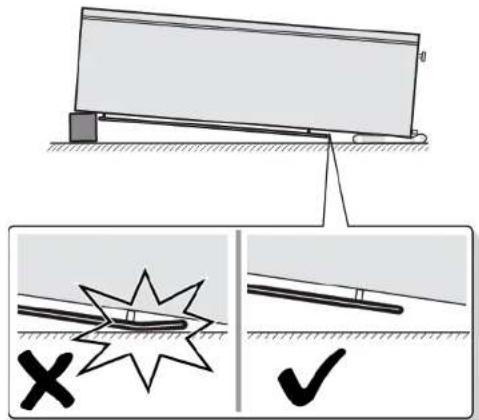

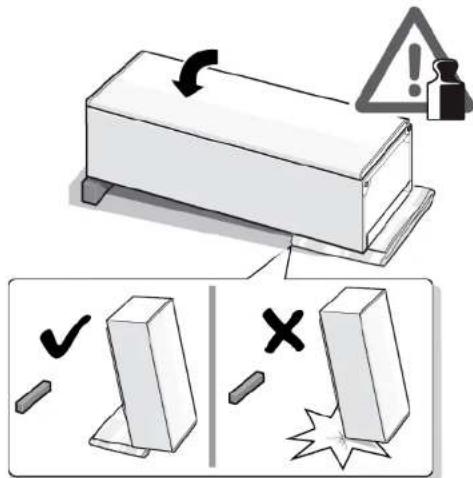

1. Place the device on a flat surface.

2.1. Press the upper belt clip from the side (1).

1. Remove the upper belt clip (2).
2. Slide the upper belt (3).

Repair

3.1. Turn the screw (1).

1. Slide the lower belt (2).

The upper belt of the door is removed. 4.4.2 Installing the door belt Install the belt in reverse order.

Repair

4.5 Replacing the upper door belt (door with display)

Special tools:

Torx TX20 socket wrench 6.3 mm (1/4") [00340865]

WARNING

Keep out of reach of children!

Mounting and removal.

Repair

4.6 Removing the door hinge pin

Special tools:

Torx TX20 socket wrench 6.3 mm (1/4") [00340865]

WARNING

Keep out of reach of children!

Mounting and removal.

Repair

4.8 Removing the container for contaminated food products

Note: The door is open.

4.8.1 Removing the container for contaminated food products

1. Remove the container for contaminated sharp objects (1). 2. Remove the container for contaminated waste products (2)

The container for contaminated waste products is removed.

4.8.2 Mounting the container for contaminated waste products

Mounting is performed in reverse order.

The generator is removed.

4.9.2 Mounting the generator

Mounting is performed in reverse order.

Repair

4.10 Replacing the LED lighting

Special tools:

Flat screwdriver, 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

The device is equipped with LED lighting that does not require maintenance. This lighting can only be repaired by specialists from the customer service department of the manufacturer.

DANGER

Risk of electric shock from live parts! Before starting work, disconnect the device from the power supply.

Electrical components must only be repaired by qualified electricians. After repair, a safety inspection must be carried out in accordance with VDE 0701 or in accordance with the relevant national regulations.

Danger! Electric shock hazard from the front part of the device!

Electric shock hazard

Disconnect the device from the electrical supply before performing any maintenance or repair work.

CAUTION

Sharp edges!

Warning

Wear protective gloves.

Troubleshooting:

The device is disconnected from the power supply. The cover is open, and the internal components are exposed.

4.10.1 Replacing the LED lighting

1. Disconnect the LED lighting from the power supply.

The connection to the electrical network and the LED lighting is disconnected.

2. Remove the LED lighting from its mounting.

Repair

3. LED lighting is connected to the mains power supply.

The LED lighting is connected. 4.10.2 Mounting the LED lighting to the mounting bracket.

4.3 Replacing the easy opening handle 34

4.3.1 Removing the easy opening handle 34 4.3.2 Installing the easy opening handle 34

4.4 Replacing the upper door hinge 35

4.4.1 Removing the door hinge 35 4.4.2 Installing the door hinge 37

4.3 Replacing the Easy opening handle 56

4.3.1 Removing the Easy opening handle.. 56 4.3.2 Installing the Easy opening handle.. 56

4.4 Replacing the upper door hinge 57

4.4.1 Removing the door hinge 57 4.4.2 Installing the door hinge 59

4.5 Replacing the upper door hinge (door with indicator) 60

4.5.1 Removing the door hinge 61 4.5.2 Installing the door hinge 62

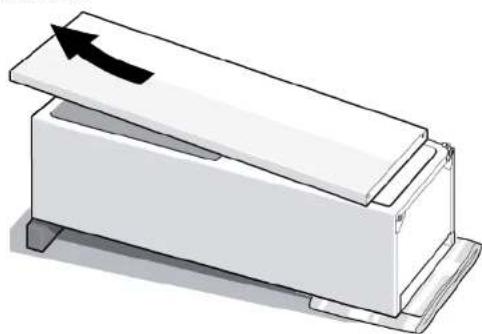

4.6 Replacing the lower door hinge 63

4.6.1 Replacing the lower door hinge 63 4.6.2 Installing the lower door hinge 64

4.7 Replacing the storage shelf 65

4.7.1 Removing the shelf 65 4.7.2 Installing the shelf 65

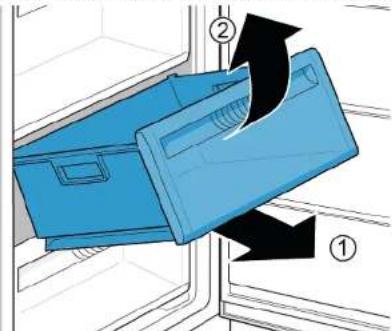

4.8 Replacing the frozen food drawer 66

4.8.1 Removing the frozen food drawer 66 4.8.2 Installing the frozen food drawer 66

4.9 Replacing the ice maker 67

4.9.1 Removing the ice maker 67 4.9.2 Installing the ice maker 67

4.10 Replacing the LED top lighting 68

4.3 Replacing the Easy opening handle

Special tools:

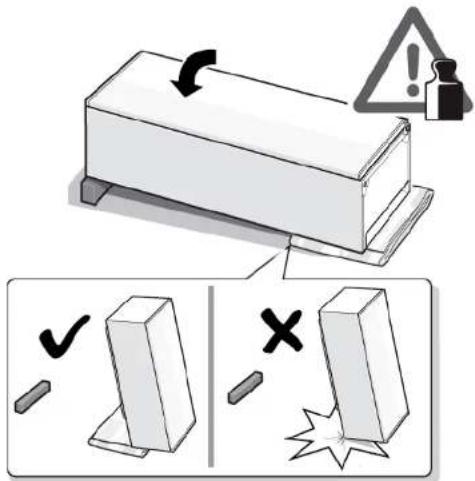

Make sure to secure the appliance against slipping.

Risk of falling parts due to loose screws!

Injury risk due to falling part. Make sure to secure the component against falling.

NOTE!

Risk of falling parts due to loose screws!

Make sure to secure the component against falling.

Presetting:

Make sure to secure the devices against slipping.

CAUTION

Danger of falling parts due to loose screws!

Injury hazard due to falling parts

Make sure to secure the component against falling.

NOTE

Danger of falling parts due to loose screws!

Make sure to secure the component against falling.

DANGER

Make sure to secure the devices against slipping.

CAUTION

Danger of falling parts due to loose screws!

Injury hazard due to falling parts. Make sure to secure the component against falling.

NOTE!

Caution: falling parts due to loose screws!

Make sure to secure the component against falling.

Presetting:

Repair hints - Freezer

1 Concerning this document. 116

1.1 Important information 116

1.1.1 Purpose 116 1.2 Explanation of symbols 116 1.2.1 Danger levels.. 116 1.2.2 Hazard symbols 116 1.2.3 Structure of the warnings 117 1.2.4 General symbols 117

Safety. 118

2.1 General Safety instructions 118

2.1.1 All domestic appliances 118

Tools and aids. 119

Repair 120

4.3 Replacing easy opening handle 124

4.3.1 Removing easy opening handle 124 4.3.2 Installing easy opening handle 124

4.4 Replacing door upper hinge 125

4.5 Replacing door upper hinge (door with display) 128

4.7 Replacing shelf 133

4.7.1 Removing shelf 133 4.7.2 Installing shelf 133

4.8 Replacing frozen food container 134

4.8.1 Removing frozen food container 134 4.8.2 Installing frozen food container 134

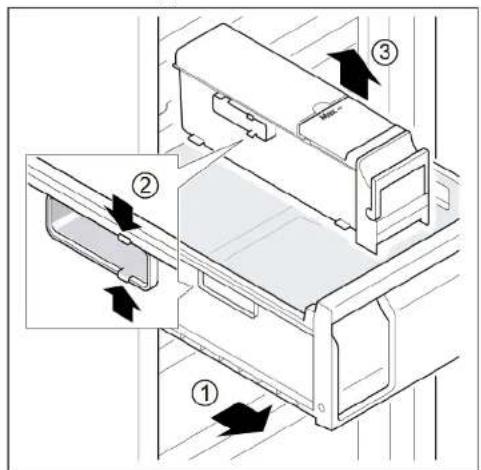

4.9 Replacing ice maker 135

4.9.1 Removing ice maker 135 4.9.2 Installing ice maker 135

4.10 Replacing LED top light 136

4.10.1 Removing LED light 136 4.10.2 Installing top LED light 137

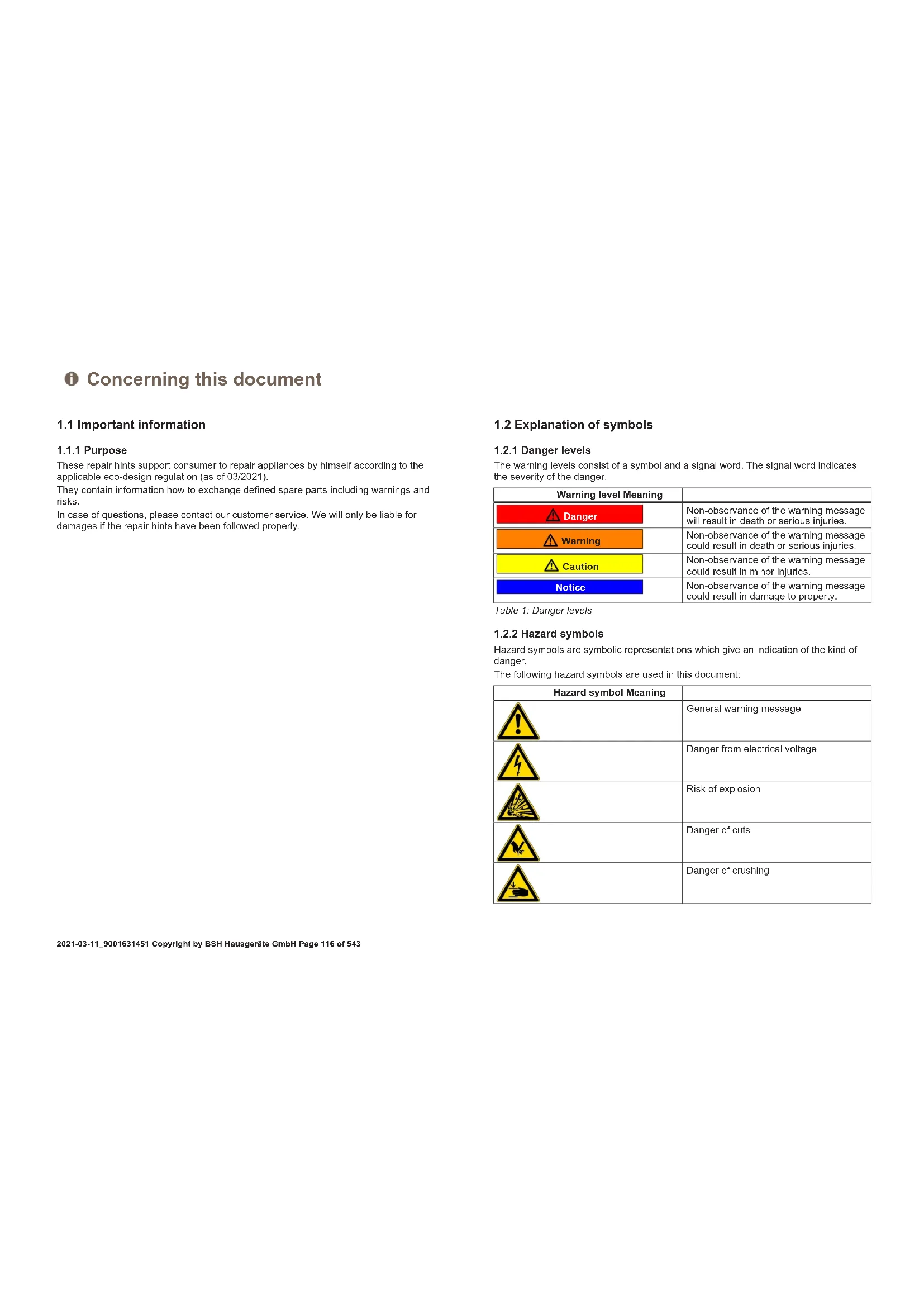

Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumers to repair appliances by themselves according to the applicable eco-design regulation (as of 03/2021).

They contain information on how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Table 1: Danger levels

Warning level Meaning
Danger	Non-observation of the warning message will result in death or serious injuries.
Warning	Non-observation of the warning message could result in death or serious injuries.
Caution	Non-observation of the warning message could result in minor injuries.
Notice	Non-observation of the warning message could result in damage to property.

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

Hazard symbol Meaning
!	General warning message
	Danger from electrical voltage
	Risk of explosion
	Danger of cuts
	Danger of crushing

Concerning this document

Hazard symbol Meaning
	Danger from hot surfaces
	Danger from strong magnetic field
	Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Danger

Type and source of danger!

Possible consequences of ignoring the danger / warning.

Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Danger

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before disconnecting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
1	Identification of a special tip (text and/or graphic)
i	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start]Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

Errors by repairs involving electrical components can lead to electrical shock! - Disconnect the appliance from the mains for at least 60 seconds before starting work. After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components.

Wear protective shoes. Secure heavy components from falling down. Do not stick body parts into moving components.

Risk to the appliance's safety / function! Only use original spare parts. Risk of damage to electrostatically sensitive components (ESDs)! Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth [00342013]	60 cm x 50 cm	###
Phillips screwdriver PH2
Torr Bit TX20 [00340865]	6.3 mm (1/4")
Slotted screwdriver	Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]	①

Prerequisite: Door is open.

1. Release door gasket from the groove on right and left corner.

1. Pull out door gasket from groove.

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

1. If groove for gasket is damaged.
2. Contact customer service.
3. Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Repair

1. Press whole gasket step by step into the groove.

Door gasket is installed.

Repair

4.2 Replacing door handle

Required tools:

Torx Bit TX20 6.3 mm (1/4") [00340865]

Slotted screwdriver Blade 10 mm x 1.6 mm x 200 mm

Prerequisite:

Appliance is disconnected from power supply. Door is open.

4.2.1 Removing door handle

1. Remove two screw caps (1).
2. Unscrew two screws (2).
3. Remove door handle (3).

Door handle is removed.

Install in reverse order.

Repair

4.3 Replacing easy opening handle

Required tools:

Phillips screwdriver PH2. Prerequisite: Appliance is disconnected from power supply. Door is open.

4.3.1 Removing easy opening handle

1. Remove easy opening handle cover (1).
2. Unscrew two screws (2).

Easy opening handle is removed.

4.3.2 Installing easy opening handle

Install in reverse order.

Repair

4.4 Replacing door upper hinge

Required tools:

Torx Bit TX20 6.3 mm (1/4") [00340865]

Warning

Heavy, bulky appliances!

Back and muscle injuries

Appliance door removal operation should only be carried out by trained specialists. To move the appliance, two people are required. Use only suitable tools and equipment.

Caution

Sharp edges!

Cut injuries

Wear protective gloves.

Warning

Slipping of tilted appliances!

Bone fractures / crush injuries

Secure appliances against slipping

Caution

Risk of falling parts due to released screws!

Injury because of falling parts. - Secure component from falling down.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customer's home e.g. bottom.

Secure component from falling down.

• Prerequisite:

Appliance is disconnected from power supply. Appliance interior fittings are removed.

1. Appliance is disconnected from power supply. 2. Appliance interior fittings are removed.

1. 2.1. Press upper hinge cover on both sides (1).

Move out upper hinge cover (2).

1. Remove upper hinge cover (3).
2. Repair

3.1. Unscrew two screws (1).

3.1. Unscrew two screws (1).

1. Remove upper hinge (2).

The door upper hinge is removed. 4.4.2 Installing the door hinge: Install in reverse order.

Repair

4.5 Replacing the door upper hinge (door with display)

Required tools:

Torx Bit TX20 6.3 mm (1/4") [00340865]

Warning

Heavy, bulky appliances!

Back and muscle injuries

Appliance door removal should only be carried out by trained specialists. To move the appliance, two people are required. Use only suitable tools and equipment.

Caution

Sharp edges!

Cut injuries

Wear protective gloves.

Warning

Slipping of tilted appliances!

Bone fractures / crush injuries

• Secure appliances against slipping

Caution

Risk of falling parts due to released screws!

Injury because of falling parts.

• Secure component from falling down.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customer's home, e.g. bottom.

bottom.

• Secure component from falling down.

Danger

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

Electric parts should be repaired by a qualified electrician.

After the repair, have a safety test performed according to VDE 0701 or country-specific regulations.

Danger

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from the electrical supply at least 60 seconds before starting repairs.

Prerequisite:

1. Appliance is disconnected from power supply. 2. Appliance interior fittings are removed.

Repair

1. Place appliance on its back side.

Repair

1. Press upper hinge cover on both sides (1). 2. Move out upper hinge cover (2). 3. Remove upper hinge cover (3).

1. Remove cable box cover (1). 2. Remove cable protection (2). 3. Disconnect electrical connections. 4. Unscrew two screws (4). 5. Remove upper hinge (5).

Door upper hinge is removed.

Install in reverse order.

Repair

4.6 Replacing door lower hinge

Required tools:

Torx Bit TX20 6.3 mm (1/4") [00340865]

Prerequisite:

1. Appliance is disconnected from power supply. 2. Appliance interior fittings are removed. 3. Appliance is placed on the back side.

Upper hinge is removed. (See page 128)

4.6.1 Replacing door lower hinge

1. Remove door.

2.1. Unscrew the screw (1).

1. Turn lower hinge out (2).
2. Remove lower hinge (3).

Lower hinge is removed.

Repair

Install in reverse order.

Repair

4.7 Replacing shelf

Prerequisite: Door is open.

4.7.1 Removing shelf

Pull out shelf.

Shelf is removed.

4.7.2 Installing shelf

Install in reverse order.

Repair

4.8 Replacing frozen food container

Prerequisite: Door is open.

4.8.1 Removing frozen food container

1. Pull out frozen food container all the way (1). 2. Remove frozen food container (2).

Frozen food container is removed.

4.8.2 Installing frozen food container

Install in reverse order.

Repair

4.9 Replacing ice maker

Prerequisite: Door is open.

4.9.1 Removing ice maker

1. Pull out shelf frozen food container with ice maker (1).
2. Release hooks (2).
3. Remove ice maker (3).

Ice maker is removed.

4.9.2 Installing ice maker

Install in reverse order.

Repair

4.10 Replacing LED top light

Required tools:

Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LB

These lights may be repaired by customer service or authorised technicians only!

Danger

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Caution

Sharp edges!

Cut injuries

Wear protective gloves.

Prerequisite:

Appliance is disconnected from power supply. Door is open. Upper interior fittings are removed.

4.10.1 Removing LED light

1. Move the LED light to the left side.

LED light electrical connection is disconnected.

1. Release LED light hooks.

Repair

1. Remove LED light moving it forward.

LED light is removed.

4.10.2 Installing top LED light

Install in reverse order.

Remonditeave - Sögavkülmik

1 Selle dokumendiga seoses 139

1.1 Tahtis teave 139

1.1.1 Eesmark 139 1.2 Sumbolite selgitus 139 1.2.1 Ohutasemed 139 1.2.2 Ohusumbolid 139 1.2.3 Hoiatuste struktuur 140 1.2.4 Üldised sumbolid 140

Ohutus. 141

2.1 General safety instructions 141 2.1.1 For household appliances 141

Table 1: Safety devices

1.2.2 Safety symbols

Üld.®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®
	Vajalike tõöristade tunnus
	Vajalike eeltingimuste tunnus
	Seisukorra tunnus (kui..., siis...)
	Tulemuse tunnus
[Start]Klahvi või nupu tunnus
[00123456] Matherjalinumbri tunnus
Olek Kuvatava tekstli/akna tunnus (seadme ek- raanil)

Table 3: General symbols

Mun Torx TX20 6.3 mm (1/4") [00340865]

PIIaekKaataqbiIeAeTlIda10mmx1,6mmx200mm

PouTo6eOg:

Houkeunivataoosuvdeevnantoynpaoxnpofoa H npota eival aoivxtn.

4.2.1 Aqaipeoan aBnns tropras

1. Apaipote ta duo mupatra biaq (1).
2. 三εβδωστε δuδβδες (2). 3.ApaipoeTnAaBnTncnpra(3).

HaaanTnTPOPTaEeXeapapeBtei.

4.2.2 ToTtoBéTnO nαβns nóptas

Eykataaotne tny avtieetn eipa.

EMIOKEUN

4.3 Replacing the easy open handle

Tools needed:

Screwdriver Phillips PH2

Procedure:

The handle is attached to the front panel. The panel is fixed.

4.3.1 Removing the easy open handle

1. Remove the cover of the easy open handle (1).
2. Unscrew two screws (2).

4.3 Replacing the easy opening handle 418

4.3.1 Removing the easy opening handle 418 4.3.2 Installing the easy opening handle 418

4.4 Replacing the top door hinge 419

4.4.1 Removing the door hinge 419 4.4.2 Installing the door hinge 421

4.5 Replacing the top hinge of the door (or display) 422

4.5.1 Removing the door hinge 423 4.5.2 Installing the door hinge 424

4.6 Replacing the bottom door hinge 425

4.6.1 Replacing the bottom hinge of the door 425 4.6.2 Mounting the bottom hinge of the door 426

Torx TX20 socket 6.3 mm (1/4") [00340865]

Flathead screwdriver Blade 10 mm x 1.6 mm x 200 mm

Requirement:

4.3 Replacing the easy opening handle

Special tools:

Phillips screwdriver PH2 Requirement: The appliance is disconnected from the power supply. The door is open.

4.3.1 Removing the easy opening handle

1. Remove the easy opening handle (1).
2. Unscrew two screws (2).

Torx TX20 socket 6.3 mm (1/4") [00340865]

WARNING

Heavy, bulky appliances!

Back injury and muscle strain

Torx TX20 socket 6.3 mm (1/4") [00340865]

WARNING

Heavy, bulky appliances!

Back injury and muscle damage

4.3 Replacing the easy opening handle 441

4.3.1 Removing the easy opening handle 441 4.3.2 Installing the easy opening handle 441

4.3 Replacing the easy opening handle

Special tools:

4.3 Replacing the Easy opening handle 509

4.3.1 Removing the Easy opening handle 509 4.3.2 Installing the Easy opening handle 509

1. Press the entire gasket into the groove bit by bit.

4.3 Replacing the Easy opening handle

Required tools:

Phillips screwdriver PH2

Prerequisite:

The appliance is disconnected from the power supply. The door is open.

4.3.1 Removing the Easy opening handle

1. Remove the cover for the Easy opening handle (1).
2. Unscrew the two screws (2).

The Easy opening handle has been removed.

4.3.2 Installing the Easy opening handle
