Product Type Cordless Hammer Drill
Brand Black & Decker
Model BDCH188
Category Impact Drill / Hammer
Rated Voltage 18 V DC
No Load Speed 0-400 / 0-1350 min⁻¹ (2 speeds)
Max Torque 17 / 38 Nm
Chuck Capacity 10 mm (keyless)
Max Drilling Capacity Steel: 10 mm, Wood: 25 mm, Masonry: 10 mm
Weight 1.4 kg (without battery)
Battery Li-Ion 1.5 / 2.0 / 4.0 Ah (depending on model)
Charger 100-240 V AC or 230 V AC, output 8-20 V DC / 18 V DC
Charging Time approx. 1 to 5 hours depending on battery and charger
Sound Level Pressure: 87.4 dB(A), Power: 98.4 dB(A)
Vibration (hammer drilling) 9.4 m/s² (uncertainty K=1.5 m/s²)
Vibration (metal drilling) 0.8 m/s² (uncertainty K=1.5 m/s²)
Vibration (screwdriving) 0.5 m/s² (uncertainty K=1.5 m/s²)
Main Functions Drilling, screwdriving, hammer drilling, torque selector, reversible rotation direction
Maintenance and Cleaning Clean ventilation slots with a soft brush; clean motor compartment with a damp cloth; do not use solvents
Safety Double insulation, safety lock (center button), auxiliary handle included, hearing protection recommended
Spare Parts and Repairability No user-serviceable parts; contact an authorized Black & Decker service center
General Information Household use; 24-month warranty; end-of-life recycling via WEEE

Frequently Asked Questions - BDCH188 BLACK & DECKER

How to change the drill bit or screwdriver bit?
Set the forward/reverse button to the center to lock the tool. Open the keyless chuck by turning the front part while holding the rear part. Insert the bit shaft, then tighten the chuck firmly.
How to charge the battery?
Insert the battery into the charger aligning it properly. Plug the charger into the mains. The indicator blinks during charging and stays on when charging is complete. Charging takes 1 to 5 hours depending on the battery model.
Which mode to choose for drilling wood?
Set the collar to the drilling position (drill symbol). Use second gear (selector forward) for wood. Apply light and straight pressure.
How to drill into masonry?
Set the collar to the hammer drilling position (hammer symbol). Switch to second gear. Use a carbide-tipped drill bit. Wear hearing protection as noise is high.
What to do if the battery does not charge?
Check that the ambient temperature is between 10°C and 40°C. If the battery is too hot or too cold, the charger will wait until it reaches the correct temperature. If the problem persists, contact an authorized service center.
How to reverse the rotation direction?
Use the forward/reverse button located above the trigger. Push it to the left for forward rotation (clockwise) and to the right for reverse rotation (counterclockwise). Set it to the center to lock the tool.
What torque setting to use for screwdriving?
Start with the lowest setting on the collar. Drive a test screw. If the clutch disengages too early, gradually increase the setting until you achieve the desired tightening.
How to clean the tool?
Remove the battery before any cleaning. Use a soft brush to clean the ventilation slots. Wipe the housing with a damp cloth. Do not use abrasive or solvent-based products.
What is the warranty on the device?
Black & Decker offers a 24-month warranty from the date of purchase against defects in materials or workmanship. Keep the proof of purchase. The warranty does not cover commercial use, neglect, or unauthorized repairs.
How to recycle the product at end of life?
Do not dispose of the tool or battery with household waste. Take them to a WEEE collection point or an authorized Black & Decker service center. The battery must be recycled separately.

User questions about BDCH188 BLACK & DECKER

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Hammer in PDF format for free! Find your manual BDCH188 - BLACK & DECKER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BDCH188 by BLACK & DECKER.

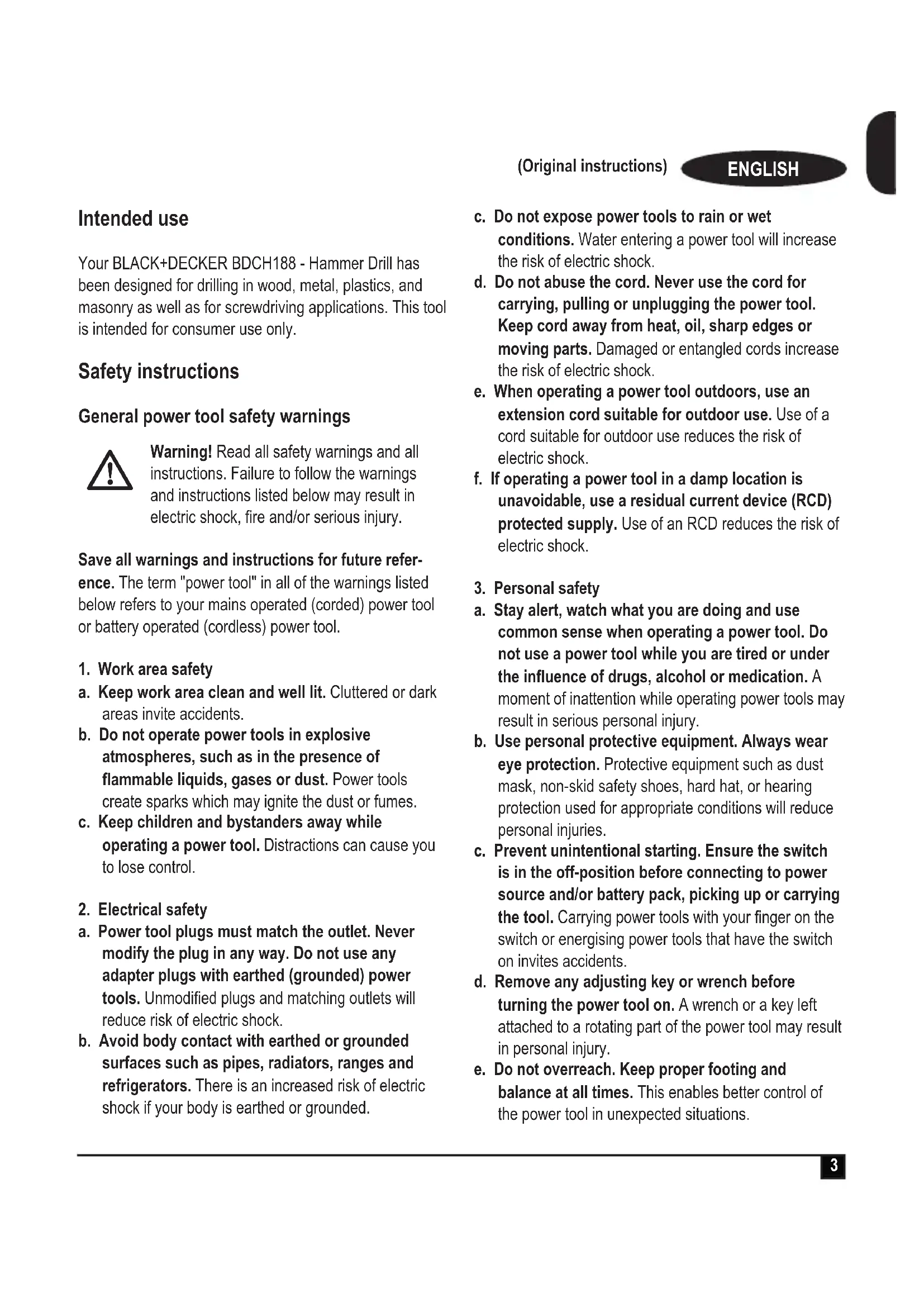

USER MANUAL BDCH188 BLACK & DECKER
