USER MANUAL Aerofryer Oven 182065 PRINCESS

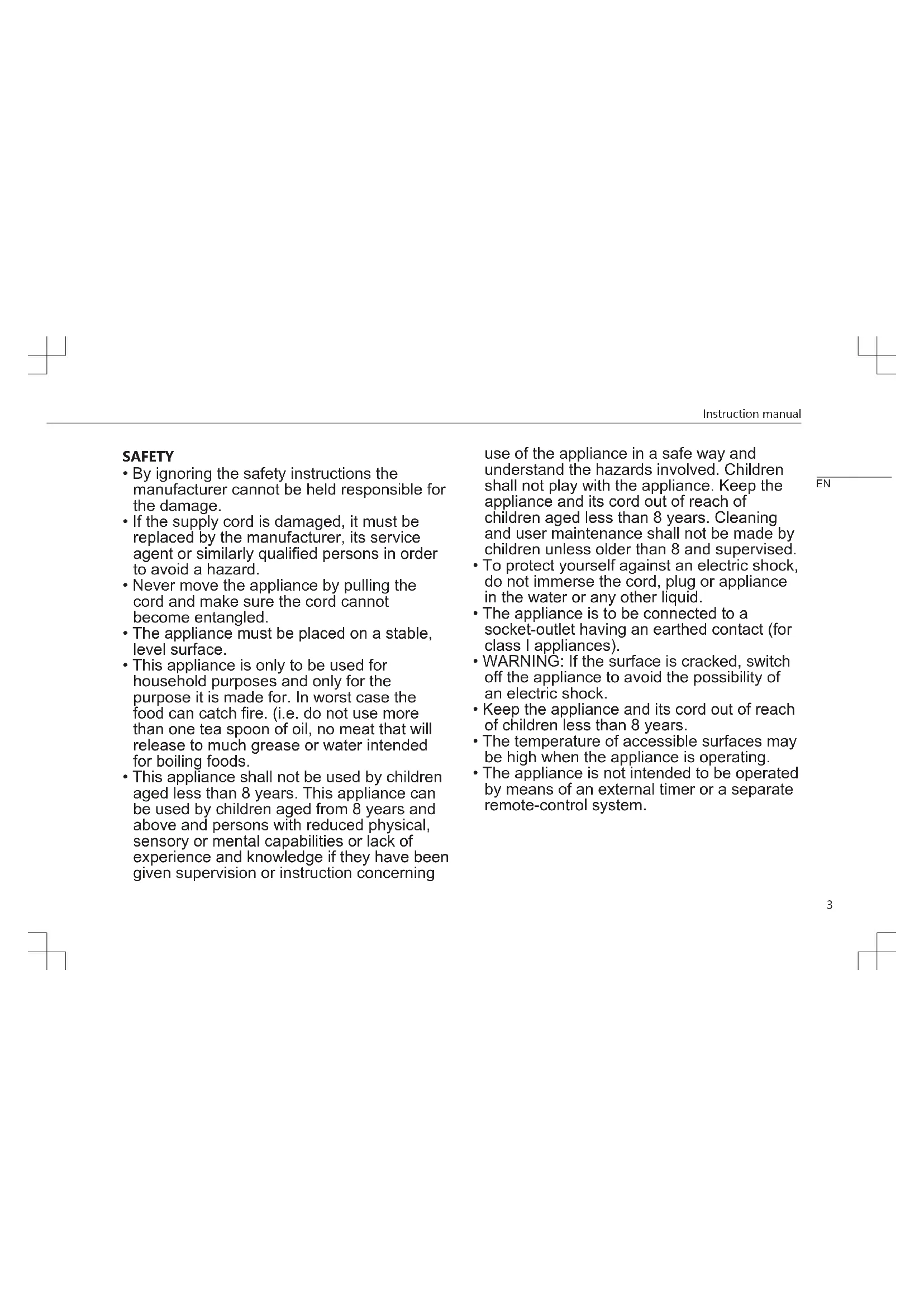

• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
• The appliance must be placed on a stable, level surface.
• This appliance is only to be used for household purposes and only for the purpose it is made for. In worst case the food can catch fire. (i.e. do not use more than one tea spoon of oil, no meat that will release to much grease or water intended for boiling foods.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• The appliance is to be connected to a socket-outlet having an earthed contact (for class I appliances).
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of an electric shock.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The temperature of accessible surfaces may be high when the appliance is operating.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

• Services indicated with this logo are liable to get hot during use.
• In order to prevent disruptions of the airflow do not put anything on top of the appliance and make sure there is always 10 centimeter of free space around the appliance.
  After the baking process the appliance needs to cooldown, this cooling process will activate automatically when the timer is done. Avoid to unplug the appliance from the net socket before the cooling process is finished because the remaining hot air can damage the appliance.
• This appliance is intended to be used in household and similar applications such as:
  Staff kitchen areas in shops, offices and other working environments.
• By clients in hotels, motels and other residential type environments.
• Bed and breakfast type environments.
  Farm houses.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

This product complies with conformity requirements of the European regulations or directives.

The universal recycling symbol, logo, or icon is an

internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.

The Green Dot is the registered trademark of Der Grüne

Punkt - Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopedia or an electronic database containing a reference manual.

Waste electrical products should not be disposed of with

household waste. Please recycle where facilities exist. Check with your local Authority or local store for recycling advice.

1. The Eurasian Conformity mark (EAC) is a certification mark to date products that conform to all technical regulations of the Asian Customs Union.

This symbol is used for marking materials intended to contact with food in the European Union as defined in EC) No 1935/2004.

The product and packaging materials are recyclable, extended manufacturer responsibility. Dispose it

separately, following the illustrated packaging symbols, for better waste treatment. The Triman logo is valid in France only.

PARTS DESCRIPTION

1. Main unit
2. Display
3. Handle rotating basket
4. Rotating basket
5. Removal tool handle
6. Baking rack (3 x)
7. Fat collecting tray

Control Panel

1. Lcd display 8. Light button
2. Temperature indicator	9. Power button
3. Working indicator 10. Rotating button
4. Time indicator 11. Preheat button
5. Temperature + 12. Time -
6. Temperature - 13. Time +
7. Mode indicators

BEFORE THE FIRST USE

• When the device is turned on for the first time, a slight odour will occur. This is normal, ensure adequate ventilation. This fragrance is only temporary and will disappear soon.
• Remove all packaging material.
• Remove any stickers or labels from the appliance.
• Wipe the inside and outside of the appliance with a moist cloth.

Fat collecting/baking tray

Always place the fat collecting tray in the lower rails of the cooking space to collect dripping fat, food residues or crumbs. It can also be used as a baking tray by placing food on it, place the baking tray in the middle rails.

Instruction manual

Removal tool

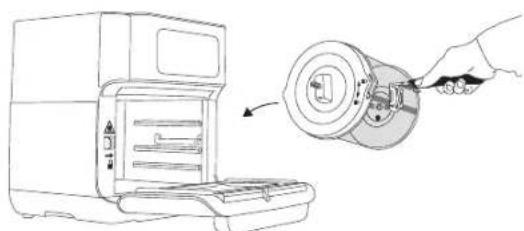

• Use the removal handle to take out the rotating basket from the cooking space by pressing the handle and secure it in the handle holder.
• Lift the rotating basket gently out of the cooking space and put it on a heat-resistance surface.

Rotating basket

• The rotating basket can be used to prepare chips or other potato products, pieces of vegetables, meat and frozen products like chicken nuggets or squid rings.
• Don't overfill the basket with ingredients, if it's to full, the food will not cook evenly.
• Close the basket and ensure that it is shut correctly so that it can't open during use.

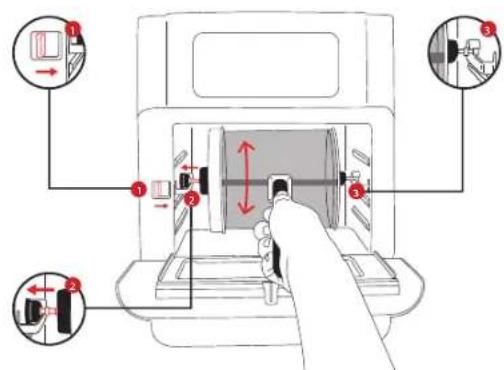

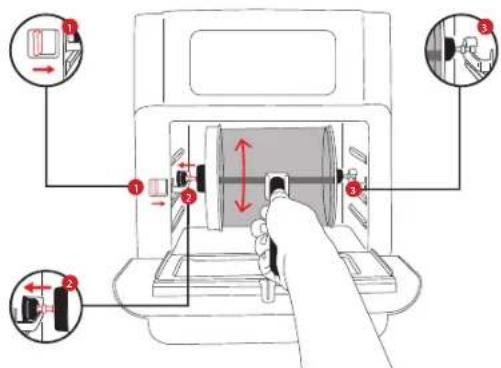

• Toggle the red switch to the right. Insert the left side of the rotating basket into the cooking space. To do this, plug the left end of the shaft as far as it will go into the round holder on the left side of the cooking space into the lock position.
• Then hang the right end of the shaft into the support on the right side of the cooking space.
• Release the switch to lock the basket into place.

• Check if it is placed correctly.

Baking racks

• The baking racks are slid onto the rails in the cooking space.
• The heating element is located at the top of the cooking space.
• The higher a rack is placed, the more intense the heat is from above.
• In the upper part, the food is cooked faster and crispy.
• The middle position can be selected to achieve uniform heating from all sides.
• The bottom rails are suitable for gentle cooking.

USE

• Put the mains plug in an earthed wall socket.
• Open the door.
• If the fat collecting tray is not to be used as a baking tray, slide it into the lowest rails of the cooking space
• Select a suitable accessory for the food to be prepared.
• Process the food and place it on or in the accessory and attach this accessory in the device.
• To attach and remove the rotating basket press the release button.
• Close the door.
• Press the on/off switch. The display will become active.
• Set the temperature and cooking time manually or choose between one of the 10 programs.
• Manual setting:

• Touch the up or down symbol at the temperature setting to set the desired temperature (lowest 80^ , highest 200^ ).

• Touch the up and down symbol at the time setting to set the desired time(1 minute to 90 minutes).

- Program setting:

• Activate the desired program by touching the program symbol, it's activated when the symbol starts flashing.
• Touching the same symbol again will cancel the selection.
  See for presetting information the table below:

Program Program Default	temperature/ time	Quantity
Aerofryer Fries *1 200	500g
Homemade Fries *2 Proposed time	120°C/10min 200°C/20min	500g
Roast 180°C/20min 200g
Fish 180°C/20min 200g
Shellfish/Crustaceans 180°C/15min	250g
Pizza 180°C/10min 1 pcs
Frozen pizza Proposed time	180°C/15min	1 pcs

Instruction manual

Chicken 180°C/25min
Bake 160°C/40min 1 pcc
Rotisserie 190°C/30min
Dehydrating 30°C/4hours
Reheat 115°C/12min

Extra information:

*1: When using the rotating frying basket, suitable up to 500g fries. When using the 3 grill racks, suitable up to 750g. (Shake every 5 minutes)
^2 Add 1/2 a tablespoon of oil. When using the rotating frying basket, suitable up to 400g fries. When using the 3 grill racks, suitable up to 600g . (Shake every 5 minutes)
- The cooking time depends on the thickness of the food. Times can also vary due to the quantity and consistency of the food. The time settings are only guidelines and can be adapted to your taste. Double the time for tough meat and extend the time by at least 20% for deep-frozen food.
- Make sure that meat and poultry are thoroughly cooked before serving.

• To change the temperature or cooking time of a selected program, touch the temperature and time setting buttons, the same as for manual setting and set a new value.

• Successively illuminating operating lamps indicate that the device is operating. If operation is interrupted, they flash.

• If the rotating basket is in use, touch the button to start the rotating function. Touching the button again will stop the rotating function.

• Switch on the light pushing the button to check the condition of the food during use or open the door, the light will switch on and the operation is interrupted automatically. Operation is resumed once the door is closed again.
  After the cooking time has elapsed, the device switches off automatically and it will give a beep sound. If the device must be stopped prematurely, press the on / off switch. To switch the device off completely, press and hold the on / off switch until the display goes out.
• Open the door and take the cooked items out of the device. Always use oven gloves and use the removal handle/tool to take out the accessories.
  After use, remove the mains plug from the wall socket.
• Allow the used accessories and device to cool down and then clean them.

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and wait for the appliance to cool down.

• Never immerse the device in water or any other liquid. The device is not dishwasher proof.

• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the appliance.
• Rinse all other used parts with dish soap and warm water or in the dishwasher. In the case of stubborn dirt, we recommend soaking the accessories in warm water and washing-up liquid beforehand.
• The door is detachable for easy cleaning, open the door to a 45^ angle and pull out the door. The door is not dishwasher safe.

• Allow all parts to dry completely or dry them with a towel.

TROUBLESHOOTING

Problem Possible cause Solution
The oven does not work. The appliance is not plugged in.	Plug power cord into wall socket.
You have not turned on the appliance by setting the cooking time and temperature.	Set the temperature and time as instructed.
The product window is not closed properly.	Check that window is closed.
The ingredients fried with the aero fryer oven are not done.	Too much amount of food. Reduce the amount of food for single cooking.
Setting temperature too low. Set the temperature higher.
The ingredients are fried unevenly.	When tray is used to make food, the tray position is not adjusted.	During cooking, adjust the tray position appropriately.
White smoke comes out of the appliance.	You are preparing greasy ingredients.	When you fry greasy ingredients in the aero fryer, a large amount of oil will leak into the pan. The oil produces white smoke and the pan may heat up more than usual. This does not affect the appliance or the end result.
	The pan still contains grease residues from previous use.	White smoke is caused by grease heating up in the pan. Make sure you clean the pan properly after each use.
Fresh fries are not crispy. The crispiness depends on the amount of oil and water in the fries.	Make sure you dry the potato sticks properly before you add the oil. Cut the potato sticks smaller for a crispier result. Add slightly more oil for a crispier result.

Instruction manual

All lights flash and error code appears on the display.	E1 Broken circuit of the thermal sensor.	Contact Customer Care Team.
	E2 Short circuit of the thermal sensor.	Contact Customer Care Team.

ENVIRONMENT

This appliance should not be put into the domestic garbage at

the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

You can find all available information and spare parts at www.princesshome.eu!
