Product type	Ultra wide-angle zoom lens
Mount	Fujifilm X
Focal length	8–16 mm (35 mm equivalent: 12–24 mm)
Maximum aperture	f/2,8
Minimum aperture	f/22
Optical construction	20 elements in 13 groups (4 aspherical, 3 ED, 3 Super ED)
Angle of view	121° – 83,2°
Aperture control	9 blades (circular), 1/3 EV increments (19 stops)
Focusing range	25 cm – ∞
Maximum magnification	0,1×
Dimensions (Diameter × Length)	ø88 × 121.5 mm
Weight (without caps and hood)	805 g
Filter diameter	None (filters not compatible)
Lens hood	Integrated, fixed
Weather resistance	Dust and splash resistant (mount gasket)
Focus motor	Linear motor (LM) for fast and silent AF
Maintenance and cleaning	Blower for dust, soft cloth for spots; avoid organic solvents
Safety instructions	Do not look at the sun through the lens; avoid shocks and extreme temperatures
Supplied accessories	Front cap, rear cap, integrated hood, protective cloth
Firmware compatibility	Requires camera firmware update

Frequently Asked Questions - Fujinon XF 816mm f2.8 R LM WR FUJIFILM

Can I use filters on the XF8-16mmF2.8 R LM WR?

No, due to its optical design, no filter can be mounted directly on the lens. The hood is fixed and does not accept filters.

How to clean the front lens?

Use a blower to remove dust, then a soft cotton cloth with a little lens cleaner. Never use solvents like thinner or benzene.

Is the lens weather-sealed?

Yes, it is dust and splash resistant thanks to a mount gasket. Avoid immersion.

What is the minimum focusing distance?

The minimum distance is 25 cm throughout the zoom range.

Is the lens hood removable?

No, the hood of the XF8-16mmF2.8 R LM WR is integrated and fixed. It cannot be removed.

Can I use this lens on a film X-mount camera?

No, this lens is designed exclusively for Fujifilm X-mount digital cameras. It is not compatible with film cameras.

How to update the camera firmware for this lens?

Visit the Fujifilm website to download the latest firmware version. Follow the instructions in the camera manual. The lens may require a recent firmware version to function correctly.

What is the weight of the lens?

The weight is approximately 805 g (without caps or hood).

Is there a risk of damage if I look at the sun through the lens?

Yes, this can cause permanent visual impairment. Never look directly at the sun through the lens or viewfinder.

How to store the lens to prevent mold?

Store it in a cool, dry place, away from direct sunlight. Do not leave it in a hot vehicle. Use a desiccant packet if necessary.

USER MANUAL Fujinon XF 816mm f2.8 R LM WR FUJIFILM

XF16-55mmF2.8 R LM WR

XF8-16mmF2.8 R LM WR

OWNER'S MANUAL

日本語

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

NEDERLANDS

SVENSKA

NORSK

SUOMI

РУССКИЙ

ITALIANO

DANSK

POLSKI

中文简

中文繁體

한글

お取り扱いにご注意ください

ご使用前に必ずお読みください

安全上のご注意

XF16-55mmF2.8 R LM WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

XF8-16mmF2.8 R LM WR

Technical diagram of a camera lens with numbered parts for identification and assembly reference.

Diagram illustrating camera lens adjustment process with numbered parts and directional arrows

JA-5

レンズキャップの取り外し方

Technical diagram showing two mechanical components with numbered parts and directional arrows indicating motion or assembly.

レンズキャップの取り付け方

Diagram of a camera lens with labeled parts and directional arrows indicating motion or movement

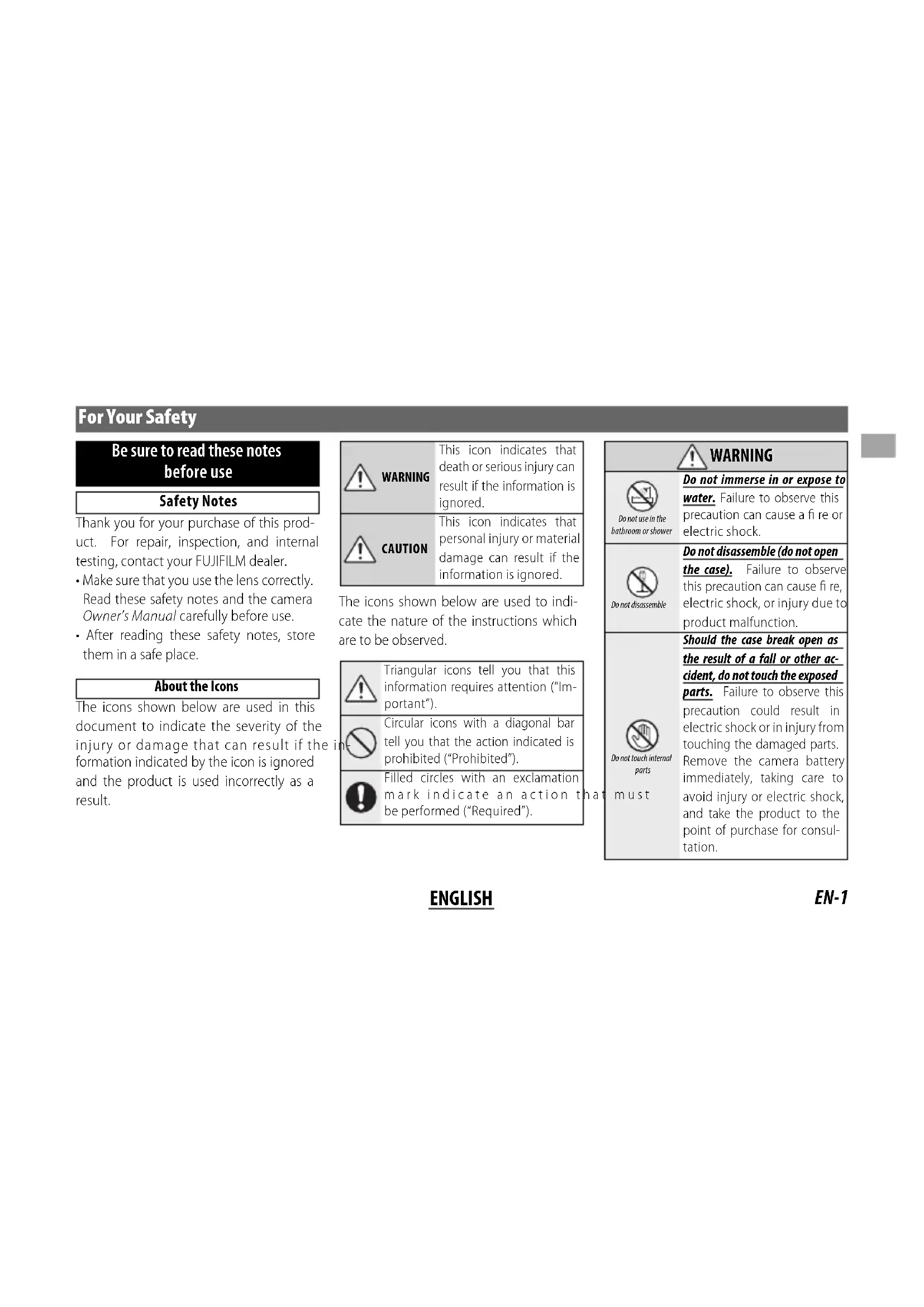

Be sure to read these notes before use

Safety Notes

Thank you for your purchase of this product. For repair, inspection, and internal testing, contact your FUJIFILM dealer.

• Make sure that you use the lens correctly. Read these safety notes and the camera Owner's Manual carefully before use.
• After reading these safety notes, store them in a safe place.

About the Icons

The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the formation indicated by the icon is ignored and the product is used incorrectly as a result.

	This icon indicates that death or serious injury can result if the information is ignored.
	This icon indicates that personal injury or material damage can result if the information is ignored.

The icons shown below are used to indicate the nature of the instructions which are to be observed.

	Triangular icons tell you that this information requires attention ("Important").
	Circular icons with a diagonal bar tell you that the action indicated is prohibited ("Prohibited").
	Filled circles with an exclamation mark indicate an action t be performed ("Required").

WARNING
Do not use in the bathroom or shower	Do not immerse in or expose to water. Failure to observe this precaution can cause a fi re or electric shock.
Do not disassemble	Do not disassemble (do not open the case). Failure to observe this precaution can cause fi re, electric shock, or injury due to product malfunction.
Do not touch internal parts must	Should the case break open as the result of a fall or other accident, do not touch the exposed parts. Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts. Remove the camera battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.
	Do not place on unstable surfaces. The product may fall, causing injury.
	Do not view the sun through the lens or camera viewfi nders.Failure to observe this precaution can cause permanent visual impairment.
	Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty. Failure to observe this precaution can cause fi re or electric shock.
	Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day.Failure to observe this precaution can cause fi re.

CAUTION
	Keep out of the reach of small children. This product could cause injury in the hands of a child.
	Do not handle with wet hands.Failure to observe this precaution can cause electric shock.
	Keep the sun out of the frame when shooting backlit subjects.Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns.
	When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.
	Do not carry the camera or lens while they are attached to a tripod. The product can fall or strike other objects, causing injury.

CAUTION
	Keep out of the reach of small children. This product could cause injury in the hands of a child.
	Do not handle with wet hands.Failure to observe this precaution can cause electric shock.
	Keep the sun out of the frame when shooting backlit subjects.Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns.
	When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.
	Do not carry the camera or lens while they are attached to a tripod. The product can fall or strike other objects, causing injury.

For Customers in the U.S.A.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• You are cautioned that any changes or modifications not expressly approved in this manual could void the user's authority to operate the equipment.

Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifi Im-specific ed ferrite-core A/V cable, USB cable, and DC supply cord.

For Customers in Canada

CAN ICES-3 (B)/NMB-3(B)

CAUTION: This Class B digital apparatus complies with Canadian ICES-003.

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water (excluding waterproof products).
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as ra-

diators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disposal of Electrical and Electronic Equipment in Private Households

In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.

Australian RCM

Before Using This Product

The lens may not perform as expected and some features may not be available with older versions of the camera firmware. Be sure to update the camera firmware to the latest version. Instructions on viewing the camera firmware version and updating camera firmware are available from the following website:

http://www.fujifilm.com/support/digital_cameras/software/#firmware

If you do not have access to a computer, support is available from the local distributor listed in the "FUJIFILM Worldwide Network" material provided with your camera.

Product Care

• When using a lens hood, do not pick up or hold the camera using only the hood.

• Keep the lens signal contacts clean.

• Use a blower to remove dust and lint from the glass surfaces of the lens or fi lter. To remove smudges and fi ingerprints, apply a small amount of lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fi ngers.

• Never use organic solvents such as paint thinner or benzene to clean the lens.
• Attach the front and rear caps when the lens is not in use.
• Store the lens and filter in cool, dry locations to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphc moth balls.
• Keep the lens dry. Rusting can cause irreparable damage. Wipe off rain and water droplets.
  • Leaving the lens in extremely hot locations could cause damage or warping.

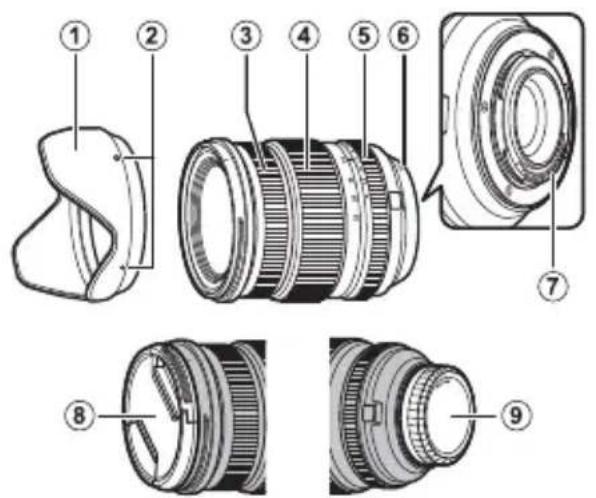

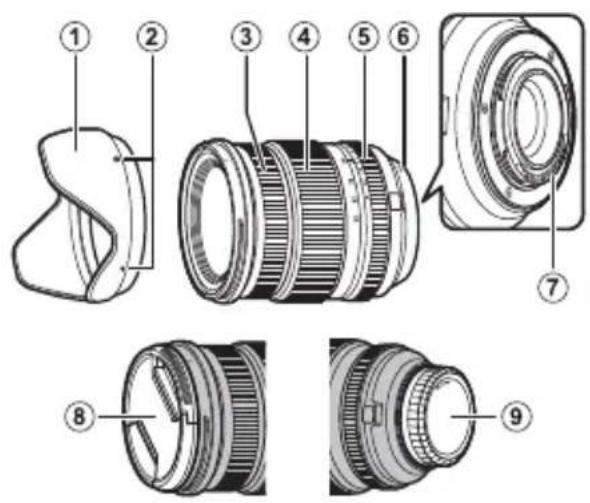

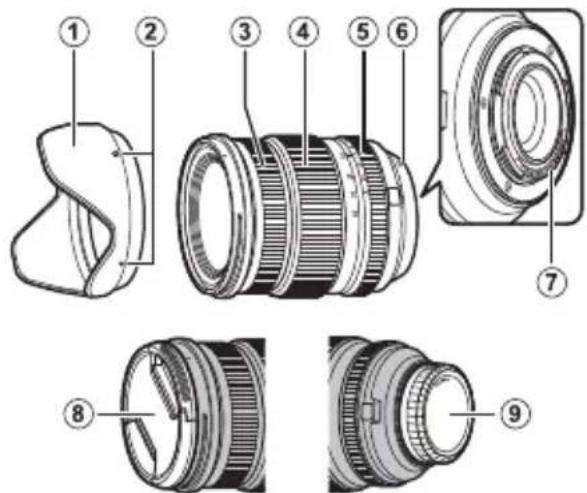

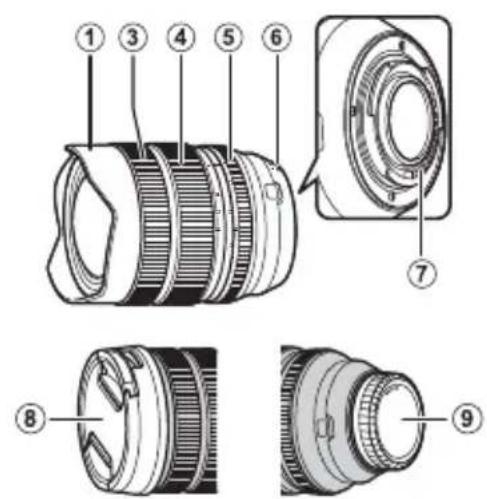

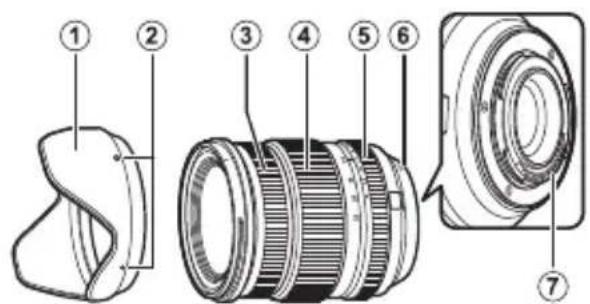

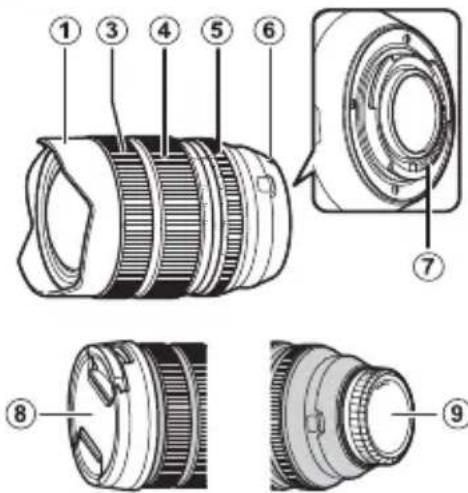

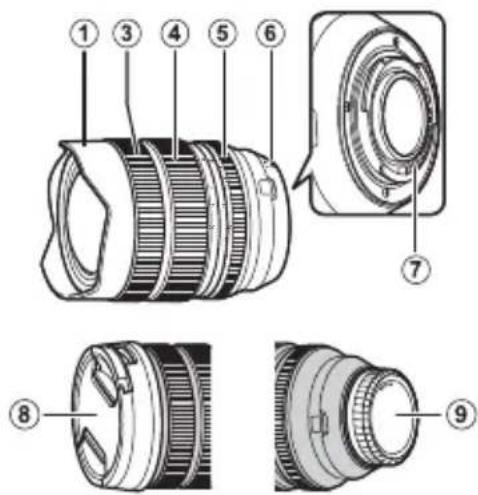

Parts of the Lens

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Exploded view diagram of a camera lens with numbered parts for identification

Technical diagram of a camera lens with numbered parts for identification

① Lens hood
② Mounting marks
③ Focus ring

④ Zoom ring
⑤ Aperture ring
⑥ Mounting marks (focal length)

⑦ Lens signal contacts
⑧ Front lens cap
⑨ Rear lens cap

The XF8-16mmF2.8 R LM WR lens hood is permanently attached to the lens.
The lens mount includes a rubber ring to ensure that the lens remains dust- and splash-proof. The ring can be replaced for a fee at any FUJIFILM service center.

ENGLISH

EN-5

Attaching the Lens

See the camera manual for information on attaching and removing lenses.

①This product is for use exclusively with the FUJIFILM X mount. It is not compatible with the G mount or with X mount fi lm cameras.

Attaching the Hood

When attached, lens hoods reduce glare and protect the front lens element. Attach the lens hood as shown (XF16-55mmF2.8 R LM WR only).

Diagram illustrating the process of a camera lens system, showing before and after states with labeled components.

EN-6

Removing the Caps

An XF16-55mmF2.8 R LM WR is used here for illustrative purposes.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram of a mechanical component with numbered parts and directional arrow indicating motion or force

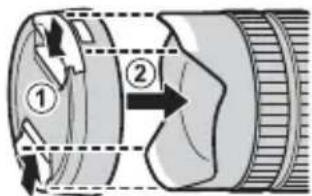

Attaching the Caps

After positioning the front lens cap for the XF8-16 mmF2.8 R LM WR as shown, mount it on the lens hood and confirm that it is securely latched.

Diagram of a camera lens with labeled parts and directional arrows indicating movement or force

Do not carry the lens by the cap.

ENGLISH

Supplied Accessories

• Front lens cap
• Rear lens cap
• Lens hood (XF16-55mmF2.8 R LM WR only)
• Cloth wrapping

The Aperture Ring

At settings other than A, you can adjust aperture by rotating the lens aperture ring (exposure modes A and M).

Aperture ring

A 22 16 11 8 5 A 22 16 11

Zoom

Rotate the zoom ring left to zoom out, reducing magnifi cation and increasing the area visible in the frame. Rotate the ring right to zoom in, increasing magnifi cation so that the subject occupies more of the frame.

Zoom out Zoom In

① Using the zoom ring while the lens is wet makes it easier for water to find its way inside the lens. Wipe any water from the lens before using the zoom ring.

ENGLISH

EN-7

Specifications

Type XF16-55mmF2.8 R LM WR XF8-16mmF2.8	R LM WR
Lens construction	17 elements in 12 groups(including 3 aspherical and 3 extra low dispersion elements)	20 elements in 13 groups (including 4 aspherical, 3 extra low dispersion, and 3 super extra-low-dispersion elements)
Focal length (35 mm format equivalent)	f=16–55mm (24–84 mm)	f mm (12–24mm) =
Angle of view 83.2°–29° 121°–83.2°
Max. aperture f/2.8 f/2.8
Min. aperture f/22 f/22
Aperture controlNumber of bladesStop size	9 (rounded diaphragm opening) 13 EV (19 stops)	9 (rounded diaphragm opening) 13 EV (19 stops)
Focus range	Normal: 0.6 m–infinity (zoom range)Macro: 30 cm–10 m (W); 40 cm–10 m (T)	25 cm–infinity
Max. magnification	T:0.16 ×	T:0.1 ×
External dimensions: Diameter × Length* (approx.)* distance from front of lens to lens mount flange	W:ø83.3 × 106.0 mmT:ø83.3 × 129.5 mm	ø88 × 121.5 mm
Weight* (approx.) * excluding caps and hoods	655 g	805 g
Filter size	ø77 mm	—

① Improvements may result in unannounced changes to specifications and appearance.
① Owing to how this lens is constructed, the "Distance indicator" displayed by the camera may in some cases differ from the actual focus distance. Use the "Distance indicator" as a guide only.
This lens uses linear motors to ensure fast and accurate auto focus while maintaining the highest image quality. When the camera is turned off, the lens is disconnected from the camera body, or the playback feature is turned on, there may be an audible sound and slight physical vibration due to the linear motor's magnets being disengaged. This is perfectly normal and will not negatively affect image quality or lens performance.
Due to its construction, the XF8-16mmF2.8 R LM WR cannot be used with filters.

EN-8

ENGLISH

Pour votre sécurité

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Exploded view diagram of a camera lens with numbered parts for identification

Technical diagram of a camera lens with numbered parts for identification

Diagram illustrating camera lens adjustment with numbered parts and directional arrows

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force directions.

Diagram of a camera lens with labeled parts and directional arrows indicating motion or movement.

(XF16-55mmF2.8 R LM WR uniquement)

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Exploded diagram of a camera lens assembly with numbered parts for identification

Technical diagram of a camera lens with numbered parts for identification

Diagram illustrating camera lens adjustment process with numbered parts and directional arrow

DE-6

Diagram showing mechanical assembly with numbered components and directional arrows indicating motion or flow

Diagram of a camera lens with labeled parts and directional arrows indicating motion or movement

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Exploded diagram of a camera lens with numbered parts for identification

Technical diagram of a camera lens with numbered parts for identification

Diagram illustrating camera lens adjustment process with numbered parts and directional arrows

ES-6ESPAÑOL

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Diagram of a mechanical component with numbered parts and directional arrow indicating rotation or movement

Diagram of a camera lens with labeled parts and directional arrows indicating motion or movement

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Exploded view diagram of a camera lens with numbered parts for identification

Technical diagram of a camera lens with numbered parts for identification

Zonnekap

Bevestigingsmarkeringen

Scherpstelring

Zoomring

Diafragmaring

Diagram illustrating camera lens adjustment process, showing before and after states with numbered components

Technical diagram showing two mechanical components with numbered parts and directional arrows indicating motion or assembly.

De doppen bevestigen

Diagram of a camera lens with labeled parts and directional arrows indicating motion or movement.

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Technical diagram of a camera lens with numbered parts for identification

① Motljusskydd
② Monteringsmarkeringar
③ Fokusring

④ Zoomring
⑤ Bländarring
⑥ Monteringsmarkeringar (brännvidd)

Diagram illustrating camera lens adjustment process, showing before and after states with numbered components and directional arrows.

Ta bort locken

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Sätta på locken

Diagram of a camera lens with labeled parts and directional arrows indicating motion or movement.

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Exploded diagram of a camera lens assembly with numbered parts for identification

Technical diagram of a camera lens with numbered parts for identification

① Solblender
② Monteringsmerker
③ Fokusring

④ Zoomring
⑤ Blenderring
⑥ Monteringsmerker (brennvidde)

⑦ Objektivets signalkontakter
⑧ Fremre objektivdeksel
⑨ Bakre objektivdeksel

Diagram illustrating camera lens adjustment process with numbered parts and directional arrow

Diagram of a camera lens with labeled parts and directional arrows indicating movement or force

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Exploded diagram of a camera lens with numbered parts for identification

Technical diagram of a camera lens with numbered parts for identification

Diagram illustrating camera lens adjustment process with labeled parts and directional arrow

Technical diagram showing two mechanical components with labeled parts and directional arrows indicating motion or assembly.

Diagram of a camera lens with labeled parts and directional arrows indicating motion or movement.

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Exploded view diagram of a camera lens with numbered parts for identification

Technical diagram of a camera lens with numbered parts for identification

Diagram illustrating camera lens adjustment process with numbered parts and directional arrows

RU-6

Снятие крышек

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram of a mechanical component with numbered parts and directional arrow indicating rotation or movement

Diagram of a camera lens with labeled parts and directional arrows indicating motion or movement.

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Technical diagram of a camera lens with numbered parts for identification

Diagram illustrating camera lens adjustment process with numbered parts and directional arrow

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Diagram of a mechanical component with numbered parts and directional arrow indicating rotation or movement

Fissaggio dei tappi

Diagram of a camera lens with labeled parts and directional arrows indicating motion or movement

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Technical diagram of a camera lens assembly with numbered parts labeled 1 through 7

⑦ Objektivets signalkontakter
⑧ Forreste objektivdæksel
⑨ Bagerste objektivdæksel

Diagram illustrating camera lens adjustment process with numbered parts and directional arrows

DA-6

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force directions.

Diagram of a mechanical component with numbered parts and directional arrow indicating rotation or movement

Diagram of a camera lens with labeled parts and directional arrows indicating motion or movement

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Technical diagram of a camera lens with numbered parts for identification

Technical diagram of a camera lens assembly with numbered parts for identification

Diagram illustrating camera lens adjustment process, showing left and right views with numbered components and directional arrows

PL-6

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram of a mechanical component with numbered parts and directional arrow indicating rotation or movement

Mocowanie pokrywek

Diagram of a camera lens with labeled parts and directional arrows indicating motion or movement.

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Technical diagram of a camera lens with numbered parts for identification

⑦镜头信号接点
⑧镜头前盖
⑨镜头后盖

Diagram illustrating camera lens adjustment process with numbered parts and directional arrows

取下盖子

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram of a mechanical component with numbered parts and directional arrow indicating rotation or movement

安装镜头盖

Diagram of a camera lens with numbered parts and directional arrows indicating motion or movement.

①切勿仅通过镜头盖持拿镜头。

ZHS-6

中文简

附带配件

• 镜头前盖
• 镜头后盖
• 镜头遮光罩

(仅限 XF16-55mmF2.8 R LM WR)

- 包装布

光圈环

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Exploded view diagram of a camera lens assembly with numbered parts for identification

Technical diagram of a camera lens assembly with numbered parts for identification

Diagram illustrating camera lens adjustment process with numbered parts and directional arrows

取下蓋子

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Diagram of a mechanical component with numbered parts and directional arrow indicating rotation or movement

安裝鏡頭蓋

Diagram of a camera lens with labeled parts and directional arrows indicating motion or movement

①切勿僅透過鏡頭蓋持拿鏡頭。

随附配件

http://www.fujifilm.com/support/digital_cameras/software/#firmware

XF16-55mmF2.8 R LM WR XF8-16mmF2.8 R LM WR

Technical diagram of a camera lens assembly with numbered parts for identification

Technical diagram of a camera lens assembly with numbered parts for identification

Diagram illustrating camera lens adjustment process with numbered parts and directional arrows

캡제거

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force directions.

Diagram of a camera lens assembly with numbered parts and directional arrow indicating rotation

캡 부착

Diagram of a camera lens with labeled parts and directional arrows indicating motion or movement

User to prepare

Diagram of a mechanical component with numbered parts and directional arrow indicating motion or force

Diagram of a mechanical gear or cam mechanism with numbered components and directional arrows indicating motion or force.

تركيب الأغطة

Diagram of a camera lens with labeled parts and directional arrows indicating motion or movement.

تركيب العدسة

.(Eq. XF16-55mmF2.8 R LM WR)

Diagram of a mechanical component with a circular feature and curved body (no text or symbols)

Diagram of a camera lens assembly with numbered parts and directional arrows indicating components

Technical diagram of a camera lens with numbered parts and exploded view

Technical diagram of a mechanical component with labeled parts 8 and 9 (no text or symbols beyond labels)

Technical diagram of a camera lens assembly with numbered parts for identification

حلقة التكبير ④

حلقة الفتحة ⑤
