| Product Type | Built-in Gas Hob |
| Brand | Dominox |
| Model | DHC 604 4G AN E |
| Appliance Dimensions (W x D) | 595 x 510 mm |
| Number of Burners | 4 (1 auxiliary, 1 semi-rapid, 1 rapid, 1 quadruple crown) |
| Total Power | 9.25 kW |
| Electrical Supply | 220-240 V ~ 50/60 Hz, 15 W |
| Compatible Gas Type | Natural gas (G20/20 mbar) or butane/propane (G30/28-30 mbar) |
| Safety | Thermocouple on each burner, integrated electronic ignition |
| Installation | Built-in, gas and electrical connection by qualified professional |
| Cut-out Dimensions | See diagram in manual (approx. 560 x 490 mm) |
| Table Material | Stainless steel or enamel (depending on version) |
| Maintenance and Cleaning | Clean with soapy water, avoid abrasive products and steam cleaners |
| Spare Parts | Injectors, burners, grates, caps available from after-sales service |
| Repairability | Repairs by authorized technician only |
| Installation Class | Class 3 (appliance not connected to a flue) |
| Environmental Protection | Compliant with WEEE, recycling at end of life |
Frequently Asked Questions - DHC 604 4G AN E Dominox
User questions about DHC 604 4G AN E Dominox
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cooker in PDF format for free! Find your manual DHC 604 4G AN E - Dominox and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DHC 604 4G AN E by Dominox.
USER MANUAL DHC 604 4G AN E Dominox

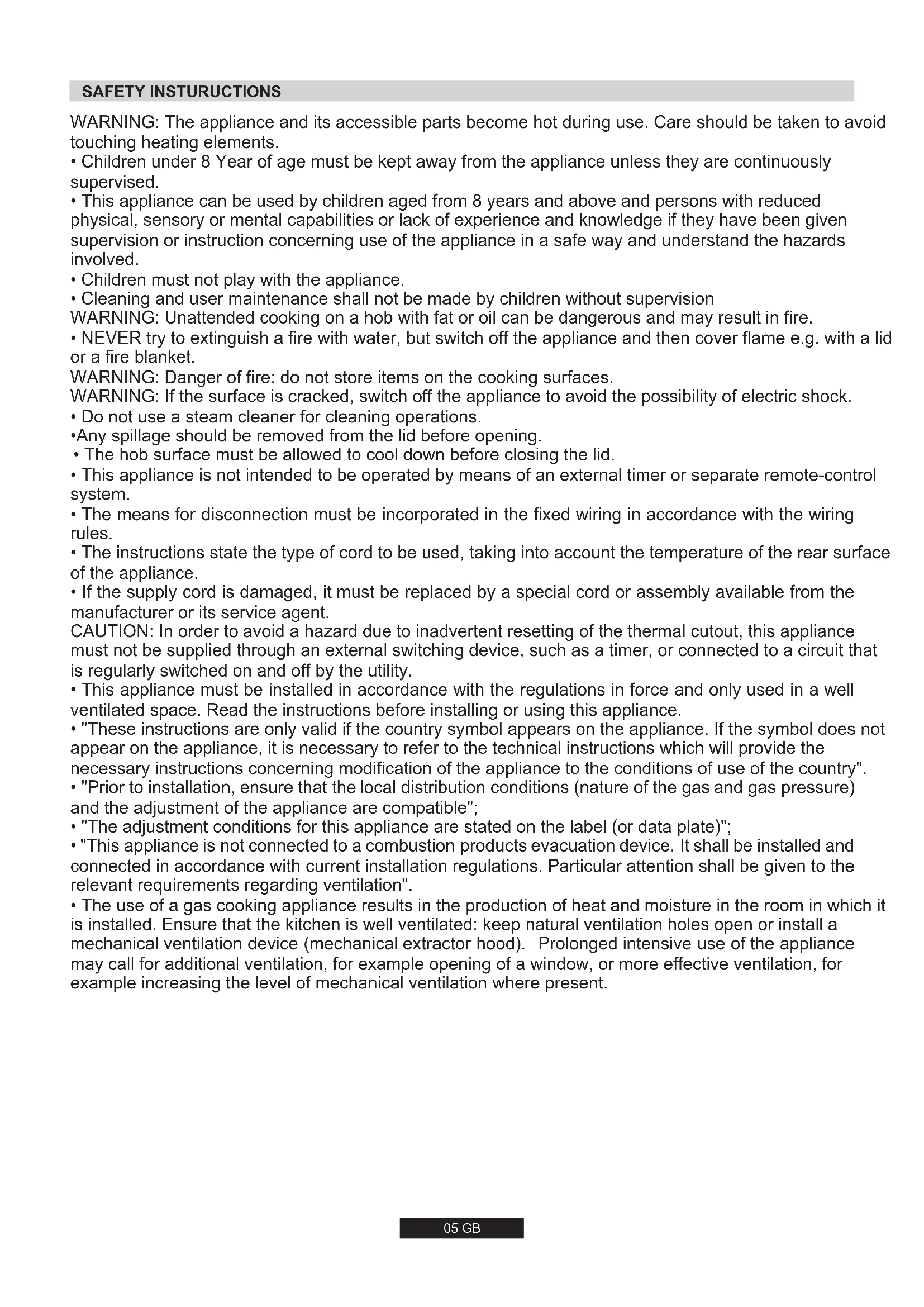

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
Children under 8 years of age must be kept away from the appliance unless they are continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket. WARNING: Danger of fire: do not store items on the cooking surfaces. WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. Do not use a steam cleaner for cleaning operations. Any spillage should be removed from the lid before opening. The hob surface must be allowed to cool down before closing the lid. This appliance is not intended to be operated by means of an external timer or separate remote-control system. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. The instructions state the type of cord to be used, taking into account the temperature of the rear surface of the appliance. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. This appliance must be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance. "These instructions are only valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer to the technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of the country". "Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible". "The adjustment conditions for this appliance are stated on the label (or data plate)". "This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation". The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.
1. INSTRUCTIONS FOR THE INSTALLER
Installing a domestic appliance can be a complicated operation which, if not carried out correctly, can seriously affect consumer safety. It is for this reason that the task should be undertaken by a professionally qualified person who will carry it out in accordance with the technical regulations in force. In the event that this advice is ignored and the installation is carried out by an unqualified person, the manufacturer declines all responsibility for any technical failure of the product whether or not it results in damage to goods or injury to individuals.
1.1 BUILDING IN
The hob may be installed in any worktop which is heat resistant to a temperature of 100°C, and has a thickness of 25-45 mm. The dimensions of the insert to be cut out of the worktop are shown in Figure 2.
If the hob is fitted next to a cabinet on either side, the distance between the hob and the cabinet must be at least 15 cm (see Figure 4); while the distance between the hob and the rear wall must be at least 5.5 cm.
The distance between the hob and any other unit or appliance above it (e.g. an extractor hood) must be no less than 70 cm. (Figure 4) When there is an accessible space between the built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (wood or a similar material) (Figure 3).
Important - The diagram in Figure 1 shows how the sealant should be applied.
The hob unit is fitted by attaching the fixing clamps supplied, using the holes at the base of the unit.
If a hob of 60 cm is fitted above an oven which is not equipped with fan cooling system, it is recommended that openings are created within the built-in furniture to ensure correct air circulation. The size of these openings must be at least 300 cm² and placed as shown in Figure 5.
When a 75 cm hob is fitted over a built-in oven, the latter must be fan cooled.
1.2. SUITABLE LOCATION
This appliance must be installed in accordance with the regulations in force and only used in a well-ventilated space. Read the instructions before installing or using this appliance.
A gas-powered cooking appliance produces heat and humidity in the area in which it is installed. For this reason you should ensure good ventilation either by keeping all natural air passages open or by installing an extractor hood with an exhaust flue. Intensive and prolonged use of the appliance may require extra ventilation, such as the opening of a window or an increase in speed of the electric fan, if you have one.
If a hood cannot be installed, an electric fan should be fitted to an outside wall or window to ensure that there is adequate ventilation.
The electric fan should be able to carry out a complete change of air in the kitchen 3-5 times every hour. The installer should follow the relevant national standards.
2. ELECTRICAL CONNECTION (FOR U.K. ONLY)
Warning - this appliance must be earthed
This appliance is designed for domestic use only. Connection to the main supply must be made by a competent electrician, ensuring that all current regulations concerning such installations are observed.
The appliance must only be connected to a suitably rated spur point, a 3 pin 13 amp plug/rod is not suitable. A double pole switch must be provided and the circuit must have appropriate fuse protection.
Further details of the power requirement of the individual product will be found in the users' instruction and on the appliance rating plate. In the case of built-in product you are advised, should you wish to use a longer cable than the one supplied, that a suitably rated heat resistant type must be used.
The wiring must be connected to the mains supply as follows: CONNECT TO SPUR TERMINAL
Green & Yellow Wire
Blue Wire
Brown Wire
Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the «nuisance tripping» which may occur. You are again reminded that the appliance must be correctly earthed, the manufacturer declines any responsibility for any event occurring as a result of incorrect electrical installation.
Earth Connection
Neutral Connection
Live Connection
2.1. ELECTRICAL CONNECTION
Check the data on the rating plate, located on the outside of the unit, to ensure that the supply and input voltage are suitable.
Before connection, check the earthing system.
By law, this appliance must be earthed. If this regulation is not complied with, the manufacturer will not be responsible for any damage caused to persons or property. If a plug is not already attached, fit a plug appropriate to the load indicated on the rating plate. The earth wire is colored yellow/green. The plug should always be accessible.
appropriate to the load indicated on the rating plate. The earth wire is coloured yellow/green. The plug should always be accessible.
Where the hob is connected directly to the electricity supply, a circuit breaker must be fitted.
If the power supply cord is damaged, it must be replaced by a qualified engineer to prevent any potential risk.
The earth wire (green and yellow colored) must be at least 10 mm longer than the live and neutral wires.
The section of the cable used must be of the correct size in relation to the absorbed power of the hob.
Please check the rating plate for the power details and ensure that the power supply cord is of the type 3 x 0.75 mm² H05 V2V2-F.
| Mains Supply | LIVE | L | Brown Wire |
| EARTH | Green/Yellow Wire | ||
| NEUTRAL | N | Blue Wire |
If an appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the instructions shall state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
These instructions are for qualified personnel; installation of equipment must be in line with the relevant national standard. (For U.K. only: by law, the gas installation/commissioning must be carried out by a "Gas Safe" installer.)
These instructions are for qualified personnel. Installation of equipment must be in line with the relevant national standard. (For U.K. only: by law, the gas installation/commissioning must be carried out by a "Gas Safe" installer.)
All work must be carried out with the electricity supply disconnected. The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylinder should be carried out after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated, see the instructions in the following paragraphs to change the gas setting.
Use only pipes, washers, and sealing washers that comply with the relevant national standards.
Use only pipes, washers, and sealing washers that comply with the relevant national standards.
For some models, a conical link is supplied to comply with installation requirements in countries where this type of link is mandatory. Figure 8 shows how to distinguish between the different types of links (CY = cylindrical, CO = conical). In all cases, the cylindrical part of the link must be connected to the hob.
When connecting the hob to the gas supply using flexible hoses, please ensure that the maximum distance covered by the hose does not exceed 2 metres.
The flexible tube shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit (e.g. a drawer) and does not pass through any space where it may become crushed, kinked, or damaged in any way.
To prevent any potential damage to the hob, please carry out the installation following this sequence (picture 6):
1) As illustrated, assemble parts in sequence:
A: 1/2 Male Adaptor Cylindrical B: 1/2 Seal C: 1/2 Female Gas Adaptor Conical-Cylindrical or Cylindrical-Cylindrical
2) Tighten the joints with the spanner, remembering to twist the pipes into position.
3) Attach fitting C to mains gas supply using rigid copper pipe or flexible steel pipe.
IMPORTANT: carry out a final check for leaks on the pipe connections using a soapy solution. NEVER USE A FLAME. Also, make sure that the flexible pipe cannot come into contact with a moving part of the cabinet (e.g. a drawer) and that it is not situated where it could be damaged.
Warning: If gas can be smelt in the vicinity of this appliance, turn off the gas supply to the appliance and call the engineer directly. Do not search for a leak with a naked flame.
2.3. ADAPTING THE HOB TO DIFFERENT TYPES OF GAS
To adapt the hob for use with different types of gas, carry out the following instructions: - Remove the grids and burners - Insert a hexagonal spanner (7 mm) into the burner support (Figure 7) - Unscrew the injector and replace it with one suitable for the gas to be used (see gas type table)
2.4. REGULATING THE MINIMUM FLAME
After lighting the burners, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by applying gentle pressure).
Using a small 'Terminal' type screwdriver, the regulating screw can be adjusted as in Figure 9. Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow - Use this adjustment to obtain a flame of approximately 3 to 4 mm in length and then replace the control knob.
When the gas supply available is LPG, the screw to set the idle flame must be turned (clockwise) to the end stop.
When you have carried out the new gas regulation, replace the old gas rating plate on your appliance with one (supplied with hob) suitable for the type of gas for which it has been regulated.
3. USE OF HOB - USER INSTRUCTIONS
This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not be responsible for any damage or loss resulting from improper use.
To ignite the burners, place a lighted taper close to the burner, press in and turn the control knob anti-clockwise. If the burners have not been used for a couple of days, wait for a few seconds before lighting the burner, this will allow any air present in the pipes to escape. For appliances fitted with electronic ignition carry out the following: - Push in and turn the knob anticlockwise to the ignition symbol. - Ignite the burner by pressing the sparker button. For hobs fitted with automatic ignition simply push in and turn the knob to the ignition symbol. The ignition system will continue to generate sparks as long as the control knob is being pressed. If the burner has not ignited within 5 seconds, turn the knob to the 0 position and repeat the operation. For models fitted with a safety tap (which cuts-off the flow of gas if the flame is accidentally extinguished) the burners are ignited and described above, but care must be taken. Prior to switching on the gas hob ensure that the burners and burner caps are correctly placed within their position.
GENERAL ADVICE
For best results, use cooking vessels with a flat surface. The size of the surface should match the gas burner side as follows. Table A.
Table A
| Burner Type | Ø pan/pot (cm) | Power (kW) | G20/20 mbar (methane) | G30/28-30 mbar (LPG) | |
| AUX | Auxiliary | 12 - 18 | 1,00 | 95 l/h | 73 g/h |
| SR | Semi Rapid | 18 - 24 | 1,75 | 167 l/h | 127 g/h |
| R | Rapid | 24 - 26 | 2,50 | 238 l/h | 182 g/h |
| UR | Ultra Rapid | 24 - 28 | 3,50 | 333 l/h | 255 g/h |
| QC | Double Ring | 24 - 28 | 4,00 | 381 l/h | 291 g/h |
For smaller containers the gas burner should be regulated so that the flame does not overlap the base of the pan. Vessels with a concave or convex base should not be used.
WARNING: If a flame is accidentally extinguished, turn the knob to the off position and do not attempt to re-ignite if for at least 1 minute.
If over the years the gas taps become stiff to turn it is necessary to lubricate them.
Such operation must be carried out only by qualified Service Engineers.
4. MAINTENANCE AND CLEANING
Before cleaning the hob, ensure the appliance has cooled down. Remove the plug from the socket or (if connected directly) switch off the electricity supply.
Cleaning and user maintenance shall not be made by children without supervision
Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnished or stainless steel sections.
When cleaning the enamelled, varnished or chrome sections, use warm soapy water or a non-caustic detergent. For stainless steel, use an appropriate cleaning solution.
The burners can be cleaned with soapy water. To restore their original shine, use a household stainless steel cleaner. After cleaning, dry the burners and replace them.
It is important that the burners are replaced correctly.
Chromed grids and burners
Chromed grids and burners have a tendency to discolour with use. This does not jeopardize the functionality of the hob.
Our After Sales Service Centre can provide spare parts if required.
5. AFTERCARE
Before calling out a Service Engineer, please check the following:
- that the plug is correctly inserted and fused;
- that the gas supply is not faulty.
If the fault cannot be detected:
Switch off the appliance and call the After Sales Service Centre. DO NOT TAMPER WITH THE APPLIANCE.
6. PROTECTION OF THE ENVIRONMENT
This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and
recover and recycle all materials.
Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:
- WEEE shall not be treated as household waste.
- WEEE shall be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.
- When you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.
Declaration of compliance: This equipment, in the parts intended to come into contact with food, complies with the regulations laid down in EEC directives 89/109.
The appliance complies with European Directive 2009/142/EC (GAD) and starting from 21/04/2018 with Gas Appliances Regulation 2016/426 (GAR).
By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.
The Manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.
Table 1
| BUILT IN HOBS | |||||
| Burner | 1 | 1 | 2 | 3 | 2 |
| 4 gas QC / R / SR / AUX | 4 gas R / 2SR / AUX | 5 gas QC / 2R / SR / AUX | 4 gas QC / R / SR / AUX | 5 gas UR / 2R / SR / AUX | |
| Type / reference | S67 / HBGPL2X | S67 / HBGPL2X | S67 / HBGPL2X | S67 / HBGPL2X | S67 / HBGPL2X |
| Flame failure device | YES | YES | YES | YES | YES |
| Auxiliary burner ( AUX Ø 50 mm) | 1 | 1 | 1 | 1 | 1 |
| Double ring burner ( QC Ø 135 mm) | 1 | - | 1 | 1 | - |
| Ultra rapid burner ( UR Ø 110 mm) | - | - | - | - | 1 |
| Semirapid burner ( SR Ø 75 mm) | 1 | 2 | 1 | 1 | 1 |
| Rapid burner ( R Ø 100 mm) | 1 | 1 | 2 | 1 | 1 |
| Installed Gas Type / Power: | |||||
| Power | 9.25 kW | 7.00 kW | 11.75 kW | 9.25 kW | 11.25 kW |
| G 20/20 mbar (methane) | 881 L/h | 666 L/h | 1119 L/h | 881 L/h | 1071 L/h |
| G 30/28-30 mbar (LPG) | 673 g/h | 509 g/h | 854 g/h | 673 g/h | 818 g/h |
| Installation Class | 3 | 3 | 3 | 3 | 3 |
| Voltage / Frequency V / Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz |
| Electrical input power | 15 W | 15 W | 15 W | 15 W | 15 W |
| Electric ignition | YES | YES | YES | YES | YES |
| Product dimension | 595 x 510 | 595 x 510 | 745 x 510 | 745 x 510 | 745 x 510 |
This appliance has been designed for non-professional, i.e. domestic, use.
SAFETY ADVICE
1.2 SUITABLE INSTALLATION LOCATION
This appliance must be installed in accordance with current regulations and used in a well-ventilated place. Before installing and using the appliance, read the instructions for use.
It is important to follow some basic rules when handling waste from the production of electrical and electronic equipment.
- Do not treat waste from the production of electrical and electronic equipment as household waste.
- Waste from the production of electrical and electronic equipment should be handed over to collection points controlled by local authorities or registered companies. In many countries, large quantities of production waste from electrical and electronic equipment are collected at collection points. When purchasing a new device, the old device can be returned to the retail outlet, which is obliged to accept it free of charge on the basis of mutual agreement, if this device is of a similar type and the returned device has the same functions as the one being sold.
Declaration of Conformity: This equipment, which is placed on the market, complies with the requirements of European Directive 89/109/EEC.
The device complies with European Union Directive 2009/142/EC (GAD), and from 21/04/2018 - with the Regulation on gas appliances 2016/426 (GAR).
For this type of product, we declare, under our sole responsibility, that it conforms to European safety, health, and environmental protection standards as set out in the legislation for this type of product.
The manufacturer is not responsible for any errors or omissions that may be found in this manual. We reserve the right to make changes to the design of the products we manufacture in order to improve the quality of the product. During this process, the basic functions of the product and its safety will remain unchanged.
This product complies with the technical regulations of the Customs Union:
- TR CU 004/2011 "On safety of low-voltage equipment" - TR CU 016/2011 "On safety of appliances operating on gaseous fuel" - TR CU 020/2011 "Electromagnetic compatibility of technical equipment"
Table 1
| ВСТРANBAEMbie BAОЧьIE NOBEPХОCTN | |||||
| Конфорк | 1 | 1 | 2 | 3 | 2 |
| 4 ra30bIe QC / R / SR / AUX | 4 ra30bIe R / 2 SR / AUX | 5 ra30bIe QC / 2R / SR / AUX | 4 ra30bIe QC / R / SR / AUX | 5 ra30bIe UR / 2R / SR / AUX | |
| Тип / обознayенie | S67 / HBGPL2X | S67 / HBGPL2X | S67 / HBGPL2X | S67 / HBGPL2X | S67 / HBGPL2X |
| Устриство зашиты OT погасянna Пламени | ДА | ДА | ДА | ДА | ДА |
| Маленьka konфорka (AUX Ø 50 mm) | 1 | 1 | 1 | 1 | 1 |
| Конфорka с думя вени (QC Ø 135 mm) | 1 | - | 1 | 1 | - |
| СberхбICTрая konфорka (UR Ø 110 mm) | - | - | - | - | 1 |
| ПолуBSTрая konфорka (SR Ø 75 mm) | 1 | 2 | 1 | 1 | 1 |
| БыICTрая konфорka (R Ø 100 mm) | 1 | 1 | 2 | 1 | 1 |
| Исплобземьий ra3 / мошноctь: | |||||
| Мошноctь | 9.25 кВт | 7.00 кВt | 11.75 кВt | 9.25 кВt | 11.25 кВt |
| G20/20 Мбар (metан) | 881 п/чac | 666 п/чac | 1119 п/чac | 881 п/чac | 1071 п/чac |
| G30/28-30 Мбар (CHГ) | 673 п/чac | 509 п/чac | 854 п/чac | 673 п/чac | 818 п/чac |
| КлASS установки | 3 | 3 | 3 | 3 | 3 |
| Наразжende/частоа В/Гц | 220-240 / 50-60 | 220-240 / 50-60 | 220-240 / 50-60 | 220-240 / 50-60 | 220-240/ 50-60 |
| Вхочая зелек tripeckая мошноctь | 15 BT | 15 BT | 15 BT | 15 BT | 15 BT |
| Злесгюожиг | ДА | ДА | ДА | ДА | ДА |
| Раимеры варочи по breast noctn | 595 x 510 | 595 x 510 | 745 x 510 | 745 x 510 | 745 x 510 |
| * Uстановka поизвodителя | IE кateropета II2H3 + | GB кateropета II2H3 + | |||
This product is intended for household use only.
The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.
- INSTRUCTIONS FOR THE INSTALLER
- BUILDING IN
- SUITABLE LOCATION
- ELECTRICAL CONNECTION (FOR U.K. ONLY)
- WARNING - THIS APPLIANCE MUST BE EARTHED
- ELECTRICAL CONNECTION
- THESE INSTRUCTIONS ARE FOR QUALIFIED PERSONNEL; INSTALLATION OF EQUIPMENT MUST BE IN LINE WITH THE RELEVANT NATIONAL STANDARD. (FOR U.K. ONLY: BY LAW, THE GAS INSTALLATION/COMMISSIONING MUST BE CARRIED OUT BY A "GAS SAFE" INSTALLER.)
- ADAPTING THE HOB TO DIFFERENT TYPES OF GAS
- REGULATING THE MINIMUM FLAME
- USE OF HOB - USER INSTRUCTIONS
- GENERAL ADVICE
- MAINTENANCE AND CLEANING
- CHROMED GRIDS AND BURNERS
- AFTERCARE
- PROTECTION OF THE ENVIRONMENT
- SAFETY ADVICE
- SUITABLE INSTALLATION LOCATION
Brand : Dominox
Model : DHC 604 4G AN E
Category : Cooker
