Type of product	Wall-mounted range hood
Width	60 cm
Depth	50 cm
Height (adjustable)	65 - 110 cm
Weight	Approx. 15 kg
Voltage	220-240 V
Frequency	50 Hz
Total power consumption	280 W
Motor power	240 W
Maximum extraction rate	610 m³/h
Noise level (max)	65 dB(A)
Controls	Electronic push buttons
Fan speeds	3
Lighting	2 x LED (2 W each)
Total lighting power	4 W
Grease filters	2 aluminum mesh filters
Filter cleaning	Dishwasher safe or hand wash
Duct diameter	150 mm
Venting mode	Ducted / Recirculating
Charcoal filter support	Yes (optional, model ACT-150)
Safety protection	Thermal cutoff switch
Energy efficiency class	B
Installation type	Wall-mounted
Body material	Stainless steel and tempered glass
Included accessories	Fixing kit, installation template, manual

Frequently Asked Questions - DA 611 GS Dominox

How should I clean the aluminum grease filters on my DA 611 GS?

Remove the filters and wash them in warm soapy water or in the dishwasher on a low temperature setting. Dry them completely before reinstalling. Clean them at least once a month for optimal performance.

Can I use this hood in recirculating mode?

Yes, the DA 611 GS supports recirculating ventilation. You will need to purchase and install an optional charcoal filter (model ACT-150) to neutralise odours.

What is the maximum extraction capacity of this hood?

The maximum extraction rate is 610 m³/h, which makes it suitable for kitchens up to 25 m².

How often should I replace the charcoal filter?

For recirculating operation, replace the charcoal filter every 3 to 6 months, or more frequently if you cook heavily.

What are the dimensions required for the ducting?

The duct connection has a diameter of 150 mm. Use rigid or flexible ducting with the same diameter for best airflow.

How do I change the fan speed?

Use the electronic control buttons on the front panel. Press the speed button to cycle through low, medium, and high speeds. The selected speed is indicated by a light.

What is the noise level of this hood?

The maximum noise level at the highest speed reaches 65 dB(A). Lower speeds are significantly quieter, making it comfortable during normal cooking.

My motor does not start. What should I check?

First, verify that the hood is connected to a live power supply and that the thermal cutoff hasn't tripped. Wait a few minutes for it to cool down and reset. If it still doesn't work, contact our service centre.

How do I clean the exterior surfaces?

Use a soft, damp cloth with mild detergent. Avoid abrasive pads or aggressive chemicals that can damage the stainless steel and glass surfaces.

Is the hood covered by a warranty?

The Dominox DA 611 GS comes with a 2-year standard warranty covering manufacturing defects. It does not cover damage caused by improper use or installation.

USER MANUAL DA 611 GS Dominox

Instructions for use and installation

Cooker Hood

RECOMMENDATIONS AND SUGGESTIONS....3

CHARACTERISTICS 4

INSTALLATION 5

USE 8

MAINTENANCE....9

İÇERIKLER

TR

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
  Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Dimensions

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic Chimney comprising:
2.1	1	Upper Section
2.2	1	Lower Section
9	1	Reducer Flange ø 150-120 mm
14.1	2	Air Outlet Connection Extension
15	1	Air Outlet Connection
Ref.	Q.ty	Installation Components
7.2.1	2	Upper Chimney Section Fixing Brackets
7.3	1	Air Outlet Connection Support
11	6	Wall Plugs
12a	6	Screws 4,2 x 44,4
12c	6	Screws 2,9 x 9,5
	Q.ty	Documentation
	1	Instruction Manual

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 310 mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill φ 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
• Fix the lower bracket 7.2.1 using the 12a screws (4,2 x 44,4) supplied.
• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2 screws 12a (4,2 x 44,4) supplied.
• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-6 mm between the wall and the head of the screw.

Mounting the hood body

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.
• Hook the hood body onto the screws 12a.
  • Fully tighten the support screws 12a.
• Adjust the screws Vr to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• To install a φ 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

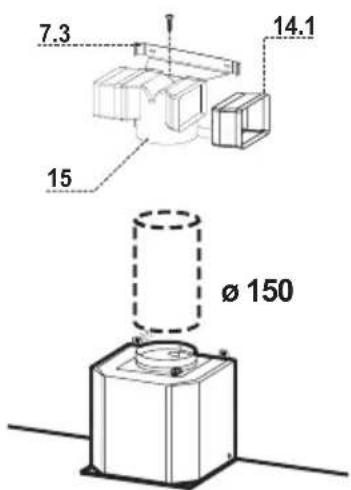

RECIRCULATION VERSION AIR OUTLET

• Insert the connection extension pieces laterally 14.1 in connection 15.
• Insert the Connector 15 into the Support bracket 7.3 and fix it with a screw.
• Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets.
• Connect the air outlet connection 15 to the hood body outlet using either a flexible or rigid pipe ∅ 150 mm, the choice of which is left to the installer.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

- Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Flue assembly

Upper exhaust flue

- Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.

- Secure the sides to the brackets by using the 4 screws 12c (2,9 x 9,5) supplied.

- Make sure that the outlet of the extensions pieces is aligned with the chimney outlets.

Lower exhaust flue

- Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.

- Fix the lower part laterally to the hood body by using the 2 screws 12c (2.9 x 9.5) supplied.

Control panel

BUTTON LED FUNCTIONS

T1 Motor Turns the motor off.
T2 Speed On Turns the Motor on at Speed one.
T3 Speed On Turns the Motor on at Speed two.
T4 Speed On Turns the Motor on at Speed three.
L Light Turns the Lighting System on and off.

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters.
• Remove the saturated activated carbon filter by releasing the fixing hooks.
  • Fit the new filter by hooking it into its seating.
  • Refit the metal grease filters.

Lighting

LIGHT REPLACEMENT

20 W halogen light.

• Remove the snap-on lamp cover by levering it from under the metal ring, supporting it with one hand.
• Remove the halogen lamp from the lamp holder by pulling gently.
• Replace the lamp with a new one of the same type, making sure that you insert the two pins properly into the housings on the lamp holder.
• Replace the snap-on lamp cover.
