Product type	Range hood
Brand	Dominox
Model	DA 6014 XS
Dimensions (approx.)	Width 60 cm, depth 50 cm, variable height
Weight (approx.)	10 kg
Power supply	220-240 V, 50 Hz
Electrical class	Class I (earthing required)
Minimum distance to cooking surface	650 mm
Air outlet diameter	120 mm or 150 mm (with supplied reducer)
Main functions	Lighting, extraction with 3 speeds (V1 silent, V2 medium, V3 max)
Grease filters	Self-supporting metal, dishwasher safe (every 2 months)
Activated carbon filter	Not washable, replace every 4 months (or more frequently)
Lighting	Incandescent lamp 40 W (replace with identical model)
Material	Stainless steel / glass (estimate)
Installation type	External extraction or recirculation (with charcoal filter)
Package contents	Hood body, chimneys, remote control, brackets, wall plugs, screws, reduction flange, fittings
Maintenance	Clean exterior with a damp cloth and mild detergent; unplug before maintenance
Safety	Do not use with open flames; monitor fryers; general shut-off before maintenance
Repairability	Spare parts available (e.g., filters, lamps, remote control)

Frequently Asked Questions - DA 6014 XS Dominox

What is the minimum distance between the hood and the cooking surface?

The minimum safety distance is 650 mm above the cooking surface.

How to clean the grease filters?

The metal filters are dishwasher safe. It is recommended to clean them every 2 months of use, or more often with heavy usage. Remove them by pushing backward and pulling downward, then let dry before reinstalling.

How often should the carbon filter be replaced?

The activated carbon filter is neither washable nor renewable. It should be replaced approximately every 4 months, or more often if the hood is heavily used.

How to replace the hood's light bulb?

Remove the grease filters, then unscrew the defective bulb and replace it with an identical 40 W incandescent bulb. Reinstall the filters.

Can I install the hood in recirculation mode without external evacuation?

Yes, the hood can operate in recirculation mode by installing an activated carbon filter to purify the air before returning it to the room.

What diameter of exhaust pipe to use?

Use a 150 mm diameter pipe preferably, or 120 mm with the supplied reducer. The route should be as short as possible.

What to do if the hood does not turn on?

First check that the appliance is plugged in and that the bipolar switch is in the on position. Make sure the power cable connector is properly plugged into the diffuser socket. If the problem persists, contact a professional.

How to adjust the supplied remote control?

The remote control allows you to control the lighting and extraction speeds. No special adjustments are needed; it is ready to use after installation.

Can the hood be used with gas cooking?

Yes, but ensure adequate room ventilation. If the kitchen does not have a window, provide an opening for fresh air. Never leave open flames under the hood.

How to attach the decorative chimneys?

The upper chimney hooks behind the brackets fixed to the wall, then the lower chimney slides between the upper one and the wall. They are secured with the supplied 4,2 x 44,4 screws.

USER MANUAL DA 6014 XS Dominox

Instructions Manual INDEX

RECOMMENDATIONS AND SUGGESTIONS 14 CHARACTERISTICS 15 INSTALLATION 16 USE 19 MAINTENANCE 20

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

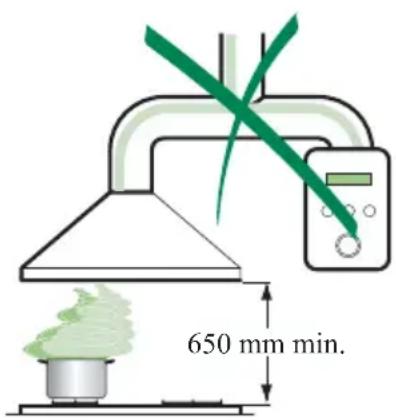

• The minimum safety distance between the cooker top and the extractor hood is 650 mm.

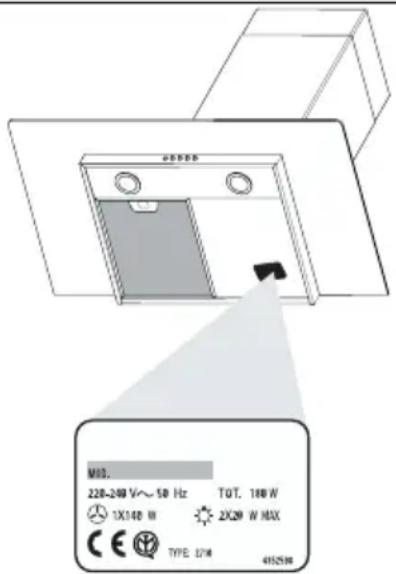

• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• The hood should not be used by children or persons not instructed in its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.

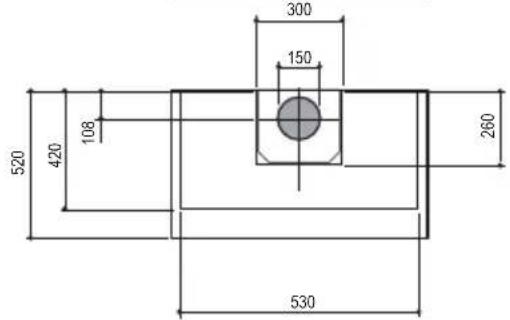

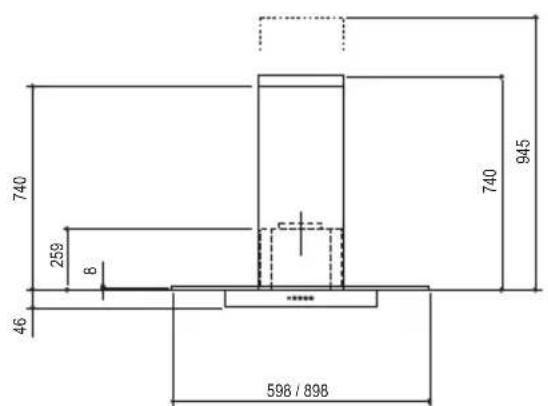

Dimensions

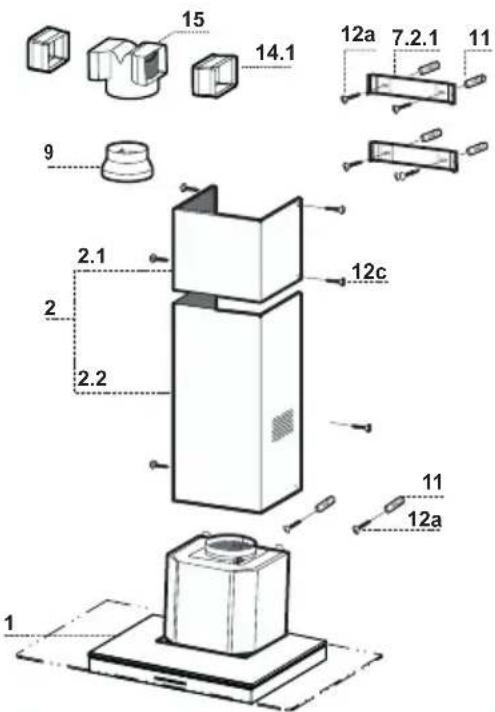

Components

Ref.	Q.ty	Product	Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic Chimney comprising:
2.1	1	Upper	Section
2.2	1	Lower	Section
9	1	Reducer Flangeø 150-120 mm
14.1	2	Air Outlet Connection Extension
15	1	Air Outlet Connection

Ref.	Q.ty	Installation	Components
7.2.1	2	Upper Chimney Section Fixing Brackets
11	6	Wall	Plugs
12a	6	Screws 4,2 x 44,4
12c	6	Screws 2,9 x 9,5
	1	Instruction Manual

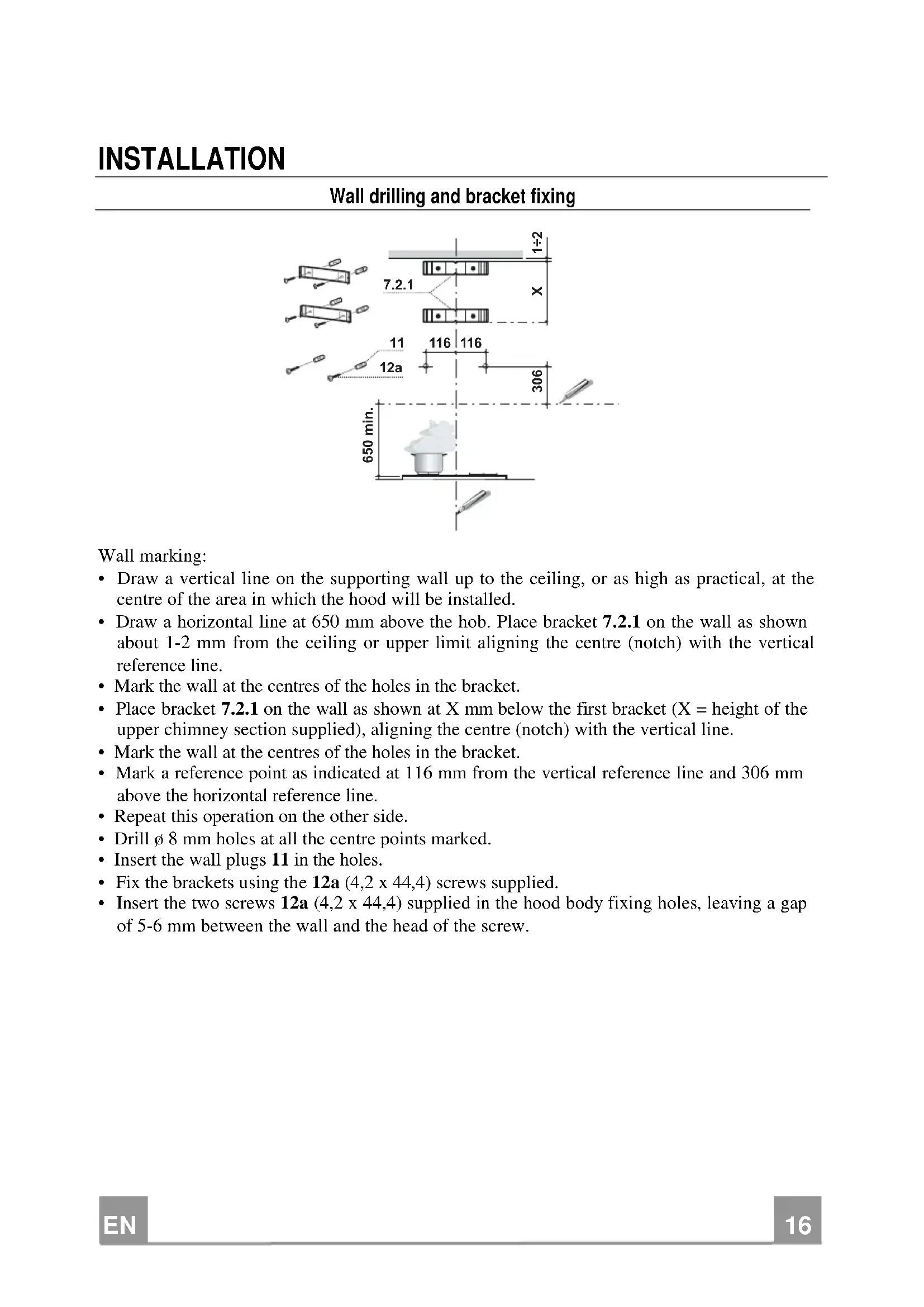

Wall drilling and bracket fixing

Wall marking:

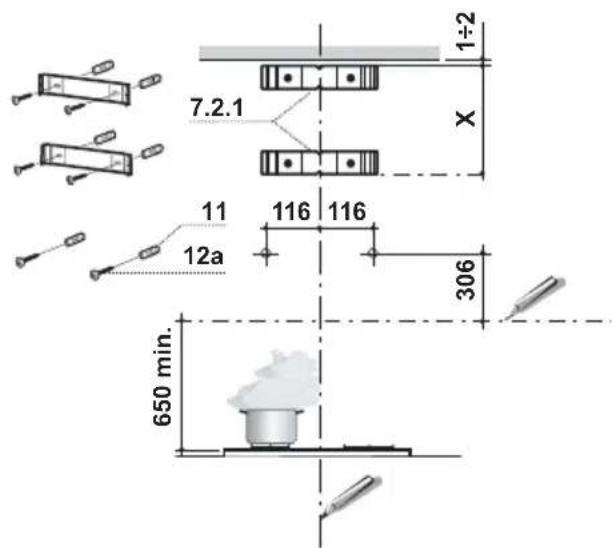

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob. Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 306 mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill 8 mm diameter holes at all the centre points marked.
• Insert the wall plugs 11 in the holes. Fix the brackets using the 12a (4.2 x 44.4) screws supplied.
• Insert the two screws 12a (4.2 x 44.4) supplied in the hood body fixing holes, leaving a gap of 5 - 6 mm between the wall and the head of the screw.

Mounting the hood body

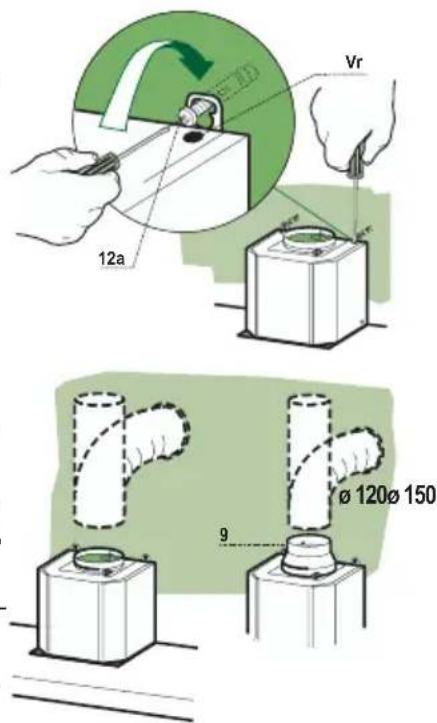

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.
• Hook the hood body onto the screws 12a.
• Fully tighten support screws 12a.
• Adjust screws Vr to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe of 150 or 120 mm diameter, the choice of which is left to the installer.

• To install a 120 mm diameter air exhaust connection, insert the reducer flange 9 on the hood body outlet. Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

RECIRCULATION VERSION AIR OUTLET

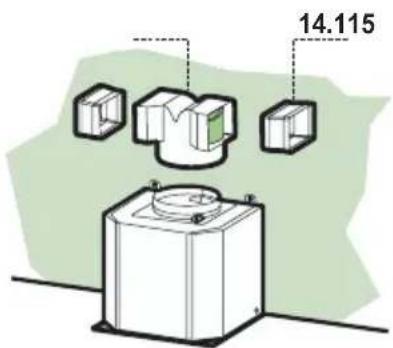

• Push fit connection 15 onto the hood body outlet.
• Insert the connection extension pieces laterally 14.1 in connection 15.
• Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets. If this is not the case, adjust the position by either reversing the connection extension pieces 14.1 and then reassemble as described previously.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

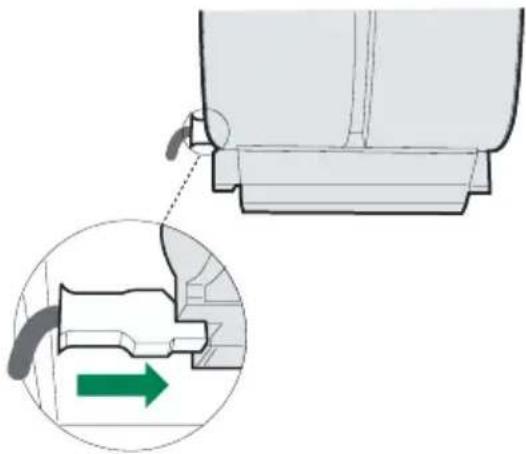

• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets using the 4 screws 12c (2.9 x 9.5) supplied.

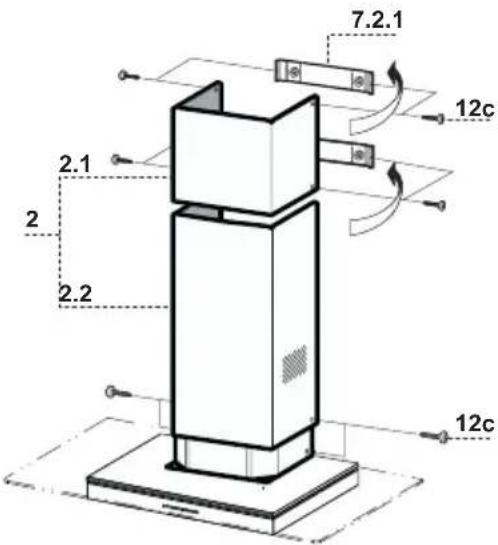

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated. Fix the lower part laterally to the hood body using the 2 screws 12c (2.9 x 9.5) supplied.
• Make sure that the air outlet connection is aligned with the chimney outlets.

L Light: switches the lighting system on and off.

S LED: motor running LED.

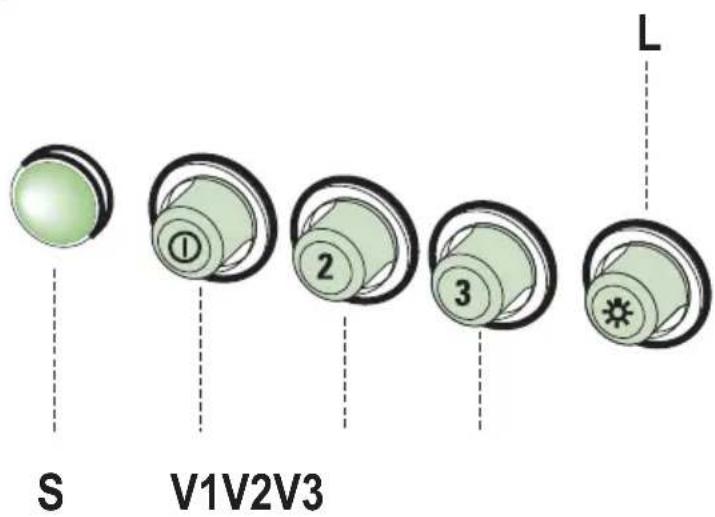

V1 Motor: switches the extractor motor on and off at low speed. Used to provide a continuous and silent air change in the presence of light cooking vapours. V2 Speed: medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio. V3 Intensive: maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

Grease filters

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

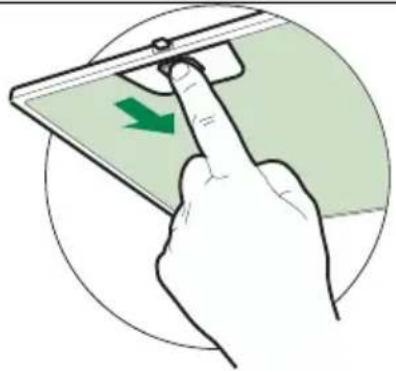

• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters

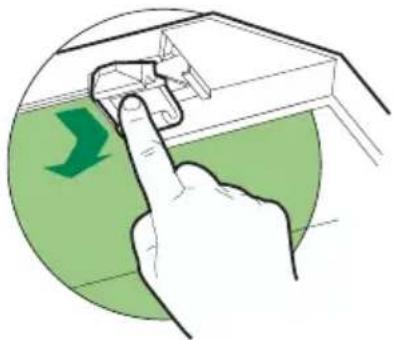

• Remove the saturated activated carbon filter by releasing the fixing hooks
• Fit the new filter by hooking it into its seating.
• Replace the metal grease filters.

Lighting

LIGHT REPLACEMENT

40 W incandescent light.

• Remove the metal grease filters.
• Unscrew the bulbs and replace them with new ones having the same characteristics.
• Replace the metal grease filters.

INSTALLATION

REPLACEMENT OF LAMPS
