USER MANUAL MPH10501 Meister Craft

/3 J Tensioning neckdiameter 43 mmMax. drill diameter- in metal 13 mm- in cement/stone/granite 32 mm- in wood 40 mmCable length 300 cmWeight 4,0 kgTechnical changes reserved.Noise emission/vibrationNoise emission

: 88,0 dB(A), L : 99,0 dB(A),K: 3,0 dB(A)Hand/arm vibrations a

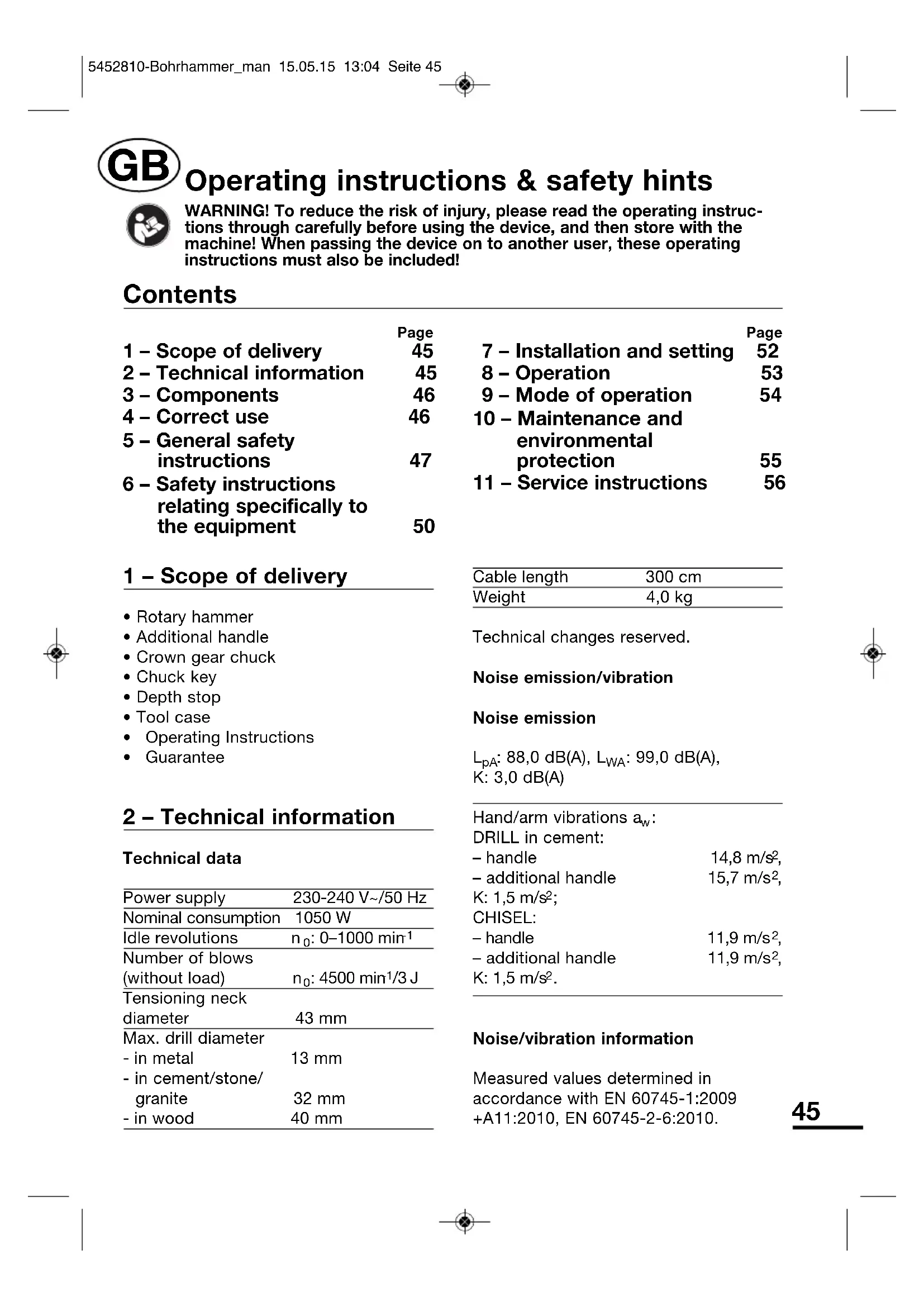

Noise/vibration informationMeasured values determined inaccordance with EN 60745-1:2009+A11:2010, EN 60745-2-6:2010. Operating instructions & safety hints WARNING! To reduce the risk of injury, please read the operating instruc-tions through carefully before using the device, and then store with themachine! When passing the device on to another user, these operatinginstructions must also be included!

Page 1 – Scope of delivery 45 2 – Technical information 45 3 – Components 46 4 – Correct use 46 5 – General safety instructions 47 6 – Safety instructions relating specifically to the equipment 50 Page 7 – Installation and setting 52 8 – Operation 53 9 – Mode of operation 54 10 – Maintenance and environmental protection 55 11 – Service instructions 56 Contents 5452810-Bohrhammer_man 15.05.15 13:04 Seite 45• The specified vibration emission value was measured in accordance with a normed test procedure and can be used in order to compare one power tool with another.

• The specified vibration emission value can also be used for an introductory evaluation of the exposure.

• The vibration emission value may fluctuate from the specified value during actual use of the power tool. These fluctuations will depend on the way in which the power tool is used.

• All parts of the operating cycle must be taken into account for this purpose (for example, also including times in which the power tool is switched off and times in which it is switched on, but is running without load). In order to prevent the risks caused by vibrations,

• Wear gloves when using;

• Limit working times and shorten the actual operating time. Safety measures must be taken in order to protect the operator. As a result, the evaluation of the influence must be made whilst taking account of the actual conditions of use. (All parts of the operating cycle must be taken into account for this purpose. This also includes times in which the power tool is switched off and times in which it is switched on, but is running without load.) CAUTION! A certain amount of noise is unavoidable when using this device. Ensure you carry out noise-intensive work during permitted times. Maintain the quiet periods and limit your work to the absolute minimum. CAUTION! The effects of noise may cause damage to your hearing. Only ever work with suitable ear defenders. Anybody else in the vicinity should thus also wear ear defenders. 3 – Components 1 Locking button 2 LED operating display 3 On/Off switch 4 Adjusting wheel for pre-setting the revolutions 5 Selection lever for right/left rotation 6 Selection knob for drilling/chasing 7 Additional handle 8 Drill chuck 9 Clamping neck 10 Wing screw 11 Crown gear chuck 12 Chuck key 13 Depth stop 4 – Correct use This hammer drill is designed private use for drilling in wood and metal, hammer drilling in brickwork and use as a screwdriver for wood and metal. This unit also has a chasing function that can be used to process brickwork. Only use suitable accessories (observe the manufacturer specifications). All other uses are expressly forbidden. This device is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those without experience and/or knowledge. Children should be supervised to ensure that they do not play with the device. The machine is intended only for use in the household.

5452810-Bohrhammer_man 15.05.15 13:04 Seite 46Improper use of the product All applications carried out with the device that are not listed in the "Proper use" chapter will be considered improper use. Uses for which the tool is not designed may cause risks and injury. Do not use accessories that are not intended specifically for this electrical tool. Just because you can affix an accessory to your electrical tool, there is no guarantee it is safe to use. The permitted revolutions of the tool insert must be at least as high as the highest value specified on the electrical tool. Accessories that turn faster than is permitted may break and fly off. There is a risk of injury. The user of the device is liable for all property and personal damages occurring as the result of incorrect use. If other components or non-original components are used with the machine, the manufacturer guarantee is voided. Remaining risks: The operating instructions for this electrical tool contains comprehensive tips for the safe handling of electrical tools. However, every electrical tool has a certain level of remaining risks which cannot be excluded by the protective mechanisms on the device. Only operate electrical tools always with necessary care. Remaining risks may be, for example:

• Touching rotating parts or tools.

• Injury caused by flying tools or tool parts.

• Risk of fire with insufficient ventilation of the motor.

• Adverse effects on the hearing caused by working without ear defenders. The ability to work safely is dependant on the familiarity of the operator when it comes to handling the given electrical tool. Appropriate knowledge of the machinery and careful behaviour when working help to minimise the remaining risks. WARNING! During operation, this power tool generates an electro - magnetic field. This field may, under certain circumstances, influence active or passive medical implants. In order to reduce the risk of serious or deadly injuries, we recommend persons with such a medical implant to consult their doctor and the manufacturer of the medical implant before using the power tool. 5 – General safety instructions for handling power tools WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool. 1 Work area a Keep work area clean and well lit. Cluttered and dark areas invite accidents.

5452810-Bohrhammer_man 15.05.15 13:04 Seite 47b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 2 Electrical Safety a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f If it is not possible to avoid using the electrical tool in a damp environment, use a residual current circuit-breaker. The use of a residual current circuit-breaker reduces the risk of an electrical shock. 3 Personal safety a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

5452810-Bohrhammer_man 15.05.15 13:04 Seite 48f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. 4 Power tool use and care a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. 5 Service a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 6 Additional safety notes for rotary hammers – Only activate the drive switch when the engine is at a standstill. Switching with the machine running may cause damage to the gears. – Never use the rotary hammer as a screwdriver. The tightening and loosening of screws, nuts and similar objects using the rotary hammer is not permitted. – Water must be kept away from parts of the electrical tool and from people in the work place. – Before you make a setting, service or do maintenance on the device, ensure that the power cable is

5452810-Bohrhammer_man 15.05.15 13:04 Seite 49unplugged (not connected to the power source). – The electrical capacity of your extension cable should be at least as powerful as the device. – Check to make sure that the mains power supply matches the specifications on the type plate of the device. – Check walls and ceilings in order to avoid damaging hidden cables. – Never touch the external housing directly after drilling. This becomes very hot during drilling operation. – To avoid hazards, damaged power leads must be replaced by the manufacturer or his customer service representative. 6 – Safety instructions relating specifically to the equipment WARNING! Read the operating instructions to lessen the risk of injury. Wear ear defenders. Wear a dust-protection mask. Wear goggles.

• Only use the additional handle supplied with the unit. Loss of control may lead to injuries.

• Use the unit only for the applications it is designed for.

• When operating the machine, always hold it with both hands and ensure that you are standing firmly.

• Sockets outside must be fitted with a residual current circuit-breaker.

• Shavings or splinters should never be removed when the machine is running.

• Before starting to drill into a wall, make sure that there are no concealed power, water or gas lines located at the drilling position.

• Small work pieces should be secured in such a way that they cannot be moved by the drill when drilling.

• Before carrying out any work on the machine, when taking a break and when the machine is not in use, always pull the plug out of the socket.

• Always keep the power cable away from the area you are working in.

• Only plug the machine into the socket when it is switched off.

• Persons under the age of 16 may not be permitted to operate the machine.

• Observe the general safety notes for operating electrical tools!

• Chase and drill may accidentally be catapulted out of the tool and cause serious injuries.

• Before starting work, check to make sure that the chase or drill bit is locked into the tool.

• A hammer tool should only be started when it is pressed up against a work piece (wall, ceiling, etc.).

• After completing work, unplug the hammer drill from the power and remove the chase/drill bit from the tool.

• Before changing a chase or drill bit, unplug the hammer drill from the power source.

• Protect your eyes and those of your staff from flying elements and splintering foreign bodies. Wear a helmet! Set up a partitioning wall!

• Protective gloves will protect your fingers from bruising and grazing.

• Vibrations may cause damage to your hands/arms: Try to keep the influence of vibrations as low as possible.

• Make sure that power cables always lead away from the rear of the device.

• Store the device away from children.

• When operating the machine, always hold it with both hands and ensure that you are standing firmly.

• Before processing any material, ensure that the unit is set to the correct switch setting for the work you wish to carry out. Otherwise there is a risk of injuries when the machine is started.

• Before drilling into walls make sure that you are not breaking into an electricity, gas or water supply line. Use a detector.

• Always unplug drill before changing drill or bit.

• The chuck key should always be stored in the key holder.

• To avoid injuries, securely attach the workpiece (e.g. with vice or clamp).

• When drilling or driving screws: Do not allow the motor to stall under the load.

• Wear ear defenders when using an impact drill. The effects of noise may lead to loss of hearing.

• Only use the additional handles supplied with the unit. Loss of control of the unit may lead to injuries.

• Hold the tool by the insulated handle surfaces when carrying out tasks during which it is possible that the tool will come across hidden power cables or its own cable. Contact with a power-carrying cable can also put metal parts of the unit under power and cause an electric shock. Safety marking The symbols on the housing mean the following: Do not dispose of with the household waste! Important! Observe the operating instructions! Wear goggles. Wear a dust protection mask. Wear ear defenders.

5452810-Bohrhammer_man 15.05.15 13:04 Seite 51The housing is double insulated Voluntary “geprüfte Sicherheit” seal of quality (tested safety) Suitable for tools using the SDS+ system CE mark (conformity with European safety standards) Store the safety notes in a safe place. 7 – Installation and setting Changing a tool (Figure 4+5) CAUTION! Unplug from the power source! The drill has a quick-action chuck for changing tool manually without a key. Suitable for tools using the SDS+ system. Point the chuck upwards. Insert a lightly oiled tool shaft and turn to the locking point. Push holder down to the stop: The tool will slide into the accommodation shaft. Release the holder - it must return to the starting position. Removing a tool (Figure 6) CAUTION! Unplug from the power source! Push the holder back, pull the tool out of the chuck. Mounting the additional handle (Figure 7) The additional handle (7) can be mounted on the right or the left of the chuck, as required. Release the handle piece of the additional handle by turning to the left until it can be pushed over the chuck (8) and onto the tensioning neck (9). The holder cams on the underside of the tensioning neck (a) must fit into the holder grooves (b) of the tensioning ring. This allows you to select a comfortable working position and, at the same time, secures the additional handle from vibration-related sliding. Tighten the handle piece, by turning to the right until the additional handle is fixed to the machine. Setting the depth stop (Figures 8a and b)

• Insert a drill and lock into place.

• Loosen the wing screw (10) on the additional handle (7) by turning to the left.

• Insert the depth stop (13) into the guide (c) in such a way (Figure 8a) that the measuring scale on the front insert (d) can be read (Figure 8b). Push the depth stop to the length of the inserted drill. Do this by pushing the drill up against an even wall.

• At the front insert, read the relevant value from the depth stop and deduct the required drilling depth from this value.

• Set the new value by sliding the depth stop on the front insert. Fix the depth stop in place by turning the winged screw to the right.

5452810-Bohrhammer_man 15.05.15 13:04 Seite 528 – Operation Revolution preset (Figure 9) In order to protect the materials you are working on, use the revolution recommendations made by the accessory manufacturer. Revolution preset with adjustment wheel (4):

• Turn the adjustment wheel in the "+" direction as far as it will go = highest revolutions.

• Turn the adjustment wheel in the "-" direction as far as it will go = lowest revolutions. The revolutions can be controlled steplessly using pressure on the on/off switch (3) up to the preset revolutions selected on the adjustment wheel (4). When operating in continuous mode with the on/off switch locked, the machine operates at the preset revolutions. Setting the mode (Figure 10) CAUTION! All modes may only be set when the motor is at a complete standstill! To set the appropriate mode, press the locking button on the selection knob (6) and turn the selection switch to the right or the left and set the required mode using the arrow symbol . Release the locking button to fix the selection button in the selected position. Meaning of the symbols Drilling without hammer function for wood with conventional drill bits. For this mode, a conventional crown gear chuck (11) with adapter is inserted into the chuck (8). Screwing screws into and out, in conjunction with a conventional crown gear chuck (11) and suitable screwdriver bits (Figure 15) (not supplied). Drilling without hammer function, ideally into metal, with conventional high-speed steel metal drill bits. Thanks to the second gear and the associated high revolutions, the hammer drill is also a full drill. For this mode, a conventional crown gear chuck (11) with adapter is inserted into the chuck (8). Hammer drilling in cement and brickwork without additional drilling chuck. To do this, suitable hammer drills are inserted into the chuck (8) (not supplied). Chasing in tiles and brickwork. To do this, suitable chases are inserted into the chuck (8) (not supplied). The rotating function of the machine is deactivated in this mode. Setting the working angle. In this position, a chase fitted in the chuck can be rotated manually in order to set a suitable working angle between the chase and the machine. As soon as the selection knob is rotated to the chase mode ( ), the set working angle is locked and then maintained during operation.

5452810-Bohrhammer_man 15.05.15 13:04 Seite 53Switching On/Off The voltage of the power supply must correspond to the specifications on the type plate of the machine. The LED operating display (2) lights up in orange as soon as the tool is connected to the mains voltage. The machine is ready to use. Brief switching (Figure 9)

• Switching on: Press the On/Off switch (3).

• Switching off: Release the On/Off switch (3). Continuous switching (Figure 9)

• Switching on: Press the on/off switch (3) and then the locking button (1).

• Switching off: Press the On/Off switch (3) and release. Switching rotation right/left (Figure 11)

• To hammer drill, drill and screw screws into place: Set the selection lever (5) to the "Right" position.

• To remove screws: Set the selection lever to the "Left" position. CAUTION! The switchover may only be carried out when the motor is at a complete standstill! Information: The design dictates that the revolutions for left rotation are reduced. Thus when using left rotation with increased revolutions it may lead to increased spark formation at the motor collector. This is normal and is not a product fault. 9 – Mode of operation CAUTION! All of the pictured insert tools are not part of the scope of delivery! CAUTION! Always hold the machine with both hands when it is in use! Chasing in tiles and brickwork (Figures 12) To do this, insert chase into the chuck (8) as shown above. When using a flat chase, set the mode selection knob (6) to position and turn the chase to set an appropriate working angle. By turning to position ( ) lock the set chase position. Place the chase up against the material to be processed. Switch on the machine and start with a low hammer action, increase the hammer action as required. Do not use excess pressure on the material to enable the chase to develop its full force. Hammer drilling in brickwork (Figure 13) Set the mode selection knob (6) to hammer drilling ( ). Set the selection lever (5) to the "Right" position. Start with low revolutions. The required hammer action for hammer drilling in stone is generated by a pneumatic hammer. This electro pneumatic principle creates a high blow elasticity and ensures backlash free operation. Unlike other types of hammer drill, the drilling performance is not

5452810-Bohrhammer_man 15.05.15 13:04 Seite 54dependant on the pressure. A greater pressure, thus, does not increase the performance! When drilling large holes, use a small diameter drill to make a pilot hole. Drilling in wood and metal (Figures 16) Insert the supplied crown gear chuck (11) for conventional wood and metal drills into the chuck (8) as described in the section on changing tools. Open the chuck using the chuck key (12) and insert a conventional wood or metal drill bit. Tighten the chuck with the key. Preset the revolutions with the adjustment wheel (4): Set the selection lever (5) to the "Right" position. Press the on/off switch (3) and drill using the set highest revolutions. CAUTION! All of the pictured insert tools are not part of the scope of delivery! Screwing and removing screws The crown gear chuck can also be used, with a bit holder (not included), to insert all types of screwdriver bit. To screw screws into place, set the selection lever (5) to the "Right" position. CAUTION! To achieve the best transmission of force, always use a bit that matches the relevant screw head! CAUTION! To ensure that you do not damage the screw heads, always start with low revolutions increase as required! CAUTION! All of the pictured insert tools are not part of the scope of delivery! To remove screws, set the selection lever (5) to left rotation. Start with low revolutions to ensure that you do not damage stuck screw heads. Increase revolutions carefully as required. When in left rotation mode, the maximum revolutions are lower than in right rotation! 10 – Maintenance and environmental protection

• Clean the machine housing with a damp cloth only – do not use solvents! Then dry well. Never submerge electrical machinery in water.

• Always ensure that the ventilation slots of the machine are kept clean. CAUTION! Electrical and battery operated units that no longer work should not be disposed of in the household waste! They are to be collected separately, in accordance with the 2012/19/EU directive for the disposal of electrical and electronic waste, and sent for proper and environ - mentally-friendly recycling. Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For details, please contact your municipal authority concerned.

• Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.

• Meister devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Do not drop electrical machines in water. Please note additional hints given in the operating instructions.

• Meister devices are subject to stringent quality control. If however a functional fault shoult occur, send the device to our servicing address. The repairs will be carried out in a short time.

• A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please enclose the guarantee document and the proof of purchase.

• In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account. PLEASE NOTE! Opening of the device invalidates the guarantee claim. IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Werkzeuge GmbH, Customer Service or an authorised specialist! The same applies analogously to the accessories used.

• Pack the device well or use the original packaging in order to avoid transit damage.

• Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price.
