BSB 500 - Drill Meister Craft - Free user manual and instructions
Find the device manual for free BSB 500 Meister Craft in PDF.
| Brand | Meister Craft |
| Model | BSB 500 |
| Product type | Hammer drill |
| Power supply | 230 V~/50 Hz |
| Power consumption | 500 W |
| No-load speed | 0 - 2900 min⁻¹ (variable) |
| Max. drilling capacity (concrete) | 13 mm |
| Max. drilling capacity (steel) | 10 mm |
| Max. drilling capacity (wood) | 25 mm |
| Neck diameter | 43 mm |
| Thread connection | ½" x 20 UNF |
| Power cable length | 150 cm |
| Sound pressure level (LpA) | 91.0 dB(A) |
| Sound power level (LwA) | 102+3 dB(A) |
| Vibrations (concrete, main handle) | 13.768 m/s² |
| Vibrations (concrete, auxiliary handle) | 12.555 m/s² |
| Vibrations (metal, main handle) | 5.510 m/s² |
| Vibrations (metal, auxiliary handle) | 6.663 m/s² |
| Hammer function | Yes, selectable |
| Rotation direction switch | Yes (right/left) |
| Speed variator | Yes, electronic on trigger |
| Graduated depth stop | Yes |
| Auxiliary handle | Yes, removable and adjustable |
| Continuous operation lock | Yes (lock button) |
| Maintenance | Clean with a damp cloth, no solvents |
Frequently Asked Questions - BSB 500 Meister Craft
User questions about BSB 500 Meister Craft
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Drill in PDF format for free! Find your manual BSB 500 - Meister Craft and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BSB 500 by Meister Craft.
USER MANUAL BSB 500 Meister Craft
in Beton Handgriff 13,768 m/s

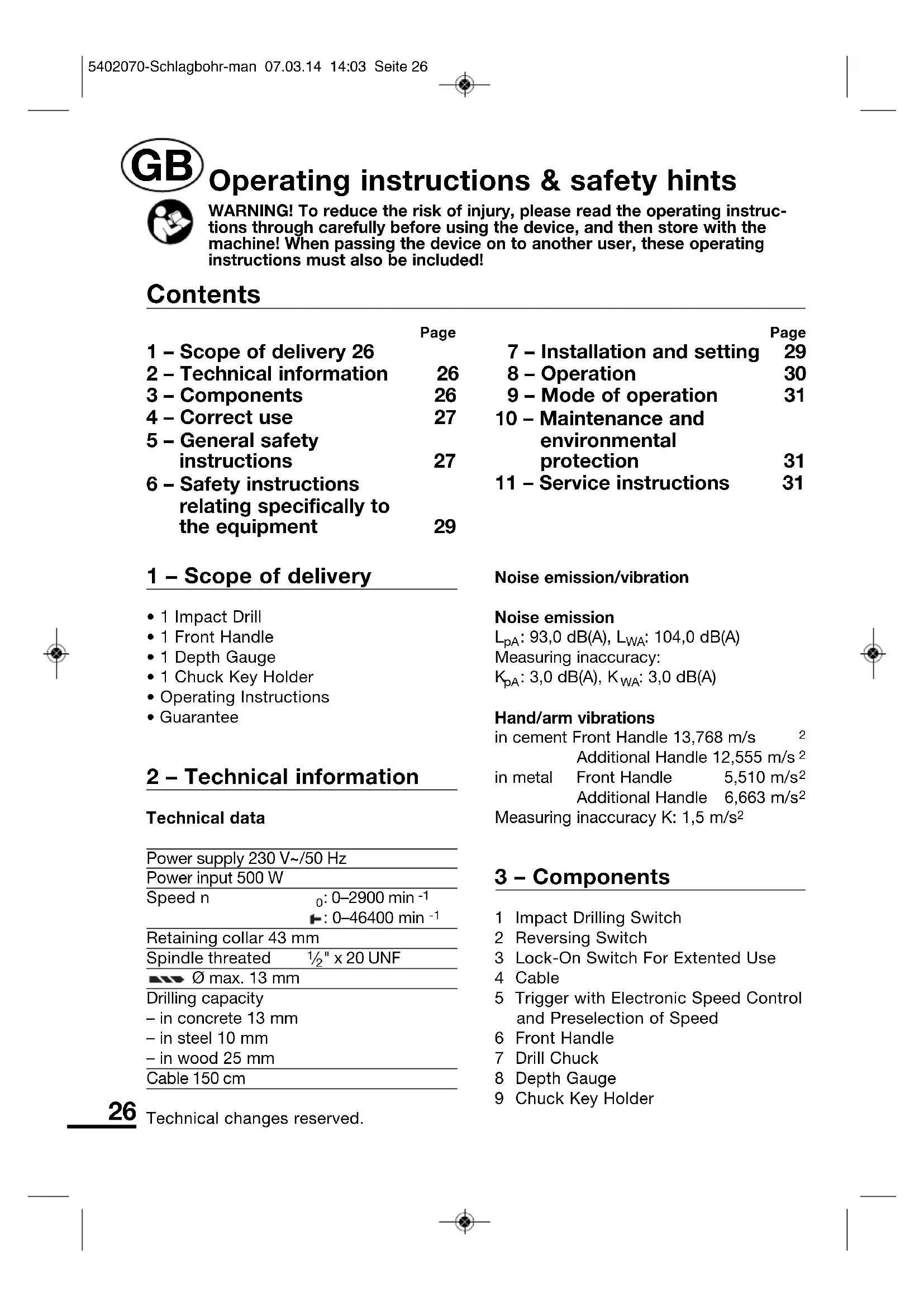

Operating instructions & safety hints
WARNING! To reduce the risk of injury, please read the operating instructions through carefully before using the device, and then store with the machine! When passing the device on to another user, these operating instructions must also be included!
Contents
| Page | |
| 1 - Scope of delivery 26 | |
| 2 - Technical information | 26 |
| 3 - Components | 26 |
| 4 - Correct use | 27 |
| 5 - General safety instructions | 27 |
| 6 - Safety instructions relating specifically to the equipment | 29 |
| 7 – Installation and setting | Page 29 |
| 8 – Operation | 30 |
| 9 – Mode of operation | 31 |
| 10 – Maintenance and environmental protection | 31 |
| 11 – Service instructions | 31 |
1 - Scope of delivery
1 Impact Drill
1 Front Handle
1 Depth Gauge
- 1 Chuck Key Holder
- Operating Instructions
- Guarantee
2 - Technical information
Technical data
| Power supply 230 V~/50 Hz |
| Power input 500 W |
| Speed n 0: 0-2900 min-1 -: 0-46400 min-1 |
| Retaining collar 43 mm |
| Spindle threatened 1½" x 20 UNF |
| Ø max. 13 mm |
| Drilling capacity - in concrete 13 mm - in steel 10 mm - in wood 25 mm |
| Cable 150 cm |
Noise emission/vibration
Noise emission
in cement Front Handle 13,768 m/s
Additional Handle 12,555 m/s
in metal Front Handle 5,510 m/s2
Additional Handle 6,663 m/s²
Measuring inaccuracy K: 1,5 m/s²
3 - Components
1 Impact Drilling Switch
2 Reversing Switch
3 Lock-On Switch For Extended Use
4 Cable
5 Trigger with Electronic Speed Control and Preselection of Speed
6 Front Handle
7 Drill Chuck
8 Depth Gauge
9 Chuck Key Holder
Technical changes reserved.
4 - Correct use
Drilling in wood and metal, impact drilling in concrete. Do not use machines, tools and accessories for additional applications (see manufacturer's instructions) for works other than those for which they are designed for. All other applications are expressly ruled out.
WARNING! The warranty is voided by any improper use or use not in accordance with manufacturer's instructions. Any necessary repair must be performed by qualified personal.
The machine is intended only for use in the household.
5 - General safety instructions for handling power tools
WARNING! Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool.
1 Work area
a Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2 Electrical Safety
a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
3 Personal safety
a Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust masks, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g Keep handles dry, clean and free from oil and grease. Slippery handles do not allow for safe handling and control of the tool in unexpected situations.
h If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of these devices can reduce dust related hazards.
4 Power tool use and care
a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5 Service
a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b To avoid hazards, damaged power leads must be replaced by the manufacturer or his customer service representative.
6 - Safety instructions relating specifically to the equipment
Wear goggles and ear defenders.
- Before drilling into walls make sure that you are not breaking into an electricity, gas or water supply line. Use a detector.
- Always unplug drill before changing drill or bit.
- The chuck key should always be stored in the key holder.
-
To avoid injuries, securely attach the workpiece (e.g. with vice or clamp).
-
When drilling or driving screws: Do not allow the motor to stall under the load.
- To avoid hazards, damaged power leads must be replaced by the manufacturer or his customer service representative.
7 - Installation and setting
Mounting the additional handle
For safe working with two hands.
Undo the thumb screw (a) on the additional handle (6) by turning it counterclockwise and pushthe handle over the chuck on the clamping collar (c). Swivel the additional handle into a suitable working position and fix it by turning the thumbscrew clockwise.
The additional handle can be attached both righthand or lefthand of the chuck.
Fitting and setting the depth stop
To obtain evenly identical drilling depths.
Undo the thumb screw (b) by turning it counterclockwise. Place the depth stop (8) into the guide (d) such that either the numbers or the millimeter scale is visible. Draw the depth stop out as far as the tip of the drill placed in the chuck - to do so place the drill on an even surface.
Read the figure shown on the guide and subtract the desired drilling depth from this figure. The new value is set by sliding the depth stop along the guide. Fix the depth stop by turning the thumb screw (b) clockwise.

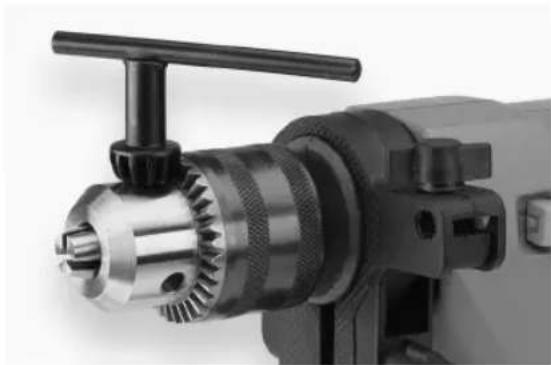

Inserting/removing bits
CAUTION! Always unplug before changing bits.
To open the chuck, turn the gear ring anticlockwise until the bit can be inserted. If bits stick, use the chuck key.
Now at each drill hole tighten the chuck evenly with the chuck key.
Selecting speed
WARNING! Pull out power plug.
The speed selector allows you to adjust the number of
revolutions of the tool to the type of material being drilled.
- Turn the speed selector on the On-Off switch (5) in the (-) direction. The maximum number of r.p.m. is reduced.
- Turn the speed selector in the (+) direction: The number of r.p.m. is increased up to the maximum speed.
With the On-Off sliding switch the number of r.p.m. can be varied continuously within the selected maximum speed.
Percussion device/right or left-hand rotation
Setting as illustrated with motor off.
IMPORTANT! Do not change drilling direction when the drill is in rotation; wait until the drill has come to stop. The chucks of reversible drills are always fixed by a screw with a left hand thread. This screw must be loosen before the drill chuck can be removed and is accessible through the front of the chuck. To loosen a screw with a left hand thread, turn in a clockwise direction.
8 - Operation
Switching on/off
Insert the plug in a 230V - socket.
IMPORTANT! Always switch the motor on before contacting the material.
Switching on
Press the On-Off switch (5) carefully. The machine starts. The number of revs per minute varies according to the pressure on the switch.
Switching off
Release the On-Off switch and wait until the machine stops.
Switching on continuous mode
Press the On-Off switch and hold. Press the locking button (3). Release the On-Off switch. The machine runs at the speed selected.
Switching off continuous mode
Press the On-Off switch. The locking button unlocks. Release the On-Off switch and wait until the machine stops.
9 - Mode of operation
Drilling in wood and metal
Never use the impact feature when drilling in wood or metal. The impact drilling switch must be positioned on "Drilling". The reversing switch must be set to "Forward". The speed is controlled by pressing the trigger. Preselection of speed (5).
Drilling in concrete
Turn impact drilling switch on the position "Impact Drilling". Set reversing switch to "Forward". Start with a slow speed.
10 - Maintenance and environmental protection
Clean the housing only with a damp cloth - do not use any solvents! Dry thoroughly afterwards.
CAUTION! Electrical and battery operated units that no longer work should not be disposed of in the household waste! They are to be collected separately, in accordance with the 2012/19 EU directive for the
disposal of electrical and electronic waste, and sent for proper and environ - mentally-friendly recycling.
Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For details, please contact your municipal authority concerned.
11 - Service instructions
- Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.
- Meisterbasic devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Do not drop electrical machines in water. Please note additional hints given in the operating instructions.
- Meisterbasic devices are subject to stringent quality control. If however a functional fault should occur, send the device to our servicing address. The repairs will be carried out in a short time.
- A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please enclose the guarantee document and the proof of purchase.
- In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account.
Pleases NOTE! Opening of the device invalidates the guarantee claim.
IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Werkzeuge GmbH Customer Service or an authorised specialist!
The same applies analogously to the accessories used.
- Pack the device well or use the original packaging in order to avoid transit damage.
- Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price.
EC-Declaration of Conformity
EG-Verklaring van overeenstemming
The following product ...
... is herewith declared to conform with the
following guidelines:
Wuppertal, .09,05,2014.
