MSB 850 EB - Drill Meister Craft - Free user manual and instructions

Brand	Meister Craft
Model	MSB 850 EB
Product Type	Impact Drill
Power Supply	230 V ~ / 50 Hz
Rated Power	850 W
No-load Speed (1st gear)	0 - 1000 min⁻¹
No-load Speed (2nd gear)	0 - 3000 min⁻¹
Impact Rate (1st gear)	0 - 16000 min⁻¹
Impact Rate (2nd gear)	0 - 48000 min⁻¹
Max Drilling Capacity (concrete)	13 mm
Max Drilling Capacity (steel)	13 mm
Max Drilling Capacity (wood)	25 mm
Spindle Neck Diameter	43 mm
Thread Connection	½" x 20 UNF
Chuck	Keyless with safety lock
Weight	3.0 kg
Cable Length	250 cm
Number of Gears	2 mechanical, electronic regulation
Rotation Direction	Right / Left
Included Accessories	Additional handle, depth stop, plastic case
Double Insulation	Yes
Maintenance	Clean with a damp cloth, do not use solvents
Safety	Wear goggles and ear protection, unplug before maintenance
Warranty	According to manufacturer's conditions, repair by authorized service

Frequently Asked Questions - MSB 850 EB Meister Craft

How to change the speed on the Meister Craft MSB 850 EB drill?

To change the speed, stop the motor and use the speed selector (9) located on top of the device. Two speeds are available: 0-1000 min⁻¹ and 0-3000 min⁻¹. Never change speed while the motor is running.

How to use the hammer drilling function?

Set the hammer mechanism switch (1) to the "ON" position (hammer symbol). Select forward rotation (2) and start at low speed. For concrete, use 1st or 2nd speed depending on the material.

How to adjust the depth stop?

Unlock the handle (7), insert the depth stop (8) into the opening. Place the drill bit against a wall, push the stop to the same length as the bit, then set the desired depth on the graduated scale and tighten the handle.

How to change the drill bit on the MSB 850 EB drill?

Unplug the power cord. Open the chuck (6) by turning the front ring (A) to the left while holding the safety ring (B). Insert the bit, tighten firmly by turning ring (A) to the right and lock by engaging ring (B).

What is the power of the Meister Craft MSB 850 EB drill?

The rated power is 850 W at 230 V ~ / 50 Hz. It offers variable speed from 0 to 3000 min⁻¹ and drilling capacity up to 13 mm in concrete and steel, and 25 mm in wood.

Can this drill be used for screwdriving?

Yes, the MSB 850 EB drill can be used for driving and removing screws. Set the hammer selector (1) to "OFF", adjust forward/reverse (2) as needed, and use the electronic speed control for precise control.

What to do if the drill vibrates excessively?

Check that the bit is properly tightened in the chuck and suitable for the material. Make sure the drill is held firmly with both hands using the additional handle. If vibrations persist, stop the device and check the bit condition or contact after-sales service.

How to clean the Meister Craft drill?

Unplug the power cord. Clean the housing with a damp cloth. Never use solvents or chemicals. Let it dry completely. Keep the ventilation slots free of dust.

What types of drill bits can I use?

Use bits with a cylindrical shank up to 13 mm diameter. For wood, use wood bits; for metal, use HSS bits; for concrete, use hammer bits. Follow the speed recommendations of the accessory manufacturer.

Where to find spare parts or have the drill repaired?

Repairs must be performed by the Meister Craft after-sales service or an authorized specialist. Use only original parts. For warranty, keep the warranty certificate and receipt. The manual states that opening the device voids the warranty.

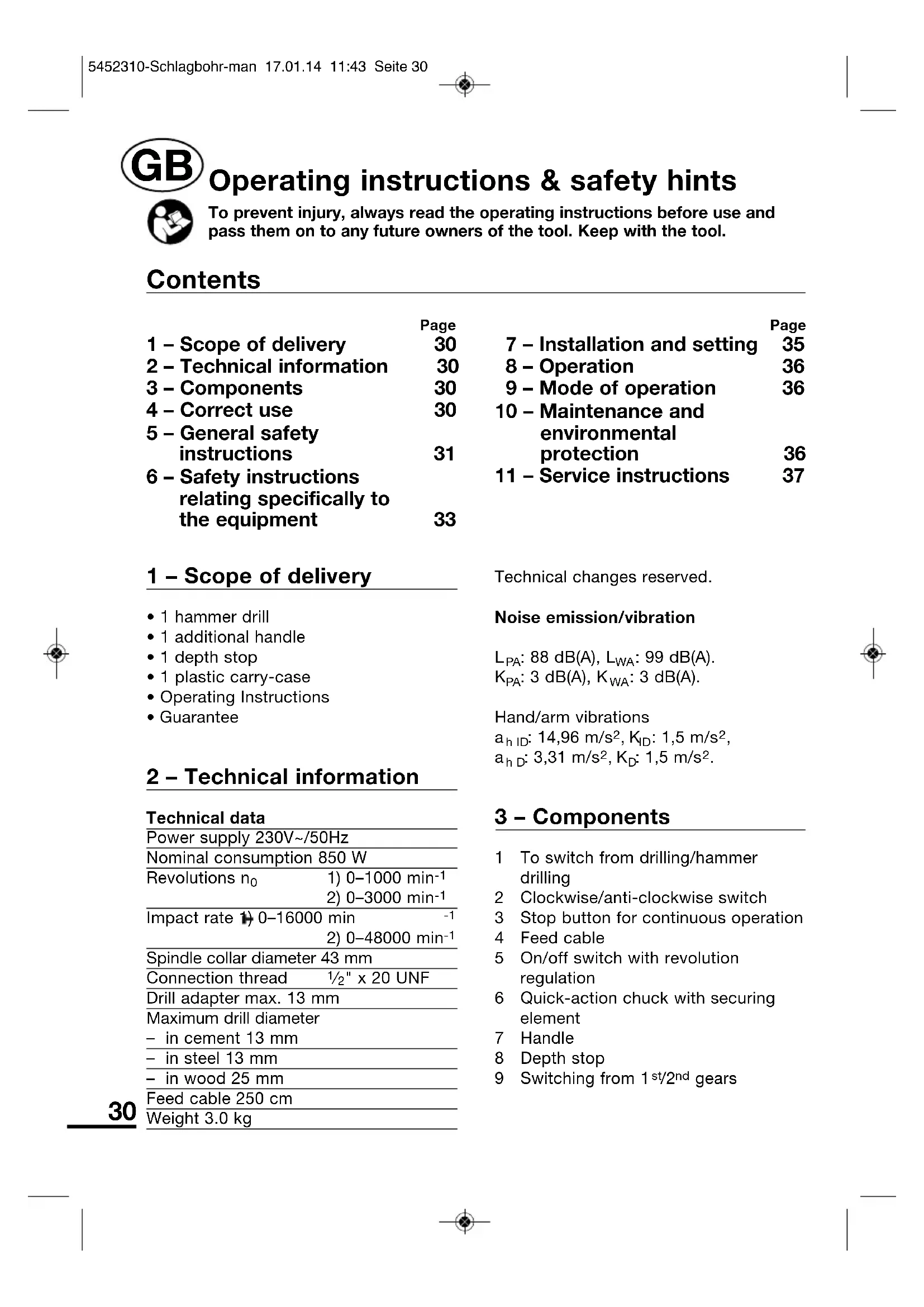

USER MANUAL MSB 850 EB Meister Craft

Operating instructions & safety hints

To prevent injury, always read the operating instructions before use and pass them on to any future owners of the tool. Keep with the tool.

Contents

	Page
1 - Scope of delivery	30
2 - Technical information	30
3 - Components	30
4 - Correct use	30
5 - General safety instructions	31
6 - Safety instructions relating specifically to the equipment	33

7 – Installation and setting	Page 35
8 – Operation	36
9 – Mode of operation	36
10 – Maintenance and environmental protection	36
11 – Service instructions	37

1 - Scope of delivery

1 hammer drill
1 additional handle
1 depth stop
1 plastic carry-case
- Operating Instructions
- Guarantee

2 - Technical information

Technical data

Power supply 230V~/50Hz
Nominal consumption 850 W
Revolutions n0	1) 0-1000 min-1
	2) 0-3000 min-1
Impact rate ↑ 0-16000 min	-1
	2) 0-48000 min-1
Spindle collar diameter 43 mm
Connection thread	½" x 20 UNF
Drill adapter max. 13 mm
Maximum drill diameter
- in cement 13 mm
- in steel 13 mm
- in wood 25 mm
Feed cable 250 cm
Weight 3.0 kg

Technical changes reserved.

Noise emission/vibration

1 To switch from drilling/hammer drilling
2 Clockwise/anti-clockwise switch
3 Stop button for continuous operation
4 Feed cable
5 On/off switch with revolution regulation
6 Quick-action chuck with securing element
7 Handle
8 Depth stop
9 Switching from 1^st / 2^nd gears

4 - Correct use

Drilling in wood and metal, hammer drilling in cement, screwdriver operation. Only use the machine, tools and accessories for additional tasks (observe the manufacturer specifications) when these fall under the specified scope of use. All other uses are expressly excluded.

The machine is intended only for use in the household.

5 - General safety instructions for handling power tools

WARNING! Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool.

Work area

a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) Keep handles dry, clean and free from oil and grease. Slippery handles do not allow for safe handling and control of the tool in unexpected situations.
h) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into

account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Special safety notes:

- Safety notes for hammer drills

• Wear ear defenders when using hammer drills. The effects of noise can lead to loss of hearing.
• Use the additional handle supplied with the device. If you lose control of the machine, it may cause injuries.

Additional safety notes for hammer drills

• Only activate the drive switch when the engine is at a standstill. Switching with the machine running may cause damage to the gears.
• Never use the hammer drill as a screwdriver. The tightening and loosening of screws, nuts and similar objects using the hammer drill is not permitted.
• Water must be kept away from parts of the electrical tool and from people in the work place.
• Before you make a setting, service or do maintenance on the device, ensure that the power cable is unplugged (not connected to the power source).
• The electrical capacity of your extension cable should be at least as powerful as the device.
• Check to make sure that the mains power supply matches the

specifications on the type plate of the device.

• Check walls and ceilings in order to avoid damaging hidden cables.
• Never touch the external housing directly after drilling. This becomes very hot during drilling operation.

Servicing

a) Only have electric tools repaired by qualified specialists and only allow original replacement parts to be used. This ensures that the safety of the electrical tool is maintained.

6 - Safety instructions relating specifically to the equipment

• Wear goggles and ear defenders.
• Before you start to drill holes in a wall, use a cable/metal detector to make sure you are not going to hit power lines, gas or water pipes.
• Only change a drill/chuck with the device unplugged (not connected to the power supply)!
• In order to prevent injuries, ensure that the item to be processed is secured (e.g. by clamping in a vice).
• Avoid the engine coming to a standstill when drilling under pressure.
• The machine may only be used for the purpose it was designed for.

• Whilst operating, always hold the machine with both hands and ensure that you are standing firmly.

• Outdoor power sockets must be fitted with a residual current circuit breaker.

• Shavings or shards should never be removed when the engine is running.
• Small items should be secured in such a way that they cannot be moved by the drill when drilling.
• Unplug the machine from the power source before carrying out any work on the machine, when taking a break and when not in use.
• Always make sure that the connecting cable is kept away from the area you are working in.
• Only plug the machine in when it is switched off.
  Always use the machine with the additional handle.
• Persons under 16 years of age may not operate the machine.
• Should the connecting cable be damaged, it must be replaced by the manufacturer or their customer representative in order to prevent risks.

Safety symbols

The symbols on the housing have the following meanings:

Nr.5452310 Bj.2014

Model number and year of construction

MSB 850 EB

Model name

When using the hammer drill, wear goggles.

Wear ear defenders when using the hammer drill.

230V/50Hz Power supply, frequency and 850W power consumption

n:

Idle revolutions

Impact rate

Maximum drill diameter

Within the EU, this symbol indicates that this product may not be disposed of with the ordinary household waste. Old devices contain valuable recyclable materials which should be recycled in order to ensure that they do not affect the environment or the health of humans as a result of uncontrolled waste disposal. Please dispose of old devices via a suitable collection system or return it to the place it was purchased for disposal. They will then send the device for recycling.

Read this instruction manual thoroughly before using the hammer drill.

Intertek

"GS" voluntary quality mark

Housing is double insulated

CE marked (conforms to European safety standards)

Minder Winklitz 90,87-98
Bürgschaft 101,37-38
D-2349 Wissenschaften
Germany

Manufacturer address

7 - Installation and setting

Mounting the depth stop

Loosen the handle (7) so that the hexagonal screw exposes the opening for the depth stop (Fig. 2). Slide the depth stop (8) into the opening and tighten the handle.

Setting the depth stop

• Fit the drill and lock into place.
• Loosen the handle.
• Slide the depth stop to the same length as the fitted drill. Do this by pressing it up against a level wall.
• Use the scale on the depth stop to read off the value in mm, and deduct the required drilling depth from this figure.
• Set this value on the depth stop and tighten the handle.

Changing tools (Fig. 3)

CAUTION! Pull the power plug.

The machine has a quick-action chuck (6) which enables tools to be changed without the need of a key. An addition securing mechanism prevents the chuck from opening as a result of vibrations.

- Opening the chuck

Pull back the securing ring (B). Open the chuck by turning the front ring (A) to the left and then change the tool.

Closing and securing the chuck

Close the chuck by turning the ring (A) to the right and secure by pushing the ring (B) forwards.

Selecting the revolutions

In order to ensure materials are damaged, observe the revolution recommendations made by the accessory manufacturer.

Stepless revolution selection using the adjusting wheel on the on/off switch (5):

Turn the adjusting wheel in the + direction as far as it will go to get the highest number of revolutions.

Turn the adjusting wheel in the direction as far as it will go to get the lowest number of revolutions.

The revolutions can be applied steplessly by means of pressure on the on/off button up to the value set on the wheel.

When using continuous operating with the on/off switch locked, the machine operates at the pre-selected revolutions.

Important: When the machine is operating, the clockwise/anticlockwise direction switch may not be used. As a result, wait until it has come to a complete standstill. Work to machine that does not fall under correct use will lead to the loss of the warranty claim. The chuck of clockwise/anti-clockwise machines is always fixed with a left-handed thread screw. This is to be loosened through the front of the chuck itself before

changing the chuck. Left-handed thread screws can only be loosed by turning to the right.

8 - Operation

Switching on and off

The voltage of the power supply must match the specifications on the type plate of the machine.

Brief switching

Switch on: Press the on/off switch (5).

Switch off: Release the on/off switch.

Continuous operation:

Switch on: Press the on/off switch and then press the locking button (3).

Switch off: Press and release the on/off switch.

9 - Mode of operation

Drilling in wood and metal

To drill in wood and metal, the hammer drill function must be activated. Set the hammer drill switch (1) to the "OFF" setting. Set the clockwise/anti-clockwise switch (2) to clockwise rotation. Activate the electronic revolution regulation by pressing the on/off switch. Set the revolution selection using the adjusting wheel on the on/off switch.

Drilling in cement

Activate the hammer drill function (1), set the clockwise/anti-clockwise switch (2) to clockwise rotation. Start with low revolutions.

Depending on the properties of the material and the diameter of the drill, switch on the first and second gears (9) with the device at a standstill (Fig. 2). This changes the impact rate.

To remove a stuck drill, wait until the machine has come to a standstill, and switch to anti

clockwise rotation. With the drill running anti-clockwise, carefully pull it out of the drilled hole.

10 - Maintenance and environmental protection

Before performing any care or maintenance work, disconnect from the power. Clean the machine with a damp cloth. Do not use solvents. Dry well. Ensure that the ventilation slots are kept free of dust. Before each use, check the machine, the cable and accessories to ensure that they are not damaged. Have any repairs necessary completed by a specialist.

CAUTION! Electrical and battery operated units that no longer work should not be disposed of in the household waste! They are to be collected separately, in accordance with the 2012/19 EU directive for the

disposal of electrical and electronic waste, and sent for proper and environmentally-friendly recycling.

Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For details, please contact your municipal authority concerned.

11 - Service instructions

• Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.
• MeisterCRAFT devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Do not drop electrical machines in water. Please note additional hints given in the operating instructions.
• MeisterCRAFT devices are subject to stringent quality control. If however a functional fault should occur, send the device to our servicing address. The repairs will be carried out in a short time.
• A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please enclose the guarantee document and the proof of purchase.
• In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account.

PLEASE NOTE! Opening of the device invalidates the guarantee claim.

IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Werkzeuge GmbH Customer Service or an authorised specialist! The same applies analogously to the accessories used.

• Pack the device well or use the original packaging in order to avoid transit damage.
  Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price.

EC-Declaration of Conformity

EG-Verklaring van overeenstemming

The following product ...

... is herewith declared to conform with the

following guidelines:
