USER MANUAL AS108VLM Meister Craft

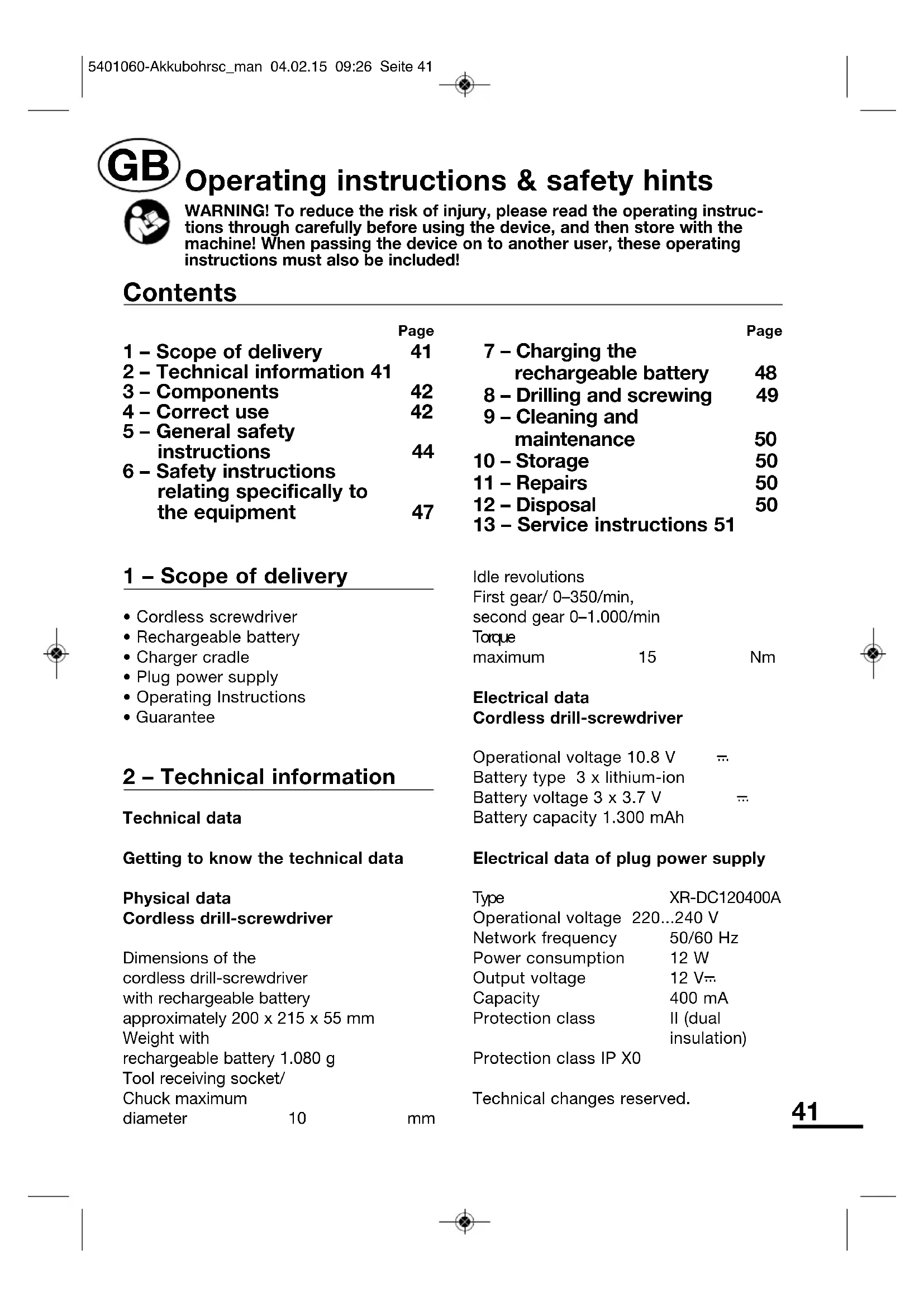

• Cordless screwdriver• Rechargeable battery• Charger cradle• Plug power supply• Operating Instructions• Guarantee 2 – Technical information Technical dataGetting to know the technical dataPhysical dataCordless drill-screwdriverDimensions of thecordless drill-screwdriverwith rechargeable batteryapproximately 200 x 215 x 55 mmWeight withrechargeable battery 1.080 gTool receiving socket/Chuck maximumdiameter 10 mm Idle revolutionsFirst gear/ 0–350/min,second gear 0–1.000/minTorquemaximum 15 NmElectrical dataCordless drill-screwdriverOperational voltage 10.8 V

Battery capacity 1.300 mAhElectrical data of plug power supplyType XR-DC120400AOperational voltage 220...240 VNetwork frequency 50/60 HzPower consumption 12 WOutput voltage 12 V

Capacity 400 mAProtection class II (dualinsulation)Protection class IP X0Technical changes reserved. Page 1 – Scope of delivery 41 2 – Technical information 41 3 – Components 42 4 – Correct use 42 5 – General safety instructions 44 6 – Safety instructions relating specifically to the equipment 47 Page 7 – Charging the rechargeable battery 48 8 – Drilling and screwing 49 9 – Cleaning and maintenance 50 10 – Storage 50 11 – Repairs 50 12 – Disposal 50 13 – Service instructions 51 Contents Operating instructions & safety hints WARNING! To reduce the risk of injury, please read the operating instruc-tions through carefully before using the device, and then store with themachine! When passing the device on to another user, these operatinginstructions must also be included!

= 3 dB Sound power level L

The measured vibration values were determined in accordance with EN 60 745-2-1, EN 60 745-2-2, EN 60 745-1. Information about minimising vibrations Information:

• The specified vibration emission value was measured in accordance with a normed test procedure and can be used in order to compare one power tool with another.

• The specified vibration emission value can also be used for an introductory evaluation of the exposure.

• The vibration emission value may fluctuate from the specified value during actual use of the power tool. These fluctuations will depend on the way in which the power tool is used.

• If your hands experience an unpleasant sensation or the skin changes colour while you are using the machine, immediately interrupt your work. Take sufficient breaks. If you do not take sufficient breaks, this may cause a hand/arm vibration syndrome.

• Evaluate the level of load according to the work or the use of the tool and take sufficient breaks. This method can be used to considerably minimise the level of load during the entire working time. Information about minimising noise A certain amount of noise is unavoidable when using this device. Ensure you carry out noise-intensive work during permitted times. Maintain the quiet periods and limit your work to the absolute minimum. For the sake of your personal protection and the protection of persons in the vicinity, suitable ear defenders should be worn. 3 – Components 1 Chuck 2 Locking collar 3 Torque limiter 4 Revolution range switch 5 Ventilation slots 6 Rotation direction switch 7 On/Off switch with revolution regulator 8Handle 9 Rechargeable battery 10 LED light 4 – Correct use Drilling in wood and metal, screw- driving. Employ the machine, charging unit and accessories (follow manufacturer's directives!) for specified area of application only! All other applications are explicitly excluded. This unit may not be used by people (including children) with reduced physical, sensory or mental capacities, with a lack of experience and without the appropriate knowledge, unless they are supervised by someone who is responsible for their safety or have been

5401060-Akkubohrsc_man 04.02.15 09:26 Seite 42instructed by such a person with regard to how the unit is to be operated. Children should be supervised to ensure that they do not play with the device. The machine is intended only for use in the household. Improper use of the product All applications carried out with the device that are not listed in the "Proper use" chapter will be considered improper use. Uses for which the tool is not designed may cause risks and injury. Do not use accessories that are not intended specifically for this electrical tool. Tool inserts that do not fit precisely to the sanding spindle of the electrical tool will rotate unevenly, vibrate very heavily and may lead to a loss of control. There is a risk of injury. The user of the device is liable for all property and personal damages occurring as the result of incorrect use. If other components or non-original components are used with the machine, the manufacturer guarantee is voided. All applications carried out with the device that are not listed in the "Proper use" chapter will be considered improper use. The device may not be used for the following purposes:

• For mixing paint or construction materials,

• Polishing, sanding, sharpening, engraving with the appropriate fittings,

• As a drive for other tools, Remaining risks: The operating instructions for this electrical tool contains comprehensive tips for the safe handling of electrical tools. However, every electrical tool has a certain level of remaining risks which cannot be excluded by the protective mechanisms on the device. Only operate electrical tools always with necessary care. Even when the device is used properly, there is a residual risk that cannot be excluded. The following potential dangers are inherent in the type and construction of the device:

• Contact with the rotating drill chuck (risk of crushing injuries)

• Reaching into the turning drill (risk of cutting injuries)

• Contact with the sharp edges of the drilled holes and shavings (risk of cutting injuries)

• Damage to the hearing if the prescribed ear defenders are not worn

• Breathing in of drilling particles

• Electrical shock when touching non- insulated electrical components or cables. If the instructions in your operating instructions are not observed, incorrect use may result in other residual risks. The ability to work safely is dependant on the familiarity of the operator when it comes to handling the given electrical tool. Appropriate knowledge of the machinery and careful behaviour when working help to minimise the remaining risks.

5401060-Akkubohrsc_man 04.02.15 09:26 Seite 43WARNING! During operation, this power tool generates an electro magnetic field. This field may, under certain circumstances, influence active or passive medical implants. In order to reduce the risk of serious or deadly injuries, we recommend persons with such a medical implant to consult their doctor and the manufacturer of the medical implant before using the power tool. 5 – General safety instructions for handling power tools WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool. 1 Work area a Keep work area clean and well lit. Cluttered and dark areas invite accidents. b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 2 Electrical Safety a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f If it is not possible to avoid using the electrical tool in a damp environment, use a residual current circuit-breaker. The use of a residual current circuit-breaker reduces the risk of an electrical shock. 3 Personal safety a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use

5401060-Akkubohrsc_man 04.02.15 09:26 Seite 44a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. 4 Power tool use and care a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c Disconnect the plug from the power source and/or remove the rechargeable battery from the power tool before making any adjustments, changing accessories, or storing the device. Such preventive safety measures reduce the risk of starting the tool accidentally.. d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

5401060-Akkubohrsc_man 04.02.15 09:26 Seite 45g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. 5 Use and treatment of the battery- operated tool a Only use chargers to recharge the battery that have been recommended by the manufacturer. When using a charger designated for a particular type of battery, there is a risk of fire if it is used with other batteries. b Only use the batteries designed for use in the electric tools. The use of other batteries may lead to injury and risk of fire. c When not in use, keep the battery away from paper clips, coins, keys, nails, screws or other small metallic objects that may bridge the contacts. A short-circuit between the battery contacts can lead to burns or fire. d Fluid can escape from the battery when used incorrectly. Avoid all contact with this. In the event of accidental contact, rinse with water. If liquid should get into the eyes, get medical assistance. Battery fluid may result in skin irritations and burns. 6 General safety information for battery-powered screwdrivers Service a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 7 Safety information for battery- powered screwdrivers a Hold the tool by the insulated handle surfaces only when carrying out tasks during which is it possible that the tools will come across hidden power cables or its own cable. Contact with a power- carrying cable can also put metal parts of the unit under power and cause an electric shock. 8 Safety notes for battery/charger a Keep the charger away from rain or damp. Water entering into the charger will increase the risk of an electrical shock. b Only use chargers recommended by the manufacturer to recharge the battery. When using a charger designated for a particular type of battery, there is a risk of fire if it is used with other batteries. c Never use to recharge third-party batteries. The charger is only designed to charge the supplied batteries using the voltages specified in the Technical Data. Otherwise there is a risk of fire or explosion. d Keep the charger clean. Contamination will increase the risk of an electrical shock. e Check the charger, cable and plug each time you use the unit. Do not use the charger if you find any damages. Never open the charger up yourself, have it repaired by a

5401060-Akkubohrsc_man 04.02.15 09:26 Seite 46qualified specialist only and with original replacement parts. A damaged charger, cable or plug will increase the risk of an electrical shock. f Never operate the charger on a surface that will burn easily (for example, paper, textiles etc) or in a flammable environment. There is a risk of fire occurring as a result of the heat generated during the charging process. g Fluid can escape from the battery when used incorrectly. Avoid all contact with this. In the event of accidental contact, rinse with water. If liquid should get into the eyes, get medical assistance. Battery fluid may result in skin irritations and burns. h Do not open the battery. There is a risk of short-circuiting. i Protect the battery from heat, for example, from constant sun and fire. There is a risk of explosion. j Never short circuit the battery. There is a risk of explosion. k In the event of damages and incorrect use, vapours may come out of the battery. Ensure plenty of fresh air and, if you have any symptoms, consult a doctor. These vapours may irritate the respiratory system. l Do not attempt to use the charger to recharge ordinary batteries. Ordinary batteries cannot be recharged. If you attempt to recharge ordinary batteries, they will become hot and may cause a fire. 6 – Safety instructions relating specifically to the equipment

• Use the appliance, the charger and the attachments, only for their intended applications!

• Before laying the stick screwdriver aside, ensure that all moving parts have come to a standstill.

• Avoid frequent blocking when drilling, tightening or loosening screws.

• Connect the charger only to a 220–240 V AC power supply.

• Charge the screwdriver battery only with the charger supplied.

• Protect the charger and the screwdriver from contact with moisture. Never immerse in water!

• Do not use the charger in the open air.

• To avoid damage to the batteries, never expose them to temperatures of over 50 °C. CAUTION! Do not short-circuit the contacts of the battery or charger.

• When charging, ensure that the device is correctly connected („+/–“).

• Do not attempt to burn the battery.

• The connection cord cannot be replaced. In case of damage, dispose of the device in the correct manner. In case of damage, dispose of the device in the correct manner.

5401060-Akkubohrsc_man 04.02.15 09:26 Seite 47Safety symbols The symbols on the housing have the following meanings: Conformity with European safety norms Recycle when the item has come to the end of its useful life Do not introduce lithium-ion rechargeable batteries into the household waste. Polarisation of the connection plugs for the charger cradle. Outside: Minus, Inside: Plus "Tested safety" seal Housing is double insulated Only for use in dry indoor spaces Read the operating instructions Ambient temperature, maximum of 50 °C Do not throw the rechargeable battery into water Do not allow the rechargeable battery to enter into the waste water system. Do not throw the rechargeable battery into fire 7 – Charging the rechargeable battery Before using the device for the first time The battery is not completely charged when the item leaves the factory. Figure 5-1: Connect the plug power supply and the charger cradle. Insert the rechargeable battery as far as it will go into the battery compartment. The LEDs on the battery indicate the charging process: LED LED LED Charging process Red Yellow Green Initial Advanced Complete The charging process takes about 3 to 5 hours. Remove the rechargeable battery from the charger cradle after you have finished charging it. The rechargeable battery will attain its full performance capability only after a number of charging cycles. Figure 5-3: Insert the rechargeable battery as far as it will go into the handle of the cordless drill-screwdriver. The cordless drill-screwdriver is ready for operation.

5401060-Akkubohrsc_man 04.02.15 09:26 Seite 48In daily use In order to protect the rechargeable battery: Recharge the battery before it is completely discharged. Figure 5-2: Check the battery charge state: LED LED LED Charge state Red Yellow Green Almost empty Half-full Full Figure 5-4: Take the rechargeable battery out of the handle of the cordless drill-screwdriver. Figure 5-1: Charge the rechargeable battery. Figure 5-3: When the rechargeable battery has been charged, insert as far as it will go into the handle of the cordless drill-screwdriver. The cordless drill-screwdriver is ready for operation. 8 – Drilling and screwing Insert the drill bit or screwdriver blade CAUTION! Driven moving parts. Risk of injury if switched on unintentionally. Separate the device from the power supply. Figure 5-4: Take the rechargeable battery out of the handle of the cordless drill-screwdriver. Figure 6-1: Hold the locking collar (1) firmly and open the chuck (2). Insert the drill bit or screwdriver blade. Hold the locking collar (1) firmly and close the chuck (2). Ensure that the jaws in the chuck grasp the tool and centre it. Select the direction of rotation Figure 6-2: Select the required direction of rotation. To drill: Always clockwise. Set the torque limiter The torque limiter is an adjustable friction clutch. When screwing, it prevents the screw heads from penetrating too far into the work piece. Figure 6-3: Set the torque limiter: For screwing screws into soft work pieces

For screwing screws into hard work pieces For drilling (without torque limiter) Select the revolution range Figure 6-4: Select the revolution range: First gear (low revolutions): 0…350/min Second gear (high revolutions): 0…1,000/min

5401060-Akkubohrsc_man 04.02.15 09:26 Seite 49Regulate the revolutions The revolutions are regulated using the On/Off switch. See section on "Drilling and screwing", page 49. Rule of thumb for drilling: The smaller the drill diameter, the higher the revolutions. The harder the work piece material, the lower the revolutions. Drilling and screwing Figure 5-3: Insert the rechargeable battery again. CAUTION! Hidden power cables. Dangerous when starting to drill. Check the place you intend to drill with a cable detector. Figure 6-5: Press the On/Off switch gently. The LED lamp lights. The cordless drill-screwdriver starts. To increase the revolutions: Press the On/Off switch further. CAUTION! Heat development under load. Risk of device damage due to heat build-up. Keep the ventilation slots free. To switch off: Release the On/Off switch. 9 – Cleaning and maintenance After each use: Blow the ventilation slots clean using compressed air. Clean the housing of the device with a dry cloth. Do not use liquids or aggressive or scouring cleaning agents. 10 – Storage Take the rechargeable battery out of the cordless drill-screwdriver. Store the device in a clean, dry location at a maximum of +40 °C. Charge the battery occasionally to maintain the capacity. 11 – Repairs Have repairs carried out by authorised specialists only. 12 – Disposal CAUTION! Electrical and battery operated units that no longer work should not be disposed of in the household waste! They are to be collected separately, in accordance with the 2012/19/EU directive for the disposal of electrical and electronic waste, and sent for proper and environmentally-friendly recycling. ATTENTION! Batteries must be removed from battery-powered tools and disposed of separately in accordance with relevant waste- battery regulations. Batteries must never be disposed of with domestic waste! Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For details, please contact your municipal authority concerned.

• Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.

• Meister devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Please note additional hints given in the operating instructions.

• Meister devices are subject to stringent quality control. If however a functional fault shoult occur, send the device to our servicing address. The repairs will be carried out in a short time.

• A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please enclose the guarantee document and the proof of purchase.

• In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account. PLEASE NOTE! Opening of the device invalidates the guarantee claim! IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Werkzeuge GmbH, Customer Service or an authorised specialist! The same applies analogously to the accessories used.

• Pack the device well or use the original packaging in order to avoid transit damage.

• Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price.
