Brand	Neff
Model	D7030X0
Product type	Extractor hood
Installation type	With external fan (not included)
Compatible fan	HBD-MX12-8
Weight	7.3 kg
Minimum duct diameter	150 mm
Extraction mode	Extraction to the outside
Power supply	Mains (220-240 V)
Power cable length	Approximately 5 m (extension included)
Maximum admissible depression	4 Pa (0.04 mbar)
Minimum distance from fan	2 m
Optional accessory	Silencer for 150 mm duct
Safety	Installation by a professional required; repairs reserved for manufacturer or after-sales service
Maintenance	Regular cleaning; fan maintenance by a specialist
Materials	Stainless steel (estimate)
Compliance	Compliant with applicable safety provisions
Packaging	Recyclable

Frequently Asked Questions - D7030X0 NEFF

What is the difference between a hood with an external fan and a conventional hood?

A hood with an external fan, like the D7030X0 model, moves the motor outside or to a technical room. This reduces noise in the kitchen and allows more flexible installation. The external fan must be purchased separately (model HBD-MX12-8).

Do I need to buy the fan separately?

Yes. The D7030X0 hood requires a compatible external fan, referenced HBD-MX12-8, which is not included in the packaging. Make sure to check compatibility before installation.

What duct diameter should I use for extraction?

The diameter of the connection duct must never be less than 150 mm. For optimal performance, use a smooth and airtight duct. An optional silencer (150 mm) can be added.

What is the weight of the hood?

The hood weighs 7.3 kg. Ensure the mounting wall is flat, vertical, and capable of supporting this weight. Use dowels suitable for masonry.

Can I install the hood myself?

No. Installation, electrical connection, and commissioning must be carried out by a qualified specialist. Unprofessional repairs pose considerable risks to the user.

How to clean the hood?

Regular cleaning of the hood is recommended to maintain its performance. Refer to the user manual for detailed instructions. For the external fan, any maintenance operation requires disconnecting the power supply.

What to do in case of failure?

In case of failure, do not attempt to repair yourself. Repairs must be entrusted to the manufacturer, its after-sales service, or a person with equivalent qualifications. A damaged power cord must be replaced by the manufacturer.

Is the hood supplied with a power cable?

Yes, the hood is supplied with an extension of approximately 5 meters for the electrical connection with the fan. Connection to the mains must be carried out by a professional.

Can I use the hood in recirculation mode?

No. The D7030X0 hood is designed only for extraction of stale air to the outside. It cannot operate in recirculation mode (with charcoal filter).

How to ensure adequate ventilation if I have a combustion heating system?

When the hood operates, the expelled air creates a depression. To avoid backflow of combustion gases, the depression in the room must not exceed 4 Pa (0.04 mbar). Make sure to provide non-closable air openings (doors, windows, vents). Consult a professional to assess the situation.

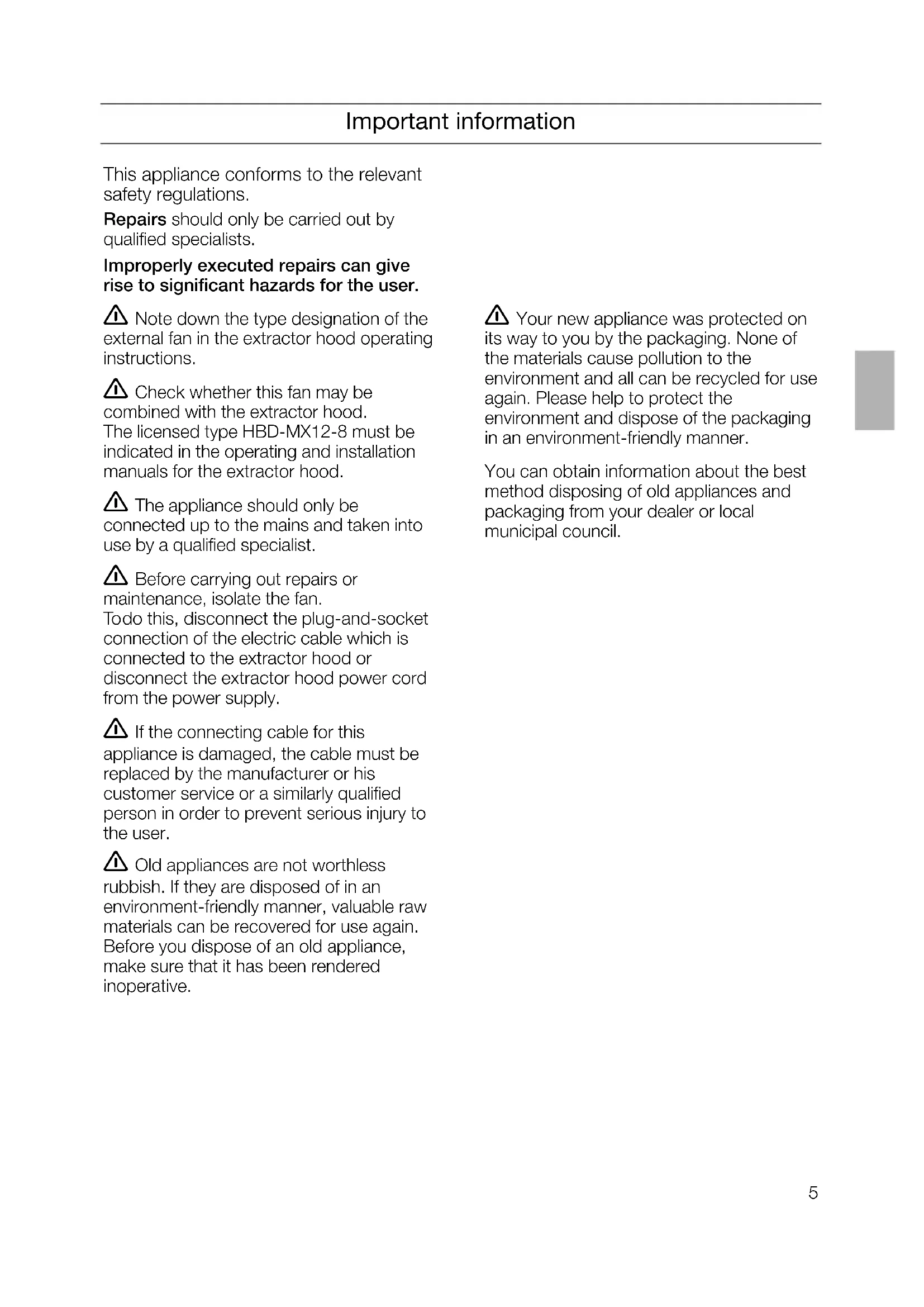

USER MANUAL D7030X0 NEFF

This appliance conforms to the relevant safety regulations.

Repairs should only be carried out by qualified specialists.

Improperly executed repairs can give rise to significant hazards for the user.

Note down the type designation of the external fan in the extractor hood operating instructions.
Check whether this fan may be combined with the extractor hood. The licensed type HBD-MX12-8 must be indicated in the operating and installation manuals for the extractor hood.
The appliance should only be connected up to the mains and taken into use by a qualified specialist.
Before carrying out repairs or maintenance, isolate the fan.
Todo this, disconnect the plug-and-socket connection of the electric cable which is connected to the extractor hood or disconnect the extractor hood power cord from the power supply.
If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.
Old appliances are not worthless rubbish. If they are disposed of in an environment-friendly manner, valuable raw materials can be recovered for use again. Before you dispose of an old appliance, make sure that it has been rendered inoperative.

Your new appliance was protected on its way to you by the packaging. None of the materials cause pollution to the environment and all can be recycled for use again. Please help to protect the environment and dispose of the packaging in an environment-friendly manner.

You can obtain information about the best method disposing of old appliances and packaging from your dealer or local municipal council.

The exhaust air must not be removed via a functioning smoke or exhaust-gas flue or via a duct which is used to ventilate a fireplace in the installation room.

Observe the official and statutory regulations for the removal of exhaust air (e.g. Landesbauordnungen)..

Removal of exhaust air via a non-functioning smoke or exhaust-gas flue requires the consent of a heating engineer.

If the extractor hood is operating in exhaust-air mode at the same time as a flue-type heater (e.g. gas, oil or solid-fuel heater, instantaneous water heater, boiler), there must be an adequate air supply which the fireplace requires for combustion.

Safe operation is possible if the partial vacuum in the installation room of the fireplace does not exceed 4 Pa (0.04 mbar).

This can be achieved if the combustion air is able to flow through non-lockable openings, e.g. in doors, windows and in conjunction with an air supply/air-intake wall box or by other technical procedures such as reciprocal interlocking.

If the air supply is inadequate, there is a risk of poisoning caused by combustion gases being drawn back into the room.

An air supply/air-intake wall box alone does not ensure compliance with the limiting value.

Note: When assessing the air supply, always take into account the entire ventilation system in the house. This rule does not apply when using cooking appliances, e.g. hob or gas cooker.

The fan must be attached at least 2m from the extractor hood.
Attach the inner wall fan inside the building only, but not in living rooms.
When attaching the inner wall fan, ensure that it is accessible for maintenance and repairs.
The plug-and-socket connections of the electric cables must be located inside the building.
Do not reduce the 150~mm diameter of the pipes connected to the extractor hood. An additional silencer for 150~mm o pipes is available as an optional accessory from specialist outlets.

Preparing the wall

The wall must be flat and perpendicular.
- Ensure that the wall is capable of providing a firm hold for mounting screws and plugs.

Weight: 7,3kg

We reserve the right to construction changes within the context of technical development.

Installation

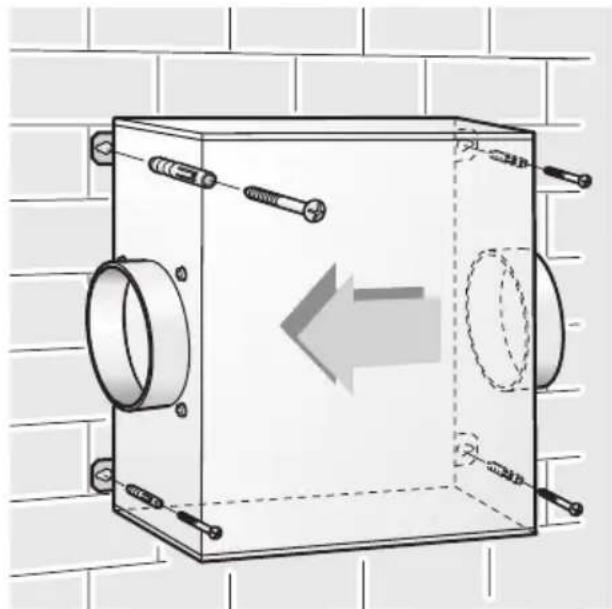

1. Hold the fan on the wall. Note the direction of the air conduction.
2. Mark the 4 mounting boreholes.
3. Drill the 4 × 8 ~mm mounting boreholes. Insert wall plugs and screw the fan to the wall.

The wall plugs must be suitable for the brickwork.
The fan is connected to the extractor hood with the 5m extension cable enclosed with the extractor hood.

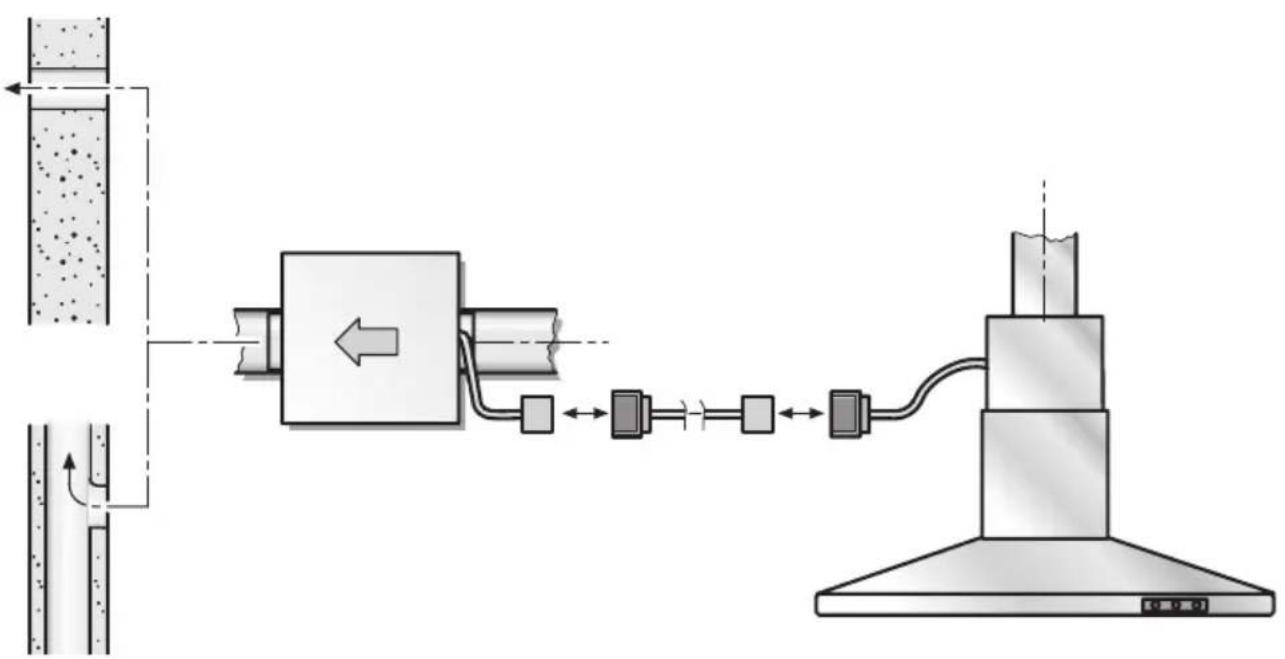

4. Connect the pipe from the fan to the extractor hood and feed to the outside.
5. Connect the fan to the extractor hood with the extension cable.

The additional cover on the plug must always be attached and closed for safety reasons.
