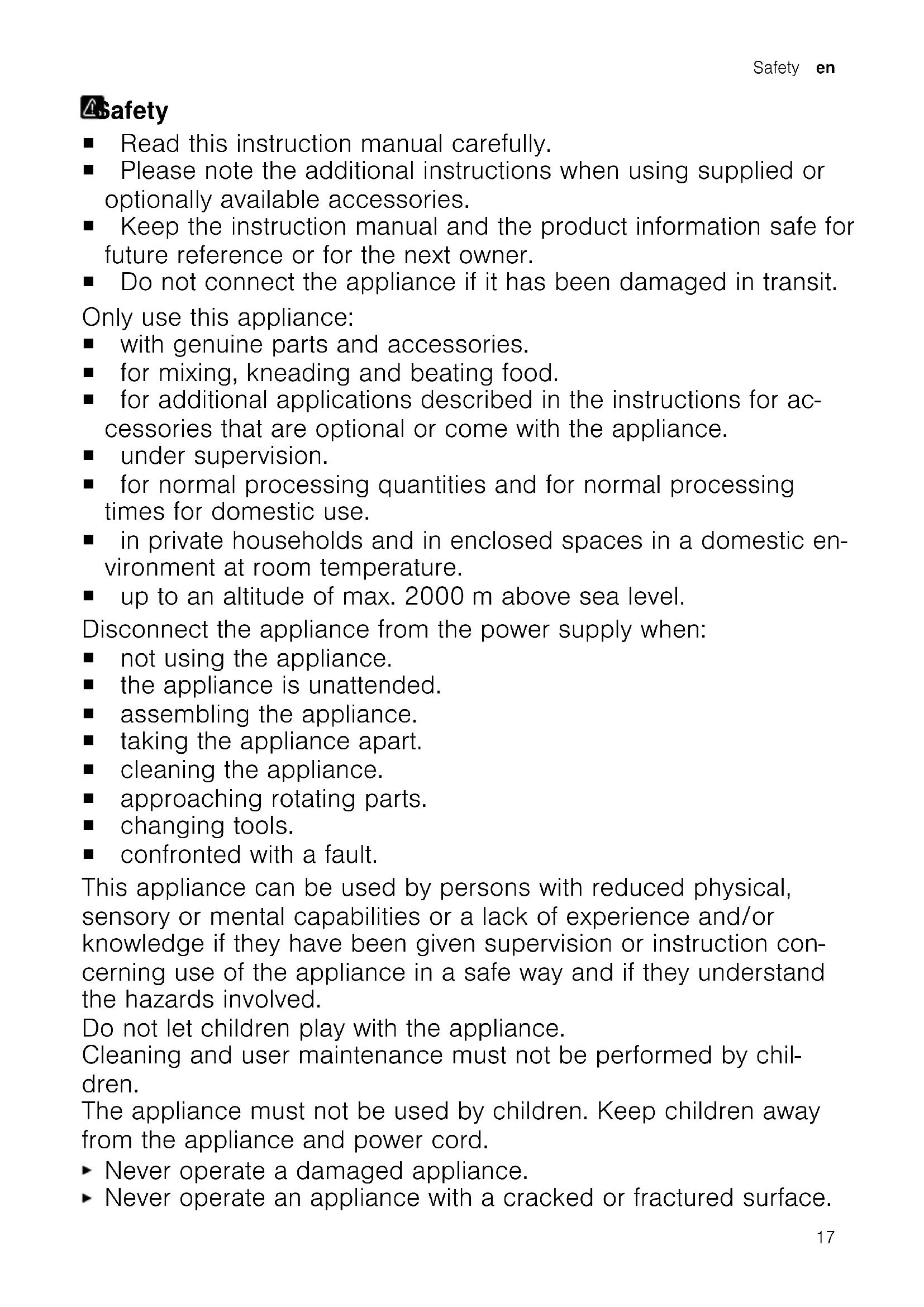

Page23 Connect and operate the appliance only in accordance with the specifications on the rating plate. Repairs to the appliance should only be carried out by trained specialist staff. Only use genuine spare parts when repairing the appliance. If the power cord of this appliance is damaged, it must be re- placed by the manufacturer, the manufacturer's Customer Ser- vice or a similarly qualified person in order to prevent any risk. Never immerse the appliance or the power cord in water or clean in the dishwasher. Only use the appliance in enclosed spaces. Never expose the appliance to intense heat or humidity. Do not use steam- or high-pressure cleaners to clean the appli- ance. Never let the power cord come into contact with hot appliance parts or heat sources. Never let the power cord come into contact with sharp points or edges. Never kink, crush or modify the power cord. Never place the appliance on or near hot surfaces. Keep hands, hair, clothing and utensils away from rotating parts. Only attach and remove tools and accessories once the drive has stopped and you have unplugged the appliance. Before changing tools or cleaning the appliance, switch off and disconnect it from the mains. Only use the tools when the bowl is inserted, the lid is fitted and the drive covers are in place. Never open the swivel arm during processing. Parts which show cracks or other damage or do not fit correctly must be replaced with genuine spare parts. Do not reach into the bowl when lowering the swivel arm. Keep packaging material away from children. Do not let children play with packaging material. Keep small parts away from children. Do not let children play with small parts. 18Avoiding material damage en Follow the cleaning instructions. Clean surfaces which come in contact with food before each use. Avoiding material damageAvoiding material damage Never use different drives at the same time. Never operate the appliance longer than necessary. Do not operate the appliance at no-load. Never use genuine parts and accessor- ies for other appliances. Do not exceed maximum processing quantities. Before use, check the bowl for foreign objects and remove. Familiarising yourself with your applianceFamiliarising yourself with your appliance Overview After unpacking all parts, check for any damage in transit and completeness of the delivery. Fig.

Stainless steel mixing bowl Lid with integrated filling shaft Release button for swivel arm Swivel arm Rotary switch Illuminated ring Protective cover for drive 2 Drive 2 Protective cover for drive 3 Drive 3 Recesses for bowl Main drive Cord storage Kneading hook Professional beating whisk

Storage pouch Symbols Symbol Description Marking on the protective cover for drive2 Attachment marking on the pro- tective cover for drive3 Position marking on drive3 Rotary switch Symbol Description Stop processing Low speed maximum speed Non-locking switch: highest speed as long as the rotary switch is held in this position Tip: You can change the speed at any time during processing or interrupt processing. Illuminated ring Status Description Lit The appliance is functioning per- fectly. Flashing A safety system has been ac- tivated. There is a fault with the appli- ance. Not lit The appliance has no power supply. There is a fault with the appli- ance. Tip: You can find further information here:

"Troubleshooting", Page22 Swivel arm, drives and recommended speeds If the release button is pressed, the swivel arm can be moved to the required position.

Depending on the model 19en Familiarising yourself with your appliance The swivel arm must be engaged inevery operating position. Observe the recommended speeds in the table. Fig.

Note: The swivel arm features the EasyArm Lift function. This function supports up- wards movement of the swivel arm. Tools The kneading hook is equipped with a re- movable protective cap to protect the drive from soiling. Tool Use Kneading hook Knead dough, e.g. yeast dough, bread dough, pizza dough, pasta dough, pastry dough. Fold ingredients into the dough, e.g. seeds. Stirring whisk

Mix dough, e.g. cake mixture, fruit flan. Fold ingredients into the dough, e.g. raisins, chocolate chips. Beating whisk

Beat whipped egg whites and cream (at least 30% fat). Mix light dough, e.g. sponge mixture. Professional flexible stirrer

Mix dough, e.g. cake mixture, fruit flan. Fold ingredients into the dough, e.g. raisins, chocolate chips. Professional beating whisk

Beat whipped egg whites and cream (at least 30% fat). Mix light dough, e.g. sponge mixture. Fine adjustment of the professional beating whisk Use the fine adjustment system to correct the distance between the bowl and the pro- fessional beating whisk. Note: The professional beating whisk is factory-set so that ingredients are mixed to- gether perfectly. Correcting tool adjustment Never operate a tool that touches the bowl. Requirements The mains plug is not inserted. The swivel arm is open. The professional beating whisk is inser- ted. The bowl has been inserted.

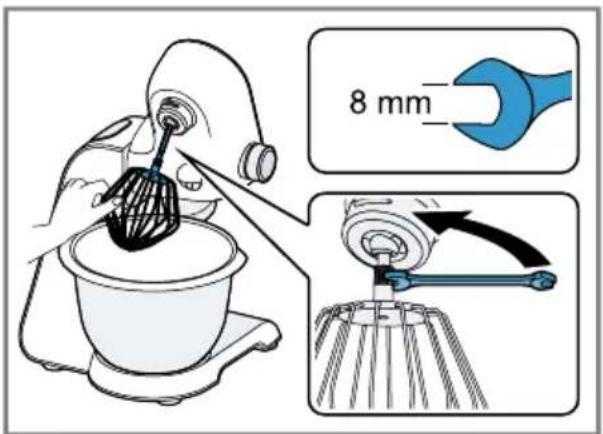

Hold the beating whisk at the bottom with one hand and release the lock nut clockwise using a spanner wrench. Fig.

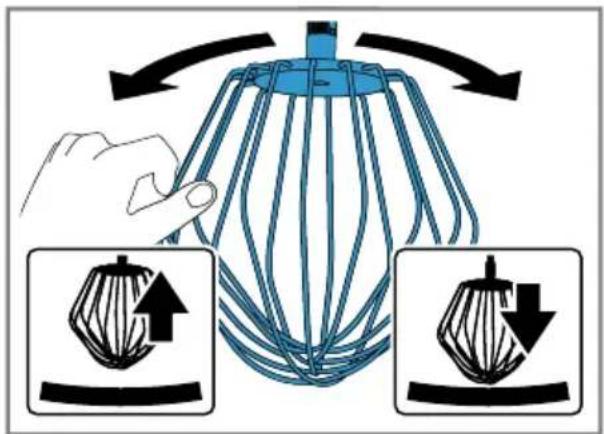

To change the setting, turn the tool in the desired direction. Fig.

Optimum setting Distance to the bowl approx.3mm Turn clockwise Lift tool Turn anticlockwise Lower tool

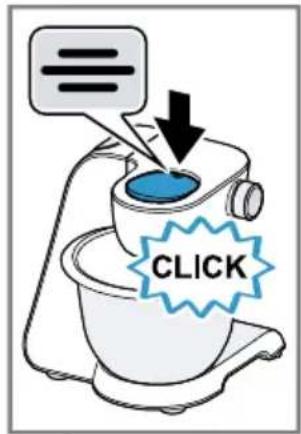

Press the release button and push the swivel arm down until it engages.

Press the release button and raise the swivel arm until it engages.

Hold the beating whisk at the bottom with one hand and tighten the lock nut anticlockwise using a spanner wrench. Parked position After the appliance has switched off, the drives will continue moving for a few seconds until the correct parked position is reached. Note: The swivel arm will only open or close with the inserted tool when the drive is located in the correct parked position. Tip: You can easily adjust an incorrect parking position yourself.

"Troubleshooting", Page22 Safety systems Start lock-out Start lock-out prevents your appliance from being switched on accidentally.

Depending on the model 20Operation en The appliance can only be switched on and operated if the swivel arm is correctly en- gaged in the work position. For some models: The appliance can only be switched on and operated if one of the following conditions is satisfied: The swivel arm is engaged in horizontal position and the bowl or ice cream maker is inserted. The swivel arm is engaged in vertical po- sition and the protective drive cover or an assembled accessory is secured cor- rectly. Printed on 100% recycled paper Restart lock-out Restart lock-out prevents your appliance from automatically restarting processing after a power failure. The appliance is switched on again after a power failure. Processing cannot start again until the rotary switch has been set to

Printed on 100% recycled paper Overload protection The overload protection system prevents the motor and other components from be- ing damaged through being overloaded. Printed on 100% recycled paper OperationOperation Setting up appliance

Place the appliance on a stable, level, clean and flat work surface.

Adjust the power cable to the required length. Models with cord storage compartment: – To shorten the cord, push it into the cord storage compartment. – To lengthen the cord again, pull it out of the cord storage compartment. Models with cable rewinder: – Pull the power cable out to the re- quired length and slowly let go. – To roll the cable up again, briefly pull on the cable and let it wind up. Note: Do not push the cable into the cable rewinder by hand. If the cable jams, pull right out and let it wind up again.

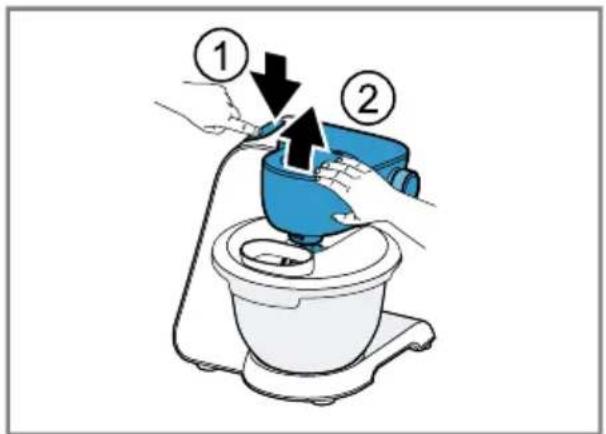

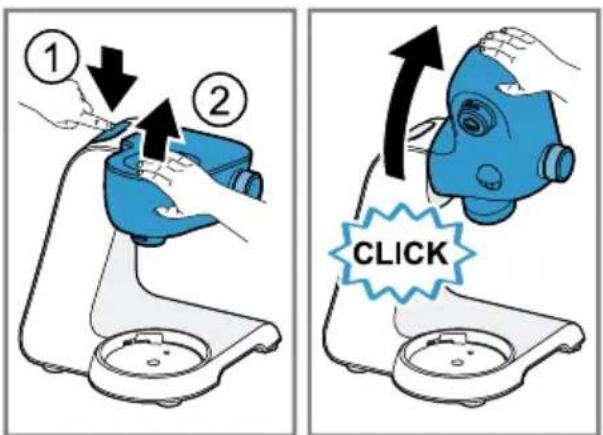

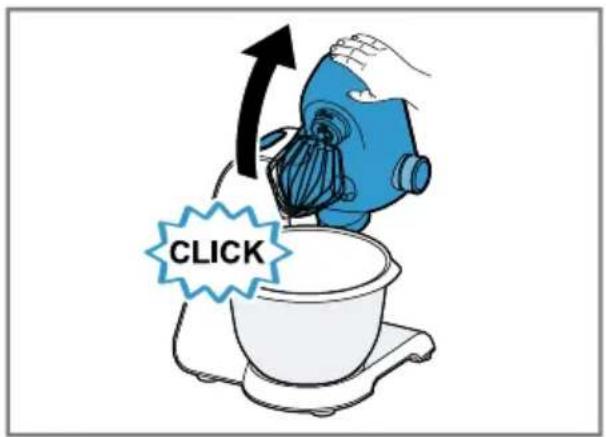

Press the release button and raise the swivel arm until it engages. Fig.

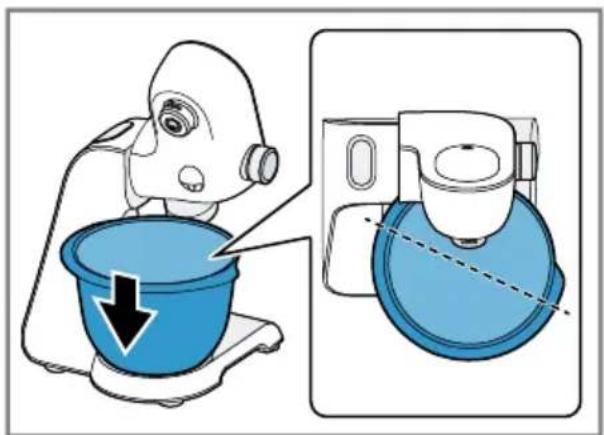

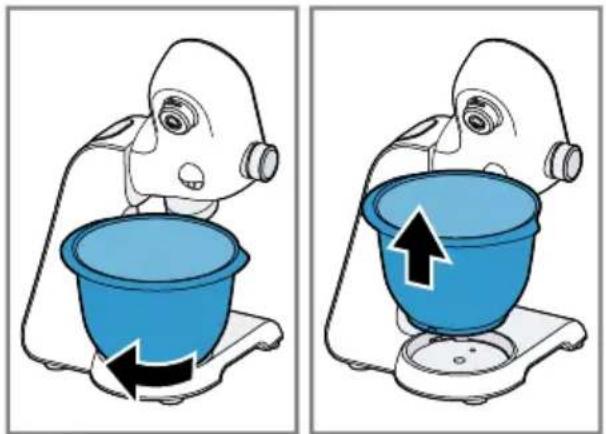

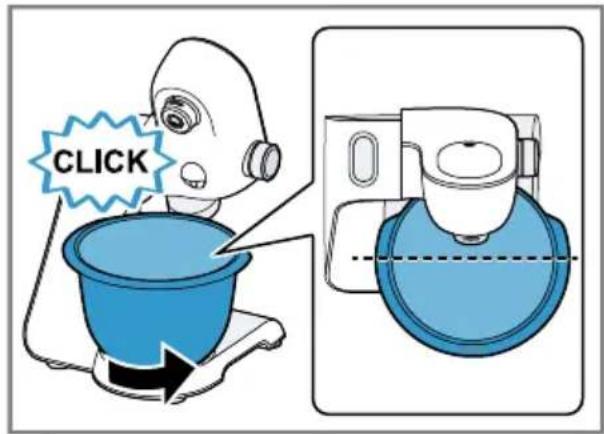

Place the bowl in the main unit. Fig.

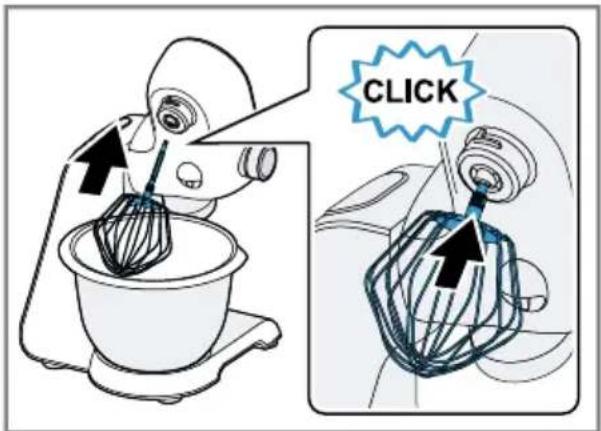

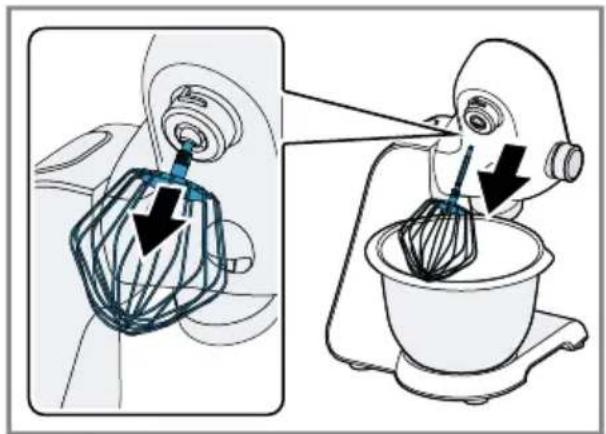

Press the tool into the main drive until it engages. Fig.

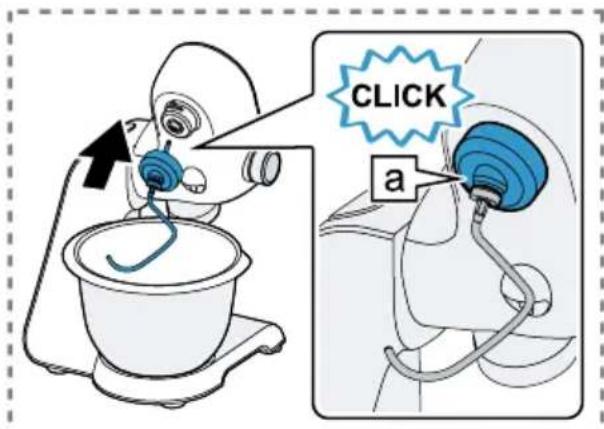

To insert the kneading hook: Insert the kneading hook with the pro- tective cap fitted in the main drive. Turn the protective cap until the kneading hook engages fully. Fig.

The protective cap must cover the main drive completely.

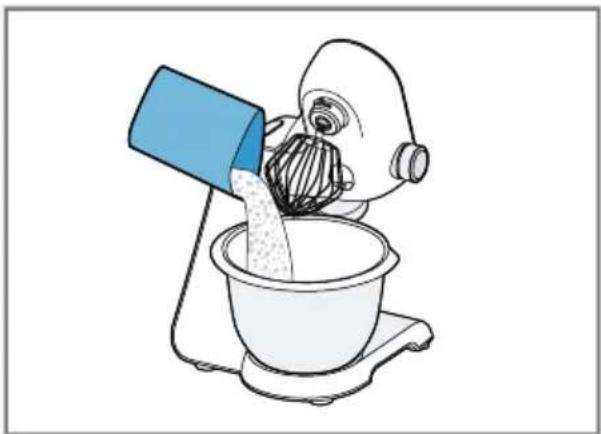

Add the ingredients to the bowl. Fig.

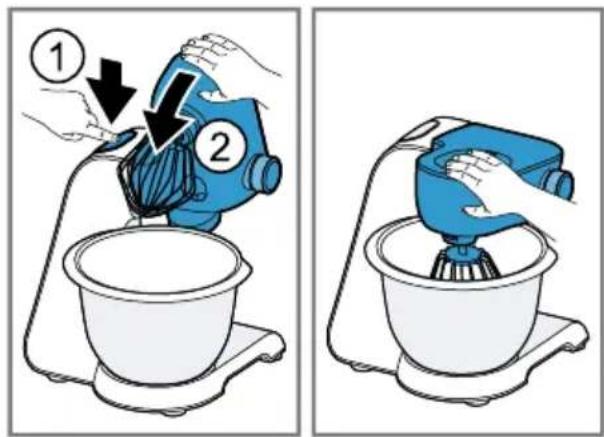

Press the release button and push the swivel arm down but not fully down. Fig.

Hold the swivel arm in a slightly open po- sition.

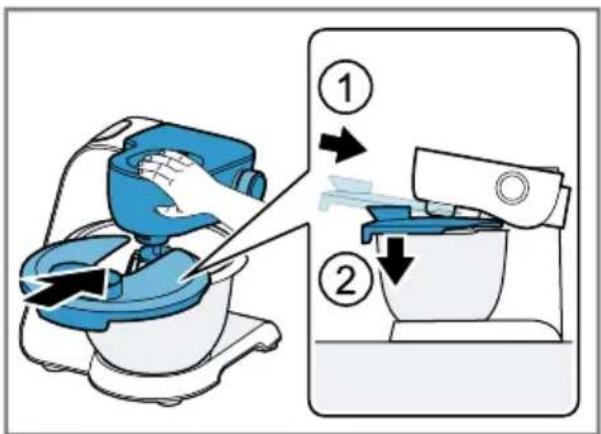

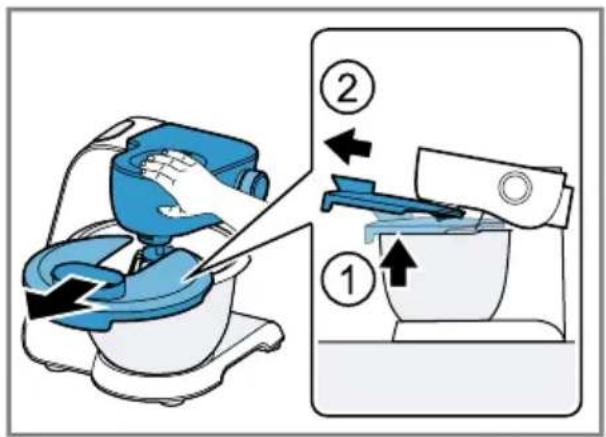

Lift the lid slightly at the front, slide fully onto the bowl and set down. Fig.

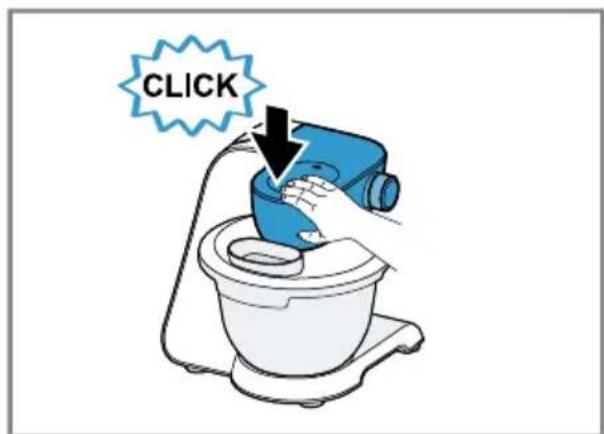

Push the swivel arm down until it en- gages. Fig.

Processing ingredients with tools

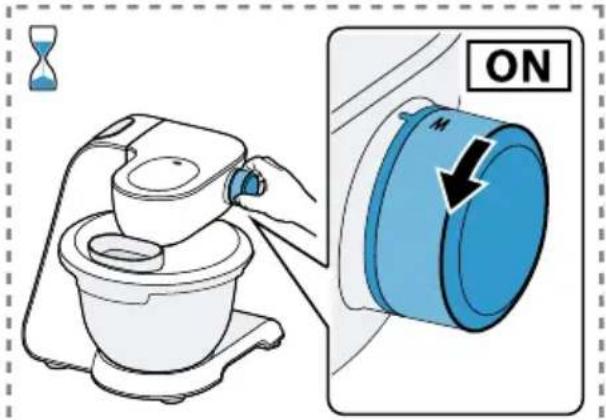

Set the rotary switch to the required speed. Fig.

To process the ingredients at maximum speed for a short time, set the rotary switch to and hold for the desired pro- cessing time. Fig.

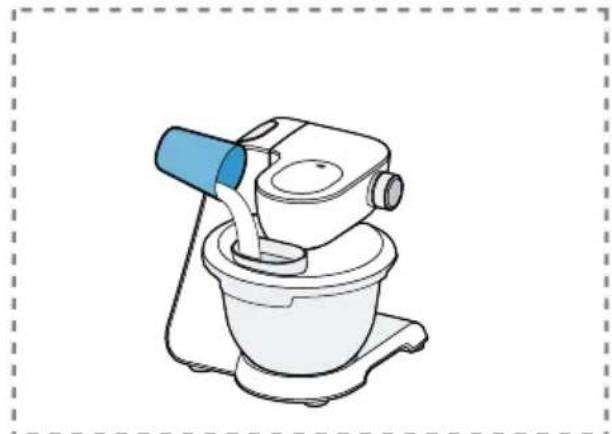

If wished, further ingredients can be ad- ded during processing using the filling shaft. Fig.

To add greater quantities of ingredients: Turn the rotary switch to and wait for the appliance to come to a standstill. Lift the swivel arm slightly and pull out the lid. Add the ingredients to the bowl. Printed on 100% recycled paper 21en Overview of cleaning Fit the lid and push the swivel arm down until it engages.

Process the ingredients until you achieve the required result.

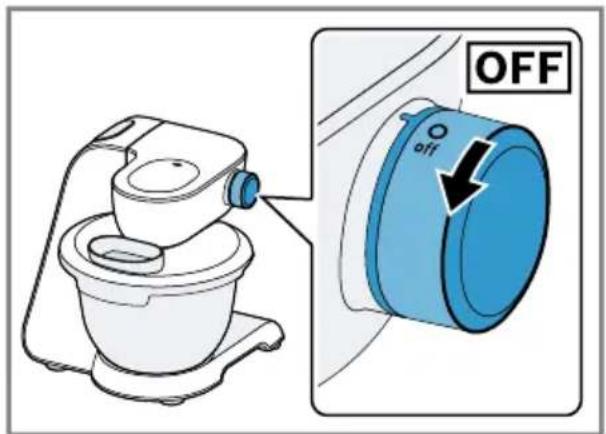

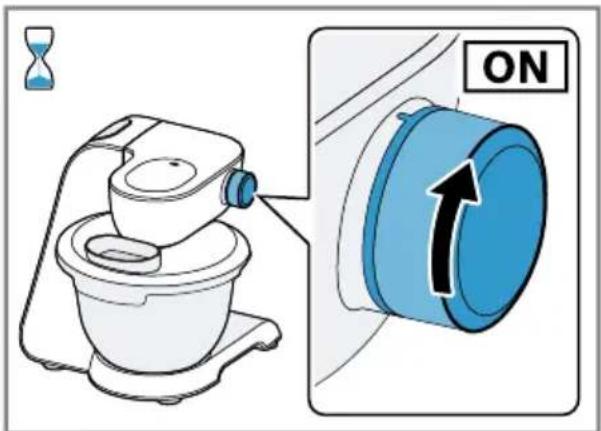

Set the rotary switch to . Fig.

Wait until the appliance stops. Processing stops and the drives move to the parked position. Finishing processing

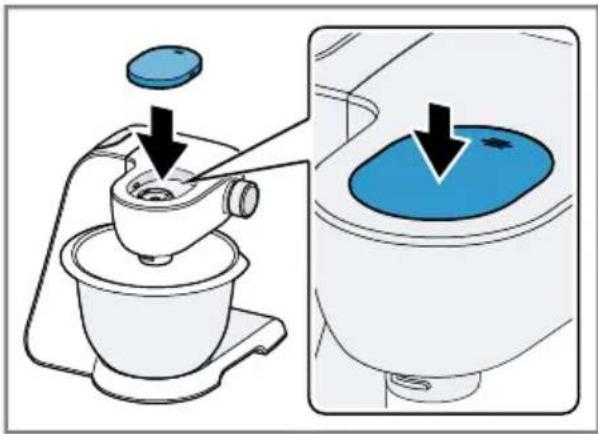

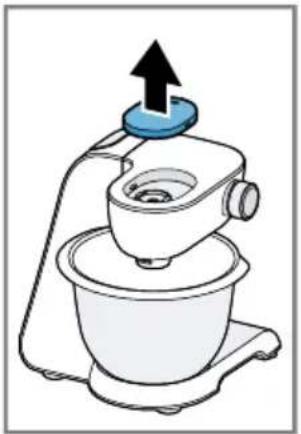

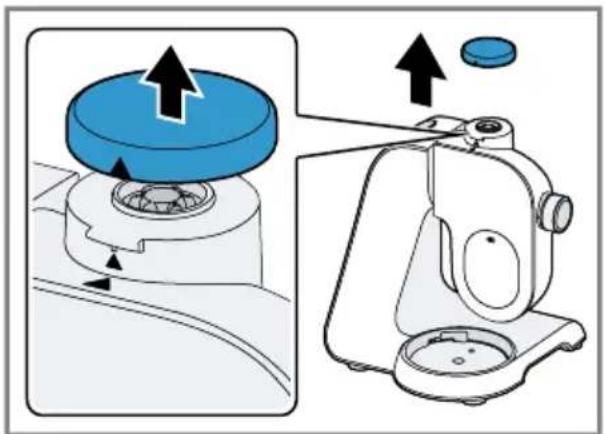

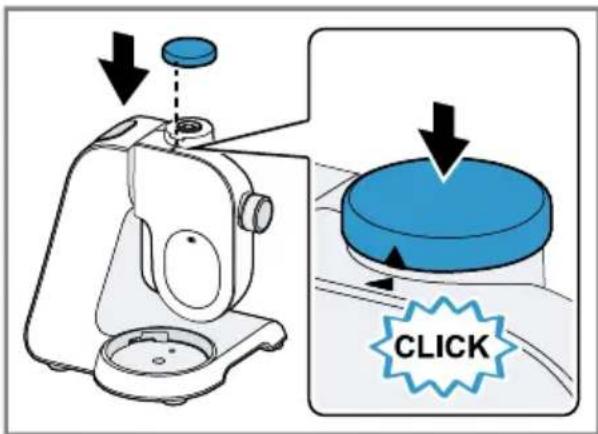

Using accessory drives Notes Remove the cover to use accessories on drive 2 or 3. Always close unused drives with the pro- tective covers. Please follow the instructions for the ac- cessory.

Overview of cleaningOverview of cleaning Clean all parts immediately after use so that residues do not dry on. Do not use cleaning agents containing alcohol or spirits. Do not use sharp, pointed or metal ob- jects. Do not use abrasive cloths or cleaning agents. Tip: When processing food such as carrots, plastic parts may become discoloured. Re- move discolouration with a soft cloth and a few drops of cooking oil. Clean the individual parts as indicated in the table. Fig.

Special accessoriesSpecial accessories You can buy accessories from the after- sales service, from specialist retailers or on- line. Only use genuine accessories as these have been specifically designed for your appliance. Accessories vary from one appliance to an- other. When purchasing accessories, al- ways quote the exact product number (E no.) of your appliance. You can find out which accessories are available for your appliance in our cata- logue, in the online shop or from our after- sales service. www.bosch-home.com Application examplesApplication examples Note: To ensure that the ingredients of yeast dough or sourdough with a high wa- ter content mix best, pour the liquid into the bowl first. Observe the information and values in the table. Fig.

Sample recipe Recipe Ingredients Processing Heavy fruit cake 3eggs 135g sugar 135g margarine 255g flour 10g baking powder 150g currants 150g mixed dried fruit Note: Process max. 2 times the quantity at the same time. Insert stirring whisk. Add all ingredients except the dried fruit. Process for 30seconds at setting1. Then process for 3-5minutes at setting5. Select setting2. Add the dried fruit within the next 30-60seconds. TroubleshootingTroubleshooting Fault Cause and troubleshooting The appliance is not working. Appliance has no power supply. Check whether your appliance is supplied with power. 22Disposing of old appliance en Fault Cause and troubleshooting Appliance does not start processing. Rotary switch is set incorrectly. Set the rotary switch to before processing. Appliance does not start processing or switches off during processing. Processing quantity is too big or processing time was too long. Set the rotary switch to . Reduce the quantity of ingredients. Allow the appliance to cool down to deactivate the overload protection device. Appliance or accessory is blocked. Set the rotary switch to . Remove the blockage. A safety system has been activated. Eliminate the problem that caused the appliance to stop.

"Safety systems", Page20 The swivel arm cannot be opened or closed be- cause the tool is jammed in the bowl. Drive is not in the parked position.

Set the rotary switch to .

If the swivel arm doesn't close, remove the tool.

Close the swivel arm until it is correctly engaged in the work position.

Set the rotary switch briefly to and then back to . The drive remains on for a short time until the parked posi- tion is reached. The professional beating whisk is touching the bowl or the ingredients are not mixed properly. The distance to the bowl is not set correctly. Correct the fine adjustment of the professional beating whisk.
