USER MANUAL KG 400 Superior ECG

1. Handle with built-in stand
2. Upper plate release lock
3. Removable upper grilling plate with non-stick surface.
4. Grease drain (upper)
5. Grease drain (bottom)
6. Removable bottom grilling plate with non-stick surface.
7. Bottom plate release lock
8. Thermostat controller of the bottom plate
9. Thermostat controller of the upper plate
10. Adjustable rubber legs
11. DOWN: Bottom plate indicator
12. UP: Upper plate indicator
13. POWER: Power light indicator
14. Grease draining tray
15. Power cord with plug (not pictured)
16. Lock and stops for the grill height positioning
17. Opened grill lock
18. Rider to set height or lock the grill.
19. Spatula

HR/BIH

1. Ruchka's integriranim postoliem
2. Osigurač gornje poće
3. Odvojiva gornja grill ploca s naprijanjaucom povrsinom
4. Odvod za masnoce (gornii)
5. Odvod za masnoce (donji)
6. Odvojiva donja grill ploca s neprijanjaucom povrsinom
7. Osigurač donje ploce
8. Regulator termostata donje ploce
9. Regulator termostata gornje ploce
10. Podesive gumene noge
11. DOWN: Pokazivačdonje pleće
12. UP: Pokazivač gornje ploce
13. POWER: Pokazivač napajanja
14. Posuda za skupljanje ocijedene tekuciine
15. Kabel za napajanje sutikačem (nijeprikazano)
16. Zupci za podesavanje visine grilla i blokada polożaja
17. Osigurač otvaranja grilla
18. Klizni osigurac za podesavanje visine ili zakljucavanje grilla
19. Lopatica

SI

Do not immerse in water! – Neponořovat do vody!

POKNY K POUZIVÁNÍ

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Always use a grounded outlet 220 - 240V 50Hz for power supply.
3. If the power cord or its plug are damaged, do not use the appliance. Entrust all repairs, including the power cord replacement, to professional service! Do not remove protective covers of the appliance, risk of electric shock!
4. Protect the appliance from direct contact with water or other liquids to prevent possible electric shock. Never use this appliance close to a bathtub, shower, sink or other containers with water. Neither the appliance nor its parts should be cleaned in dishwasher!
5. DO NOT USE the appliance close to water or flammable liquids.
6. DO NOT USE the appliance on hot surfaces or in their vicinity (range, stove, etc.)
7. Do not use the appliance outdoors or in a damp environment and do not touch the power cord or the appliance with wet hands. Risk of electric shock.
8. Make sure that the appliance is placed on a stable, safe, heat resistant surface to prevent its overturning or penetration of water inside.

GB

1. Do not use the appliance close to flammable materials or underneath them, e.g. close to curtains. Ensure an adequate air circulation, leave about 10 - 15cm of free space around the appliance.
2. We do not recommend using extension cords. They could overheat and cause fire. If it would be necessary to use an extension cord, it should have the same current carrying capacity or higher than the power cord of the appliance. Place the extension cable so as to prevent tripping over it and to prevent an accidental unplugging of the cable.
3. To avoid overload and blown fuses, make sure that the same outlet or outlets on the same circuit are not connected to other appliances with high wattage.
4. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges.
5. Do not touch the hot surfaces of the appliance. Never move the appliance while it is plugged into the outlet. Allow the appliance to cool down thoroughly before handling it.
6. Disconnect the cord from the electrical outlet prior to any maintenance. When disconnecting the power cable, pull the plug, not the cable.
7. The appliance is intended for domestic, non-commercial use only. Do not use outdoors or for other purposes.
8. Use the appliance according to instructions provided in this manual. Do not use accessories, which were not recommended by the appliance manufacturer. The manufacturer is not liable for damages caused by improper use.
9. The appliance may be used only with the properly installed plates.
10. Do not line the drip tray with aluminium foil or other materials.
11. The appliance is not intended to be used with an external timer or independent remote control system.
12. A close supervision is necessary when the hot plate is used by children. Never leave a switched on appliance unattended.
13. This appliance can be used by children aged 8 years and older and people with lower physical or mental abilities or lack of experience and knowledge, if they are supervised or have been instructed to use the product in a safe manner and understand the potential dangers. Children must not play with the appliance. Cleaning and maintenance performed by the user should not be done by children unless they are older than 8

years and under supervision. Children under 8 years old must keep away from the appliance and its power supply.

Do not immerse in water!

OPERATING INSTRUCTIONS

Before first use

• Clean the appliance using dry cotton cloth prior to first use. Wash the plates and the drip tray thoroughly. We do not recommend washing in the dishwasher! The salts are very aggressive and can cause damage in the long term. Do not use abrasive powders or abrasive cleaners.
• Carefully dry the plates before reinstalling them into the appliance. Make sure that the plates are properly secured in the appliance.
• Do not forget to return the drip tray in its place.
• Unwind the power cable fully.

Note: When using the first time, the appliance may emit certain odor. This is normal and it disappears gradually during use. For this reason we recommend that you "burn" the grill for at least 30 minutes without foods before first use.

Food preparation

Warning:

• Do not use the appliance for defrosting or cooking of frozen foods. All foods must be completely defrosted before processing by this appliance.
• The plates and the metal surfaces of the appliance become very hot during operation. Use oven mitts to prevent burns and touch only the handle or other designated parts.
• Do not use metal utensils, which could scratch and damage the non-stick surface of the plates.

Notes:

You can use the grill in 3 positions. 1) Baking 2) Grilling 3) BBQ.
- It takes about 2 to 3 minutes to reach working temperature, for times of cooking see the table at the beginning of the manual.
- These guidelines are only for orientation, the time of cooking depends on the type and thickness of the foods.
- The foods should be thoroughly cooked before eating. If you are not sure, better lengthen the cooking time somewhat.

The position for baking and grilling

• Baking: You can decide if the upper plate will bake the food directly (contact grill) or if you leave a space between the food and the upper plate and will just heat the food from the top - position (1).
  Grilling: You can heat just the bottom plate and leave the upper plate fixed in 90^ position - position (2).

• Make sure that the drip tray is properly inserted in the appliance.

• Make sure that the grilling plates are properly set and secured.
• Place the grill on a level and dry surface and plug the power cable in the electrical outlet. The grill switches

on and the POWER indicator lights up.

1. Set the required temperature of the plates using the thermostat control and let the grill heat up. The heating of the plates is indicated by green light of the appropriate indicator. Once the plate is heated to the set temperature, the indicator goes off.

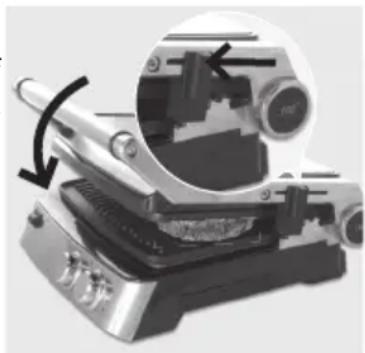

5. Opening the grill:

• Check if the grill is heated up to the required temperature (indicators DOWN and UPare off).
• Use the handle to open the lid with the upper plate (rider to adjust the height of the grill on the right side of the upper plate must be in the "OPEN" position).

• Lightly apply butter, shortening or oil on the plates.

• Place food on the bottom grilling plate.

• Using the handle, close the upper plate.

• There is a rider on the right side of the upper plate ⑧ , to help fix the upper plate in five different heights from the bottom plate. If you want to set the required height, raise the upper plate using the handle and move the rider in the position of the required height in the same time. Then lower the upper plate slowly until it reaches the stop ⑥

• When the food is cooked, remove it from the plates using wooden or heat-resistant plastic utensils.

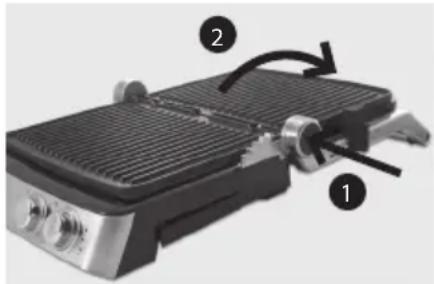

Using open grill

This position provides a bigger grilling surface and allows separate cooking of foods, e.g. when grilling meat and vegetables in the same time.

1. Make sure that the drip tray is properly inserted in the appliance.
2. Make sure that the grilling plates are properly set and secured.

3. Fully opened grill in 180^ position:

4. Hold the handle and in the same time press the lock for opening of the grill ⑰

5. Raise the upper plate using the handle and lay it carefully in the horizontal position. You can use the handle then as a support for the opened upper plate.

1. Insert the plug of the power cable in the electrical outlet.
2. Set the required temperature of the individual plates using the thermostat controls. Once the plates reach the required temperature, the green heating indicator goes off.
3. Lightly apply butter, shortening or oil on the plates.
4. Place the food on the grilling plates.
5. When the food is cooked, remove it from the plates using wooden or heat-resistant plastic utensils.

CLEANING AND MAINTENANCE

• Disconnect the appliance before cleaning from the power supply and wait until the appliance and the plates cool down entirely.
  Clean the external surfaces with only moistened cloth to prevent water, oil or grease from getting into the appliance.
• Remove and empty the drip tray after each use. Then wash it with hot water and detergent solution, rinse thoroughly and before inserting it back into the machine dry it carefully.
• When cleaning the plates you can leave them in the appliance and wipe them with damp cloth or tea towel. Or you can remove them (release the locks ② and ⑦ ) and wash them under running water. Then dry them thoroughly.
  In case that on the plates sticks baked food residue, you can put on the cooled plates a damp paper towel or wrung out cloth and let the baked food residue soak off by itself.
• Do not clean the inside and outer surfaces using abrasive powders, abrasive cleaners or aggressive chemicals. You would damage the exterior finish of the appliance.
• Do not immerse the appliance in water or other liquids!
• Appliance storage: Make sure that the grill including the grill plates is perfectly clean and dry, the drip tray is clean and dry, properly inserted in the appliance and locked and that the grilling plates are secured by moving the rider. ⑱ in the „LOCK“ position. Store the appliance in a dry and clean place.

TECHNICAL DATA

Adjustable temperature range 180-230°C

Plates sizes: 23 × 29cm

Nominal voltage: 230V 50Hz

Nominal input power: 2000 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard - deliver to scrapyard. Packing foil, PE bags, plastic elements - throw into plastic recycling containers.

WARRANTY: The following situations void the warranty:

Incorrect or inappropriate handling of the device, failure to observe safety measures applicable to the device, the use of force, alterations or repairs made by a party other than an authorized service centre.

Components subject to normal wear and tear are not covered under the warranty.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu. Changes in text and technical parameters reserved.
