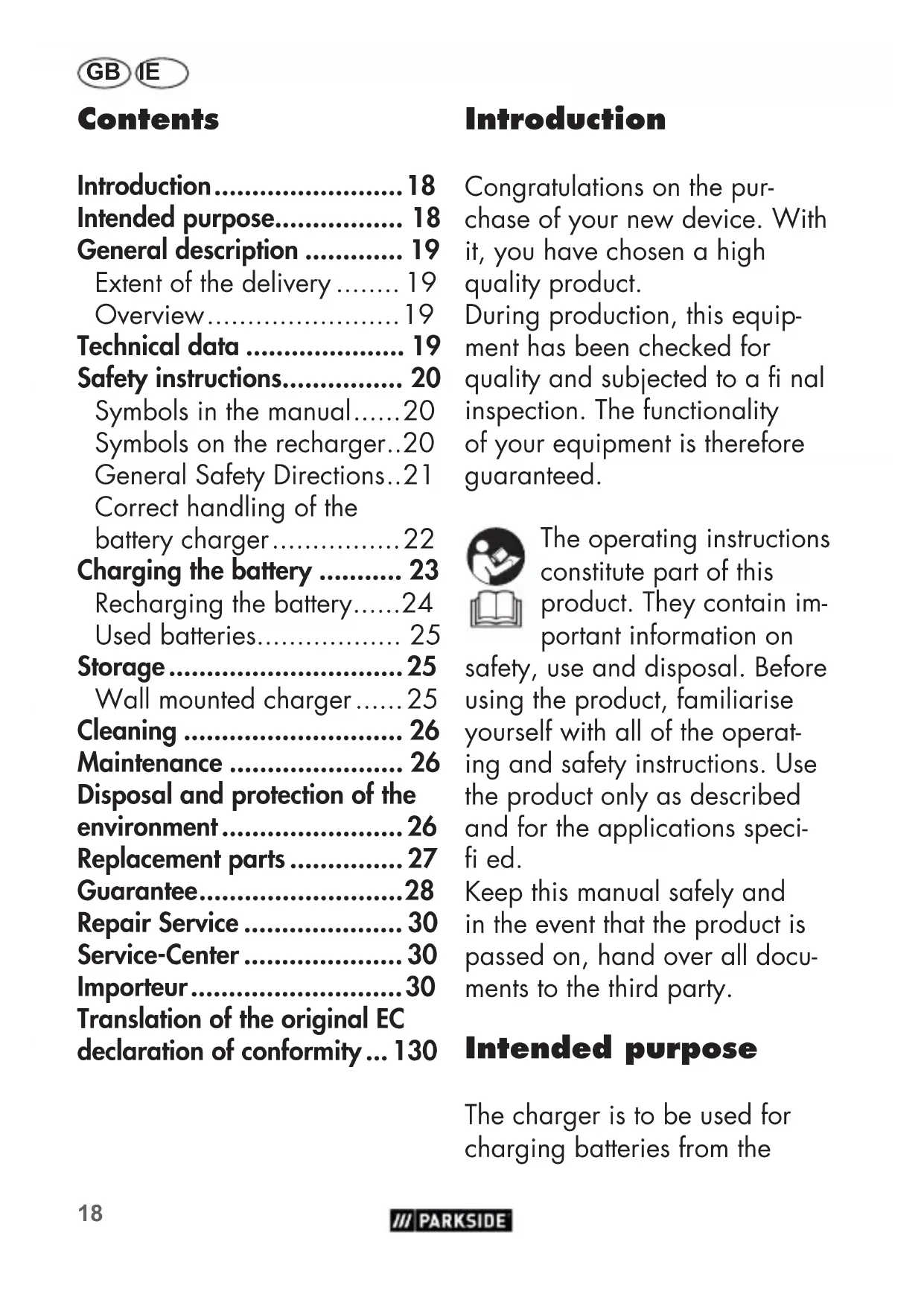

GB/IE Translation of the original instructions Page

Intended purpose. 18

General description 19

Extent of the delivery 19

Overview 19

Technical data 19

Safety instructions. 20

Symbols in the manual.....20

Symbols on the recharger..20

General Safety Directions..21

Correct handling of the battery charger 22

Charging the battery 23

Recharging the battery.....24

Used batteries. 25

Storage 25

Wall mounted charger.....25

Cleaning 26

Maintenance 26

Disposal and protection of the environment 26

Replacement parts 27

Guarantee. 28

Repair Service 30

Service-Center 30

Importeur 30

Translation of the original EC declaration of conformity... 130

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on

safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The charger is to be used for charging batteries from the

Parkside X 12 V Team series only. Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

The manufacturer is not liable for damages caused by an improper use or incorrect operation of this device.

General description

The illustrations are on the front fold-out page.

Extent of the delivery

• Charger
• Instruction Manual

The battery is not included in delivery.

Dispose of the packaging material correctly.

Overview

1 Rechargeable battery

Battery release button
Charger
Red LED
Green LED

Technical data

Charger ...... PLGK 12 A2

Rated input. 50 W
Input voltage ....... 220-240 V~, 50-60 Hz

Output

Output voltage.....12 V
Voltage current 2,4 A

Device fuse. T2A

Protection class .

Temperature....... max 50^

Charging process...4 - 40 °C

Storage. .0 - 45 °C

Attention! This charger can only recharge the following batteries: PAPK 12 A1, PAPK 12 A2, PAPK 12 B1, PAPK 12 B2.

An up-to-date list of battery compatibility can be found at: www.lidl.de/akku

Safety instructions

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Hazard symbol with information on the prevention of personal injury caused by electric shock.

Help symbols with information on improving tool handling.

Symbols on the recharger

This charger is part of the Park

side X 12 V TEAM series

Warning!

Read the operating instructions carefully.

The charger is only suitable for use indoors.

Device fuse

Protection class II (Double insulation)

Electrical devices must not be disposed of with domestic waste.

LED display while charging.

General Safety Directions

Caution! When using power tools, observe the following basic safety measures for the prevention of electric shocks and the risk of injury and fire. Please read all these instructions before using this electric tool and please keep the safety instructions.

Careful handling and use of battery devices

• Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.
• In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.
• Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which

could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.

• If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.
• Do not use damaged or altered batteries. Damaged or altered batteries can be unpredictable and lead to fire, explosion or risk of injury.
• Do not expose batteries to fire or elevated temperatures. Fire or temperatures over 130^ C can cause an explosion.
• Follow all instructions for charging and never charge the battery or the battery-powered tool outside the temperature range stated in the operating instructions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and increase the risk of fire.

Service

• Never repair damaged batteries. All battery repairs should be carried out by the manufacturer or authorised customer service centres only.

Special safety directions for battery-operated tools

• Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.

• Recharge the batteries indoors only because the battery charger is designed for indoor use only.

To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.

• Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.

• Allow a hot battery to cool before charging.

• Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.

• Do not use non-rechargeable batteries!

Correct handling of the battery charger

• Keep the equipment away from children and pets. Children must be supervised to ensure that they do not play with the device.
• Before each use, check the charger, cable and plug and have them repaired by qualifi ed professionals and only with original parts.

Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.

• Connect the charger only to a socket with an

earth. Ensure that the mains voltage matches the specific cations on the charger rating plate. Risk of electric shock.

• Disconnect the charger from the mains before closing or opening connection to the battery / power tool / device.

• Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.

• Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.

• Avoid mechanical damage to the charger. This can result in internal short circuits.

• Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating during charging.

• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.

• Do not use the charger to charge non-rechargeable batteries. The device could become damaged.
• Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or fire.

Charging the battery

Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic solution! After eye/ skin contact, rinse the affected areas with water or a neutraliser and consult a doctor.

Charge the battery in a dry room only.

GB E

Prior to attaching the charger, check that the battery's outer surface is clean and dry. There is a risk of injury due to electric shock.

Switch off the device and remove the battery before carrying out any maintenance work.

• Charge the battery before using it for the first time. Do not briefly recharge the battery several times in a row.

• Only use chargers from the Parkside X 12 V Team series to recharge the battery.

• If the operating time is considerably shortened despite charging, this shows that the rechargeable battery is depleted and must be replaced. Only use an original replacement battery from the Parkside X 12 V Team series, which can be purchased from customer service.

• Always comply with the latest safety information, as well as the regulations and information relating to environmental protection.

• Defects resulting from improper handling are not covered by the guarantee.

Recharging the battery

Allow a hot battery to cool before charging.

Charge the battery (1) when only the red LED on the battery charge status indicator of the cordless tool is illuminated.

Charging time (h.)	PLGK 12 A2
PAPK 12 A1	1
PAPK 12 A2
PAPK 12 B1	2
PAPK 12 B2

1. Remove the battery (1) from the appliance if necessary.

2. Plug the battery charger (3) into a mains outlet.

3. Insert the battery (1) in the charging compartment of the battery charger (3).

4. Pull the battery (1) out of the battery charger (3).

5. Unplug the battery charger (3) from the mains.

Overview of the LED indicators on the charger (3):

Green LED (5) lights up without battery inserted:

Charger ready.

Green LED (5) lights up:

Battery such alleged charged.

Red LED (4) lights up:

Battery charging.

Used batteries

• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM battery pack replacement available from our Customer Service.

• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information (see "Cleaning and Maintenance").

Storage

• Only store the batteries in the partially-charged state. During prolonged storage, 2 to 3 LEDs should be illuminated. The battery charge status indicator of the cordless tool signalises the state of charge of the battery (1).
• Remove the battery before storing the unit for longer periods of time.
• During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3 months.
• The storage temperature for the battery is between 0^ and 45^ . Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected.

Wall mounted charger (optional)

You can also mount the charger (3) on the wall.

Using dowels, place two screws 54mm apart at the desired position of a wall.

GB E

• The screw head can have a diameter of 7 - 9mm
• Leave the screw heads protruding at a distance of approx. 10mm from the wall.
• With the openings of the wall bracket, you can attach the charger (3) to the two screws and pull the charger down until it stops.

When drilling, be careful not to damage any supply lines. Use suitable search devices to find these or consult an installation plan for guidance. Contact with electrical cables can lead to electric shock and fire. Contact with a gas pipe can result in an explosion. Damage to a water pipe can lead to property damage and electric shock.

Cleaning

Clean the charger with a dry cloth or with a paintbrush. Do not use water or metal objects.

Maintenance

• The appliance cleaner is maintenance free.

Disposal and protection of the environment

Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling.

Machines do not belong with domestic waste.

Do not dispose of batteries in household waste, fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

Defective or used batteries must be recycled in accordance with Directive 2006/66/EC.
- Hand the charger to a recycling point. The plastic and metal parts used on your

device can be properly sorted according to materials and grades and efficiently recycled. Please contact our service centre for more information.

• Dispose of batteries in discharged condition. We recommend covering the pole with adhesive tape to prevent a short circuit. Do not open up the battery.

• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.

Defective units returned to us will be disposed of for free.

Replacement parts

Spare parts and accessories can be obtained at www.grizzlytools-service.eu

If you have issues ordering, please use the contact form.

If you have any other questions, contact the "Service-Center" (see page 30).

Charger

Charger

PLGK 12 A2, EU....80001335

PLGK 12 A2, UK....80001336

Guarantee

Dear Customer,
This device comes with a three-year warranty from the date of purchase.
In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years from the date of purchasing this product, the product will be repaired or replaced by us for free - according to our choice. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a

new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This warranty does not extend to product parts exposed to normal wear and tear, which are therefore considered consumable parts or damage to fragile parts.

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the in strucions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficienl handling of your query, please follow the directions below:

• Please have the receipt and item number (IAN 359690_2101) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
  Should functional errors or

other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specific cation of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IAN 359690_2101

IF Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 359690_2101

Importeur

Service Réparations. 48

Service-Center. 48

Importateur 48

conformité CE originale....... 131

Introduction

PLGK 12 A2, UK....80001336
