USER MANUAL SmartHome OpenClose Sensor WS101 ASUS

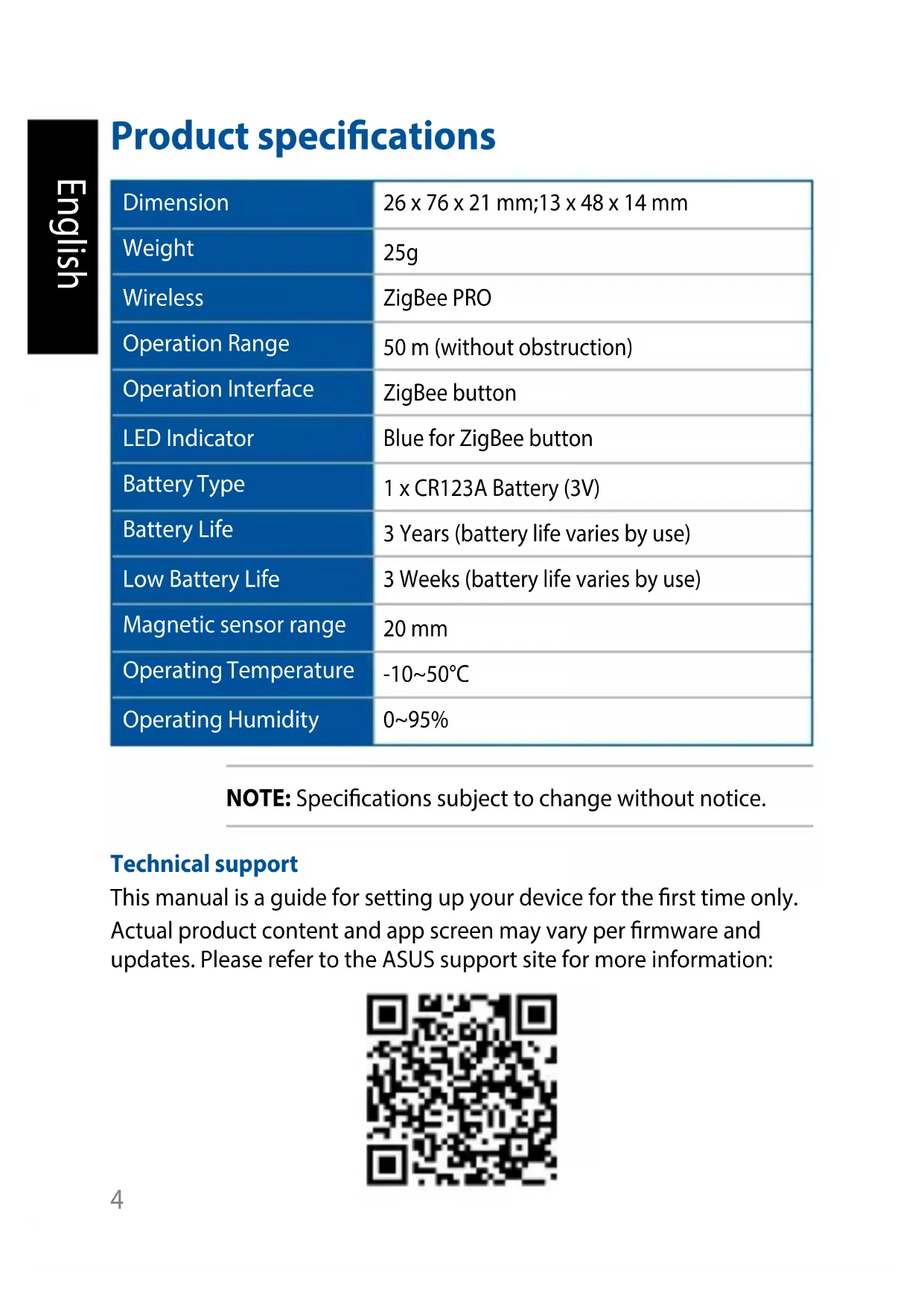

Product specifications

Dimension	26 x 76 x 21 mm;13 x 48 x 14 mm
Weight	25g
Wireless	ZigBee PRO
Operation Range	50 m (without obstruction)
Operation Interface	ZigBee button
LED Indicator	Blue for ZigBee button
Battery Type	1 x CR123A Battery (3V)
Battery Life	3 Years (battery life varies by use)
Low Battery Life	3 Weeks (battery life varies by use)
Magnetic sensor range	20 mm
Operating Temperature	-10~50°C
Operating Humidity	0~95%

NOTE: Specifications subject to change without notice.

Technical support

This manual is a guide for setting up your device for the first time only. Actual product content and app screen may vary per firmware and updates. Please refer to the ASUS support site for more information:

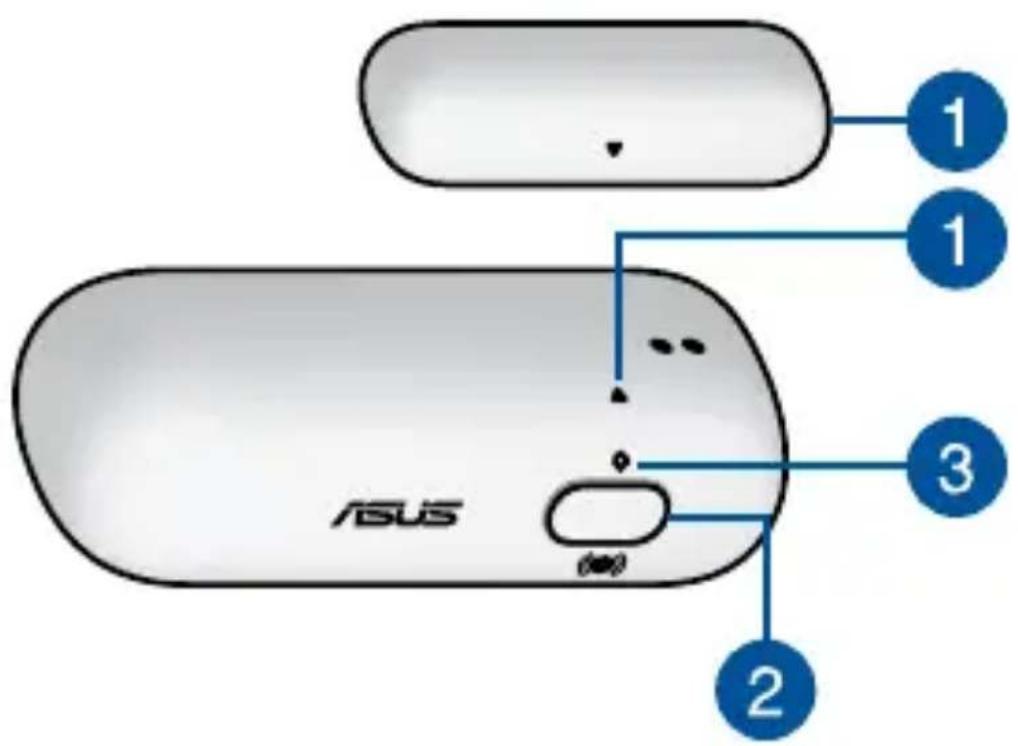

Product overview

Magnetic sensor

Align the arrows on the magnetic sensors for best performance. When the sensors are greater than 20mm apart, the companion app will display the status as open.

ZigBee button

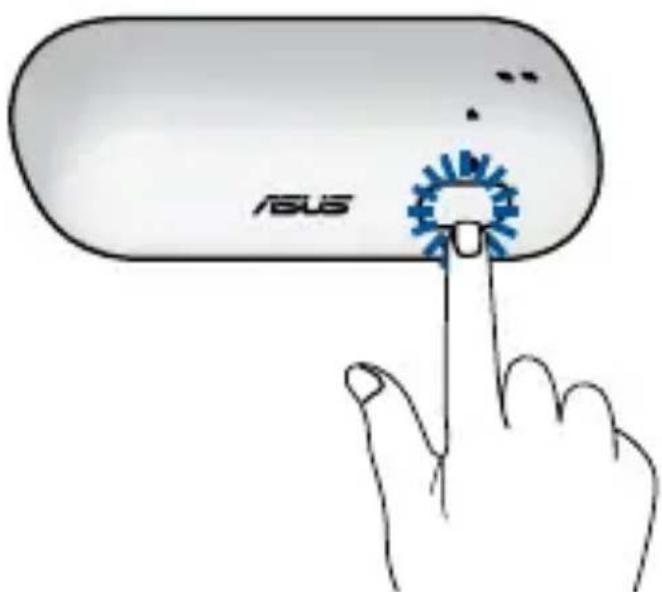

Press to connect with home gateway. Press and hold for 5 seconds to reset the device.

NOTE: Ensure to reset your ASUS Smart Home device and delete the device from the companion app to remove it completely.

ZigBee LED indicator

Refer to the following table for details on the LED status indicator:

Color Status Description
Solid Blue	Device powering on Lights up for 1 second
	Disconnecting with home gateway	Press and hold the ZigBee button for 5 seconds
	Identifying device Lights up for 5 seconds
Blinking Blue	Connecting with home gateway	Press the ZigBee button to connect with home gateway

System requirements

• iOS or Android smartphone.
  Wi-Fi router with Internet access.
• Asus SmartHome gateway and SmartHome user account.

Safety tips

• This device is not water resistant and for indoor use only.
• Insert the battery according to the correct polarity.
• DO NOT attempt to repair the product yourself.
• Minimize the exposure to moisture including wet hands and direct contact with liquids.
• Use soft, dry cloth to clean and avoid cleaning with water, alcohol or other chemicals.

Installing ASUS SmartHome app

• This device can be set up and operated though the companion app. Search for ASUS SmartHome and download the companion app through the Apple App Store or Google Play.
• Ensure you have Internet connection before downloading.
• Ensure your smartphone is connected to your router before setting up.

Refer to a qualified
vendor or the ASUS
website for the minimum
system requirements.

Getting started

Connecting to your HG 100

1. Launch the ASUS SmartHome APP.
2. Tap + on the main page of Home Control to add devices for the home gateway.
3. Tap Add Device to join your ASUS SmartHome device to the SmartHome Gateway.

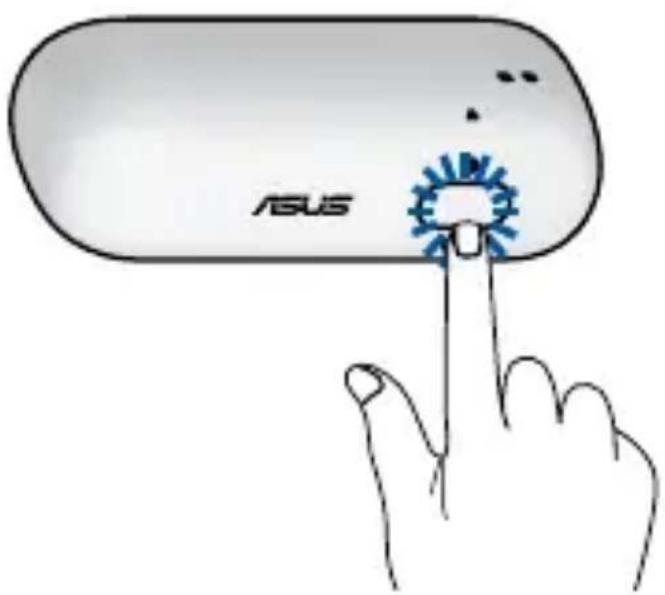

4. Press the Zige button on your ASUS Smart Home device to add the device.

NOTE: After tapping Add Device, you can press the

ZigBee button on all your ASUS Smart Home devices to add them all at once.

1. Tap Done once all the devices are added to complete.

NOTE:

• Ensure that the battery is installed before connecting. Refer to the LED indicator to check the status of your device.
• Ensure that your device is within 50 meters of your ASUS SmartHome Gateway, and there are no obstructions such as thick solid walls or other electronic devices that may cause interference.
• The LED status indicator on your ASUS SmartHome Gateway will blink blue for sixty (60) seconds to indicate that devices can be added.
• Ensure to reset your ASUS Smart Home device and delete the device from the companion app to remove it completely.

Additional information

• This device is for indoor use only.
• Use an adhesive to position the device onto a flat surface (such as a window pane or wall).
• This device will update data to the Home Gateway every time the sensor detects an open or close signal. You can view the current status through the companion app.
• When this device loses power, the companion app will display a gray icon and cannot be configured. The status will be updated every 5 minutes.

產品規格

Installer I'application ASUS SmartHome

aallll lalalalalalalalalalalalalalalalalal

3

jlll jldn nn nnnn nn nnnn nn nnnn

aall bll

suiy i 1

a 1

J 1

pduuul auii i jglal uui

1 1

ASUS SmartHome

J 1

ASUS SmartHome

. Google PlayApple App Store

Jzjjj jy Juii jn

1 1

J 1

ASUS

1

ASUS SmartHome

.ASUS SmartHome APP

1

Home Control 2

y

ASUS j (j) Add Device 3

SmartHome Gateway SmartHome

ASUS ZigBee

Smart Home

si, (jla) Add Device 1e jaiy:

ASUS ZigBee

Smart Home

JL5y jj 1 J 10 (p) Done 5

4k - 2 = 0( k ≥ 1)

1. 1.

jlll jn nn nnnn

50 50

ASUS SmartHome Gateway

y 11 y j 1 g aasll aal bilgall jia ggc

.

ASUS

SmartHome Gateway

. 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

ASUS Smart Home

i j 1

a

jll

Federal Communications Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.

CAUTION! Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF exposure warning

This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Canada, Industry Canada (IC) Notices

This device complies with Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Canada, vis d'Industry Canada (IC)

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Radio Frequency (RF) Exposure Information

The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized.

This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person's body).

Do not throw your ASUS WS101 in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

Do not throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

English AsusTek Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of CE Directives. Please see the CE Declaration of Conformity for more details.

EU Declaration of Conformity

We, the undersigned,

Manufacturer:	ASUSTeK COMPUTER INC.
Address:	4F, No. 150, LI-TE Rd., PEITOU, TAPEI 112, TAIWAN
Authorized representative in Europe:	ASUS TECHNOLOGY HOLLAND B.V.
Address, City:	FULTONBAAN 12, 3439 NE, NIEUWEGEIN
Country:	THE NETHERLANDS

declare the following apparatus:

Product name : Open close sensor
Model name :	WS101

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2010+AC:2011 EN 61000-3-2:2006+A2:2009 EN 55013:2001+A1:2003+A2:2006

EN 55024:2010 EN 61000-3-3:2008 EN 55020:2007+A11:2011

1999/5/EC-R&TTE Directive

EN 300 328 V1.8.1(2012-06)	EN 301 489-1 V1.9.2(2011-09)
EN 300 440-1 V1.6.1(2010-08)	EN 301 489-3 V1.6.1(2013-12)
EN 300 440-2 V1.4.1(2010-08)	EN 301 489-4 V2.1.1(2013-12)
EN 301 511 V9.0.2(2003-03)	EN 301 489-7 V1.3.1(2005-11)
EN 301 908-1 V6.2.1(2013-04)	EN 301 489-9 V1.4.1(2007-11)
EN 301 908-2 V6.2.1(2013-10)	EN 301 489-17 V2.2.1(2012-09)
EN 301 908-13 V6.2.1(2014-02)	EN 301 489-24 V1.5.1(2010-09)
EN 301 893 V1.7.1(2012-06)	EN 301 357-2 V1.4.1(2008-11)
EN 300 330-2 V1.5.1(2010-02)	EN 302 291-2 V1.1.1(2005-07)
EN 50360:2001/A1:2012	EN 302 623 V1.1.1(2009-01)
EN 62479:2010	EN 50566:2013/AC:2014
EN 62311:2008	EN 50385:2002

2014/35/EU-LVD Directive

EN 60950-1:2006 / A12:2011 EN 60950-1:2006 / A2:2013

EN 60065:2002 / A12:2011

2009/125/EC-ErP Directive

Regulation (EC) No. 1275/2008 Regulation (EC) No. 642/2009

Regulation (EC) No. 278/2009 Regulation (EU) No. 617/2013

2011/65/EU-RoHS Directive

CE marking

Equipment Class 1

CE

(EU conformity marking)

Signature

Jerry Shen

Printed Name

CEO

Position

Taipei, Taiwan

Place of issue

4/1/2016

Date of issue

2015

Year CE marking was first affiliated

EU Uygunluk Beyani IN SEARCH OF INSECRIE
Biz, bu imza allindakiler
Uratacl:	ASUSTEK COMPUTER INC.
Adres, Şehir:	4F, No. 150, L-TE RG, PETOU, TAIPEI 112, TAIWAN
Avrupa daki Yelikili:	ASUS TECHNOLOGY HOLLAND B.V.
Adres, Şehir:	FULTONBAAN 12, 3439 NE, NIEUWEGEN
Ukce:	HOLLANDA
Asagidaki urünun:
Ordn adr.:	Open close sensor
Model ad: WS101
Asagidaki direktiflerin gereksinilinerine uydağunu deklare ederiz:
2004/108/EC-MDC Direktif	EN 55024:2010 EN 61000-3-2009 EN 55020:2007+A11:2011
1999/5/EC-R&TTE Direktif
EN 300-328-V1.5(2012-06) EN 300-440-1 V1.6.1(2010-08) EN 300-440-2 V1.4.1(2010-08) EN 301-511 V9.0.2(2003-03) EN 301-908-2 V6.2.1(2013-04) EN 301-908-2 V6.2.1(2013-04) EN 301-908-2 V6.2.1(2013-04) EN 301-908-2 V6.2.1(2013-04) EN 301-908-2 V6.2.1(2009-01) EN 50385:2001	EN 55024:2010 EN 61000-3-2009 EN 55020:2007+A11:2011
2006/95/EC-LVD Direktif
EN 60950-1: 2006 / A12: 2011 EN 60950-1: 2006 / A2: 2013	EN 60065:2002 / A12: 2011 EN 60950-1: 2006 / A2: 2013
2009/125/EC-ErP Direktif
Regulation (EC) No: 64256098	Regulation (EG) No: 6792099
CE isareti Exiprim Sinf. 1	Ver. 151216
CE (EU uygünlik,isareti)
Imza	Taipei, Taiwan
Jerry Shen	Sürüm yeri
Basil Ad	Sürüm tariffs
CEO	2015
Pozisyon	CE isaretinin ilk eklendişi yil

Manufacturer ASUSTek COMPUTER INC.
Address 4F No. 150, LI-TE RD., PEITOU, TAPEI 112, TAIWAN
Authorized Representative in Europe	ASUS COMPUTER GmbH
Address HARKORT STR. 21-23, 40880 RATINGEN, GERMANY
