| Product Type | Smart home - Connected siren |
| Brand | ASUS |
| Model | SmartHome Siren AS101 |
| Dimensions | 108 x 108 x 43 mm |
| Weight | 165 g |
| Power supply | 4 AA alkaline batteries (1.5 V) |
| Battery life | 1 year (varies with usage) |
| Wireless connectivity | ZigBee PRO |
| Range | 50 m (without obstruction) |
| User interface | ZigBee button, Disarm button |
| LED indicators | Red (warning), Blue (ZigBee) |
| Sounder | Min. 76 dB at 3 m |
| Operating temperature | -10 to 50 °C |
| Operating humidity | 0 to 95 % |
| System requirements | iOS/Android smartphone, Wi-Fi router, ASUS SmartHome gateway |
| Main functions | Sound and light alarm, condition detection, local and app disarm |
| Care and cleaning | Soft dry cloth, no water or chemicals |
| Safety | Indoor use only, do not repair yourself, respect battery polarity |
| Replaceable batteries | Yes, 4 standard AA batteries |
| General information | Compatible with ASUS SmartHome app, disarm via button or app, reset by holding ZigBee button for 5 seconds |
Frequently Asked Questions - SmartHome Siren AS101 ASUS
User questions about SmartHome Siren AS101 ASUS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Smart Home in PDF format for free! Find your manual SmartHome Siren AS101 - ASUS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SmartHome Siren AS101 by ASUS.
USER MANUAL SmartHome Siren AS101 ASUS

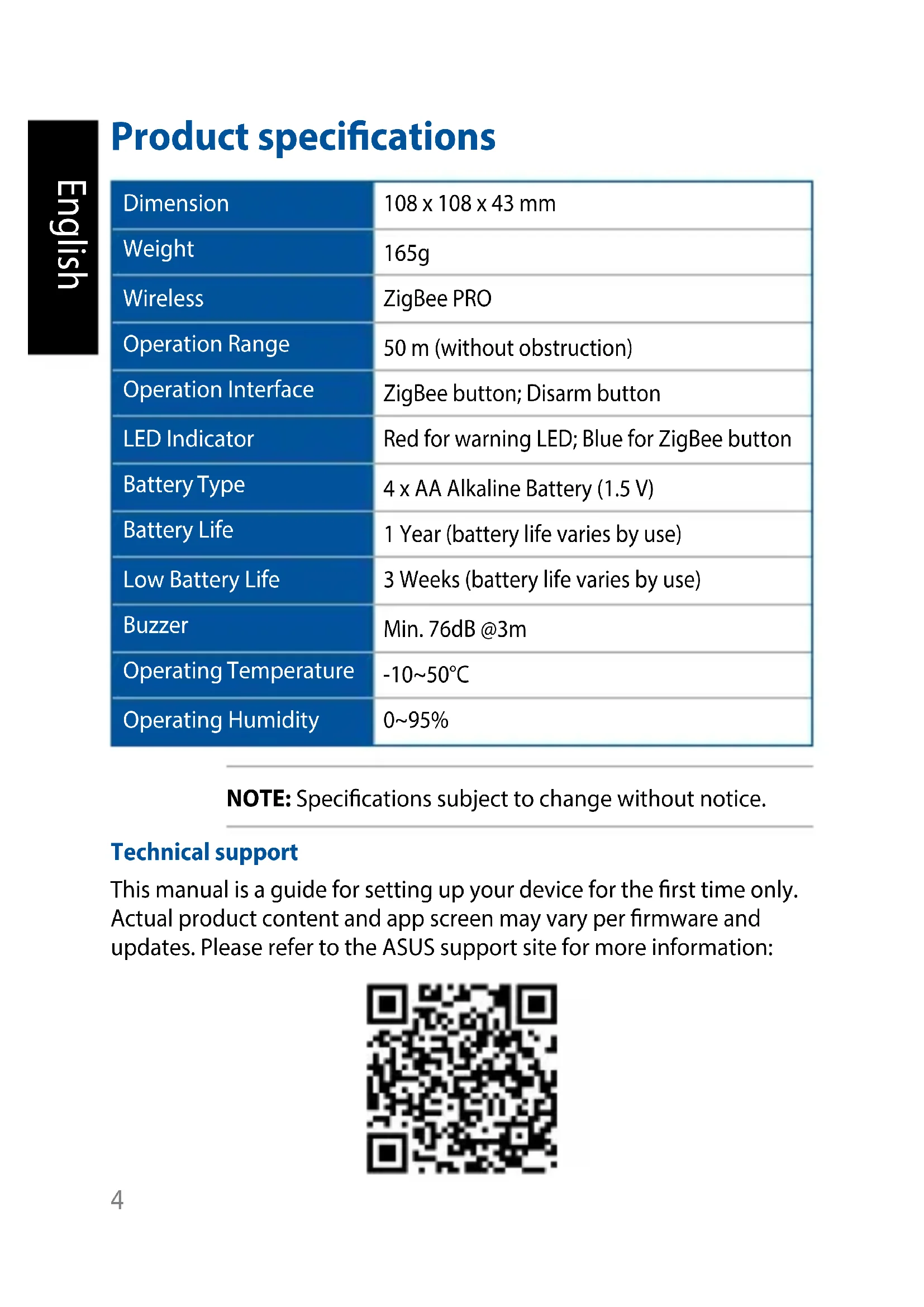

Product specifications
| Dimension | 108 x 108 x 43 mm |
| Weight | 165g |
| Wireless | ZigBee PRO |
| Operation Range | 50 m (without obstruction) |
| Operation Interface | ZigBee button; Disarm button |
| LED Indicator | Red for warning LED; Blue for ZigBee button |
| Battery Type | 4 x AA Alkaline Battery (1.5 V) |
| Battery Life | 1 Year (battery life varies by use) |
| Low Battery Life | 3 Weeks (battery life varies by use) |
| Buzzer | Min. 76dB @3m |
| Operating Temperature | -10~50°C |
| Operating Humidity | 0~95% |
NOTE: Specifications subject to change without notice.
Technical support
This manual is a guide for setting up your device for the first time only. Actual product content and app screen may vary per firmware and updates. Please refer to the ASUS support site for more information:
Product overview
Warning LED
Set this device in your ASUS SmartHome APP under Home Action. This device can only set off its buzzer and the warning LED if a WHEN product is triggered.
NOTE: This device can only be disarmed by pressing the disarm button or through the companion app.
Disarm button
Press this button to disarm the buzzer and the warning LED.
3
ZigBee LED indicator
Refer to the following table for details on the LED status indicator:
| Color Status Description | ||
| Solid Blue | Device powering on Lights up for 1 second | |
| Disconnecting with home gateway | Press and hold the ZigBee button for 5 seconds | |
| Identifying device Lights up for 5 seconds | ||
| Blinking Blue | Connecting with home gateway | Press the ZigBee button to connect with home gateway |
4
ZigBee button
Press to connect with home gateway. Press and hold for 5 seconds to reset the device.
NOTE: Ensure to reset your ASUS Smart Home device and delete the device from the companion app to remove it completely.
System requirements
- iOS or Android smartphone.
• Wi-Fi router with Internet access. - Asus SmartHome gateway and SmartHome user account.
Safety tips
- This device is not water resistant and for indoor use only.
- Insert the battery according to the correct polarity.
- DO NOT attempt to repair the product yourself.
- Minimize the exposure to moisture including wet hands and direct contact with liquids.
- Use soft, dry cloth to clean and avoid cleaning with water, alcohol or other chemicals.
Installing ASUS SmartHome app
- This device can be set up and operated though the companion app. Search for ASUS SmartHome and download the companion app through the Apple App Store or Google Play.
- Ensure you have Internet connection before downloading.
- Ensure your smartphone is connected to your router before setting up.
ASUS
SmartHome
Refer to a qualified vendor or the ASUS website for the minimum system requirements.
Getting started
Connecting to your HG 100
-
Launch the ASUS SmartHome APP.
-
Tap + on the main page of Home Control to add devices for the home gateway.
-
Tap Add Device to join your ASUS SmartHome device to the SmartHome Gateway.
-

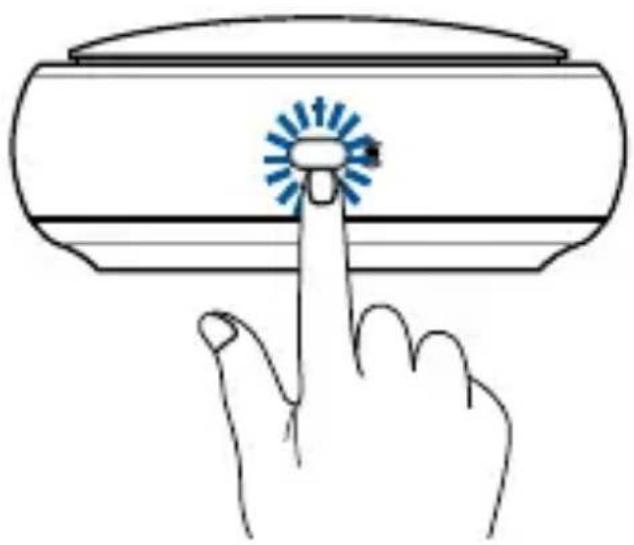

Press the Zipase button on your ASUS Smart Home device to add the device.
ZigBee button on all your ASUS Smart Home devices to add them all at once.
- Tap Done once all the devices are added to complete.
NOTE:
- Ensure that the battery is installed before connecting. Refer to the LED indicator to check the status of your device.
- Ensure that your device is within 50 meters of your ASUS SmartHome Gateway, and there are no obstructions such as thick solid walls or other electronic devices that may cause interference.
- The LED status indicator on your ASUS SmartHome Gateway will blink blue for sixty (60) seconds to indicate that devices can be added.
- Ensure to reset your ASUS Smart Home device and delete the device from the companion app to remove it completely.
Additional information
• This device is for indoor use only.
- Use screws or an adhesive to position the device onto a flat surface (such as a window pane or wall).
- This device will update data to the Home Gateway every time it detects a signal. You can view the current status through the companion app.
- When this device loses power, the companion app will display a gray icon and cannot be configured. The status will be updated every 5 minutes.
產品規格
產品概觀
LED 警示燈
LED 警示灯


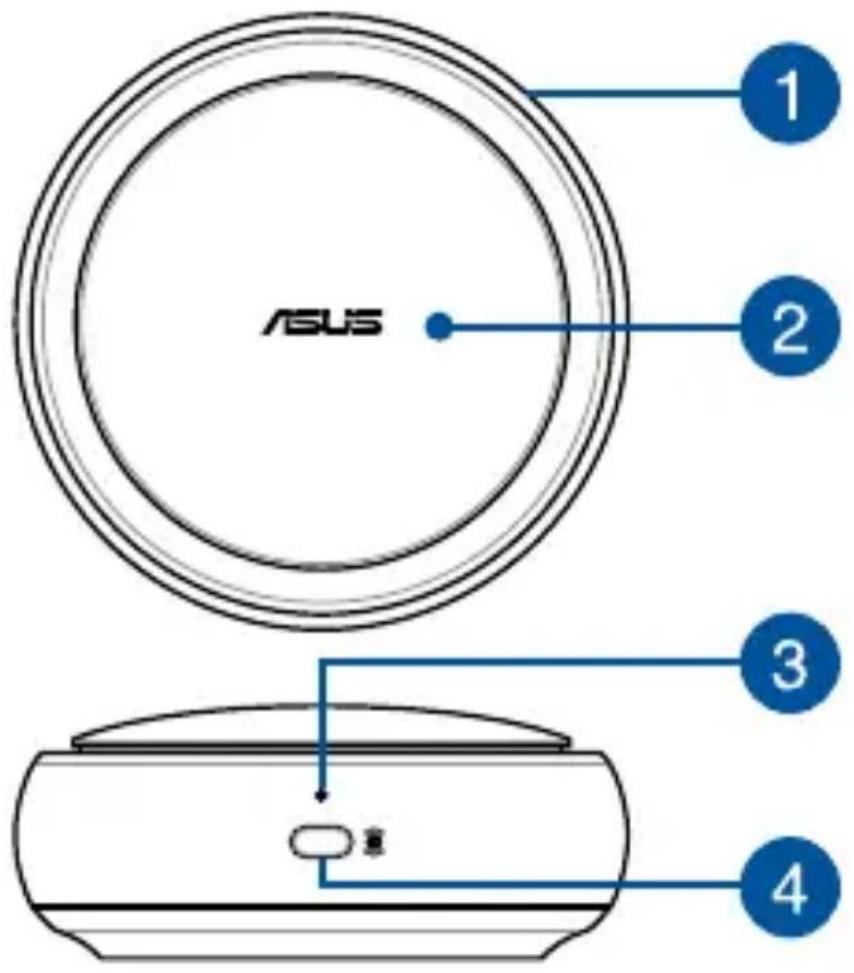

Line drawing of a hand pressing a button on a device (no text or symbols)Produktübersicht
Warn-LED
ASUS
SmartHome
ASUS
SmartHome
ASUS SmartHome
Advarselslys
Advarsel-LED
Varningslampa
Line drawing of a hand pressing a button on a device (no text or symbols)natural_image
Line drawing of a hand pressing a button on a device (no text or symbols)natural_image

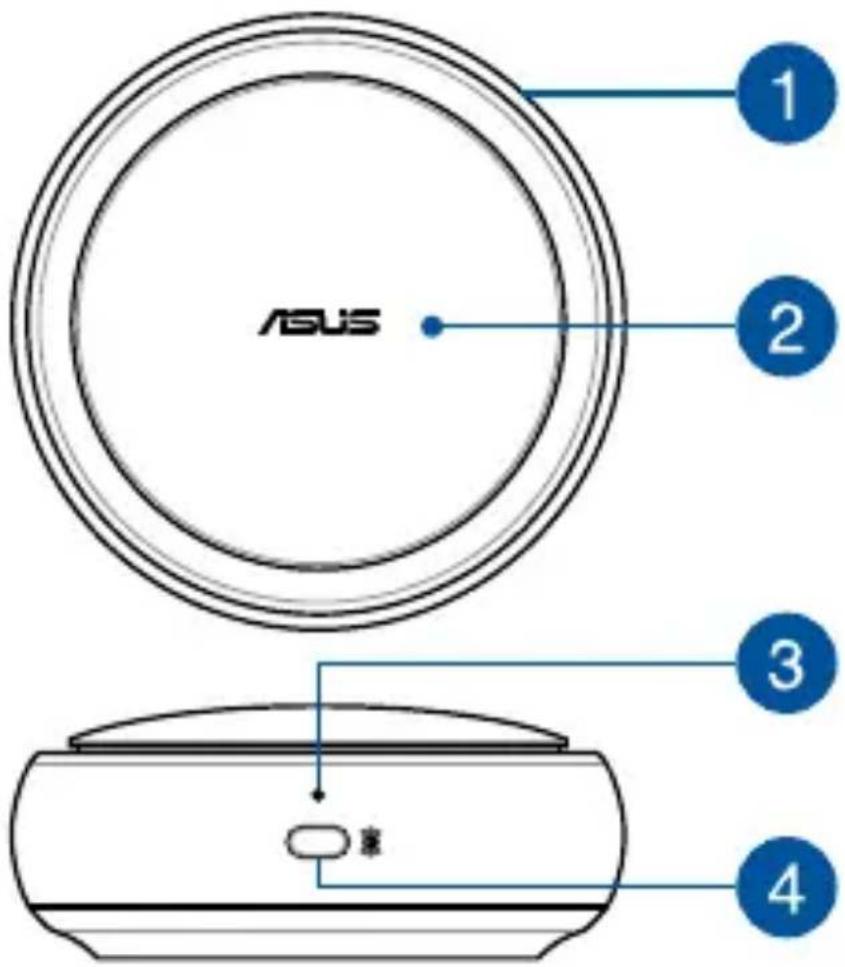

Line drawing of a hand pressing a button on a device (no text or symbols)Popis produktu


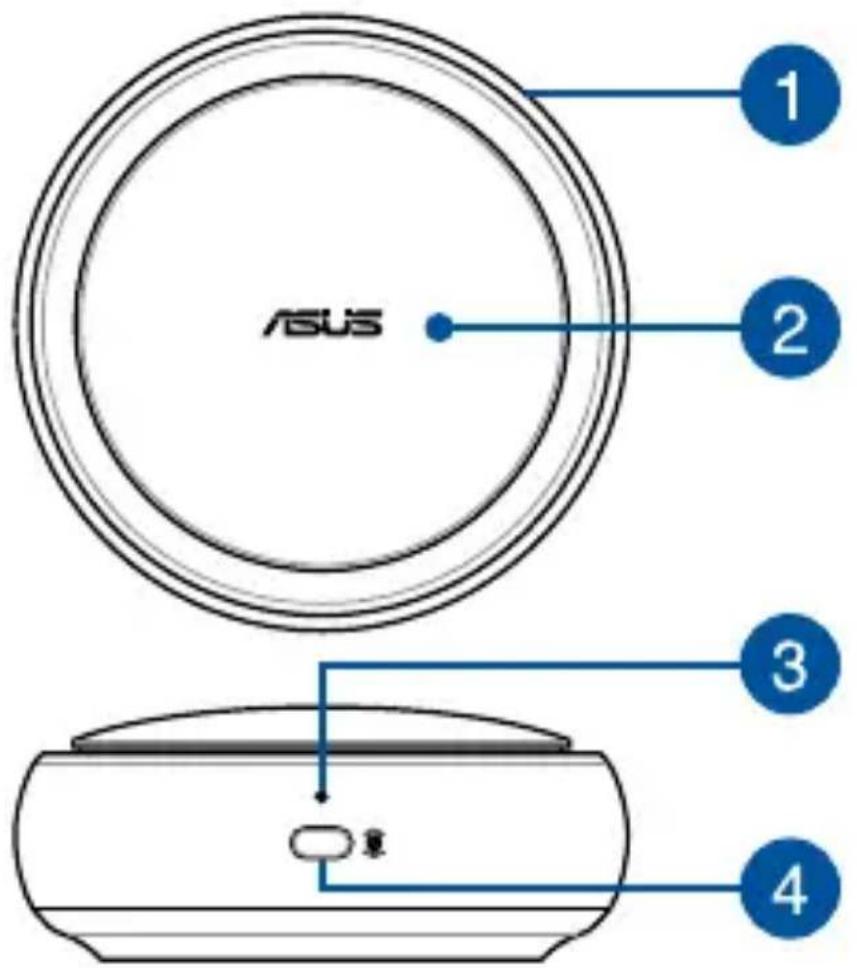

Line drawing of a hand pressing a button on a device (no text or symbols)製品の概要
警告LED
- ابدا تشفيل
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
CAUTION! Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
Canada, Industry Canada (IC) Notices
This device complies with Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Canada, avis d'Industry Canada (IC)
ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized.
This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person's body).
Do not throw your ASUS AS101 in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
Do not throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.
English AsusTek Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of CE Directives. Please see the CE Declaration of Conformity for more details.
EU Declaration of Conformity
We, the undersigned,
| Manufacturer: | ASUSTeK COMPUTER INC. |
| Address: | 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN |
| Authorized representative in Europe: | ASUS TECHNOLOGY HOLLAND B.V. |
| Address, City: | FULTONBAAN 12, 3439 NE, NIEUWEGEIN |
| Country: | THE NETHERLANDS |
declare the following apparatus:
| Product name : | Siren |
| Model name : AS101 |
conform with the essential requirements of the following directives:
2004/108/EC-EMC Directive
| EN 55022:2010+AC:2011EN 61000-3-2:2006+A2:2009EN 55013:2001+A1:2003+A2:2006 | EN 55024:2010EN 61000-3-3:2008EN 55020:2007+A11:2011 |
1999/5/EC-R&TTE Directive
| EN 300 328 V1.8.1(2012-06)EN 300 440-1 V1.6.1(2010-08)EN 300 440-2 V1.4.1(2010-08)EN 301 511 V9.0.2(2003-03)EN 301 908-1 V6.2.1(2013-04)EN 301 908-2 V6.2.1(2013-10)EN 301 908-13 V6.2.1(2014-02)EN 301 893 V1.7.1(2012-06)EN 300 330-2 V1.5.1(2010-02)EN 50360:2001/A1:2012EN 62479:2010EN 62311:2008 | EN 301 489-1 V1.9.2(2011-09)EN 301 489-3 V1.6.1(2013-12)EN 301 489-4 V2.1.1(2013-12)EN 301 489-7 V1.3.1(2005-11)EN 301 489-9 V1.4.1(2007-11)EN 301 489-17 V2.2.1(2012-09)EN 301 489-24 V1.5.1(2010-09)EN 301 357-2 V1.4.1(2008-11)EN 302 291-2 V1.1.1(2005-07)EN 302 623 V1.1.1(2009-01)EN 50566:2013/AC:2014EN 50385:2002 |
2014/35/EU-LVD Directive
| EN 60950-1: 2006 / A12: 2011EN 60950-1: 2006 / A2: 2013 | EN 60065:2002 / A12: 2011 |
2009/125/EC-ErP Directive
| Regulation (EC) No. 1275/2008 | Regulation (EC) No. 278/2009 | |
| Regulation (EC) No. 642/2009 | Regulation (EU) No. 617/2013 |
2011/65/EU-RoHS Directive
| CE marking |
| Equipment Class 1 |
(EU conformity marking)
Signature
Jerry Shen
Printed Name
CEO
Position
Taipei, Taiwan
Place of issue
14/1/2016
Date of issue
2015
Year CE marking was first affixed
Directiva 2006/95/EC-LVD
| EN 60950-1: 2006 / A12:2011EN 60950-1: 2006 / A2: 2013 | □ EN 60065:2002 / A12:2011 |
Directiva 2009/125/EC-ErP
| Regulation (EC) No. 1275/2008Regulation (EC) No. 642/2009 | Regulation (EC) No. 278/2009Regulation (EU) No. 617/2013 |
Directiva 2011/65/EU-RoHS
2006/95/EC-LVD Directiva
| EN 60950-1: 2006 / A12: 2011EN 60950-1: 2006 / A2: 2013 | EN 60065:2002 / A12: 2011 |
2009/125/EC-ErP Directiva Regulation (EC) No 1375/2009
| Regulation (EC) No. 642/2009 | Regulation (EU) No. 617/2013 |
2011/65/EU-RoHS Directiva
| Marca de CE |
| Equipamento de Classa-1 |
Assinatura
广力云智慧零售收银系统
Jerry Shen
Nome Impresso
CEO
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The provided OCR content is "____", which consists of four underscores. This is incorrect because underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line violates the rule and constitutes an error. Therefore, the OCR result is inconsistent with the Ground Truth.
EU Declaratie de Conformitate
Noi, subsemnații,
Directiva 2006/95/EC-LVD
| EN 60950-1: 2006 / A12: 2011EN 60950-1: 2006 / A2: 2013 | EN 60065:2002 / A12: 2011 |
□ Directiva 2009/125/EC-ErP
| Regulation (EC) No. 142752698 | Regulation (EG) No. 679/2019 |
| Regulation (EC) No: 147252098 | Regulation (EG) No: 3792693 |
2011/65/EU-RoHS Direktifi Ver. 151216
