Black Red Bull One with visible branding and mechanical components (no text or symbols on the device itself)

SL-1210MK7R

Direct Drive Turntable System Plattenspieler mit Direktantrieb Platine vinyle à entraînement direct Giradischi ad azionamento diretto Sistema de accionamiento directo del plato giratorio Pladespiller med direkte drev Platenspeler met directe aandrijving Skivspelare med direktdrivning Suoravetoinen levysoitinjärjestelmä Gramofon Direct Drive Проигрыватель с прямым приводом Програвач з прямим приводом

Operating Instructions Bedienungsanleitung Mode d'emploi Istruzioni per l'uso Instrucciones de funcionamiento Betjeningsvejledning Gebruiksaanwijzing Bruksanvisning Käyttöohjeet Instrukcja obsługi Инструкция по эксплуатации Інструкція з експлуатації

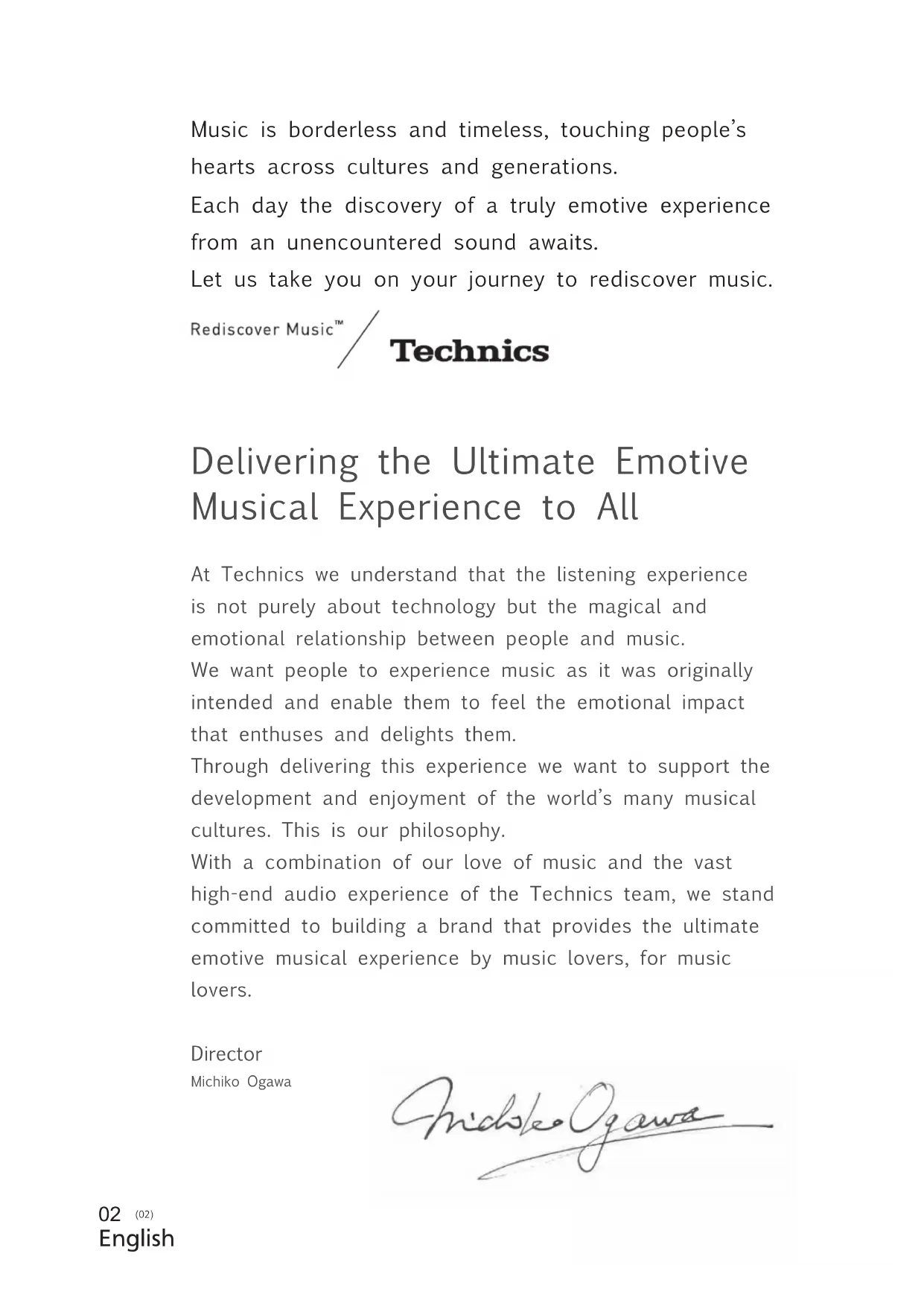

Music is borderless and timeless, touching people's hearts across cultures and generations.

Each day the discovery of a truly emotive experience from an unencountered sound awaits.

Let us take you on your journey to rediscover music.

Rediscover Music™/Technics

Delivering the Ultimate Emotive Musical Experience to All

At Technics we understand that the listening experience is not purely about technology but the magical and emotional relationship between people and music.

We want people to experience music as it was originally intended and enable them to feel the emotional impact that enthuses and delights them.

Through delivering this experience we want to support the development and enjoyment of the world's many musical cultures. This is our philosophy.

With a combination of our love of music and the vast high-end audio experience of the Technics team, we stand committed to building a brand that provides the ultimate emotive musical experience by music lovers, for music lovers.

Director

Michiko Ogawa

Michelko Ogawa

Introduction

Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use.

- About descriptions in these operating instructions

- Pages to be referred to are indicated as "(⇒ 00)".

- The illustrations shown may differ from your unit.

Sales and Support Information

Customer Communications Centre

• For customers within the UK: 0333 222 8777
• For customers within Ireland: 01 447 5229
• Monday–Friday 9:00 am – 5:00 pm, (Excluding public holidays).
• For further support on your product, please visit our website: www.technics.com/uk/

Features

Coreless direct drive motor for high torque and reliability

• The newly developed coreless direct drive motor can reduce minute vibration during rotation while maintaining high torque.
• The high-precision motor control technology switches the drive mode depending on the operational status of the motor and thus enables high torque and stability.
• The digital control method improves tracking and accuracy, allowing for accurate and stable pitch control.

High-precision bearings for highly sensitive tone arm

- The machine-cut, high-precision bearing used in the tone arm bearing with gimbal suspension allows for improved tracking, making skating less likely even during the most intense performances.

Vibration-cutting highly rigid cabinet and high-damping insulator

- This unit is designed to not only deliver high-quality sound and high feedback resistance, but also to efficiently cut off external vibration in very loud environments.

Functions to deliver a wide range of performances

• Allows for torque and brake speed adjustment.
• Allows for reverse playback.
• Allows the user to select from two LED lamp colours depending on user's preference or the environment.

Table of contents

Before use

Safety precautions ....04

Accessories 06

Parts Name 08

Getting started

Putting the player together 09

• Attaching the cartridge ....09
• Attaching the head shell ....09
• Before fitting the turntable ....11
  ● Fitting the turntable .....11
• Fitting the slipmat ....11
• Attaching the balance weight ......11
• To remove turntable ....11

Connections and installation ......12

• Connecting to a pre-main amplifier or component system / Connecting to a mixer ....12
• Installation ....13
• Fit the dust cover ....13

Adjustment....14

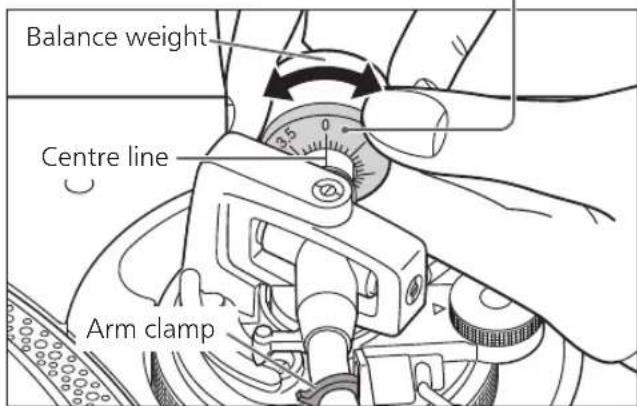

• Horizontal balance .....14

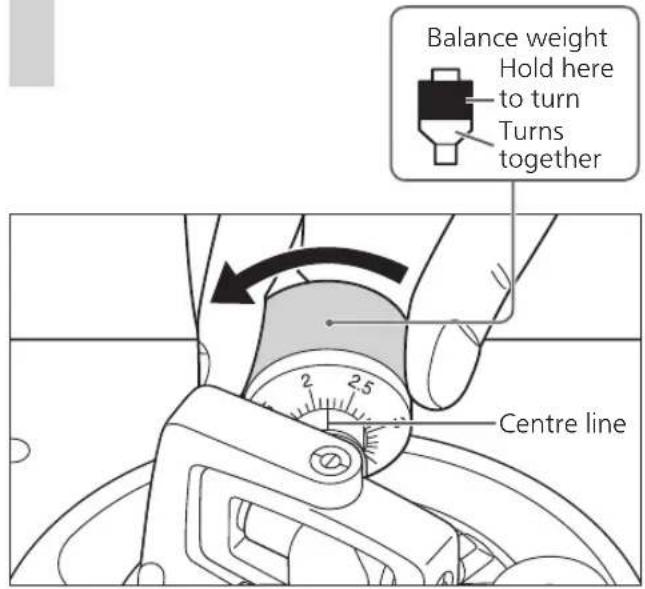

- Stylus pressure ....14

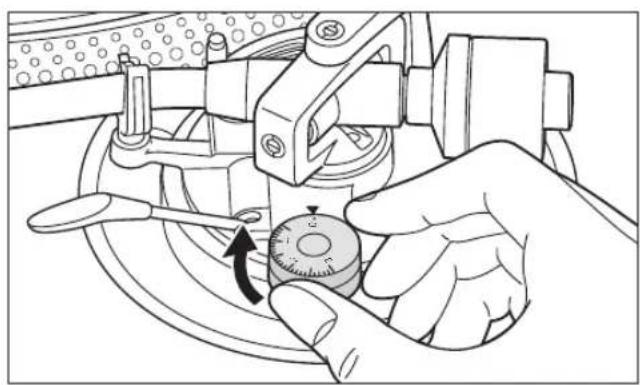

- Anti-skating 15

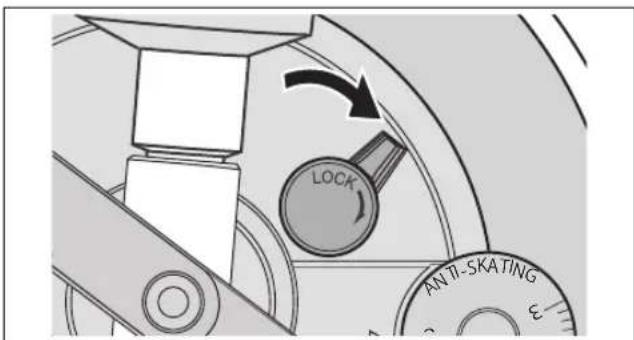

- Tone arm height 16
- Armlift height 17

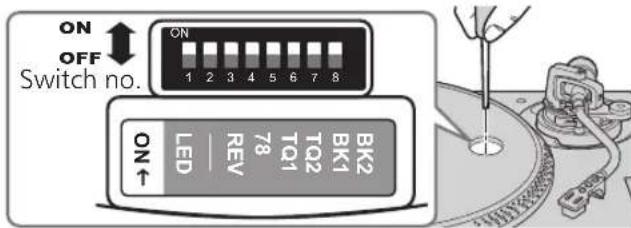

- Operation settings (LED colour setting / Reverse playback setting / 78 rpm setting / Torque setting / Brake setting)....17

Playing back

Playing records 18

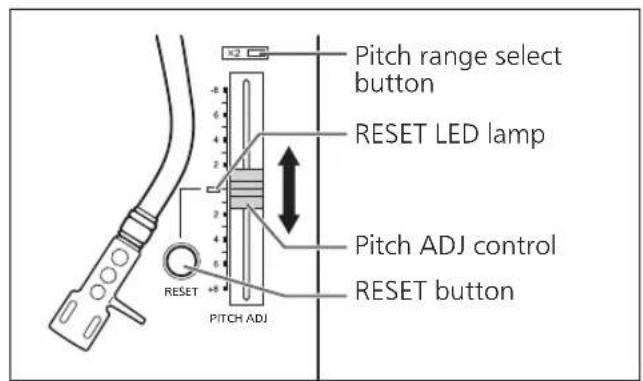

Pitch control (fine adjustment to pitch) .....20

Maintenance

Maintenance....21

Troubleshooting guide 22

Specifications 23

Safety precautions

Warning Caution

Unit

• To reduce the risk of fire, electric shock or product damage,
  -Do not expose this unit to rain, moisture, dripping or splashing.
  -Do not place objects filled with liquids, such as vases, on this unit.
  -Use only the recommended accessories.
  -Do not remove covers.
  -Do not repair this unit by yourself.
  Refer servicing to qualified service personnel.
  -Do not let metal objects fall inside this unit.
  -Do not place heavy items on this unit.

AC mains lead

• To reduce the risk of fire, electric shock or product damage,
  -Ensure that the power supply voltage corresponds to the voltage printed on this unit.
  -Insert the mains plug fully into the socket outlet.
  -Do not pull, bend, or place heavy items on the lead.
  -Do not handle the plug with wet hands.
  -Hold onto the mains plug body when disconnecting the plug.
  -Do not use a damaged mains plug or socket outlet.
• The mains plug is the disconnecting device. Install this unit so that the mains plug can be unplugged from the socket outlet immediately.
• Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.
  -An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earth connection.

Unit

• Do not place sources of naked flames, such as lighted candles, on this unit.
• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
• This unit is intended for use in moderate and tropical climates.
• Do not put any objects on this unit.
  This unit becomes hot while it is on.

Placement

• Place this unit on an even surface.
• To reduce the risk of fire, electric shock or product damage,
  -Do not install or place this unit in a bookcase, built-in cabinet or in another confined space.
  Ensure this unit is well ventilated.
  -Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items.
  -Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.
• Ensure that the placement location is sturdy enough to accommodate the weight of this unit ( 23).
• Do not lift or carry this unit by holding the knobs. Doing so may cause this unit to fall, resulting in personal injury or malfunction of this unit.
• Keep any IC card or magnetic card such as a credit card away from the turntable.
  -Otherwise the IC card or magnetic card may become unusable due to the magnetic effect.

Disposal of Old Equipment

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Product Identification Marking is located on the bottom of the unit.

Accessories

In order to prevent damage during shipping some of the equipment has been disassembled. Please check and identify the supplied accessories. (Some accessories parts are supplied in a bag.)

Turntable (1 pc.) (TYL0332)	Slipmat (1 pc.) Slip sheet (1 pc.)One of each is provided with the unit. The slip sheet is a thin, transparent sheet. Be careful not to throw it away by mistake.	Dust cover (1 pc.) (TTFA0454)
		Technics label (1 pc.)Technics
EP record adaptor (1 pc.) (TPH0339)	Balance weight (1 pc.) (TYL0295)	Head shell (1 pc.)
Screw set for cartridge (1 set)Nuts(2 Screws-short (2 pc.) Screws-long (2 pc.) Washers (2 pc.) (Supplied in a bag)	PHONO cable (1pc.) (K4EAY00003)	PHONO earth lead (1pc.) (K4EY1YY00189)
AC mains lead (1 pc.) (K2CM3YY00055)	Control vinyl labels (2pc.)With your control vinyl installed on the turntable, affix the label passing the spindle through its centre hole.

• In case of repair, they might be different in colour, logo, and so on.
• The model numbers of the accessories are as of June 2020. They are subject to change without notice.
• Keep the packaging materials after taking out the goods. You will need them when carrying the product over long distances.
• Follow the local regulations when disposing of the product.
• Do not use any other AC mains lead, PHONO cable and PHONO earth lead except the supplied one.
• Keep the cartridge, nuts, screws and washers out of reach of children to prevent swallowing.

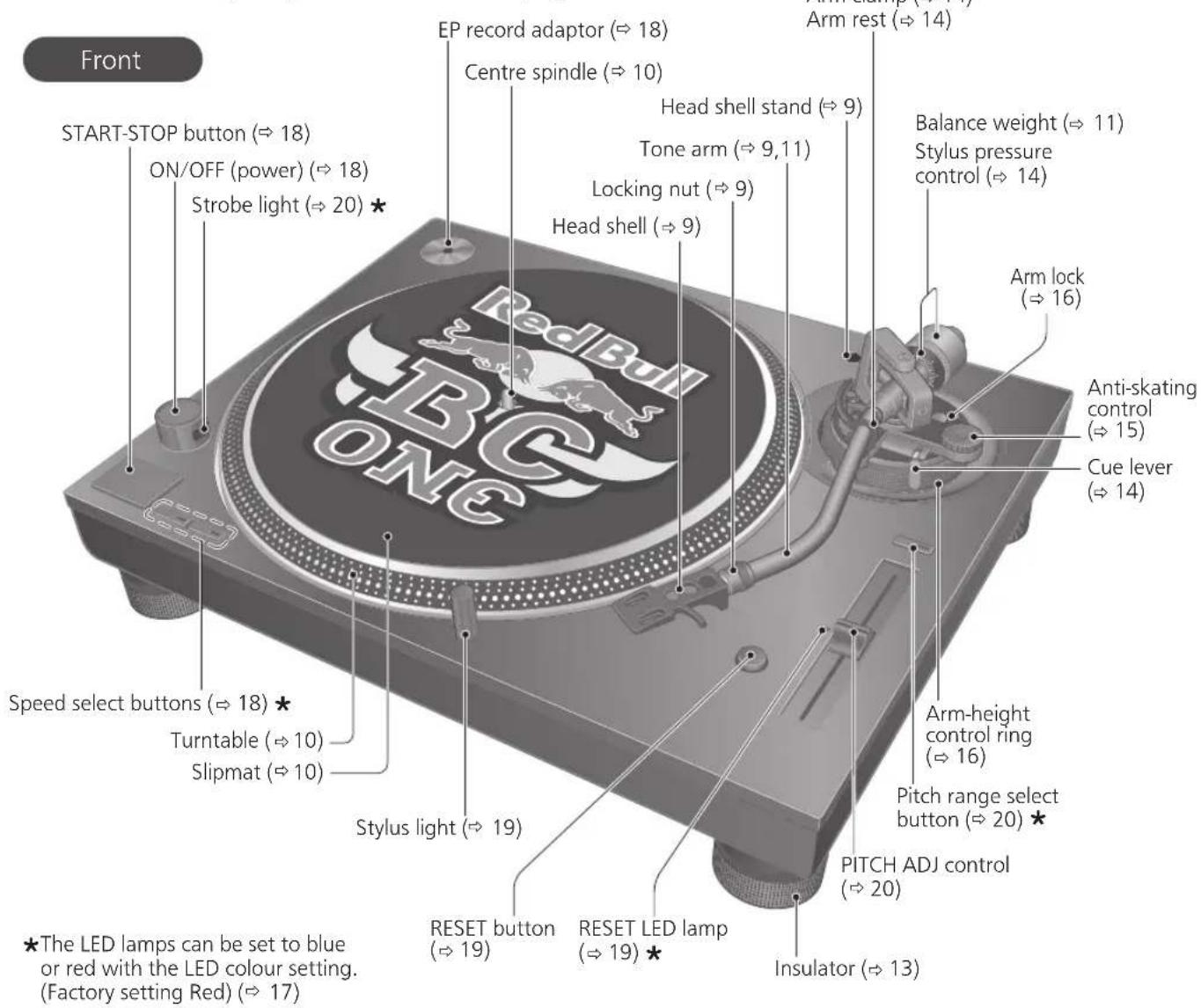

Parts Name

Numbers such as ( 00) indicate reference pages.

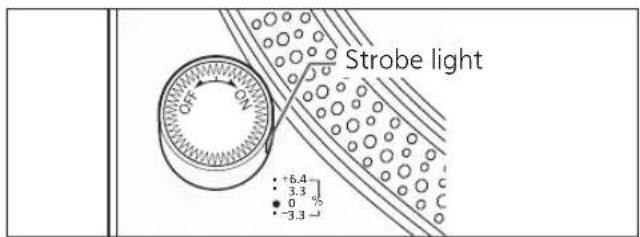

Front START-STOP button (⇒ 18) ON/OFF (power) (⇒ 18) Strobe light (⇒ 20) * Speed select buttons (⇒ 18) * Turntable (⇒ 10) Slipmat (⇒ 10) EP record adaptor (⇒ 18) Centre spindle (⇒ 10) Head shell stand (⇒ 9) Tone arm (⇒ 9,11) Locking nut (⇒ 9) Head shell (⇒ 9) Stylus light (⇒ 19) RESET button (⇒ 19) RESET LED lamp (⇒ 19) * The LED lamps can be set to blue or red with the LED colour setting. (Factory setting Red) (⇒ 17) Arm rest (⇒ 14) Arm lock (⇒ 16) Anti-skating control (⇒ 15) Cue lever (⇒ 14) Arm-height control ring (⇒ 16) Pitch range select button (⇒ 20) * PITCH ADJ control (⇒ 20) Insulator (⇒ 13)

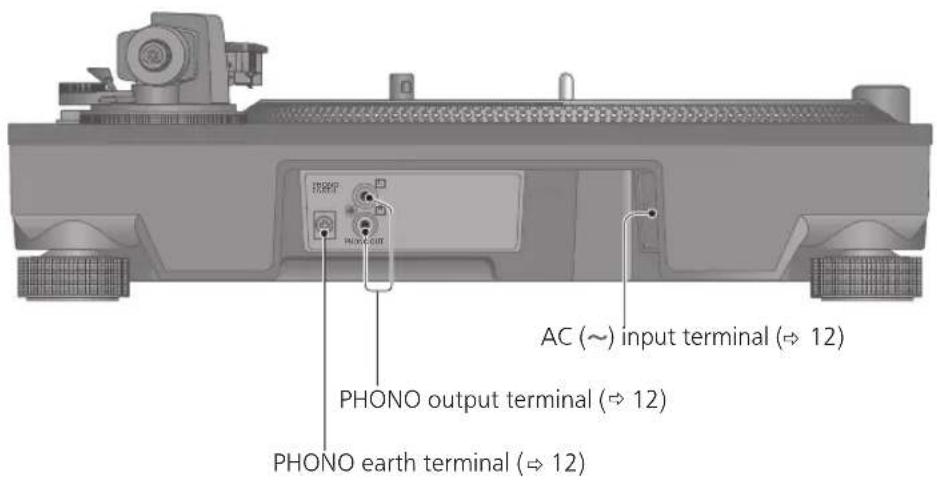

Back

PHONO AC (~) input terminal (→ 12) PHONO output terminal (→ 12) PHONO earth terminal (→ 12)

Putting the player together

Attaching the cartridge

Attention

- When performing scratching (including reverse play), use a cartridge and stylus for DJs.

1 Attach a cartridge (store-bought) tentatively.

Follow the cartridge's instructions to correctly attach it to the head shell, and tighten the screws lightly.

• If the mounting screws are included in the cartridge, use them.
• When playing SP records, use a cartridge for SP records.
• Use a commercially available mini flat screwdriver (4 mm).
• Be careful not to touch the stylus tip.

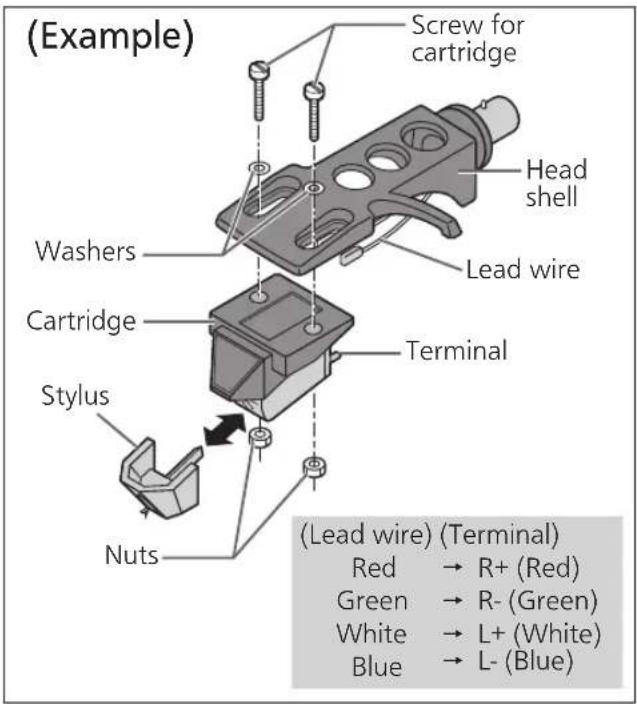

(Example) Screw for cartridge Head shell Lead wire Washers Cartridge Terminal Stylus Nuts (Lead wire) (Terminal) Red → R+ (Red) Green → R- (Green) White → L+ (White) Blue → L- (Blue)

2 Adjust the overhang.

- Be careful not to touch the stylus tip.

① Move the cartridge to adjust the overhang in such a way that the stylus tip is at 52 mm from the head shell mounting end, as shown in the figure below.

Stylus tip 52 mm

② The cartridge should be parallel on the shell head when viewed from the top and side (the illustration is the top view).

Three mechanical component diagrams showing a cylindrical shaft with mounting holes and a cross symbol, no text or labels present.

③ Tighten the screw for cartridge.

- Be careful not to allow the cartridge to slip out of place.

Screw for cartridge

Note

• The head shell stand ( 8) can be used to store the head shell with the cartridge attached, or to store the head shell temporarily removed to replace the cartridge and the like. It allows you to prevent cartridge and/or stylus failure or trouble due to head shell overturning.
• Depending on the cartridge type, attaching the dust cover ( 13) when the head shell is stored in the head shell stand with the cartridge attached may cause the dust cover to touch and break the cartridge. Be sure the head shell is not stored in the head shell stand when attaching the dust cover.

Attaching the head shell

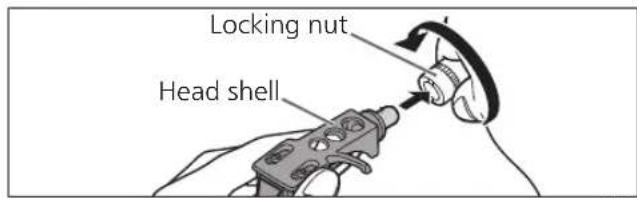

3 Fit the head shell with the cartridge into the tone arm. Keep the head shell horizontal and tighten the locking nut.

- Be careful not to touch the stylus tip.

Locking nut Head shell

Putting the player together (continued)

In order to prevent damage during shipping, some of the equipment has been disassembled. Put the player together in the following order.

Attention

• Before setting up, put on the stylus guard to protect the stylus tip, return the tone arm to the arm rest and fix it with the arm clamp.
• Do not connect the AC mains lead until set up is complete.
• When fitting the turntable, prevent foreign material from getting in between the main unit and turntable.
• Do not touch or scratch the board.

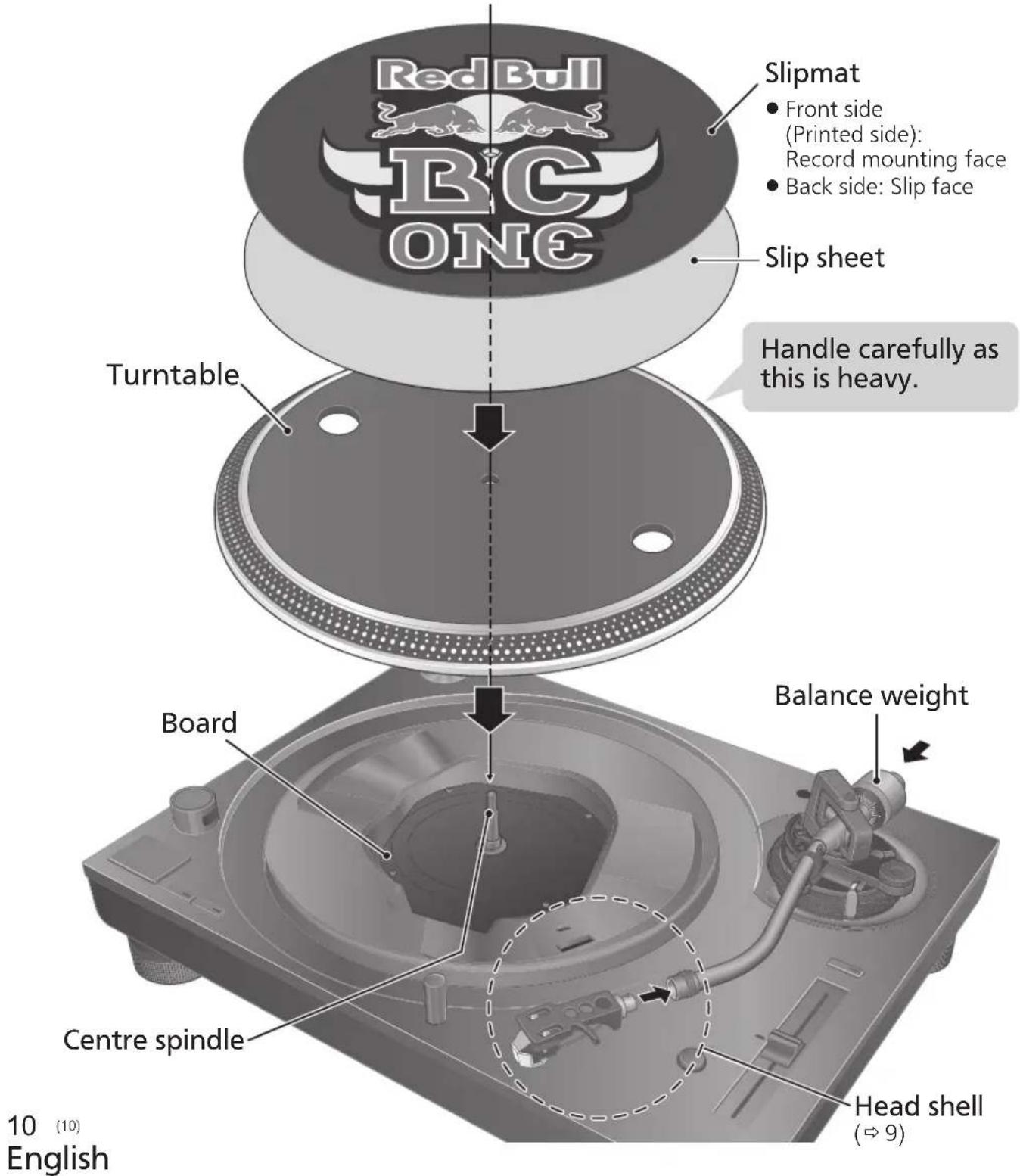

Red Bull 80C ONE Slip mat • Front side (Printed side): Record mounting face • Back side: Slip face Slip sheet Turntable Handle carefully as this is heavy. Balance weight Board Centre spindle Head shell (⇒9) 10 (10) English

Before fitting the turntable

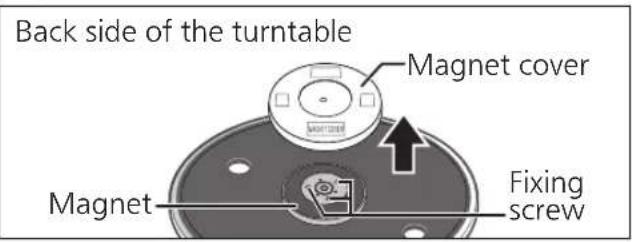

1 Remove the magnet cover from the turntable.

- There is a magnet and its cover on the back side of the turntable. Remove the magnet cover before fitting to the main unit.

Back side of the turntable Magnet cover Magnet Fixing screw

Attention

• Keep any magnetic-sensitive object such as a magnetic card and watch away from the magnet.
• Prevent the turntable from hitting the main unit or falling off. Prevent dust or iron powder from adhering to the magnet on the back side.
• Do not touch the fixing screws (three locations) of the turntable. The rating performance cannot be guaranteed if they are out of position.

Fitting the turntable

2 Slowly set the turntable on the centre spindle.

Attention

• Be careful when handling the turntable, as it is heavy.
• Keep your fingers from being caught.
• Wipe off fingerprints or dirt with a soft cloth.

Fitting the slipmat

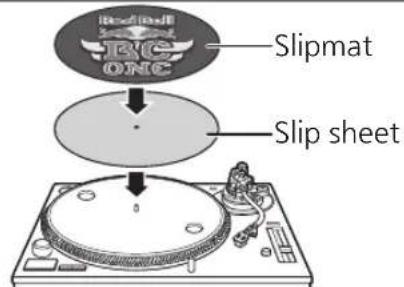

3 Lay the slipmat and slip sheet on the turntable.

● A record on the rotating turntable can be stopped manually as well as rotated in reverse.
- Laying a slip sheet on the turntable changes the slip-cueing feel.

Red ball ONE Slip mat Slip sheet

Attention

- When performing scratching (including reverse play), use a cartridge and stylus for DJs.

Attaching the balance weight

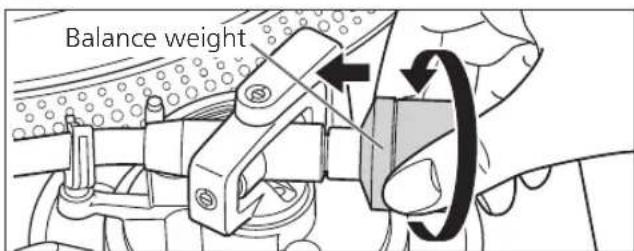

4 Attach the balance weight to the rear of the tone arm.

Balance weight.

Note

- The inside of the balance weight is greased.

To remove the turntable

As shown in the figure on the right, set your fingers in the two holes on the turntable, hold the centre spindle down and remove the turntable upward.

Illustration of a hand pressing down on a circular object with an upward arrow (no text or symbols)

Connections and installation

• Turn off all units and disconnect the AC mains lead from the socket before making any connections.
• Connect the AC mains lead only after all other connections are completed.
• Be sure to connect the PHONO earth lead. Otherwise mains hum may occur.
• Refer also to the instruction manual of the connected device.

1 Connect the PHONO cable and PHONO earth lead to the PHONO input terminals of the connected equipment.

- You will not have adequate volume or sound quality if the connected amplifier has no PHONO input terminals.

2 Connect the AC mains lead.

- Confirm the wattage of the AC outlet on the connected equipment before using it for this unit.

For the power consumption of this unit, see the specifications. ( 23)

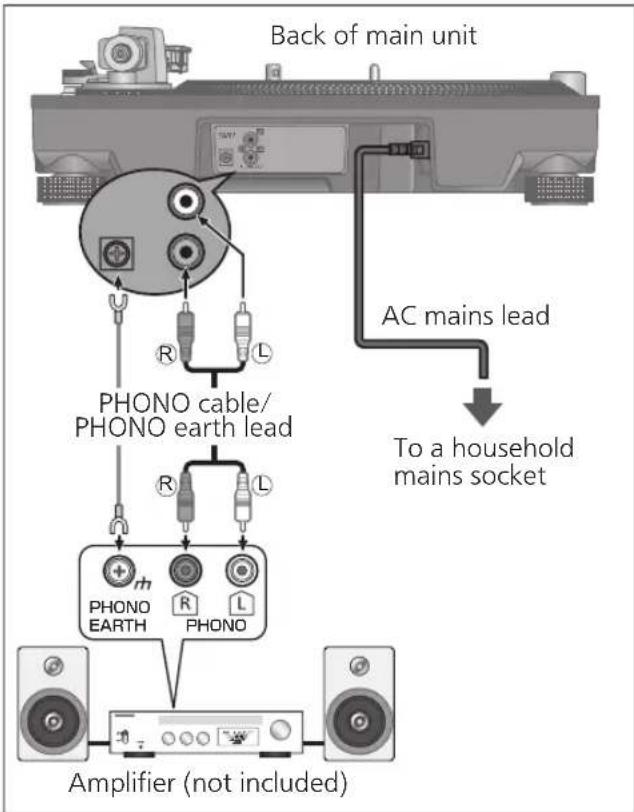

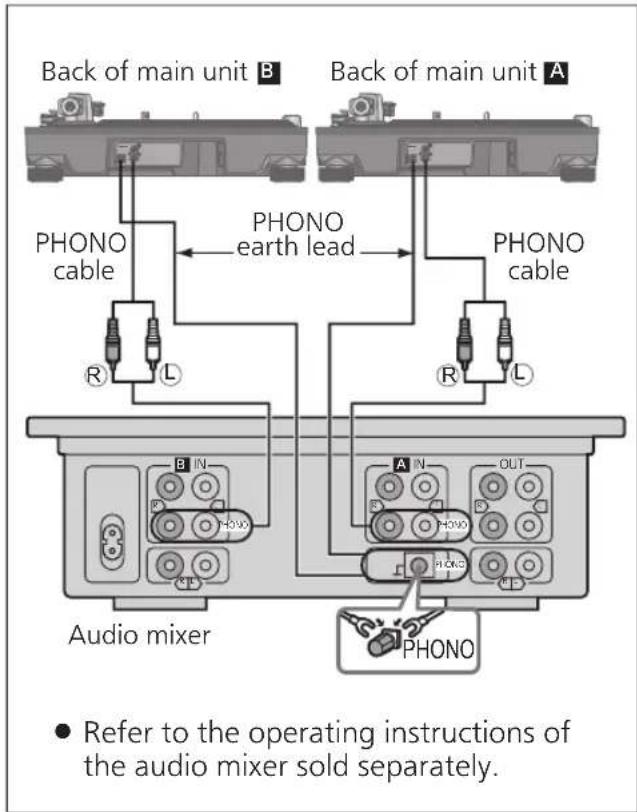

Connecting to a pre-main amplifier or component system / Connecting to a mixer

Back of main unit AC mains lead To a household mains socket PHONO cable/ PHONO earth lead R L R PHONO EARTH PHONO Amplifier (not included)

Back of main unit B Back of main unit A PHONO cable PHONO earth lead PHONO cable R L R L B IN A N OUT HONO Audio mixer PHONO ● Refer to the operating instructions of the audio mixer sold separately.

Attention

● Tighten the PHONO earth terminal using a Phillips head screwdriver.

Note

- The operation switch does not separate entire unit from mains even if in "OFF" position. Remove the plug from the mains socket if you will not be using the unit for an extended period of time. Place the unit so that the plug can be easily removed.

Installation

Install the unit on a horizontal surface protected from vibrations.

Keep this unit as far as possible from speakers.

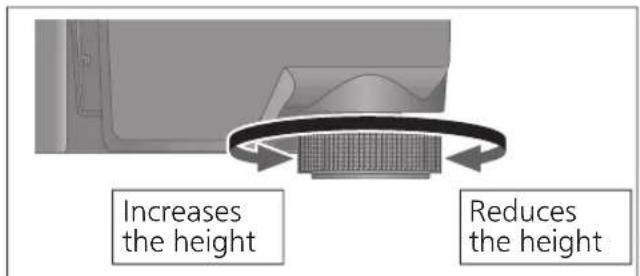

■ Adjusting the height to make the unit horizontal

Increases the height Reduces the height

Raise the main unit to turn the insulators and adjust the height.

• Clockwise: Reduces the height.
• Anti-clockwise: Increases the height.

Attention

- Do not turn the insulators too far. Doing so may cause them to come off or damage them.

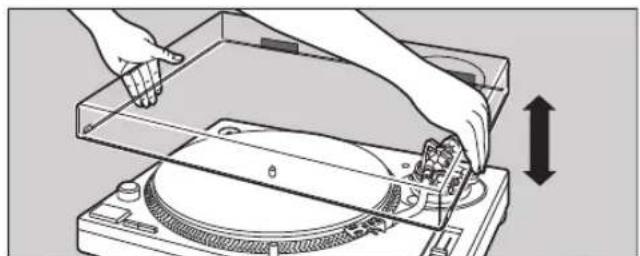

Fit the dust cover

1 While holding the dust cover from both sides, put it in place by aligning its four corners with the four corners of the unit.

- When removing, lift the dust cover straight up.

Illustration of hands operating a CD or DVD disc with a mechanical component, showing no text or symbols.

Attention

• Return the tone arm to the arm rest and fix it with the arm clamp before you attach or detach the dust cover.
• Remove the dust cover while playing.
• Be sure the stylus light ( 19) is pressed down when attaching the dust cover. If the dust cover is attached with the stylus light raised, it may touch the dust cover.

■ Notes for installation

• Before you move the unit, turn the unit off, pull out the power plug and disconnect all connected devices.
• Ensure the unit is not exposed to direct sunlight, dust, humidity, and heat from a heating appliance.
• This unit may pick up interference from a radio if there is one nearby. Keep the unit as far as possible from a radio.
• Do not install the unit on a heat source.
• Avoid a place with large temperature variations.
• Avoid a place with frequent condensation.
• Avoid an unstable place.
• Do not put an object on the unit.
• Do not install the unit in a confined space such as a book shelf.
• Install the unit at a position well away from walls or other devices to ensure effective heat radiation from the inside of the unit.
  ● Make sure the installation location is sufficiently strong to withstand the total weight of the unit and system. ( 23)
• Note that the unit may be damaged by cigarette smoke or moisture from an ultrasonic humidifier.

Condensation

Think of taking out a cold bottle from a refrigerator. If you leave it in a room for a while, dewdrops will form on the bottle surface. This phenomenon is called "condensation".

• Conditions causing condensation
  ◇ Rapid temperature change (caused by moving from a warm place to a cold place or vice versa, rapid cooling or heating, or direct exposure to cooled air)
  ◇ High humidity in a room with much steam, etc.
  ◇ Rainy season
• Condensation may damage the unit. If it has occurred, turn the unit off and leave it until it adapts to the ambient temperature (approximately 2 to 3 hours).

Adjustment

Horizontal balance Stylus pressure

Preparation

• Remove the stylus cover, taking care not to damage the stylus, then release the arm clamp.
• Lower the cue lever.
• Turn the anti-skating control to "0".

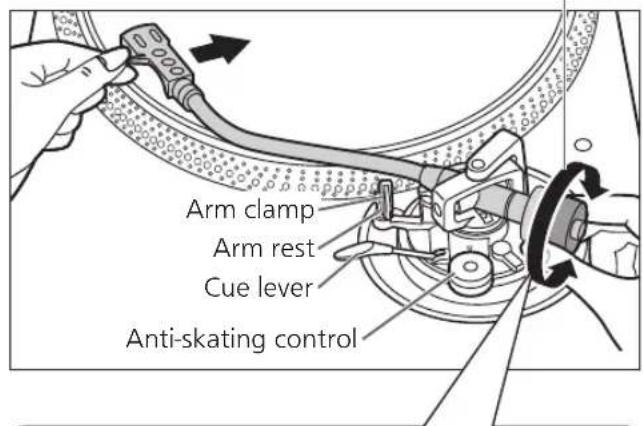

1 Free the tone arm from the arm rest and adjust horizontal balance by turning the balance weight.

Hold the tone arm and turn the balance weight in the arrow direction to adjust the balance until the arm is approximately horizontal.

● Take care not to allow the stylus tip to touch the turntable or main unit.

Balance weight

Arm clamp Arm rest Cue lever Anti-skating control

Diagram showing three mechanical linkage configurations with cross symbols, no text or labels present

Balanced and the tone arm is parallel to the turntable.

The balance weight is too far forward.

The balance weight is too far back.

Preparation

- Return the tone arm to the arm rest and fix it with the arm clamp.

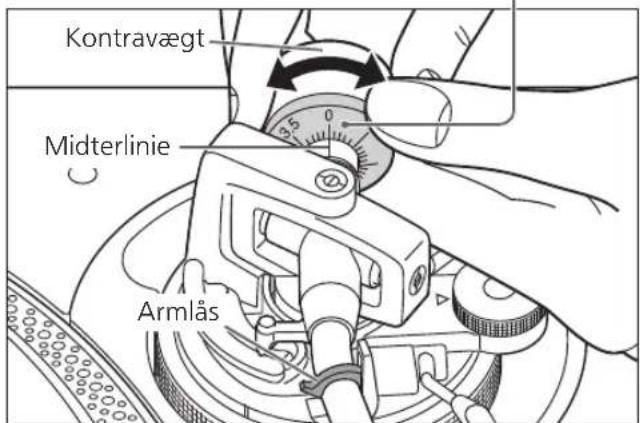

1 Turn the stylus pressure control until "0" comes to the centre line of the rear of the tone arm.

- Hold the balance weight still while doing this.

Stylus pressure control Hold here to turn

Balance weight Centre line Arm clamp

Note

- Refer to the user's guide for your stylus for the appropriate stylus pressure.

2 Turn the balance weight to adjust to the appropriate stylus pressure for the cartridge.

● The stylus pressure control will turn together with the balance weight.
- Turn until the centre line points to the appropriate stylus pressure.

Balance weight Hold here to turn Turns together Centre line

Anti-skating

1 Turn the anti-skating control to adjust it to the same value as the stylus pressure control.

Illustration of a hand using a mechanical tool to adjust a dial indicator (no text or symbols present)

Note

• For stylus pressures 3 g and above, adjust anti-skating control to "3".
• When performing scratching (including reverse play), adjust the anti-skating control depending on the scratch movements to perform to reduce skating.

Adjustment (continued)

Tone arm height

Make this adjustment only if the cartridge you are using makes it necessary.

Preparation

- Put a record on the turntable.

1 Release the arm lock.

Arm lock

(Released) (Locked) LOCK

2 Adjust the height with the arm-height control ring.

Adjust the arm height until the tone arm becomes parallel to the record.

① Use the chart below as reference to find the appropriate position mark for the height of your cartridge.

(For supplied head shell)

	Cartridge height (H) in millimeters	Height control position
	17	0
	18	1
	19	2
	20	3
	21	4
	22	5
	23	6

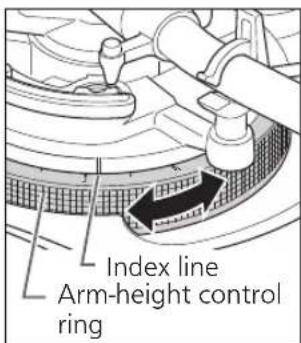

② Turn the arm-height control ring to align the position mark with the index line. 0 to 6 mm are marked on the arm-height control ring.

Index line Arm-height control ring

Note

- When performing scratching (including reverse play), adjust the arm-height control ring depending on the scratch movements to perform to reduce skating.

■ When you don't know the cartridge height (H) or when you don't use the supplied head shell

Remove the stylus cover, taking care not to damage the stylus, then release the arm clamp. Lower the cue lever, rest the stylus on the record and adjust the height control until the tone arm and record are parallel.

- If the cartridge height (H) is too small to make them parallel to each other, add a "cartridge spacer" (not supplied).

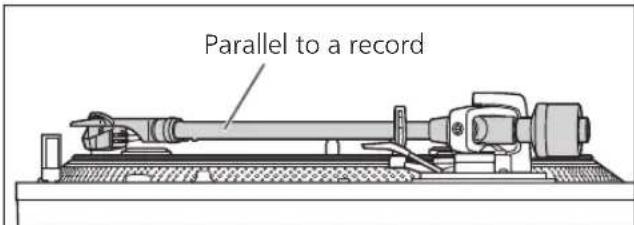

Parallel to a record

3 After arm height adjustment is finished, lock the tone arm by turning the arm lock knob.

- Be sure to turn the arm lock knob to the end as shown in the figure below. You may need to apply some force to do so.

LOCK ANTI-SKATING ε/3

Attention

• Be careful not to damage the stylus tip.
• Do not use the product with the arm lock released.
• For finer adjustment, use a level (not included) to adjust the arm height so that the cartridge becomes parallel to a record.

Armlift height

Make an adjustment according to your cartridge if necessary.

Preparation

• Put a record on the turntable.
• Remove the stylus cover, taking care not to damage the stylus, then release the arm clamp.
• Lift the cue lever and move the tone arm over the record.

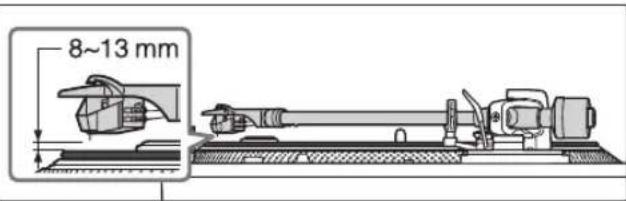

1 Check the armlift height (distance between the stylus tip and record surface). If adjustment is needed, go to step 2.

- The armlift height is factory-adjusted to 8 to 13 mm.

8~13 mm

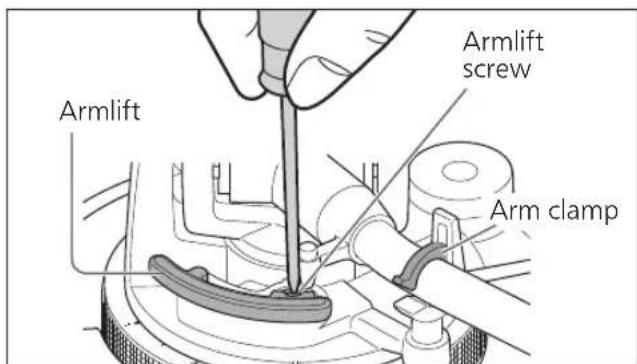

2 Return the tone arm to the arm rest and fix it with the arm clamp. Turn the adjustment screw.

• Turning the screw clockwise lowers the armlift.
• Turning the screw anti-clockwise raises the armlift.

Armlift Armlift screw Arm clamp

Operation settings

Allows for LED colour setting, reverse playback setting, 78 rpm setting, torque setting and brake setting.

①Turn the unit off and pull out the power plug. ②Adjust as desired by setting the switches with a fine Phillips head screwdriver and the like.

ON OFF Switch no. ON 1 2 3 4 5 6 7 8 ON ↑ LED | REV 78 TQ1 TQ2 BK1 BK2

LED colour setting

Allows you to select red or blue for the colour of the strobe light, speed select buttons, pitch range select button and RESET LED lamp.

	Switch no.: 1 (LED)
Red	OFF (Factory setting)
Blue	ON

Reverse playback setting

Allows you to disable or enable reverse playback. (⇒ 19)

	Switch no.: 3 (REV)
REV disabled	OFF (Factory setting)
REV enabled	ON

78 rpm setting

Allows you to disable or enable 78 rpm. (⇒ 19)

	Switch no.: 4 (78)
78 rpm disabled	OFF (Factory setting)
78 rpm enabled	ON

Torque setting

Allows you to select from four levels of strength to adjust the torque.

		Switch no.: 5 (TQ1) Switch no.: 6 (TQ2)
High	1	ON ON
	2	OFF ON
Low	3	OFF (Factory setting) OFF (Factory setting)
	4	ON OFF

Brake setting

Allows you to select from four levels of brake strength to stop the turntable after [START-STOP] is pressed.

		Switch no.: 7 (BK1) Switch no.: 8 (BK2)
High	1	OFF ON
	2	OFF (Factory setting) OFF (Factory setting)
	3	ON OFF
	4	ON ON

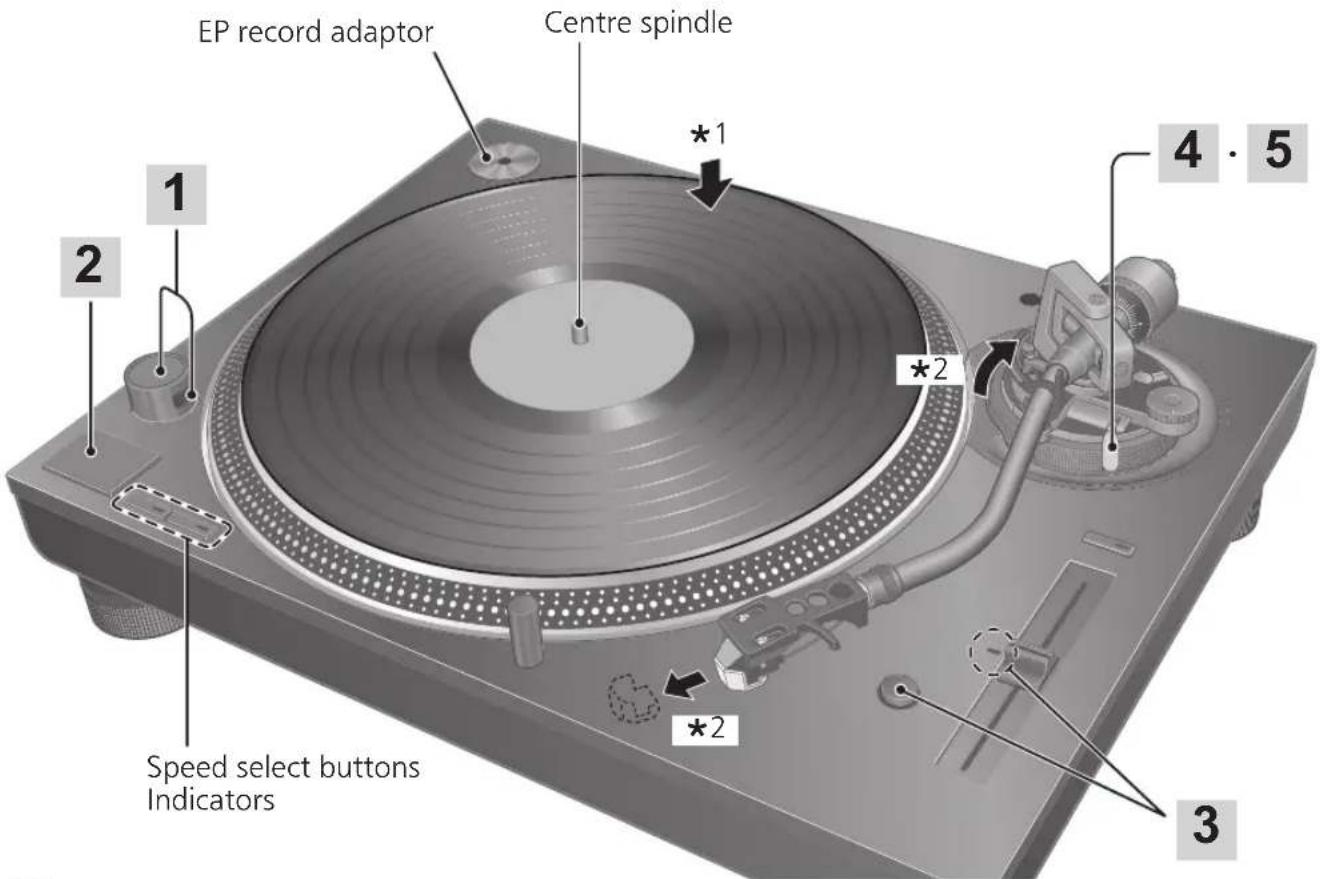

Playing records

Preparation

*1 Put a record (not included) on the turntable.
*2 Take off the stylus cover and release the arm clamp.

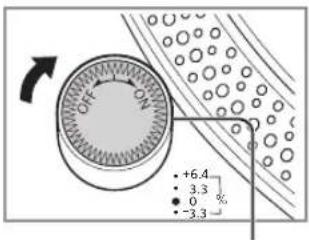

1 Turn [ON/OFF] to turn the unit on.

The strobe light comes on. 33-1/3 rpm is automatically selected and the indicator [33] lights.

2 Press [START-STOP].

The turntable starts revolving.

+6.4 3.3 0 -3.3

Strobe light

33 45 Indicator

START-STOP 33

Attention

Do not press [START-STOP] when the turntable is removed.

If you have accidentally pressed [START-STOP]

● The indicator of the speed select button ([33] or [45]) starts blinking.
⇒If it is blinking, turn [ON/OFF] to turn the unit off, fit the turntable and then turn [ON/OFF] to turn the unit on.

EP record adaptor Centre spindle *1 2 1 4 · 5 *2 *2 Speed select buttons Indicators 3

3 Press [RESET] to light the pitch control RESET LED lamp.

The unit plays at a preset pitch (33-1/3, 45 or 78 rpm) regardless of the [PITCH ADJ] position.

RESET LED lamp RESET button PITCH ADJ

- Fine adjustment to pitch ( 20)

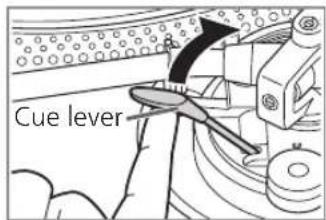

4 Lift the cue lever and move the tone arm over the record.

Cue lever

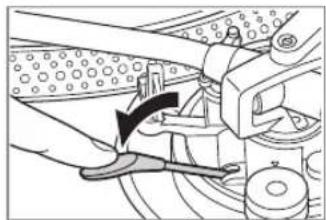

5 Lower the cue lever slowly. The tone arm moves down slowly.

Mechanical assembly diagram showing a hand operating a lever with a curved arrow indicating motion (no text or symbols present)

Play starts.

■ To play in reverse

• Enable reverse playback with the Reverse playback setting ( 17).
• Simultaneously press the turntable speed select button or buttons ([33], [45] or [33] and [45]) and [START-STOP] while the turntable is rotating.
• Reverse playback starts at the turntable speed selected by pressing the speed select button or buttons.
• To return to normal playback, press [START-STOP] again while pressing the turntable speed select button or buttons.
• Pressing [START-STOP] again after pressing [START-STOP] during reverse playback starts normal playback.
• Simultaneously pressing the turntable speed select button or buttons and [START-STOP] with the turntable stopped starts reverse playback.

■ To temporarily stop play

Lift the cue lever.

● The stylus lifts off the record.
- To start play again, lower the cue lever.

■ When play finishes

① Lift the cue lever, return the tone arm to the arm rest and lower the cue lever.
② Press [START-STOP]. The electronic brake gently stops the turntable.
③ Turn [ON/OFF] to turn the unit off.
④ Clamp the tone arm with the arm clamp.
⑤ Put the stylus cover back on (to protect the stylus tip).

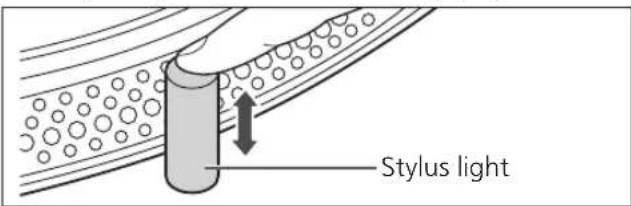

■ To light up the stylus

The stylus tip is illuminated during play.

Stylus light

Press the stylus light.

● The stylus light (white LED) rises up and illuminates the stylus.
- Press down the stylus light to turn off the light.

■ When playing EP records

• Press the speed select button [45] ([45] lights).
• Fit the EP record adaptor over the centre spindle.

■ When playing SP (78 rpm) records

• Enable 78 rpm with the 78 rpm setting ( 17).
• Press the speed select buttons [33] and [45] at the same time (78 rpm: [33] and [45] light).

■ When using a record stabilizer (not included)

• See the instruction manual of the record stabilizer.
  • Maximum weight: 1 kg

Pitch control (fine adjustment to pitch)

1 Press [RESET] to turn off the RESET LED lamp.

2 Press the pitch range select button to select the pitch range.

• [×2] light on: ±16%
- [× 2] light off: ± 8%

3 While the turntable is revolving

Slide [PITCH ADJ].

• Pitch can be adjusted between approx. -8% and +8% or approx. -16% and +16% according to your selection.
• The numbers represent approximate percentages for your adjustment.

Pitch range select button RESET LED lamp Pitch ADJ control RESET button PITCH ADJ

■ To reset pitch to the preset value

Press [RESET].

The RESET LED lamp lights and the pitch immediately returns to a preset value regardless of the [PITCH ADJ] position.

(33-1/3, 45 or 78 rpm)

• RESET LED on: Fixed to the preset value.
• RESET LED off: Can be adjusted with [PITCH ADJ].

■ To measure pitch

The four rows of strobe mirrors around the edge of the turntable can assist you in measuring pitch.

Strobe mirrors

a b c d

(a) +6.4% change in pitch when stationary
(b) +3.3% change in pitch when stationary
© Normal turntable speed (33-1/3, 45 or 78 rpm) when stationary
(d)-3.3% change in pitch when stationary

Attention

The strobe mirrors are lit by the strobe light (LED lighting) synchronized with the precise frequency of the digital control.

Always use this LED lighting to measure the pitch.

Strobe light OFF ON +6.4 3.3 0 % -3.3

Maintenance

■ Care of the parts

Thoroughly clean dust off the stylus and record.

● Take off the head shell with the cartridge and clean the stylus using a soft brush. Brush from the base to the tip.
- Use a record cleaner to keep your records clean.

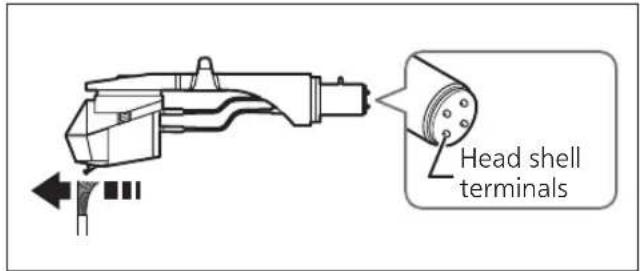

Head shell terminals

Wipe the head shell terminals occasionally. Wipe the head shell terminals with a soft cloth and fit the head shell to the tone arm.

Turn the amplifier volume down or turn the amplifier off before fitting or removing the head shell.

Damage to your speakers can occur if the head shell is moved while the volume is turned up.

■ Cleaning the dust cover and cabinet

Wipe the dust cover and cabinet with a soft cloth.

Do not touch the board while cleaning. Otherwise, the player may fail.

When dirt is heavy, wring a wet cloth tightly to wipe the dirt, and then wipe it with a soft cloth.

- Do not use solvents including benzene, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This might cause the exterior case to be deformed or the coating to come off.

- Do not wipe the dust cover when it is in place. Doing so may cause the tone arm to be attracted towards the dust cover as a result of the generated static electricity. Be sure the dust cover is removed while playing a record.

■ Moving the unit

Repackage the unit in the packaging it came in.

Keep the packaging materials after taking out the goods.

If you no longer have the packaging, do the following:

● Take off the turntable and slipmat and carefully wrap them.
- Remove the head shell and balance weight from the tone arm and carefully wrap them
- Clamp the tone arm with the arm clamp and tape it in place.
- Carefully wrap the main unit in a blanket or paper.

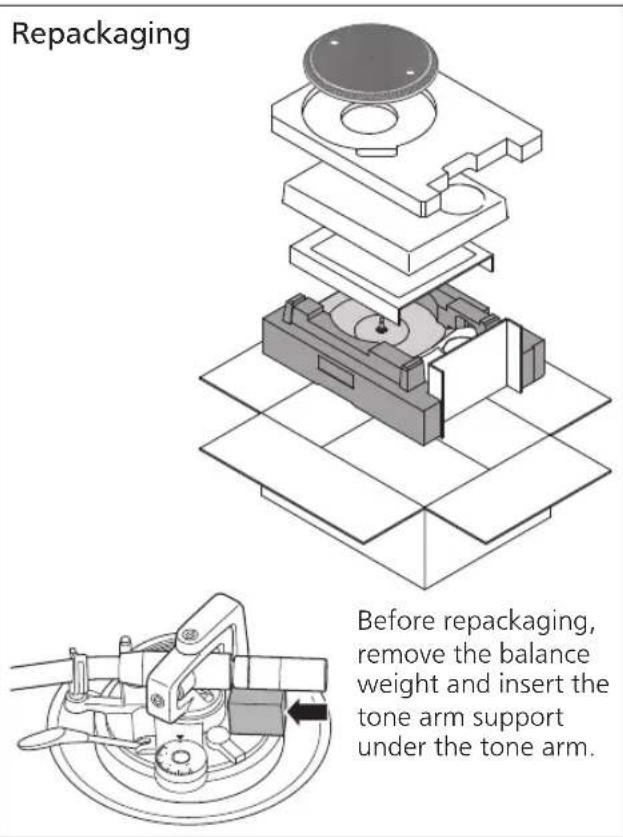

Repackaging Before repackaging, remove the balance weight and insert the tone arm support under the tone arm.

■ WEEE symbol

Disposal of the product outside the EU countries

This symbol is valid within the EU only.

Contact a local governmental office or your dealer to confirm a right manner of disposal.

Troubleshooting guide

Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, contact your dealer.

No power.

• Is the AC mains lead plugged in?
  →Plug the mains lead in firmly. (⇒ 12)

There is power but no sound.

Sound is weak.

• Are connections to the amplifier/receiver's PHONO terminals correct?
  →Connect the PHONO cables to the amplifier's PHONO input terminals. (⇒ 12)

Left and right sounds are reversed.

• Are the stereo connection cable connections to the amplifier or receiver reversed?
  →Double check all connections. (⇒ 12)
• Are connections of the head shell's lead wires to the cartridge terminals correct?
  →Double check all connections. (⇒ 9)

Humming is heard during play.

• Are there other appliances or their AC mains lead near the stereo connection cable?
  →Separate the appliances and their AC mains lead from this unit.
• Is the earth lead connected?
  →Make sure the earth lead is correctly connected. (⇒ 12)

The indicator on the speed select button [33] or [45] blinks.

Perform the following operations when the indicator on the speed select button [33] or [45] blinks. The symptom may be improved.

① Turn [ON/OFF] to OFF.
② Pull out the power plug, wait for three seconds, and then insert the plug again.
③ Turn [ON/OFF] to ON and press [START-STOP] to rotate the turntable.

- If the indicator on the speed select button blinks again, check which one is blinking and contact our service representative.

Specifications

General
Power supply AC 1	10 - 240 V, 50/60 Hz
Power consumption	8.0 W (Power ON)Approx. 0.2 W (Power OFF)
Dimensions (W×H×D)	453 x 169 x 353 mm
Mass Approx. 9.6 k	g
Operating temperature range	0 °C to +40 °C
Operating humidity range	35% to 80%RH(no condensation)
Turntable section
Type Direct drive manual turntable
Drive method Direct drive
Motor Brushless DC motor
Turntable platter Aluminum diecast Diameter: 332 mm Weight: About 1.8 kg (Including slipmat and slip sheet)
Turntable speeds 33- 1/3 rpm, 45 rpm (with switch 78 rpm)
Variable range pitch	±8%, ±16%
Starting torque 1.8 k g-cm
Build-up characteristics	0.7 s. from standstill to 33-1/3 rpm
Braking system Elec tronic brake
Wow and flutter 0.025% WRMS

Tone arm section
Type Static Balance
Effective length 23	0 mm
Overhang 15 mm
Tracking error angle	Within 2° 32'(at the outer groove of 30 cm (12") record)Within 0° 32'(at the inner groove of 30 cm (12") record)
Offset angle 22°
Arm-height adjustment range	0 - 6 mm
Stylus pressure adjustment range	0 - 4 g (direct reading)
Head shell weight	Approx. 7.6 g
Applicable cartridge weight range	5.6 - 12.0 g(without auxiliary weight)14.3 - 20.7 g(including the head shell)
Shell terminal ø1.2	mm 4 pin terminal

Specifications are subject to change without notice.

Red Bull® Marks and the Red Bull BC One Logo are licensed by Red Bull GmbH/Austria.

Einleitung

Three identical mechanical component diagrams with no text or symbols

Technical diagram of a mechanical device with labeled parts and directional arrow indicating rotation or movement

Illustration of a hand pressing down on a circular object with an upward arrow (no text or symbols)

Illustration of hands operating a CD or DVD disc with an open lid and stand (no text or symbols visible)

Achtung

Diagram showing three mechanical linkage configurations with symbols for '○', '×', and cross symbols, likely illustrating a mechanical or electrical system.

Illustration of a hand using a caliper to adjust a dial indicator (no text or symbols present)

Hinweis

Lifthebel

Mechanical assembly diagram showing a tool interacting with a component (no text or symbols visible)

Exploded view diagram of a mechanical assembly with layered components (no text or symbols)

Mechanical assembly diagram showing a rotating component with a directional arrow (no text or labels)

Raccordements et installation 12

Three identical mechanical component diagrams with no text or symbols

Illustration of a hand pressing down on a circular object with an upward arrow (no text or symbols)

Raccordements et installation

Illustration of hands operating a CD or DVD disc with an open lid and stand (no text or symbols visible)

Attention

Illustration of a hand using a mechanical tool to adjust a dial indicator (no text or symbols present)

Remarque

Mechanical assembly diagram showing a lever interacting with a car wheel and gear (no text or symbols visible)

La lecture commence.

Exploded view diagram of a mechanical assembly with layered components (no text or symbols)

Mechanical assembly diagram showing a rotating component with a directional arrow (no text or labels)

Three identical mechanical component diagrams showing a shaft, housing, and mounting bracket with no text or symbols

Illustration of a hand pressing down on a circular object with an upward arrow (no text or symbols)

Illustration of hands operating a CD or DVD disc with an arrow indicating vertical motion (no text or symbols present)

Attenzione

Illustration of a hand using a caliper to adjust a dial, showing mechanical components and tool (no text or symbols)

Nota

M +6.4 3.3 0 -3.3

Luce strobo

33 45 Indicatore

START-STOP 33

Attenzione

Spia RESET LED Pulsante RESET

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols present)

Exploded view diagram of a mechanical assembly with layered components (no text or symbols)

Mechanical assembly diagram showing a brake caliper and wheel assembly (no text or labels)

Simbolo RAEE

Three identical mechanical valve diagrams with no text or symbols

Contrapeso principal

Nota

- El interior del contrapeso está engrasado.

Illustration of a hand pressing down on a circular object with an upward arrow (no text or symbols)

Illustration of hands operating a CD or DVD disc with a tab, showing mechanical components and a vertical arrow indicating motion (no text or symbols present)

Atención

Illustration of a hand using a mechanical tool to adjust a dial indicator (no text or symbols present)

Nota

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Exploded view diagram of a mechanical assembly with layered components (no text or symbols)

Mechanical assembly diagram showing a brake caliper and wheel assembly (no text or labels)

Símbolo WEEE

Nålespids 52 mm

Three mechanical component diagrams showing a shaft, housing, and mounting bracket with no text or symbols

Illustration of a hand pressing down on a circular object with an upward arrow (no text or symbols)

Tilslutning og opstilling

Illustration of hands operating a CD or DVD disc with an attached stand, showing mechanical components and a vertical double-headed arrow (no text or symbols)

Bemærk

Hold her for at dreje

Illustration of a hand using a caliper to adjust a dial, showing mechanical components and tool (no text or symbols)

NB

(Fri) (Last) LOCK

Pickup-lift

5 Sænk pickup-liften langsomt. Tonearmen går langsomt ned.

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols present)

Exploded view diagram of a mechanical assembly with layered components (no text or symbols)

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Three identical mechanical or electrical component diagrams with no visible text, numbers, or symbols.

Illustration of a hand pressing down on a circular object with an upward arrow (no text or symbols)

Illustration of hands operating a CD or DVD disc with an open lid and stand (no text or symbols visible)

Aandacht

Diagram showing three mechanical linkage configurations with cross symbols, no text or labels present

Illustration of a hand using a mechanical tool to adjust a dial indicator (no text or symbols present)

Opmerking

RESET ledlampje RESET- knop

Armlifthefboom

Mechanical assembly diagram showing a tool interacting with a component (no text or symbols visible)

(33-1/3, 45 of 78 rpm)

Exploded view diagram of a mechanical assembly with layered components (no text or symbols)

Mechanical assembly diagram showing a rotating component with a belt and wheel (no text or symbols)

WEEE-symbool

Three mechanical assembly diagrams showing a cylindrical component with three cross symbols, no text or labels present.

Illustration of a hand pressing down on a circular object with an upward arrow (no text or symbols)

Illustration of hands operating a CD or DVD disc with an arrow indicating direction (no text or symbols present)

Observera

Illustration of a hand using a caliper to adjust a dial indicator (no text or symbols present)

Notera

Mechanical assembly diagram showing a tool interacting with a component (no text or symbols visible)

Exploded view diagram of a mechanical assembly with layered components (no text or symbols)

Mechanical assembly diagram showing a rotating component with a belt and pulley (no text or symbols)

Three mechanical component diagrams showing a valve or actuator assembly with no visible text or symbols

Illustration of hands performing a finger pressing on a circular object with an upward arrow (no text or symbols)

Illustration of hands operating a CD or DVD disc with an open lid and stand (no text or symbols visible)

Huomio

Diagram showing three mechanical linkage configurations with cross and circle symbols, no text or labels present

Illustration of a hand using a mechanical tool to adjust a dial indicator (no text or symbols present)

Huomaa

Mechanical assembly diagram showing a lever and guide mechanism (no text or symbols)

Toisto alkaa.

Exploded view diagram of a mechanical assembly with layered components (no text or symbols)

Mechanical assembly diagram showing a rotating wheel and mechanical components (no text or labels)

Three identical mechanical component diagrams with circles and crosses, no text or symbols present

Illustration of a hand pressing down on a circular object with a black upward arrow (no text or symbols)

Illustration of hands operating a CD or DVD disc with a measuring tool, showing mechanical components and an upward arrow (no text or symbols)

Uwaga

Diagram showing three mechanical linkage configurations with cross and circle symbols, no text or labels present

Illustration of a hand using a caliper to adjust a dial, showing mechanical components and tool (no text or symbols)

Notatka

M +6.4 3.3 0 -3.3

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols present)

Exploded view diagram of a mechanical assembly with layered components (no text or symbols)

Mechanical assembly diagram showing a rotating component with a directional arrow (no text or labels)

Three mechanical component diagrams showing a cylindrical assembly with mounting holes and a cross symbol, no text or labels present.

Illustration of a hand pressing down on a circular object with an upward arrow (no text or symbols)

Illustration of hands operating a CD or DVD disc with a measuring tool, showing mechanical components and a vertical arrow indicating motion (no text or symbols present)

Внимание

Illustration of a hand using a mechanical tool to adjust a dial indicator (no text or symbols present)

Примечание

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Three identical mechanical component diagrams with circles and crosses, no text or symbols present

Illustration of a hand pressing down on a circular object with an upward arrow (no text or symbols)

Illustration of hands operating a CD or DVD disc with a cutting board and stand (no text or symbols)

Увара!

Diagram showing three mechanical linkage configurations with cross symbols, no text or labels present

Illustration of a hand using a caliper to adjust a dial, showing mechanical components and tool (no text or symbols)

Примітка

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols
