Product type	Hammer drill (impact drill)
Brand	Black & Decker
Model	BDHD500
Input voltage	230 V AC
Power consumption	500 W
No-load speed	0 - 2900 min⁻¹
Max. drilling capacity (concrete)	13 mm
Max. drilling capacity (steel)	13 mm
Max. drilling capacity (wood)	20 mm
Weight (with side handle)	1.69 kg
Sound pressure level	88 dB(A) (uncertainty 5 dB(A))
Sound power level	99 dB(A) (uncertainty 5 dB(A))
Vibration - hammer drilling in concrete	17.7 m/s² (uncertainty 1.5 m/s²)
Vibration - drilling in metal	2.7 m/s² (uncertainty 1.5 m/s²)
Double insulation	Yes (no ground wire required)
Warranty	24 months
Main functions	Hammer drilling, standard drilling, screwdriving
Variable speed	Yes (variable speed trigger)
Continuous on/off	Yes (lock button)
Rotation direction	Forward/Reverse
Chuck	Keyless
Side handle	Included, adjustable
Depth gauge	Not supplied, but compatible
Maintenance and cleaning	Clean ventilation slots with a soft brush; open the chuck and remove dust
Safety	Hearing protection recommended; do not touch the drill bit after drilling; use a dust mask
Spare parts and repairability	Repair by qualified technician using original parts; authorized Black & Decker service center

Frequently Asked Questions - BDHD500 BLACK & DECKER

What type of drill bit should I use with the BDHD500?

Use hammer drill bits for masonry and concrete, standard drill bits for steel, wood, and plastic. The maximum capacity is 13 mm for concrete and steel, and 20 mm for wood.

How do I adjust the drilling depth?

Loosen the side handle, insert the depth gauge (not supplied) into the mounting hole, set the desired depth, then tighten the handle. The maximum depth is the distance from the tip of the drill bit to the front end of the gauge.

Can I use the tool continuously?

Yes, press the variable speed trigger, then press the lock button (only in forward direction at full speed). Release the trigger to lock it. To stop, press the trigger again.

How do I choose between drilling and hammer drilling mode?

Use the mode selector (4). Position T for hammer drilling (concrete, masonry). Position 2 for standard drilling (steel, wood, plastic) and screwdriving.

Is the tool double insulated?

Yes, the BDHD500 is double insulated, so it does not require a ground wire. Ensure that the mains voltage matches the voltage on the rating plate (230 V AC).

How do I install the side handle?

Turn the handle knob counterclockwise, slide the handle onto the front of the tool, rotate it to the desired position by engaging the notches into the gear, then tighten by turning the knob clockwise.

What protective equipment should I wear?

Always wear eye protection. For hammer drilling, wear hearing protection. Use a dust mask if necessary. Wear close-fitting clothing and non-slip footwear.

How do I clean and maintain the tool?

Before any maintenance, turn off and unplug the tool. Regularly clean the ventilation slots with a soft brush or dry cloth. Open the chuck and tap to remove dust. Clean the motor housing with a damp cloth, without abrasive detergents.

What should I do if the power cord is damaged?

The damaged cord must be replaced by the manufacturer or an authorized Black & Decker service center to avoid danger. Do not attempt to repair it yourself.

What is the warranty for this product?

Black & Decker offers a 24-month warranty from the date of purchase within the European Union and EFTA. For any claim, provide proof of purchase to the seller or authorized repairer. See the terms and conditions at www.2helpU.com.

USER MANUAL BDHD500 BLACK & DECKER

BLACK+ DECKER™

BLACK+ DECKER 1 2 3 4 5 6 7

English (original instructions)...... 4

6a 7a 6c 6b 7 A

Technical illustration of a black-and-decker electric shaver with directional arrow indicating motion (no text or symbols)

Technical diagram showing a drill bit being inserted into a drill bit, with labeled component 5 and part identifier C.

BLACK+ DECKER 3 D

Line drawing of a worker using a drill bit, no text or symbols present

Technical diagram of a vehicle front panel with labeled component 4 and part identifier F

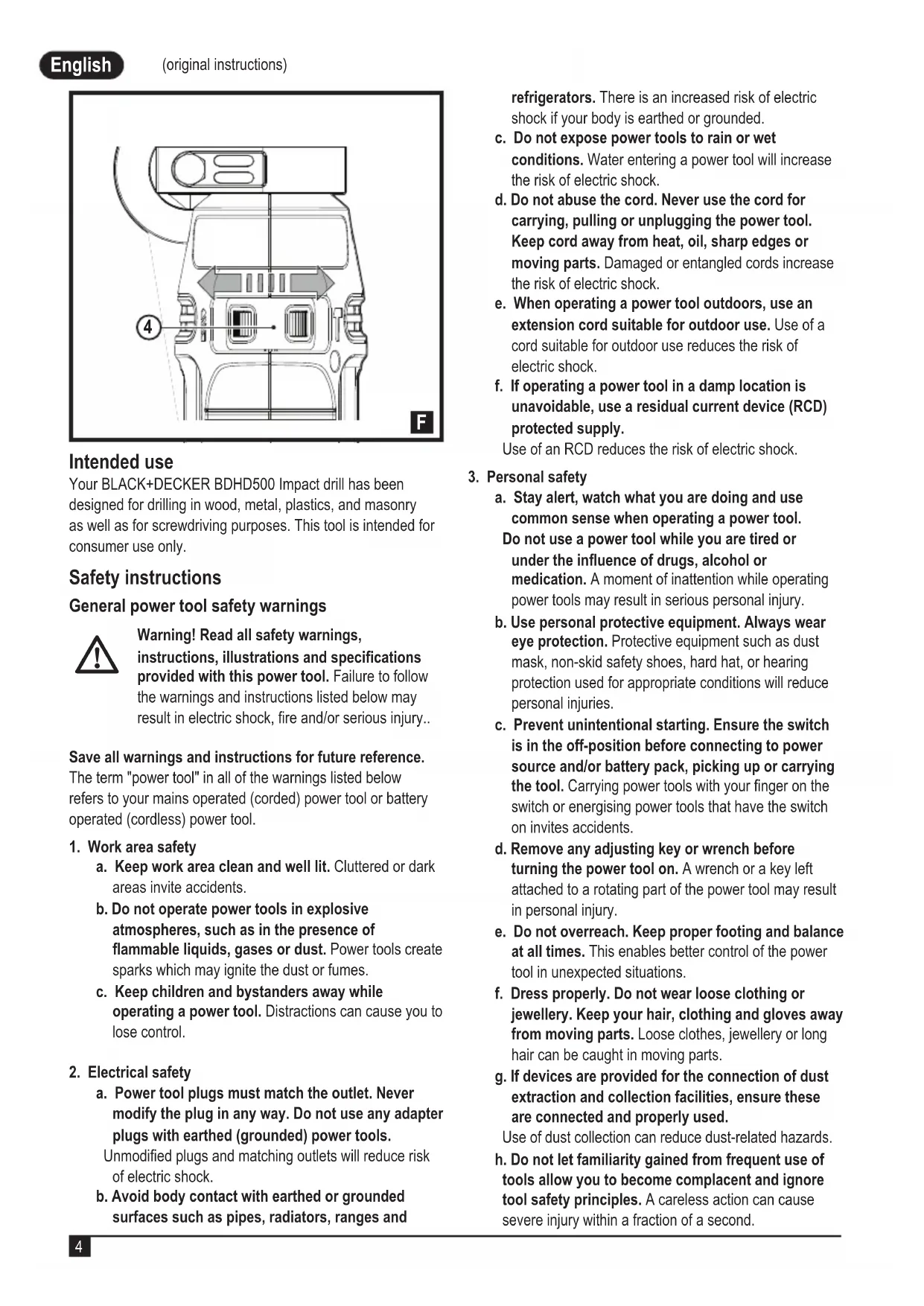

Intended use

Your BLACK+DECKER BDHD500 Impact drill has been designed for drilling in wood, metal, plastics, and masonry as well as for screwdriving purposes. This tool is intended for consumer use only.

Safety instructions

General power tool safety warnings

Warning! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury..

Save all warnings and instructions for future reference.

The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

Additional power tool safety warnings

Warning! Additional safety warnings for rotary and chiselling hammers

• Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
  Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
• Brace the tool properly before use. This tool produces a high output torque and without properly bracing the tool during operation, loss of control may occur resulting in personal injury.

- Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Safety instructions when using long drill bits

• Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
  ◆ Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
• Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.
• Never use a chisel accessory in rotary mode. The accessory will bind in the material and rotate the drill.
• Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
• Before drilling into walls, floors or ceilings, check for the location of wiring and pipes.
• Avoid touching the tip of a drill bit just after drilling, as it may be hot.
• The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.
  ◆ Use a face or dust mask whenever the operations may produce dust or flying particles.

Safety of others

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ◆ Children should be supervised to ensure that they do not play with the appliance.

Residual risks.

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.

Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

◆ Injuries caused by touching any rotating/moving parts.
◆ Injuries caused when changing any parts, blades or accessories.

English

(original instructions)

• Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
  ◆ Impairment of hearing.
  ◆ Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)

Vibration

The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 62841 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.

Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.

When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

Labels on tool

The following pictograms are shown on the tool along with the date code:

Warning! To reduce the risk of injury, the user must read the instruction manual.

Wear ear protectors with Impact drills. Exposure to noise can cause hearing loss

Electrical safety

This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.

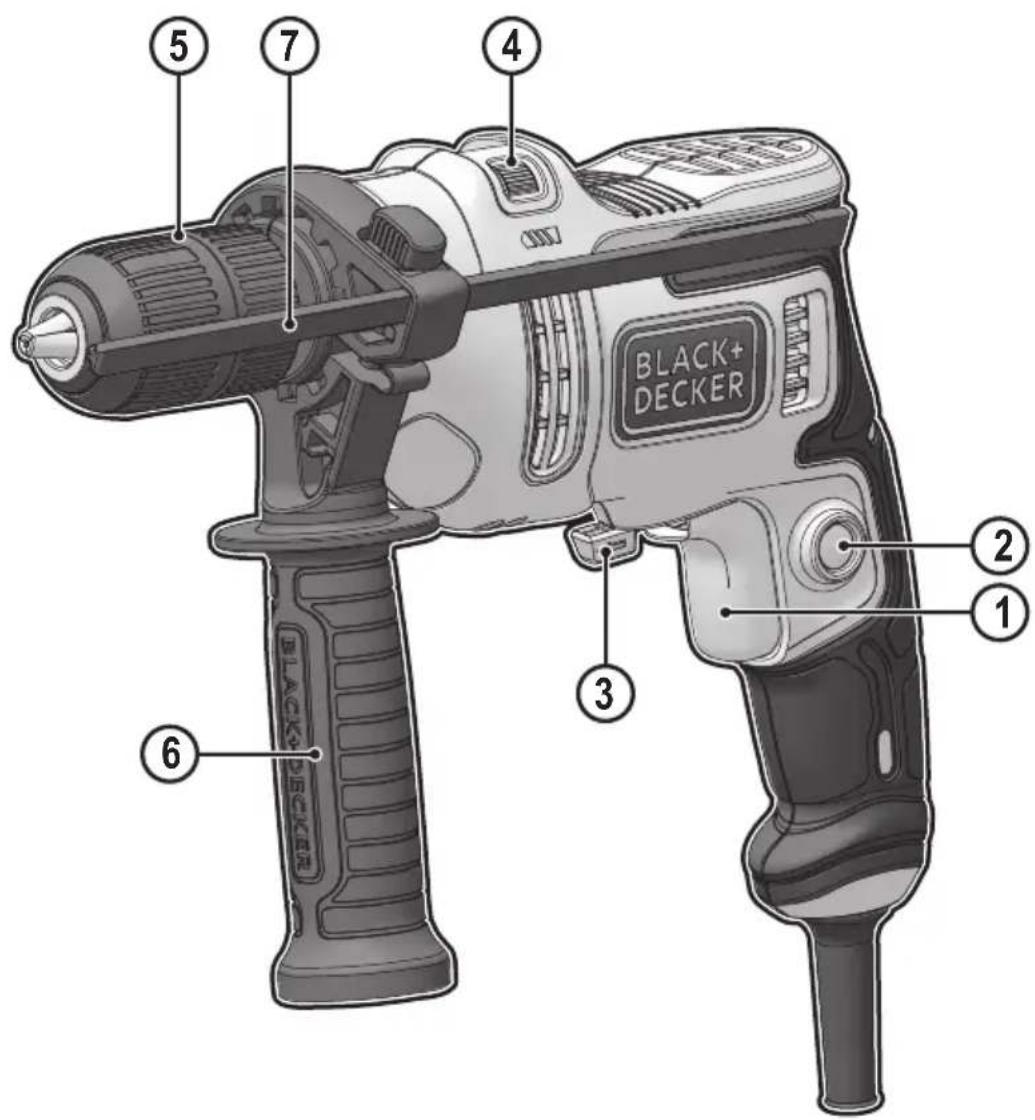

Features

1. Variable speed switch
2. Lock on button
3. Forward/reverse switch
4. Drilling mode selector
5. Chuck
6. Side handle
7. Depth gauge (Not Supplied)

Assembly

Warning! Before assembly, make sure that the tool is switched off and unplugged.

Fitting the side handle and depth guage (fig. A, B)

• Turn the knob (6c) counter clockwise until you can slide the side handle (6) onto the front of the tool as shown.
  ◆ Rotate the side handle into the desired position ensuring that the notches (6a) engage with the sprocket (6b).
  ◆ Insert the depth guage (7) (Not Supplied) into the mounting hole (7a).
  ◆ Set the drilling depth as described below.
  ◆ Tighten the side handle by turning the knob (6c) clockwise.

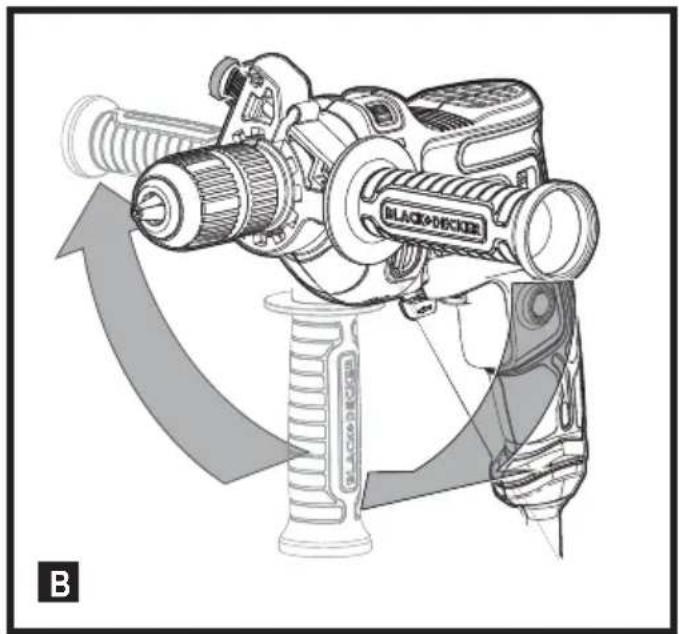

Note: the side handle can be positioned as shown in figure B, depending on personal preference.

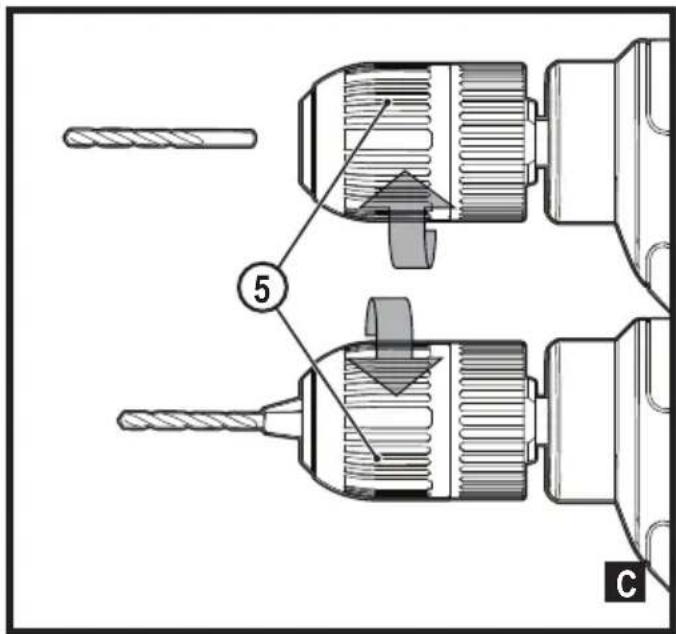

Fitting a drill bit (fig. C)

◆ Open the chuck by turning the front part with one hand while holding the rear part with the other.
- Insert the bit shaft into the chuck and firmly tighten the chuck.

Use

Warning! Let the tool work at its own pace. Do not overload.

Warning! Before drilling into walls, floors or ceilings, check for the location of wiring and pipes.

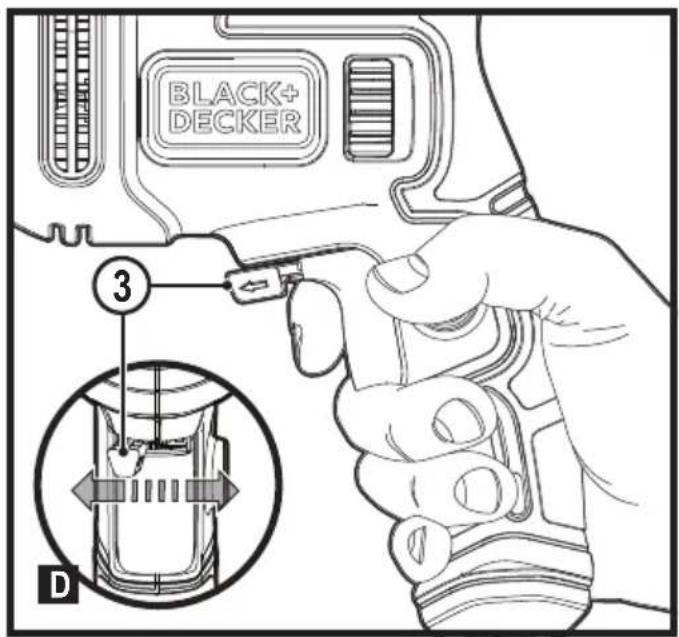

Selecting the direction of rotation (fig. D)

For drilling and for tightening screws, use forward (clockwise) rotation. For loosening screws or removing a jammed drill bit, use reverse (counter clockwise) rotation.

◆ To select forward rotation, push the forward/reverse switch (3) to the left position.
◆ To select reverse rotation, push the forward/reverse button to the right.

Warning! Never change the direction of rotation while the motor is running.

Setting the drilling depth (fig. A)

• Slacken the side handle (6) by turning the knob (6a) counter clockwise.
• Set the depth guage (7) (Not Supplied) to the desired position. The maximum drilling depth is equal to the distance between the tip of the drill bit and the front end of the depth guage.
  ◆ Tighten the side handle by turning the knob (6c) clockwise.

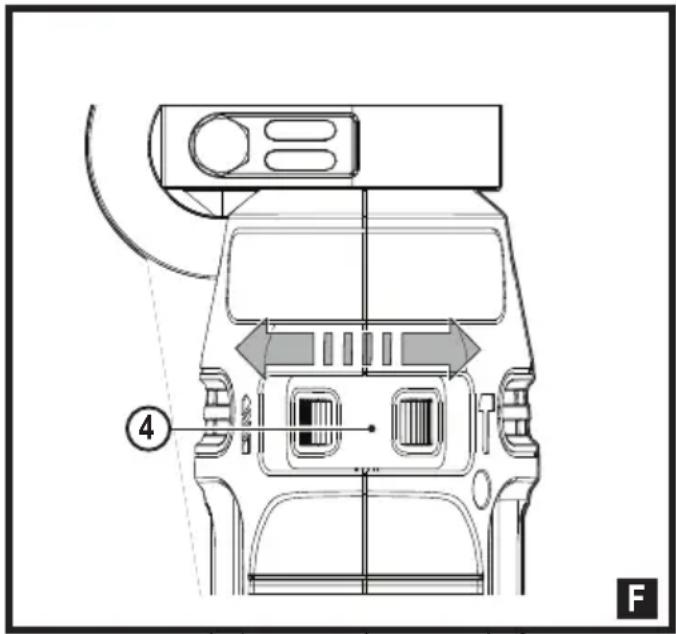

Selecting the drilling mode (fig. F)

• For Impact drilling in masonry and concrete, set the drilling mode selector (4) to the T position.
• For drilling in steel, wood and plastics or for screw driving set the operating mode selector (4) to the 1 position.

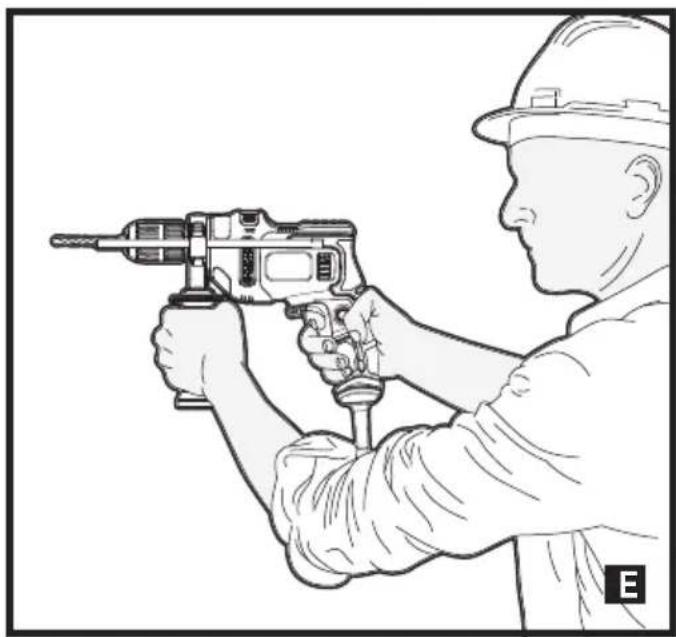

Switching on and off (Fig. E)

• To switch the tool on, press the variable speed switch (1). The tool speed depends on how far you press the switch. As a general rule, use low speeds for large diameter drill bits and high speeds for smaller diameter drill bits.
• For continuous operation, press the lock-on button (2) and release the variable speed switch. The lock on button is available only at full speed in forward mode. In the reverse mode, the lock on button is not available.
• To switch the tool off, release the variable speed switch. To switch the tool off when in continuous operation, press the variable speed switch again and release it. Always hold the tool as shown in figure E.

Accessories

The performance of your tool depends on the accessory used. BLACK+DECKER accessories are engineered to high quality standards and designed to enhance the performance of your tool. By using these accessories you will get the very best from your tool.

Maintenance

Your BLACK+DECKER corded/cordless appliance/tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Warning! Before performing any maintenance on corded/cordless power tools:

◆ Switch off and unplug the appliance/tool.
- Or switch off and remove the battery from the appliance/tool if the appliance/tool has a separate battery pack.
- Or run the battery down completely if it is integral and then switch off.
◆ Unplug the charger before cleaning it. Your charger does not require any maintenance apart from regular cleaning.
- Regularly clean the ventilation slots in your appliance/tool/charger using a soft brush or dry cloth.
- Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
◆ Regularly open the chuck and tap it to remove any dust from the interior (when fitted).

Mains plug replacement (U.K. & Ireland only)

If a new mains plug needs to be fitted:

◆ Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the new plug.
◆ Connect the blue lead to the neutral terminal.

Warning! No connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs.

Recommended fuse: 5 A.

Protecting the environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.

Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials.

Please recycle electrical products and batteries according to local provisions.

Further information is available at www.2helpU.com

Technical data

		BDHD500
Input voltage V	AC	230
Power input W 500
No load speed min	-1	0 ~ 2900
Max. drilling capacity
Concrete mm		13
Steel mm		13
Wood mm		20
Weight kg		1.69 with side handle

Level of sound pressure according to EN 62841:

Sound pressure ( L_pA )88 dB(A), uncertainty (K) 5dB(A)

Sound power ( L_WA )99 dB(A), uncertainty (K) 5 dB(A)

Vibration total values (triax vector sum) according to EN 62841:

Impact drilling into concrete ( a_h,ID ) 17.7 m/s^2 , uncertainty (K) 1,5 m/s^2 Drilling into metal ( a_h,T ) 2.7 m/s^2 , uncertainty (K) 1,5 m/s^2

EC declaration of conformity

MACHINERY DIRECTIVE

BDHD500 Impact drill

Black & Deckerdeclares that these products described under "technical data" are in compliance with: EN62841-1:2015, EN62841-2-1:2018.

These products also comply with Directive 2006/42/EC, 2014/30/EU and 2011/65/EU. For more information, please contact Black & Decker at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

Huggin

Ed Higgins

Director – Consumer Power Tools

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

United Kingdom

07/11/2019

Guarantee

Black & Decker is confident of the quality of its products and offers consumers a 24 month guarantee from the date of purchase. This guarantee is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

To claim on the guarantee, the claim must be in accordance with Black & Decker Terms and Conditions and you will need to submit proof of purchase to the seller or an authorised repair agent. Terms and conditions of the Black & Decker 2 year guarantee and the location of your nearest authorised repair agent can be obtained on the Internet at www.2helpU.com, or by contacting your local Black & Decker office at the address indicated in this manual.

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and receive updates on new products and special offers.

Verwendungszweck

Director – Consumer Power Tools

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Storbritannien

07-11-2019

Garanti

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

United Kingdom

7.11.2019

Záruka

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Royaume-Uni

07/11/2019

Garantie

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Egyesült Királyság

2019/11/07

Garancia határozat

Director – Consumer Power Tools

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

United Kingdom

7.11.2019.

Jamstvo

Black & Decker Europe, 270 Bath Road, Slough, Berkshire, SL1 4DX

Regno Unito

07/11/2019

Garanzia

Director – Consumer Power Tools

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Verenigd Koninkrijk

7-11-2019

Garantie

Stille inn boredybden (Fig. A)

Director – Consumer Power Tools

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Storbritannia

07.11.2019

Garanti

Director – Consumer Power Tools

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Wielka Brytania

07/11/2019

Gwarancja

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Reino Unido

07/11/2019

Garantia

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Vel'ká Británia

1. 1. 2019

Záruka

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Velika Britanija

07.11.2019

Garancija

Black & Decker je siguran u kvalitet svojih proizvoda i nudi potrošačima garanciju od 24 meseca od datuma kupovine. Ova garancija je dodatna i ni na koji način ne osporava vaša zakonska prava. Ova garancija važi na teritorijama država članica Evropske Unije i na slobodnom evropskom tržištu.

Za podnošenje zahteva za garanciju zahtev mora da bude u skladu sa Black & Decker uslovima i neophodno je da podnesete dokaz o kupovini prodavcu ili ovlašćenom serviseru. Uslovi Black & Decker 2 godišnje garancije i lokacije najbližeg ovlašćenog servisera možete naći na Internetu na adresi www.2helpU.com, ili stupanje u kontakt sa vašom lokalnom Black & Decker kancelarijom na adresi označenoj u ovom uputstvu.

Posetite našu web lokaciju www.blackanddecker.co.uk da biste registrovali svoj novi Black & Decker proizvod i da biste bili redovno obaveštavani o novim proizvodima i specijalnim ponudama.

Avsedd användning
