Product type	Combined fridge-freezer
Brand	Samsung
Model	RB3VTS104WW
Total net capacity	Approximately 340 L
Refrigerator volume	Approximately 240 L
Freezer volume	Approximately 100 L
Dimensions (H x W x D)	1850 x 595 x 675 mm
Net weight	Approximately 65 kg
Energy class	F (according to old scale)
Annual consumption	Approximately 280 kWh
Noise level	39 dB(A)
Defrost type	Automatic defrost (refrigerator), manual (freezer)
Refrigerant	R600a
Interior lighting	LED
Shelf material	Tempered glass
Features	Freshness compartment, electronic temperature control, open door alarm
Maintenance and cleaning	Clean interior with a soft cloth and soapy water; check door seals regularly
Safety	Child lock available, use with a grounded outlet
Spare parts and repairability	User-replaceable parts: handles, seals, drawers, hinges; other parts require authorized service
General information	2-year warranty; reversible doors

Frequently Asked Questions - RB3VTS104WW SAMSUNG

How to set the refrigerator temperature?

Use the control panel to adjust the temperature. The recommended setting is 3 to 5 °C for the refrigerator and -18 °C for the freezer.

What to do if the appliance makes excessive noise?

Check that the appliance is level and not touching the walls. Ensure the compressor is working normally. If the noise persists, contact technical service.

How to reverse the refrigerator doors?

Door reversal requires two people. Unplug the appliance, remove the doors and hinges, then reinstall them on the opposite side following the manual instructions. Use recommended tools: Phillips screwdriver, 10 mm wrench, and 8 mm socket wrench.

How to replace the door seal?

Open the door, remove the old seal by pulling it. Attach the new seal ensuring it is well positioned and without gaps to prevent cold air leaks.

How to clean the interior of the refrigerator?

Unplug the appliance, remove food and shelves. Clean with a soft cloth dampened with warm water and mild detergent. Rinse and dry before restarting.

What to do if ice forms in the freezer?

Manually defrost the freezer by unplugging the appliance and leaving the door open. Do not use sharp objects to remove ice. Check that the door closes properly.

How to replace the door handles?

Remove the screw covers with a flathead screwdriver, unscrew the screws with a Phillips screwdriver, then remove the handle. Install the new handle in reverse and tighten the screws firmly.

The appliance is not cooling properly, what to check?

Make sure the power cord is plugged in and the thermostat is set correctly. Check that the ventilation grilles are not obstructed and the condenser is clean.

What is the procedure to remove a drawer?

Lift the front of the drawer slightly and slide it outward to remove. To replace, insert it onto the rails and push until it clicks.

Where to find spare parts?

Visit the Samsung Parts website (http://samsung.com) and enter the model code (RB3VTS104WW) to check available parts. User-replaceable parts are handles, seals, drawers, and hinges.

USER MANUAL RB3VTS104WW SAMSUNG

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com

2. Visit the part purchase site and enter the model code of your product to check the parts available for purchase. The model code is labelled on the outer side of your product.

3. You can check the model code and version on the barcode label at the bottom left of the product.

4. For replacement parts, make sure the part name matches that of the illustration in this manual.

5. User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.
• Be sure to wear safety gloves while making repairs.

English

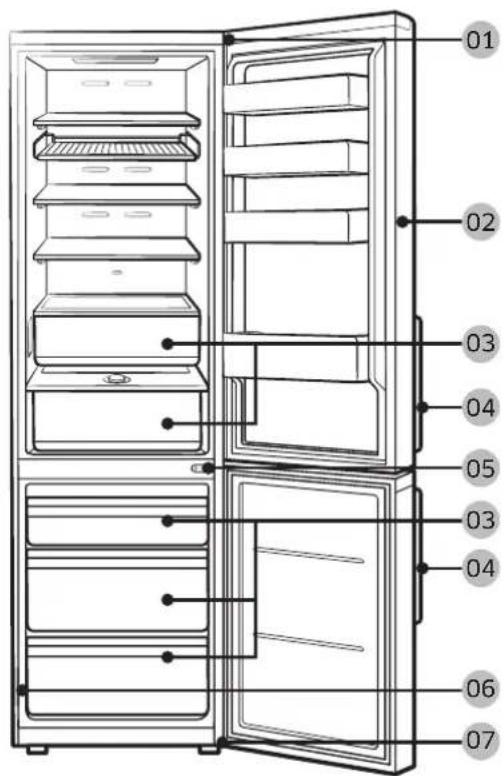

The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

01 Top hinge 02 Gasket
03Drawer 04 Handles (Applicable models only)
05 Middle hinge 06 Barcode label
07 Bottom hinge

English

Handle replacement

Model name looks like this: RB386, RB382, RL386, RB3L*2, RB366, RB362, RL36*6, RL362, RB346, RB34*2, RL346, RL342***

What replaces the asterisks may differ depending on the model.

Asterisk(s) in the model code indicate a variant model and may replace (0-9) or (A-Z) in the model code.

CAUTION

• When replacing the door handle, take care not to scratch the front of the door.
• Firmly press the handles at the supports. Make sure there is no gap between the supports and the door.
• Tightly fasten the screws when attaching the handle.
• Check that the handle is firmly attached before using the product.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver

To detach the handles

NOTE

This procedure applies to both the fridge and freezer compartment.

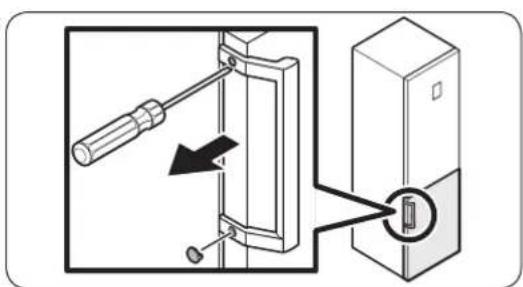

1. Use a flat-head screwdriver to remove the screw covers.

2. After detaching the handle, attach the screw covers back on the screw holes.

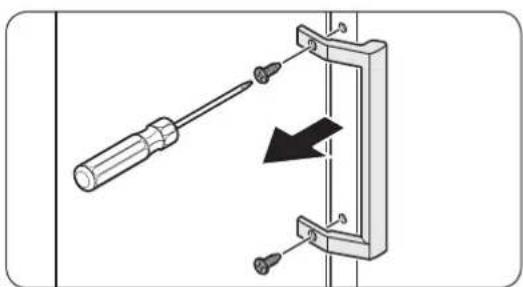

3. Use a Phillips screwdriver to remove the screws and detach the handle.

NOTE

Use these screws to fasten the handle on the opposite side.

1. Assemble the new handle in the reverse order of disassembly.

English

Gasket replacement

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

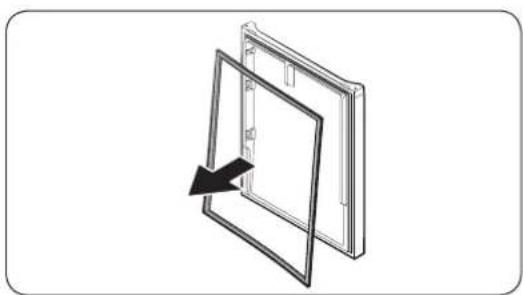

To remove the gasket

Open the door and remove the gasket from the door.

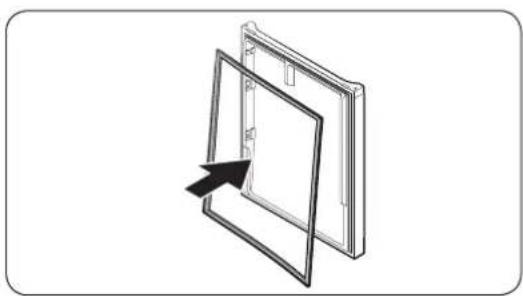

To replace the gasket

Attach a new gasket to the refrigerator door.
Make sure there is no gap between the new gasket and the door.

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

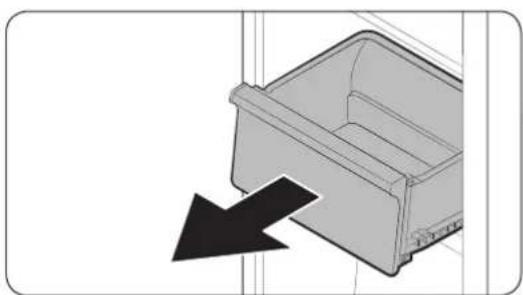

To remove the drawer

Gently lift up the front of the drawer and slide it out.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

English

Hinge replacement

To replace the hinges, you must remove the doors first.

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.
• Before replacing the hinges, put a soft pad such as cardboard on the floor to prevent scratches on the door when you place the doors down.
• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.
  If you remove the hinge without holding the door, the door may fall and cause injury.
• Ensure that the shaft is firmly tightened on the hinge.
• Check that the hinge is firmly attached to the cabinet.
• Make sure the wire connectors are connected properly.
• Be careful not to damage the wires when fastening the top cover.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.
• Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver 11 mm spanner

10 mm socket wrench 8 mm socket wrench 10 mm spanner

English

Reversing the door

NOTE

For the models with handles, reverse the handles first. (For detailed information, see the "Handle replacement (For models with bar handles)" section.)

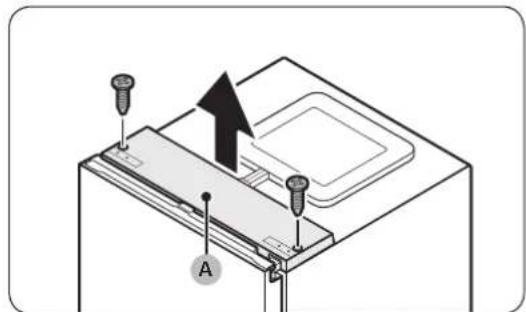

1. With the fridge door closed, use a Phillips screwdriver to remove the screws fastening the top cover (A).

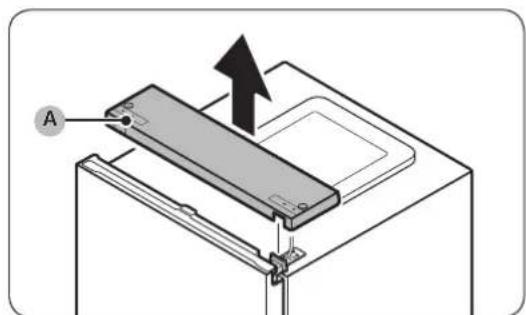

2. Gently lift the top cover (A) and place it on top of the refrigerator.

3. Be careful when you lift the top cover (A). There is a wire connected underneath it.

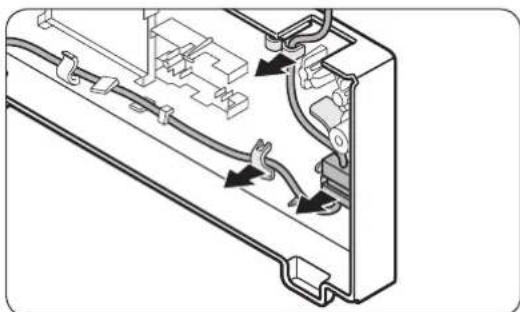

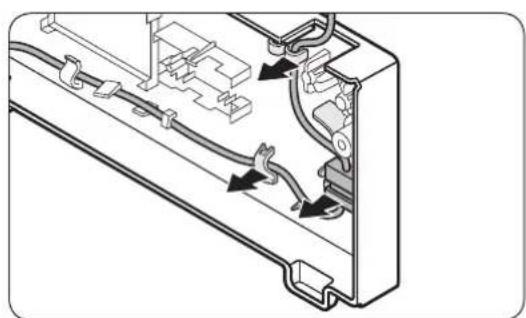

4. Remove the wire and the wire connector placed on the holder underneath the top cover.

5. This step may not apply to some models.

CAUTION

Do not pull the connectors too hard.

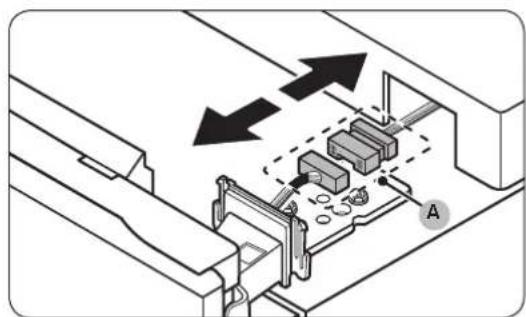

1. Disconnect the wire connector (A).

2. This step may not apply to some models.

English

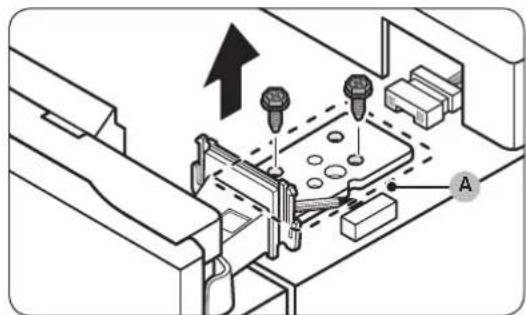

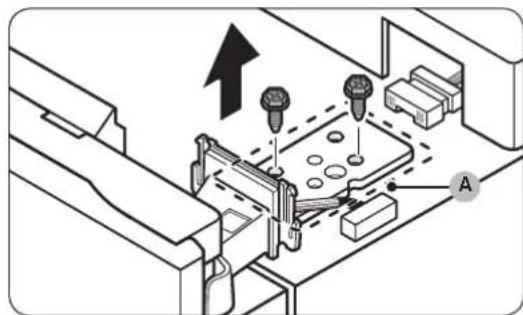

1. Use a socket wrench (8 mm) to remove the screws fastening the top hinge (A).

CAUTION

To prevent the fridge door from falling, make sure to hold it tight while removing the screws.

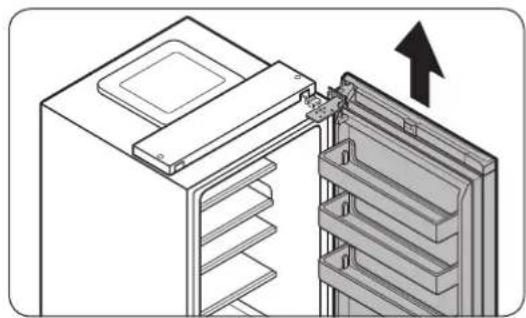

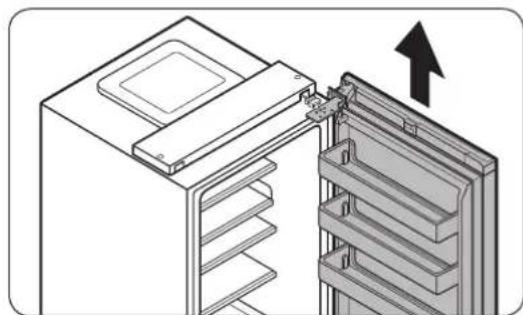

1. Open the fridge door, and then lift the door to remove it from the middle hinge. Keep the door in a safe place.

CAUTION

The door is heavy. To prevent damage or injury, use caution while removing the door.

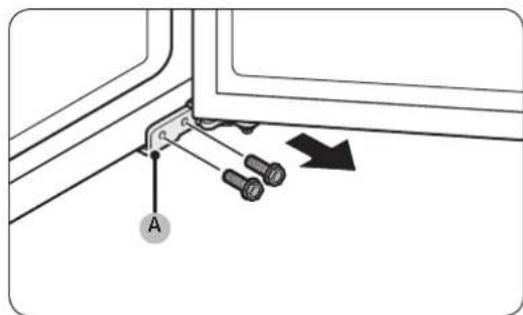

1. Open the freezer door, and then use a socket wrench (8 mm) to remove the screws fastening the bottom hinge (A).

English

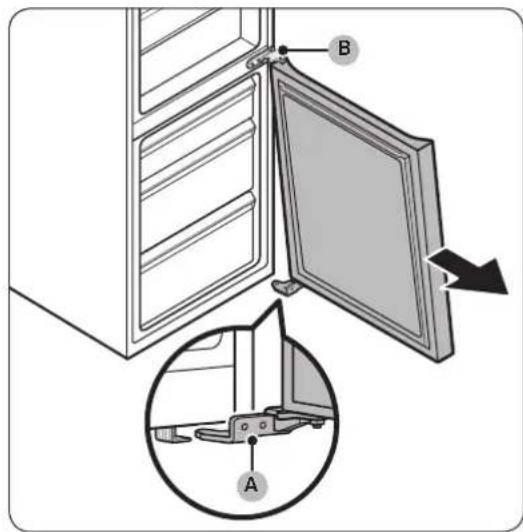

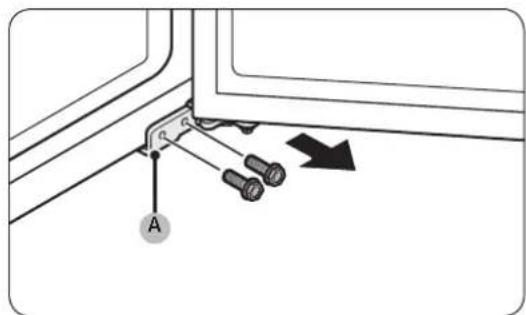

1. With the freezer door sitting on the bottom hinge (A), slowly pull the bottom hinge (A) to remove it from the holder on the bottom of the refrigerator. Once the bottom hinge (A) is removed from the holder, remove it from the freezer door, and then pull the freezer door down to remove it from the middle hinge (B).

CAUTION

To prevent the freezer door from falling, make sure to hold the freezer door tight until it is safely removed from the middle hinge (B).

1. Use a Phillips screwdriver and socket wrench (10mm) to remove the screws fastening the middle hinge (A).
2. Reassemble in the opposite order of disassembly after replacing the top, middle, and/or bottom hinge.

CAUTION

Make sure the wire connectors are connected properly.
- Be careful not to damage the wires when fastening the top cover

English

Guide de réparation

Undga at treek for hardt i stikket.

10-MM Tpb6eH KIIIOU 8-MM Tpb6eH KIIIOU 10-MM raeuH KIIIOU

BbIrapcn

06pbuaneHaBpaTaTa

BEJIEXKA

Pn moe nte c dpbknn Ha-Haeped Tpr6ba da oobpheTe dpbknte. (3a noippo6Ha HOpmaun BxKte pa3en, Cmha Ha dpbknte (3a moeenn c dpbknn c noct)

1.ПиЗТВОЕнБВРАНХЛадИNHИКС NOMOДТаHA KpbCTa OTBepTKa CBANETe BnHTOBETe, C KOINTe e 3aterHAT ROPHЯ KanaK(A).

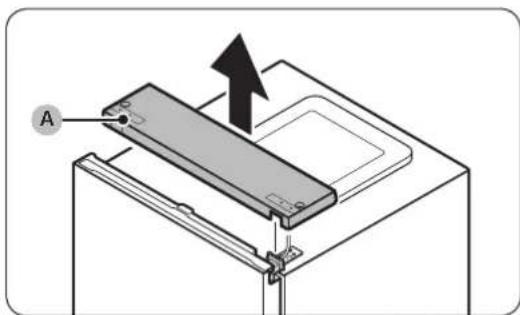

1. BHIMATEHNO NOBnHHeTe rOpHnA Kanak (A) n ro noctabete Bbpxy xnaHnHa.

БьдeTe BnMaTeHn Пи NOBnraHTo Ha rOpHnKa nakA(A).IoN Hero e pa3noJoxKe npOBoDnHK.

3.ИЗБАДЕТРОВODнКИΚОЕKTOPAHa ПЮВODнКИ, NOCTABEN Bbpyx DpBkKaTaNOD ROPHnKanak.

Bb3MOxHo e Ta3n CTbNka da He ce OTHacr 3a HAKO MOdJI.N.

BHIMAHHE

He dbpnaTe KOHEKTopi ne pkeaHcNo cnHIO.

1. N3KIOHcyTe KOHEKTopa Ha npoBoHnka (A).

-Вьзможно e Ta3n CTbПka Ja He ce OTHaCЯ HЯКО MOnJI.

BbIrapcn

5.CnOMOHTaHaTnyxKIOU（8MM）npemaxHeteBHTOBETe, c KONTO e 3aterHata ropHaTa naHTA(A).

BHIMAHHE

3a da He donycheTe ndahe Ha BpaTata Ha XnaHnHa, norpnkeTe ce da Ra dbpxnte 3npaBO,doKaTo n3BaKdTe BNHTOBete.

1. OTbOpTe BpaTata Ha xHaDnHnKa n CneT TOBa naBnHHe, 3a a n3BaNte OTo WapHnpa Ha XHaDnHnKa. 3ana3e BpaTata Ha cnrypHo MAnTo.

BHIMAHHE

BpataeTeKka.3aJaHeOnyCheteNobpeaHapaHbAhe, BHmBaIte,DOkATO CBJIATE Bpata.

1. OTbopete BpaTata Ha φpnsεpa n C NOMOHTa Ha rIyX KIOU (8 MM) npemaxHete BnHTOBeTe, c KONTo e 3aTeHaTa DOnHaTa naHTa (A).

BbIrapcn

8.ДOKATO BPAATA NaФPn3epa e 3aKauyeHa cAmO Ha DOJHATA naHTA(A),6abHO n3dbpnaTe DOJHATA naHTA(A),3a Da ro OCBO6OJNTe OT dpbXkata OTdOly Ha XnaIINHnka.CneI Kato DOJHATA naHTA(A) ce OCBO6OJNOT dpbXkata, INBaJeTe r OT BpATA NaΦPn3epa n CneI TOB a Nb3HeTe BpATA NaΦPn3epa HADONY, 3a Da n OCBO6OJNTe OT CpeHATA naHTA (B).

BHIMAHHE

3a da He donyucheTe nadahe Ha BpataHa φpns3epa, norpnkete ce da dbpxnte 3npabO BpataHa φpns3epa,dokaTo ra OCbo6oNDte p6eONaceHnHnOT cpeNaHTa (B).

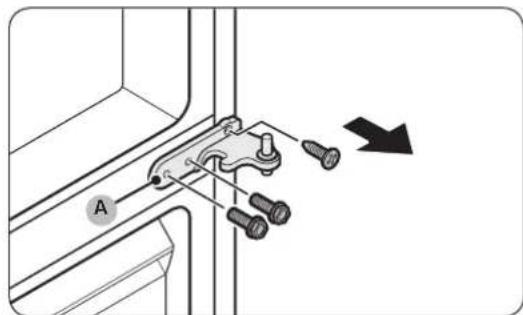

1. C nOMOHTa Ha KpbCTata OTBepTKa HnIyXKnIOU (10 MM) 3BaTe BnHTOBete, C KOINTe 3aTeHATA CpeHaTa NaHTa (A).
