USER MANUAL MiniGrill CG2000B WILFA

Exterior view of a MiniGrill grater with control knobs and indicator lights (no text or symbols on main body)

MINIGRILL

TABLE GRILL CG-2000B

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

IMPORTANT SAFETY INSTRUCTIONS

• Please read this manual carefully before operation and save it for future reference.
• Make sure the voltage in your outlet is the same as the voltage indicated on the appliance's rating label.
• To protect against the risk of electric shock. Do not immerse the cord, plug or unit in water or any other liquid.
• Unplug from outlet when not in use and before cleaning. Allow unit to cool before cleaning or storing it.
• Never yank the cord to disconnect the unit from the electrical outlet. Instead, grasp the plug and pull it to disconnect.
• The use of replacement parts or accessories not recommended by the manufacturer may cause fire, electrical shock or injuries.
• Do not use outdoors or for commercial purposes.
• Do not use this appliance for purposes other than the one for which it was designed.

• Do not let the electrical cord hang over the edge of the table or countertop, or touch hot surfaces.

• Do not place on or near a hot gas or electric burner, heated oven or microwave oven. Use it on a heat-resistant, flat level surface only.

• Extreme caution must be used when moving any appliance containing hot foods or oils.
• When using this appliance, provide adequate air space above and on all sides for air circulation.
• Do not leave unit unattended during use.
• When using this appliance, make sure there are no flammable materials close to it, such as curtains, paper, plastic, etc.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children aged less than 8 years.

EN

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended to be operated by means of an external timer or separate remotecontrol system.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments farm houses by clients in hotels, motels and other residential type environments bed and breakfast type environments.
• The surface gets hot during use and must not be touched.

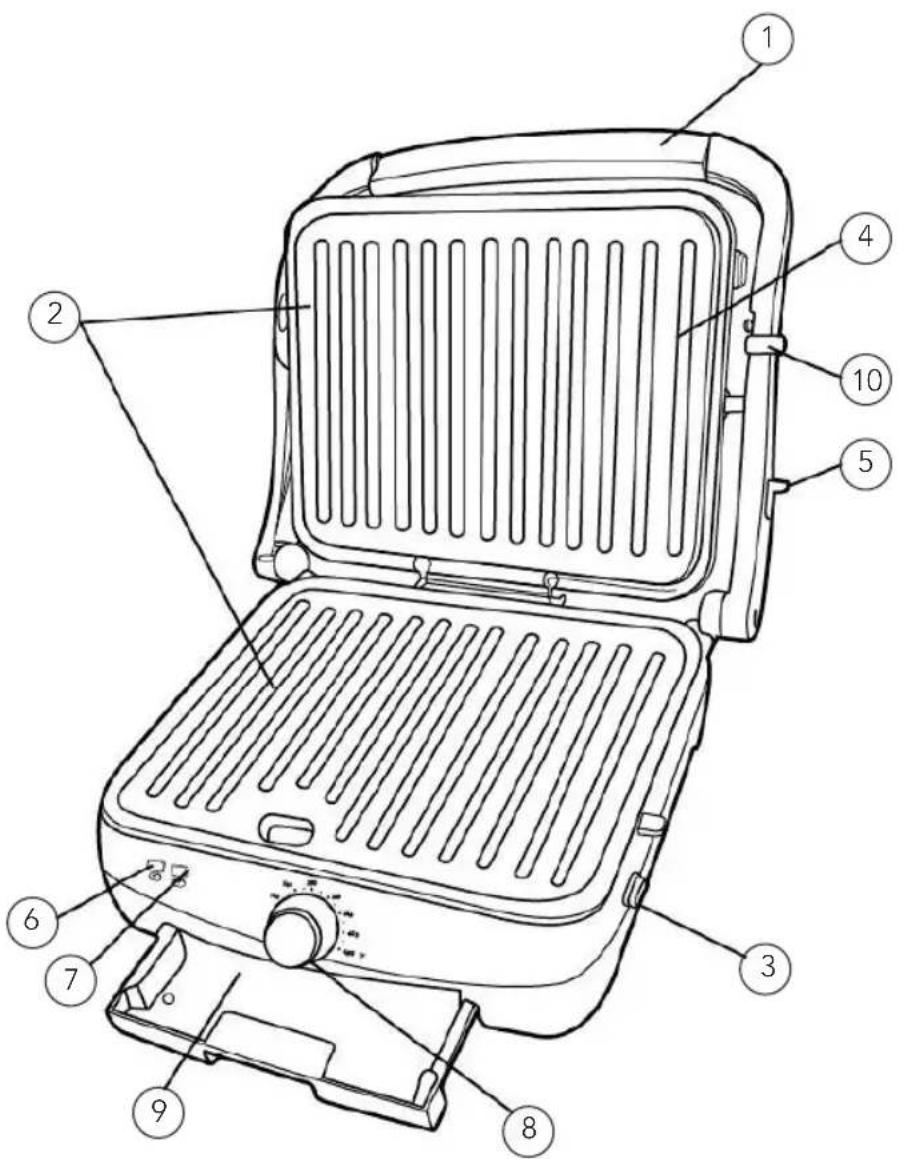

PRODUCT OVERVIEW

Labeled diagram of a portable grater with numbered parts for identification

1. Cool Touch Handle
2. Ceramic Non-Stick/ Removable Grill Cooking Surfaces
3. Buttons to release Grill Cooking Plates
4. Hinged pivoted top cover

5. Button to open grill at 180^ angle

6. Power On Indicator Light (Red)

7. Ready to Cook Indicator Light (Green)
8. Temperature Control Knob
9. Slide-in Removable Drip Tray
10. Lock for Top Cover for Vertical Storage

EN

BEFORE USING THE ELECTRIC GRILL

Before using your electric grill for the first time, please follow the instructions below:

1. Remove any stickers from the product.

2. Clean and condition the non-stick surfaces:

3. Remove the two cooking plates by pushing the respective release buttons and wash them thoroughly with hot, soapy water. Rinse and dry them well and then place them back on the unit ensuring they lock into place.

4. Do not immerse unit in water.
5. To condition the cooking surfaces, plug the appliance into the appropriate electrical outlet. The red power on indicator light will illuminate. Allow the unit to pre-heat until the green ready to cook indicator light is lit up.
6. Wipe a small amount of butter or margarine onto the cooking surfaces, spread slightly and wipe away any excess.

Note: When using the unit for the first time, you may notice a fine smoke haze coming out from the unit. This is normal. It is due to the initial heating of internal components. The unit is now ready to use and it will not be necessary to condition it again.

USING THE ELECTRIC GRILL

1. Plug the power cord into the appropriate electrical outlet. The power on indicator light will illuminate and remain lit for as long the appliance is plugged in.
2. Pre-heat the unit until the green ready to cook indicator light is lit.
3. Place the foods to be prepared on your grill on top of the non-stick cooking surface(s). Use it closed if you would like to press the foods to be grilled or open it at 180^ angle, simply press and hold down the button and pull back the handle and top grill to a completely open position (see figure 1).

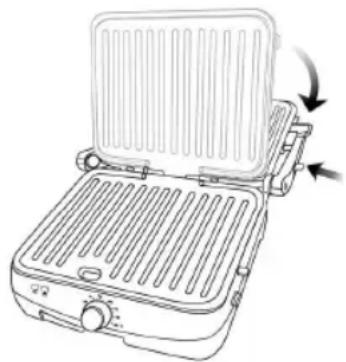

Line drawing of a grater with open lid and side panel, showing heat transfer arrows (no text or symbols)

1. If you would like to use only one cooking plate and press the foods with the top grill, gently lower the top cooking surface by pulling down the cool touch handle. The hinged pivoted top plate will adjust automatically according to the thickness of the food, ensuring that the top cooking surface lies evenly on your food for perfect grilling every time (see figure 2).

Note: Ensure that the cord is kept well away from the cooking surfaces at all times while in use or when the unit is hot.

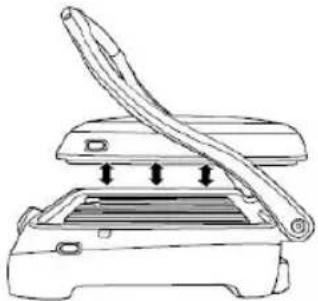

Line drawing of a mechanical press or press device with a lever and directional arrows indicating motion (no text or symbols)

1. Slide-in the drip tray, ensuring it is properly positioned under the drainage outlets of the cooking surfaces in order to collect any oils, juices or liquids that might drip during the grilling process (see figure 3).

Line drawing of a portable electric heater with ventilation grilles and a handle (no text or symbols)

1. Adjust the temperature knob to the desired position for greater cooking control and versatility.

2. Allow your foods to grill until done.

Note: the green ready indicator light may turn on and off during cooking. This indicates that the thermostat is maintaining the proper cooking temperature to grill to perfection.

1. The cooking surfaces have a durable non-stick coating. Some foods such as melted cheese might cause the foods to slightly stick to the surfaces. Use heat resistant plastic or wood spatula to remove the food. Never use a sharp or metal object since that might damage the non-stick surface.

2. After you have finished using the electric grill, unplug it from the electric outlet.

Warning: the metal top cover gets very hot. Keep hands and other objects away from it.

TIPS AND SUGGESTIONS

• Always pre-heat the unit before using it.
- Be careful when biting into foods containing fillings such as cheese, tomato or jam, as they retain heat and can burn if eaten too quickly after grilling.
- It is not necessary to butter the outside of breads since the unit has ceramic non-stick surfaces. However, if you would like to brown the bread it is recommended spreading a small amount of butter or margarine.

CLEANING AND MAINTENANCE

• Unplug and allow unit to cool completely before cleaning.
• Do not immerse the unit in water or any other liquid.
• Remove the two cooking plates by pushing the respective release buttons and wash them thoroughly with hot, soapy water. To remove food and grease residue, use a nylon scrubby or non-abrasive cleanser. DO NOT use a steel wool pad or other abrasive cleansers, which may damage the non-stick surfaces. Rinse and dry them well and then place them back on the unit ensuring they lock into place.
• The drip tray can be removed from the unit to dispose any collected oils, juices and liquids and can be washed with warm and soapy water.
• To clean the exterior, simply wipe with a dampened cloth and polish dry with a soft cloth.
• DO NOT use metal utensils or sharp metal objects such as a knife, as this will damage the ceramic non-stick cooking surfaces.
• DO NOT cut food on top of the cooking surfaces to avoid damaging the ceramic non-stick coating.

STORAGE

• Clean unit well before storing.
• Lock the top cover for convenient space-saving vertical storage.

EN

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
- Coating
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

PRODUCT SPECIFICATIONS

220V\~240V\~50Hz, 2000 W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

16 VIKTIGE SIKKERHETSANVISNINGER
19 PRODUKTOVERSIKT
20 F∅R BRUK AV DEN ELEKTRISKE GRILLEN
20 BRUK AV DEN ELEKTRISKE GRILLEN
22 TIPS OG RÅD
22 RENGJ∅RING OG VEDLIKEHOLD
22 OPPBEVARING
24 GARANTI
25 PRODUKTSPESIFIKASJONER
25 SUPPORT OG RESERVEDELER
25 GJENVINNING

NO

VIKTIGE SIKKERHETSANVISNINGER

Labeled diagram of a portable grater with numbered parts for identification

Line drawing of a grater with open lid and side panel, showing heat transfer arrows (no text or symbols)

Line drawing of a mechanical press or press device with a lever and directional arrows indicating motion (no text or symbols)

Line drawing of a portable electric heater with ventilation slots and a handle (no text or symbols)

1. Med temperaturknappen kan du kontrollere varmen under grillingen.

2. Grill maten til ønsket resultat.

Labeled diagram of a portable grater with numbered parts for identification

Line drawing of a portable grater with ventilation slots and a side panel, showing heat transfer arrows (no text or symbols)

Line drawing of a grater with an open lid and handle, showing motion arrows (no text or symbols)

Line drawing of a portable electric heater with ventilation grilles and a handle (no text or symbols)

Labeled diagram of a portable grater with numbered parts for identification

1. Isoleret håndtag

Line drawing of a portable grater with open lid and side panel, showing heat transfer arrows (no text or symbols)

Line drawing of a mechanical press or press device with a lever and directional arrows indicating motion (no text or symbols)

Line drawing of a portable electric heater with ventilation slots and a handle (no text or symbols)

Labeled diagram of a portable grater with numbered parts for identification

Line drawing of a grater with open lid and side panel, showing heat transfer arrows (no text or symbols)

Line drawing of a mechanical press or press device with a lever and base, showing motion arrows (no text or symbols)

Line drawing of a portable electric heater with ventilation slots and a separate clip (no text or symbols)

Labeled diagram of a portable grater with numbered parts for identification

Line drawing of a portable grater with open lid and side-mounted grater, showing heat transfer arrows (no text or symbols)

Line drawing of a mechanical press or press device with a curved blade and two arrows indicating motion (no text or symbols)

Line drawing of a portable electronic device with ventilation slots and a handle (no text or symbols)

Labeled diagram of a portable grater with numbered parts for identification

Line drawing of a portable grater with ventilation slots and a side panel, showing heat transfer arrows (no text or symbols)

Line drawing of a mechanical press or press device with arrows indicating compression or disassembly (no text or symbols)

Line drawing of a portable electric cooker with ventilation grilles and control panel (no text or symbols)

Labeled diagram of a portable grater with numbered parts for identification

Line drawing of a portable grater with ventilation grilles and a side panel, showing heat transfer arrows (no text or symbols)

Line drawing of a mechanical press or press device with a lever and directional arrows indicating motion (no text or symbols)

Line drawing of a portable electric heater with ventilation slots and a handle (no text or symbols)

Labeled diagram of a portable grater with numbered parts for identification

Line drawing of a grater with open lid and side panel, showing heat transfer arrows (no text or symbols)

Line drawing of a mechanical press or press device with a lever and handle (no text or symbols)

Line drawing of a portable device with ventilation grilles and a handle (no text or symbols)

CARACTÉRISTIQUES DU PRODUIT

220 V\~ 240 V\~50 Hz, 2 000 W

ASSISTANCE ET PIÈCES DÉTACHÉES

Labeled diagram of a portable grater with numbered parts for identification

Line drawing of a portable grater with ventilation grilles and a side-mounted handle (no text or symbols)

IT

Line drawing of a mechanical press or press device with a lever and two arrows indicating motion (no text or symbols)

Line drawing of a portable electric heater with ventilation slots and a separate clip (no text or symbols)

Labeled diagram of a portable grater with numbered parts for identification

Line drawing of a grater with open lid and side panel, showing heat transfer arrows (no text or symbols)

Line drawing of a mechanical press or press device with a lever and directional arrows indicating motion (no text or symbols)

Line drawing of a portable electric heater with ventilation grilles and a separate clip (no text or symbols)

Labeled diagram of a portable grater with numbered parts for identification

Line drawing of a portable grater with open lid and side-mounted grater, showing heat transfer arrows (no text or symbols)

Line drawing of a mechanical press or press device with a lever and three arrows indicating motion (no text or symbols)

Line drawing of a portable electric heater with ventilation grilles and a separate clamped device (no text or symbols)

FSC www.fsc.org 100% From well- managed forests FSC® C000000

CG-2000B_20_04
