USER MANUAL SB1010M Meister Craft

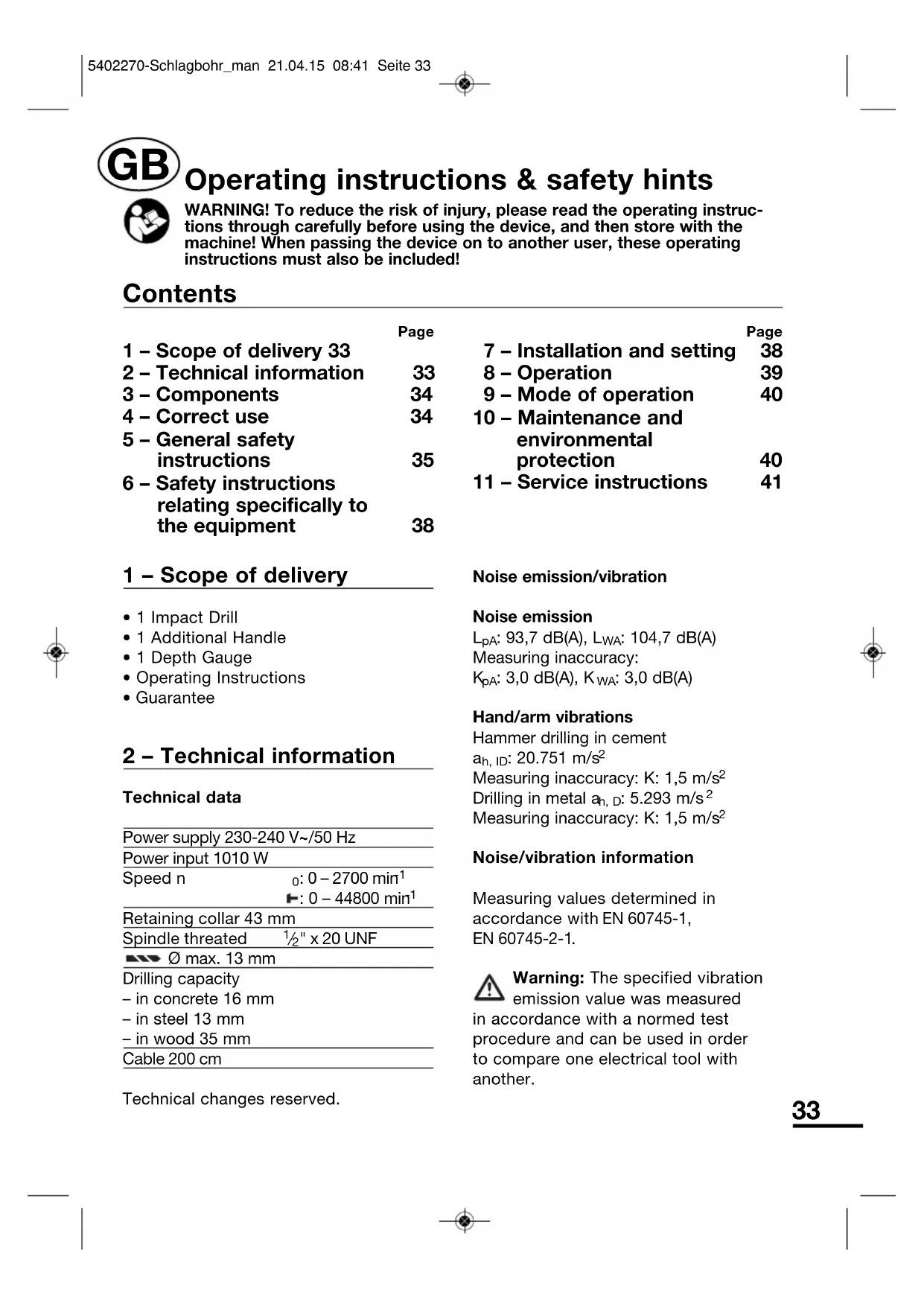

" x 20 UNFØ max. 13 mmDrilling capacity– in concrete 16 mm– in steel 13 mm– in wood 35 mmCable 200 cmTechnical changes reserved.Noise emission/vibrationNoise emission

: 3,0 dB(A), K : 3,0 dB(A)Hand/arm vibrationsHammer drilling in cement h, ID: 20.751 m/s Measuring inaccuracy: K: 1,5 m/s Drilling in metal a h, D : 5.293 m/s Measuring inaccuracy: K: 1,5 m/s Noise/vibration informationMeasuring values determined inaccordance with EN 60745-1, EN 60745-2-1 Warning: The specified vibrationemission value was measuredin accordance with a normed testprocedure and can be used in orderto compare one electrical tool withanother. Operating instructions & safety hints WARNING! To reduce the risk of injury, please read the operating instruc-tions through carefully before using the device, and then store with themachine! When passing the device on to another user, these operatinginstructions must also be included!

Page 1 – Scope of delivery 33 2 – Technical information 33 3 – Components 34 4 – Correct use 34 5 – General safety instructions 35 6 – Safety instructions relating specifically to the equipment 38 Page 7 – Installation and setting 38 8 – Operation 39 9 – Mode of operation 40 10 – Maintenance and environmental protection 40 11 – Service instructions 41 Contents

5402270-Schlagbohr_man 21.04.15 08:41 Seite 33The specified vibration emission value can also be used for an introductory evaluation of the influence. The actual vibration emission value present during the use of the machine may deviate from the specification given in the operating instructions or made by the manufacturer. This may be caused by the following influencing factors that should be taken into account prior to and during each use:

• Is the device being used correctly?

• Is the correct type of material being processed?

• Is the device in proper working order?

• Are the handles or optional vibration handles mounted and fixed securely up against the body of the machine? If your hands experience an unpleasant sensation or the skin changes colour while you are using the machine, immediately discontinue your work. Take sufficient breaks. If you do not take sufficient breaks, this may cause a hand/arm vibration syndrome. You should estimate the level of load caused in conjunction with the work or use of the machine and take the appropriate breaks. This method can be used to considerably minimise the level of load during the entire working time. Minimise risks in which you are exposed to vibrations. Take care of your machinery in accordance with the directions in the operation instructions. If the machine is to be used frequently, contact your dealer and arrange anti- vibration equipment (handles) if necessary. Avoid using the tool in temperatures of t = 10 °C or lower. Draw up a working schedule which can be used to minimise vibration loads. Information about minimising noise A certain amount of noise is unavoidable when using this device. Ensure you carry out noise-intensive work during permitted times. Maintain the quiet periods and limit your work to the absolute minimum. For the sake of your personal protection and the protection of persons in the vicinity, suitable ear defenders should be worn. 3 – Components 1 Switch for drilling/hammer drilling 2 Locking button for continuous operation 3 Supply cable 4 On/Off switch with revolution regulation 5 Right/Left directional switch 6 Additional handle 7 Depth stop 8 Drill chuck 4 – Correct use Drilling in wood and metal, impact drilling in concrete. Do not use machines, tools and accessories for additional applications (see manufaturer’s instructions) for works other than those for which they are designed for. All other applications are expressly ruled out. WARNING! The warranty is voided by any improper use or use not in accordance with manufacturer‘s instructions. Any necessary repair must be performed by qualified personal.

5402270-Schlagbohr_man 21.04.15 08:41 Seite 34The machine is intended only for use in the household. Improper use of the product All applications carried out with the device that are not listed in the "Proper use" chapter will be considered improper use. Uses for which the tool is not designed may cause risks and injury. Do not use accessories that are not intended specifically for this electrical tool. Tool inserts that do not fit precisely to the sanding spindle of the electrical tool will rotate unevenly, vibrate very heavily and may lead to a loss of control. There is a risk of injury. The user of the device is liable for all property and personal damages occurring as the result of incorrect use. If other components or non-original components are used with the machine, the manufacturer guarantee is voided. Remaining risks: The operating instructions for this electrical tool contains comprehensive tips for the safe handling of electrical tools. However, every electrical tool has a certain level of remaining risks which cannot be excluded by the protective mechanisms on the device. Only operate electrical tools always with necessary care. Remaining risks may be, for example:

• Touching rotating parts or tools.

• Injury caused by flying tools or tool parts.

• Risk of fire with insufficient ventilation of the motor.

• Adverse effects on the hearing caused by working without ear defenders. The ability to work safely is dependant on the familiarity of the operator when it comes to handling the given electrical tool. Appropriate knowledge of the machinery and careful behaviour when working help to minimise the remaining risks. WARNING! During operation, this power tool generates an electro magnetic field. This field may, under certain circumstances, influence active or passive medical implants. In order to reduce the risk of serious or deadly injuries, we recommend persons with such a medical implant to consult their doctor and the manufacturer of the medical implant before using the power tool. 5 – General safety instructions for handling power tools WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool. This device is not designed to be used by people (including children) with limited physical, sensory or mental

5402270-Schlagbohr_man 21.04.15 08:41 Seite 35capacities or those without experience and/or knowledge. Children should be supervised to ensure that they do not play with the device. This device may not be used by children. 1 Work area a Keep work area clean and well lit. Cluttered and dark areas invite accidents. b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 2 Electrical Safety a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. 3 Personal safety a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a

5402270-Schlagbohr_man 21.04.15 08:41 Seite 36rotating part of the power tool may result in personal injury. e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. 4 Power tool use and care a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. 5 Service a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b If the mains connection cable of this device is damaged, it must be replaced with a special connection cable that can be obtained from the manufacturer or their customer service. 6 Safety notes for drills

• Wear ear protection when hammer drilling. The effects of noise may lead to hearing loss.

• Hold the tool by the insulated handle surfaces when carrying out tasks during which the tool may come into contact with hidden power cables or its own power cable. Contact with a power-carrying cable may also energise metal parts of the device and cause an electric shock. 6 – Safety instructions relating specifically to the equipment Wear goggles and ear defenders.

• Before drilling into walls make sure that you are not breaking into an electricity, gas or water supply line. Use a detector.

• Always unplug drill before changing drill or bit.

• To avoid injuries, securely attach the workpiece (e.g. with vice or clamp).

• When drilling or driving screws: Do not allow the motor to stall under the load.

• If the mains connection cable of this device is damaged, it must be replaced with a special connection cable that can be obtained from the manufacturer or their customer service. Safety symbols The symbols on the housing have the following meanings: Do not dispose of with domestic waste! Important! Observe operating instructions! „Tested Safety“ voluntary quality mark CE Mark (conformity to European safety standards) Housing is double insulated Right/Left direction 7 – Installation and setting Mounting the additional handle The additional handle (6) can be mounted on the right or the left of the chuck, as required. Release the handle piece of the additional handle by turning to the left until it can be pushed over the chuck (8) and onto the tensioning neck. The holder cams on the underside of the tensioning neck must fit into the holder grooves of the tensioning ring. This allows you to select a comfortable working position and, at the same time, secures the additional handle from vibration-related sliding. Tighten the handle piece, by turning to the right until the additional handle is fixed to the machine.

5402270-Schlagbohr_man 21.04.15 08:41 Seite 38Mounting the depth stop Loosen the additional handle (6) so that the hexagonal screw exposes the opening for the depth stop. Slide the depth stop (7) into the opening and tighten the handle. Setting the depth stop

• Fit the drill and lock into place.

• Loosen the additional handle.

• Slide the depth stop to the same length as the fitted drill. Do this by pressing it up against a level wall.

• Use the scale on the depth stop to read off the value in mm, and deduct the required drilling depth from this figure.

• Set this value on the depth stop and tighten the additional handle. Changing tools CAUTION! Pull the power plug. The machine has a quick-action chuck that enables tools to be changed by hand without using a tool. Hold the machine by the rear chuck ring. Open the chuck by rotating the front ring anti-clockwise. Insert the drill and rotate clockwise on the front ring to secure. Selecting speed (Fig. 2) WARNING! Pull out power plug. The speed selector allows you to adjust the number of revolutions of the tool to the type of material being drilled.

• Turn the speed selector on the On-Off switch (4) in the (–) direction. The maximum number of r.p.m. is reduced.

• Turn the speed selector in the (+) direction: The number of r.p.m. is increased up to the maximum speed. With the On-Off sliding switch the number of r.p.m. can be varied continuously within the selected maximum speed. Right or left (clockwise or anti- clockwise) rotation (5) IMPORTANT! Do not change drilling direction when the drill is in rotation; wait until the drill has come to stop. The chucks of reversible drills are always fixed by a screw with a left hand thread. This screw must be loosend before the drill chuck can be removed and is accessible through the front of the chuck. To loosen a screw with a left hand thread, turn in a clockwise direction. 8 – Operation Switching on/off Insert the plug in a 230 V~ socket. IMPORTANT! Always switch the motor on before contacting the material.

5402270-Schlagbohr_man 21.04.15 08:41 Seite 39Switching on Press the On-Off switch (4) carefully. The machine starts. The number of revs per minute varies according to the pressure on the switch. Switching off Release the On-Off switch and wait until the machine stops. Switching on continuous mode Press the On-Off switch and hold. Press the locking button (2). Release the On- Off switch. The machine runs at the speed selected. Switching off continuous mode Press the On-Off switch. The locking button unlocks. Release the On-Off switch and wait until the machine stops. 9 – Mode of operation Drilling into wood and metal To drill into wood and metal, the hammer action must be switched off. Set the switch (1) to the "Drill" mode . Set the Right/Left rotational switch (2) to "Right rotation." Regulate the electronic revolution by operating the On/Off switch. Preset the revolution with the setting wheel on the On/Off switch (6). Start with low revolutions. Hammer drilling in cement and masonry Set the switch (1) to the "Hammer drill" mode . Set the Right/Left rotational switch (2) to "Right rotation". Start with low revolutions. To remove a stuck drill, wait until the machine has come to a standstill, and switch to anti- clockwise rotation. With the drill running anti-clockwise, carefully pull it out of the drilled hole. 10 – Maintenance and environmental protection Clean the housing only with a damp cloth – do not use any solvents! Dry thoroughly afterwards. CAUTION! Electrical and battery operated units that no longer work should not be disposed of in the household waste! They are to be collected separately, in accordance with the 2012/19/EU directive for the disposal of electrical and electronic waste, and sent for proper and environ mentally- friendly recycling. Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For details, please contact your municipal authority concerned.

• Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.

• Meister devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Do not drop electrical machines in water. Please note additional hints given in the operating instructions.

• Meister devices are subject to stringent quality control. If however a functional fault shoult occur, send the device to our servicing address. The repairs will be carried out in a short time.

• A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please enclose the guarantee document and the proof of purchase.

• In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account. PLEASE NOTE! Opening of the device invalidates the guarantee claim. IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Werkzeuge GmbH Customer Service or an authorised specialist! The same applies analogously to the accessories used.

• Pack the device well or use the original packaging in order to avoid transit damage.

• Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price.
