Product type	Compact digital camera
Brand	Sony
Model	Cyber-shot DSC-WX70
Sensor	Exmor R CMOS 1/2.3 inch, 16.2 effective megapixels
Lens	Carl Zeiss Vario-Tessar, 5× optical zoom, f=4.5-22.5 mm (35mm equivalent: 25-125 mm)
Screen	Touch LCD 7.5 cm (3.0 inches), 921,600 dots
Still image resolution	Up to 16 megapixels (4608×3456)
Video recording	Full HD AVCHD (1080/50i or 60i) and MP4
Image stabilization	Optical SteadyShot
Dimensions (W×H×D)	92.2 × 52.0 × 19.1 mm
Weight (with battery and card)	Approx. 114 g
Battery	Rechargeable lithium-ion NP-BN, 3.6 V, 630 mAh
Battery life (shots)	Approx. 240 shots (CIPA standard)
Storage media	Internal memory 19 MB, Memory Stick Duo/Micro, SD/SDHC/SDXC/microSD
Connectivity	Micro USB, Mini HDMI, TransferJet
Built-in flash	Range: 0.2-5.3 m (W), 1.0-2.2 m (T)
Operating temperature	0 °C to 40 °C
Main features	Scene recognition, smile detection, panorama, photo effect (HDR Painting, Watercolor, etc.), 3D recording
Care and cleaning	Clean with a soft cloth slightly dampened with water, avoid solvents
Safety	Do not expose to water, avoid shocks, do not disassemble the battery
Spare parts and repairability	NP-BN battery, BC-TRN2 charger (sold separately), AC-UB10 AC adapter
General information	Online user guide available at support.sony.net

Frequently Asked Questions - CYBERSHOT DSC-WX70 SONY

How to charge the battery of the Sony Cyber-shot DSC-WX70?

Use the included micro-USB cable and AC-UB10/UB10B AC adapter. Connect the adapter to a wall outlet; the charging indicator lights up in orange. Full charge takes about 115 minutes at 25°C. You can also charge via a computer.

What is the battery life?

Approx. 240 shots (CIPA standard) or 60 minutes of video. Still image playback lasts about 180 minutes.

What types of memory cards can I use?

Memory Stick PRO Duo (Mark2 for video), Memory Stick Micro (Mark2 for video), SD/SDHC/SDXC cards (Class 4 or faster for video), microSD/microSDHC cards. For micro cards, use an adapter.

How to insert the battery and memory card?

Open the cover on the bottom of the camera. Insert the battery by aligning the contacts and pushing until it clicks. For the memory card, insert it in the correct orientation until it clicks. To remove, push the card or slide the battery eject lever.

How to take a photo or record a video?

For a photo: press the shutter button halfway to focus, then press fully. For a video: touch the MOVIE () button to start, touch STOP to stop. Use the W/T lever for zoom.

How to view and delete images?

Press the ▶ (Playback) button. Use the ◀ and ▶ buttons to navigate. To delete, touch the Trash icon then This image. To return to shooting, press the shutter button halfway.

Can I use the flash? What is its range?

Yes, the built-in flash has a range from 0.2 m to 5.3 m at wide-angle (W) and from 1.0 m to 2.2 m at telephoto (T). Adjust it via the menu.

How to transfer photos to a computer?

Install the PlayMemories Home software from the CD or by connecting the camera. Connect the camera to the computer with the micro-USB cable, then follow the on-screen instructions.

What to do if the screen displays an overheating message?

Turn off the camera and leave it in a cool place until it cools down. Avoid recording videos continuously for too long in hot weather.

How to clean the camera?

Use a soft cloth slightly dampened with water, then wipe with a dry cloth. Do not use solvents such as alcohol or benzene. Protect the lens from dust.

USER MANUAL CYBERSHOT DSC-WX70 SONY

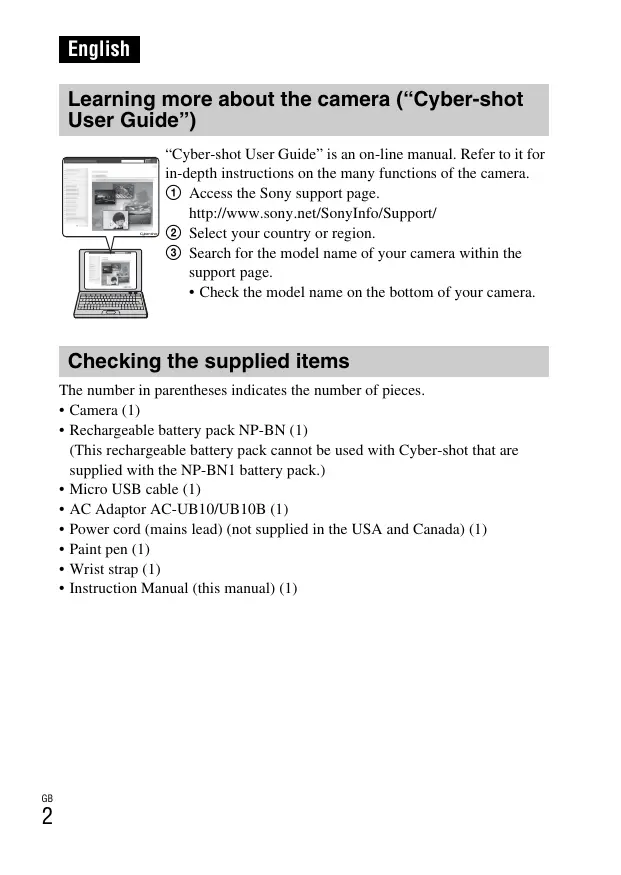

Learning more about the camera (“Cyber-shot User Guide”)

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

“Cyber-shot User Guide” is an on-line manual. Refer to it for in-depth instructions on the many functions of the camera.

① Access the Sony support page.
http://www.sony.net/SonyInfo/Support/
② Select your country or region.
③ Search for the model name of your camera within the support page.
- Check the model name on the bottom of your camera.

Checking the supplied items

The number in parentheses indicates the number of pieces.

• Camera (1)
• Rechargeable battery pack NP-BN (1)
  (This rechargeable battery pack cannot be used with Cyber-shot that are supplied with the NP-BN1 battery pack.)
• Micro USB cable (1)
  • AC Adaptor AC-UB10/UB10B (1)
• Power cord (mains lead) (not supplied in the USA and Canada) (1)
• Paint pen (1)
• Wrist strap (1)
• Instruction Manual (this manual) (1)

Owner's Record

The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product.

Model No. DSC-WX70

Serial No. ____

Model No. AC-UB10/UB10B

Serial No. ____

GB

WARNING

To reduce fire or shock hazard, do not expose the unit to rain or moisture.

IMPORTANT SAFETY INSTRUCTIONS -SAVE THESE INSTRUCTIONS DANGER TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS

If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.

CAUTION

Battery pack

If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.

• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery terminals.
• Do not expose to high temperature above 60^ (140°F) such as in direct sunlight or in a car parked in the sun.
• Do not incinerate or dispose of in fire.

• Do not handle damaged or leaking lithium ion batteries.

• Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.

• Keep the battery pack out of the reach of small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in the instructions.

AC Adaptor

Connect the AC Adaptor to the nearest wall outlet (wall socket).

If some trouble occurs while using the AC Adaptor, immediately shut off the power by disconnecting the plug from the wall outlet (wall socket).

The power cord (mains lead), if supplied, is designed specifically for use with this camera only, and should not be used with other electrical equipment.

For Customers in the U.S.A. and Canada

I RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable.

You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you.

For more information regarding recycling of rechargeable batteries, call toll free

1-800-822-8837, or visit http://www.rbrc.org/

RECYCLE RBRC Li-Ion 7.800.822.8837

Caution: Do not handle damaged or leaking Lithium-Ion batteries.

Battery pack

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

For Customers in the U.S.A.

UL is an internationally recognized safety organization. The UL Mark on the product means it has been UL Listed.

If you have any questions about this product, you may call: Sony Customer Information Center 1-800-222-SONY (7669).

The number below is for the FCC related matters only.

Regulatory Information

Declaration of Conformity

Trade Name: SONY

Model No.: DSC-WX70

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

I Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For Customers in Europe

Notice for the customers in the countries applying EU Directives

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

This product has been tested and found compliant with the limits set out in the EMC Directive for using connection cables shorter than 3 meters (9.8 feet).

Attention

The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit.

Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste.

On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring these batteries are disposed of correctly, you will help prevent

potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely.

Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Notice for customers in the United Kingdom

A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the supplied one and approved by ASTA or BSI to BS 1362, (i.e., marked with an ◇ or ▼ mark) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

Identifying parts

Diagram of a digital camera with numbered parts labeled for identification

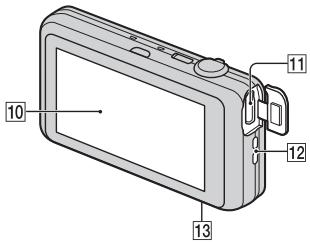

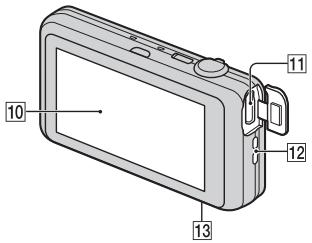

Diagram of a digital camera with numbered parts labeled 10, 11, 12, and 13

14 15 16 17 18 19 20 21

1 ON/OFF (Power) button
2 Shutter button
3 W/T (Zoom) lever
4 Flash
5 Power/Charge lamp
6 ▶ (Playback) button
7 Microphone
8 Self-timer lamp/Smile Shutter lamp/AF illuminator
9 Lens
10 Screen/Touch panel
11 HDMI mini jack
12 Hook for wrist strap
13 (TransferJetTM) mark
14 Speaker
15 Tripod receptacle

- Use a tripod with a screw less than 5.5 mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.

16 Micro USB connector
17 Memory card slot
18 Battery/memory card cover
19 Battery insertion slot
20 Access lamp
21 Battery eject lever

Inserting the battery pack

LOCK OPEN ① ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely illustrating a device's motion or assembly.

Battery eject lever

GB

1 Open the cover.

2 Insert the battery pack.

• While pressing down the battery eject lever, insert the battery pack as illustrated. Make sure that the battery eject lever locks after insertion.
• Closing the cover with the battery inserted incorrectly may damage the camera.

Charging the battery pack

For customers in the USA, Canada

For customers in countries/regions other than the USA and Canada

Illustration of a smartphone rear panel with buttons and a pointer (no text or symbols)

Power/Charge lamp

Lit: Charging

Off: Charging finished

Flashing:

Charging error

Charging paused due to overheating

1 Connect the camera to the AC Adaptor (supplied), using the micro USB cable (supplied).
2 Connect the AC Adaptor to the wall outlet (wall socket).

The Power/Charge lamp lights orange, and charging starts.

• Turn off the camera while charging the battery.
• You can charge the battery pack even when it is partially charged.
• When the Power/Charge lamp flashes and charging is not finished, remove and re-insert the battery pack.

Notes

• If the Power/Charge lamp on the camera flashes when the AC Adaptor is connected to the wall outlet (wall socket), this indicates that charging is temporarily stopped because the temperature is outside the recommended range. When the temperature gets back within the appropriate range, the charging resumes. We recommend charging the battery pack in an ambient temperature of between 10^ to 30^ ( 50^ to 86^ ).
• The battery pack may not be effectively charged if the terminal section of the battery is dirty. In this case, wipe any dust off lightly using a soft cloth or a cotton swab to clean the terminal section of the battery.
• Connect the AC Adaptor (supplied) to the nearest wall outlet (wall socket). If malfunctions occur while using the AC Adaptor, disconnect the plug from the wall outlet (wall socket) immediately to disconnect from the power source.
• When charging is finished, disconnect the AC Adaptor from the wall outlet (wall socket).
• Be sure to use only genuine Sony brand battery packs, micro USB cable (supplied) and AC Adaptor (supplied).
• BC-TRN2 battery charger (sold separately) is able to quick-charge the NP-BN rechargeable battery pack supplied with this model. BC-TRN battery charger (sold separately) is not able to quick-charge the NP-BN rechargeable battery pack supplied with this model.

■ Charging time (Full charge)

The charging time is approximately 115 min. using the AC Adaptor (supplied).

Note

- The above charging time applies when charging a fully depleted battery pack at a temperature of 25^ (77°F). Charging may take longer depending on conditions of use and circumstances.

Charging by connecting to a computer

The battery pack can be charged by connecting the camera to a computer using a micro USB cable.

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol and signal flow arrows.

Note

- Note the following points when charging via a computer:

- If the camera is connected to a laptop computer that is not connected to a power source, the laptop battery level decreases. Do not charge for an extended period of time.

- Do not turn on/off or restart the computer, or wake the computer to resume from sleep mode when a USB connection has been established between the computer and the camera. The camera may cause a malfunction. Before turning on/off, or restarting the computer or waking the computer from sleep mode, disconnect the camera and the computer.

- No guarantees are made for charging using a custom-built computer or a modified computer.

Battery life and number of images can be recorded and played back

	Battery life	Number of images
Shooting (still images)	Approx. 120 min.	Approx. 240 images
Viewing (still images)	Approx. 180 min.	Approx. 3600 images
Shooting (movies)	Approx. 60 min.	—

Notes

• The above number of images applies when the battery pack is fully charged. The number of images may decrease depending on the conditions of use.

• The number of images that can be recorded is for shooting under the following conditions:

• Using Sony “Memory Stick PRO Duo” (Mark2) media (sold separately)

• The battery pack is used at an ambient temperature of 25^ (77°F).

- The number for “Shooting (still images)” is based on the CIPA standard, and is for shooting under the following conditions:

(CIPA: Camera & Imaging Products Association)

• [Panel Brightness] is set to [3(Normal)].
  – Shooting once every 30 seconds.
• The zoom is switched alternately between the W and T ends.
  – The flash strobes once every two times.
  – The power turns on and off once every ten times.

- The battery life for movies applies shooting under the following conditions:

– Movie quality: AVC HD HQ
- When continuous shooting ends because of set limits (page 24), touch

MOVIE (Movie button) again and continue shooting. Shooting functions such as the zoom do not operate.

Supplying power

The camera can be supplied with power from the wall outlet (wall socket) by connecting to the AC Adaptor, using the micro USB cable (supplied).

You can import images to a computer without worrying about draining the battery pack by connecting the camera to a computer using the micro USB cable.

In addition, you can use the AC Adaptor AC-UD10 (sold separately) for shooting to supply power when shooting.

Notes

• Power cannot be supplied when the battery pack is not inserted in the camera.
• When the camera is connected directly to a computer or to a power outlet using the supplied AC Adaptor AC-UB10/UB10B, power supply is available only in playback mode. If the camera is in shooting mode or while you are changing the settings of the camera, power is not supplied even if you make a USB connection using the micro USB cable.
• If you connect the camera and a computer using the micro USB cable while the camera is in playback mode, the display on the camera will change from the playback screen to the USB connection screen. Press ▶ (Playback) button to switch to the playback screen.

Inserting a memory card (sold separately)

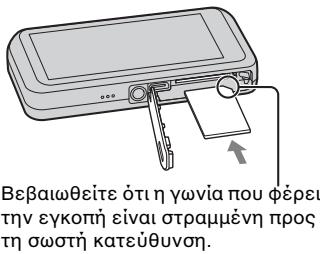

LOCK OPEN ① ②

Diagram of a device with a clip inserted into a paper, showing mechanical components and an arrow indicating motion (no text or symbols present)

Note the notched corner faces correctly.

1 Open the cover.
2 Insert the memory card (sold separately).

- With the notched corner facing as illustrated, insert the memory card until it clicks into place.

3 Close the cover.

■ Memory cards that can be used

	Memory card	For still images	For movies
A	Memory Stick PRO Duo	○	○ (Mark2 only)
	Memory Stick PRO-HG Duo	○	○
	Memory Stick Duo	○	—
B	Memory Stick Micro (M2)	○	○ (Mark2 only)
C	SD memory card	○	○ (Class 4 or faster)
	SDHC memory card	○	○ (Class 4 or faster)
	SDXC memory card	○	○ (Class 4 or faster)
D	microSD memory card	○	○ (Class 4 or faster)
	microSDHC memory card	○	○ (Class 4 or faster)

- In this manual, the products in the table are collectively referred to as follows:

A: "Memory Stick Duo" media
B: "Memory Stick Micro" media
C: SD card
D: microSD memory card

Note

- When using “Memory Stick Micro” media or microSD memory cards with this camera, make sure to use with the appropriate adaptor.

To remove the memory card/battery pack

Memory card: Push the memory card in once to eject the memory card.

Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.

Note

- Never remove the memory card/battery pack when the access lamp (page 8) is lit. This may cause damage to data in the memory card/internal memory.

ON/OFF (Power)

1 Press the ON/OFF (Power) button.

Date & Time setting is displayed when you turn on the camera for the first time.

- It may take time for the power to turn on and allow operation.

2 Select a desired language.

3 Select a desired geographic location by following the on-screen instructions, then touch [Next].

4 Set [Daylight Savings] or [Summer Time], [Date & Time Format] and [Date & Time], then touch [Next].

- Midnight is indicated as 12:00 AM, and noon as 12:00 PM.

5 Touch [OK].

6 Follow the instruction on the screen.

Shooting still images/movies

Shutter button

MOVIE

Shooting still images

1 Press the shutter button halfway down to focus.

When the image is in focus, a beep sounds and the ● indicator lights.

2 Press the shutter button fully down to shoot an image.

Shooting movies

1 Touch 📄 (Movie button) to start recording.

- Use the W/T (zoom) lever to change the zoom scale.

- Press the shutter button to shoot still images while continuing to record the movie.

2 Touch ☐ (Movie button) to stop recording.

Notes

• The sound of the lens and lever operating will be recorded when the zoom function operates while shooting a movie.
• Continuous shooting is possible for approximately 29 minutes at one time at the camera's default settings and when the temperature is approximately 25^ (77^) . When movie recording is finished, you can restart recording by touching
  MOVIE (Movie button) again. Recording may stop to protect the camera depending on the ambient temperature.

Viewing images

(Playback)

Black and white photo of a tabby cat with visible eye, surrounded by video control buttons (no text or symbols)

1 Press the ▶ (Playback) button.

- When images on a memory card recorded with other cameras are played back on this camera, the registration screen for the data file appears.

■ Selecting next/previous image

Touch ▶ (Next)/ ◀ (Previous) on the screen.

- To play back movies, touch (Playback) in the center of the screen.

- To zoom in, move the W/T (zoom) lever to the T side.

■ Deleting an image

Touch ☑ (Delete) → [This Image].

■ Returning to shooting images

Touch 📄 on the screen.

- You can also return to shooting mode by pressing the shutter button halfway down.

In-Camera Guide

This camera is equipped with built-in instruction guide. This allows you to search the camera's functions according to your needs.

MENU

MENU EASY 4:3 16M OFF EV 0 5CN [●] AUTO HQ: 16:9 12M

GB

1 Touch MENU.
2 Touch ? (In-Camera Guide), then select the desired MENU item.

The operation guide for the selected item is displayed.

- If you touch ? (In-Camera Guide) when the MENU screen is not displayed, you can search the guide using keywords or icons.

Introduction of other functions

Other functions used when shooting or playing back can be operated touching the MENU on the screen. This camera is equipped with a Function Guide that allows you to easily select from the functions. While displaying the guide, you can use various functions.

MENU MOVIE AUTO OFF ? MENU EASY 4:3 16M EV 0 SCN [●] AUTO HQ: 16:9 12M MENU

Menu Items

Shooting

Movie shooting scene	Select movie recording mode.
Easy Mode	Shoot still images using minimal functions.
Movie button	Shoot movies quickly from a shooting mode other than [Movie Mode].
Flash	Sets the flash settings.
Self-Timer	Sets the self-timer settings.
Defocus Effect	Set the level of background defocus effect when shooting in Background Defocus mode.
Still Image Size(Dual Rec)	Sets the still image size shot while recording a movie.
Still Image Size/ Panorama Image Size/Movie Size/ Movie Quality	Select the image size and the quality for still images, panoramic images or movie files.
Cont. Shooting Settings	Sets the burst shooting settings.
HDR Painting effect	When [HDR Painting] is selected in Picture Effect, sets the effect level.
Area of emphasis	When [Miniature] is selected in Picture Effect, sets the part to focus on.
Color hue	When [Toy camera] is selected in Picture Effect, sets the color hue.
Extracted Color	When [Partial Color] is selected in Picture Effect, selects the color to extract.
Watercolor Effect	When [Watercolor] is selected in Picture Effect, sets the effect level.
Illustration Effect	When [Illustration] is selected in Picture Effect, sets the effect level.
EV	Adjust the exposure manually.
ISO	Adjust the luminous sensitivity.
White Balance	Adjust color tones of an image.
Focus	Select the focus method.
Metering Mode	Select the metering mode that sets which part of the subject to measure to determine the exposure.
Scene Recognition	Set to automatically detect shooting conditions.
Soft Skin Effect	Set the Soft Skin Effect and the effect level.
Smile Shutter	Set to automatically release the shutter when a smile is detected.
Smile Detection Sensitivity	Set the Smile Shutter function sensitivity for detecting smiles.
Face Detection	Select to detect faces and adjust various settings automatically.
Anti Blink	Set to automatically shoot two images and select image in which the eyes are not blinking.
Movie SteadyShot	Sets the strength of SteadyShot in movie mode. If you change this setting, the angle of view will change.
In-Camera Guide	Search the camera’s functions according to your needs.

Viewing

Easy Mode	Increase the text size on the screen for ease of use.
Date Select	Selects the desired image to view by date.
Calendar	Selects the date to be played back on Calendar.
Image Index	Displays multiple images at the same time.
Slideshow	Select a method of continuous playback.
Delete	Delete an image.
Send by TransferJet	Transfer data by closely aligning two products equipped with TransferJet.
Retouch	Retouch an image using various effects.
Picture Effect	Add various texture on images.
Paint	Paints on a still image and saves it as a new file.
3D Viewing	Set to play back images shot in 3D mode on a 3D TV.
View Mode	Select the display format for images.

GB

Display Cont. Shooting Group	Select to display burst images in groups or display all images during playback.
Protect	Protect the images.
Print (DPOF)	Add a print order mark to a still image.
Rotate	Rotate a still image to the left or right.
Volume	Adjusts the volume.
Exposure data	Sets whether or not to display the shooting data (Exif data) of the currently displayed file on the screen.
Number of images in index	Sets the number of images displayed in the index screen.
In-Camera Guide	Search the camera's functions according to your needs.

Setting items

If you touch the MENU while shooting or during playback, 📋 (Settings) is provided as a final selection. You can change the default settings on the

(Settings) screen.

Shooting Settings	Movie format/AF Illuminator/Grid Line/Clear Image Zoom/Digital Zoom/Wind Noise Reduct./Scene Recog. Guide/Red Eye Reduction/Blink Alert/Write Date
Main Settings	Beep/Histogram Setting/Panel Brightness/Language Setting/Display color/Demo Mode/Initialize/CTRL FOR HDMI/Eco Mode/Calibration/USB Connect Setting/ USB Power Supply/LUN Setting/Download Music/ Empty Music/TransferJet/Eye-Fi/Drop Sensor/Version
Memory Card Tool*	Format/Create REC.Folder/Change REC.Folder/Delete REC.Folder/Copy/File Number
Clock Settings	Area Setting/Date & Time Setting

* If a memory card is not inserted, (Internal Memory Tool) will be displayed and only [Format] can be selected.

Install PC application (Windows)

The built-in software “PlayMemories Home” allows you to import still images and movies to your computer and use them.

You can shoot or play back images on this camera even if you do not install “PlayMemories Home”, however, “PlayMemories Home” is required to import AVCHD movies to your computer.

GB

1 Connect the camera to a computer.
2 Windows 7: [Computer] → camera icon → media icon → Double-click [PMHOME.EXE]
Windows XP/Vista: [Computer] (in Windows XP, [My Computer]) → [PMHOME] → Double-click [PMHOME.EXE]
3 Follow the instructions on the screen to complete the installation.

Note

- “PlayMemories Home” is not compatible to Mac OS. If you play back images on a Mac, use the applications that are installed on your Mac.

For details, see http://www.sony.co.jp/imsoft/Mac/

Features of "PlayMemories Home"

Below are examples of the functions available when you use “PlayMemories Home”. To take advantage of the various “PlayMemories Home” functions, connect to the Internet and install the “Expanded Feature”.

• You can import images shot with the camera to a computer for display.
• You can display images stored on a computer by shooting date in a calendar display.
• You can correct (Red Eye Correction, etc.) still images, print the images, send images by e-mail, and change the shooting date and time.
• You can save and print images with the date.
• You can create a disc from AVCHD movies imported to a computer. (Expanded Feature)

Number of still images and recordable time of movies

The number of still images and recordable time may vary depending on the shooting conditions and the memory card.

Still images

(Units: Images)

Size\Capacity	Internal memory	Memory card
	Approx. 19 MB	2 GB
16M	3	320
VGA	65	6400
16:9(12M)	3	330

Movies

The table below shows the approximate maximum recording times. These are the total times for all movie files. Continuous shooting is possible for approximately 29 minutes. The maximum size of an MP4-format movie file is up to approximately 2 GB.

(h (hour), m (minute))

Size\Capacity	Internal memory	Memory card
	Approx. 19 MB	2 GB
AVC HD 24M (FX)	—	10 m(10 m)
AVC HD 9M (HQ)	—	25 m(15 m)
MP4 12M	—	15 m
MP4 3M	—	1 h 10 m

The number in ( ) is the minimum recordable time.

• The recordable time of movies varies because the camera is equipped with VBR (Variable Bit Rate), which automatically adjusts image quality depending on the shooting scene. When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory is required for recording.
  The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings.

Notes on using the camera

Functions built into this camera

- This manual describes each of the functions of TransferJet compatible/incompatible devices, 1080 60i-compatible devices and 1080 50i-compatible devices.

To check if your camera supports the TransferJet function, and whether it is a 1080 60i-compatible device or 1080 50i-compatible device, check for the following marks on the bottom of the camera.

TransferJet-compatible device: ↗ (TransferJet)

1080 60i-compatible device: 60i

1080 50i-compatible device: 50i

- Do not watch 3D images shot with this camera for extended periods of time on 3D-compliant monitors.

- When you view 3D images shot with this camera on a 3D-compliant monitors, you may experience discomfort in the form of eye strain, fatigue, or nausea. To prevent these symptoms, we recommend that you take regular breaks. However, you need to determine for yourself the length and frequency of breaks you require, as they vary according to the individual. If you experience any type of discomfort, stop viewing the 3D images until you feel better, and consult a physician as necessary. Also refer to the operating instructions supplied with the device or software you have connected or are using with this camera. Note that a child's eyesight is still at the development stage (particularly children below the age of 6).

Consult a pediatrician or ophthalmologist before letting your child view 3D images, and make sure he/she observes the above precautions when viewing such images.

On use and care

Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping, or stepping on the product. Be particularly careful of the lens.

Notes on recording/playback

- Before you start recording, make a trial recording to make sure that the camera is working correctly.

- The camera is neither dust-proof, nor splash-proof, nor water-proof.

- Avoid exposing the camera to water. If water enters inside the camera, a malfunction may occur. In some cases, the camera cannot be repaired.

- Do not aim the camera at the sun or other bright light. It may cause the malfunction of the camera.

- If moisture condensation occurs, remove it before using the camera.

- Do not shake or strike the camera. It may cause a malfunction and you may not be able to record images. Furthermore, the recording media may become unusable or image data may be damaged.

Do not use/store the camera in the following places

• In an extremely hot, cold or humid place
  In places such as in a car parked in the sun, the camera body may become deformed and this may cause a malfunction.
  • Under direct sunlight or near a heater
  The camera body may become discolored or deformed, and this may cause a malfunction.
• In a location subject to rocking vibration
• Near a location that generates strong radio waves, emits radiation or is strongly magnetic place. Otherwise, the camera may not properly record or play back images.
  • In sandy or dusty places
  Be careful not to let sand or dust get into the camera. This may cause the camera to malfunction, and in some cases this malfunction cannot be repaired.

On carrying

Do not sit down in a chair or other place with the camera in the back pocket of your trousers or skirt, as this may cause malfunction or damage the camera.

Carl Zeiss lens

The camera is equipped with a Carl Zeiss lens which is capable of reproducing sharp images with excellent contrast. The lens for the camera has been produced under a quality assurance system certified by Carl Zeiss in accordance with the quality standards of Carl Zeiss in Germany.

Note on the screen and lens

The screen is manufactured using extremely high-precision technology so over 99.99% of the pixels are operational for effective use. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the screen. These dots are a normal result of the manufacturing process, and do not affect the recording.

On camera's temperature

Your camera and battery may get hot due to continuous use, but it is not a malfunction.

On the overheat protection

Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera.

A message will be displayed on the screen before the power turns off or you can no longer record movies. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool enough, the power may turn off again or you may be unable to record movies.

On charging the battery

If you charge a battery that has not been used for a long time, you may be unable to charge it to the proper capacity.

This is due to the battery characteristics, and is not a malfunction. Charge the battery again.

Warning on copyright

Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

No compensation for damaged content or recording failure

Sony cannot compensate for failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc.

Cleaning the camera surface

Clean the camera surface with a soft cloth slightly moistened with water, then wipe the surface with a dry cloth. To prevent damage to the finish or casing:

- Do not expose the camera to chemical products such as thinner, benzine, alcohol, disposable cloths, insect repellent, sunscreen or insecticide.

GB

Specifications

Camera

[System]

Image device: 7.77 mm (1/2.3 type) Exmor R CMOS sensor

Total pixel number of camera: Approx. 16.8 Megapixels

Effective pixel number of camera: Approx. 16.2 Megapixels

Lens: Carl Zeiss Vario-Tessar 5× zoom lens

$$ \mathrm{f} = 4. 5 \mathrm{mm} - 2 2. 5 \mathrm{mm} (2 5 \mathrm{mm} - $$

$$ 1 2 5 \mathrm{mm} (3 5 \mathrm{mmfilmequivalent})) $$

$$ \mathrm{F} 2. 6 (\mathrm{W}) - \mathrm{F} 6. 3 (\mathrm{T}) $$

While shooting movies (16:9):

$$ 2 9 \mathrm{mm} - 1 4 5 \mathrm{mm} ^ {*} $$

While shooting movies (4:3):

$$ 3 5 \mathrm{mm} - 1 7 5 \mathrm{mm} ^ {*} $$

* When [Movie SteadyShot] is set to [Standard]

SteadyShot: Optical

Exposure control: Automatic exposure, Scene Selection (14 modes)

White balance: Automatic, Daylight, Cloudy, Fluorescent 1/2/3, Incandescent, Flash, One Push

Signal format:

For 1080 50i: PAL color, CCIR standards HDTV 1080/50i specification

For 1080 60i: NTSC color, EIA standards HDTV 1080/60i specification

File format:

Still images: JPEG (DCF, Exif, MPF Baseline) compliant, DPOF compatible

3D still images: MPO (MPF

Extended (Disparity Image)) compliant

Movies (AVCHD format):

AVCHD format Ver. 2.0 compatible

Video: MPEG-4 AVC/H.264

Audio: Dolby Digital 2ch, equipped with Dolby Digital Stereo Creator

• Manufactured under license from Dolby Laboratories.

Movies (MP4 format):

Video: MPEG-4 AVC/H.264

Audio: MPEG-4 AAC-LC 2ch

Recording media: Internal Memory

(Approx. 19 MB), “Memory Stick Duo” media, “Memory Stick Micro” media, SD cards, microSD memory cards

Flash: Flash range (ISO sensitivity (Recommended Exposure Index) set to Auto):

Approx. 0.2 m to 5.3 m

(7 7/8 inches to 17 ft 4 3/4 inches) (W)

Approx. 1.0 m to 2.2 m

(3 ft 3 3/8 inches to 7 ft

2 5/8 inches) (T)

[Input and Output connectors]

Micro USB connector: USB communication

USB communication: Hi-Speed USB (USB 2.0)

[Screen]

LCD screen:

Wide (16:9), 7.5 cm (3.0 type) TFT drive

Total number of dots:

921 600 dots equivalent

[Power, general]

Power: Rechargeable battery pack NP-BN, 3.6 V

AC Adaptor AC-UB10/UB10B, 5 V

Power consumption (during shooting): 1.0 W

Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)

Storage temperature: -20 ^ to +60 ^ (-4 ^ to +140 ^)

Dimensions (CIPA compliant): 92.2 mm × 52.0 mm × 19.1 mm (3 3/4 inches × 2 1/8 inches × 25/32 inches) (W/H/D)

Mass (CIPA compliant) (including NP-BN battery pack, “Memory Stick Duo” media):

Approx. 114 g (4.0 oz)

Microphone: Stereo

Speaker: Monaural

Exif Print: Compatible

PRINT Image Matching III: Compatible

AC Adaptor AC-UB10/UB10B

Power requirements: AC 100 V to 240 V, 50 Hz/60 Hz, 70 mA

Output voltage: DC 5 V, 0.5 A

Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)

Storage temperature: -20 ^ to +60 ^ (-4 ^ to +140 ^)

Dimensions:

Approx. 50 mm × 22 mm × 54 mm (2 inches × 7/8 inches × 2 1/4 inches) (W/H/D)

Mass:

For the USA and Canada:

Approx. 48 g (1.7 oz)

For countries or regions other than the USA and Canada:

Approx. 43 g (1.5 oz)

Rechargeable battery pack NP-BN

Used battery: Lithium-ion battery

Maximum voltage: DC 4.2 V

Nominal voltage: DC 3.6 V

Maximum charge voltage: DC 4.2 V

Maximum charge current: 0.9 A

Capacity:

typical: 2.3 Wh (630 mAh)

minimum: 2.2 Wh (600 mAh)

Design and specifications are subject to change without notice.

Trademarks

- The following marks are trademarks of Sony Corporation.

Cyber-shot, “Cyber-shot,” “Memory Stick PRO Duo,” “Memory Stick PRO-HG Duo,” “Memory Stick Duo,” “Memory Stick Micro”

- “AVCHD” and “AVCHD” logotype are trademarks of Panasonic Corporation and Sony Corporation.

- Windows is registered trademark of Microsoft Corporation in the United States and/or other countries.

• Mac is registered trademark of Apple Inc.

- SDXC logo is a trademark of SD-3C, LLC.

- “” and “PlayStation” are registered trademarks of Sony Computer Entertainment Inc.

- In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or manufacturers. However, the ^TM or ^® marks are not used in all cases in this manual.

Works with PlayStation®3

- Add further enjoyment with your PlayStation 3 by downloading the application for PlayStation 3 from PlayStation Store (where available.)

- The application for PlayStation 3 requires PlayStation Network account and application download. Accessible in areas where the PlayStation Store is available.

Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.

http://www.sony.net/

Printed on 70% or more recycled paper using VOC (Volatile Organic Compound)-free vegetable oil based ink.

GB

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

RECYCLE RBRC Li-Ion 7.800.822.8837

Responsible : Sony Electronics Inc.

Adresse : 16530 Via Esprillo, San Diego, CA 92127 É.-U.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled for identification

Diagram of a digital camera with numbered parts labeled 10, 11, 12, and 13

14 15 16 17 18 19 20 21

① LOCK OPEN ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely illustrating a control or processing procedure.

Illustration of a smartphone rear panel with buttons and a pointer (no text or symbols)

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol and signal flow arrows.

Remarque

(CIPA: Camera & Imaging Products Association)

1 LOCK OPEN ① ②

Diagram of a device with a handle and paper clip, showing mechanical components without any text or symbols.

ON/OFF (Alimentation)

Digital camera module with a cat's face on screen, labeled (Lecture) and pointing at the button (no text or symbols on device)

Black and white photo of a tabby cat with visible eye, surrounded by video control buttons (no text or symbols on the cat or background)

(h (heures), m (minutes))

Taille\Capacité	Mémoire interne	Carte mémoire
	Environ 19 Mo	2 Go
AVC HD 24M (FX)	—	10 m(10 m)
AVC HD 9M (HQ)	—	25 m(15 m)
MP4 12M	—	15 m
MP4 3M	—	1 h 10 m

Batterie rechargeable NP-BN

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled for identification

Diagram of a digital camera with numbered parts labeled 10, 11, 12, and 13

14 15 16 17 18 19 20 21

LOCK OPEN ① ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely illustrating a control or processing procedure.

Illustration of a device rear panel with a central connector (no text or symbols)

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol and signal flow arrows.

Nota

(CIPA: Camera & Imaging Products Association)

LOCK OPEN ① ②

Diagram of a device with a paper clip inserted into a slot, showing an arrow indicating movement (no text or symbols present)

A: "Memory Stick Duo"
B: "Memory Stick Micro"
C: Scheda SD
D: Scheda memoria microSD

Nota

Black and white photo of a tabby cat with visible eye, surrounded by video control buttons (no text or symbols)

Circa 50 mm × 22 mm × 54 mm

(L/A/P)

Peso:

Cyber-shot, “Cyber-shot”, “Memory Stick PRO Duo”, “Memory Stick PRO-HG Duo”, “Memory Stick Duo”, “Memory Stick Micro”

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a browser interface with text and images.

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled for identification

10 11 12 13

14 15 16 17 18 19 20 21

① LOCK OPEN ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely illustrating a control or processing procedure.

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol and signal flow arrows.

Nota

(CIPA: Camera & Imaging Products Association)

Black and white photo of a tabby cat with visible eye, surrounded by video control buttons (no text or symbols on the cat or background)

Cyber-shot, “Cyber-shot”, “Memory Stick PRO Duo”, “Memory Stick PRO-HG Duo”, “Memory Stick Duo”, “Memory Stick Micro”

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled for identification

Diagram of a digital camera with numbered parts labeled 10, 11, 12, and 13

14 15 16 17 18 19 20 21

LOCK OPEN ① ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely illustrating a device's motion or assembly.

Diagram showing two views of a device with a USB cable inserted, no text or symbols present

Diagram showing a laptop connected to an electronic device via cable, with a USB port labeled 'USB'.

Nota

(CIPA: Camera & Imaging Products Association)

N3p0 1 ① ②

Diagram of a device with a paper clip and cable, no text or symbols present

Black and white photo of a tabby cat with editing interface buttons (no text or symbols on the cat's face)

(Aprox. 19 MB), "Memory Stick

Cyber-shot, “Cyber-shot”, “Memory Stick PRO Duo”, “Memory Stick PRO-HG Duo”, “Memory Stick Duo”, “Memory Stick Micro”

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a browser interface with text and images.

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled 1 through 9

Diagram of a digital camera with numbered parts labeled 10, 11, 12, and 13

14 15 16 17 18 19 20 21

LOCK OPEN ① ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely illustrating a device's motion or assembly.

Akku-Auswurfhebel

Diagram of a USB device with cable and connector (no text or symbols)

Illustration of a smartphone rear panel with buttons and a pointer (no text or symbols)

Diagram showing wireless device connection between laptop and network device with USB cable

Hinweis

(CIPA: Camera & Imaging Products Association)

LOCK OPEN ① ②

Diagram of a device with a clip inserted into a paper, showing an arrow indicating movement (no text or symbols present)

Black and white photo of a tabby cat with editing interface buttons (no text or symbols on the cat's face)

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled for identification

10 11 12 13

14 15 16 17 18 19 20 21

LOCK OPEN ① ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely illustrating a device's motion or assembly.

Accu-uitwerphendel

1 Open het deksel.

2 Steek de accu erin.

Illustration of a portable electronic device with cable and ports, no text or symbols present

Illustration of a smartphone rear panel with buttons and a vertical line indicating a measurement or alignment point (no text or symbols present)

Aan-/oplaadlampje

Brandt: opladen

Uit: opladen klaar

Knippert:

laadfout

opladen onderbroken als

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol and signal arrows indicating data transmission.

Opmerking

(CIPA: Camera & Imaging Products Association)

Diagram of a device with a handle and paper clip, showing no text or symbols

Empty white rectangle with black and white vertical stripes, no text or symbols present

Black and white photo of a tabby cat with visible eye, surrounded by video control buttons (no text or symbols)

Cyber-shot, "Cyber-shot", "Memory Stick PRO Duo", "Memory Stick PRO-HG Duo", "Memory Stick Duo", "Memory Stick Micro"

Works with PlayStation®3

Diagram showing a laptop connected to a screen displaying a video call interface and a person photo, with 'Cyberatrol' label indicating the system.

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled for identification

Diagram of a digital camera with numbered parts labeled 10, 11, 12, and 13

14 15 16 17 18 19 20 21

LOCK OPEN ① ②

Diagram showing a device with a dialog box and directional arrows indicating movement or operation, likely from a computer system interface.

Diagram of a device with an attached cable and ports, no text or symbols present

Illustration of a smartphone rear panel with buttons and a pointer (no text or symbols)

Diagram showing a laptop connected to a device via cable, with a USB symbol and signal arrows indicating data transmission.

Uwaga

(CIPA: Camera & Imaging Products Association)

LOCK OPEN ① ②

Diagram of a device with a handle and cable, showing no text or symbols

Black-and-white photo of a tabby cat with visible whiskers and camera buttons (no text or symbols)

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled for identification

Diagram of a digital camera with numbered parts labeled 10, 11, 12, and 13

14 15 16 17 18 19 20 21

LOCK OPEN ① ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely from an older computer.

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol and signal flow arrows.

Poznámka

(CIPA: Camera & Imaging Products Association)

N3p0_1 1 2

Illustration of a device with a paper clip inserted into a slot, showing an arrow indicating movement (no text or symbols present)

Black and white photo of a tabby cat with visible eye, surrounded by video control buttons (no text or symbols)

Asi 50 mm × 22 mm × 54 mm

(Š/V/H)

Hmotnost:

Pro USA a Kanadu:

Asi 48 g

Works with PlayStation®3

Diagram showing a laptop connected to a screen displaying a video call interface and a person photo, with 'Cyberatrol' label indicating the system.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled for identification

Diagram of a digital camera with numbered parts labeled 10, 11, 12, and 13

14 15 16 17 18 19 20 21

LOCK OPEN ① ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely illustrating a device's motion or assembly.

Diagram showing a laptop connected to a device via cable, with a USB symbol and signal arrows indicating data transmission.

Megjegyzés

(CIPA: Camera & Imaging Products Association)

LOCK OPEN ① ②

Diagram of a device with a paper clip inserted into a slot, showing mechanical components and an arrow indicating motion (no text or symbols present)

Black and white photo of a tabby cat with camera app icons in corner (no text or symbols on the cat or background)

Works with PlayStation®3

Diagram showing a laptop connected to a screen displaying a video call interface and a person's photo, with 'Cyberatrol' label indicating the system.

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled for identification

Diagram of a digital camera with numbered parts labeled 10, 11, 12, and 13

14 15 16 17 18 19 20 21

① Tlačidlo ON/OFF (Napájanie)
2 Spúšť
3 Ovládač W/T (Zoom)
4 Blesk
5 Kontrolka napájania/nabíjania
6 Tlačidlo ▶ (Prehrávanie)
7 Mikrofón
8 Kontrolka samospúšte/Kontrolka režimu snímania úsmevu/AF iluminátor
9 Objektív
10 Displej/Dotykový panel
11 Minikonektor HDMI
12 Háčik pre remienok na zápästie
13 Značka (TransferJetTM)
14 Reproduktor
15 Otvor pre statív

① LOCK OPEN ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely illustrating a control or processing workflow.

Diagram showing a device with a switch connected to a screen, no text or symbols present

Diagram showing a laptop connected to a device via cable, with a USB symbol and signal arrows indicating data transmission.

Poznámka

(CIPA: Camera & Imaging Products Association)

– [Panel Brightness] je nastavené na [3(Normal)].
– Snímanie každých 30 sekúnd.
– Zoom sa striedavo prepína medzi koncovými hodnotami W a T.
– Blesk blysne pri každom druhom zábere.
– Napájanie sa vypína a zapína po každom desiatom zábere.

Diagram of a device with a handle and paper clip, showing mechanical components (no text or symbols)

Black and white photo of a tabby cat with visible eye, surrounded by video control buttons (no text or symbols)

Shooting Settings	Movie format/AF Illuminator/Grid Line/Clear Image Zoom/Digital Zoom/Wind Noise Reduct./Scene Recog. Guide/Red Eye Reduction/Blink Alert/Write Date
[CCHS] Main Settings	Beep/Histogram Setting/Panel Brightness/Language Setting/Display color/Demo Mode/Initialize/CTRL FOR HDMI/Eco Mode/Calibration/USB Connect Setting/USB Power Supply/LUN Setting/Download Music/Empty Music/TransferJet/Eye-Fi/Drop Sensor/Version
Memory Card Tool*	Format/Create REC.Folder/Change REC.Folder/Delete REC.Folder Copy/File Number
[74HS] Clock Settings	Area Setting/Date & Time Setting

* Ak nie je vo fotoaparáte vložená pamätová karta, zobrazí sa (Internal Memory Tool), pričom bude možné zvolit len [Format].

SK

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a separate image of a person on the screen.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled 1 through 9

Diagram of a digital camera with numbered parts labeled 10, 11, 12, and 13

14 15 16 17 18 19 20 21

LOCK OPEN ① ②

Diagram showing a device with a dialog box and directional arrows indicating movement or operation, likely from a computer system interface.

Batteriutmatningsknapp

1 Öppna locket.

2 Sätt i batteripaketet.

Diagram showing two views of a device with a screwdriver inserted, no text or symbols present

Strömlampa/

uppladdningslampa

Tänd: Uppladdning

Diagram showing wireless device connection between laptop and network device with USB cable and USB port labels

Observera

(CIPA: Camera & Imaging Products Association)

LOCK OPEN ① ②

Illustration of a handheld device with a paper clip and arrow indicating motion (no text or symbols)

Black and white photo of a tabby cat with visible eye, surrounded by play button icons (no text or symbols)

Cyber-shot, "Cyber-shot", "Memory Stick PRO Duo", "Memory Stick PRO-HG Duo", "Memory Stick Duo", "Memory Stick Micro"

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled 1 through 9

Diagram of a digital camera with numbered parts labeled 10, 11, 12, and 13

14 15 16 17 18 19 20 21

LOCK OPEN ① ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely from an older computer.

Akun poistovipu

1 Avaa kansi.

Illustration of a smartphone rear panel with buttons and a pointer (no text or symbols)

Diagram showing a laptop connected to an electronic device via cable, with a USB port labeled 'USB'.

Huomaa

(CIPA: Camera & Imaging Products Association)

LOCK OPEN ① ②

Diagram of a device with a clip and paper being inserted, showing no text or symbols

Suljinpainike

Kuvaus (valokuvat)

MOVIE

Black and white photo of a tabby cat with visible eye, surrounded by play and image control buttons (no text or symbols on the cat or background)

Cyber-shot, "Cyber-shot", "Memory Stick PRO Duo", "Memory Stick PRO-HG Duo", "Memory Stick Duo", "Memory Stick Micro"

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Dette symbolet på batteriet eller på forpakningen betyr at batteriet ikke skal behandles som vanlig husholdningsavfall.

Diagram of a digital camera with numbered parts labeled for identification

Diagram of a digital camera with numbered parts labeled 10, 11, 12, and 13

14 15 16 17 18 19 20 21

① ON/OFF-knapp (strømbryter)
2 Lukkerknapp
3 W/T-spak (Zoomespak)
4 Blits
5 Strøm-/ladelampe
6 ▶-knapp (avspilling)
7 Mikrofon
⑧ Selvutløserlampe/Smilutløserlampe/AF-lys
9 Linse
10 Touchskjerm
11 HDMI-minikontakt
12 Krok for håndleddsrem
13 (TransferJetTM)-merke
14 Høyttaler
15 Skruehull for stativ

LOCK OPEN ① ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely illustrating a device's motion or assembly.

Batteriutkaster

1 Åpne dekselet.

2 Sett inn batteriet.

Diagram showing two views of a device with ports and connectors, no text or symbols present

Strøm-/ladelampe

Tent: Lading pågår

Diagram showing wireless connection between a laptop and an electronic device via USB cable

Merk

(CIPA: Camera & Imaging Products Association)

Diagram of a device with a paper clip inserted into a slot, showing mechanical components and an arrow indicating motion (no text or symbols present)

B: "Memory Stick Micro"

C: SD-kort

D: microSD minnekort

Merk

ON/OFF-knapp (strømbryter)

Black and white photo of a tabby cat with blurred background, surrounded by video control buttons (no text or symbols)

(h (time), m (minutt))

Størrelse\Kapasitet	Internminne	Minnekort
	Ca. 19 MB	2 GB
AVC HD 24M (FX)	—	10 m(10 m)
AVC HD 9M (HQ)	—	25 m(15 m)
MP4 12M	—	15 m
MP4 3M	—	1 h 10 m

Strømadapter AC-UB10/UB10B

Strømbehov: AC 100 V til 240 V, 50 Hz/60 Hz, 70 mA

Utgangsspenning: DC 5 V, 0,5 A

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled for identification

10 11 12 13

14 15 16 17 18 19 20 21

LOCK OPEN ① ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely from an older computer.

Diagram showing two views of a device with ports and connectors, no text or symbols present

Strøm-/Opladelampe

Tændt: Oplader

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol and signal flow arrows.

Bemærk

(CIPA: Camera & Imaging Products Association)

Illustration of a device with a handle and paper clip, no text or symbols present

ON/OFF (Strøm)

Close-up of a digital camera with a cat's face on screen, labeled (Afspil) and pointing at the top (no other text or symbols visible)

Black and white photo of a tabby cat with visible eye, surrounded by video control buttons (no text or symbols)

(h (timer), m (minutter))

Størrelse\Kapacitet	Intern hukommelse	Hukommelseskort
	Ca. 19 MB	2 GB
AVC HD 24M (FX)	—	10 m(10 m)
AVC HD 9M (HQ)	—	25 m(15 m)
MP4 12M	—	15 m
MP4 3M	—	1 h 10 m

Cyber-shot, "Cyber-shot", "Memory Stick PRO Duo", "Memory Stick PRO-HG Duo", "Memory Stick Duo", "Memory Stick Micro"

Works with PlayStation®3

Diagram showing a laptop connected to a webpage with a person, alongside a separate image of a video call interface.

»Korisnički priručnik za Cyber-shot« je online priručnik. Konzultirajte ga za detaljne upute o mnogim funkcijama fotoaparata.

① Pristupite stranici za Sony podršku. http://www.sony.net/SonyInfo/Support/
② Odaberite svoju zemlju ili regiju.

③ Potražite naziv modela svog fotoaparata na stranici podrške.

- Naziv modela provjerite na donjem dijelu fotoaparata.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Ova oznaka na bateriji ili na ambalaži označava da se baterija ne smije zbrinjavati kao ostali kućni otpad.

Na nekim baterijama se uz ovaj simbol može nalaziti kemijski simbol. Kemijski simboli za živu (Hg) ili olovo (Pb) dodaju se ako baterija sadrži više od 0,0005% žive ili 0,004% olova.

Diagram of a digital camera with numbered parts labeled for identification

Diagram of a digital camera with numbered parts labeled 10, 11, 12, and 13

14 15 16 17 18 19 20 21

① Tipka ON/OFF (napajanje)
2 Okidač
3 Poluga W/T (zum)
4 Bljeskalica
5 Svjetlo napajanja/punjenja
6 Tipka ▶ (reprodukcija)
7 Mikrofon
8 Svjetlo samookidača/indikator snimanja osmijeha/AF svjetlo
9 Objektiv
10 Zaslon/Zaslon na dodir
11 Mini priključnica HDMI
12 Kukica za vrpcu za nošenje
13 Oznaka ↗ (TransferJet™)
14 Zvučnik
15 Navoj za stativ
- Koristite stativ s vijkom duljine manje od 5,5 mm. U protivnom fotoaparat nećete moći dobro učvrstiti i može se oštetiti.
16 Mikro USB priključak
17 Utor za memorijsku karticu
18 Poklopac baterije/memorijske kartice
19 Utor za umetanje baterije
20 Svjetlo pristupa podacima
21 Polugica za vađenje baterije

Umetanje baterijske jedinice

LOCK OPEN ① ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely from an older computer.

Polugica za vađenje baterije

1 Otvorite poklopac.

2 Umetnite baterijsku jedinicu.

• Dok pritišćete polugu za vađenje baterije, umetnite baterijsku jedinicu kako je prikazano. Osigurajte da se poluga za vađenje baterije nakon umetanja zaključa.
• Zatvaranjem poklopca kad je baterija nepravilno umetnuta možete oštetiti fotoaparat.

HR

Punjenje baterijske jedinice

Diagram showing wireless connection between laptop and network device with USB cable and switch

Napomena

(CIPA: Camera & Imaging Products Association)

Diagram of a device with a scroll and cable, showing no text or symbols

Black and white photo of a tabby cat with visible eye, surrounded by video control buttons (no text or symbols on the cat or background)

1 Pritisnite tipku ▶ (reprodukcija).

- Kad se slike na memorijskoj kartici snimljene s drugim fotoaparatima reproduciraju na ovom fotoaparatu, pojavljuje se registracijski zaslon za podatkovnu datoteku.

Odabir sljedeće/prethodne slike

Works with PlayStation®3

- Dodajte više užitka sa svojim PlayStation 3 preuzimanjem aplikacije za PlayStation 3 s PlayStation Store (gdje je dostupna).

Diagram showing a laptop connected to a webpage with a person, alongside a separate image of a video call interface.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled 1 through 9

10 11 12 13

14 15 16 17 18 19 20 21

Introducerea accumulatorilor

LOCK OPEN ① ②

Diagram showing a device with a dialog box and directional arrows indicating movement or process, likely from an older computer.

Diagram showing two views of a device with a cable inserted, no text or symbols present

Diagram showing a laptop connected to a device via cable, with a USB symbol and signal arrows indicating data transmission.

Observatie

(CIPA: Camera & Imaging Products Association)

LOCK OPEN ① ②

Illustration of a handheld electronic device with a paper clip and cable, no text or symbols present

Buton declansator

MOVIE

Realizarea de fotografii statice

Digital camera module with a cat's face on screen, labeled (Redare) and pointing at the top (no other text or symbols visible)

Black and white photo of a tabby cat with blurred background, surrounded by video control buttons (no text or symbols)

[25 mm – 125 mm (echivalent film 35 mm)]

F2,6 (W) - F6,3 (T)

Audio: Dolby Digital 2 canale, include Dolby Digital Stereo Creator

Works with PlayStation®3

Diagram showing a laptop connected to a screen displaying a photo and text, with 'Cyber-ethyl' label pointing to the screen.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled for identification

10 11 12 13

14 15 16 17 18 19 20 21

① LOCK OPEN ②

Diagram showing a device with a button labeled 'down' and directional arrows indicating movement or change, likely illustrating a process or operation.

Pil çıkarma düğmesi

1 Kapağı açın.

2 Pili takın.

Diagram showing two views of a device with a switch and cable, no text or symbols present

Güç/Şarj lambası

Diagram showing a laptop connected to a device via cable, with a USB symbol and signal arrows indicating data transmission.

Not

(CIPA: Camera & Imaging Products Association)

Diagram of a device with a handle and paper clip, showing no text or symbols

ON/OFF (Güç)

Black and white photo of a tabby cat with blurred background, surrounded by play button icons (no text or symbols)

Cyber-shot, “Cyber-shot”, “Memory Stick PRO Duo”, “Memory Stick PRO-HG Duo”, “Memory Stick Duo”, “Memory Stick Micro”

- “AVCHD” ve “AVCHD” logoları Panasonic Corporation’ in ve Sony Corporation’ in ticari markalarıdırlar.

Works with PlayStation®3

1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan

Türkiye İrtibat Numaraları: Tel: [phone] Faks: 0216-632 70 30 e-mail: [e-mail]

Diagram showing a laptop connected to a screen displaying a video call interface and a person photo, with 'Cyberatrol' label indicating the system.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a digital camera with numbered parts labeled for identification

10 11 12 13

14 15 16 17 18 19 20 21

LOCK OPEN ① ②

Diagram showing a device with a speech bubble and directional arrows indicating movement or process, likely from a computer system interface.

Illustration of a smartphone rear panel with buttons and a pointer (no text or symbols)

Diagram showing wireless connection between a laptop and an electronic device via USB cable

Παρατήρηση

(CIPA: Camera & Imaging Products Association)

N3p01 ① ②

Black and white photo of a tabby cat with camera lens icons in the corner (no text or symbols on the cat or background)

Works with PlayStation®3
