USER MANUAL IAN 311421 MIOMARE

text_image PDF ONLINE www.lidl-service.com

MIOMARE IAN 311421 - 1

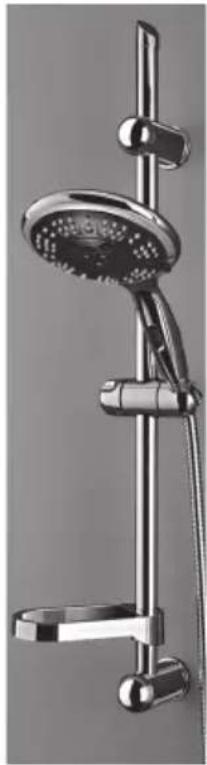

natural_image Modern showerhead with adjustable handle and base (no text or symbols visible)

MULTIFUNKTIONSBRAUSE-SET MIT BRAUSESTANGE / MULTIFUNCTION SHOWER HEAD WITH SHOWER RAIL / DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE

DE AT CH

MULTIFUNKTIONSBRAUSE-SET MIT BRAUSESTANGE

Assembly and safety advice

FR BE

DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE

GB/IE Assembly and safety advice Page 8

text_image 1 Ø 5.5 mm,

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 1

natural_image Line drawing of a showerhead with a handle and circular vent, no text or symbols present

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 2

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 3

text_image 1 x 3

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 4

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 5

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 6

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 7

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 8

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 9

text_image 1 x 9

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 10

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 11

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 12

text_image 1 x 12

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 13

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 14

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 15

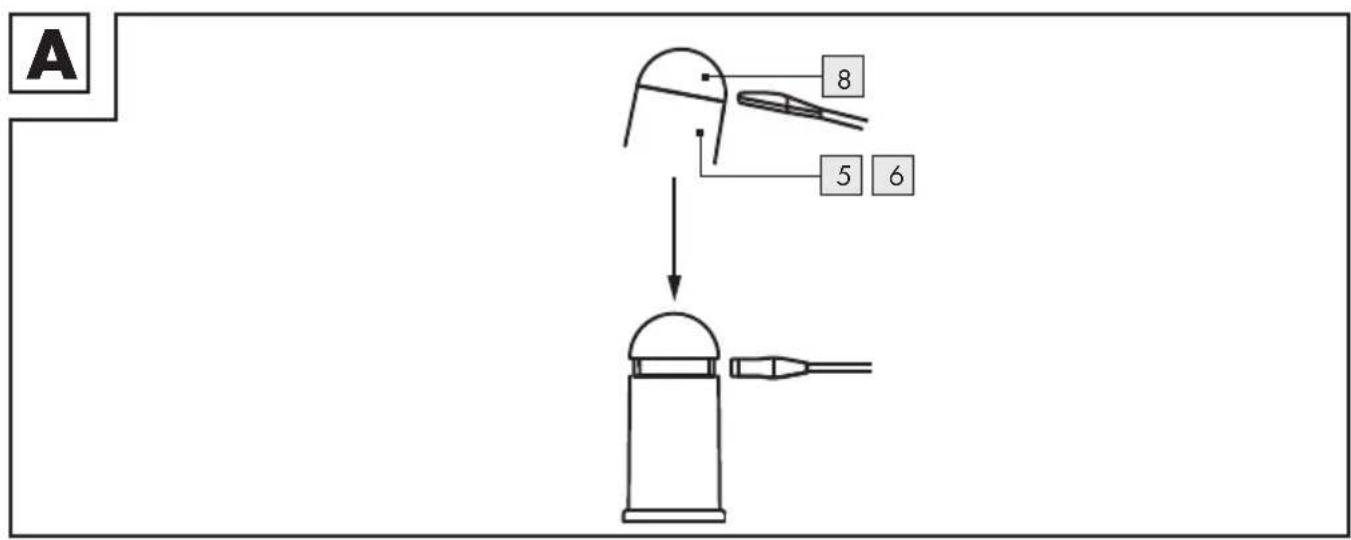

text_image A 8 5 6

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 16

text_image B 13 11 5 7 8 9 1 16 10 3 12 9 11 6 17 7 8

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 17

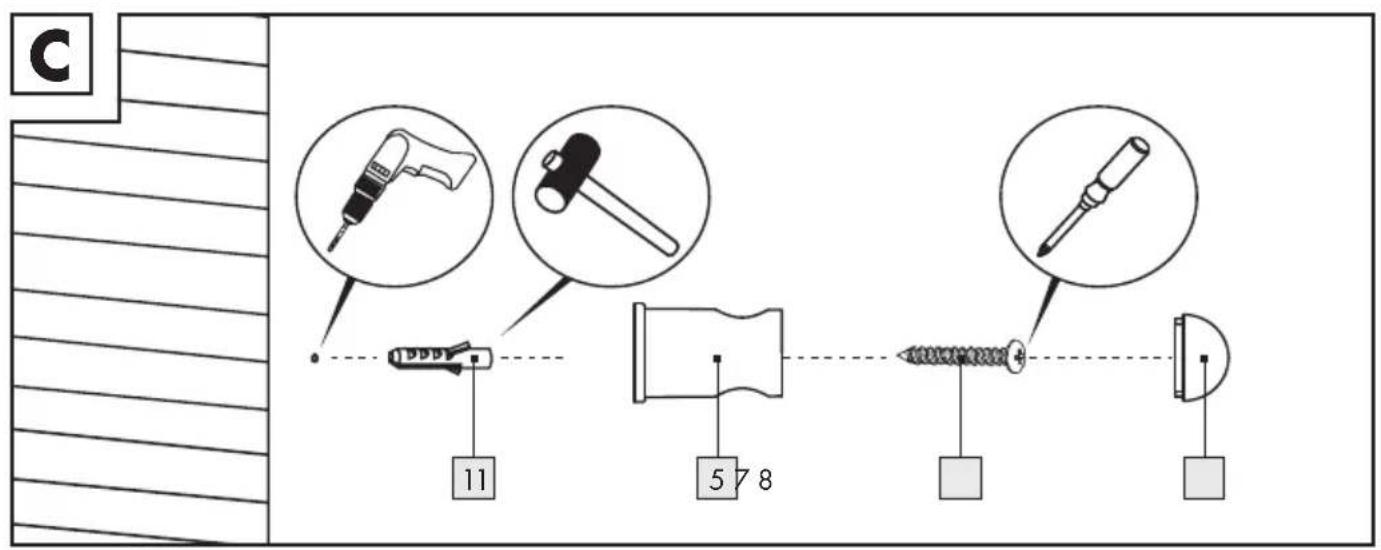

text_image C 11 5 7 8

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 18

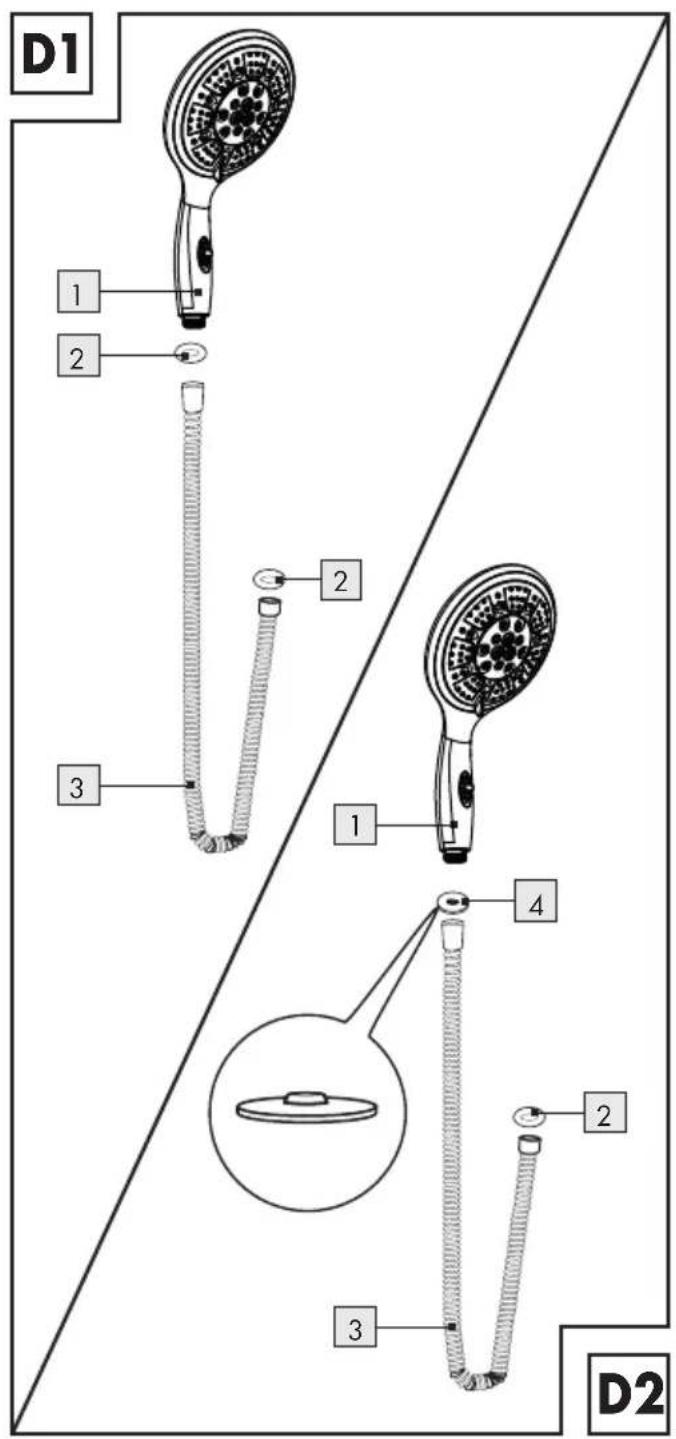

text_image D1 1 2 3 2 1 4 2 3 D2

MIOMARE IAN 311421 - DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE - 19

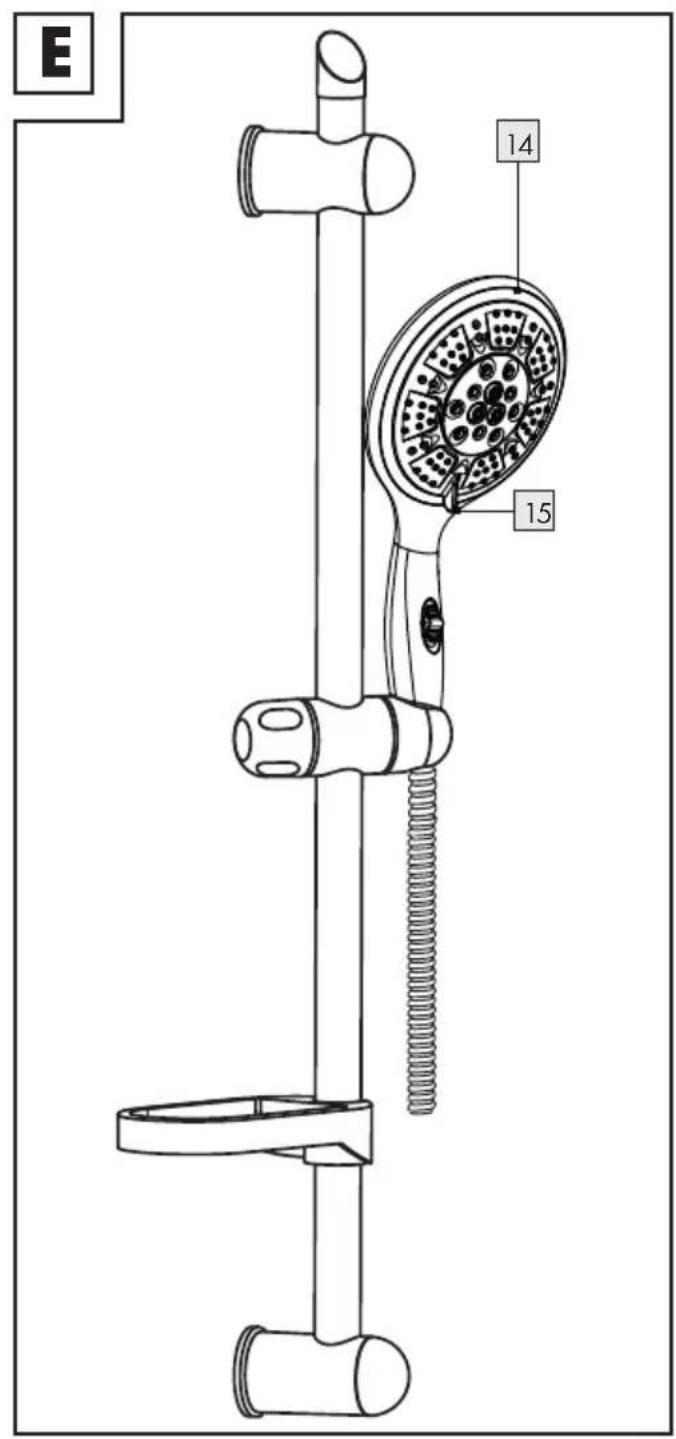

text_image E 14 15

MULTIFUNKTIONSBRAUSE-SET MIT BRAUSESTANGE

Einleitung

natural_image Simple line drawing of a symmetrical abstract shape resembling a stylized 'X' or branching structure, enclosed in a rounded rectangle (no text or symbols)

Massage

MIOMARE IAN 311421 - Einleitung - 1

natural_image Abstract geometric pattern with vertical lines and curved shapes, no text or symbols present

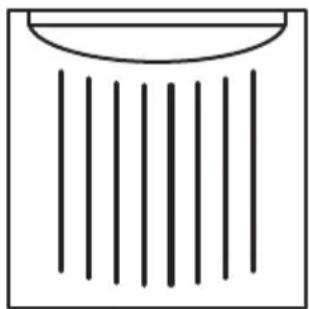

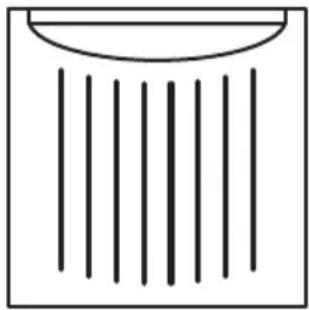

Regen + Massage

MIOMARE IAN 311421 - Einleitung - 2

natural_image Simple line drawing of a container with vertical lines and a semicircular top (no text or symbols)

Regen

MIOMARE IAN 311421 - Einleitung - 3

natural_image Simple line drawing of a container with a lid and vertical columns of circles (no text or symbols)

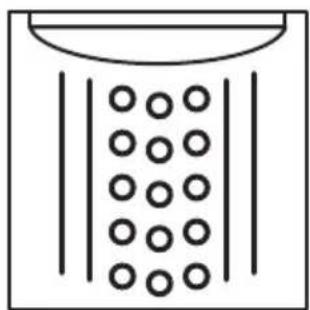

Mischstrahl

MIOMARE IAN 311421 - Einleitung - 4

natural_image Simple diagram of a container with a curved top and rows of circular holes (no text or symbols)

Weicher Strahl

Wasserspareinsatz

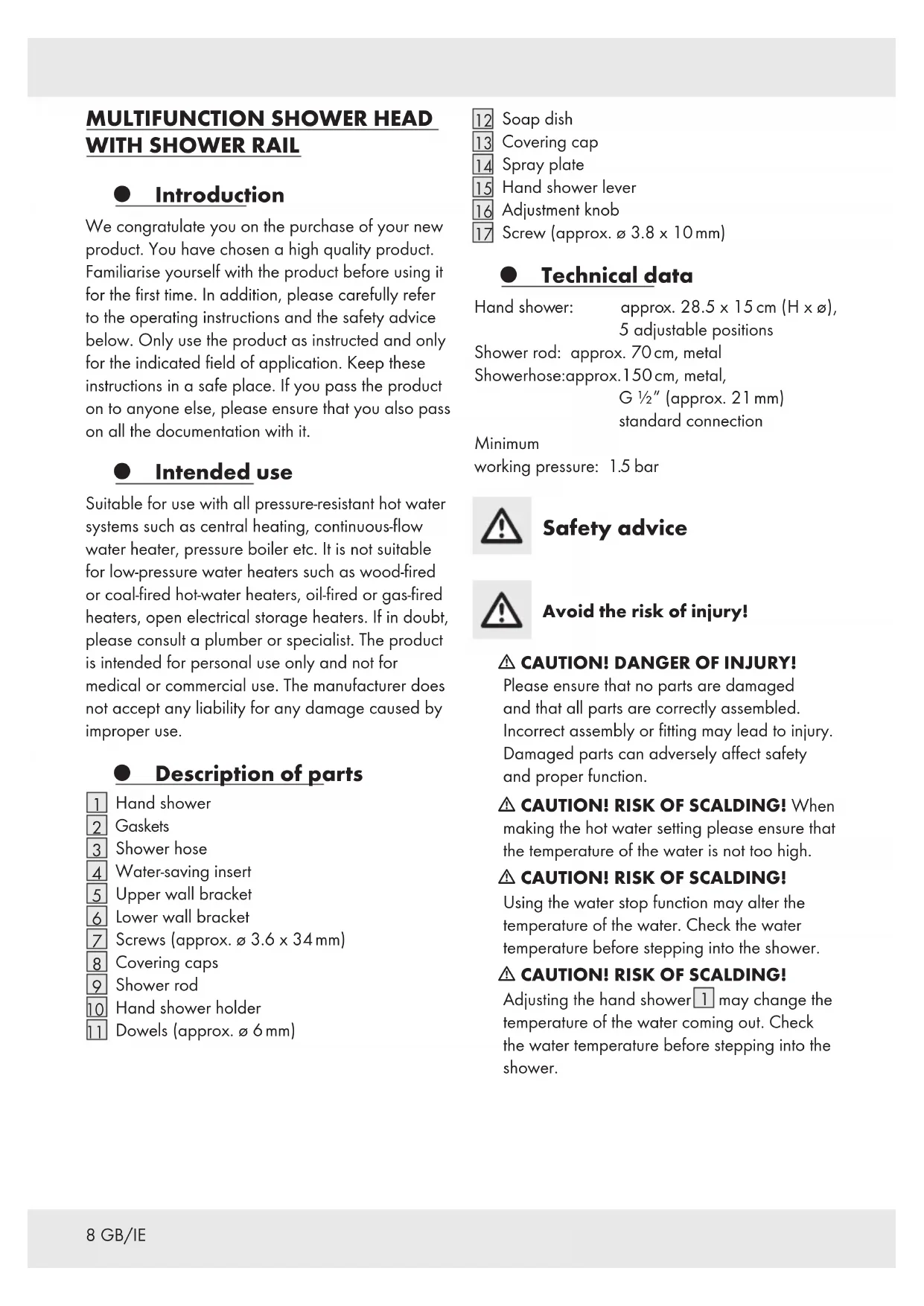

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

Suitable for use with all pressure-resistant hot water systems such as central heating, continuous-flow water heater, pressure boiler etc. It is not suitable for low-pressure water heaters such as wood-fired or coal-fired hot-water heaters, oil-fired or gas-fired heaters, open electrical storage heaters. If in doubt, please consult a plumber or specialist. The product is intended for personal use only and not for medical or commercial use. The manufacturer does not accept any liability for any damage caused by improper use.

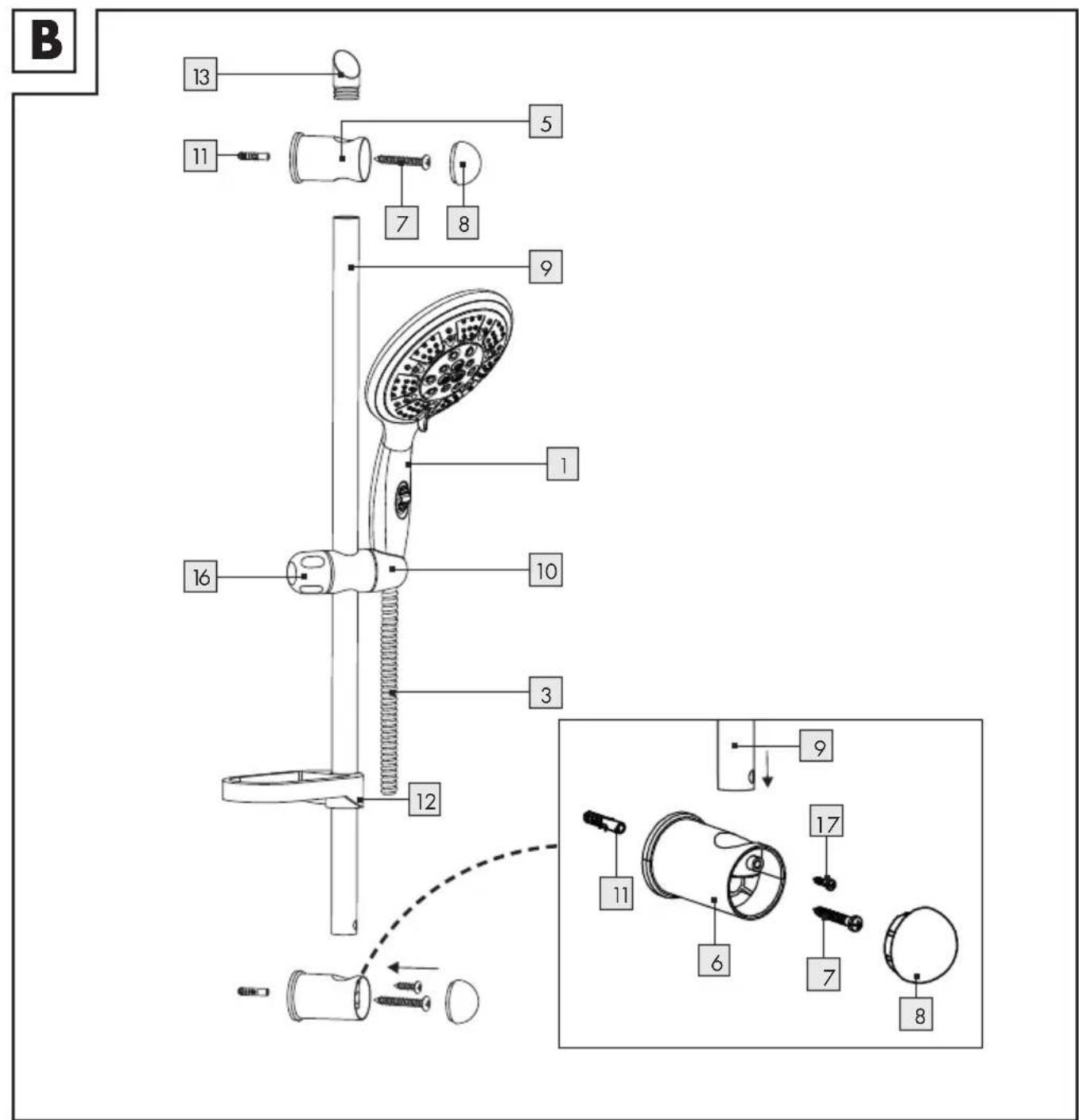

● Description of parts

1 Hand shower
2 Gaskets

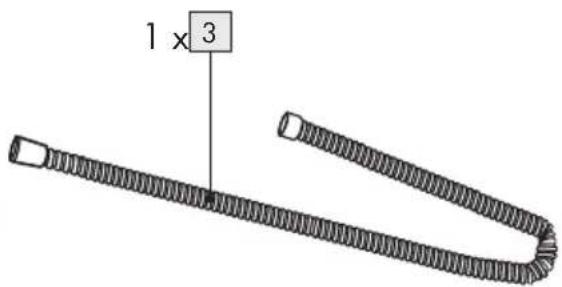

3 Shower hose
4 Water-saving insert
5 Upper wall bracket
6 Lower wall bracket
7 Screws (approx. ∅ 3.6 × 34 mm)
8 Covering caps
9 Shower rod
10 Hand shower holder
11 Dowels (approx. ∅ 6 mm)

12 Soap dish
13 Covering cap
14 Spray plate
15 Hand shower lever
16 Adjustment knob
17 Screw (approx. ∅ 3.8 x 10 mm)

● Technical data

Hand shower: approx. 28.5 x 15 cm (H x ø), 5 adjustable positions

Shower rod: approx. 70 cm, metal

Showerhose:approx. 150 cm, metal,

G 12 " (approx. 21 mm)

standard connection

Minimum

working pressure: 1.5 bar

MIOMARE IAN 311421 - ● Technical data - 1

Safety advice

MIOMARE IAN 311421 - Safety advice - 1

Avoid the risk of injury!

⚠️ CAUTION! DANGER OF INJURY!

Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly or fitting may lead to injury. Damaged parts can adversely affect safety and proper function.

⚠️ CAUTION! RISK OF SCALDING! When making the hot water setting please ensure that the temperature of the water is not too high.

⚠️ CAUTION! RISK OF SCALDING!

Using the water stop function may alter the temperature of the water. Check the water temperature before stepping into the shower.

⚠️ CAUTION! RISK OF SCALDING!

Adjusting the hand shower 1 may change the temperature of the water coming out. Check the water temperature before stepping into the shower.

The shower 9 should not be used to attach or support anything, as the fixings and the rod 9 are designed to support only their own weight.

MIOMARE IAN 311421 - ⚠️ CAUTION! RISK OF SCALDING! - 1

Avoid damage to property!

- Assembly should only be carried out by an experienced person! - Before wall mounting, check that the wall can take the weight of the shower rod set. If in doubt, ask in a specialist shop.

■ CAUTION! WATER DAMAGE! Before drilling, ensure that there are no water pipes where you intend to drill.

■ Ensure that all gaskets are correctly seated.

Please note that gaskers are wear parts and therefore will require to be replaced from time to time.

Examine the wall before installation and choose suitable installation fixings. We have supplied fixings suitable for an ordinary solid masonry wall.

MIOMARE IAN 311421 - Avoid damage to property! - 1

Remark: The hand shower 1 has a waterstop function: Slightly dripping water will remind you to turn off the shower.

MIOMARE IAN 311421 - Avoid damage to property! - 2

Mounting

MIOMARE IAN 311421 - Mounting - 1

Remarks:

For fittings with 26.4 mm (G ^3/4 ) connection, use an adaptor with 26.4 mm (G ^3/4 ) inner thread and 21 mm (G ^1/2 ) outer thread, available in DIY store or bathroom shops.

A water-saving insert is included in your shower rod set.

The conical nut of the shower hose can rotate freely for anti-twist function.

MIOMARE IAN 311421 - Remarks: - 1

Operation

● How to adjust the hand shower

Adjust the height of the hand shower holder by using the adjustment knob 16.
Adjust the angle at which the hand shower is tilted by using the hand shower holder 10.

MIOMARE IAN 311421 - ● How to adjust the hand shower - 1

Shower functions

Turn the hand shower le ^15 to set the hand shower 1 function you wish to have (see Fig. E).

The hand shower 1 has the following functions:

MIOMARE IAN 311421 - The hand shower 1 has the following functions: - 1

natural_image Simple line drawing of a symmetrical abstract shape resembling a stylized 'X' or branching structure (no text or symbols)

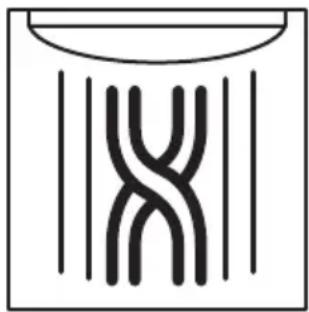

Massage

MIOMARE IAN 311421 - The hand shower 1 has the following functions: - 2

natural_image Abstract geometric pattern with vertical lines and a curved top (no text or symbols)

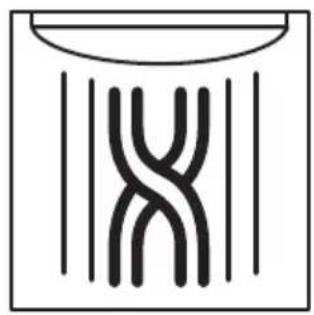

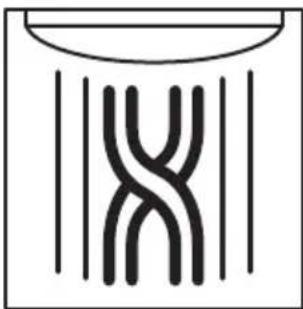

Rain + Massage

MIOMARE IAN 311421 - The hand shower 1 has the following functions: - 3

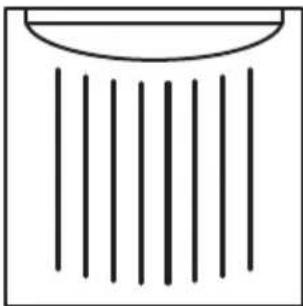

natural_image Simple line drawing of a container with vertical lines and a semicircular top (no text or symbols)

Rain

MIOMARE IAN 311421 - The hand shower 1 has the following functions: - 4

natural_image Simple line drawing of a container with a lid and vertical columns of circles (no text or symbols)

Mixed jet

MIOMARE IAN 311421 - The hand shower 1 has the following functions: - 5

natural_image Simple diagram of a container with a curved top and rows of circular holes (no text or symbols)

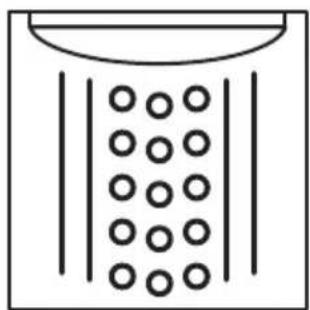

Gentle flow

Water-saving insert

The water-saving insert 4 reduces the flow of water. This may have an effect on how your continuous-flow water heater works. If the flow of water is too low, your continuous-flow water heater will automatically switch off.

● Cleaning and care

  • Clean the product with a soft, damp cloth and use a mild cleaning agent if necessary.
    ■ Remove the limescale on the shower rod set by using a commercially available limescale remover. Please follow the directions for using your cleaning agent.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE

Introduction

natural_image Simple line drawing of a symmetrical abstract shape resembling a stylized 'X' or branching structure (no text or symbols)

Massage

MIOMARE IAN 311421 - Introduction - 1

natural_image Abstract geometric pattern with vertical lines and curved shapes, no text or symbols present
natural_image Simple line drawing of a container with vertical lines and a curved top (no text or symbols)

Jet pluie

MIOMARE IAN 311421 - Introduction - 2

natural_image Simple line drawing of a container with a lid and vertical columns of circles (no text or symbols)

Jet mixte

MIOMARE IAN 311421 - Introduction - 3

natural_image Simple diagram of a container with a curved top and rows of circular holes (no text or symbols)

Faible jet

natural_image Simple line drawing of a symmetrical abstract shape resembling a stylized 'X' or branching structure (no text or symbols)

Massage

MIOMARE IAN 311421 - Introduction - 4

natural_image Abstract diagram with vertical lines and curved shapes, no text or symbols present

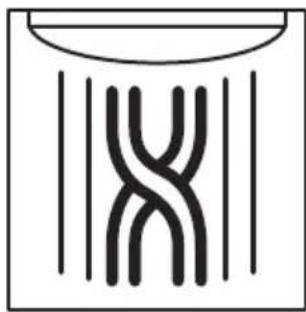

Regen + Massage

MIOMARE IAN 311421 - Introduction - 5

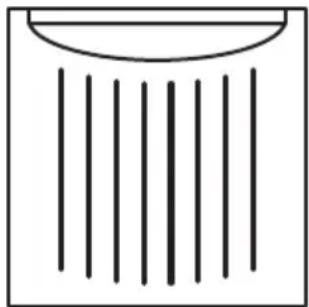

natural_image Simple line drawing of a rectangular container with vertical lines and a curved top (no text or symbols)

Regen

MIOMARE IAN 311421 - Introduction - 6

natural_image Simple line drawing of a container with a lid and vertical columns of circles (no text or symbols)

Gemengde straal

MIOMARE IAN 311421 - Introduction - 7

natural_image Simple diagram of a container with a curved top and rows of circular holes (no text or symbols)

Zachte straal

Waterbesparende inzet

natural_image Simple line drawing of a symmetrical abstract shape resembling a stylized 'X' or branching structure, enclosed in a rounded rectangle (no text or symbols)

Masaż

MIOMARE IAN 311421 - Waterbesparende inzet - 1

natural_image Simple line drawing of a symmetrical abstract shape with vertical lines and curved internal patterns (no text or symbols)
natural_image Simple line drawing of a container with vertical lines and a curved top (no text or symbols)

Deszczownica

MIOMARE IAN 311421 - Waterbesparende inzet - 2

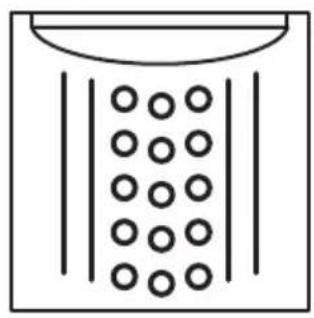

natural_image Simple line drawing of a container with a tray and a row of circular objects inside (no text or symbols)
natural_image Simple diagram of a container with a curved top and rows of circular holes (no text or symbols)

Spokojny wypływ

natural_image Simple line drawing of a symmetrical abstract shape resembling a stylized 'X' or branching structure (no text or symbols)

Masáž

MIOMARE IAN 311421 - Waterbesparende inzet - 3

natural_image Abstract geometric pattern with vertical lines and curved shapes, no text or symbols present

Déšť + masáž

MIOMARE IAN 311421 - Waterbesparende inzet - 4

natural_image Simple line drawing of a container with vertical lines and a curved top (no text or symbols)

Déšť

MIOMARE IAN 311421 - Waterbesparende inzet - 5

natural_image Simple line drawing of a container with a lid and vertical columns of circles (no text or symbols)
natural_image Simple diagram of a container with a curved top and rows of circular holes (no text or symbols)

Jemný proud

natural_image Simple line drawing of a symmetrical abstract shape resembling a stylized 'X' or branching structure, enclosed in a rectangular frame (no text or symbols)

Masáž

MIOMARE IAN 311421 - Waterbesparende inzet - 6

natural_image Abstract geometric pattern with vertical lines and curved shapes, no text or symbols present

Dážd' + masáž

MIOMARE IAN 311421 - Waterbesparende inzet - 7

natural_image Simple line drawing of a container with vertical lines and a semicircular top (no text or symbols)

Dážd'

MIOMARE IAN 311421 - Waterbesparende inzet - 8

natural_image Simple line drawing of a container with a tray holding nine circles, no text or symbols present.

Zmiešaný prúd

MIOMARE IAN 311421 - Waterbesparende inzet - 9

natural_image Simple diagram of a container with a curved top and rows of circular holes (no text or symbols)

Mierny prúd

Nadstavec na šetrenie vody

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : MIOMARE

Model : IAN 311421

Category : Shower head
