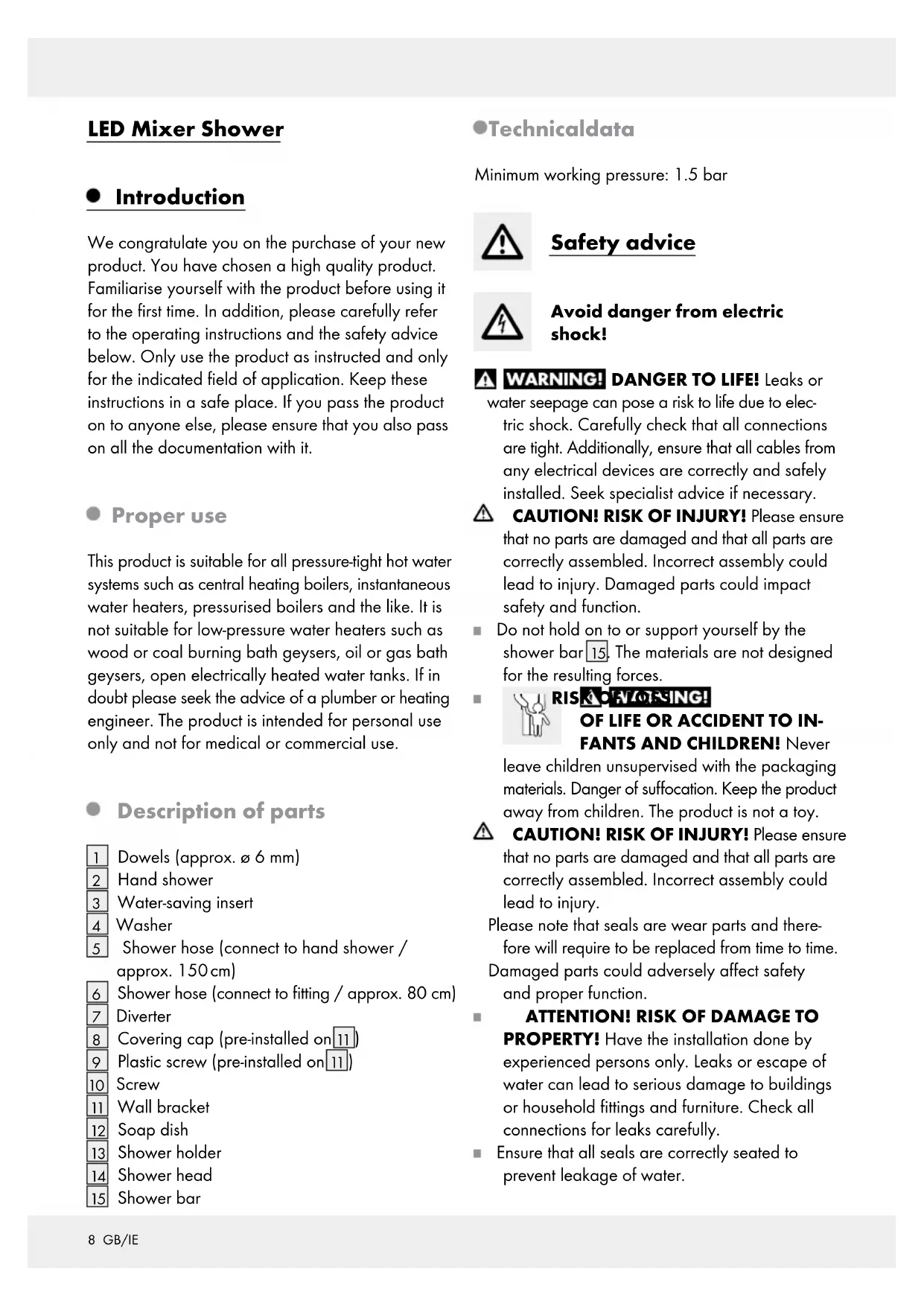

USER MANUAL IAN 279524 MIOMARE

Assembly, operating and safety instructions

Dowels (approx. ø 6 mm)

Shower hose (connect to hand shower / approx. 150 cm)

Shower hose (connect to fitting / approx. 80 cm)

Covering cap (pre-installed on

Plastic screw (pre-installed on

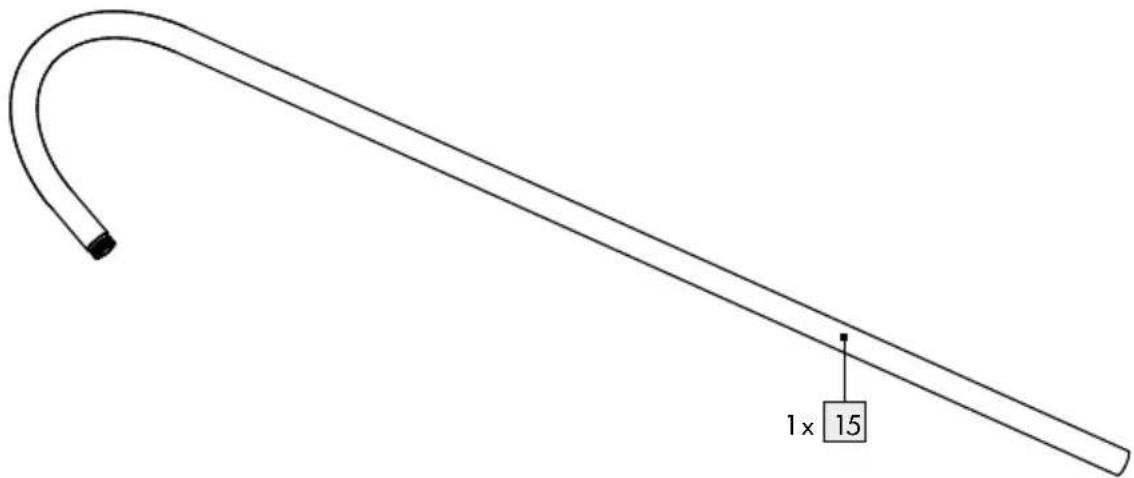

Shower bar Technical data Minimum working pressure: 1.5 bar Safety advice Avoid danger from electric shock! DANGER TO LIFE! Leaks or water seepage can pose a risk to life due to elec- tric shock. Carefully check that all connections are tight. Additionally, ensure that all cables from any electrical devices are correctly and safely installed. Seek specialist advice if necessary. CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury. Damaged parts could impact safety and function. Do not hold on to or support yourself by the shower bar

. The materials are not designed for the resulting forces.

FANTS AND CHILDREN! Never leave children unsupervised with the packaging materials. Danger of suffocation. Keep the product away from children. The product is not a toy. CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury. Please note that seals are wear parts and there- fore will require to be replaced from time to time. Damaged parts could adversely affect safety and proper function.

ATTENTION! RISK OF DAMAGE TO

PROPERTY! Have the installation done by experienced persons only. Leaks or escape of water can lead to serious damage to buildings or household fittings and furniture. Check all connections for leaks carefully. Ensure that all seals are correctly seated to prevent leakage of water.9 GB/IE CAUTION! DANGER OF SCALDING! When making the hot water setting please ensure that the temperature of the water is not too high. Please read carefully through these operating instructions before installing and using the product. Keep all the safety advice and instructions in a safe place for future reference! Do not connect the shower hose

directly to a shut-off valve, always connect the shower hose with the provided diverter

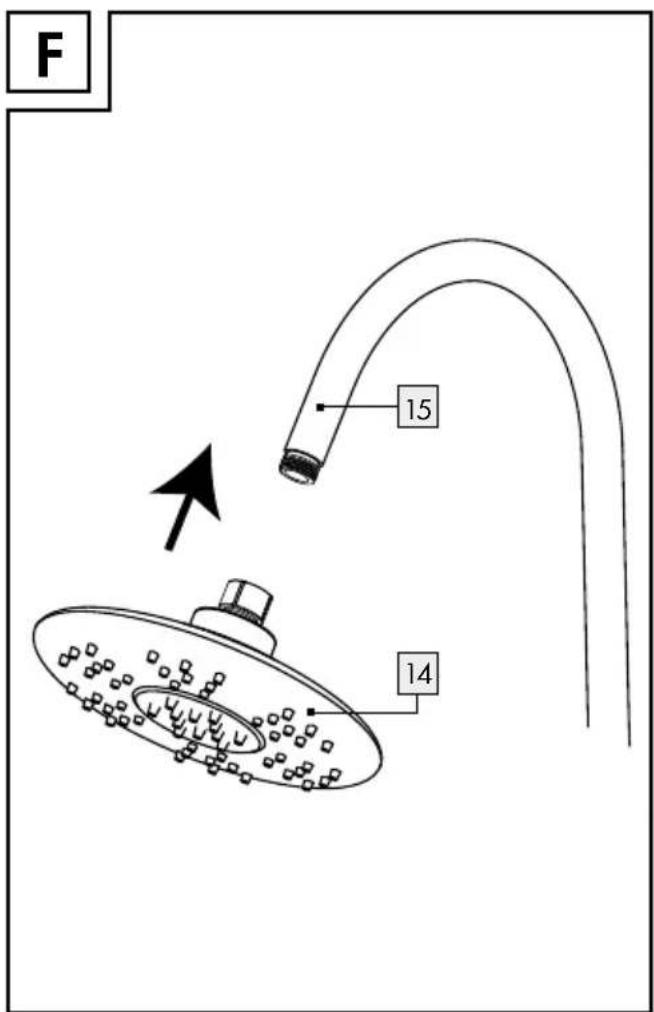

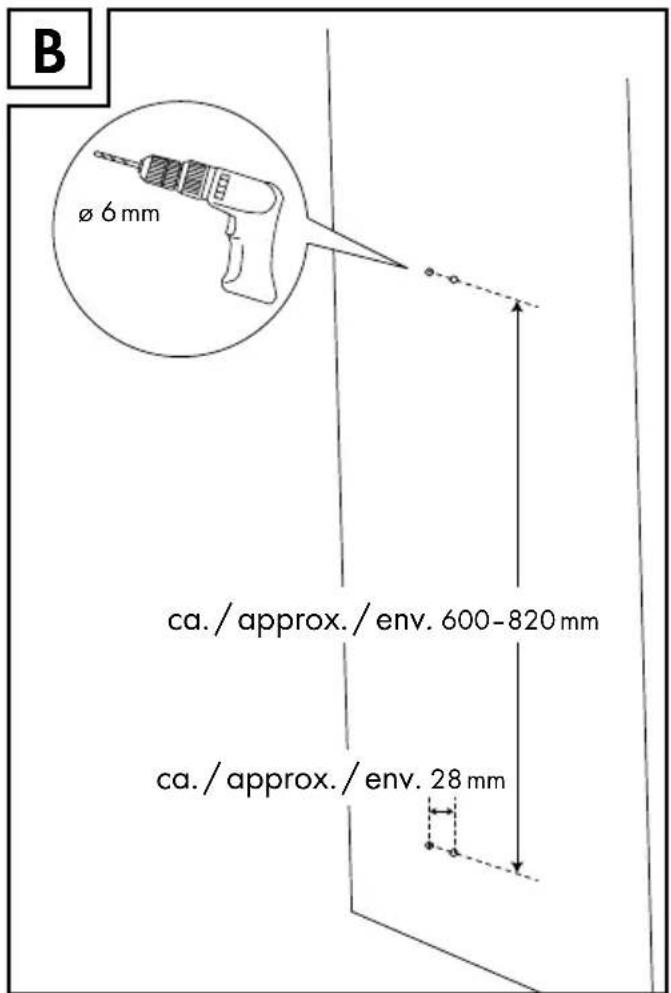

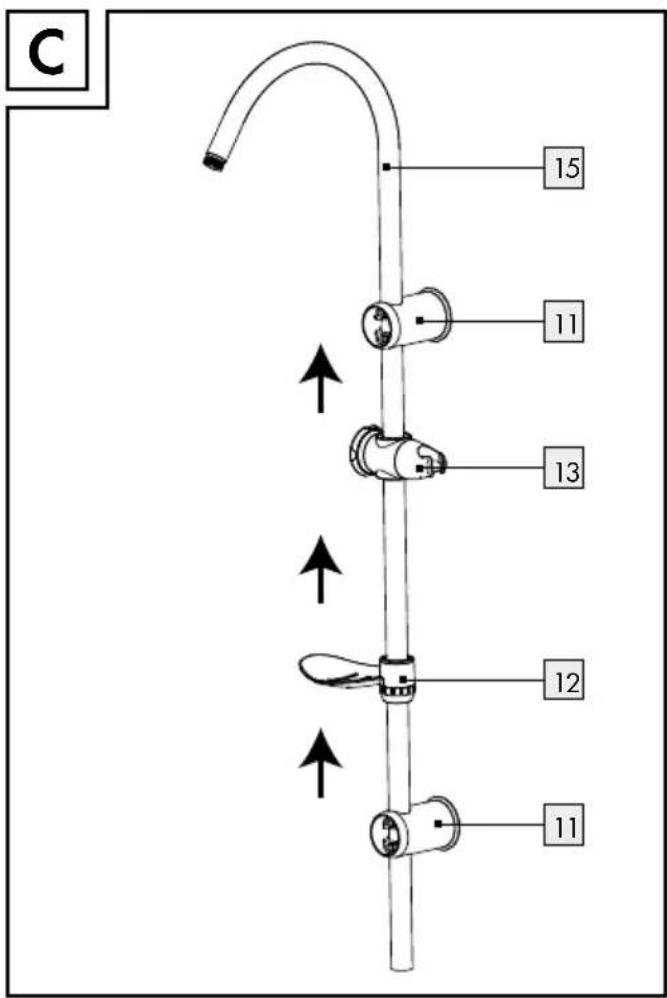

Before wall mounting, check that the wall can take the weight of the shower rod set. If in doubt, ask in a specialist shop. CAUTION! WATER DAMAGE! Before drill- ing, ensure that there are no water pipes where you intend to drill. Examine the wall before installation and choose suitable installation fixings. We have supplied fix- ings suitable for an ordinary solid masonry wall. Mounting Tip: For fittings with (26.4 mm) ¾ connection, use an adaptor with (26.4 mm) ¾ inner thread and (21 mm) ½ outer thread, available in DIY store or bathroom shops. Please refer to fig. A–G. Note: Fasten hose connections and converter hand-tight. Operation Use the diverter

to switch between shower head

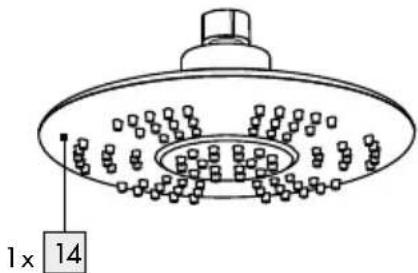

The LED inside the shower head

will change color base on the water temperature (blue = cold, green = warm, red = hot). How to adjust the hand shower

Adjust the height of the hand shower holder

by using the adjustment knob. Adjust the angle at which the hand shower is tilted by using the hand shower holder

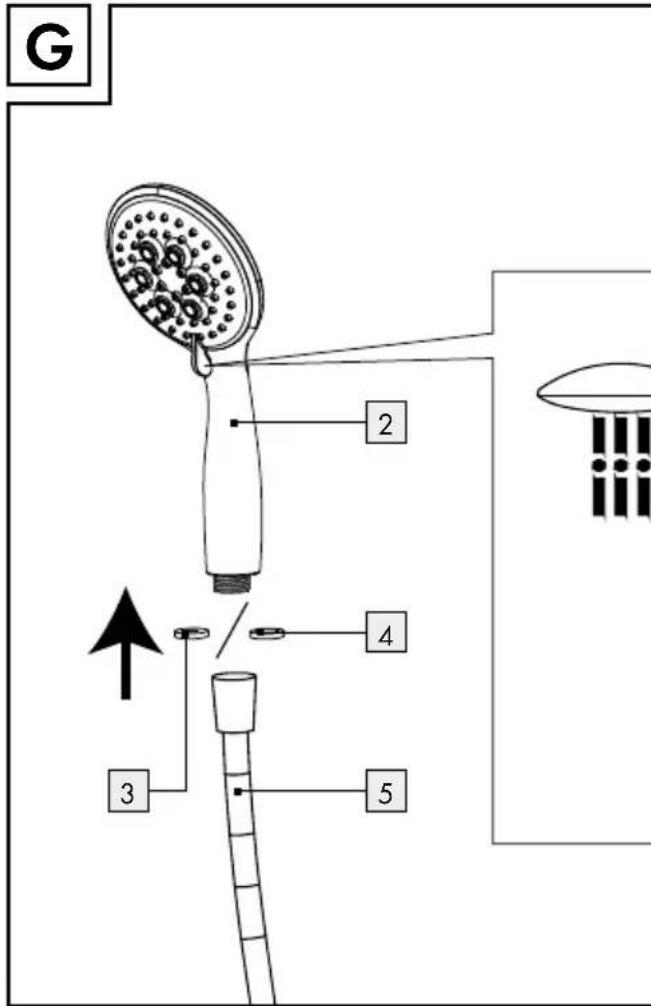

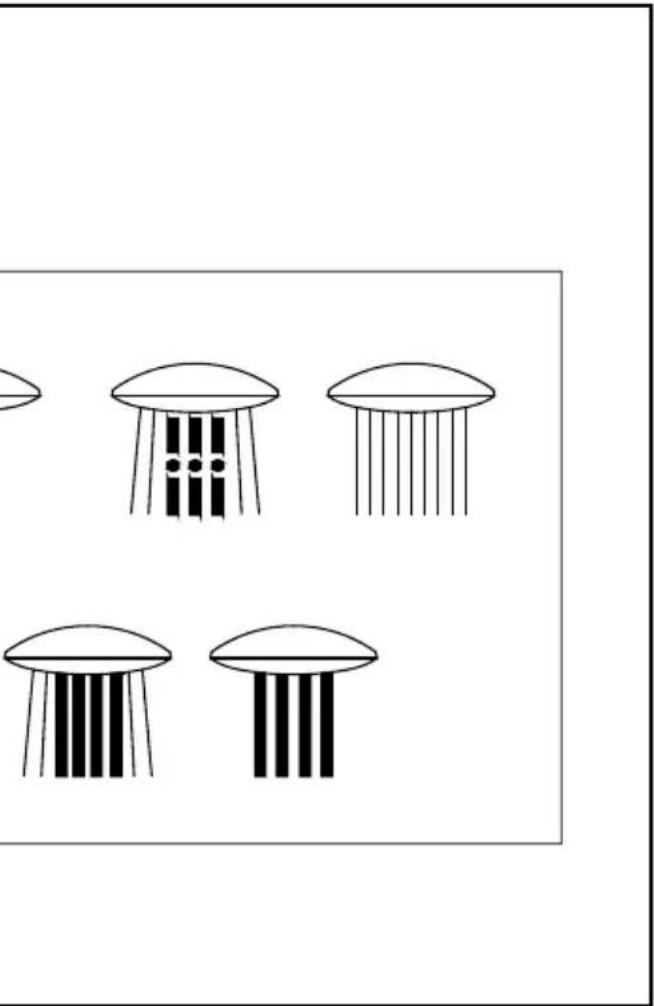

Shower functions: Turn the hand shower lever to set the hand shower

function you wish to have (see fig. G). Water-saving insert: The water-saving insert

reduces the flow of water. This may have an effect on how your continuous-flow water heater works. If the flow of water is too low, your continuous-flow water heater will automatically switch off. Cleaning and care Clean the product with a soft, damp cloth and use a mild cleaning agent if necessary. Remove the limescale on the shower rod set by using a commercially available limescale remover. Please follow the directions for using your cleaning agent. Disposal The packaging is wholly composed of environmen- tally friendly materials that can be disposed of at a local recycling centre. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product. Information Potability of mains water Find out about the potability of your mains water supply. Your local water authority or water supply company will be able to inform you.10 GB/IE The following general recommendations apply to the potability of the water from your pipework: Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Failure to observe this advice may result in risks to health. Fresh water can be readily distinguished from stagnant as fresh water is noticeably cooler. Do not use stagnant water from chromium-plated pipework for the preparation of food or for drinking or for personal hygiene if you are aller- gic to nickel. This water may contain high quan- tities of nickel and trigger an allergic reaction. Do not use water from lead pipework for pre- paring food or drink for babies or infants. Do not use it for preparing food or drink during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children. Warranty The product has been manufactured to strict quality guidelines and meticulously examined before deliv- ery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below. The warranty for this product is 3 years from the da
