USER MANUAL IAN 290959 MIOMARE
Assembly, operating and safety instructions
NL BE
DOUCHEGARNITUUR
COLUMN A DE DUCHA WELLNESS CON LEDES


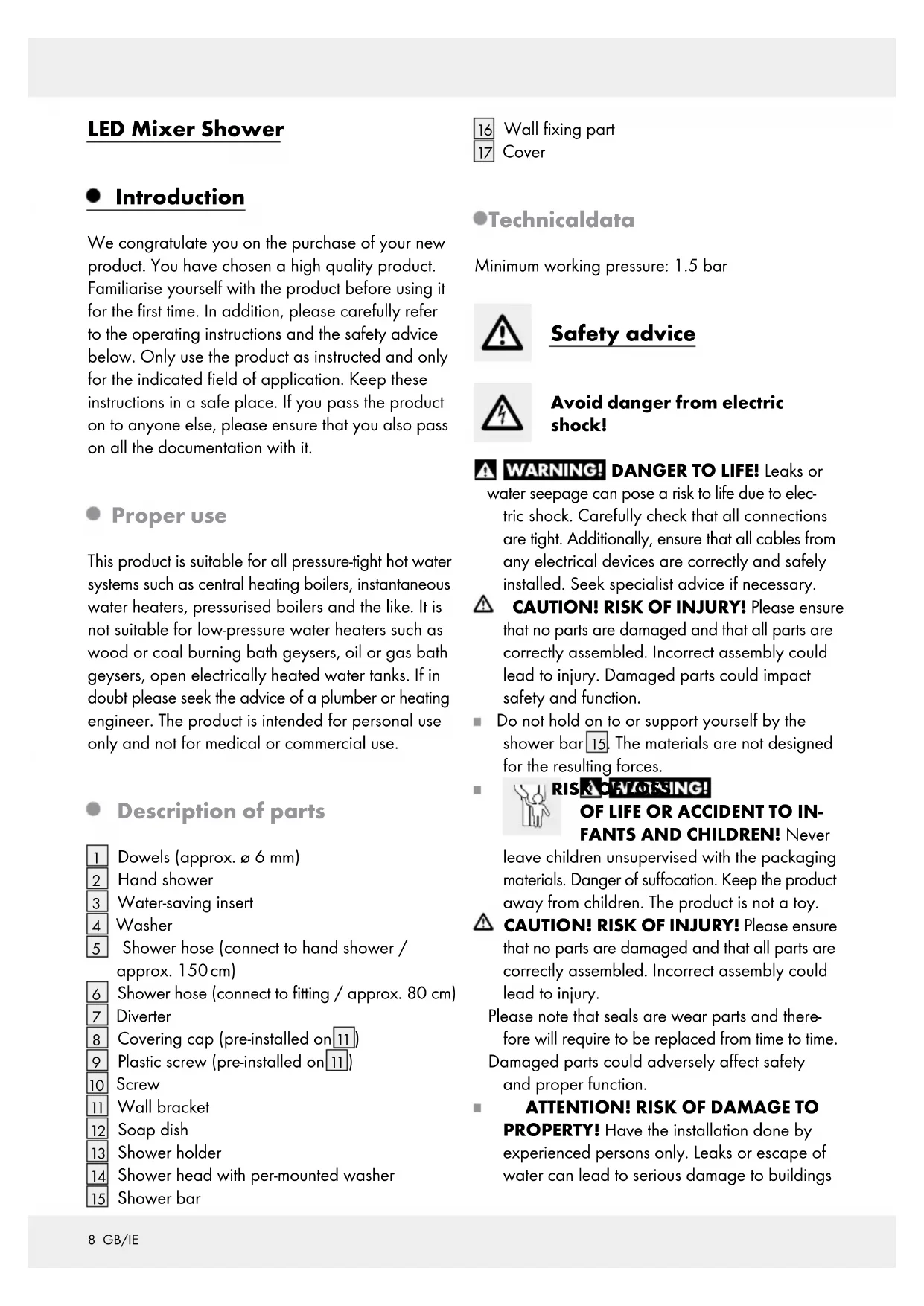

• Proper use
This product is suitable for all pressure-tight hot water systems such as central heating boilers, instantaneous water heaters, pressurised boilers and the like. It is not suitable for low-pressure water heaters such as wood or coal burning bath geysers, oil or gas bath geysers, open electrically heated water tanks. If in doubt please seek the advice of a plumber or heating engineer. The product is intended for personal use only and not for medical or commercial use.

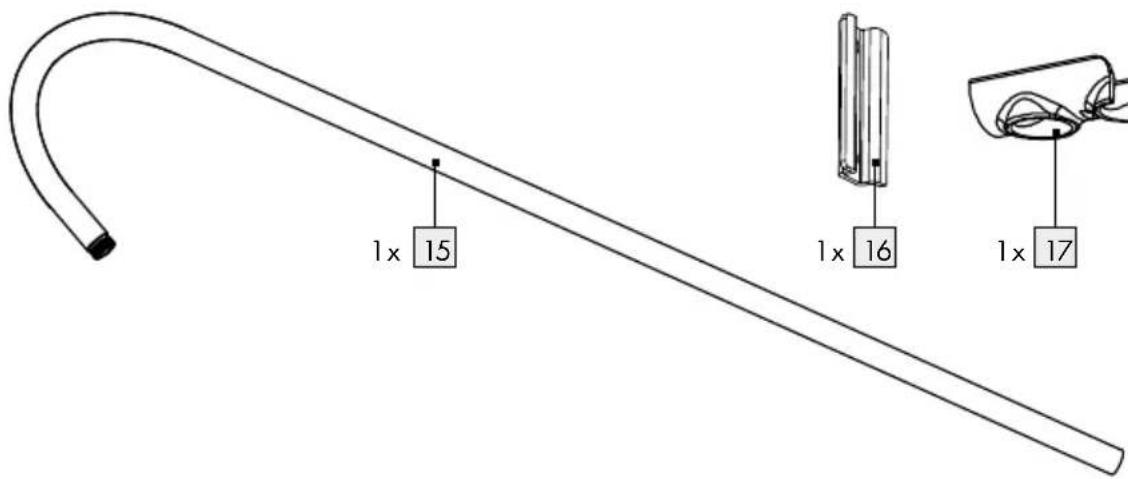

• Description of parts
1 Dowels (approx. 6 mm)
2 Hand shower
3 Water-saving insert
4 Washer
5 Shower hose (connect to hand shower / approx. 150 cm)
6 Shower hose (connect to fitting / approx. 80 cm)
7 Diverter
8 Covering cap (pre-installed on 11)
9 Plastic screw (pre-installed on 11)
10 Screw
11 Wall bracket
12 Soap dish
13 Shower holder
14 Shower head with per-mounted washer
15 Shower bar
16 Wall fixing part
17 Cover
- Technicaldata
Minimum working pressure: 1.5 bar
Safety advice
Avoid danger from electric shock!
WARNING! DANGER TO LIFE! Leaks or water seepage can pose a risk to life due to electric shock. Carefully check that all connections are tight. Additionally, ensure that all cables from any electrical devices are correctly and safely installed. Seek specialist advice if necessary.
CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury. Damaged parts could impact safety and function.
Do not hold on to or support yourself by the shower bar 15. The materials are not designed for the resulting forces.
RIS A NOVNSING! OF LIFE OR ACC FANTS AND CH
leave children unsupervised with the packaging materials. Danger of suffocation. Keep the product away from children. The product is not a toy.
CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury.
Please note that seals are wear parts and therefore will require to be replaced from time to time.
Damaged parts could adversely affect safety and proper function.
ATTENTION! RISK OF DAMAGE TO
PROPERTY! Have the installation done by experienced persons only. Leaks or escape of water can lead to serious damage to buildings
or household fittings and furniture. Check all connections for leaks carefully.
■ Ensure that all seals are correctly seated to prevent leakage of water.
CAUTION! DANGER OF SCALDING!
When making the hot water setting please ensure that the temperature of the water is not too high.
- Please read carefully through these operating instructions before installing and using the product. Keep all the safety advice and instructions in a safe place for future reference!
Do not connect the shower hose 6 directly to a shut-off valve, always connect the shower hose with the provided diverter 7.
Before wall mounting, check that the wall can take the weight of the shower rod set. If in doubt, ask in a specialist shop.
CAUTION! WATER DAMAGE! Check the installation area for the presence of hidden water pipes before drilling the holes for the fasteners 11 and wall fixing part 16 i.e. using a pipe and metal detector.
- Examine the wall before installation and choose suitable installation fixings. We have supplied fixings suitable for an ordinary solid masonry wall.
●Mounting
Tip: For fittings with (26.4 mm) 34 connection, use an adaptor with (26.4 mm) 34 inner thread and (21 mm) 12 outer thread, available in DIY store or bathroom shops.

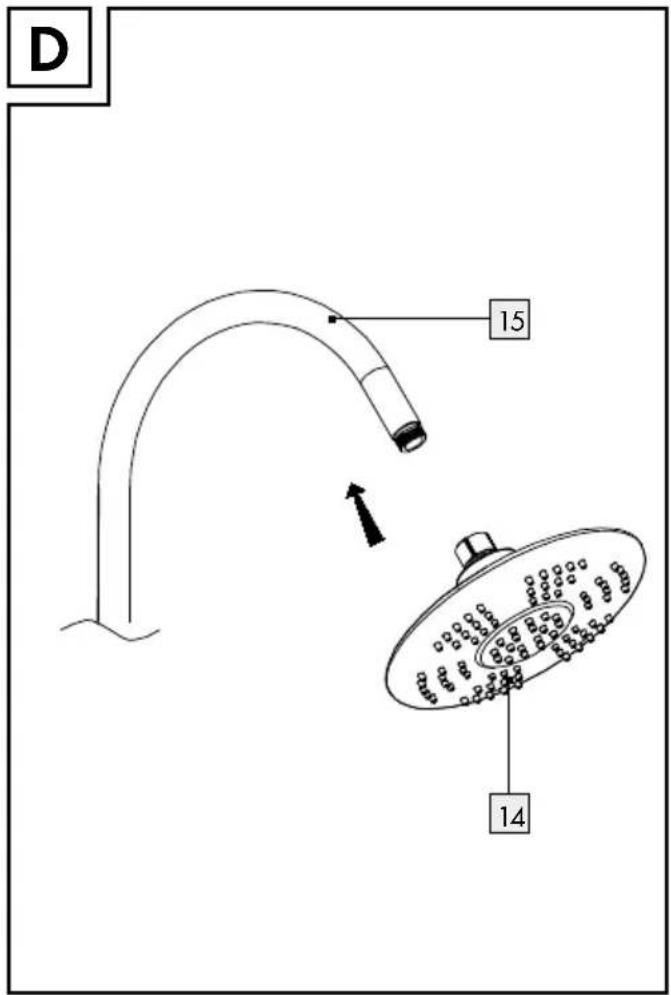

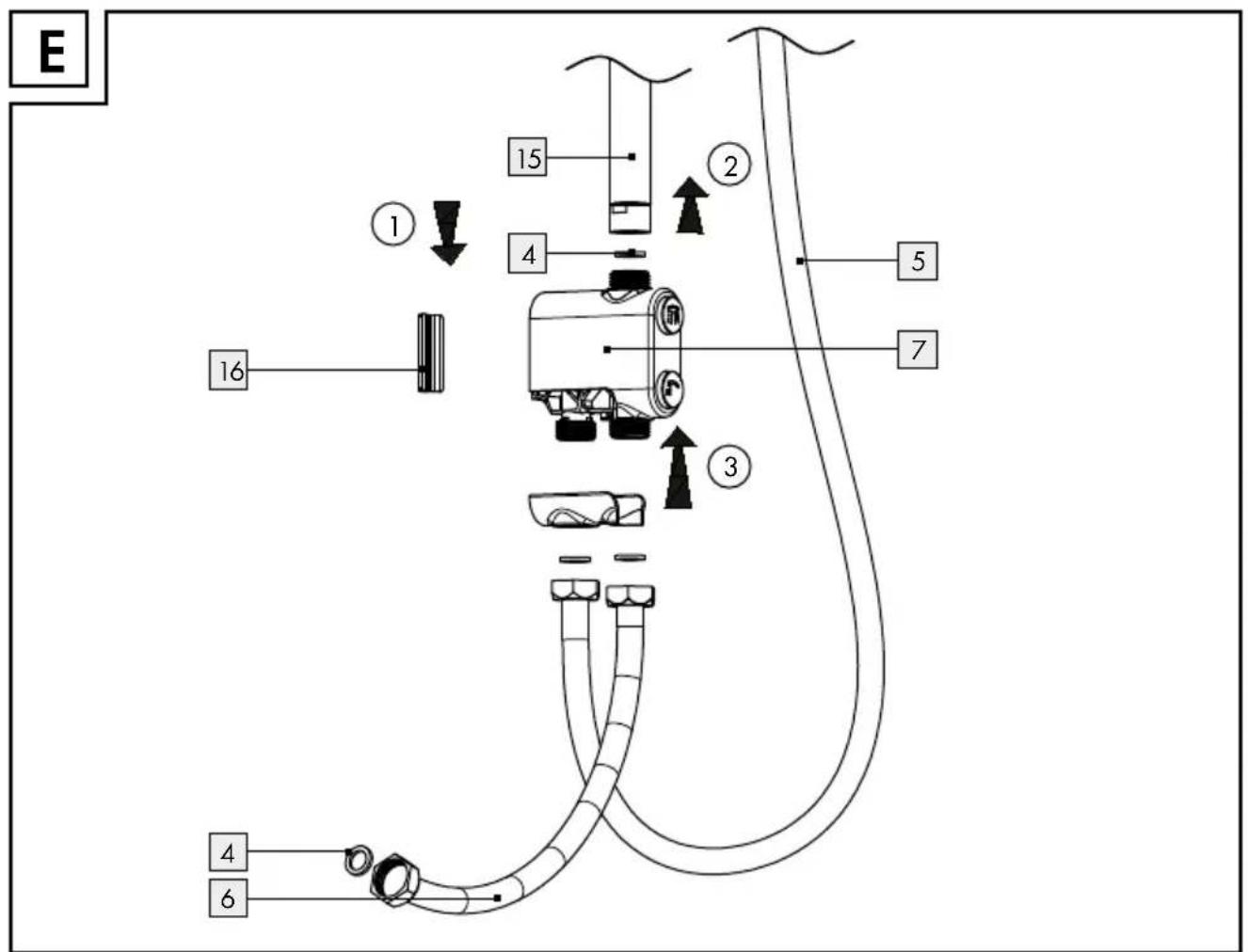

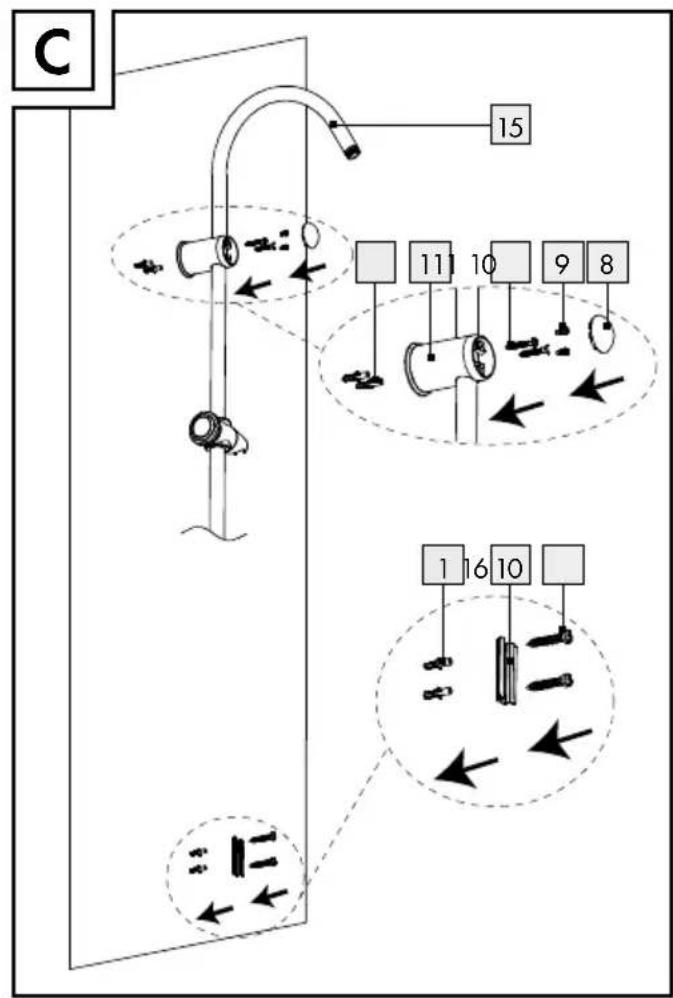

☐ Please refer to fig. A–F.
Note: Fasten hose connections and converter hand-tight.
Operation
☐ Use the diverter 7 to switch between shower head 14 and hand shower 2.
☐ The LED inside the shower head 14 will change color base on the water temperature (blue = cold, green = warm, red = hot).
How to adjust the hand shower 2:
☐ Adjust the height of the hand shower holder 13 by using the adjustment knob.
☐ Adjust the angle at which the hand shower is tilted by using the hand shower holder 13.
Shower functions:

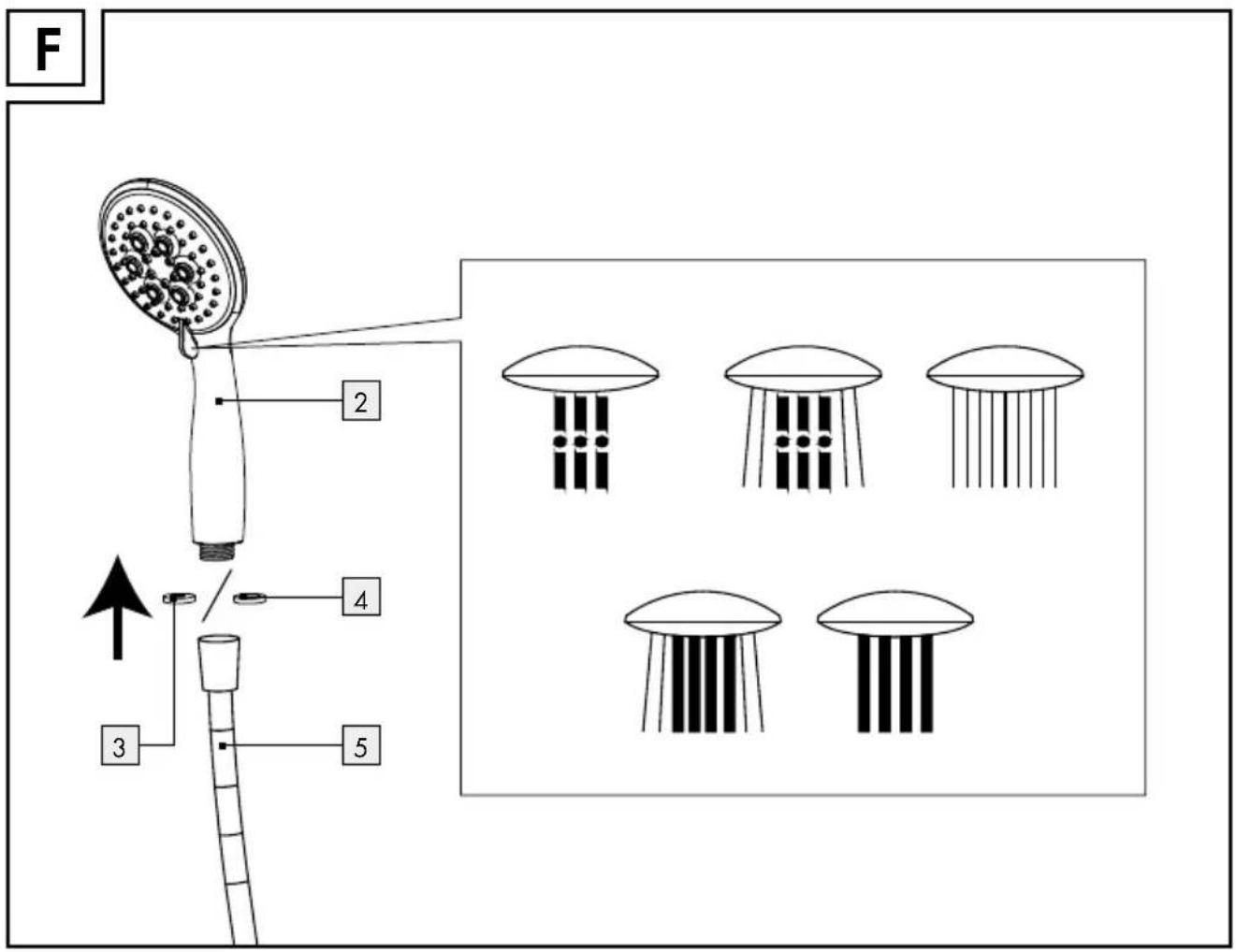

☐ Turn the hand shower lever to set the hand shower 2 function you wish to have (see fig. F).
Water-saving insert:
☐ The water-saving insert 3 reduces the flow of water. This may have an effect on how your continuous-flow water heater works. If the flow of water is too low, your continuous-flow water heater will automatically switch off.
Diverter function:
☐ Press the corresponding button to select the corresponding function (overhead shower or hand shower).
- Cleaning and care
□ Clean the product with a soft, damp cloth and use a mild cleaning agent if necessary.
☐ Remove the limescale on the shower rod set by using a commercially available limescale remover. Please follow the directions for using your cleaning agent.
●Disposal
The packaging is wholly composed of environmentally friendly materials that can be disposed of at a local recycling centre.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
Information
- Potability of mains water
☐ Find out about the potability of your mains water supply. Your local water authority or water supply company will be able to inform you.
The following general recommendations apply to the potability of the water from your pipework:
- Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Failure to observe this advice may result in risks to health. Fresh water can be readily distinguished from stagnant as fresh water is noticeably cooler.
Do not use stagnant water from chromium-plated pipework for the preparation of food or for drinking or for personal hygiene if you are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction.
Do not use water from lead pipework for preparing food or drink for babies or infants. Do not use it for preparing food or drink during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children.
- Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date
of purchase, we will repair or replace it - at our choice - free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
