USER MANUAL IAN 113926 MIOMARE

Assembly, operating and safety instructions

IAN 113926

CH

DE AT CH

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

GB Assembly, operating and safety instructions Page 23

Intended use....Page 24

Parts description Page 24

Scope of delivery....Page 24

General Information and Safety Notes

Safety instructions......Page 24

Assembly and operation

Installation Page 25

Operation Page 26

Maintenance and Cleaning......Page 26

Disposal Page 26

Information

Potability of tap water......Page 26

Warranty and Service......Page 26

Declaration of Conformity....Page 27

Shower Kit

- Introduction

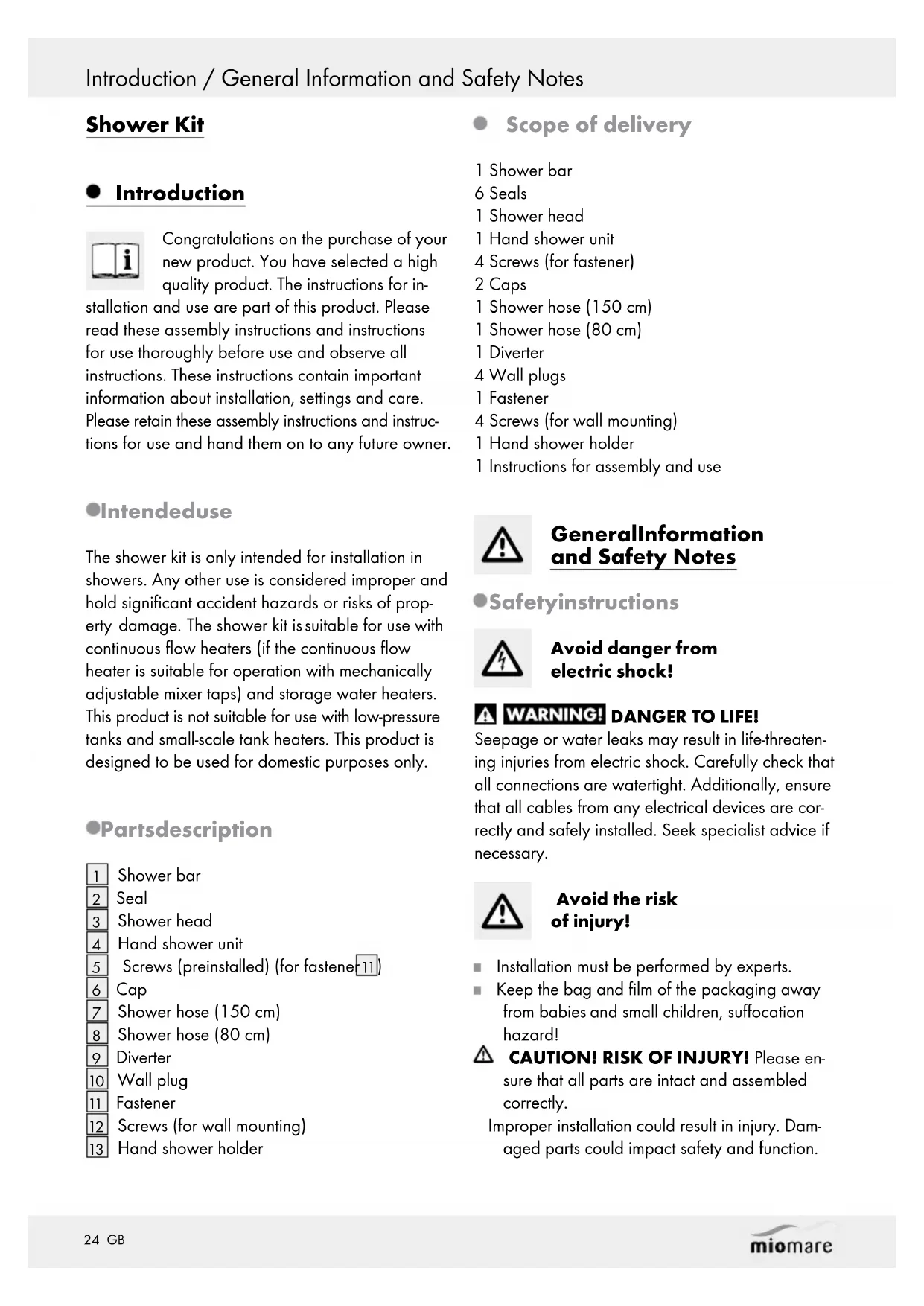

Congratulations on the purchase of your new product. You have selected a high quality product. The instructions for installation and use are part of this product. Please read these assembly instructions and instructions for use thoroughly before use and observe all instructions. These instructions contain important information about installation, settings and care. Please retain these assembly instructions and instructions for use and hand them on to any future owner.

Intendeduse

The shower kit is only intended for installation in showers. Any other use is considered improper and hold significant accident hazards or risks of property damage. The shower kit is suitable for use with continuous flow heaters (if the continuous flow heater is suitable for operation with mechanically adjustable mixer taps) and storage water heaters. This product is not suitable for use with low-pressure tanks and small-scale tank heaters. This product is designed to be used for domestic purposes only.

Partsdescription

1 Shower bar
2 Seal
3 Shower head
4 Hand shower unit
5 Screws (preinstalled) (for fastener11)
6 Cap
7 Shower hose (150 cm)
8 Shower hose (80 cm)
9 Diverter
10 Wall plug
11 Fastener
12 Screws (for wall mounting)
13 Hand shower holder

- Scope of delivery

1 Shower bar
6 Seals
1 Shower head
1 Hand shower unit
4 Screws (for fastener)
2 Caps
1 Shower hose (150 cm)
1 Shower hose (80 cm)
1 Diverter
4 Wall plugs
1 Fastener
4 Screws (for wall mounting)
1 Hand shower holder
1 Instructions for assembly and use

GeneralInformation and Safety Notes

●Safetyinstructions

Avoid danger from electric shock!

WARNING! DANGER TO LIFE!

Seepage or water leaks may result in life-threatening injuries from electric shock. Carefully check that all connections are watertight. Additionally, ensure that all cables from any electrical devices are correctly and safely installed. Seek specialist advice if necessary.

Avoid the risk of injury!

■ Installation must be performed by experts.
- Keep the bag and film of the packaging away from babies and small children, suffocation hazard!
Improper installation could result in injury. Damaged parts could impact safety and function.

CAUTION! RISK OF INJURY! Please ensure that all parts are intact and assembled correctly.

General Information and Safety Notes / Assembly and operation

Do not hold on to or support yourself by the shower rod 1.
■ The materials have not been designed for such resulting forces.
■ When adjusting the hot water temperature be sure the water temperature is not too high.

CAUTION! RISK OF SCOLDING! The

temperature of the water in the shower can be altered by adjusting the shower head 3 and the hand shower head 4. Please check the water temperature before you enter the water spray jet.

CAUTION! RISK OF INJURY! Please refer to the operating instructions of your electric drill.

Avoid damage to property!

■ CAUTION! WATER DAMAGE! Switch off the general water supply.
■ Be sure all seals are correctly seated.
The shower kit is not suitable for use with low-pressure tanks and small-scale tank heaters.
We recommend fitting a filter, in order to protect the incoming end of the tap and, in doing so, protect the cartridge from damage by foreign bodies.
This product is only suitable for use in rooms with temperature above 0 °C. In case of potential frost, cut off the water supply and drain the taps.
■ Any leakage or sudden escape of water can cause considerable damage to buildings and property. All connections must therefore be checked carefully to ensure that they are tight.
- Familiarise yourself prior to installation with all local conditions, e.g. water connections and shut-off device.
■ Seals are subject to wear. They must be changed from time to time.
Before attaching the product to the wall, check which mounting materials are suitable for your wall. We have supplied fixings suitable for an ordinary solid masonry wall.

Assembly and operation

Installation

Note: Please carefully read the fitting instructions prior to installation. Please note, incorrect installation will void all warranty - particularly in relation to subsequent damage.

CAUTION! Shut off the water supply prior to installation. Before you begin drilling holes for the fastener 11, check the area to be drilled for concealed supply pipes or cabling, e.g. with a metal/cable detector. Failure to do so may result in property damage.

Drill 2 x 2 holes in the locations where you wish to secure the fasteners 11 to the wall (see Fig. B).
☐ Push the rawlplugs 10 into the drilled holes (see Fig. B).
☐ Secure the shower rod 1 with the screws 12 and fasteners 11 (see Fig. C).
Then secure the fasteners 11 with the brown inner screws 5. Use a cross-tip screwdriver. Now attach the caps 6 onto the fasteners 11 for the shower rod 1 (see Fig. C).
☐ Insert a seal 2 into the swivel nut on the shower head 3 and screw the shower head 3 onto the shower rod 1 (see Fig. D).
☐ Insert a seal 2 into the swivel nut of the shower rod 1 and screw to the diverter 9. Then insert a seal 2 into the hexagon nut of the shower hose 7 and screw it onto the side thread of the diverter 9. Then insert a seal 2 into the hexagon nut of the shower hose 8 and screw onto the lower thread of the diverter 9 (see Fig. E).
☐ Insert a seal 2 into the tapered end of the shower hose 7 and screw onto the shower head 4 (see Fig. F).
☐ Insert a seal 2 into the other hexagon nut of the shower hose 8 and screw onto the connection of your fitting.

Operation

Note: If the fitting has not been used for a longer period, first flush the pipes thoroughly to avoid drinking water stagnation and build-up.

☐ Set your fitting to the desired temperature and flow rate.
☐ Use the diverter 9 to switch between the shower head 3 and hand shower 4.

● Maintenance and Cleaning

Please note the shower kit requires no special care. Therefore, please follow the instructions:

• Do not use anti-limescale agents, acidic cleaning agents or abrasives of any type.
  Do not use corrosive cleaners or cleaners containing alcohol for cleaning.
  Dry your shower kit with a cloth after every use to prevent lime deposit.
  ☐Onlyclean your shower kit with clean water, mild detergent and a soft cloth or chamois.

Failure to observe the above care advice can be expected to result in damage to the surfaces of the product.

This will inevitably invalidate the guarantee.

●Disposal

Your shower kit is packed in solid packaging to protect it from transport damage.

The packaging is made of environmentally friendly materials. Please dispose of them in an environmentally friendly way.

At the end of its life expectancy, do not dispose of the product with the household waste.

Information regarding environmentally-friendly disposal can be obtained from your municipal or city administration.

Information

- Potability of tap water

Learn about the potability of your mains water supply. Your local water authority or water supply company will be able to inform you.

The following general recommendations apply to the potability of tap water:

- Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours.

Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Health concerns may otherwise arise. Fresh water can be readily distinguished from stagnant water as fresh water is noticeably cooler as it leaves the pipe.

Do not use stagnant water from chromium-plated pipework to prepare food, for drinking, or for personal hygiene if you are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction.

Do not use water from lead pipework for preparing food baby food and/or to prepare foods during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children.

- Warranty and Service

The warranty period is 3 years and begins on the day of purchase. Please keep your receipt as proof of purchase.

The warranty does not cover:

• Improper use of the shower kit
• Improper connection
  · Damage by aggressive cleaning
• Damage by limescale in the water

• Damage caused by replacement parts, which are not original EISL parts

• Damage caused by chemical, electrical or electronic influence

• Damage due to neglecting the duty of care.

Within the warranty period, the defective shower kit may be returned free of charge to the service address below following telephonic consultation. You will then receive a new or a repaired product free of charge.

After the warranty period has expired, you can similarly send the defective unit for repair to the address given below. Repairs made after the expiration of the warranty period are subject to payment.

This warranty does not limit your legal rights.

Note: Eisl Sanitär GmbH will replace defective fittings or supply the respective replacement parts free of charge within the warranty period. Eisl Sanitär GmbH is unable to refund the purchase price for defective shower columns.

If you have any queries or faults with the product, please contact the following Service address:

GB:

Eisl Sanitär GmbH

* Free of charge number

IAN 113926

Please have the receipt and item number, e.g.

IAN 12345 ready as your proof of purchase when making an enquiry.

● Declaration of Conformity

We, Eisl Sanitär GmbH, Mattseer Landesstraße 8, A-5101 Bergheim, declare, that the product complies with the essential requirements and relevant provisions.

The relevant documents have been archived and can be requested as necessary.

Product description:

Shower Kit

Eisl Sanitär no.

DX12004-LIDL

This user manual can be requested as a PDF document from our customer support team.

Eisl Sanitär GmbH
