USER MANUAL talento smart C15 Grässlin

Operating instructions 57

This manual ensures safe and efcient use of the DIN-rail timer (referred to as “device” in the following). This manual is a component of the device and must remain accessible at all times for everyone who uses the device. Everyone who uses the device must have read and understood this manual before commencing any work. The basic prerequisite for working safely is compliance with all safety instructions and usage instructions specied in this manual. Furthermore, the local accident prevention regulations and the general safety regulations in the area in which the device is operated apply. Copyright This manual is copyright protected. Handover of this manual to third parties, reproductions of any type and form – including excerpts – and use and/or disclosure of the content without the written permission of the manufacturer, except for internal purposes, is not permitted. Violations will result in liability for compensation. The manufacturer reserves the right to assert additional claims. The copyright is held by the manufacturer. Download You can nd the following information at www.graesslin.de:

• Download instructions

• Technical data Declaration of conformity Grässlin GmbH hereby declares that the radio system type “talento smart” conforms to Directive 2014/53/ EU. The complete text of the EU declaration of conformity is available from the following Internet address: http://qrc.graesslin.de/talento-smart-conformity https://graesslin.de/declaration-of-conformity58

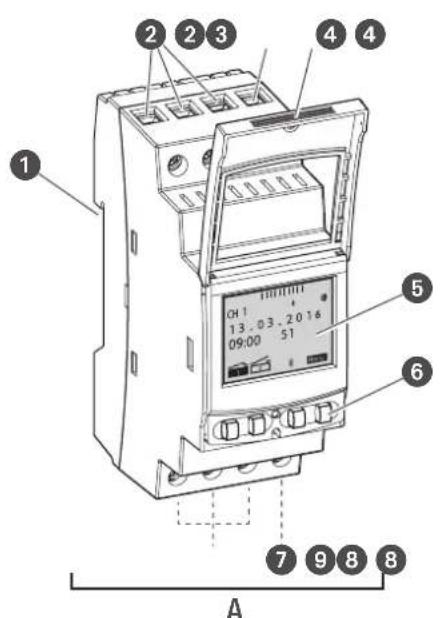

Click system for installation on a DIN rail

Terminals for channel 2 (only for 2-channel variant)

Terminal for neutral conductor

Terminals for channel 1

Potential-free empty terminal Description of function The DIN-rail timer is a timer that is installed on a DIN rail (Fig.1/

) by means of a click system; the timer activates the connected device. The DIN-rail timer has one or two channels and can be operated via a dis- play (Fig.1/

) with four control buttons (Fig.1/

). The DIN-rail timer can be programmed manually or via a mobile device. The radio signal frequency is 2.4GHz and the maximum transmission power is 1.8mW.

• Date-independent programming

• * Pulse, cycle and random programming

• * Sunrise and sunset-specic programming

• Creating programmes via mobile devices

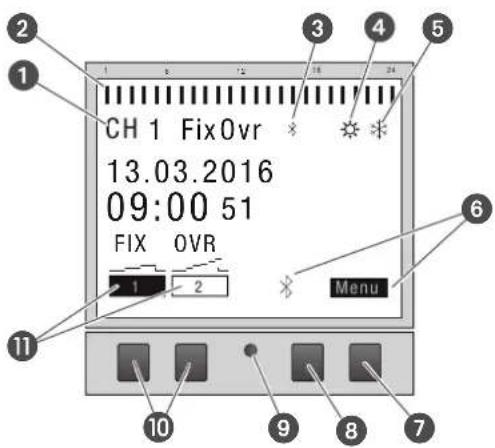

Display FunctionMenu Enter programming mode. Bluetooth Pressing this button activates the Bluetooth function and enables a connection to be established. ESC Press briefly = goes back one step.Press and hold (2seconds) = back to automatic mode.OK Make the selection and apply it.< Undo the last input, e.g. when entering the time. Menu 09:00

Function of the two buttons on the left (Fig.2/

Operating mode ON (FIX) – the channel is switched on permanently. FIX

Operating mode OFF (FIX) – the channel is switched off permanently. OVR

Override mode – the current programme is overwritten up to the next automatic command.

Automatic mode ON – the channel is switched on on the basis of the programmed switching time.

Automatic mode OFF – the channel is switched off on the basis of the programmed switching time. A B Display of an unconnected channel extension

Page down in the menu. – Press briefly = reduce the displayed value (hour, minute, second) by 1. Press and hold (2seconds) = fast cycling. Reduce or deselect in the case of channel and day selection. + Press briefly = increase the displayed value (hour, minute, second) by 1. Press and hold (2seconds) = fast cycling. Increase or select in the case of channel and day selection.64

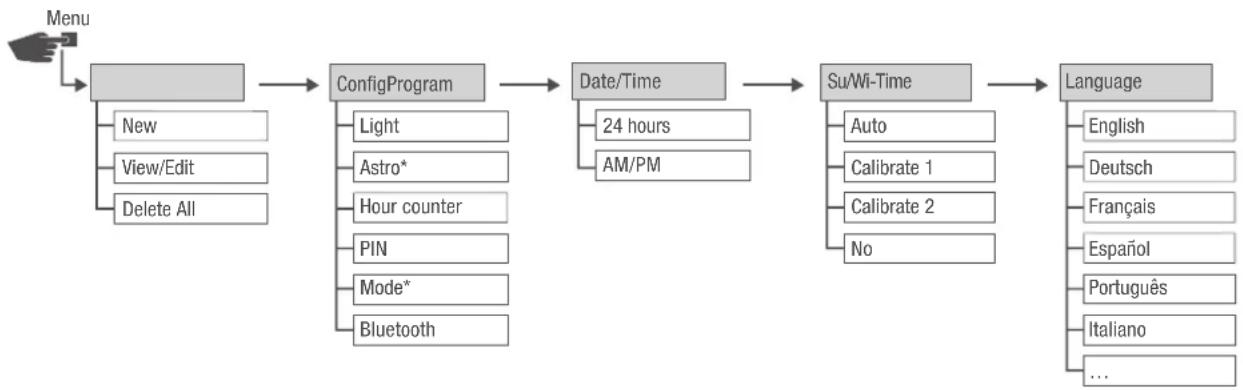

• These functions depend on the variant. The menu structure appears on the display when you press the menu button (Fig.2/

Downloading the app The DIN-rail timer can be programmed using a mobile device. The mobile app is available for Android or for iOS devices; alternatively, scan the QR code shown here and install the app. Light Astro* Hour counter PIN Mode* Bluetooth CongProgram New View/Edit Delete All 24 hours AM/PM Date/Time English Deutsch Français Español Português Italiano

Safety Safety instructions Safety instructions are indicated in this manual by symbols. The safety instructions are introduced by signal words that express the extent of the danger. This combination of symbol and signal word indicates a potentially dangerous situation that may result in death or severe injuries if the situation is not avoided. WARNING! This combination of symbol and signal word indicates a potentially dangerous situation that may result in minor or slight injuries if the situation is not avoided. CAUTION! This combination of symbol and signal word indicates a potentially dangerous situation that may result in material damage if the situation is not avoided. NOTE! This combination of symbol and signal word indicates potential dangers for the environment. ENVIRON- MENTAL PROTECTION! Tips and recommendations This symbol highlights useful tips and recommendations, as well as information for efcient and fault-free operation. Intended use

• The DIN-rail timer is intended solely for switching electric devices in private and commercial areas, provided this does not infringe on the intended use of these devices.

• The DIN-rail timer may only be installed on DIN rails. The intended use also includes compliance with all information specied in this manual.66

Any use other than the intended use is considered incorrect use. The legal warranty is voided by any inter- ference with, or modications to, the device. Danger due to insufcient wire cross-section! If wires with an insufciently large cross-section are used, short circuits or res may occur. − Only use terminals with a cross-section between 1mm² and 2.5mm² for wires. WARNING! Damage to the DIN-rail timer due to incorrect installation location! If installed in an unsuitable location, the DIN-rail timer may be damaged. − Only use the DIN-rail timer in dry rooms and do not install close to devices with induc- tive discharge (motors, transformers, etc.). − Only install the DIN-rail timer on DIN rails. NOTE! Residual risks The device is state-of-the art and designed in accordance with current safety requirements. However, residual risks remain that require caution when using the device. The residual risks, and the conduct and measures they require, are listed in the following. FCC Certication

This device complies with Section 15 of the FCC Regulations. Operation is only permitted under the follow- ing conditions: (1) This device must not cause any disruptive interferences and (2) the device must be able to receive interferences, also such interferences which could result in undesired operations. Electric current Risk of fatal electric shock! Improper assembly and installation of the device can lead to life-threatening electrical voltages. − Only allow a qualied electrician to install and connect the device. WARNING!67

Personnel requirements Qualied electrician Professional training, knowledge and experience, and knowledge of the relevant standards and regulations allows the qualied electrician to perform work on electrical systems and to identify, and avoid, potential dangers of their own accord. A qualied electrician is specically trained for the work environment in which they work, and are familiar with the relevant standards and regulations.68

Installation Connecting the electricity Risk of fatal electric shock! Improper assembly and installation of the device can lead to life-threatening electrical voltages. − Only allow a qualied electrician to install and connect the device. WARNING! Personnel:

• Qualied electrician Material:

• DIN rail (15mm x 7.5mm)

• DIN rail (15mm x 12.5mm) Prerequisite:

• The terminals for the wires must have a cross-section between 1mm² and 2.5mm². Fig. 4: Installation on a DIN rail

1. Place the DIN-rail timer on the DIN rail (Fig.4) from above and press it back until it locks into place.69

Connecting the electricity

2. Strip the insulation from the wires.

• Stripping length: 8mm Tightening torques To avoid damage and faulty contacts, tighten the terminals using a torque of 1.2 – 1.4Nm. NOTE!

3. Connect the DIN-rail timer in accordance with the circuit diagram (Fig.5/A), (Fig.5/B) or (Fig.5/C).

Conguration Back-up battery Reduced power reserve in the back-up battery! When operated without being connected to the mains, the power reserve in the back-up battery is reduced. After eight years of storage without being connected to the mains, the back-up battery will be fully discharged. NOTE! Connection to mobile devices Manual operation and programming are only possible if there is no active connection to mobile devices. Initial commissioning Condition on delivery When delivered, the device is in automatic mode with default settings for time, date and language (English).71

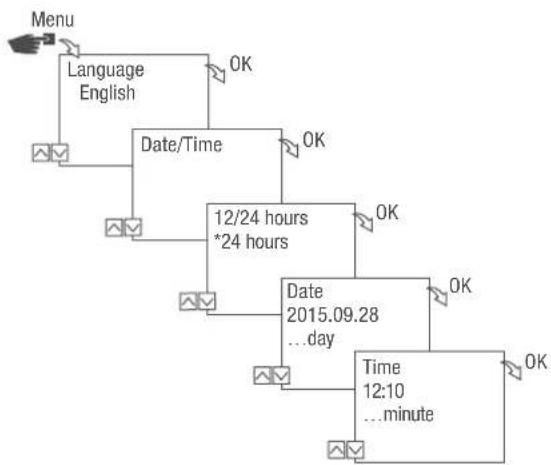

Commissioning wizard The rst time you press the menu button, a wizard takes you through the basic settings, which you can check and adjust as necessary during initial commissioning. Fig. 6: Initial commissioning Setting the language Fig. 7: Setting the language

Language and conrm with OK. During initial commissioning, this will always read Language (in English).

3. Select the language and conrm with

12/24 hours *24 hours

Countries *United Kingdom

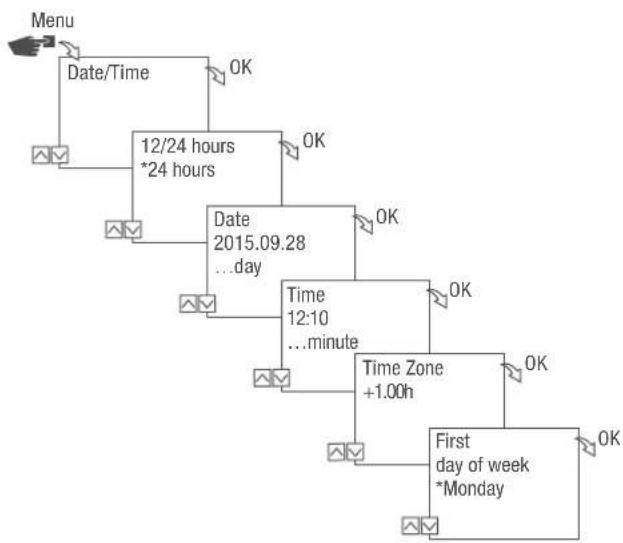

Setting the date and time Fig. 8: Setting the date and time

Date/Time and conrm with OK.

4. Enter the date and conrm with

5. Enter the time and conrm with

6. Enter the time zone and conrm with

7. Enter the rst day of the week and conrm with

12/24 hours *24 hours

First day of week *Monday OK73

Selecting the day of the week Example: − 1st day = Sunday... 1 – 5 = Sun – Thu − 1st day = Monday... 1 – 5 = Mon – Fri Possible time displays Setting Effect 24 hours The time is displayed in 24hour format. AM/PM The time is displayed in 12hour format.

Selecting summer/winter time You can activate automatic calculation of summer and winter time with the relevant settings (Ä „Possible settings“ on page74) or you can deactivate it. Possible settings Setting Effect EU (factory setting) The time changes on the last Sunday in March and the last Sunday in October. It is recalculated every year. USA The time changes on the second Sunday in March and the first Sunday in November. It is recal- culated every year. Calibrate 1 Summer/winter time is automatically recalculated for each year. The changeover takes place on the respective Sunday from 2 to 3 am (summer time) or from 3 to 2 am (winter time).

• If the date entered is between the 1st and 15th of the selected month, the changeover always takes place on the first Sunday.

• If the date entered is between the 16th and 31st of the selected month, the changeover always takes place on the last Sunday. Calibrate 2 The changeover always takes place on the same entered date each year. No No changeover. Fig. 9: Selecting summer and winter time

4. After entering the setting

Calibrate 1 or Calibrate 2, enter the month and day and conrm with OK. Su/Wi-Time Menu

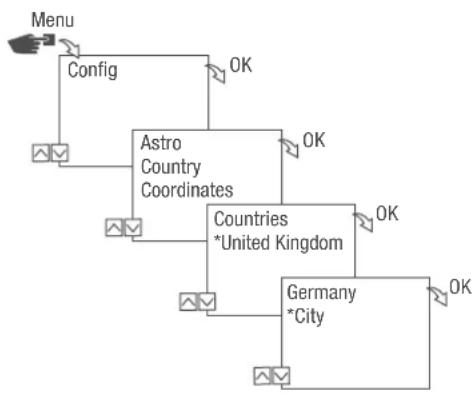

Setting the location information The location information is specied in the Astro menu. Once the location has been dened, the programmes can adjust to sunrise and sunset at the location in question. Fig. 10: Setting the location information The astro function depends on the variant.

Cong and conrm with OK.

4. Select the specication of the desired setting and conrm with

OK. ð The programmes are adjusted to sunrise or sunset at the selected city. Possible settings Setting Selection Specification Country Country code for the location. A selection of cities is displayed. Coordinates Latitude and longitude of the location. – Cong Menu

Countries *United Kingdom

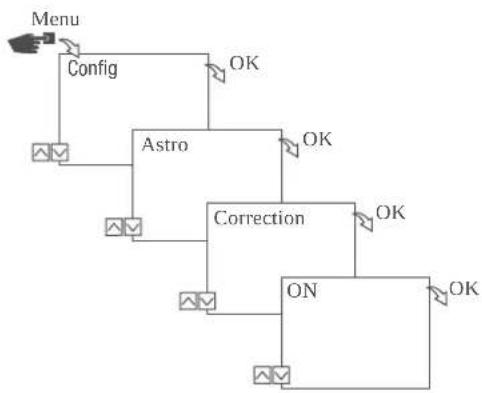

Setting astro correction In the Correction menu, you can correct the sunrise and sunset-specic programming in reference to the actual programming. Fig. 11: Setting astro correction The correction function depends on the variant. If multiple sunrise and sunset-specic programmes are set, only the rst sunrise and the last sunset are taken into consideration. Pulse, cycle and random switching cannot be corrected.

Cong and conrm with OK.

Astro and conrm with OK.

Correction and conrm with OK.

ON and conrm with OK. ð Astro connection is activated and is set individually for each programme. Cong Menu

Setting the backlight In the Light menu, you can set how long the backlight stays on after the last key press. Fig. 12: Setting the backlight

Cong and conrm with OK.

Light and conrm with OK.

4. Select the desired setting (Ä „Possible settings“ on page77) and conrm with

OK. Possible settings Setting Effect Fix ON The backlight of the display remains on continuously. 2 min The backlight of the display remains on for two minutes after the last key press. Cong Menu

Cong and conrm with OK.

Hour counter and conrm with OK.

Read and conrm with OK.

5. Select the desired channel and conrm with

ESC to return to the channel selection to read the hour counter for another channel. Cong Menu

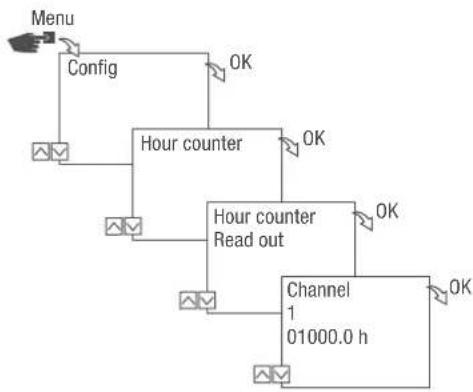

Hour counter Read out

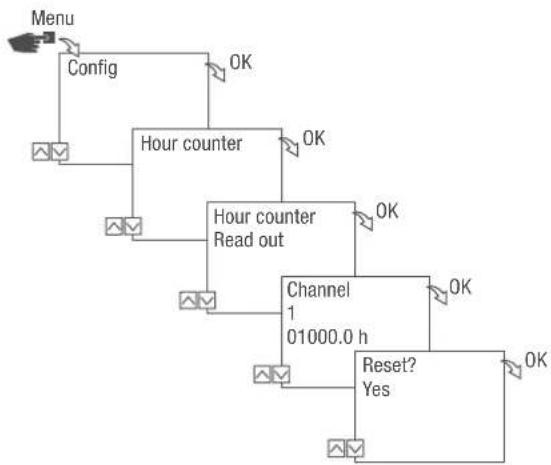

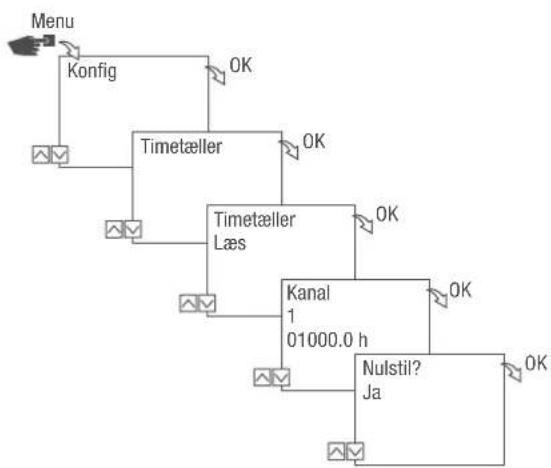

Resetting the hour counter In the Reset menu, you can set the hour counter to 0. Fig. 14: Resetting the hour counter

Cong and conrm with OK.

Hour counter and conrm with OK.

Read and conrm with OK.

5. Select the channel and conrm with

OK. Possible settings Setting Effect Yes The hour counter is reset. No The hour counter continues to count. Cong Menu

Hour counter Read out

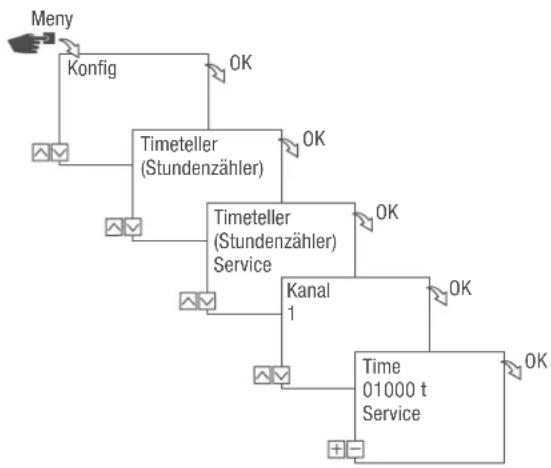

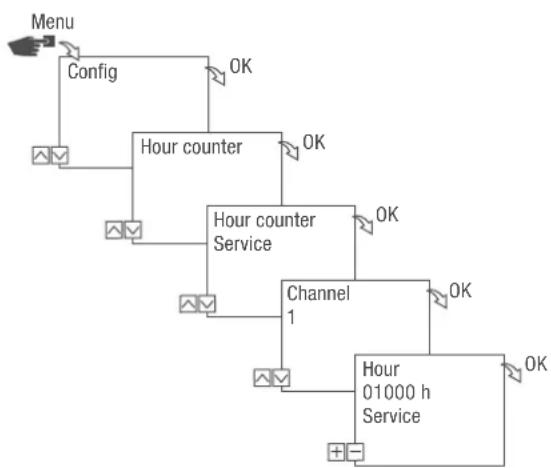

Setting the service counter In the Service hour counter menu, you can set the number of operating hours that pass before a service message is displayed for a channel. The Service CHX display appears in automatic mode, alternating with the time. Fig. 15: Setting the service counter

Cong and conrm with OK.

Hour counter and conrm with OK.

Service and conrm with OK.

5. Select the desired channel and conrm with

6. Set the interval (+/-) and conrm with

ESC to return to the channel selection to set the service counter for another channel. Cong Menu

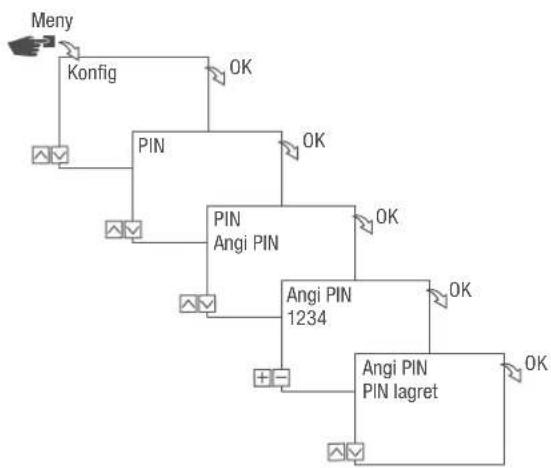

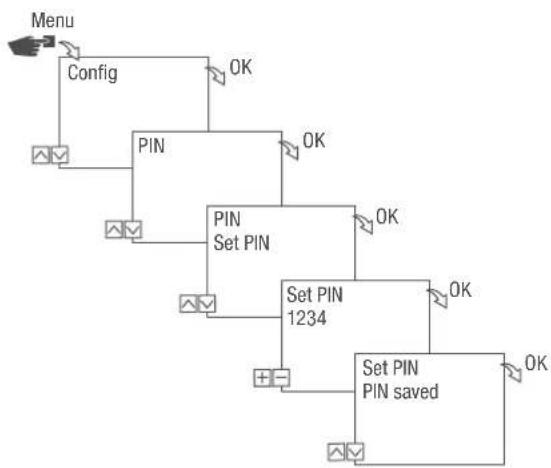

Setting the PIN Fig. 16: Setting the PIN

Cong and conrm with OK.

PIN and conrm with OK.

Enter PIN and conrm with OK.

5. Enter the PIN and conrm with

OK. ð All congurations, manual operations and programming are protected by PIN and cannot be changed without entering the PIN. Cong Menu

Set PIN PIN saved OK82

Cong and conrm with OK.

Mode and conrm with OK.

• Sunrise and sunset-specific programming

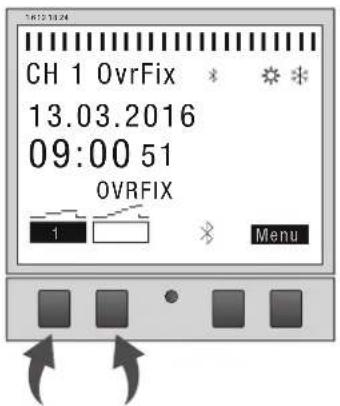

Selecting the operating mode Fig. 18: Operating mode Use the function keys on the left to select the operating mode for the device. Possible settings FIX

Permanently ON (FIX) Channel is permanently switched on. FIX

Permanently OFF (FIX) Channel is permanently switched off. OVR

Override mode ON (OVR) In override mode, the current programme is temporarily overwritten.• Start a programme early that is set to start later with “Override mode ON”.The override function only applies to the current programme and remains active until the next automatic command. Then the device returns to automatic mode.Example:A daily programme switches the device on every day from 8:00 a.m. to 5:00 p.m. If, however, you want the device to already be on at 6:00 a.m. one day, use the override mode.1 6 12 18 24 Menu 09:00

Override mode OFF (OVR) In override mode, the current programme is temporarily overwritten.

• End the current programme with “Override mode OFF”. The override function only applies to the current programme and remains active until the next automatic command. Then the device returns to automatic mode. Example: A daily programme switches the device on every day from 8:00 a.m. to 5:00 p.m. If, however, you want the device to switch off at 4:00 p.m. one day, use the override mode.

Automatic mode ON Channel switches on on the basis of the programmed switching times.

Automatic mode OFF Channel switches off on the basis of the programmed switch- ing times.85

Cong and conrm with OK.

Bluetooth and conrm with OK.

Smart Link or General and conrm with OK. ð You can read the settings (Ä „Bluetooth settings“ on page85). You can change the device name via mobile devices. Bluetooth settings Menu Settings Smart Link MAC address Device names General Version number of software Serial number of device Cong Menu

Connect DIN-rail timer to channel extension The possible uses listed here can be programmed on the DIN-rail timer and executed on the chan- nel extension on the desired channel. To do this, the DIN-rail timer must be connected to the channel extension. Possible uses

• Date-independent programming

• Date-specic programming

• Pulse, cycle and random programming

• Sunrise and sunset-specic programming

• Creating programmes via mobile devices

• Bluetooth low energy interface for accessories and mobile devices for programming The extension is only possible for certain variants. Preparing for the connection Fig. 20: Establishing a Bluetooth connection to the DIN-rail timer

Cong and conrm with OK.

Bluetooth and conrm with OK.

BLE devices and conrm with OK. Fig. 22: Establishing a Bluetooth connection to the channel extension

) on the channel extension. ð The Bluetooth symbol ashes for two minutes. A list of all available devices in the vicinity is shown on the DIN-rail timer display. The operation must be completed within two minutes, otherwise the operation has to be repeated. After a connection has been established once, the DIN-rail timer automatically connects to the mobile device when it is in the vicinity. The Bluetooth connection is maintained for two minutes in the event of a power failure. Cong Menu

Establishing the connection Fig. 23: Selecting the channel extension

7. On the DIN-rail timer, use the keys on the left (⋀/⋁) to select from the list the channel extension to be

connected, and conrm with

The connected channel extension is indicated by #.

8. Select a new channel extension with the keys on the left (⋀/⋁) and conrm with

Fig. 24: Channel extension is connected to the DIN-rail timer

9. The channel extension displays the name of the connected device if there is an active connection

ð The display switches between the name of the connected device and the current date and time. After a connection is established, the channel name switches from “A” and “B” to “3” and “4”, “5” and “6” or “7” and “8”.

10. If the DIN-rail timer or the channel extension is protected by PIN, enter the PIN on the DIN-rail timer.

Disconnecting channel extensions from the DIN-rail timer Fig. 25: Selecting the channel extension

1. On the DIN-rail timer, use the keys on the left (⋀/⋁) to select from the list the channel extension to be

disconnected, and conrm with The connected channel extensions are indicated by #.

2. Select another channel extension to be disconnected with the keys on the left (⋀/⋁) and conrm

with After a connection is established, the channel name switches from “3” and “4”, “5” and “6” or “7” and “8” to “A” and “B”. ESC

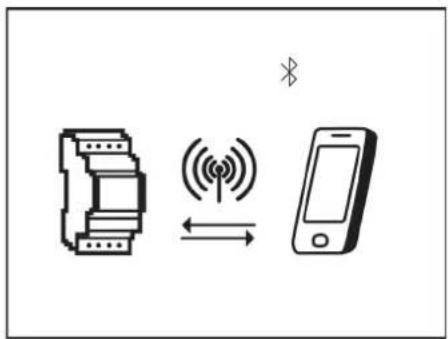

Operating and programming the DIN-rail timer via mobile devices Connection to mobile devices The functions “FIX ON/OFF” and “Override mode (OVR)” for the DIN-rail timer can be controlled directly via a Bluetooth connection. Fig. 26: Display during data transmission The settings and programming can be dened via the mobile device and executed on the desired channel of the DIN-rail timer. The settings and programmes created on the mobile app have to be transferred to the DIN-rail timer (Fig.26). To program the DIN-rail timer using a mobile device, you require the corresponding mobile app. The mobile app is available for Android or for iOS devices; alternatively, scan the QR code shown here and install the app.91

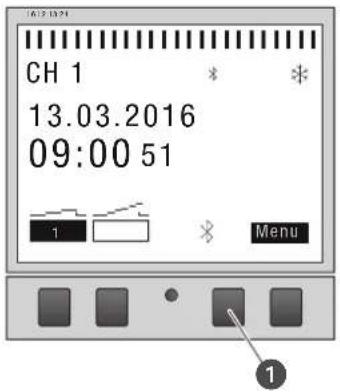

Preparing for the connection

1. Switch on Bluetooth on the mobile device.

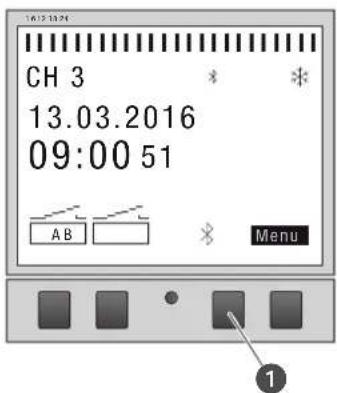

Fig. 27: Establishing a Bluetooth connection to the DIN-rail timer

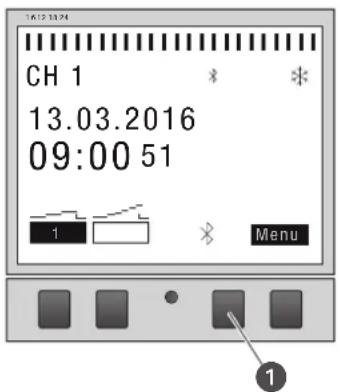

1. Press the Bluetooth button (Fig.27/

) on the DIN-rail timer. ð The Bluetooth symbol ashes for two minutes. A list of all available DIN-rail timers in the vicin- ity is displayed on the mobile device. The operation must be completed within two minutes, otherwise the operation has to be repeated. After a connection has been established once, the DIN-rail timer automatically connects to the mobile device when it is in the vicinity. The Bluetooth connection is maintained for two minutes in the event of a power failure. Establishing the connection

2. The DIN-rail timer has to be selected on the mobile device.

Programming Information relating to programming Reduced power reserve in the back-up battery! When operated without being connected to the mains, the power reserve in the back-up battery is reduced. NOTE! Prioritisation Switch-off commands have priority over switch-on commands. Programming steps Prerequisite:

• There is no active connection to mobile devices.

1. Dene the date or date ranges.

In this menu, you can specify the day or period (date from...to) in which the device is switched on or off.

2. Dene the function and switching time.

In this menu, you can specify which switching command is carried out at what time. These variants are available in the following versions:

• The ON/OFF function is available in all versions.

• The pulse, cycle and random functions depend on the variant. The functions and switching times can be dened for each channel, independently of the date, or for different date ranges (Ä Chapter „Date-dependent/date-independent programming“ on page93).93

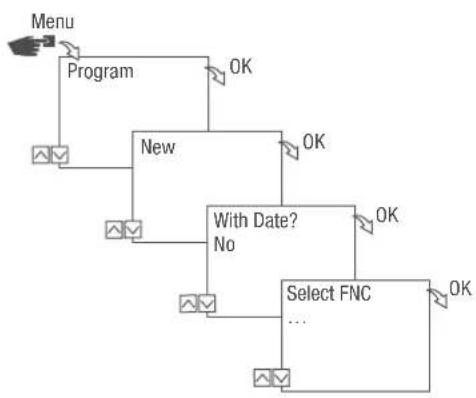

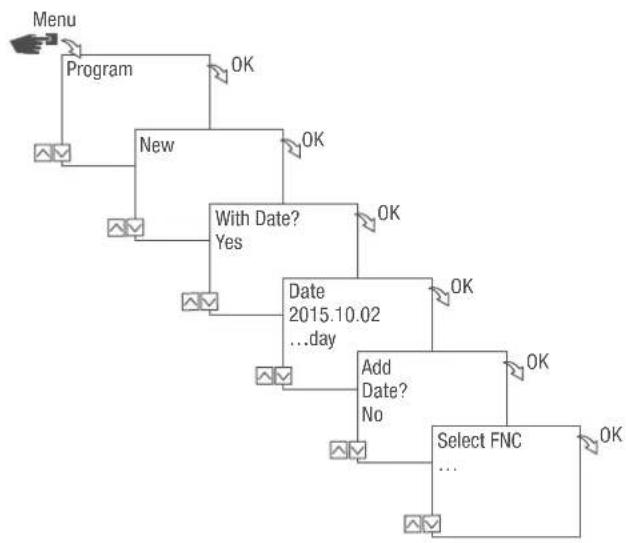

The DIN-rail timer can be programmed with or without a date range. Fig. 28: Programming without or with date Option Entry Result Programme the DIN-rail timer without a date range. With Date? Select No and confirm with OK. The switching commands are valid independently of the date. Programme the DIN-rail timer with a date range. With Date? Select Yes and confirm with OK. You can define multiple date ranges. After defining the last date range, select No and confirm with OK. The switching commands are valid for the dates or periods that are defined in the programming. Program Menu

USING WILDCARDS You can use wildcards when entering the date. This allows you to programme recurring switching times to be carried out; for example, always on the rst of the month. Instead of the year or month gures, you can use the wildcards **** for the year and ** for the month. To select the wildcard, rst enter the year; further options are then suggested. Flashing buttons indicate where you are, and you can use (+/-) to enter the year or month. Examples of entering the date with wildcards Date entry Action 2016.**.13 – 2016.**.13 The switching command is executed on the 13th of every month in 2016. ****.**.01 – ****.**.01 The switching command is always executed on the first day of each month.95

PRIORITISING PROGRAMMES You can use prioritisation to specify the order that the programmes on the device run in. For example, a daily switching command can be executed but a higher priority can be dened so that on certain days or periods, other switching times apply. Example A daily programme switches the device on every day from 8:00 a.m. to 5:00 p.m. If, for example, you do not want the device to switch on at the weekend or on a holiday, create a programme with a higher priority for these days. This programme takes precedence over the other settings. By default, the priority is specied as follows:

Creating a new switching programme

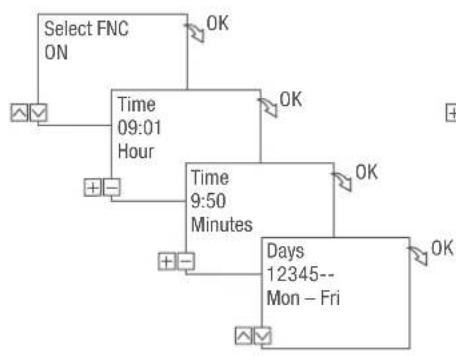

PROGRAMMING AN ON COMMAND

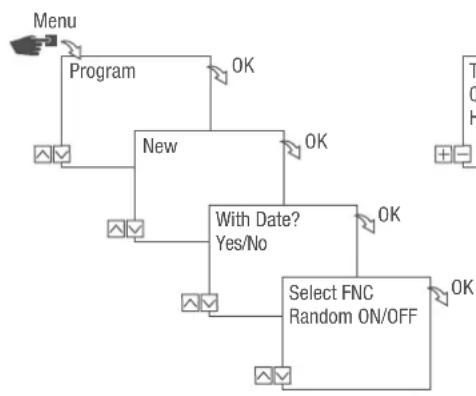

Program and conrm with OK.

New and conrm with OK. ð The number of available programme memory slots is displayed briey (PXXX). The number of available switching programme memory slots is displayed briey (dXXX).

ON and conrm with OK.

6. Enter the hours and minutes for the switch-on time (+/-) and conrm with

OK. Variant-dependent: Instead of hours and minutes, you can also select sunrise (Sunrise) or sunset ( Sunset). Sunrise and sunset is displayed as an additional alternative to the hours and minutes. Program Menu

Add switching time? Yes/No

7. If astro correction is activated, select the desired setting and conrm with OK.

Correction is deactivated. hh:mm The switching command is only executed if sunrise takes place after the set time. hh:mm The switching command is only executed if sunrise takes place before the set time. hh:mm The switching command is only executed if sunset takes place after the set time. hh:mm The switching command is only executed if sunset takes place before the set time.

8. Select the specication of the desired astro correction setting and conrm with OK.

9. Set the day(s) of the week (⋀/⋁) on which the switching time should apply, and conrm with

OK. The days of the week 1 – 5, 6 – 7 and 1 – 7 are set by default. Individual days of the week can be set (+/-) under menu item “Select days”.

10. Select channel (+/-) for which the switching time is to be set, and conrm with

OK. The channel selection is only displayed if there are two or more channels. + Active channel – Inactive channel

11. To create a new switching time, select YES and conrm with OK.

12. Adopt the automatically suggested priority and conrm with

Program and conrm with OK.

New and conrm with OK. ð The number of available programme memory slots is displayed briey (PXXX). The number of available switching programme memory slots is displayed briey (dXXX).

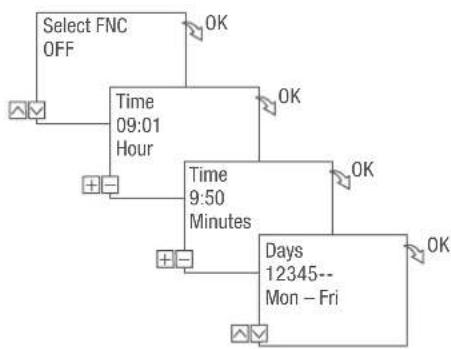

OFF function and conrm with OK.

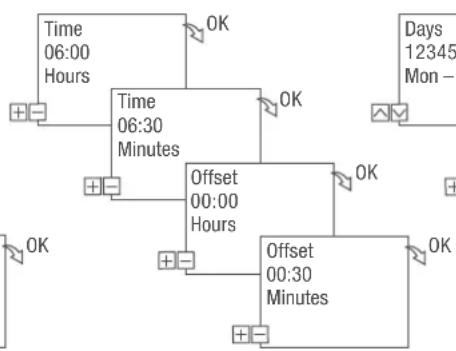

6. Enter the hours and minutes for the switch-on time (+/-) and conrm with

OK. Variant-dependent: Instead of hours and minutes, you can also select sunrise (Sunrise) or sunset ( Sunset). Sunrise and sunset is displayed as an additional alternative to the hours and minutes. Program Menu

Add switching time? Yes/No

7. If astro correction is activated, select the desired setting and conrm with OK.

8. Select the specication of the desired astro correction setting (Ä Chapter „Programming an ON

command“ on page96) and conrm with OK.

9. Set the day(s) of the week (⋀/⋁) on which the switching time should apply, and conrm with

OK. The days of the week 1 – 5, 6 – 7 and 1 – 7 are set by default. Individual days of the week can be set (+/-) under menu item “Select days”.

10. Select channel (+/-) for which the switching time is to be set, and conrm with

OK. The channel selection is only displayed if there are two or more channels. + Active channel – Inactive channel

11. To create a new switching time, select YES and conrm with OK.

12. Adopt the automatically suggested priority and conrm with

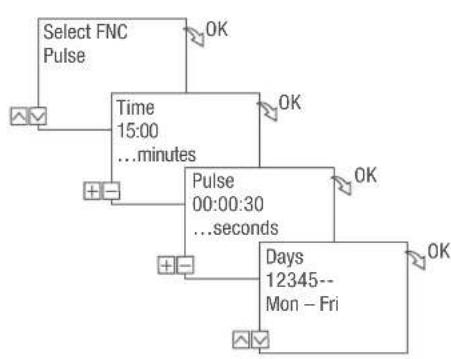

Pulse switching is only possible for certain variants. Fig. 31: Pulse switching Components of a pulse switching command:

) Duration = switching ON − Shortest ON switching duration: 1second − Longest ON switching duration: 2hours Example Channel 1 will be switched daily from Monday to Friday at 3:00 p.m. for a duration of 30seconds. Fig. 32: Programming pulse switching 15:00 h

Add switching time? Yes/No

Program and conrm with OK.

New and conrm with OK. ð The number of available programme memory slots is displayed briey (PXXX). The number of available switching programme memory slots is displayed briey (dXXX).

Pulse function and conrm with OK.

6. Enter the hours and minutes for the switching time (+/-) and conrm with

7. Enter hour(s), minute(s) and second(s) of the pulse duration (+/-) and conrm with

8. Set the day(s) of the week (⋀/⋁) on which the switching time should apply, and conrm with

OK. The days of the week 1 – 5, 6 – 7 and 1 – 7 are set by default. Individual days of the week can be set (+/-) under menu item “Select days”.

9. Select the channel (+/-) for which the pulse is to be set, and conrm with

OK. The channel selection is only displayed if there are two or more channels. + Active channel – Inactive channel

10. To create a new switching time, select YES and conrm with OK.

11. Adopt the automatically suggested priority and conrm with

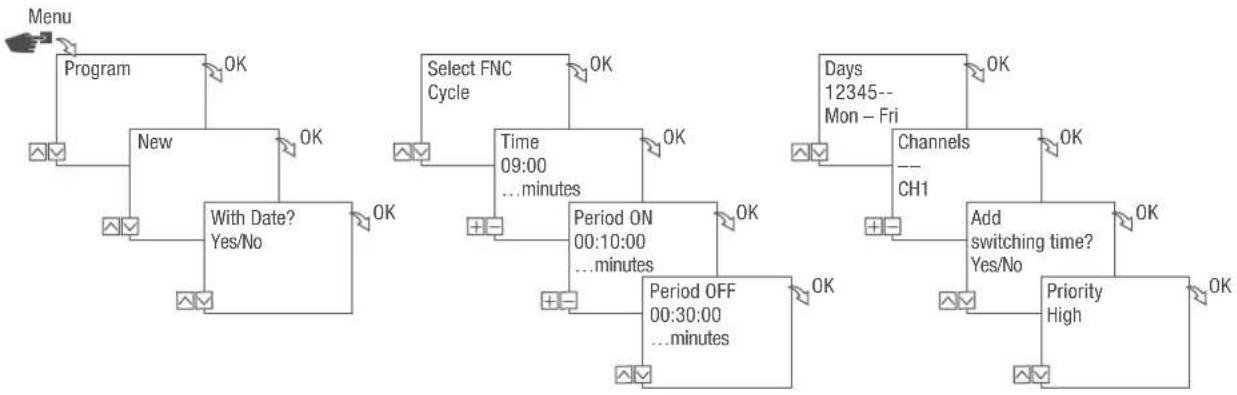

PROGRAMMING CYCLE SWITCHING

Cycle switching is only possible for certain variants. Fig. 33: Cycle switching Components of a cycle switching command:

) Period ON = switching ON

) Period OFF = switching OFF To end the cycle, an independent “OFF” command must be set. Nesting of cycle programmes is not permitted. Example Channel 1 is switched on every 30minutes for 10minutes, Monday to Friday, from 9:00 a.m. to 7:00 p.m. Switching Cycle Start time 9:00a.m. Period ON 10minutes Period OFF 20minutes Separate OFF command 7:00p.m. 19:00 h9:00 h

Program and conrm with OK.

New and conrm with OK. ð The number of available programme memory slots is displayed briey (PXXX). The number of available switching programme memory slots is displayed briey (dXXX).

Cycle function and conrm with OK.

6. Enter the hours and minutes for the switching time (+/-) and conrm with

7. Enter period ON (+/-) and conrm with

8. Enter period OFF (+/-) and conrm with

9. Select day of the week (⋀/⋁) on which the cycle is to start and conrm with

OK. The days of the week 1 – 5, 6 – 7 and 1 – 7 are set by default. Individual days of the week can be set (+/-) under menu item “Select days”.

10. Select channel (+/-) for which the cycle is to be set, and conrm with

OK. The channel selection is only displayed if there are two or more channels. + Active channel – Inactive channel

11. To create a new switching time, select YES and conrm with OK.

Add switching time? Yes/No

To end the cycle, you have to set an OFF command.

12. Execute the commands for a switch-off time for cycle switching Ä Chapter „Programming an OFF

14. Adopt the automatically suggested priority and conrm with

PROGRAMMING RANDOM SWITCHING

Random switching is only possible for certain variants. Fig. 35: Programming random switching Random programming is only possible in advanced mode (Ä Chapter „Selecting the mode“ on page82). Example Channel1 is switched on at random at 6:30 a.m. with an offset of ± 30 minutes, Monday to Friday.

Program and conrm with OK.

New and conrm with OK. ð The number of available programme memory slots is displayed briey (PXXX). The number of available switching programme memory slots is displayed briey (dXXX).

Random ON or Random OFF function and conrm with OK. You can dene an offset of up to ±2hours. Days 12345-- Mon – Fri

Add switching time? Yes/No

6. Enter the hours and minutes for the switching time (+/-) and conrm with OK.

7. Enter hour and minute of the period for the random programming (+/-) and conrm each with

8. Set day of the week (⋀/⋁) on which the device should randomly switch, and conrm with

OK. The days of the week 1 – 5, 6 – 7 and 1 – 7 are set by default. Individual days of the week can be set (+/-) under menu item “Select days”.

9. Select channel (+/-) for which the cycle is to be set, and conrm with

OK. The channel selection is only displayed if there are two or more channels. + Active channel – Inactive channel

10. To create a new switching time, select YES and conrm with OK.

11. Adopt the automatically suggested priority and conrm with

Viewing, editing or deleting elements

VIEWING, EDITING OR DELETING A PROGRAMME

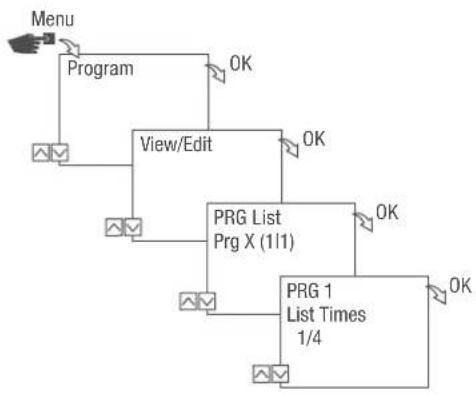

Fig. 36: Viewing, editing, deleting a programme

Program and conrm with OK.

View/Edit and conrm with OK.

4. Select the programme and conrm with

5. To view or edit a list (date list, switching times, priority), select the desired list.

To delete the selected programme, select Delete. Program Menu

VIEWING, EDITING OR DELETING SWITCHING TIMES

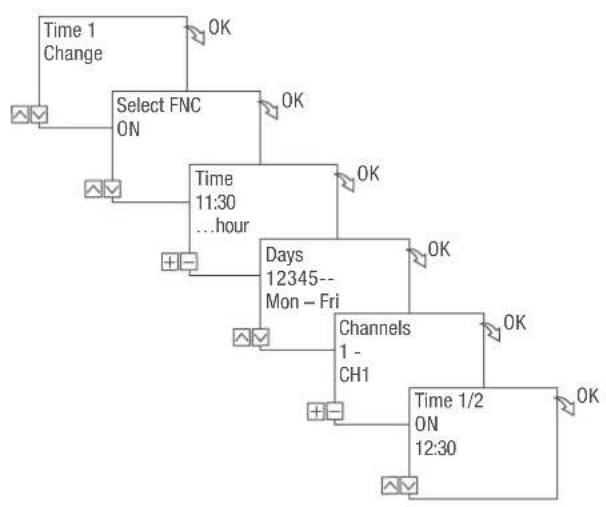

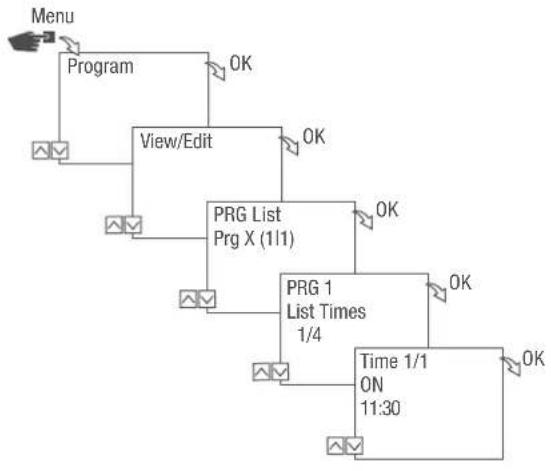

Fig. 37: Viewing, editing, deleting switching times

Program and conrm with OK.

View/Edit and conrm with OK.

4. Select the programme and conrm with

List Times and conrm with OK. Delete: The selected switching time (e.g., ON/OFF, time, days, channels, pulse or cycle) is deleted. Delete all: All switching times are deleted.

Amend, Advanced, Delete or Delete all and conrm with OK. Program Menu

Program and conrm with OK.

View/Edit and conrm with OK.

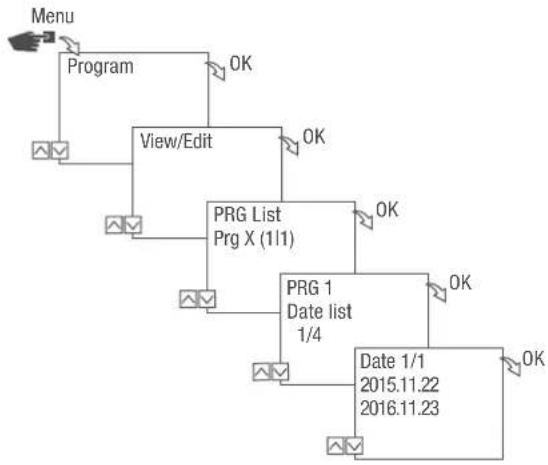

List Dates and conrm with OK.

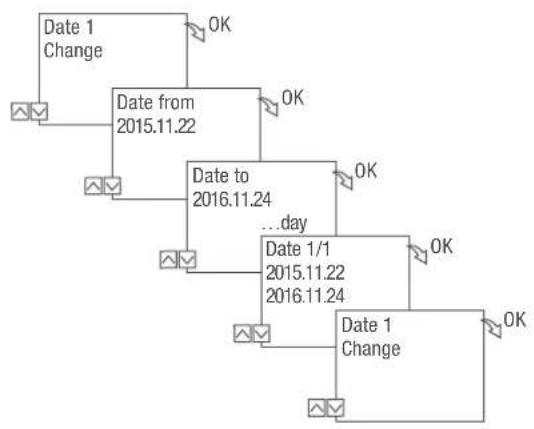

Date and conrm with OK. Delete: The selected date (from…to) is deleted. Delete all: All the dates in the date list are deleted.

Advanced, Delete or Delete all and conrm with OK. Program Menu

Fig. 39: Deleting all programmes

Program and conrm with OK.

Delete all and conrm with OK.

Yes and conrm with OK. Program Menu

Delete all? Yes/No OK111

Disposal Improper disposal Incorrect disposal presents an environmental danger. Incorrect disposal could result in environmental dangers. − Electric scrap and electronic components must be disposed of correctly, i.e. the parts for disposal must be sorted into material groups. − Disposal must be environmentally responsible and must employ state-of-the-art envi- ronmental protection, recycling and disposal technology. ENVIRON- MENTAL PROTECTION! Recycling If no agreement has been made covering return or disposal, ensure that the dismantled components are recycled:

• Ensure plastic elements are recycled.

• Dispose of other components after sorting them according to material properties.112

commutation? Oui/Non

commutation? Oui/Non

commutation? Oui/Non

Impulsion 00:00:30 ...secondes

commutation? Oui/Non

commutation? Oui/Non

Mata in PIN PIN sparat OK467

) period PÅ = koppling PÅ

Fastsett PIN Fig. 16: Fastsett PIN

Puls 00:00:30 ...Sekunder

This device complies with Section 15 of the FCC Regulations. Operation is only permitted under the follo

This device complies with Section 15 of the FCC Regulations. Operation is only permitted under the follo
