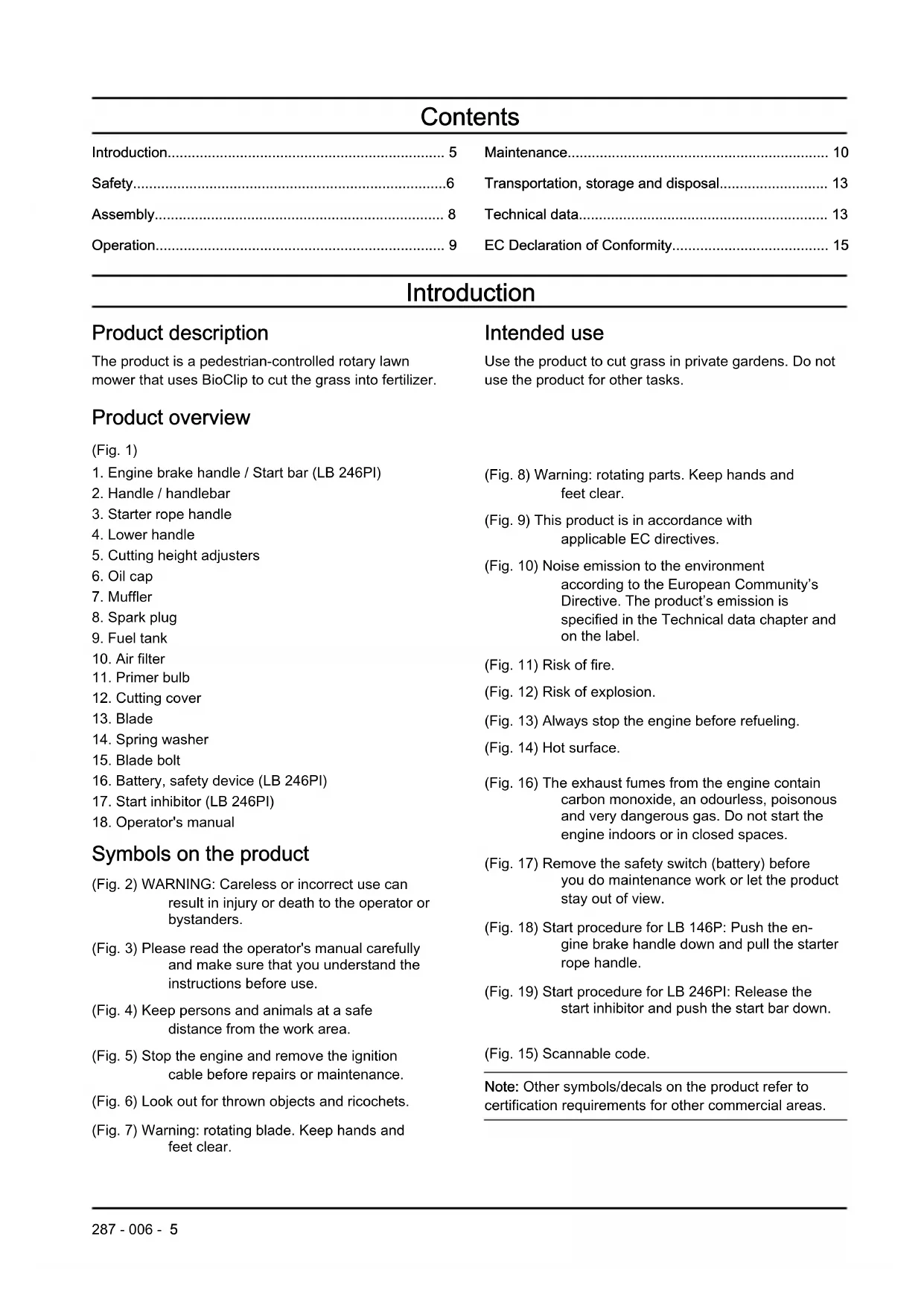

16. Battery, safety device (LB 246PI)

17. Start inhibitor (LB 246PI)

18. Operator's manual

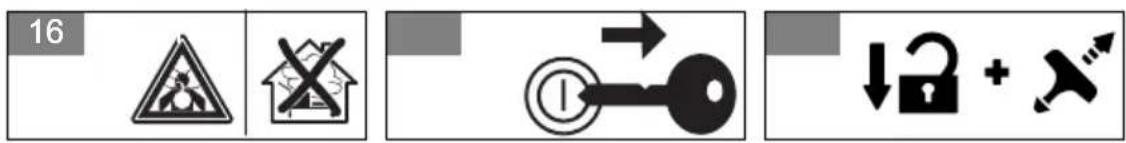

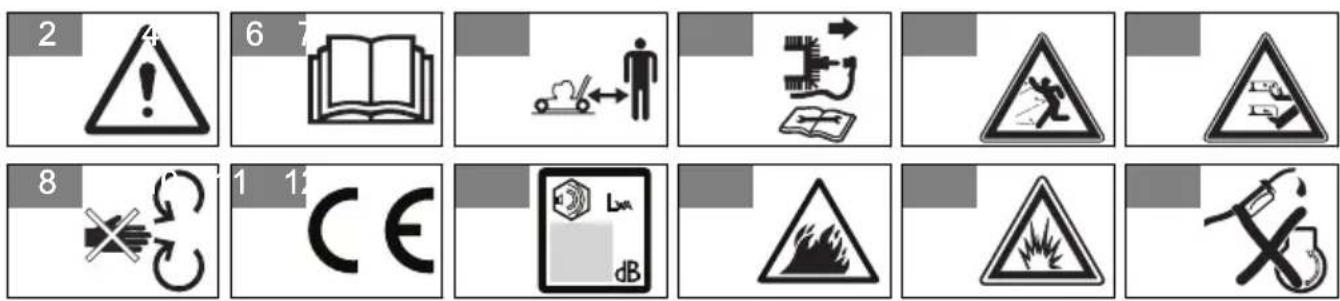

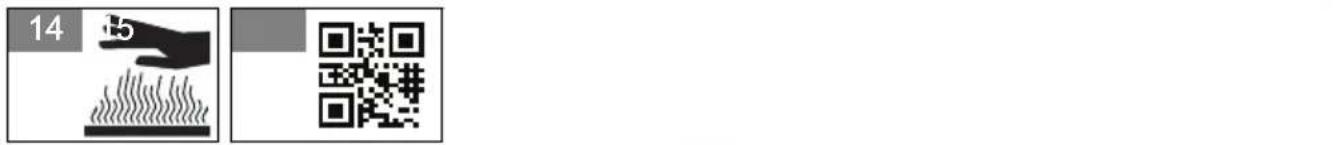

Symbols on the product (Fig. 2) WARNING: Careless or incorrect use can result in injury or death to the operator or bystanders. (Fig. 3) Please read the operator's manual carefully and make sure that you understand the instructions before use. (Fig. 4) Keep persons and animals at a safe distance from the work area. (Fig. 5) Stop the engine and remove the ignition cable before repairs or maintenance. (Fig. 6) Look out for thrown objects and ricochets. (Fig. 7) Warning: rotating blade. Keep hands and feet clear. (Fig. 8) Warning: rotating parts. Keep hands and feet clear. (Fig. 9) This product is in accordance with applicable EC directives. (Fig. 10) Noise emission to the environment according to the European Community’s Directive. The product’s emission is specified in the Technical data chapter and on the label. (Fig. 11) Risk of fire. (Fig. 12) Risk of explosion. (Fig. 13) Always stop the engine before refueling. (Fig. 14) Hot surface. (Fig. 16) The exhaust fumes from the engine contain carbon monoxide, an odourless, poisonous and very dangerous gas. Do not start the engine indoors or in closed spaces. (Fig. 17) Remove the safety switch (battery) before you do maintenance work or let the product stay out of view. (Fig. 18) Start procedure for LB 146P: Push the en- gine brake handle down and pull the starter rope handle. (Fig. 19) Start procedure for LB 246PI: Release the start inhibitor and push the start bar down. (Fig. 15) Scannable code. Note: Other symbols/decals on the product refer to certification requirements for other commercial areas.

287 - 006 - 5Euro V Emissions

WARNING: Tampering with the engine voids

the EU type-approval of this product. Product liability As referred to in the product liability laws, we are not liable for damages that our product causes if:

• the product is incorrectly repaired.

• the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.

• the product has an accessory that is not from the manufacturer or not approved by the manufacturer.

• the product is not repaired at an approved service center or by an approved authority. Safety Safety definitions Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or

death for the operator or bystanders if the instructions in the manual are not obeyed. CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed. Note: Used to give more information that is necessary in a given situation. General safety instructions

WARNING: Read the warning instructions

that follow before you use the product.

• This product is dangerous if used incorrectly or if you are not careful. Injury or death can occur if you do not obey the safety instructions.

• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.

• Always be careful and use your common sense. If you are not sure how to operate the product in a special situation, stop and speak to your Husqvarna dealer before you continue.

• Keep in mind that the operator will be held responsible for accidents that involve other persons or their property.

• Keep the product clean. Make sure that you can clearly read signs and decals.

• Do not let a person use the product unless you make sure that they read and understand the contents of the operator's manual.

• Do not let a child operate the product.

• Keep children away from the work area. A responsible adult must be there at all times.

• Do not let a person, without knowledge of the instructions, operate the product.

• Always monitor a person, with decreased physical capacity or mental capacity, that uses the product. A responsible adult must be there at all times.

• Do not use the product if you are tired, ill, or under the influence of alcohol, drugs or medicine. This has a negative effect on your vision, alertness, coordination and judgment.

• Do not use the product if it is defective.

• Do not change this product or use it if it is possible that it has been changed by others. Work area safety

WARNING: Read the warning instructions

that follow before you use the product.

• Remove objects such as branches, twigs and stones from the work area before you use the product.

• Objects that hit against the cutting equipment can eject and cause damage to persons and objects. Keep bystanders and animals at a safe distance from the product.

• Never use the product in bad weather such as fog, rain, strong winds, intense cold and risk of lightning. To use the product in bad weather or in moist or wet locations is tiring. Bad weather can cause dangerous conditions, such as slippery surfaces.

• Look out for persons, objects and situations that can prevent safe operation of the product.

• Look out for obstacles, such as roots, stones, twigs, pits and ditches. Long grass can hide obstacles.

• To cut grass on slopes can be dangerous. Do not use the product on ground that slopes more than 15°.

• Operate the product across the face of slopes. Do not move up and down.

• Be careful when you go near hidden corners and objects that prevent a clear view.

WARNING: Read the warning instructions

that follow before you use the product.

• Use this product to cut grass lawns only. It is not permitted to use it for other tasks.

• Use personal protective equipment. Refer to Personal protective equipment on page 7

• Make sure that you know how to stop the engine quickly in an emergency.

• Never start the engine in a closed space or near flammable material. The exhaust fumes from the engine are hot and can contain sparks which can start a fire.

• Do not operate the product unless the blade and all covers are attached correctly. An incorrectly attached blade can come loose and cause personal injury.

• Make sure that the blade does not hit objects such as stones and roots. This can do damage to the blade and bend the engine shaft. A bent axle causes heavy vibration and a very high risk that the blade becomes loose.

• If the blade hits an object or if vibrations occur, stop the product immediately. Disconnect the ignition cable from the spark plug. Examine the product for damages. Repair damages or let an authorised service agent do the repair.

• Never attach the engine brake handle permanently to the handle when the engine is started.

• Put the product on a stable, flat surface and start it. Make sure that the blade does not hit the ground or other objects.

• Always stay behind the product when you operate it.

• Let all the wheels stay on the ground and keep 2 hands on the handle when you operate the product. Keep your hands and feet away from the rotating blades.

• Do not tilt the product when the engine is started.

• Be careful when you pull the product rearward.

• Never lift up the product when the engine is started. If you must lift the product, first stop the engine and disconnect the ignition cable from the spark plug.

• Do not walk rearward when you operate the product.

• Stop the engine when you move across areas without grass, for example paths made of gravel, stone and asphalt.

• Do not run with the product when the engine is started. Always walk when you operate the product.

• Stop the engine before you change the cutting height. Never make adjustments with the engine started.

• Never let the product stay out of view with the engine started. Stop the engine and make sure that the cutting equipment does not rotate. Safety instructions for operation Personal protective equipment

WARNING: Read the warning instructions

that follow before you use the product.

• Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.

• Use hearing protection if the noise level is higher than 85 dB.

• Use heavy-duty slip-resistant boots or shoes. Do not use open shoes or go with bare feet.

• Use heavy, long pants.

• Use protective gloves when necessary, for example when you attach, examine or clean the cutting equipment. Safety devices on the product

WARNING: Read the warning instructions

that follow before you use the product.

• Do not use a product with defective safety devices.

• Do a check of the safety devices regularly. If the safety devices are defective, speak to your Husqvarna service agent. To do a check of the cutting cover The cutting cover decreases vibrations in the product and decreases the risk of injury from the blade.

• Examine the cutting cover to make sure that there are no damages such as cracks. Battery (LB 246PI)

WARNING: A defective battery decreases

the safety of the product. Always use a battery approved by the manufacturer. The battery gives power to the electrical start and is a safety device that prevents accidental start. Remove the battery when you do not operate the product and when you let it stay out of view. Engine brake handle The engine brake handle stops the engine. When the engine brake handle is released, the engine stops. To do an inspection of the engine brake, start the engine and then release the engine brake handle. If the engine does not stop in 3 seconds, let an approved Husqvarna service agent adjust the engine brake. (Fig. 20)

7Start inhibitor On model LB 246PI the engine brake handle is also used as a start bar for the starter motor. Do a check of the start inhibitor to make sure that it prevents operation of the starter motor.

1. Pull the start bar in the direction of the handlebar (B).

The start inhibitor stops the movement.

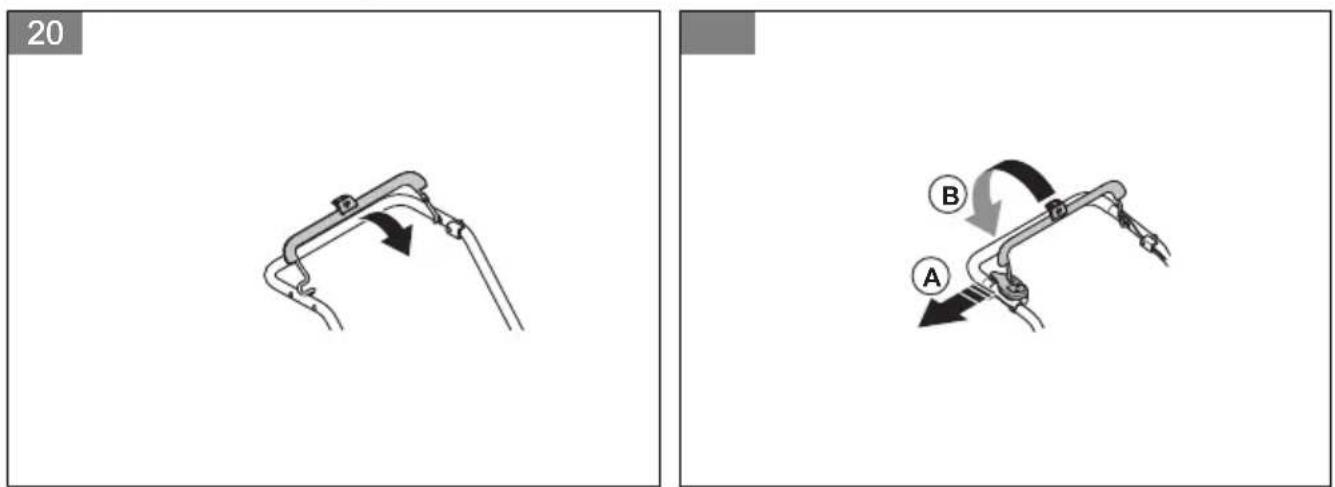

2. Push the start inhibitor out to the right (A). (Fig. 21)

3. Release the start inhibitor and make sure that it goes

back to its initial position. Muffler The muffler keeps the noise levels to a minimum and sends the exhaust fumes away from the operator. Do not use the product if the muffler is missing or defective. A defective muffler increases the noise level and the risk of fire.

WARNING: The muffler becomes very hot

during and after use and when the engine operates at idle speed. Be careful near flammable materials and/or fumes to prevent fire. Fuel safety

WARNING: Read the warning instructions

that follow before you use the product.

• Do not start the product if there is fuel or engine oil on the product. Remove the unwanted fuel/oil and let the product dry.

• If you spill fuel on your clothing, change clothing immediately.

• Do not get fuel on your body, it can cause injury. If you get fuel on your body, use soap and water to remove the fuel.

• Do not start the product if the engine has a leak. Examine the engine for leaks regularly.

• Be careful with fuel. Fuel is flammable and the fumes are explosive and can cause injuries or death.

• Do not breathe in the fuel fumes, it can cause injury. Make sure that there is a sufficient airflow.

• Do not smoke near the fuel or the engine.

• Do not put warm objects near the fuel or the engine.

• Do not add the fuel when the engine is on.

• Make sure that the engine is cool before you refuel.

• Before you refuel, open the fuel tank cap slowly and release the pressure carefully.

• Do not add fuel to the engine in an indoor area. Not sufficient airflow can cause injury or death because of asphyxiation or carbon monoxide.

• Tighten the fuel tank cap fully. If the fuel tank cap is not tightened, there is a risk of fire.

• Move the product a minimum of 3 m / 10 ft from the position where you filled the tank before a start.

• Do not fill the fuel tank fully. Heat causes the fuel to expand. Keep a space at the top of the fuel tank. Safety instructions for maintenance

WARNING: Read the warning instructions

that follow before you use the product.

• The exhaust fumes from the engine contain carbon monoxide, an odourless, poisonous and very dangerous gas. Do not start the engine indoors or in closed spaces.

• Before you do the maintenance on the product, stop the engine and remove the ignition cable from the spark plug. On LB 246PI, also remove the battery.

• Use protective gloves when you do maintenance on the cutting equipment. The blade is very sharp and cuts can easily occur.

• Accessories and changes to the product that are not approved by the manufacturer, can cause serious injury or death. Do not change the product. Always use accessories that are approved by the manufacturer.

• If the maintenance is not done correctly and regularly, the risk of injury and damage to the product increases.

• Only do the maintenance as given in this owner's manual. All other servicing must be done by an approved Husqvarna service agent.

• Let an approved Husqvarna service agent do servicing on the product regularly.

• Replace damaged, worn or broken parts. Assembly Introduction

WARNING: Before you assemble the

product, read the safety chapter. On LB 246PI, also remove the battery. To assemble the handle

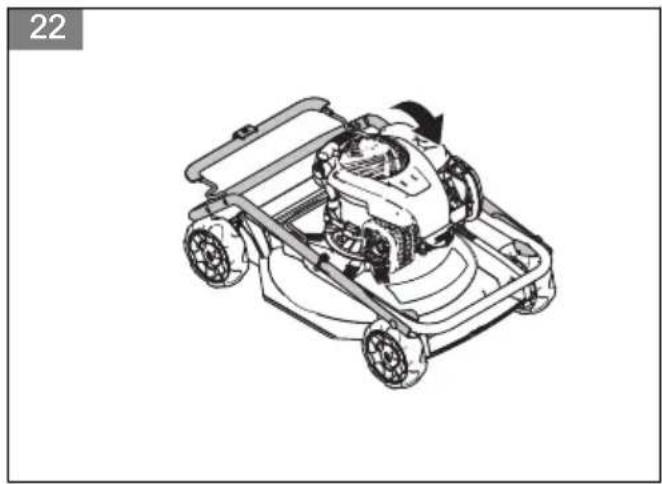

1. Fold the handlebar forward. (Fig. 22)

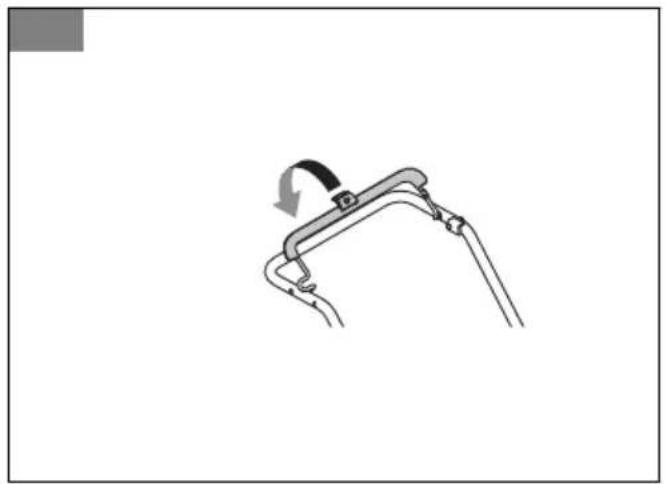

2. Tighten the knobs on right and left sides fully and

fold the handle up. (Fig. 23)

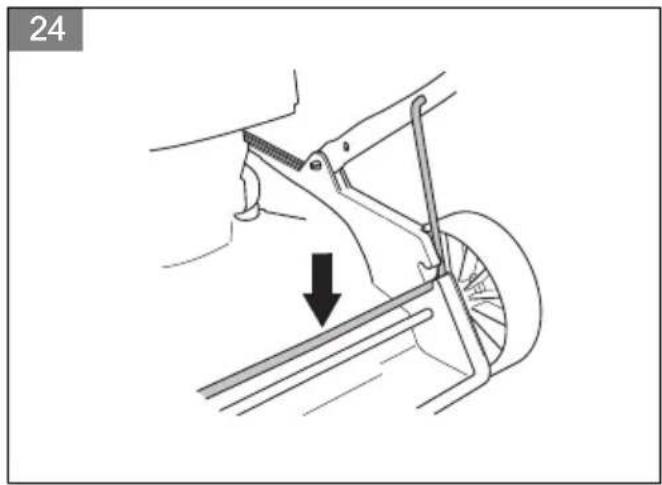

3. Put the stay in the groove on the cutting cover. (Fig.

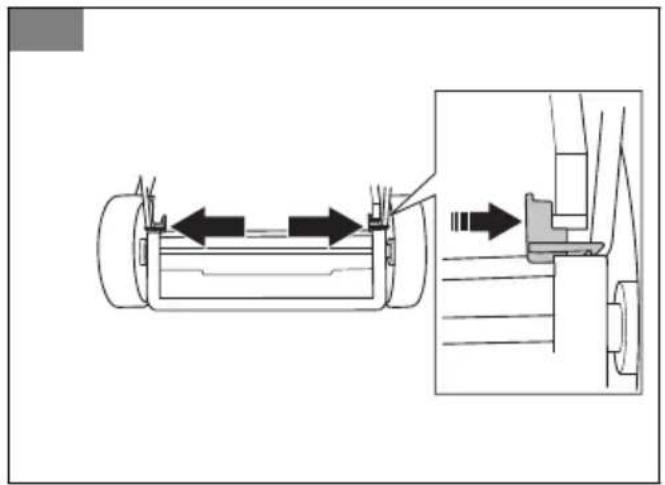

24) 8 287 - 006 -4. Attach the 2 stops that lock the stay and the handle. Press them fully in position. (Fig. 25) Note: There are two stops, one identified with an H and one with a V. Put the stop with an H on the right side and the stop with a V on the left side. CAUTION: Do not operate the product if the 2 stops are not attached. To adjust the handle height

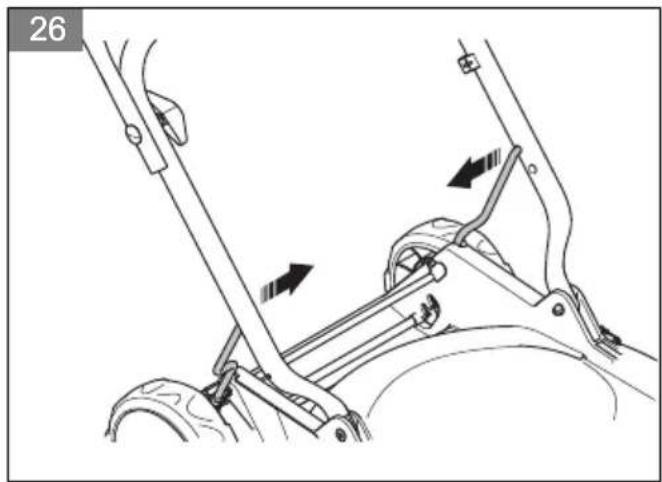

1. Remove the handle stay from the lower handle. (Fig.

26) a) Put the handle stay in the top hole (A) to decrease the handle height. b) Put the handle stay in the bottom hole (B) to increase the handle height. (Fig. 27) Operation Introduction

WARNING: Before you operate the product,

you must read and understand the safety chapter. Husqvarna Connect Husqvarna Connect is a free app for your mobile device. The Husqvarna Connect app gives extended functions for your Husqvarna product:

• Extended product information.

• Information about, and help with, product parts and servicing. To start to use Husqvarna Connect

1. Download the Husqvarna Connect app on your

2. Register in the Husqvarna Connect app.

3. Do the instruction steps in the Husqvarna Connect

app to connect and register the product. Before you operate the product

1. Read the operator's manual carefully and make sure

that you understand the instructions.

2. Examine the cutting equipment to make sure that it

is correctly attached and adjusted. See To examine the cutting equipment on page 11

4. Fill the oil tank and do a check of the oil level. See

To do a check of the oil level on page 11

To fill fuel If available, use low-emission/alkylate gasoline. If low- emission/alkylate gasoline is not available, use good quality unleaded gasoline or leaded gasoline with octane number not less than 90. CAUTION: Do not use gasoline with an octane number less than 90 RON (87 AKI). This can cause damage to the product.

1. Open the fuel tank cap slowly to release the

2. Fill slowly with a fuel can. If you spill fuel, remove it

with a cloth and let remaining fuel dry off.

3. Clean the area around the fuel tank cap.

4. Tighten the fuel tank cap fully. If the fuel tank cap is

not tightened, there is a risk of fire.

5. Move the product a minimum of 3 m (10 ft) from the

position where you filled the tank before a start. To set the cutting height

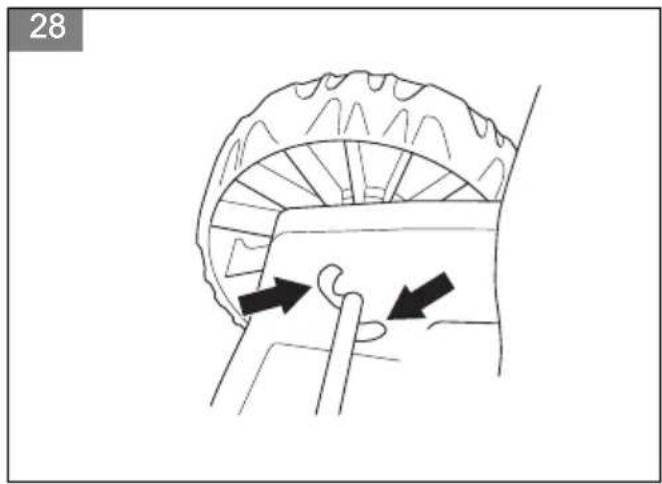

• Press the shaft out and move it to the correct position for each of the 4 wheels. (Fig. 28) CAUTION: Do not set the cutting height too low. The blades can hit the ground if the surface of the lawn is not level. To start the product

• The very first time you start the product, press the primer bulb 5 times. The next time you start the product when the engine is cold, press the primer bulb 3 times.

• Make sure that the ignition cable is connected to the spark plug. Manual start (LB 146P)

1. Stay behind the product.

2. Hold the engine brake handle against the handlebar.

3. Hold the starter rope handle with your right hand.

4. Slowly pull out the starter rope until you feel some

5. Pull with force to start the engine.

WARNING: Do not twist the starter rope

1. Make sure that the battery is activated and charged.

See To start the battery on page 12

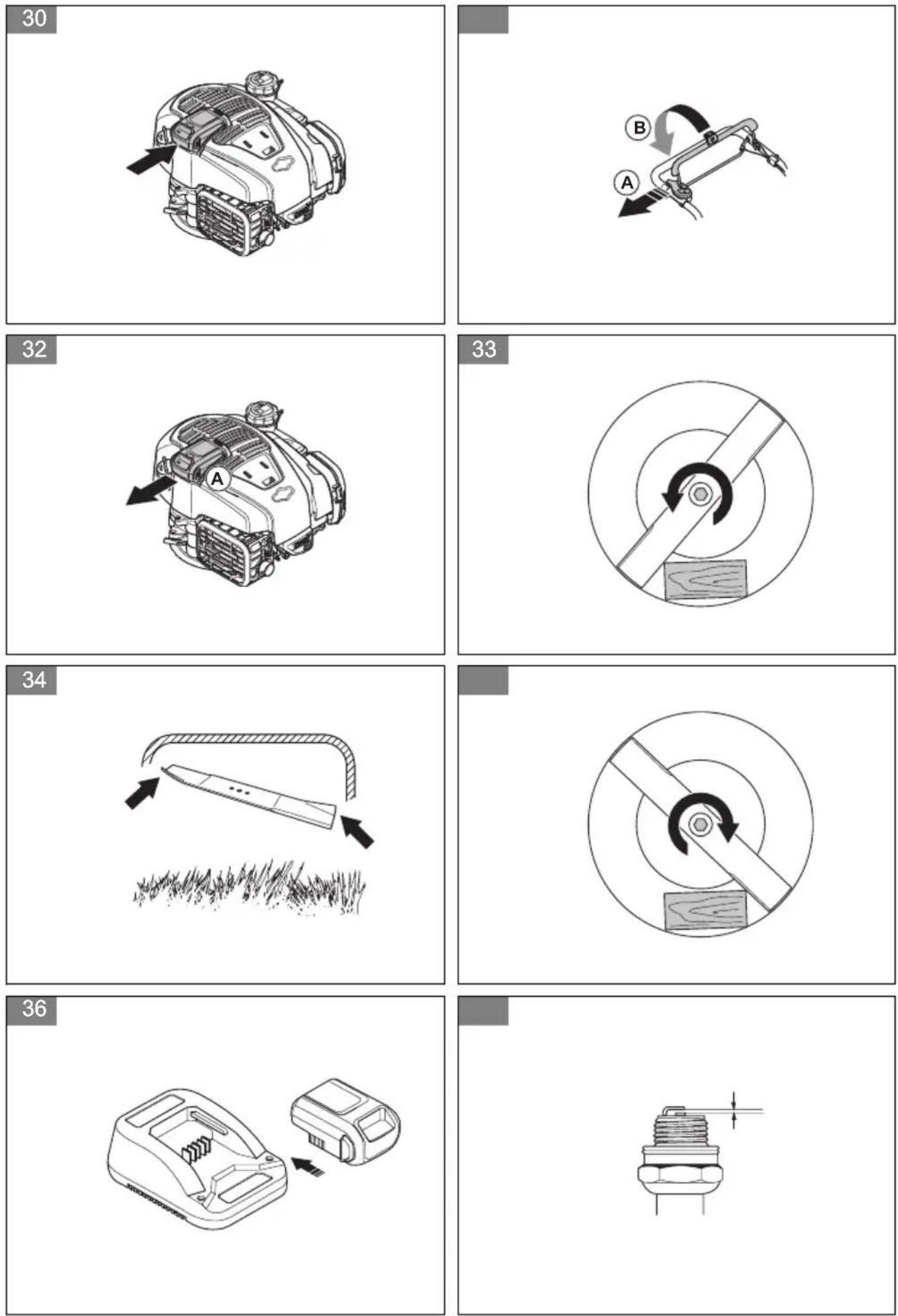

2. Attach the battery to the engine. (Fig. 30)

3. Push the start inhibitor out to the right (A).

4. Pull the start bar (B) against the handlebar to start

the starter motor. The starter motor stops when the engine starts. (Fig. 31) To stop the product

• To stop the engine, release the engine brake handle. To remove the battery To prevent accidental start of the engine, remove the battery on model LB 246PI when the product is not in operation.

1. Press the lock buttons (A) and pull the battery out.

(Fig. 32) To get a good result

• Always use a sharp blade. A blunt blade gives an irregular result and the cut surface of the grass becomes yellow. A sharp blade also uses less energy than a blunt blade.

• Do not cut more than ⅓ of the length of the grass. Cut first with the cutting height set high. Examine the result and lower the cutting height to an applicable level. If the grass is very long, drive slowly and cut 2 times if necessary.

• Cut in different directions each time to prevent stripes in the lawn. Maintenance Introduction

WARNING: Before you do maintenance, you

must read and understand the safety chapter. For all servicing and repair work on the product, special training is necessary. We guarantee the availability of professional repairs and servicing. If your dealer is not a service agent, speak to them for information about the nearest service agent. Maintenance schedule

WARNING: When you tilt the product, make

sure that the air filter is up at the top of the tilted product, and not against the ground. CAUTION: For model LB 246PI, always remove the battery before you do maintenance, repairs or clean the product. The maintenance intervals are calculated from daily use of the product. The intervals change if the product is not used daily. For maintenance identified with * see instructions in Safety devices on the product on page 7

Maintenance Daily Weekly Monthly Do a general inspection X Examine the oil level X Clean the product X Examine the cutting equipment X Examine the cutting cover* X Examine the engine brake handle* X Examine the battery* X Examine the muffler* X Examine the spark plug X Change the oil (the first time after 5 h use, then after each 50 h use) X Change the air filter (after 50 h use) X 10 287 - 006 -Maintenance Daily Weekly Monthly Examine the fuel system X To do a general inspection

• Make sure that all nuts and screws on the product are tightened correctly. To clean the product externally

• Use a brush to remove leaves, grass and dirt.

• Make sure that the air intake on the top of the engine is not blocked.

• Do not use a high pressure washer to clean the product.

• If you use water to clean the product, do not flush water directly on the engine. To clean the inner surface of the cutting cover

1. Empty the fuel tank.

2. Put the product on its side with the muffler down.

CAUTION: If the product is put with the air filter down, the engine can become damaged.

3. Hose down the inner surface of the cutting cover

with water. To examine the cutting equipment

WARNING: Use protective gloves when you

do maintenance on the cutting equipment. The blade is very sharp and cuts can easily occur.

1. Examine the cutting equipment for damage or

cracks. Always replace a damaged cutting equipment.

2. Look at the blade to see if it is damaged or blunt.

Note: It is necessary to balance the blade after it is sharpened. Let a service center sharpen, replace and balance the blade. If you hit an obstacle that causes the product to stop, replace the damaged blade. Let the service center estimate if the blade can be sharpened or must be replaced. To replace the blade

1. Lock the blade with a block of wood. (Fig. 33)

4. Examine the blade support and blade bolt to see if

5. Examine the engine shaft to make sure that it is not

6. When you attach the new blade, point the angled

ends of the blade in the direction of the cutting cover. (Fig. 34)

7. Make sure that the blade is aligned with the center of

8. Lock the blade with a block of wood. Attach the

spring washer and tighten the bolt and washer with a torque of 35–40 Nm. (Fig. 35)

9. Pull the blade around by hand and make sure that it

WARNING: Use heavy duty gloves. The

blade is very sharp and cuts can easily occur.

10. Start the product to do a test of the blade. If the

blade is not correctly attached, there is vibration in the product or the cutting result is unsatisfactory. To do a check of the oil level CAUTION: A too low oil level can do damage to the engine. Do a check of the oil level before you start the product.

1. Put the product on level ground.

2. Remove the oil tank cap with the attached dipstick.

3. Clean the oil from the dipstick.

4. Put the dipstick fully into the oil tank to give a correct

picture of the oil level.

5. Remove the dipstick.

6. Examine the oil level on the dipstick.

7. If the oil level is low, fill with engine oil and do a

check of the oil level again. To replace the engine oil

Engine oil is very hot directly after the engine is stopped. Let the engine become cool before you drain the engine oil. If you spill engine oil on your skin, clean with soap and water.

1. Operate the product until the fuel tank is empty.

2. Remove the ignition cable from the spark plug.

3. Remove the oil tank cap.

114. Put a container below the product to collect the

5. Tilt the product to drain the engine oil from the oil

6. Fill with new engine oil of the type recommended in

7. Do a check of the oil level. Refer to

To do a check of the oil level on page 11

WARNING: A defective battery decreases

the safety of the product. Always use a battery approved by the manufacturer. The battery gives power to the electrical start and is a safety device that prevents accidental start. Remove the battery when you do not operate the product and when you let it stay out of view. To start the battery You need to start the battery before the first time you use it.

1. Put the battery into the charger, see

To charge the battery on page 12

2. Wait until a minimum of 1 green lamp comes on,

approximately 10 seconds.

3. Attach the battery to the engine, see

Electrical start (LB 246PI) on page 10

To charge the battery If only 1 or 0 lamp indicators on the battery are on, it is necessary to charge it. An empty battery is fully charged in 1 hour. To charge for shorter periods of time does not do damage to the battery.

1. Put the battery in the battery charger. (Fig. 36)

2. Connect the battery charger to a power socket,

220V, 50Hz. Status for battery charge LED display on the battery Status LED 1 flashes 0%-25% LED 1 is lit, LED 2 flashes 25%-50% LED 1, LED 2 are lit, LED 3 flashes 50%-75% LED 1, LED 2, LED 3 are lit, LED 4 flashes 75%-100% LED 1, LED 2, LED 3, LED 4 are lit Fully charged Lamp indicator on the bat- tery charger Status Constant red light The battery charges Lamp indicator on the bat- tery charger Status Flashing red light The battery is too warm and will start to charge when the temperature is correct Constant green light The battery is fully charg-

Flashing red and green light The battery is damaged and must be replaced To clean the air filter

1. Remove the air filter cover and remove the filter.

2. Hit the filter against a flat surface to make the

particles fall off. CAUTION: Do not use solvent or compressed air to clean the air filter.

3. Put the air filter back. Make sure that the air filter

fully seals against the air filter holder.

4. Put the air filter cover back.

Note: An air filter that is used for a long time cannot be fully cleaned. Replace the air filter at regular intervals. Always replace a damaged air filter. To examine the spark plug CAUTION: Always use the recommended spark plug type. Incorrect spark plug type can cause damage to the product.

• Examine the spark plug if the engine is low on power, is not easy to start or does not operate correctly at idle speed.

• To decrease the risk of unwanted material on the spark plug electrodes, obey these instructions: a) Make sure that the idle speed is correctly adjusted. b) Make sure that the fuel mixture is correct. c) Make sure that the air filter is clean.

• If the spark plug is dirty, clean it and make sure that the electrode gap is correct, refer to Technical data on page 13 . (Fig. 37)

• Replace the spark plug if it is necessary. To examine the fuel system

• Examine the fuel tank cap and the seal for the fuel tank cap to make sure that there are no damages.

• Examine the fuel hose to make sure that there are no leaks. If the fuel hose is damaged, let a service agent replace it.

287 - 006 -Transportation, storage and disposal

Transportation and storage

• For storage and transportation of the product and fuel, make sure that there are no leaks or fumes. Sparks or open flames, for example from electrical devices or boilers, can start a fire.

• Always use approved containers for storage and transportation of fuel.

• Empty the fuel tank before you put the product in storage for a long period of time. Discard the fuel at an applicable disposal location

• Safely attach the product during transportation to prevent damage and accidents.

• Keep the product in a locked area to prevent access for children or persons that are not approved.

• Keep the product in a dry and frost free area. Disposal

• Obey the local recycling requirements and applicable regulations.

• Discard all chemicals, such as engine oil or antifreeze, at a service center or at an applicable disposal location.

• When the product is no longer in use, send it to a Husqvarna dealer or discard it at a recycling location.

• Discard the battery at a service center or discard it at a disposal location for used batteries. Technical data Technical data LB 146P LB 246PI Engine Brand Briggs & Stratton Briggs & Stratton Displacement, cm

Ignition system Spark plug QC12YC QC12YC Electrode gap, mm 0.5 0.5 Fuel and lubrication system Fuel tank capacity, litre 0.8 0.8 Oil tank capacity, litre 0.5 0.5 Engine oil

The power rating of the engine indicated is the average net output (at specified rpm) of a typical production engine for the engine model measured to SAE standard J1349/ISO1585. Mass production engines may differ from this value. Actual power output for the engine installed on the final product will depend on the operating speed, environmental conditions and other values.

Use engine oil of quality SF, SG, SH, SJ or higher. See the viscosity chart in the engine manufacturer’s man- ual and select the best viscosity based on the expected outside temperature.

Sound power level, measured dB (A) 93 92 Sound power level, guaranteed L

Sound pressure level at the operator's ear, dB (A) 81 79 Vibration levels, a hveq

Cutting equipment Cutting height, mm 35–70 35–70 Cutting width, mm 460 460 Blade Mulcher 46 Mulcher 46 Article number 5839740-10 5839740-10 Start Electric starter No Yes Battery – Li-ion, 12V/15.7Wh

Noise emissions in the environment measured as sound power (L

) in conformity with EC directive 2000/14/EC.

Noise pressure level according to ISO 5395. Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2 dB (A).

Vibration level according to ISO 5395. Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2 m/s

14 287 - 006 -EC Declaration of Conformity EC Declaration of Conformity Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declares that the lawn mowers Husqvarna LB 146P and LB 246PI from the serial numbers 2017xxxxxxx and onwards comply with the requirements of the COUNCIL’S DIRECTIVE:

• of May 17, 2006 ”relating to machinery” 2006/42/EC

• of February 26, 2014 ”relating to electromagnetic compatibility” 2014/30/EU

• of May 8, 2000 ”relating to the noise emissions in the environment” 2000/14/EC Information relating to noise emissions, see Technical data. The following standards have been applied: EN ISO 5395-1, EN ISO 5395-2, EN ISO 5395-2 Amd1, EN ISO 5395-2 Amd 2, EN 55012 If not otherwise stated, the above listed standards are the latest published versions. Notified body: 0404, RISE SMP Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala has issued reports regarding the assessment of conformity according to annex VI of the COUNCIL’S DIRECTIVE of May 8, 2000 ”relating to the noise emissions in the environment” 2000/14/EC. The certificates have the numbers: 01/901/297, 01/901/299 Huskvarna, 2017-11-30 Claes Losdal, Development Manager/Garden Products (Authorized representative for Husqvarna AB and responsible for technical documentation)

• Extended product information.
