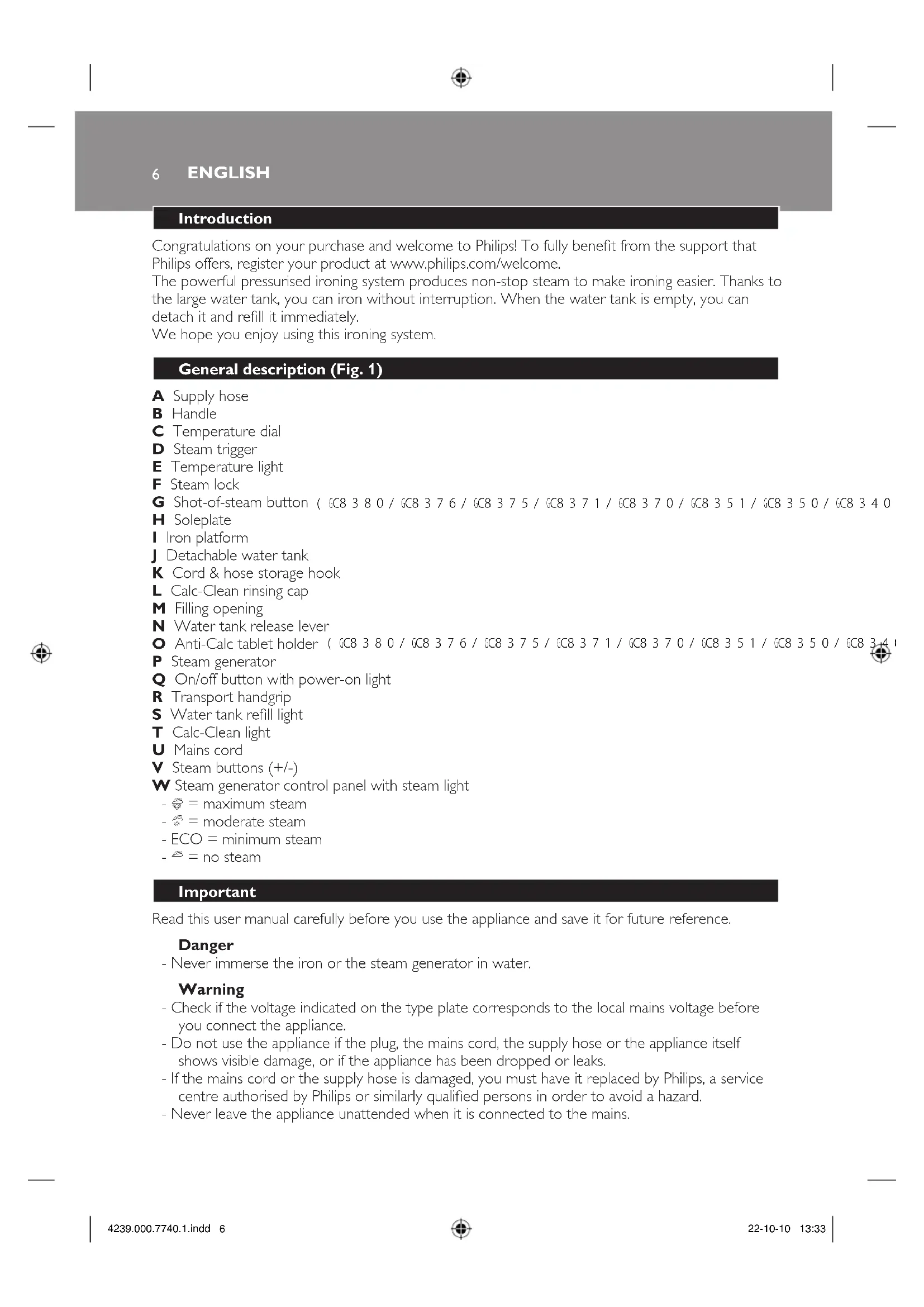

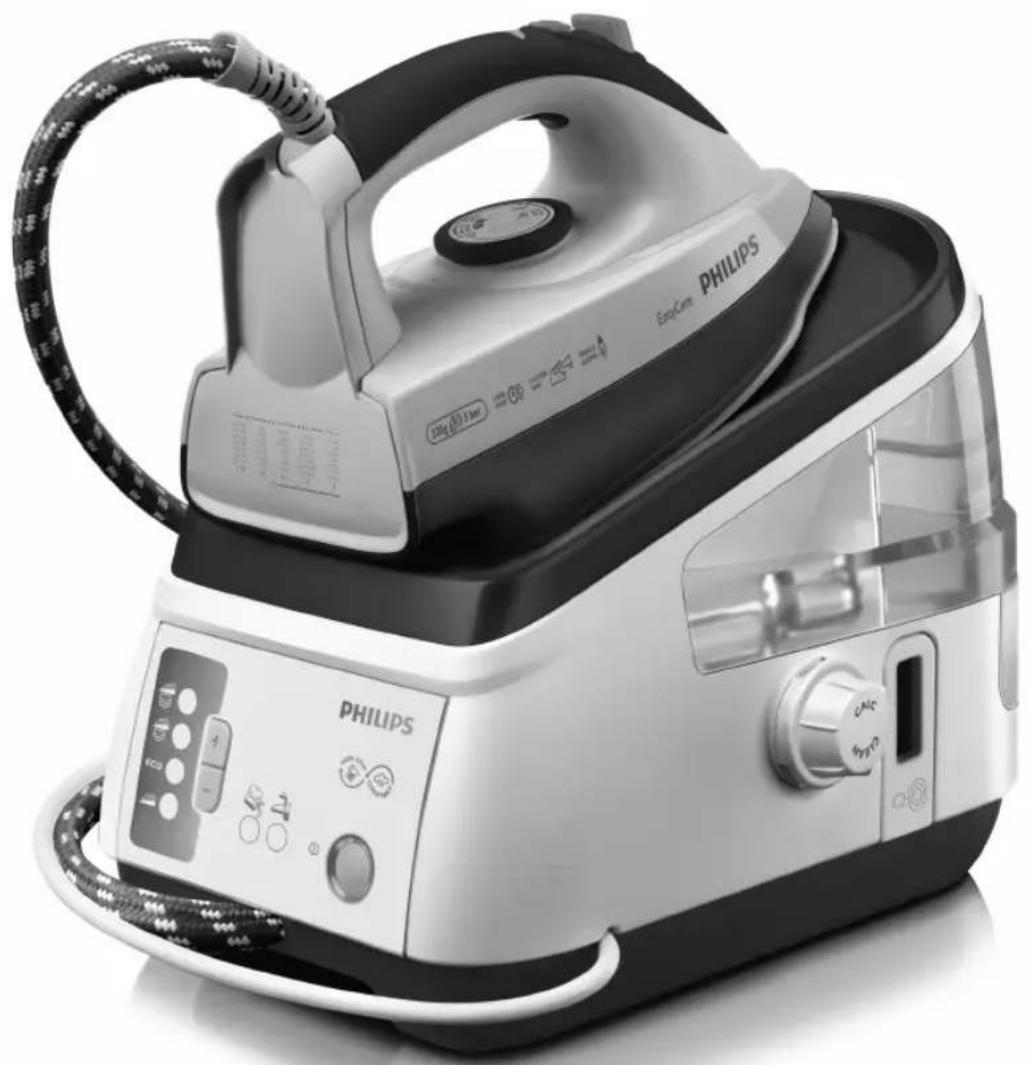

Congratulations on your purchase and welcome to Philips! To fully benet from the support that Philips offers, register your product at www.philips.com/welcome. The powerful pressurised ironing system produces non-stop steam to make ironing easier. Thanks to the large water tank, you can iron without interruption. When the water tank is empty, you can detach it and rell it immediately. We hope you enjoy using this ironing system.

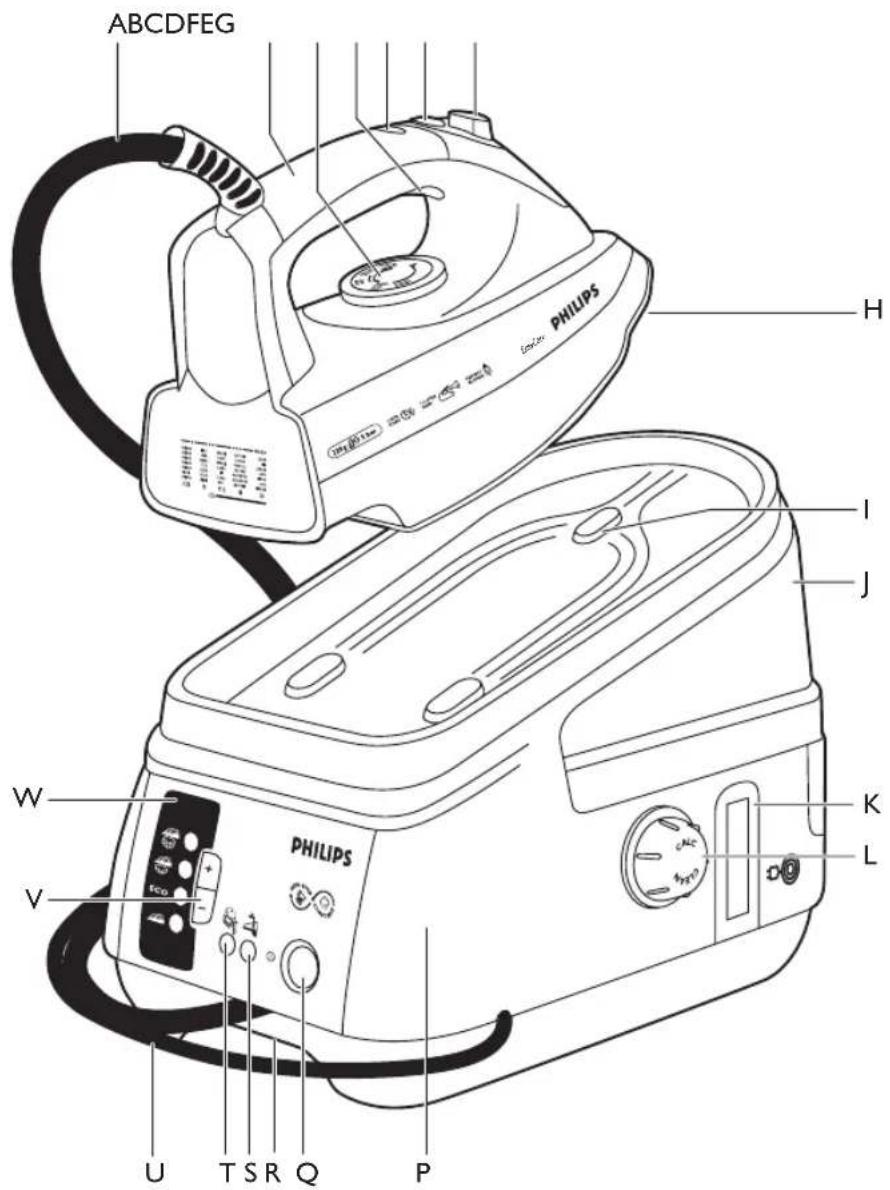

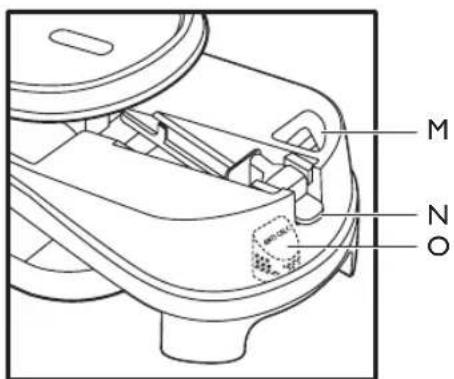

Supply hose Handle Temperature dial Steam trigger Temperature light Steam lock Shot-of-steam button Soleplate Iron platform Detachable water tank Cord & hose storage hook Calc-Clean rinsing cap Filling opening Water tank release lever Anti-Calc tablet holder Steam generator On/off button with power-on light Transport handgrip Water tank rell light Calc-Clean light Mains cord Steam buttons (+/-) Steam generator control panel with steam light - p = maximum steam - [ = moderate steam - ECO = minimum steam - a = no steam

Read this user manual carefully before you use the appliance and save it for future reference.

- Never immerse the iron or the steam generator in water.

- Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the appliance. - Do not use the appliance if the plug, the mains cord, the supply hose or the appliance itself shows visible damage, or if the appliance has been dropped or leaks. - If the mains cord or the supply hose is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualied persons in order to avoid a hazard. - Never leave the appliance unattended when it is connected to the mains.

4239.000.7740.1.indd 6 22-10-10 13:33 (GC8380/GC8376/GC8375/GC8371/GC8370/GC8351/GC8350/GC8340/GC8330only) (GC8380/GC8376/GC8375/GC8371/GC8370/GC8351/GC8350/GC8340only)- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Children should be supervised to ensure that they do not play with the appliance. - Do not let the mains cord and supply hose come into contact with the hot soleplate of the iron. - If steam escapes from under the Calc-Clean rinsing cap when the appliance heats up, switch off the appliance and tighten the Calc-Clean rinsing cap. If steam continues to escape when the appliance heats up, switch off the appliance and contact a service centre authorised by Philips. - Never remove the Calc-Clean rinsing cap when the steam generator is hot. - Do not use any other cap on the steam generator than the Calc-Clean rinsing cap that has been supplied with the appliance, as this cap also functions as a safety valve.

- Only connect the appliance to an earthed wall socket. - Check the mains cord and the supply hose regularly for possible damage. - Always place and use the iron and the steam generator on a stable, level and horizontal surface. - The soleplate of the iron can become extremely hot and may cause burns if touched. - When you have nished ironing, when you clean the appliance, when you ll or empty the water tank and also when you leave the appliance even for a short while: put the iron on the iron platform, switch off the appliance and remove the mains plug from the wall socket. - Rinse the steam generator regularly according to the instructions in chapter ‘Cleaning and maintenance’. - This appliance is intended for household use only.

This Philips appliance complies with all standards regarding electromagnetic elds (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientic evidence available today.

Note: The iron may give off some smoke when you use it for the rst time. This is normal and stops after a short while. Note: Some particles may come out of the soleplate when you use the iron for the rst time. This is normal; the particles are harmless and stop coming out of the iron after a short while. Note: When you switch on the appliance, the steam generator may produce a pumping sound. This is normal; the sound tells you that water is pumped into the steam generator. 1 Remove any sticker or protective foil from the soleplate and clean the soleplate with a soft cloth.

1 Place the steam generator on a stable and level surface, e.g. on the hard part of the ironing board or on a table (Fig. 2).

You can ll the water tank at any time during use. Do not put hot water, perfume, vinegar, starch, descaling agents, ironing aids or other chemicals in the water tank.

4239.000.7740.1.indd 7 22-10-10 13:33Do not overll the water tank, otherwise water may spill out of the lling opening when you reinsert the water tank. 1 Remove the detachable water tank from the steam generator (Fig. 3). 2 Fill the water tank with tap water up to the MAX indication. Note: If the tap water in your area is very hard, we advise you to mix it with an equal amount of distilled water. 3 Slide the water tank rmly back into the steam generator (‘click’). Note: If the water tank is not properly placed, the iron does not produce any steam.

When the water tank is empty, the water tank rell light starts ashing and steam ironing is no longer possible. 1 Remove the water tank and ll it. 2 Put the water tank back into the steam generator. , The iron is ready for steam ironing again.

1 Check the laundry care label of the article to be ironed to determine the required ironing temperature. - 1 for synthetic fabrics ( e.g. acrylic, viscose, polyamide) and silk - 2 for wool - 3 for cotton - MAX for linen 2 To set the required ironing temperature, turn the temperature dial to the appropriate position (Fig. 4). 3 Put the mains plug in an earthed wall socket. 4 Switch on the appliance. - Press the on/off button once (Fig. 5). , The power-on light of the on/off button goes on. , The temperature light on the iron goes on. When the iron has reached the set temperature, the temperature light goes out. Note: During ironing, the temperature light goes on from time to time. This indicates that the iron is heating up to the set temperature. , The steam light starts ashing. After approx. 2 minutes, the steam light stays on continuously to indicate that the steam generator is ready for steam ironing.

- If you do not know what kind or kinds of fabric an article is made of, determine the right ironing temperature by ironing a part that is not visible when you wear or use the article. - If the fabric consists of various kinds of bres, always select the temperature required by the most delicate bre, i.e. the lowest temperature. For example: if a fabric consists of 60% polyester and 40% cotton, it must be ironed at the temperature indicated for polyester ( 1) and without steam. - Start ironing the articles that require the lowest ironing temperature, i.e. those made of synthetic materials. - If you set a lower temperature during ironing, wait until the iron has cooled down to the set temperature before you continue ironing. To make the iron cool down faster, simply press the steam trigger or iron a piece of cloth.

The supply hose may become hot during a long ironing session. Note: The system may occasionally produce a pumping sound during steam ironing. This is normal and tells you that water is pumped into the steam generator. 1 Make sure there is enough water in the water tank. 2 Make sure the appliance is plugged in and switched on (see chapter ‘Preparing for use’). 3 Set the required ironing temperature (see chapter ‘Preparing for use’). Steam ironing is only possible at ironing temperatures higher than 2. 4 Set the required steam setting with the + and - buttons on the steam generator control panel (Fig. 6). p for maximum steam (temperature setting MAX). [ for moderate steam (temperature settings 3 to MAX). ECO for minimum steam (temperature settings 2 to MAX). a for no steam (temperature settings 1 to MAX). , The steam light ashes to indicate that the steam generator is heating up. , After approx. 2 minutes, the steam light stays on continuously to indicate that the steam generator is ready for steam ironing. Note: During ironing, you can adjust the steam setting with the + and - steam buttons. It takes a few moments before the amount of steam is adjusted. 5 Press the steam trigger to start steam ironing (Fig. 7). When you put down the iron during ironing, put it on its heel or on the iron stand. , The opening and closing of the steam valve in the steam generator causes a clicking sound. This is normal.

The steam lock allows you to steam iron non-stop without having to press the steam activator continuously. - When you slide the steam lock forwards, the iron produces steam continuously. To stop steaming, slide the steam lock backwards (Fig. 8). - When the steam lock is deactivated, the iron only produces steam when you press the steam trigger. Note: Release the steam lock when you put the iron on its heel or on the iron stand. This prevents that hot steam escapes from the iron or that the iron stand gets wet.

Never direct the steam at people. 1 Hold the iron in vertical position and press the steam trigger to steam iron hanging curtains and clothes (jackets, suits, coats) (Fig. 9).

A powerful shot of steam helps to remove stubborn creases. 1 Set the temperature dial to a position between 3 and MAX. 2 Press the shot-of-steam button (Fig. 10). Note: Use the shot-of-steam function intermittently. If water droplets come out of the soleplate, let the iron heat up for at least one minute before you use the shot-of-steam function again.

4239.000.7740.1.indd 9 22-10-10 13:33 There are one or two ways to iron without steam: - All types: Simply start ironing without pressing the steam trigger. - Select steam setting a (no steam) and start ironing. (Fig. 11)

- When you steam iron woollen fabrics, shiny patches may occur. To prevent this, use a dry pressing cloth or turn the article inside out and iron the reverse side. - Silk, woollen and synthetic materials: iron the reverse side of the fabric to prevent shiny patches. - Iron velvet and other fabrics that tend to acquire shiny patches in one direction only (along with the nap) while you apply very little pressure. - Do not use steam when you iron coloured silk. This could cause stains.

1 Put the iron on the iron stand (see chapter ‘Storage’) and switch off the appliance (Fig. 12). 2 Remove the mains plug from the wall socket and let the appliance cool down. 3 Wipe scale and any other deposits off the soleplate with a damp cloth and a non-abrasive (liquid) cleaner. 4 Clean the upper part of the iron and the outside of the steam generator with a moist cloth. 5 Empty the water tank after cleaning.

Never remove the Calc-Clean rinsing cap when the steam generator is hot. VERY IMPORTANT: Rinse the steam generator once a month or after every 10 times of use, to prevent damage to the appliance and for optimal steaming performance. 1 Unplug the appliance and let it cool down for 2 hours. 2 Remove the detachable water tank (Fig. 13). 3 Hold the steam generator with both hands and shake well (Fig. 14). 4 Turn the steam generator on its side with the Calc-Clean rinsing cap facing upwards, and remove the Calc-Clean rinsing cap (Fig. 15). 5 Empty the steam generator into the sink (Fig. 16). 6 Fill the steam generator with fresh water and shake again (Fig. 17). 7 Empty the steam generator into the sink again (Fig. 16). 8 Repeat steps 6 & 7 twice to obtain the best result. 9 Screw the Calc-Clean rinsing cap tightly back onto the steam generator (Fig. 18).

1 The Calc-Clean light ashes for 30 seconds when it is time to rinse the steam generator (Fig. 19). The steam generator does not heat up during these 30 seconds. 2 Switch off the appliance immediately and let it cool down.

4239.000.7740.1.indd 10 22-10-10 13:33Do not use the Calc-Clean function when the steam generator is hot. 3 Use the Calc-Clean function as described above.

Always let the appliance cool down before you store it. 1 Place the iron on the iron platform. 2 Empty the water tank. 3 Pull out the cord & hose storage hook. (Fig. 20) 4 Secure the supply hose and mains cord (Fig. 21). 5 To move the appliance, carry it by the handgrips on either side of the steam generator (Fig. 22).

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an ofcial collection point for recycling. By doing this, you help to preserve the environment (Fig. 23).

If you need service or information or if you have a problem, please visit the Philips website at or contact the Philips Consumer Care Centre in your country (you nd its phone number in the worldwide guarantee leaet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country. Problem Cause Solution The appliance does not become hot. There is a connection problem. Check the mains cord, the plug and the wall socket. You have not switched on the appliance. Press the on/off button. The set temperature is too low. Set a higher temperature. Smoke comes out of my new iron when I switch it on. Some parts of the appliance have been lightly greased in the factory and may initially give off some smoke when heated. This phenomenon is normal and ceases after a short while. The iron does not produce any steam. There is not enough water in the water tank. Fill the water tank. See chapter ‘Preparing for use’, section ‘Filling the detachable water tank’. The steam generator has not heated up sufciently. Wait until the steam light stays on continuously. This takes approx. 2 minutes.

4239.000.7740.1.indd 11 22-10-10 13:33Problem Cause Solution The set ironing temperature is too low for steam ironing. Set a temperature of 2 or higher. You have set steam setting a (no steam). Set steam setting ECO, [ (moderate steam) or p (maximum steam). You have not placed the water tank properly in the steam generator. Place the water tank properly in the steam generator (‘click’). When the iron is set to a very high temperature, the steam produced is dry and hardly visible. It is even less visible when the ambient temperature is relatively high and it is entirely invisible when the temperature is set to MAX. Set the iron to a lower temperature, e.g. 2, to check if the iron actually produces steam. Water droplets come out of the soleplate. The set temperature is too low for steam ironing. Set a temperature of 2 or higher. When you start steam ironing and when you stop steam ironing for a while, the steam still present in the supply hose cools down and condenses into water. This causes water droplets to come out of the soleplate. This is normal. When you start ironing or when you continue ironing after an interruption, hold the iron over an old cloth and press the steam trigger. Wait until steam instead of water comes out of the soleplate. Flakes and impurities come out of the soleplate or the soleplate is dirty. Impurities or chemicals present in the water have deposited in the steam vents and/or on the soleplate. Clean the soleplate with a damp cloth. The appliance produces a pumping sound. Water is pumped into the steam generator. This is normal. The pumping sound does not stop. Unplug the iron immediately and contact an authorised Philips service centre. The iron produces steam continuously. The steam lock has been set to ‘on’. Set the steam lock to ‘off’ if you only want to obtain steam when you press the steam trigger (see section ‘Steam lock function’). Dirty water comes out of the soleplate. Too much scale and minerals have accumulated inside the steam generator. Rinse the steam generator. See chapter ‘Cleaning and maintenance’. EnGlish12 4239.000.7740.1.indd 12 22-10-10 13:33Problem Cause Solution Steam escapes from under the Calc-Clean rinsing cap when the appliance heats up. You have not tightened the Calc-clean rinsing cap properly. Switch off the appliance, tighten the Calc-Clean rinsing cap and switch on the appliance again. If steam continues to escape when the appliance is heating up, switch off the appliance and contact a service centre authorised by Philips. The iron does not produce enough steam/the amount of steam decreases and increases during steam ironing. When the appliance pumps water into the steam generator, the steam amount sometimes decreases. This is probably when you think that the iron does not produce enough steam. However, this is a normal phenomenon and the steam output normalises within a few seconds. To optimise the steam output, release the steam lock when you do not need steam and when you put down the iron. Wet spots appear on the fabric during ironing. The wet spots that appear on the fabric after you have steam ironed for some time may be caused by steam that has condensed onto the ironing board. Iron the wet spots without steam for some time to dry them. If the underside of the ironing board is wet, wipe it with a piece of dry cloth. To prevent steam from condensing onto the ironing board, use an ironing board with a wire mesh top. Water droplets come out of the soleplate when I use the shot-of- steam function. Steam may have condensed in the hose, the temperature may have been set below 3 or the appliance may not be ready for steam ironing. Make sure the temperature is set to 3 or higher. Steam iron for a few seconds before you use the shot-of-steam function. EnGlish 13 4239.000.7740.1.indd 13 22-10-10 13:3314
