USER MANUAL 24S307WH TESLA

Please read these instructions before operating your set and retain them for future reference.

AL

UDHËZIM PËR PËR

WARNINGS AND PRECAUTIONS....4

EXTERNAL SCHEMATIC AND INSTALLATION 10

Control Buttons.... 10

Terminals.... 11

REMOTE CONTROL FUNCTIONS 12

PERSONAL VIDEO RECORDING (PVR) 15

ELECTRONIC PROGRAMME GUIDE (EPG) 16

MENU SETTINGS.... 17

Menu Operation (DTV Mode).... 17

Picture 17

Sound 17

Channel.... 18

Lock 20

USB CONTROL 21

Supported File Extensions on USB 21

USB Menu.... 23

Play Movie 23

Play Music....24

Browse Photo 25

TROUBLESHOOTING....26

SPECIFICATIONS....27

Note

1. The graphics in this manual are intended for reference only.

2. OSD on your TV may be slightly different from that shown in this manual.

3. The information provided in this document is subject to change without prior notice. The manufacturer accepts no liability for damage resulting directly or indirectly from faults, incompleteness or discrepancies between the user manual and the product described.

4. In dry environment due to static electricity, the product may restart and return to the main OSD interface, USB player interface or the previous source mode. It is normal and please continue to operate the TV as your will.

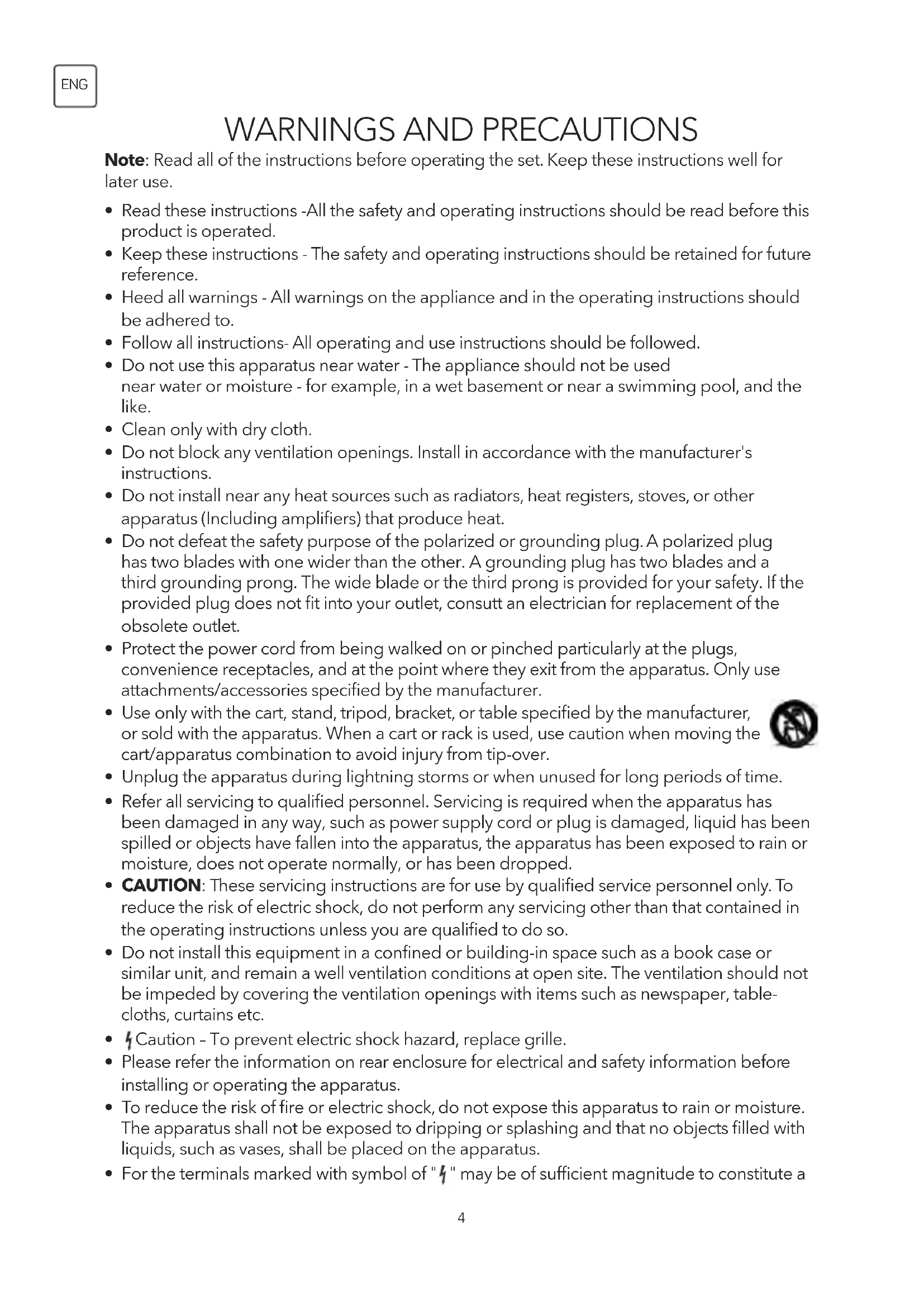

WARNINGS AND PRECAUTIONS

Note: Read all of the instructions before operating the set. Keep these instructions well for later use.

- Read these instructions -All the safety and operating instructions should be read before this product is operated.

- Keep these instructions - The safety and operating instructions should be retained for future reference.

- Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.

- Follow all instructions- All operating and use instructions should be followed.

- Do not use this apparatus near water - The appliance should not be used near water or moisture - for example, in a wet basement or near a swimming pool, and the like.

- Clean only with dry cloth.

- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (Including amplifiers) that produce heat.

- Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

- Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer.

- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

- Unplug the apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

- Do not install this equipment in a confined or building-in space such as a book case or similar unit, and remain a well ventilation conditions at open site. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, tablecloths, curtains etc.

- Caution - To prevent electric shock hazard, replace grille.

- Please refer the information on rear enclosure for electrical and safety information before installing or operating the apparatus.

- To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

- For the terminals marked with symbol of "⚡" may be of sufficient magnitude to constitute a

risk of electric shock. The external wiring connected to the terminals requires Installation by an instructed person or the used of ready-made leads or cords.

- To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

- Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

- The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

- Excessive sound pressure from earphones and headphones can cause hearing loss. Listening to music at high volume levels and for extended durations can damage one's hearing. In order to reduce the risk of damage to hearing, one should lower the volume to a safe, comfortable level, and reduce the amount of time listening at high levels. (Only for German).

- The mains plug/appliance coupler/direct plug-in adapter is used as disconnect device, the disconnect device shall remain readily operable.

- When not in use and during movement, please take care of the power cordset, e.g. tie up the power cordset with cable tie or something like that. It shall be free from sharp edges and the like that can cause abrasion of the power cordset. When put into use again, please make sure the power cord set being not damaged, If any damages found, please look for the service person to replace the power cord set specified by the manufacturer or have the same characteristics as the original one.

- Attention should be drawn to environmental aspects of battery disposal.

- No naked flame sources, such as lighted candles, should be placed on the apparatus. To prevent the spread of fire, keep candles or other open flames away from the apparatus at all times.

- If the apparatus have the symbol ☐ in its rating label and the power cord has two pins, it means that the equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

- The following information are recommended to be included as far as applicable where applicable:

~	Refers to alternating current (AC)
==	Refers to direct current (DC)
	Refers to ClassII equipment
	Refers to stand-by
|	Refers to pow er ON.
	Refers to dangerous voltage

- Warning for Apparatus containing COIN/BUTTON CELL BATTERIES (Below instruction only used for the apparatus containing a user-replaceable coin/button cell battery)

WARNING

Do not ingest the battery, Chemical Bum Hazard (The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe Internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

WEEE Directive

Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock. To reduce the risk of electric shock. Do not remove cover (or back). No user serviceable parts inside. Refer to qualified service personnel. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

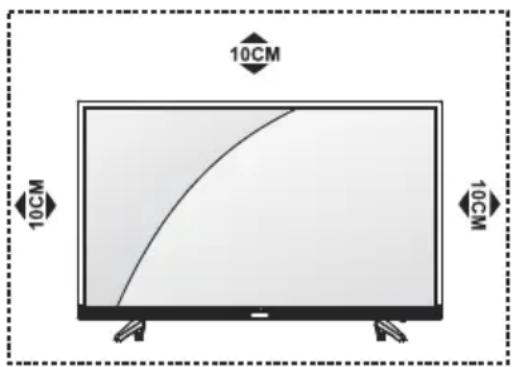

Positioning the TV set

• Install Display on solid horizontal surface such as a table or desk. For ventilation, leave a space of at least 10 cm free all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set. This apparatus can be used in tropical and/or moderate climates.
• Fixing the rear of enclosure to wall. (only for AU market)

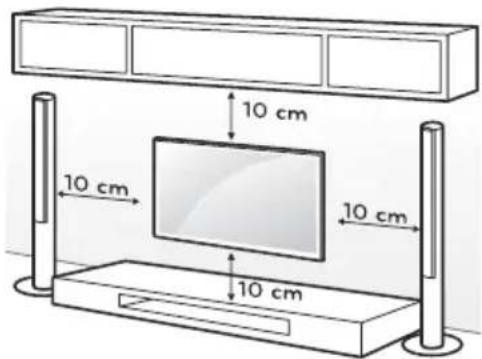

10CM 10CM 10CM

10CM

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacture of the television.
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied (Only for the TV with mass exceed 7 kg).

- An optional wall mount can be used with your television. Consult with your local dealer for a wall mount that supports the VESA standard used by your TV model.

Carefully attach the wall mount bracket at the rear of the TV. Install the wall mount bracket on a solid wall perpendicular to the floor. If you are attaching the TV to other building materials, please contact qualified personnel to install the wall mount.

Detailed instructions will be included with the wall mount. Please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.

10 cm 10 cm 10 cm 10 cm

CAUTION

- Disconnect the power before moving or installing the TV. Otherwise electric shock may occur.

- Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

- If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized wall mount and contact the local dealer or qualified personnel. Otherwise it is not covered by the warranty.

- Do not over tighten the screws as this may cause damage to the TV and void your warranty

- To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

- Use the screws and wall mounts that meet the following specifications. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

Model Size: 24" Top Down
Screw	Diameter (mm) "E" M4		M4
	Depth (mm)"D"	Max 9.5	9.5
		Min 5 5
	Quantity 2 2
VESA (AxBxC) 75x75x75

E D

Note:

1) The pictures are for reference only.

2) For the TV sets with terminals towards the wall, in order to leave enough space to use the terminals, a rubber cushion is needed together with the screw to fix the wall mount. It is a small hollow pillar whose internal diameter is 8mm, external diameter is 18mm and height is 30mm.

Operating Environment

• Do not install this device in confined spaces such as bookcases or similar units.
• Do not use the set in damp and cold areas. Protect the set from overheating.
• Keep away from direct sunlight.
• Do not use the set in dusty areas.
• Do not place candles to accessible, open areas to avoid flammable foreign material from entering the TV.

Precautions for Using Remote Control

• Use the remote control by pointing it towards the remote sensor. The items between the remote control and the remote sensor will interfere with the normal operation.
• Do not expose the remote control to violent vibrations. Also, do not splash liquid on the remote control and do not place the remote control in high humidity areas.
• Do not expose the remote control to direct sunlight which can cause deformation of the unit due to heat.
• When the remote sensor is exposed to direct sunlight or strong light, the remote control will not work. If this is the case, please change the light direction or the position of the TV, or use the remote control closer to the remote sensor.

Precautions for Using Battery

Inadequate use of batteries may cause leakage. Therefore, please follow the steps below and use them with care.

1. Please note the batteries polarity to avoid short circuit.
2. If the battery voltage is insufficient, which affects the remote control range, you should replace used batteries with the new ones. Remove batteries from the remote control unit if you do not intend to use it for a long time.
3. Do not use different types of batteries (for example, manganese and alkaline batteries) together.
4. Do not put the batteries into fire. Do not charge or disassemble batteries.
5. Please dispose of batteries in accordance with the relevant environmental protection regulations.

Remote Control Battery Replacement

Place two AAA batteries in the remote control battery compartment, making sure that the polarity markings inside the compartment are matched.

Note: The images are intended for reference only. Actual items may differ.

1
Slide the cover horizontally.

Simple line drawing of a curved object with an arrow pointing upward, no text or symbols present.

② Place two AAA batteries and make sure that the polarity is correct.

Simple diagram of two batteries with positive and negative terminals, no text or symbols present

③ Slide horizontally to close the cover.

Diagram of a device with internal components and an arrow indicating direction (no text or symbols)

EXTERNAL SCHEMATIC AND INSTALLATION

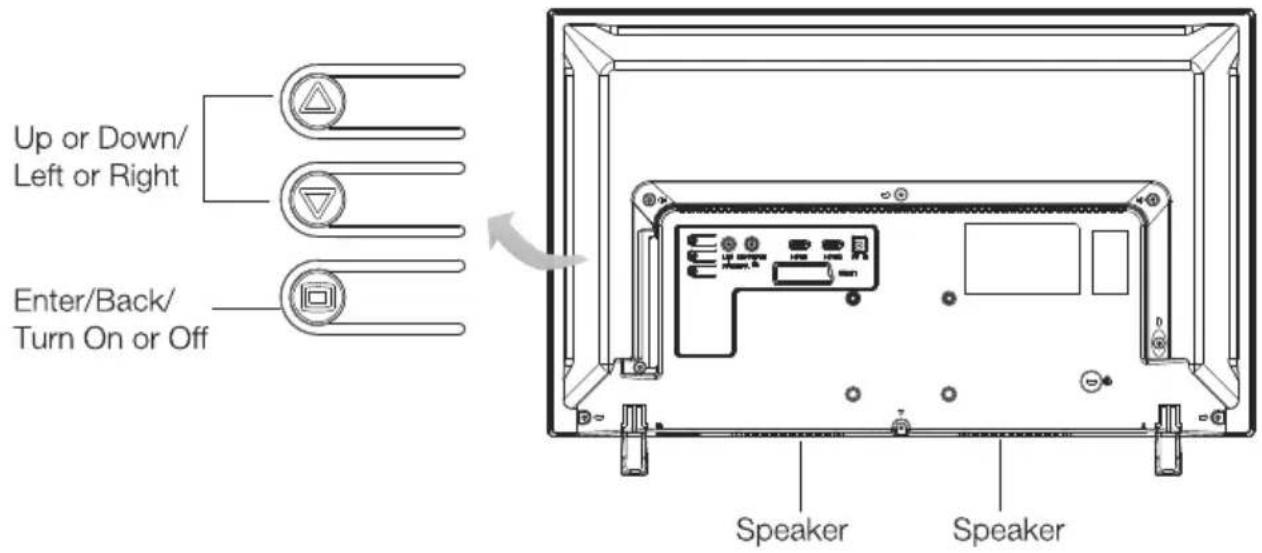

Control Buttons

Note: The graphics are for representation only.

Up or Down/ Left or Right Enter/Back/ Turn On or Off Speaker Speaker

Turn on the TV

Press 📄 and wait for about 2 seconds, TV will be turned on.

Menu select

1. Press ☑ to open the OSD, from left to right, the icons are main menu, source and sound volume. Press Ⓐ or Ⓡ button to select a menu and press ⏻ button to access it.

BUTTON CONTROL		MENU OPERATION
		Main menu	Source menu	Volume adjust
Press		Move left or up	Move up	Move left
		Move right or down	Move down	Move right
		Enter/Back	Enter/Back	/
Press and hold		Select and confirm setting a value.	/	/

Go to standby

Exit on-screen menu, press and hold 📄 button for 2 seconds.

Terminals

Note: The graphics are for representation only.

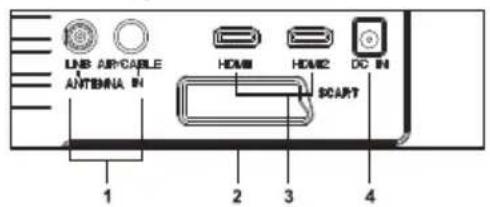

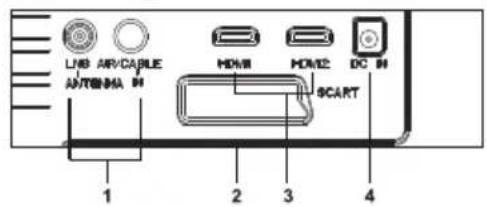

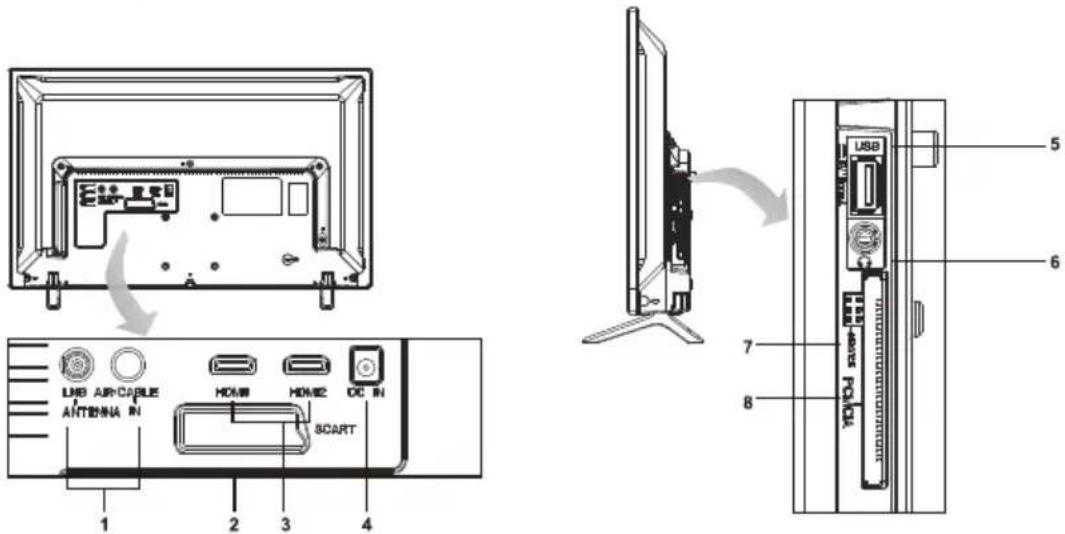

USB AIR/CABLE ANTONIA IN HDWR HDWR2 DC IN SCART 1 2 3 4 5 6 7 8

1. ANTENNA IN: : Connect antenna to the TV for searching programs.
2. SCART : Scart port.
3. HDMI1/HDMI2 : Connent HDMI input signal from source such as DVD.
4. DC IN : Connect to DC power.

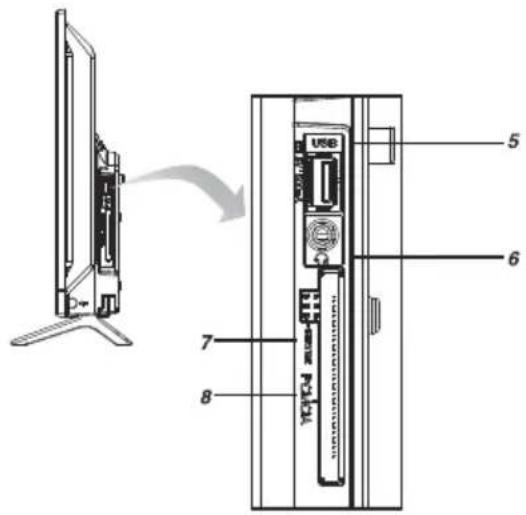

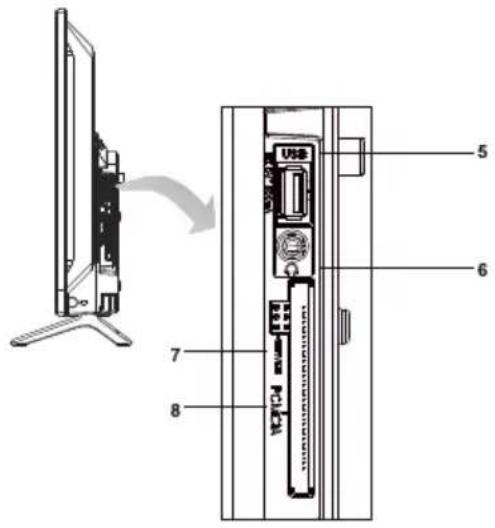

5. USB : USB port
6. EARPHONE : Audio output, speakers will be muted when earphone plugged.
7. SERVICE: Service port.
8. PCMCIA : Connect a CAM card.

REMOTE CONTROL FUNCTIONS

Remote Control

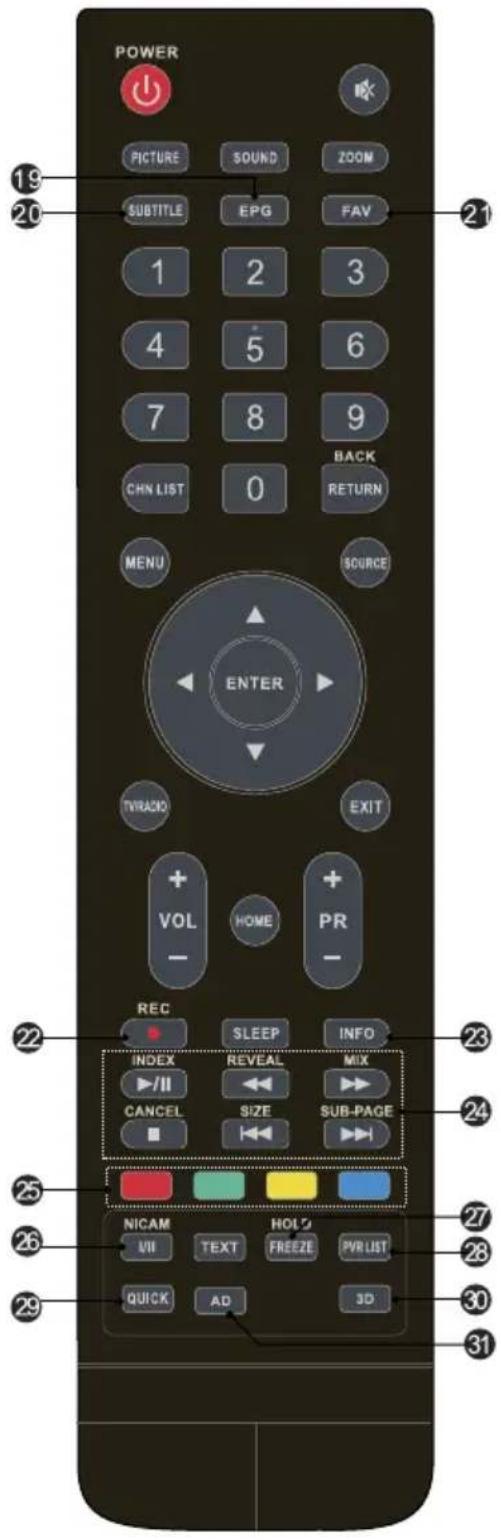

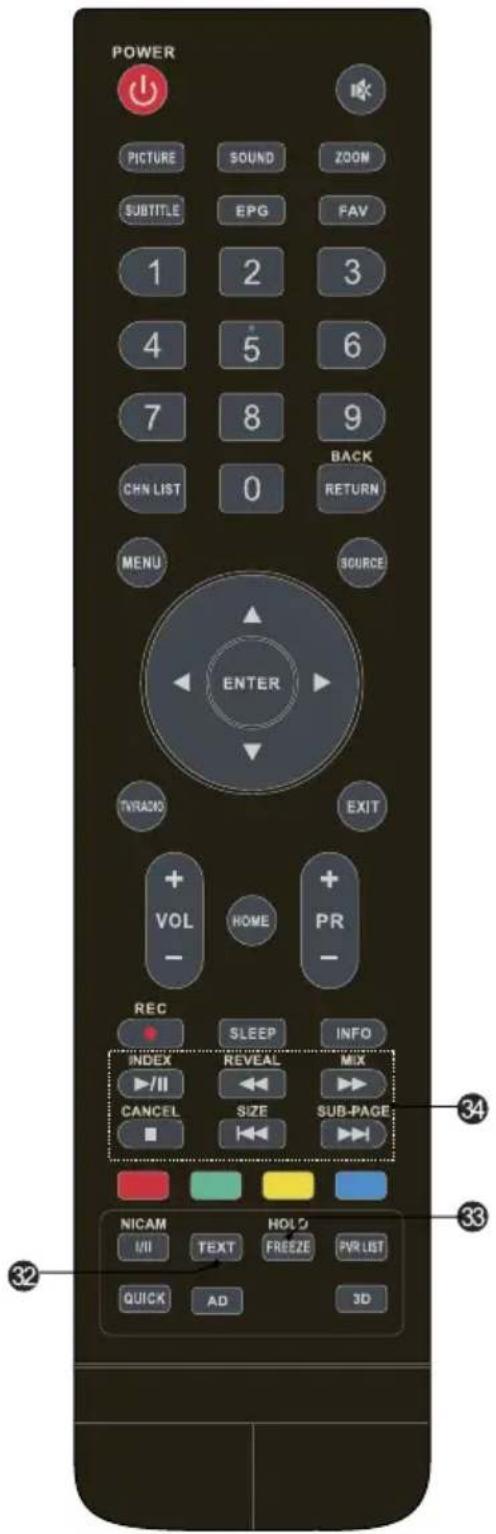

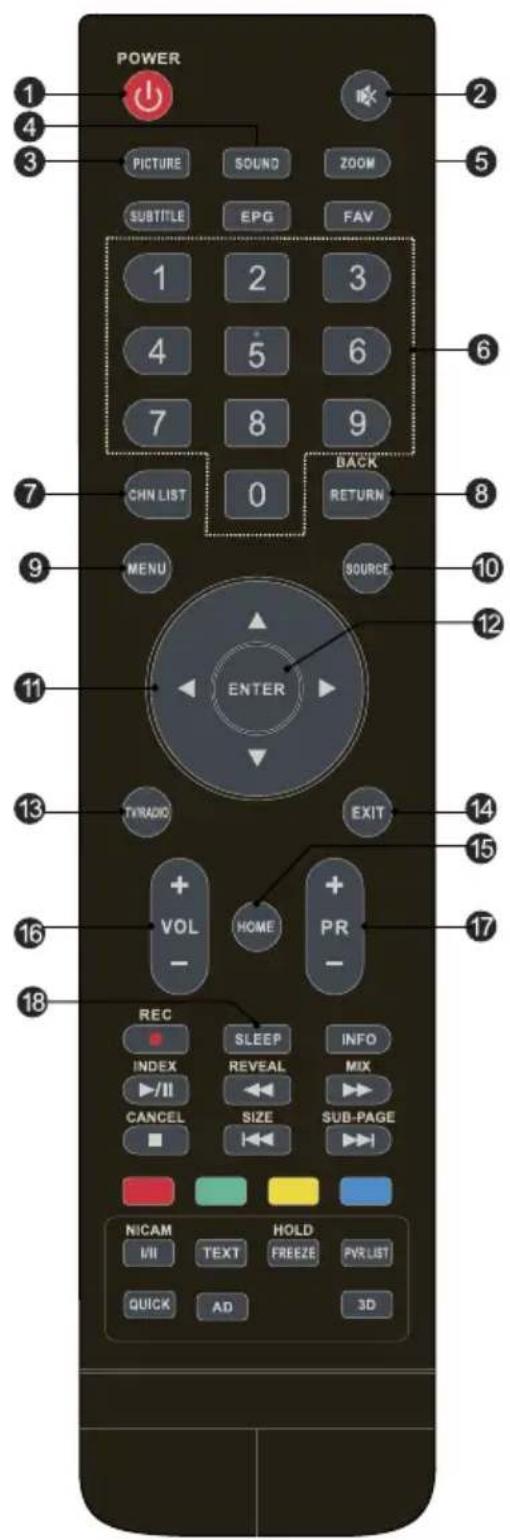

POWER 1 2 3 4 5 6 7 8 9 CONN LIST 0 BACK RETURN MENU SOURCE ENTER TYRADIO EXIT VOL HOME PR - REC INDEX SLEEP INFO REVEAL MIX CANCEL SIZE SUB-PAGE NICAM HOLD I/II TEXT FREEZE PYR LIST QUICK AD 3D

1. POWER (⏻) Press to turn the TV on or to put it in standby.

2. MUTE ( ) Press to mute or restore the volume.

3. PICTURE Change picture mode.

4. SOUND Change sound mode.

5. Zoom Change aspect ratio.

6. Numeric buttons Choose channel directly.

7. CHN LIST Press to enter the channel list.

8. RETURN (BACK) Press to go back to a previously viewed channel.

9. MENU Enter the menu options.

10. SOURCE Select the input source mode.

11. Up/Down/Left/Right (▲ /▼/◄ /►)

Navigate through the menu.

1. ENTER Confirm the selection.

2. TV/RADIO Switch between TV and radio.

3. EXIT Exit the current menu.

4. HOME Enter the home desktop. If your TV has no HOME function, this button will be inoperative.

5. Volume Up/Down (VOL+/VOL-)

Adjust the volume level.

1. Program Up/Down (PR+/PR-)

Change programs up or down.

1. SLEEP Select the sleep time, such as 10 min, 20 min etc.

1. EPG Press to display the current EPG information in DTV mode.

2. SUBTITLE Enable/disable subtitles in DTV/USB mode.

3. FAV. (Favorite Channel)

Press to view your assigned favourite channels. Press Up/Down buttons to move through your assigned favourite channels. Press ENTER to confirm.

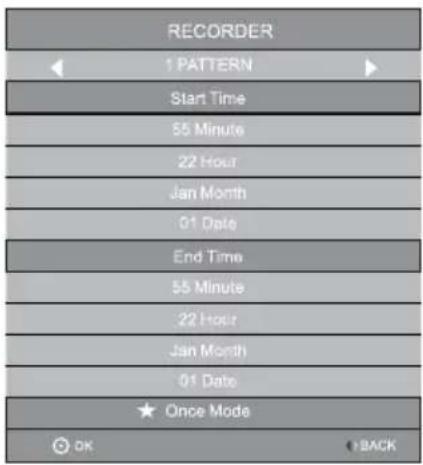

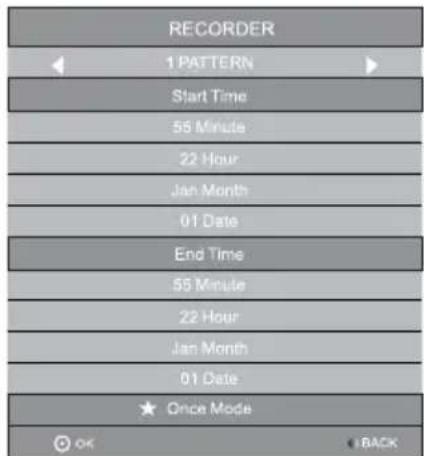

1. Record (REC) Press to record the current programme (available in DTV mode only).

2. INFO Press to display information about current source.

3. USB Play Control Buttons

Play & Pause (▶/II)

Press to pause playback, then press again to continue playback.

Stop (■)

Press to stop playback.

Fast Backward Button (◀)

Press to fast reverse.

Fast Forward (▶)

Press to fast forward.

Previous (◀)

Press to play the previous file.

Next (▶)

Press to play the next file.

1. Color buttons Press to execute the fast-link function in TV or DTV mode.

2. NICAM Press to select desired sound output depending on the broadcasting channel.

3. FREEZE (HOLD) Freeze the picture on the screen (not available in USB mode).

4. PVR LIST Press to display the list of recorded files.

5. QUICK No function.

6. 3D No function.

7. AD (Audio Description)

Press to turn on audio description. Narrator will describe to blind or visually impaired viewers what is happening on the screen. Press again to turn this function off (available in DTV mode only).

POWER PICTURE SOUND ZOOM SUBTITLE EPG FAV 1 2 3 4 5 6 7 8 9 CHN LIST 0 BACK RETURN MENU SOURCE ENTER TVRACK EXIT + VOL HOME + PR - REC SLEEP INFO INDEX REVEAL MIX ▶/II ▶ ▶ CANCEL SIZE SUB-PAGE ▶ NICAM HOLD I/II TEXT FREEZE PVR LIST QUICK AD 3D

Teletext Control Buttons

1. TEXT Press to enter or exit the teletext menu.

2. HOLD

Press to hold the teletext page on screen without update and changes. Press again to release the hold state.

1. Other Buttons

SIZE

Enlarge the teletext display: Press this button once to enlarge upper half of the screen. Press this button again to enlarge lower half of the screen. Press this button again to return to normal screen size.

REVEAL

Press this button to display concealed information, such as solutions to riddles or puzzles. Press gain to remove the information from the display.

MIX

Press this button to superimpose the teletext over the TV programme. Press again to return to normal teletext

SUB-PAGE

Press this button to enter or exit subpage mode (if subpage is available). Press Red / Green button to select the desired subpage.

INDEX

Press this button to display index page.

CANCEL

Press this button to temporarily return to TV programme while searching for a Teletext page. When the search is done, the page number will be displayed on the upper left of the screen. Press again to return to the Teletext page.

PERSONAL VIDEO RECORDING (PVR)

IMPORTANT NOTES:

1. For any type of recording with this television, you must connect an external device to the appropriate USB port at the back of the television to store the recorded files.
2. The USB device must be formatted in FAT32 file system.
3. If you use your USB device with this TV for the first time, we suggest you format the USB device using the TV before you start recording.
4. Make sure that you switch to DTV programme.
5. Use high-quality mobile device to record HD programmes, otherwise the videos will be jammed during the playback.
6. Back up all the data in the USB storage device to prevent their loss due to unexpected accidents. We do not assume any liability for the losses caused by misuse or malfunction. Data backup is consumer's responsibility.

Instant one-touch recording and playback

1. Please insert an external high-speed storage device and make sure that the device has enough free space.
2. Select the TV programme and channel you wish to record.
3. Press REC button to enter into PVR mode and start recording. PVR control bar on the screen is presented below. You can select the appropriate settings according to your needs.

1. If the PVR function cannot be realized, try to format your USB device.
2. If you wish to stop the recording, press [■] button and the recording will stop.

Note:

• During the record mode, you cannot change channels or select another function.
• If the signal is interrupted or removed during the recording process, the recording will stop until the signal is established. This may cause loss of programme content.

Record Timer

There are two ways to set the timer to record a television programme.

If you know the programme details:

1. Go to the channel that will broadcast the programme you want to record.
2. Press the EPG button on your remote control to enter EPG interface. The channel you are watching will be highlighted on the current screen.
3. Press the RED button on the remote control, then enter the programme details in the recorder menu by pressing ▲/▼ to select item and ◀/▶ to change the settings. For example, if the programme starts at 8:30 pm on the same day, enter: 30 in the space for MINUTES, 20 in the space for HOURS (a 24 hour clock applies), and then the relevant date. Use the same method for entering the recording end-time.

4. Choose the appropriate recording mode: once, every day or weekly.

5. Press ENTER to confirm your selection. A schedule of all your recordings (the schedule list) will appear. See EPG function for more on the schedule.

If you are browsing the EPG, follow the steps provided on EPG function page.

ELECTRONIC PROGRAMME GUIDE (EPG)

EPG stands for Digital Electronic Programme Guide. It is supplied by the programme providers and offers information about the programmes to be broadcast. You can access it in digital mode by pressing the EPG button on the remote control.

1. Press the EPG button to enter the EPG interface. Current date and time will be displayed on the second bar from the top. On the list below, the channel you are currently watching will be highlighted.

2. Before you can view any EPG information, you have to 'activate' every channel for which you wish to view programme information. To do this, use the ▲/▼ buttons to select a channel, then press ENTER to confirm.

3. To check programmes to be broadcast in future, scroll up using the ▲ button to the date field. Use the ▶ button to select the date you want to check.

4. Press the Index ( ) button to scroll up to the top bar of the display, then press the button to select the Channel List. One of the available channels will be displayed in the second bar.

5. Go to the channel and use the ◀/▶ buttons to select the channel for which you want to view information. Shortly, the programme information will appear.

6. Use the ▲/▼ buttons to scroll through the time slots.

7. Press MENU button to exit the EPG menu.

Recorder

Press the RED button to display the recorder menu (right). See detailed information about the different ways of recording programmes on a USB device using your TV..

Info

Press the GREEN button to show information about the selected programme.

Schedule

Press the YELLOW button to display the Schedule List. Press ▲/▼ to select an item, press the RED button to delete an item.

Reminder

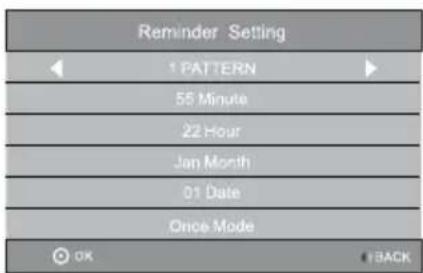

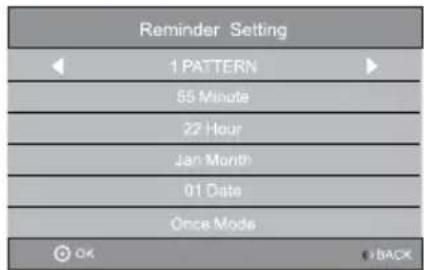

Press the BLUE button to display a reminder menu. Press ▲/▼ to select an item and ◀/▶ to change the setting. Press ENTER to add an item to the schedule list. The updated schedule list will be shown.

RECORDER 1 PATTERN Start Time 55 Minute 22 Hour Jan Month 01 Date End Time 55 Minute 22 Hour Jan Month 01 Date Once Mode OK BACK

Reminder Setting 1 PATTERN 55 Minute 22 Hour Jan Month 01 Date Once Mode OK BACK

MENU SETTINGS

Menu Operation (DTV Mode)

Press "MENU" key to enter the main menu.

Press the ◀] / [▶] guide key to select desired item.

Press "ENTER" key to enter the item.

Press [◀] / [▶] / [▲] / [▼] and ENTER buttons to select the submenus.

Press "MENU" key to exit the item.


Picture Mode

Select the automatic picture control mode. Choices are Dynamic, Standard, Mild and User.

Color Temperature

Select the overall colour tone of the picture. Choices are Cool, Medium, Warm and User.

Aspect Ratio

Select the aspect ratio (display proportions) according to your video signal type or preference.

Choices are 16:9 / 4:3 / Just Scan / Zoom1 / Zoom2.

(Note: Some options may not be available with certain sources.)

Noise Reduction

Eliminates picture noise. Choices are Off / Low / Middle / High (not available with PC source).

MPEG NR

Eliminates noise generated while creating digital picture signals. Choices are Off / Low / Middle / High (not available with PC source).

Screen (may not be available)

Select PC-VGA source, in picture settings select screen, and you will be able to set the items below.

Auto Adjust: Adjust the screen automatically.

H. Position: Adjust the horizontal position.

V. Position: Adjust the vertical position.

Size: Adjust the size.

Phase: Adjust the phase.

Sound

Sound Mode

Select your favourite sound mode for each input. Choices are Standard / Music / Movie / Sports / User.

Bass

Adjust the lower frequency of the sound.

Treble

Adjusts the higher frequency of the sound.

Balance

Control the sound balance between the right and left loudspeaker (earphone).

Auto Volume

Adjust the volume according to the input audio level. Includes On and Off.

Surround Sound

Turns on the Sound Retrieval System.

AD Switch (available in DTV mode only)

Turn on the Audio description. You can activate the setting of AD volume. When the audio description is on, narrator will describe to blind or visually impaired viewers what is happening on the screen.

Channel

Auto Tuning

Select DVB-T or DVB-C and press ENTER button to go to the next step. Select country or scan type and then search and store programmes automatically. If you want to stop the auto search, press MENU button or EXIT button and exit dialog box will pop out.

• Press ◀ to confirm exit.
• Press ▶ to continue searching.

Advanced Tuning

Access the satellite settings essential for programme searching through DVB-S source.

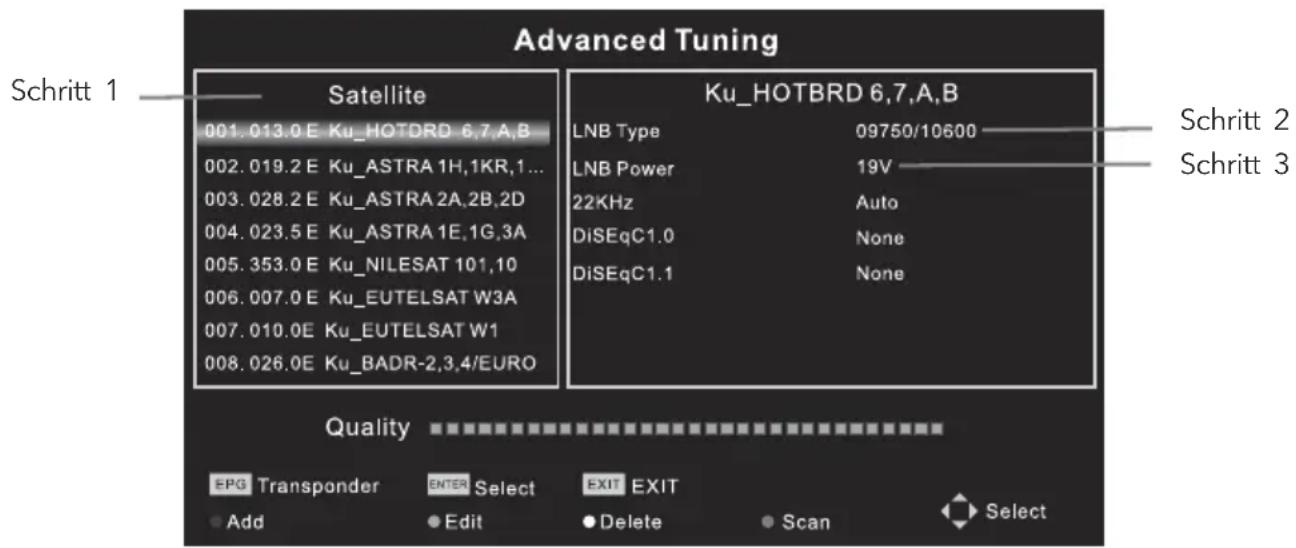

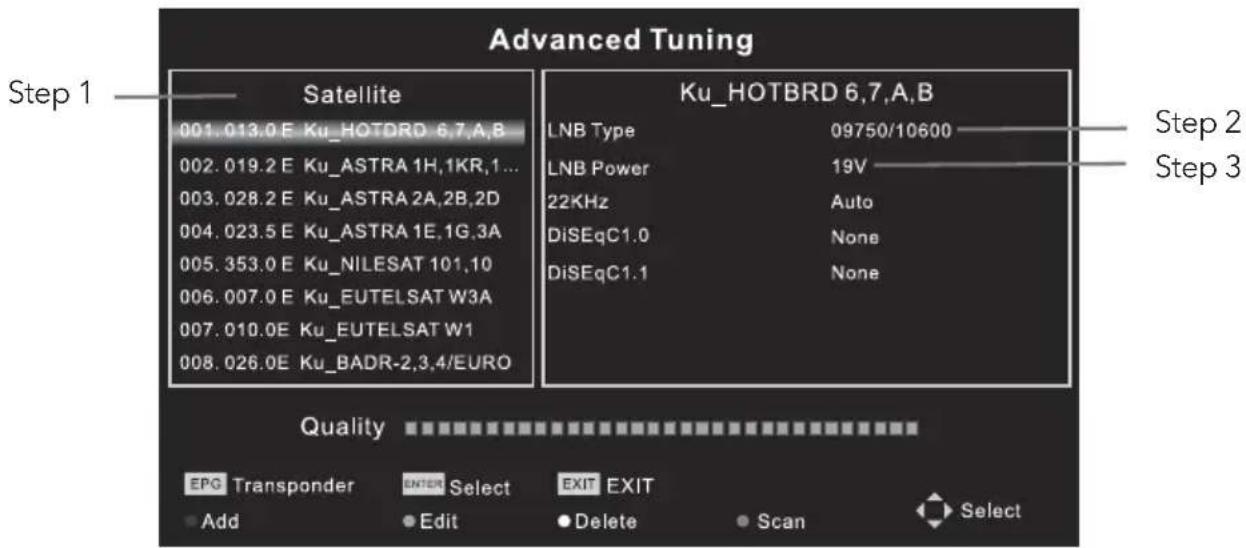

Satellite Dish Settings (Step 1-3, refer to Fig. 1)

Before performing a channel scan configure satellite dish settings for each desired satellite.

Satellite - Select the satellite for this TV.

LNB Type - Make sure the LNB type is appropriate for your dish.

LNB Power - Enable or disable power supply for the LNB.

22KHz - Select the 22KHz to set 22K switch to ON/OFF. Use auto mode to switch 22KHz on or off depending on the LNB type.

DiSEqC1.0/1.1 - Select the DiSEqC mode for the selected LNB.

Advanced Tuning Satellite 001.013.0 E Ku_HOTDRD 6.7,A,B 002.019.2 E Ku_ASTRA 1H,1KR,1... 003.028.2 E Ku_ASTRA 2A,2B,2D 004.023.5 E Ku_ASTRA 1E,1G,3A 005.353.0 E Ku_NILESAT 101,10 006.007.0 E Ku_EUTELSAT W3A 007.010.0E Ku_EUTELSAT W1 008.026.0E Ku_BADR-2,3,4/EURO Ku_HOTBRD 6.7,A,B LNB Type 09750/10600 LNB Power 19V 22KHz Auto DiSEqC1.0 None DiSEqC1.1 None Quality EPG Transponder ENTER Select EXIT EXIT Add Edit Delete Scan Select

Fig. 1

Step 1: Highlight Satellite and press ENTER to access the satellite list and select the desired one.

Step 2: Highlight LNB Type and press ENTER to select the LNB type.

Step 3: Make sure that 22KHz, DiSEqC1.0/1.1 switch corresponds to the selected satellite.

After completing the above steps, press the blue button to search for the channels.

DTV Manual Tuning

Search and store programmes manually.

Channel → DTV Manual Tuning

Select the source type (DVB-T or DVB-C) and search digital programmes manually. In the

Channel menu, select DTV Manual Tuning and press ENTER button to access.

1. Press ◀ or ▶ to select channel number and then press ENTER to start the search.

2. The search stops when programme is found and this program will be stored in the current channel position. If you want to stop the search, press the MENU button.

ATV Manual Tuning

First select the source type of ATV. Then select ATV Manual Tuning in the Channel menu and press ENTER button to access.

1. Highlight and press ▲ or ▼ tto select Storage To 1 (or any other number), Sound System or Channel number. Then select Search and press ENTER to start the search.

- Press ▶ for the unit to search towards higher frequency;

- Press ◀ for the unit to search towards lower frequency;

1. The search stops when programme is found. This programme will be stored in the current channel position. If you want to stop the search, press the MENU button.

Fine-Tune

Use it to make small adjustments to tuning of each individual channel. Fine-tune is not necessary under normal conditions. However, in area with poor broadcast conditions, where adjustments are necessary to improve picture and sound, use the fine-tune option.

1. Select the channel that you want to fine tune.

2. In Channel menu, select ATV Manual Tuning and press ▼ to highlight Fine-Tune.

3. Press ◀ or ▶ to fine-tune until the best possible picture and sound are obtained.

Program Edit

Edit the programmes. You can press colour buttons on the remote control to skip programmes, rename and delete programmes or move programmes, and add programmes to the favourite list by pressing FAV button.

Signal Information

Display of the current DTV channel information.

CI Information

Allowing the user to select from the CAM-provided menu. Select the CI menu according to the menu PC Card.

5V Antenna Power

This option is only available with DVB-T source. Select On to supply power to the TV antenna. Select Off to turn off this function.

Software Update (OAD) (only for some regions)

Select On to allow the TV to update the system software over the air. Choosing Off will turn off this function.

OAD Tuning (only for some regions)

When software update (OAD) is off, this option is disabled. Choosing OAD scan involves scanning channels to find the OAD update information.

Note: Features are different in different sources, the picture is different from the actual screen and it is intended for reference only. OSD Language Select the OSD language.

Audio Languages / Subtitle Languages (Note 1)

Select the desired language.

TTX Language

Select TTX language for different regions.

Time

Time Zone

Select the time zone when Auto Sync is set as Auto.

Auto Sync

Automatically synchronize TV with the real time.

Clock

Set the time of TV set when the "Auto Sync" is set to "Manual"

Summer Time

Select between "ON" and "OFF".

Sleep Timer

Contain off, 10, 20, 30, 60, 90, 120, 180, 240 minutes.

Auto Sleep

TV automatically go to standby when receive no signal. Options include Never, 4 hours, 6 hours and 8 hours.

HDMI CEC

Press to enter submenus.

HDMI CEC - Turn on or off the HDMI CEC function.

Auto Standby - Turn the TV to standby automatically.

Device List - When HDMI CEC is on, check the list of devices connected to the TV.

PVR File System (Note 1)

Adjust Personal Video Record. If you want to use this function, you must have digital programme and a USB disc connected.

Restore Default

Restore user setting to default.

Software Update (USB)

Connect USB device storing the software that has to be upgraded to upgrade the TV system.

Note:

1. Audio Languages / Subtitle languages / PVR File System works only in DVB-S / DVB-C / DVB-T mode.
2. User data on this TV will be completely lost after operating this feature.
3. Do not power off the TV during the software upgrading process. Otherwise the TV may not work, and the customer will be responsible for this.

Lock

Lock System

Input the initial password (0000) to access this feature. Choose "on" and the features "Set password", "Block programme" and "Parental guidance" will be activated. Choose "off" and the above mentioned three features will become inactive. If you forget the password, you can also input the super password (8899) to enter into the lock system.

Set Password

Reset the password.

Block Programme

Block the desired programmes.

Parental Guidance

Choose the programmes appropriate for children to watch.

USB CONTROL

Bear in Mind when Using USB

1. Some USB storage devices may be somewhat incompatible with this TV.
2. Back up all data in USB storage device to prevent losing them due to an unexpected accident. We do not assume any liability for the losses due to misuse or malfunction. Data backup is consumer's responsibility.
3. For large file sizes, the loading speed may be slightly longer.
4. The recognition speed of USB storage device may depend on an individual device.
5. When connecting or disconnecting USB storage device, make sure the TV is not in USB mode. Otherwise the USB storage device or the files stored in it may be damaged.
6. Please use only USB storage devices formatted in FAT16, FAT32, NTFS file systems provided with the Windows operating system. If a storage device is formatted in a different file system which is not supported by Windows, it may not be recognized.
7. When using a USB hard disk drive which requires electric power source, make sure its power does not exceed 500mA. If the power of the USB hard disc exceeds 500mA, the TV system will enter standby mode. You must pull out the USB hard disc and restart the TV system.
8. "Unsupported File" message will be displayed if the file format is unsupported or if the file is corrupted.
9. FHD big picture needs longer time to process, which is not caused by the TV. Please be patient to wait.
10. This TV may not support some multimedia files changed and upgraded in a way which involves change of encoding format or other technical advances.

Supported File Extensions on USB


File Type / (Ext Name) File Extension Version support Remark
JPEG Jpg/jpeg
BMP Bmp support all modes
PNG Png MPEG1/2			supports interlace does not support animation mode

Video

File Type / (Ext Name) Video Type Audio Type Remark
MP4, MOV / (.mp4, .mov, .m4v)	Motion JPEG MPEG-4 SP/SP(XviD)	MPEG-AUDIO
AVI / (.avi)	Motion JPEG MPEG-4 SP/SP(XviD)	LPCM MPEG-AUDIO
ASF / (.wmv3, .xvid) MPEG-4 SP/ASP(XviD)		MS-ADPCM, Intel-ADPCM
MKV / (.mkv, .xvid) MPEG-4 SP/ASP(XviD) MPEG-AUDIO
TS / (.ts/trp)		LPCM MPEG-AUDIO
DAT, MPG, MPEG /(.dat, .mpg, mpeg)		LPCM MPEG-AUDIO
VOB / (.vob)		LPCM MPEG-1 Layer2
MP4, MKV /(mp4., mkv.) HEVC			Bit Rate≤30mbps, 1080p@30fps.

Music

File Type / (Ext Name) File Extension Version support Remark
Mpeg-1 Layer 3
	Wma LPCM		WMA 7~9.1 is WMA2
MPEG-1/2 Layer 1/2	n/a (included in the video only)	MPEG1/2
LPCM	n/a (included in the video only)
AAC AAC, mp4, M4A			Customers must register by themselves AAC variable bit rate: just forward speed 1.5x~2x m4a can't FF/FR ADIF can't FF/FR ADTS can FF/FR

USB Menu

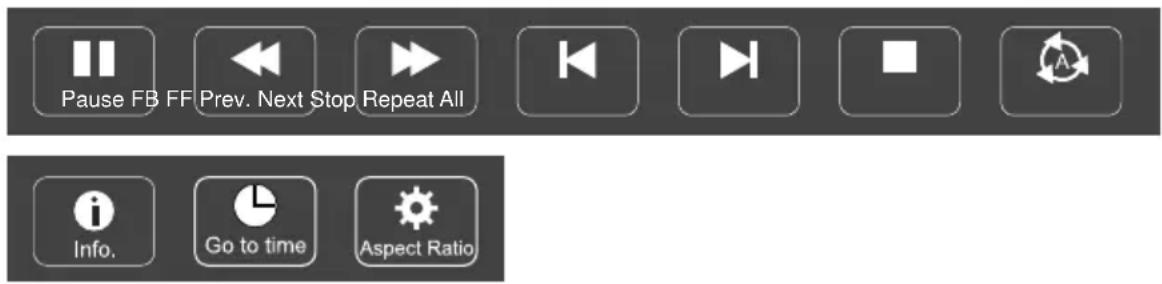

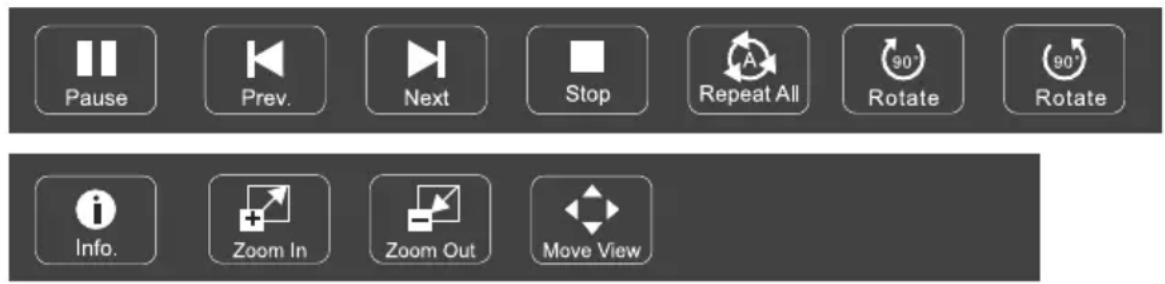

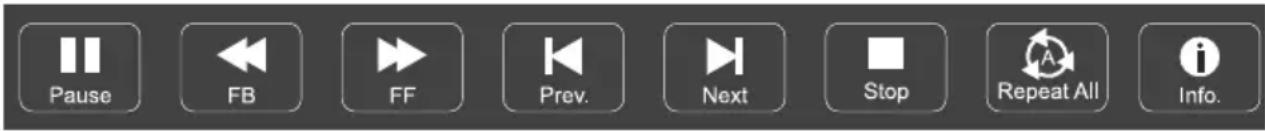

Press Source menu and select USB button. You can play movie, music and photo files from your USB storage devices.

1. Connect USB storage device to USB input terminal and select the types of media on the home page: MOVIE, MUSIC and PHOTO.
2. Press [ENTER] button, the screen will show the connected USB device. Press [ENTER] button again to view the file folders and files.
3. Press [◀]/[▶] or [▲]/[▼] to select folder. Press [ENTER] to open folders and select files, then press [ENTER] to tick them. Highlight the one you want to play first, press [▶/II] to start playing. To start playing directly, select a file and press [▶/II].
4. Press [■] to stop playing and return to upper lever folder.
5. Continuously press [RETURN] to go back to upper lever folder.
6. Use the above steps to select and play another media type.

Play Movie

Press [ INFO ] / [ ▼ ] to display / exit from the below Menu Bar. Press USB control buttons on the remote control to perform the relevant operations.

MOVIE CONTROL BAR

Pause FB FF Prev. Next Stop Repeat All Info. Go to time Aspect Ratio

Play & Pause/Stop/Prev./Next

Press [▶/II] to play or pause the playing; press [■] to stop playing; press [H]/[▶] to play the previous or the next video file. You can also press [◀]/[▶] to highlight one of the four icons and, after pressing [ENTER], the TV will respond accordingly.

Fast Reverse / Fast Forward

Press and hold [◀] / [▶] for several seconds to reach the desired point, then press [▶/II] button to start playing from the new position.

Play Mode

Highlight the corresponding icon and press [ ENTER ] to switch to another play mode.

Information

Highlight the corresponding icon and press [ ENTER ] to view the information regarding the video that is being played.

Go to time

Skip to specific point by entering time information. Highlight the corresponding icon and press [ENTER] to go to "Input search time" screen. Press [◀]/[▶] to move the cursor and use the number buttons to insert the time. Press [ENTER], the TV will start playing from the set time.

Aspect Ratio

Highlight the option and press [ ENTER ] to select the display mode.

Play Music

Press [ INFO ] / [ ▼ ] to display / exit from the below Menu Bar. Press USB control buttons on the remote control to perform the relevant operations.

MUSIC CONTROL BAR

Pause FB FF Prev. Next Stop Repeat All Info.

Play & Pause / Stop / Previous / Next

Press [▶/■] to play or pause the playing; press [■] to stop playing; press [✗]/[✗] to play the previous or the next music file. You can also press [◀]/[▶] to highlight the corresponding icon on the control bar and, after pressing [ENTER], the TV will respond accordingly.

Fast Forward / Fast Reverse

Press and hold [◀] / [▶] for several seconds to reach the desired point, then press [▶/II] on the remote control to start playing from the new position.

Play Mode

Highlight the icon and press [ ENTER ] to switch to another play mode.

Information

Highlight the corresponding icon and press [ ENTER ] to check the information regarding the music file that is being played.

Note:

• This menu shows only the supported files.
• Files with other file extensions are not displayed even if they are saved on the same USB storage device.
• Over-modulated mp3 files may have certain sound distortion during playback.
• This TV supports lyrics display (English). Maximum number of characters per line is 48.
• The file name of music and lyrics must be the same in order to display lyrics while the music is playing.
• If you want to show the associated lyrics on the screen with the music, you must store these associated lyrics in the same folder using the same file name with ".lrc" file extensions.

Browse Photo

Press [ INFO ] / [ ▼ ] to display / exit from the below Menu Bar. Press USB control buttons on the remote control to perform the relevant operations.

PHOTO CONTROL BAR

Pause Prev. Next Stop Repeat All Rotate Rotate Info. Zoom In Zoom Out Move View

Play & Pause / Stop / Previous / Next

Press [▶/II] to play or pause the playing; press [■] to stop playing; press [✗]/[✗] no play the previous or the next picture. You can also press [◀]/[▶] to highlight the corresponding icon on the control bar and, after pressing [ENTER], the TV will respond accordingly.

Play Mode

Highlight the icon and press [ ENTER ] to switch to another play mode.

Rotate

Highlight the corresponding icon on the menu bar and press [ENTER] to rotate the picture 90 degrees clockwise or counter clockwise.

Info.

Highlight the corresponding icon and press [ ENTER ] to check the information regarding the viewed photo.

Zoom In / Zoom Out

Highlight the corresponding icon on the menu bar and press [ ENTER ] to zoom in / zoom out of the image.

Move View

When the image is magnified, use this function to view the desired image sections. Highlight this icon, press [ ENTER ] button, then press left/right/up/down button to move across the image.

Note:

Move function (☐) is only available when image is enlarged.

TROUBLESHOOTING

Before calling a service technician, review following information for possible causes and solutions for the problem you are experiencing.

NO PICTURE, NO SOUND

1. 1. Check if the fuse or circuit breaker is working.
2. Plug another electrical device into the outlet to make sure it is working or turned on.
3. Poor power plug contact with the outlet.
4. Check the signal source.

NO COLOR

1. Change the colour system.
2. Adjust the saturation.
3. Try another channel. Black-white program may be received.

REMOTE CONTROL DOES NOT WORK

1. Change the batteries.
2. Batteries are not installed correctly.
3. Main power is not connected.

NO PICTURE, NORMAL SOUND

1. Adjust the brightness and contrast.
2. Broadcasting failure may happen.

NORMAL PICTURE, NO SOUND

1. Press the volume up button to increase volume.
2. Volume is set to mute, press MUTE to restore sound.
3. Change the sound system.
4. Broadcasting failure may happen.

UNORDERLY RIPPLES ON THE PICTURE

It is usually caused by local interference, such as cars, daylight lamps and hair dryers. Adjust the antenna to minimize the interference.

BLANK SCREEN IN PC MODE

(only for models with PC terminals)

Perhaps the TV cannot recognize the PC set resolution. Choosing the best resolution or other standard resolutions for the Windows system is recommended. Set refresh rate to 60Hz.

If the antenna is located in the fringe area of television signal where the signal is weak, the picture may be marred by dots. When the signal is extremely weak, it may be necessary to install a special antenna to improve the reception.

1. Adjust the position and orientation of the indoor/outdoor antenna.
2. Check the connection of antenna.
3. Fine tune the channel.
4. Try another channel. Broadcasting failure may happen.

IGNITION

Black spots or horizontal streaks appear, or the picture flutters or drifts. This is usually caused by interference from car ignition system, neon lamps, electric drills, or other electrical appliance.

GHOST

Ghosts are caused by the television signal which follows two paths. One is the direct path, the other is reflected off tall buildings, hills, or other objects. Changing the direction or position of the antenna may improve the reception.

This interference produces moving ripples or diagonal streaks, and in some cases, loss of contrast in the picture. Detect and remove the radio interference source.

Note:

If the problem persists after applying the solutions, please contact your local support centre.

SPECIFICATIONS

Screen size - diagonal 60cm
Screen resolution 1366x768
Audio output power (L+R) 3W + 3W
Working voltage 100-240V~50/60Hz
Rated power consumption 40W
Dimensions (W x H x Dmm) 562X361	1X137mm
Net weight 3.5kg
Environment(only for Tropical climates zone):	Working temperature: 5°C~45°CWorking humidity: 20%~80%Storage temperature: -15°C~50°CStorage humidity: 10%~90%
Environment(only for Moderate climates zone)	Working temperature: 5°C~35°CWorking humidity: 20%~80%Storage temperature: -15°C~45°CStorage humidity: 10%~90%
Channel coverage DVB-T/T2: 174MHz	Hz-230MHz; 470MHz-860MHz;DVB-C: 50-858MHzDVB-S/S2: 950MHz-2150MHz
System DTV: DVB-T/T2, DVB-S/S2, DVB-CATV: PAL/SECAM (BG/DK/I)
Preset programmes ATV: 100, DVB-T/DVB-C: 800; DVB-S:2000
Status displaying method On screen display
Function adjustment indicator Menu display
Language of OSD Multiple options
RF aerial input	75 ohm unbalanced

Përmbajtja

PARALAJMËRIME DHE MASA PARAPRAKE.... 30

KEMATIKA E JASHTME DHE INSTALIMI 36

Butonat e kontrollit 36

Terminalet 37

FUNKCIONET E TELEKOMANDËS.... 38

INÇIZIM PERSONAL TË VIDEOS (PVR) 41

UDHËHEQËS PROGRAMOR ELEKTRONIK (EPG) 42

RREGULLIMI I MENYSË 43

Shënim:

Simple line drawing of a curved object with a small protrusion and an arrow indicating direction (no text or symbols)

Simple diagram of two batteries with positive and negative terminals, no text or symbols present

3 Horizontalisht shtyje per ta mbyllur kapakun.

Diagram of a device with internal components and an arrow indicating rotation (no text or symbols)

SKEMATIKA E JASHTME DHE INSTALIMI

Butonat e kontrollit

Play FB FF Prev. Next Stop

Pause FB FF Prev. Next Stop Repeat All Info. Go to time Aspect Ratio

Reprodukcioni dhe Pauza (Play & Pause) /Stopimi (Stop) /Paraprak( Prev.) /Vijues (Next)

Pause Prev. Next Stop Repeat All Rotate Rotate Info. Zoom In Zoom Out Move View

Reprodukcioni dhe Pauza (Play & Pause) /Stopimi (Stop) /Paraprak( Prev.) /Vijues (Next)

Zmadhim (Zoom In) / Zvogëlim (Zoom Out)

Napomena:

Note: The images are intended for reference only. Actual items may differ.

Simple line drawing of a curved object with a small protrusion and an arrow indicating direction (no text or symbols)

Simple diagram of two batteries with positive and negative terminals, no text or symbols present

Diagram of a device with an arrow indicating direction, showing internal components without any text or symbols.

VANJSKA ŠEMA I INSTALACIJA

Kontrolne tipke

Napomena: Slike služe samo za predstavljanje.

Play FB FF Prev. Next Stop

1. Ukoliko nije moguće pokrenuti PVR funkciju, pokušajte da formatirate vaš USB memorijski uređaj.
2. Ukoliko želite da prekinete snimanje, pritisnite taster [■] i uređaj će prestati sa snimanjem.

Napomena:

• Kada je uključen režim snimanja, ne možete da mjenjate kanale ili birate neke druge funkcije.
• Ukoliko je došlo do prekida ili nestanka signala u toku snimanja, snimanje će se zaustaviti sve dok se ponovo ne uspostavi dotok signala. Ovo može da izazove gubitak programskog sadržaja.

Tajmer za snimanje

Postoje dva načina da se podesi tajmer za snimanje televizijskog programa.

Ukoliko su vam poznati podaci o programu:

1. Idite na kanal u okviru koga će se emitovati program koji želite da snimite.
2. Pritisnite taster EPG na vašem daljinskom upravljaču kako biste pristupili EPG interfejsu. Kanal koji u tom trenutku pratite biće označen na prikazanom ekranu.

3. Pritisnite CRVENI taster na daljinskom upravljaču, a zatim u okviru menija za snimanje unesite podatke o programu pritiskom na taster ▲/▼ za odabir stavke i na taster ◀/▶ za izmjene u podešavanju. Na primjer, ukoliko program počinje u 20:30 istog dana, unesite 30 u kućicu za MINUTE, 20 u kućicu za SATE (primenjuje se 24-časovni sat), a zatim i dgovarajući datum. Na isti način unesite vrijeme završetka snimanja.

4. Izaberite odgovarajući režim snimanja: jednom, svakog dana ili svake nedelje.

5. Za potvrdu izbora, pritisnite UNOS (ENTER). Pojaviće se raspored svih vaših snimanja (lista rasporeda snimanja). Za više podataka o rasporedu, pogledajte EPG funkciju.

Ukoliko pretražujete EPG, pratite korake opisane na strani na kojoj se pojašnjava EPG funkcija.

ELEKTRONSKI PROGRAMSKI VODIČ (EPG)

EPG je skraćenica koja znači digitalni elektronski programski vodič. Ovu uslugu nude distributeri televizijskog programa i ona daje informacije o programima koji će biti emitovani. Možete mu pristupiti iz digitalnog režima pritiskom na taster EPG na daljinskom upravljaču.

1. Pritisnite taster EPG kako biste pristupili EPG interfejsu. U drugoj traci od vrha biće prikazani podaci o trenutnom datumu i vremenu. Na listi ispod biće označen kanal koji trenutno pratite.
2. Prije nego što budete mogli da vidite bilo koju informaciju EPG-a, moraćete da aktivirate svaki kanal za koji želite da provjerite podatke o programu. Kako biste ovo učinili, pritisnite taster ▲/▼ da izaberete kanal, a zatim pritisnite UNOS (ENTER) za potvrdu.
3. Da provjerite koji programi će biti emitovani u narednom periodu, skrolujte naviše pomoću tastera ▲ do polja za datume. Za izbor datuma koji želite da provjerite, koristite taster ▶.
4. Pritisnite taster Indeks Index (INDEX) da skrolujete do najviše trake na ekranu, a zatim pritisnite taster ▶ da izaberete „Lista kanala“. Neki od dostupnih kanala biće prikazan u traci ispod.
5. Pristupite kanalu i koristeći tastere ◀/▶ izaberite kanal za koji želite da pogledate podatke. Uskoro, pojaviće se podaci o programu.
6. Za skrolovanje po vremenskim odrednicama, koristite tastere ▲/▼.
7. Pritisnite taster MENI (MENU) da izadete iz EPG menija.

Snimanje

Pritisnite CRVENI taster za prikaz menija za snimanje (slika desno). Pročitajte detaljne podatke o različitim načinima snimanja programa na USB memorijski uređaj pomoću vašeg TV uređaja.

Informacije (Info)

Pritisnite ZELENI taster za prikaz podataka o izabranom programu.

Raspored

Pritisnite ŽUTI taster za prikaz Liste rasporeda snimanja. Za označavanje određene stavke pritisnite taster ▲/▼, a za njeno brisanje pritisnite CRVENI taster.

Podsetnik

Za prikaz menija podsetnika pritisnite PLAVI taster. Za označavanje određene stavke pritisnite taster ▲/▼, a za promenu podešavanja, pritisnite taster◀/▶. Da dodate stavku listi rasporeda snimanja, pritisnite UNOS (ENTER). Pojaviće se ažurirana lista rasporeda snimanja.

RECORDER 1 PATTERN Start Time 55 Minute 22 Hour Jan Month 01 Date End Time 55 Minute 22 Hour Jan Month 01 Date Once Mode OK BACK

Reminder Setting 1 PATTERN 55 Minute 22 Hour Jan Month 01 Date Once Mode OK C Back

PODEŠAVANJA U OKVIRU MENIJA

Pause FB FF Prev. Next Stop Repeat All Info. Go to time Aspect Ratio

Reprodukovanje i pauziranje (Play & Pause) / Zaustavljanje (Stop) / Prethodno (Prev.) / Sledeće (Next)

Za reprodukovanje sadržaja ili za pauziranje reprodukcije pritisnite [▶/II]; za zaustavljanje reprodukcije pritisnite [■]; za reprodukovanje prethodnog ili slijedećeg video fajla pritisnite [◀]/[▶]. Za označavanje jedne od četiri ikonica možete koristiti i [◀]/[▶], a zatim pritisnite [UNOS] (ENTER) i TV uređaj će se ponašati u skladu sa vašim izborom.

Brzo premotavanje unatrag (Fast Reverse) / Brzo premotavanje unapred (Fast Forward)

Pritisnite i na nekoliko sekundi zadržite [◀] / [ ]▶la biste stigli do željene tačke, a zatim pritisnite taster [▶/Ⅱ] da započnete reprodukovanje od ove nove pozicije.

Pause Prev. Next Stop Repeat All Rotate Rotate Info. Zoom In Zoom Out Move View

Reprodukovanje i pauziranje (Play & Pause) / Zaustavljanje (Stop) / Prethodno (Prev.) / Sledeće (Next)

Za reprodukovanje sadržaja ili za pauziranje reprodukcije pritisnite [▶/II]; za zaustavljanje reprodukcije pritisnite [■]; za reprodukovanje prethodne ili slijedeće fotografije pritisnite [◀] / [▶]. Za označavanje odgovarajuće ikonice na traci sa tasterima za kontrolu možete koristiti i [◀]/[▶], a zatim pritisnite [UNOS] (ENTER) i TV uređaj će se ponašati u skladu sa vašim izborom.

NEMA SLIKE, NEMA ZVUKA

1. Provijerite da li radi osigurač ili sklopka.
2. Uključite neki drugi električni uređaj u utičnicu kako biste se uverili da utičnica radi i da je pod naponom.
3. Loš kontakt utikača sa utičnicom.
4. Provijerite izvor signala.

NEMA BOJA

1. Promenite sistem boja.
2. Podesite zasićenost.
3. Provijerite situaciju na nekom drugom kanalu. Možda primate crno-beli program.
4. Zamjenite baterije.
5. Baterije nisu postavljene na odgovarajući način.
6. Uređaj nije povezan na napajanje.

DALJINSKI UPRAVLJAČ NE RADI

NEMA SLIKE, NORMALAN ZVUK

1. Podesite osvetljenost i kontrast.
2. Možda je došlo do prekida u emitovanju programa.

NORMALNA SLIKA, NEMA ZVUKA

Simple line drawing of a curved surface with a small rectangular feature and an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with internal parts and an arrow indicating rotation (no text or symbols)

Press to fast reverse.

Fast Forward (▶)

Press to fast forward.

Advanced Tuning Satellite 001.013.0 E Ku_HOTDRD 6.7,A,B 002.019.2 E Ku_ASTRA 1H,1KR,1... 003.028.2 E Ku_ASTRA 2A,2B,2D 004.023.5 E Ku_ASTRA 1E,1G,3A 005.353.0 E Ku_NILESAT 101,10 006.007.0 E Ku_EUTELSAT W3A 007.010.0E Ku_EUTELSAT W1 008.026.0E Ku_BADR-2,3,4/EURO Ku_HOTBRD 6.7,A,B LNB Type 09750/10600 LNB Power 19V 22KHz Auto DiSEqC1.0 None DiSEqC1.1 None Quality EPG Transponder ENTER Select EXIT EXIT Add Edit Delete Scan Select Стъпка 1 Стъпка 2 Стъпка 3

Fig. 1

PVR File System (Note 1)

Pause FB FF Prev. Next Stop Repeat All Info. Go to time Aspect Ratio

Play & Pause/Stop/Prev./Next

Play & Pause / Stop / Previous / Next

Play & Pause / Stop / Previous / Next

- Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

Hinweis:

Simple line drawing of a curved object with a small protrusion and an arrow indicating direction (no text or symbols)

Simple diagram of two batteries with positive and negative terminals, no text or symbols present

Diagram of a device with an arrow indicating leftward movement, showing internal components without any text or symbols.

EXTERNES SCHEMA UND INSTALLATION BEDIENTASTEN

22KHz - Select the 22KHz to set 22K switch to ON/OFF. Use auto mode to switch 22KHz on or off depending on the LNB type.

DiSEqC1.0/1.1 - Select the DiSEqC mode for the selected LNB.

Advanced Tuning Satellite 001.013.0 E Ku_HOTDRD 6,7,A,B 002.019.2 E Ku_ASTRA 1H,1KR,1... 003.028.2 E Ku_ASTRA 2A,2B,2D 004.023.5 E Ku_ASTRA 1E,1G,3A 005.353.0 E Ku_NILESAT 101,10 006.007.0 E Ku_EUTELSAT W3A 007.010.0E Ku_EUTELSAT W1 008.026.0E Ku_BADR-2,3,4/EURO Ku_HOTBRD 6,7,A,B LNB Type 09750/10600 LNB Power 19V 22KHz Auto DiSEqC1.0 None DiSEqC1.1 None Quality EPG Transponder ENTER Select EXIT EXIT Add Edit Delete Scan Select Schritt 1 Schritt 2 Schritt 3

Abb. 1

Pause FB FF Prev. Next Stop Repeat All Info. Go to time Aspect Ratio

Play & Pause/Stop/Prev./Next

Pause Prev. Next Stop Repeat All Rotate Rotate Info. Zoom In Zoom Out Move View

Note:

Simple line drawing of a curved object with an arrow pointing upward, no text or symbols present.

Simple diagram of two batteries with positive and negative terminals, no text or symbols present

Diagram of a device with an arrow indicating left motion, showing internal components without any text or symbols.

SCHEMA EXTERNE ET INSTALLATION

Boutons de contrôle

Pause FB FF Prev. Next Stop Repeat All Info. Go to time Aspect Ratio

Pause Prev. Next Stop Repeat All Rotate Rotate Info. Zoom In Zoom Out Move View

PAS D'IMAGE, PAS DE SON

PAS D'IMAGE, SON NORMAL

ECRAN VIDE SOUS MODE PC

Simple line drawing of a curved object with an arrow pointing upward, no text or symbols present.

2 Stavite dvije AAA baterije vodeći računa o polaritetu.

Simple line drawing of two batteries with positive and negative terminals, no text or symbols present.

Diagram of a device with an arrow indicating direction, showing internal components without any text or symbols.

VANJSKO OŽIĆENJE I POSTAVLJANJE

Upravljački gumbi

Pause FB FF Prev. Next Stop Repeat All Info. Go to time Aspect Ratio

Reproduciranje i pauziranje (Play & Pause) / Zaustavljanje (Stop) / Prethodno (Prev.) / Sljedeće (Next)

Za reproduciranje sadržaja ili za pauziranje reprodukcije pritisnite [▶/Ⅱ]; za zaustavljanje reprodukcije pritisnite [■]]; za reproduciranje prethodnog ili sljedećeg video fajla pritisnite [▶]/[▶]. Za označavanje jedne od četiri ikonica možete koristiti i [◀]/[▶], a zatim pritisnite [UNOS] (ENTER) i TV uređaj će se ponašati u skladu s Vašim izborom.

Brzo premotavanje unatrag (Fast Reverse) / Brzo premotavanje unaprijed (Fast Forward)

NEMA SLIKE, NEMA ZVUKA

NEMA SLIKE, NORMALAN ZVUK

1. Podesite osvijetljenost i kontrast.
2. Možda je došlo do prekida u emitiranju programa.

NORMALNA SLIKA, NEMA ZVUKA

Megjegyzés:

Simple line drawing of a curved object with a small protrusion and an arrow indicating direction (no text or symbols)

Simple diagram of two batteries with positive and negative terminals, no text or symbols present

Diagram of a device with internal components and an arrow indicating direction (no text or symbols)

KÜLSÖ VÁZLATOK ÉS TELEPÍTÉSEK

Vezérlögombok

Tartalom 10, 20,30,60,90,120,180,240 perc.

Autó alvás

Pause FB FF Prev. Next Stop Repeat All Info. Go to time Aspect Ratio

Riproduci Film....231

Riproduci Musica 232

Cerca foto 233

RISOLUZIONE DEI PROBLEMI....234

SPECIFICHE 235

Nota

Simple line drawing of a curved object with a handle and internal slot, no text or symbols present

Simple line drawing of two batteries in a battery pack (no text or symbols)

Diagram of a device with an arrow indicating direction, showing internal components without any text or symbols.

31. AD (Audio Description)

PVR File System (Nota 1)

Pause FB FF Prev. Next Stop Repeat All

Info. Go to time Aspect Ratio

Play & Pausa/Stop/Prec./Prossimo

Pause Prev. Next Stop Repeat All Rotate Rotate Info. Zoom In Zoom Out Move View

Play & Pausa/Stop/Prec./Prossimo

Напомена:

Simple line drawing of a curved surface with a small rectangular feature and an arrow indicating direction (no text or symbols)

Diagram of a device with internal components and an arrow indicating rotation (no text or symbols)

НАДВОРЕШНА ШЕМА И ИНСТАЛАЦИЈА

Контролни копчиња

Diagram of a front panel with internal components and connectors (no text or symbols)

UNB AIR/CABLE ANTENBA IN HDMI HOME2 DC IN SCAPT 1 2 3 4

Technical diagram showing a device rear panel with labeled components and an arrow indicating assembly or transformation.

Play FB FF Prev. Next Stop

Pause FB FF Prev. Next Stop Repeat All Info. Go to time Aspect Ratio

Notă:

Simple line drawing of a curved object with a handle and internal slot, no text or symbols present.

Simple diagram of two batteries with positive and negative terminals, no text or symbols present

Diagram of a device with an arrow indicating direction, showing internal components without any text or symbols.

31. AD (Audio Description)

Audio Languages / Subtitle Languages (Notă 1)

Select the desired language.

Limba TTX

Conține 10, 20, 30, 60, 90, 120, 180, 240 minute.

Sleep automat

Pause FB FF Prev. Next Stop Repeat All Info. Go to time Aspect Ratio

Pause Prev. Next Stop Repeat All Rotate Rotate Info. Zoom In Zoom Out Move View

FĂRĂ IMAGINE, SUNETUL NORMAL

Opomba:

Simple line drawing of a curved surface with a small protrusion and an arrow indicating direction (no text or symbols)

② Vstavite dve bateriji AAA in se prepričajte, da sta pravilno obrnjeni.

Simple diagram of two batteries with positive and negative terminals, no text or symbols present

③ Namestite pokrov.

Diagram of a device with an arrow indicating direction, showing internal components without any text or symbols.

ZUNANJA SHEMA IN NAMESTITVE

Nadzorni gumbi

Opomba: Slike o samo za lažjo predstavo.

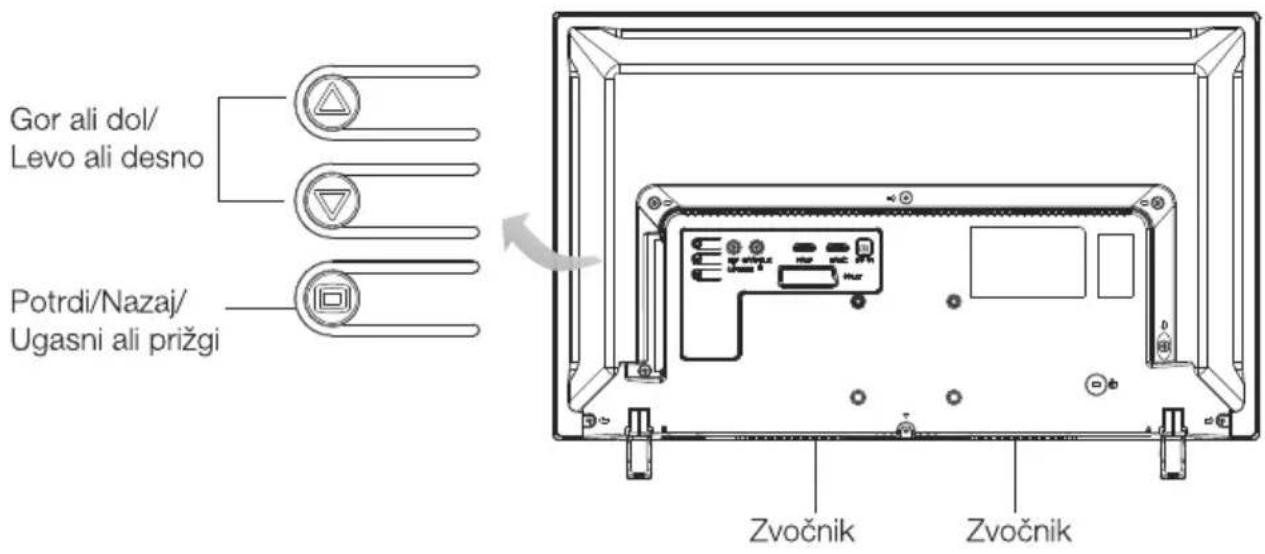

Gor ali dol/ Levo ali desno Potrdi/Nazaj/ Ugasni ali prižgi Zvočnik Zvočnik

Prižgi TV

Pritisnite 📄 in počakajte približno 2 sekundi, TV se bo prižgal.

Izbira menija

1. Pritisnite da odprete OSD, ikone, od leve proti desni, so glavni meni, vir in jakost zvoka. Pritisnite ali gumb za izbiro menija in pritisnite gumb za dostop.

NADZORNI GUMB		MENIJSKA OPERACIJA
		Glavni meni	Izvorni meni	Prilagajanje glasnosti
Pritisnite		Pomik levo ali navzgor	Premik gor	Premik levo
		Pomik desno ali navzdol	Premik dol	Premik desno
		Potrditev/Nazaj	Potrditev/Nazaj	/
Pritisnite in držite		Izberite in potrdite vrednost.	/	/

Diagram of a flat-screen TV unit with internal components and connectors (no text or symbols)

LAN AIR/CABLE ANTenna M HDWR HOME2 DC M SCART 1 2 3 4

Technical diagram showing a device rear panel with labeled ports and internal components, including USB and Polka labels.

1. ANTENNA IN: Priklopite anteno na televizijski sprejemnik za iskanje programov.
2. SCART: Priključek Scart.
3. HDMI1/HDMI2 : Priklopite kabel HDMI z vira signala, kot je predvajalnik DVD.
4. DC IN: Priključek na električno omrežje.
5. USB1: vmesnik USB.
6. SLUŠALKE: Izhod za zvok, zvočniki bodo utišani, ko bodo priključene slušalke.
7. SERVICE :Servisna vrata.
8. PCMCIA: Priklopite kartico CAM.

GUMBI NA DALJINSKEM UPRAVLJALNIKU

Daljinski upravljalnik

POWER 1 2 3 4 5 6 7 8 9 CONN LIST 0 BACK RETURN MENU SOURCE ENTER TYRADIO EXIT VOL HOME PR - REC INDEX SLEEP INFO REVEAL MIX CANCEL SIZE SUB-PAGE NICAM HOLD I/II TEXT FREEZE PYLIST QUICK AD 3D

Note: The images are intended for reference only. Actual items may differ.

1 Horizontalnim prevlačenjem skinite poklopac.

Simple line drawing of a curved object with a handle and internal slot, no text or symbols present

Simple diagram of two batteries with positive and negative terminals, no text or symbols present

Diagram of a device with an open lid and internal components, no text or symbols present

SPOLJAŠNJA ŠEMA I UGRADNJA

Kontrolni tasteri

Play FB FF Prev. Next Stop

1. Ukoliko nije moguće pokrenuti PVR funkciju, pokušajte da formatirate vaš USB memorijski uređaj.
2. Ukoliko želite da prekinete snimanje, pritisnite taster [■] i uređaj će prestati sa snimanjem.

Napomena:

Advanced Tuning Satellite 001.013.0 E Ku_HOTDRD 6.7,A,B 002.019.2 E Ku_ASTRA 1H,1KR,1... 003.028.2 E Ku_ASTRA 2A,2B,2D 004.023.5 E Ku_ASTRA 1E,1G,3A 005.353.0 E Ku_NILESAT 101,10 006.007.0 E Ku_EUTELSAT W3A 007.010.0 E Ku_EUTELSAT W1 008.026.0 E Ku_BADR-2,3,4/EURO Ku_HOTBRD 6,7,A,B LNB Type 09750/10600 LNB Power 19V 22KHz Auto DiSEqC1.0 None DiSEqC1.1 None Quality EPG Transponder ENTER Select EXIT EXIT ● Add ● Edit ● Delete ● Scan Select Korak 1 Korak 2 Korak 3

Slika 1

Korak 1: Označite Satelit i pritisnite UNOS (ENTER) kako biste pristupili listi satelita i odabrali željeni.

Korak 2: Označite LNB tip i pritisnite UNOS (ENTER) kako biste odabrali tip LNB-a.

Korak 3: Uverite se da 22KHz, DiSEqC1.0/1.1 prekidač odgovara odabranom satelitu.

Nakon što izvršite prethodne korake, pritisnite plavi taster za pretraživanje kanala.

Ručna pretraga DTV signala

Pause FB FF Prev. Next Stop Repeat All Info. Go to time Aspect Ratio

Reprodukovanje i pauziranje (Play & Pause) / Zaustavljanje (Stop) / Prethodno (Prev.) / Sledeće (Next)

Za reprodukovanje sadržaja ili za pauziranje reprodukcije pritisnite [▶/II]; za zaustavljanje reprodukcije pritisnite [■]; za reprodukovanje prethodnog ili sledećeg video fajla pritisnite [◀]/[▶]. Za označavanje jedne od četiri ikonica možete koristiti i [◀]/[▶], a zatim pritisnite [UNOS] (ENTER) i TV uređaj će se ponašati u skladu sa vašim izborom.

Brzo premotavanje unatrag (Fast Reverse) / Brzo premotavanje unapred (Fast Forward)

Pritisnite i na nekoliko sekundi zadržite [◀] / [ ]▶la biste stigli do željene tačke, a zatim pritisnite taster [▶/Ⅱ] da započnete reprodukovanje od ove nove pozicije.

Pause Prev. Next Stop Repeat All Rotate Rotate Info. Zoom In Zoom Out Move View

Reprodukovanje i pauziranje (Play & Pause) / Zaustavljanje (Stop) / Prethodno (Prev.) / Sledeće (Next)

Za reprodukovanje sadržaja ili za pauziranje reprodukcije pritisnite [▶/II]; za zaustavljanje reprodukcije pritisnite [■]; za reprodukovanje prethodne ili sledeće fotografije pritisnite [K]/[▶]. Za označavanje odgovarajuće ikonice na traci sa tasterima za kontrolu možete koristiti i [◀]/[▶], a zatim pritisnite [UNOS] (ENTER) i TV uređaj će se ponašati u skladu sa vašim izborom.

NEMA SLIKE, NEMA ZVUKA

NEMA SLIKE, NORMALAN ZVUK

1. Podesite osvetljenost i kontrast.
2. Možda je došlo do prekida u emitovanju programa.

NORMALNA SLIKA, NEMA ZVUKA
