| Product type | Rechargeable cordless stick vacuum |
| Brand | Grundig |
| Model | VCH 9732 |
| Rated voltage | 36 V |
| Maximum voltage | 40 V |
| Power adapter | Input 100-240 V~, 50/60 Hz; Output 42.2 V, 350 mA |
| Protection class | II |
| Battery run time | Up to 75 minutes (ECO mode) |
| Charging time | About 8 hours |
| Dust bag capacity | Not specified (bag type) |
| Filtration | Cyclone, washable HEPA filter, foam filter |
| Adjustable suction power | 3 levels: ECO, CARPET, TURBO |
| Included accessories | Hose, shoulder strap, crevice tool, upholstery brush, dusting brush |
| Main brush | Removable turbo brush (cleanable) |
| Charge indicator | Yes (% display during charging and use) |
| Bag full indicator | Yes (red LED indicator) |
| Maintenance | Regular cleaning of cyclone, HEPA filter and foam filter; emptying the bag |
| Intended use | Household use only |
| Weight | Approximately 3.5 kg |
Frequently Asked Questions - VCH 9732 GRUNDIG
User questions about VCH 9732 GRUNDIG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual VCH 9732 - GRUNDIG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VCH 9732 by GRUNDIG.
USER MANUAL VCH 9732 GRUNDIG

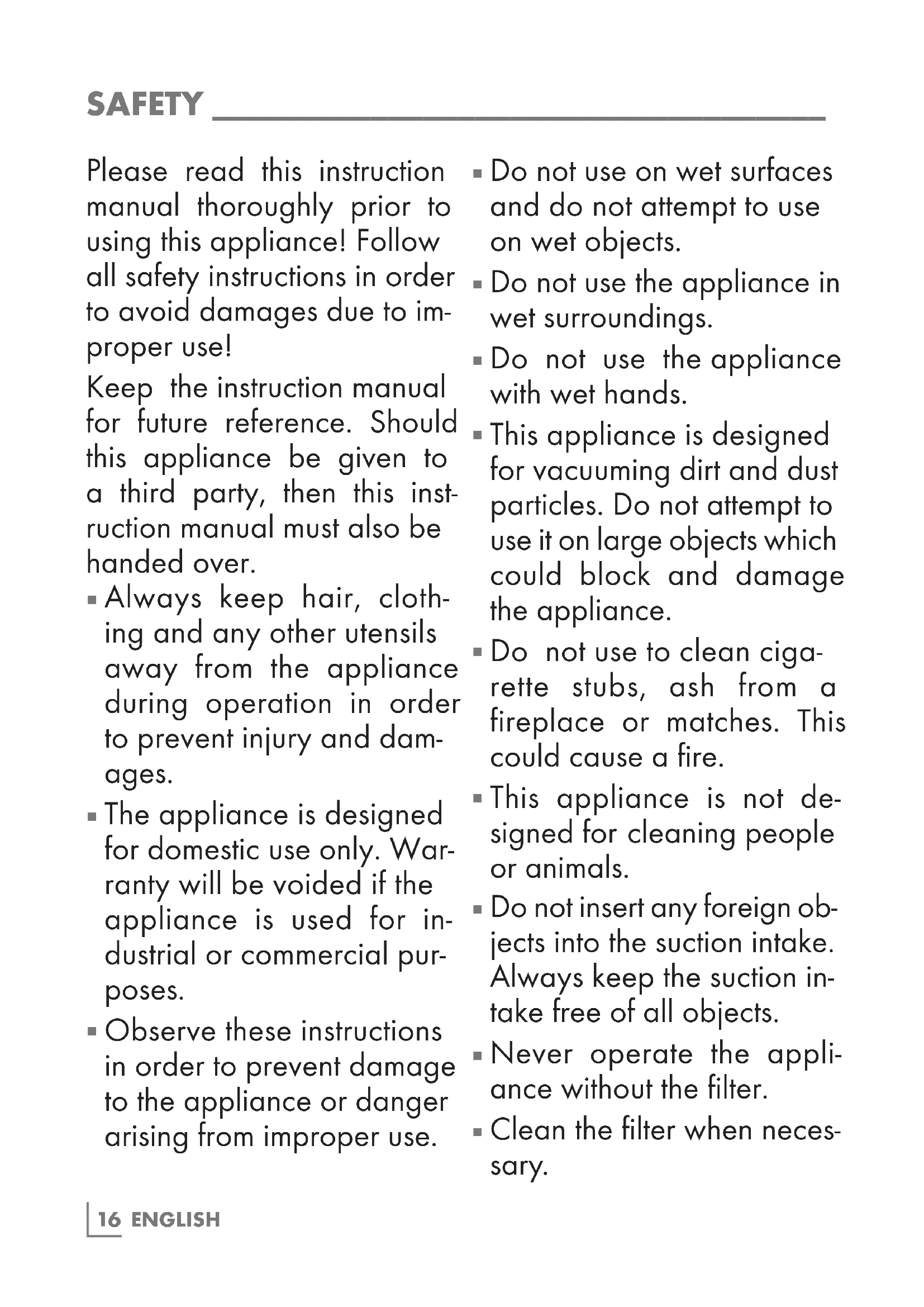

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!
Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.
Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.
The appliance is designed for domestic use only. Warranty will be voided if the appliance is used for industrial or commercial purposes.
-
Observe these instructions in order to prevent damage to the appliance or danger arising from improper use.
-
Do not use on wet surfaces and do not attempt to use on wet objects.
-
Do not use the appliance in wet surroundings.
-
Do not use the appliance with wet hands.
-
This appliance is designed for vacuuming dirt and dust particles. Do not attempt to use it on large objects which could block and damage the appliance.
-
Do not use to clean cigarette stubs, ash from a fireplace or matches. This could cause a fire.
This appliance is not designed for cleaning people or animals.
-
Do not insert any foreign objects into the suction intake. Always keep the suction intake free of all objects.
-
Never operate the appliance without the filter.
Clean the filter when necessary.
- Only use original GRUN-DIG accessories when replacing parts.
- Check if the mains voltage on the rating label corresponds to your local mains supply.
Always pull out the power cord after the charging process, before cleaning or carrying out any maintenance on the appliance or the charging unit. - Avoid using extension cables or multipoint connectors. Plug the appliance directly in a wall socket if possible.
- For additional protection, this appliance should be connected to a household residual current device with a maximum rating of 30 mA. Consult your electrician for advice.
-
Do not disconnect the plug by pulling on the cable.
-
Never use the appliance if it or the power cord is visibly damaged. This also applies if the appliance has accidentally become wet. Please contact a service centre in this case.
- Our GRUNDIG Household Appliances meet all applicable safety standards; thus if the appliance or the power cord is damaged, it must be replaced by the dealer, a service centre or a similarly qualified and authorised service person to avoid any danger arising. Faulty or unqualified repair work may cause danger and risk to the user.
-
Keep the appliance away from children.
-
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
-
Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.
-
Do not use the appliance if the air duct and the ventilation slot are blocked. Always keep the air duct and ventilation slot free of dirt, hair and any other elements which could obstruct or block the air flow.
- Only use the power cord provided.
Esteemed Customer,
Congratulations for purchasing the new VCH 9732 vacuum cleaner.
Please read the following instructions carefully in order to enjoy the use of your product with the GRUNDIG quality for many years.
A responsible approach!
GRUNDIG aims to provide social working conditions accepted by a contract that presents fair payment for both the employees and suppliers; efficient use of the raw material; reducing plastic waste amount for a
few tons each year and ensuring that the accessories produced by it are used for 5 years minimum.
For a future worth living.
Grundig.
Controls and parts
See the figure on page 3.
A Handle
Control button
Control panel
Upper body
Lower body
F Charging indicator
G Dust container handle
H Dust container
Suction nozzle
J Brush
Brush removal button
L Dust container removal button
M Upper body connection screw
Accessory
Hose
Shoulder strap
- Upholstery nozzle
- Narrow crevice nozzle
Brush attachment for furnishings
Intended use
This appliance is intended for domestic use. It is not suitable for industrial use.
Installation

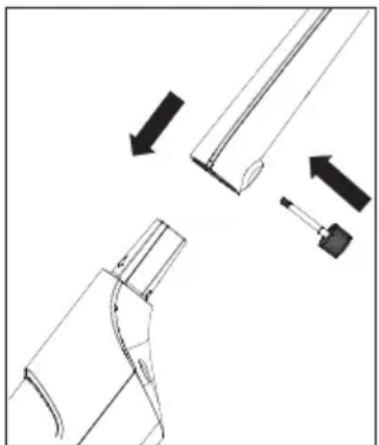

Installation of upper and lower bodies
Fix the upper body onto the lower body.
2 Rotate the upper body connection screw clockwise to fix it.

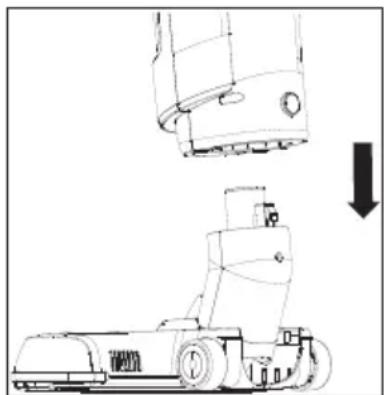

Installation of the lower body and the brush
Attach the brush to the suction nozzle.
Charging the appliance
Plug the adapter into the charging socket at the back of the appliance and connect the plug to the wall socket.
The charging indicator will turn on and the appliance will switch to the charging mode. The charging indicator will flash.
- The charging indicator will remain on after charging is complete.
Notes
- Charging level will be displayed in % on the indicator during charging.
It takes up to 8 hours for the appliance to be fully charged.
Warning
- Appliance cannot be operated during the charging process.
Operating the appliance
1 Push the control button forward and move it to the desired level to operate the appliance.
2 Pull back the control button and move it to "OFF" level to switch off the appliance.
Adjusting the suction power
You can adjust the suction power by using the control panel on the appliance.
1 Use the "ECO" level to clean curtains, table cloths and sofas.
2 Use the "CARPET" level to clean carpets.
3 Use the "TURBO" level to clean hard floors.
Notes
- Icon of the selected level will be shown on the display during operation.
It can be used up to 75 minutes with 100% charge at the minimum level.
The charging indicator will be shown in % during operation. Percent of the indicator will decrease as the charging level goes down.
Accessories
1 Remove the brush by pressing the brush removal button on the lower body to use accessories.
2 Fit the lug on the hose to the slot in the suction nozzle (you will hear a click).

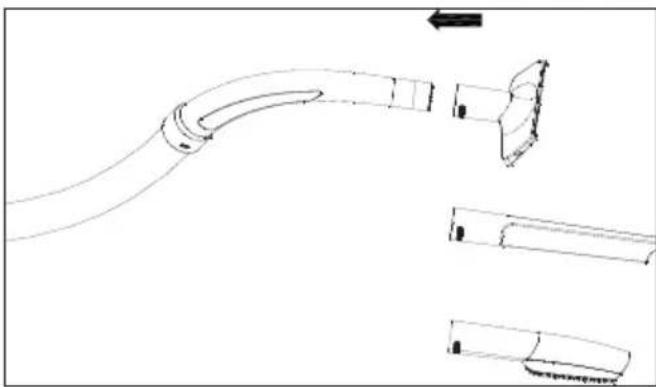

3 Attach the desired accessory to the hose cap to use it.
4 To remove the accessories, pull them from the hose cap.
5 Remove the hose from the suction nozzle by pressing the accessory removal button.
Crevice tool
Suitable for the cleaning of the surfaces which are difficult to clean, such as the areas remaining under sofas and furniture.
Upholstery tool
Suitable for cleaning the floorings, stair steps, inside of the cars, sofas, armchairs etc.
Dust brush
ing the cur-tains, and sensitive and frag-ile objects.
Shoulder hanger
Shoulder hanger allows you to move easily during cleaning.
Attach the hose cap to use the shoulder hanger.
1 Fit the hook of the shoulder hanger to the slot on the hose cap.

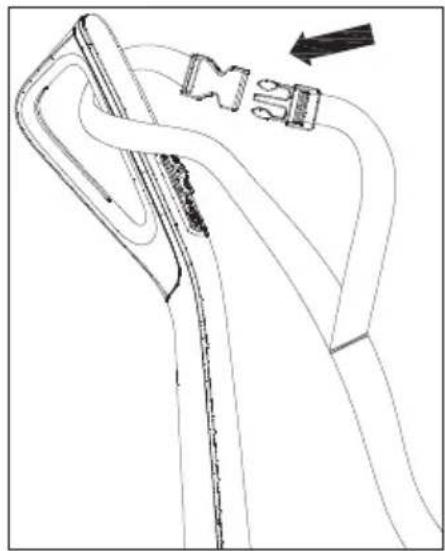

2 Attach the other end of the shoulder hanger to the handle.

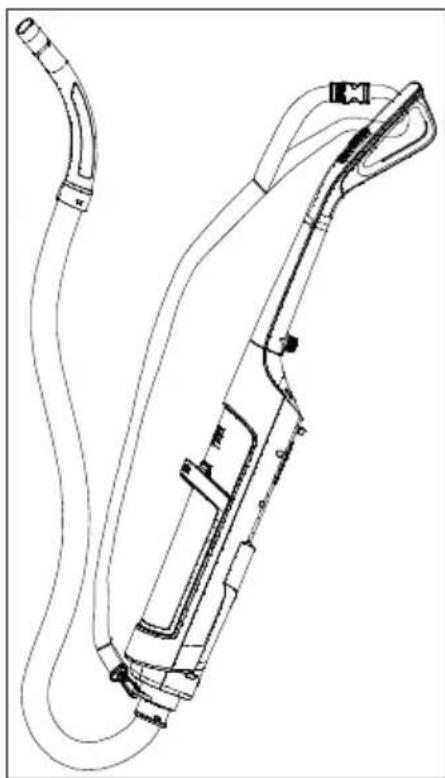

3 You can hang the appliance on your shoulder using the hanger to start cleaning.
Switch off and unplug the appliance before cleaning it.
Warning
- Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.
Cleaning the dust container
Empty the dust container H when the dust container full LED "under the charging indicator F turns red with the appliance switched on.
Note
It is recommended to clean the dust container after each use.
1 Press the dust container removal button and pull the handle of the dust container to remove it.
2 Grab and pull the cyclone from its handles and take it out from the dust container H.
3 Empty the dust container.
4 Place the cyclone to its housing according to the arrow mark on it.

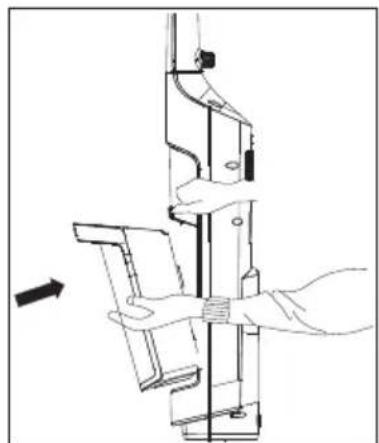

5 Place the dust container into the body of the appliance.
Cleaning the cyclone
1 Press the dust container removal button and pull the handle of the dust container to remove it.
2 Grab and pull the cyclone from its handles and take it out from the dust container H.

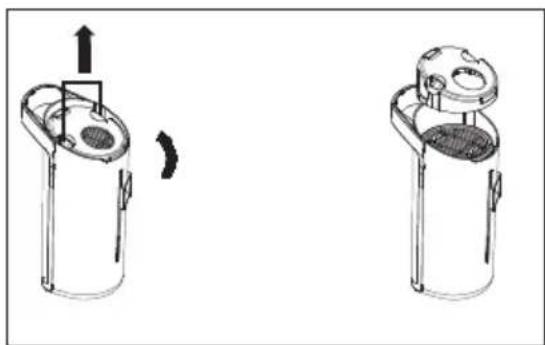

3 Rotate the cyclone cap counterclockwise to remove it.
4 Remove the HEPA filter on the cyclone.
5 Clean the cyclone by washing it under running water.
6 Follow the steps above in reverse order to assemble the parts together again.
Cleaning the HEPA filter
1 Press the dust container removal button and pull the handle of the dust container to remove it.
2 Grab and pull the cyclone from its handles and take it out from the dust container H.
3 Rotate the cyclone cap counterclockwise to remove it.
4 Remove the HEPA filter on the cyclone.
5 You can wash the filter under running water after shaking it off.
6 If you wash the HEPA filter, dry it at room temperature (for 24 hours minimum). Do not use them before ensuring that they are completely dry.
7 Install the HEPA filter to the cyclone housing and fit the cyclone into the dust container H.
8 Attach the dust container to the body again.
Cleaning the foam filter
1 Press the dust container removal button and pull the handle of the dust container to remove it.
2 Grab and pull the cyclone from its handles and take it out from the dust container H.
3 Rotate the cyclone cap counterclockwise to remove it.
4 Remove the HEPA filter on the cyclone.
5 Remove the foam filter under the HEPA filter.
6 You can wash the filter under running water after shaking it off.
7 If you wash the HEPA filter, dry it at room temperature (for 24 hours minimum). Do not use them before ensuring that they are completely dry.
Cleaning the turbo brush

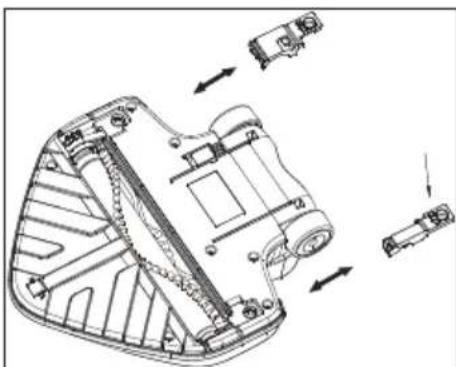

1 Twist the removal button of the turbo brush cylinder lid with the help of a screwdriver or a coin and unlock the lid of the brush cylinder.
2 Open the lid of the brush cylinder, remove and clean the brush.
3 Clean the brush roller with a damp cloth, attach it to its place and lock the tab.
Storage
If you do not intend to use the appliance for a long time, please store it carefully.
Please make sure that the appliance is unplugged, cooled and totally dry.
Store the appliance in a cool and dry place.
- Keep the appliance out of the reach of children.
Moving and transportation
During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
- Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
- Dropping the appliance may render it non-operational or cause permanent damage.
Compliance with the WEEE Directive and Disposing of the Waste Product:
This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).
This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic
and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.
Compliance with RoHS Directive
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.
Information on Waste Batteries
This symbol on rechargeable batteries/ batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain recharge
able batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005% mercury or more than 0,004% lead.
Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.
Package information
Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of
the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
Technical data
Rated voltage : 36 V
Maximum power : 40 V
Adaptor input :
100-240V\~,50-60Hz
Adapter output : 42.2 V 350 mA
Protection class : II
Rights to make technical and design changes are reserved.
