Product type	Pedestal fan
Brand	Koenic
Model	KTF 2321M
Propeller diameter	23 cm
Weight	Approx. 1.77 kg
Rated voltage	220 – 240 V~, 50 Hz
Rated power	21 W
Protection class	II (double insulation)
Number of speeds	3 (Low, Medium, High)
Tilt adjustment	Yes, adjustable angle
Annual electricity consumption	6.94 kWh/a
Sound power level	52.52 dB(A)
Maximum airflow	22.97 m³/min
Service value	1.06 (m³/min)/W
Use	Indoor only
Maintenance and cleaning	Possible disassembly of grille and blades; clean with soft cloth and mild detergent; do not immerse
Safety	Protective grille; complete stop before cleaning; do not cover; household use only
Spare parts	Front and rear grille, propeller, base, screws, power cord (non-separable)
Warranty and repairability	Repair only by an authorized service; power cord not replaceable by user
Package contents	1 metal fan, 1 user guide

Frequently Asked Questions - KTF 2321M Koenic

How to turn the fan on and off?

Use the control buttons: press 1 (Low), 2 (Medium) or 3 (High) to turn on, and 0 to turn off.

How to adjust the tilt of the fan?

Manually tilt the fan head to the desired angle. The grille must be fully closed during operation.

Can I use the fan outdoors?

No, this fan is designed for indoor use only. Do not expose it to rain, humidity or direct sunlight.

How to clean the fan?

Unplug the appliance and wait for it to stop completely. Remove the front grille by unscrewing the screws, then clean the blades and grilles with a soft cloth and a mild detergent. Never immerse the motor in water.

The fan is noisy, what should I do?

Check that the fan is properly assembled and that the blades do not touch the grille. Clean the blades and grille. If the noise persists, contact an authorized service.

What is the power consumption in standby?

Standby power consumption is not specified. In off mode (button 0), consumption is 0 W.

Can I leave the fan unattended?

No, never leave the appliance unattended while it is on. Unplug it after use.

How to disassemble the fan for cleaning?

Follow these steps: remove the screws of the front grille, take off the front grille, unscrew the screw in the propeller slot, then remove the blades from the motor shaft. Clean and reassemble in reverse order.

What to do if the power cord is damaged?

Do not attempt to repair it yourself. Only an authorized after-sales service can replace the cord to avoid any danger.

Is the fan suitable for children?

It can be used by children aged 8 years and over under supervision. Children must not play with the appliance. Cleaning must not be performed by children without supervision.

USER MANUAL KTF 2321M Koenic

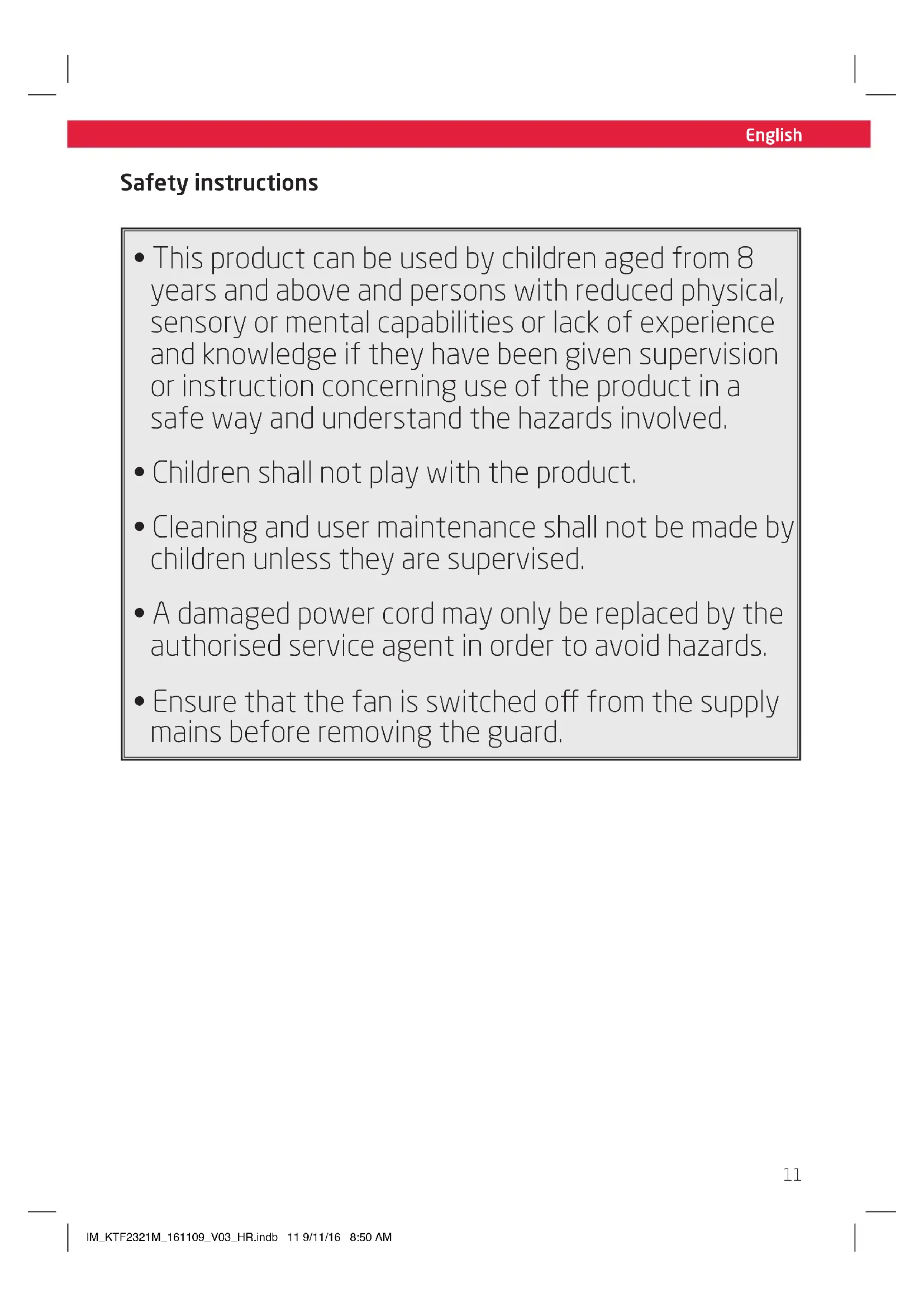

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Children shall not play with the product.
• Cleaning and user maintenance shall not be made by children unless they are supervised.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• Ensure that the fan is switched off from the supply mains before removing the guard.

English

Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• Never leave the product unsupervised while it is switched on.
• Do not place heavy objects on top of the product.
• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
  The mains voltage must match the information on the rating label of the product.
  Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.
  Only unplug from the power socket by the plug itself. Do not pull on the cord.

Unplug the product ...

• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and

• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.

• Place the product on a flat, sturdy and slip-resistant surface.

• Never use, expose or put the product near to:

• direct sunlight and dust;

• fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.

• This product is not intended for commercial use. It is designed for household use only.

• Do not remove the guard or insert any object during operation.
• Before cleaning, always let the product come to a complete stop and disconnect it from the mains.
  In order to avoid overheating, do not cover the product.
• Small children, children and older people should not be exposed to cold air currents for a long time.
• Keep product away from loose objects such as plants, curtains, etc.
  The product may only be connected to the mains once it has been completely assembled.
• Follow the instructions in the chapter Cleaning and care.

Congratulations!

Thanks for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The product is only intended for circulating room air. Only use according to these instructions. Any other use can lead to damages to product or injuries.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully take the product and its accessories out of the original packaging.

Retain the original packaging in case you would like to store the product away or transport it at a later date. If you choose to dispose of the original packaging, then please do so according to the applicable legal regulations.

Check the packaging contents for completeness and damages. Should the contents in the packaging not be complete or be damaged, do not use the product. Return it to your retail outlet immediately.

After unpacking, please refer to chapter

Cleaning and care

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the

recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Metal fan

1 x User manual

Technical data

Rated voltage:220-240V\~,50Hz

Rated power: 21 W

Protection class : II

Fan diameter:23 cm

Weight: approx. 1.77 kg

Description Symbol Value Unit
Maximum fan flow rate	F 22.97 m		3/min
Fan power input P 21.70 W
Service value S	v	1,06 (m3/min)/w
Standby power consumption	PSB	--	W
Off power consumption	POFF	0	W
Fan sound power level	LWA	52.52	dB(A)
Maximum air velocity	c	2.94	m/s
Consumption	Q	6.94	kWh/a
Measurement standard for service value	IEC 60879:1986 (corr. 1992)
Contact details for obtaining more information	Imtron GmbH Wankelstraße 5, 85046 Ingolstadt, Germany

Part list

A Front guard
B Fan blade
Rear guard
D Stand
Supply cord
F Control buttons
G Screws (4x)

English

Installation

Fig. 1 Place on a stable, level surface.

Fig. 2 Connect the power plug to a suitable electrical outlet.

Caution

The product may never be operated without the stand or in a horizontal position.

Operation

Fig. 3 To switch on the fan, press 1-3. To switch off, press 0.

0	Switch off
1	Low speed
2	Medium speed
3	High speed

Fig.4 Adjust it to the desired angle.

Caution

The guard must be completely closed when operating the product.

During operation, do not put fingers or other objects in the guard.

Cleaning and care

Caution

Before cleaning, always let the product come to a complete stop and disconnect it from the mains.

Please follow the dissambly instruction below.

Fig. 5 Uninstall the screws to unlock the guard.

Fig. 6 Take off the front guard from the rear guard.

Fig.7 Uninstall the screw from the groove.

Fig. 8 Remove the fan blade from the motor shaft.

Fig. 9 Use a soft piece of cloth for cleaning. If the dirt or contamination proves hard to remove, use mild detergent.

Note:

• Do not use solvents or abrasives, metal utensils or hard brushes for cleaning.
• Do not immerse the fan in water or other liquid. Do not allow water to drip on or into the fan motor housing.
  Dry all parts thoroughly before storage.

Fig. 10 After cleaning, assemble the fan in reverse order of disambly steps.

• Store the product in a cool, dry and clean place, out of the reach of children and pets.
