USER MANUAL IAN 279818 AURIOL

symbol (outdoor sensor)29 GB/IE

symbol (temperature station)

Day of the week display

Radio signal Temperature station

Dowel (ø 7.7 mm) Outdoor sensor

Hanging slot30 GB/IE

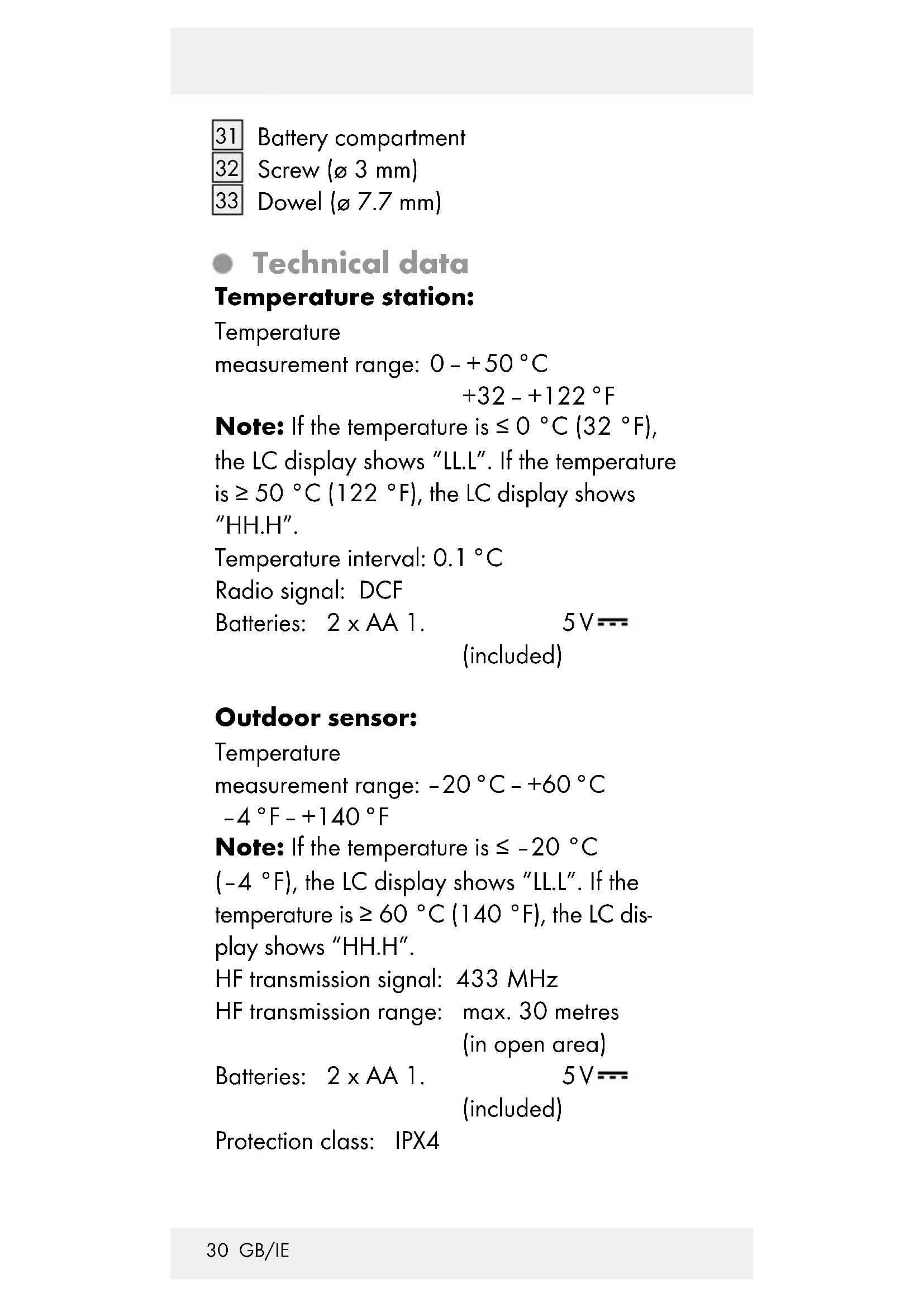

Technical data Temperature station: Temperature measurement range: 0 – + 50 °C +32 – +122 °F Note: If the temperature is ≤0 °C (32 °F), the LC display shows “LL.L”. If the temperature is ≥50 °C (122 °F), the LC display shows “HH.H”. Temperature interval: 0.1 °C Radio signal: DCF Batteries: 2 x AA 1. 5 V (included) Outdoor sensor: Temperature measurement range: –20 °C – +60 °C –4 °F – +140 °F Note: If the temperature is ≤–20 °C (–4 °F), the LC display shows “LL.L”. If the temperature is ≥60 °C (140 °F), the LC dis- play shows “HH.H”. HF transmission signal: 433 MHz HF transmission range: max. 30 metres (in open area) Batteries: 2 x AA 1. 5 V (included) Protection class: IPX431 GB/IE Safety

YOU SHOULD STORE ALL SAFETY INFOR-

MATION AND INSTRUCTIONS IN A SAFE

PLACE IN CASE YOU NEED TO REFER TO THEM AGAIN IN THE FUTURE! General safety information This appliance can be used by children aged from 8 years and above and per- sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and under- stand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Do not expose the device to an extremely high electromagnetic field. This may im- pair the correct functioning of the device. Please note that the guarantee does not cover damage caused by incorrect han- dling, non-compliance with the operating instructions or interference with the device by unauthorised individuals.32 GB/IE Safety instructions for batteries DANGER TO LIFE! Batteries can be swallowed, which may represent a danger to life. If a battery has been swallowed, medical help is required immediately. Remove the batteries from the device if they are not going to be used for a pro- longed period.

EXPLOSION! Never recharge batteries which are not rechargeable. When inserting the batteries, ensure the correct polarity! This is shown in the bat- tery compartments. Remove spent batteries immediately from the device. There is an increased danger of leaks! Keep batteries away from children do not throw the batteries in the fire, short-circuit them or take them apart. Always replace all the batteries at once. Use batteries of the same type only. Oth- erwise there is a risk of an explosion. If the batteries have leaked inside your device, you should remove them immedi- ately in order to prevent damage to the device! Avoid contact with the skin, eyes and mu- cous membranes. Any parts of the body33 GB/IE coming into contact with battery acid should be rinsed off with copious amounts of water and / or a doctor contacted if necessary! Before initial use Put the batteries first into the outdoor sensor, then into the temperature station. Note: Before initial use, remove the protective film from the device display. General information CAUTION! When choosing where to position the temperature station, make sure that it is not exposed to direct sunlight, vibra- tions, dust, heat, cold or moisture. Do not place the temperature station or external sensor near to heat sources, e.g. radiators, as this may re- sult in damage to the instruments. Place the temperature station on the ac- companying stand

Please ensure that neighbouring devices are not operated at the same frequency of 433 MHz. Such devices may cause interference to the radio connection. Do not place the devices next to or on metal plates. Otherwise the quality of ra- dio wave transmission may be reduced.34 GB/IE Radio signal (DCF): The DCF signal (time signal transmitter) is made up of time pulses transmitted from one of the highest precision clocks in the world close to Frankfurt / Main in Germany – it var- ies by 1 second in 1million years. In ideal conditions, your temperature station can pick up this signal over a distance of up to approx. 1,500 km around Frankfurt / Main. Preparing to use the outdoor sensor Inserting the batteries: Remove the battery compartment cover from the back of the outdoor sensor. Insert two 1. 5 V batteries (AA) (in- cluded) into the battery compartment

Note: Make sure you fit the batteries the right way round (polarity). This is shown in the battery compartment (see. fig D). The outdoor sensor is now ready for use and the control LED

illuminates briefly. Close the battery compartment cover. If this does not work, carry out a restart, if necessary. To do this, press and keep pressed the Z

(restart the outdoor sensor only). Preparing the temperature station for use Inserting the batteries: Open the battery compartment

on the back of the temperature station.35 GB/IE Insert two 1.5 V batteries (AA) (in- cluded) into the battery compartment. Note: Make sure you fit the batteries the right way round (polarity). This is shown on the battery compartment (see. fig B). Close the battery compartment cover. Connecting the temperature station with the outdoor sensor and the DCF radio signal: After the batteries have been inserted, the temperature station attempts to establish a connection with the outdoor sensor. This pro- cess can take a few minutes. The symbol

flashes. Once the device has successfully con- nected to the external sensor, the symbol

stops flashing and the temperature is shown in the LC display. Note: If the temperature station does not receive the signal from the outdoor sensor within 3 minutes, the temperature station automatically starts with the reception of the radio time signal. After successful reception of the outdoor sen- sor signal or after 3 minutes, the temperature station starts with the reception of the radio time signal. This process can take up to 5 min- utes and is indicated in the LC display by the flashing symbol

After successful reception of the DCF radio signal, the symbol is displayed continuously in the LC display.36 GB/IE Note: Do not move the temperature station while it is receiving the signal. Otherwise this could interfere with reception.If synchronisation is not possible when the temperature station is being first set up, try changing the location (e.g. place the temperature station near to a window). Reception may be considerably reduced by obstructions (e.g. concrete walls) or sources of interference (e.g. other electrical devices). If the reception of the radio signal continues to be interrupted, you can set the time and date manually (see “Setting the language / time zone / time / date manually”). Mounting the temperature station and / or the outdoor sensor on a wall: Note: You will require an electric drill and a crosshead screwdriver for this step.

CAUTION! DANGER TO LIFE, RISK

OF INJURY AND MATERIAL DAMAGE! Read the operating and safety instructions for your drill carefully. DANGER TO LIFE! Take care that you do not hit electricity, gas or water lines when you drill into the wall. If necessary, check with a pipe and cable de- tector before drilling.37 GB/IE Temperature station Mark the position of the hole (ø approx.

7.7 mm) on the wall.

Drill the hole with an electric drill. Insert the dowel

into the drilled hole. Using a crosshead screwdriver, screw the screw

into the dowel. Hang the temperature station by placing the hanger

on the screw. External sensor Mark the position of the hole (ø approx.

7.7 mm) on the wall.

Drill the hole with an electric drill. Insert the dowel

into the drilled hole. Using a crosshead screwdriver, screw the screw

into the dowel. Hang the external sensor by placing the hanger

on the screw. Note: Ensure that the external sensor does not come into contact with water or direct sunlight. Electronic devices may adversely affect the wireless signal reception. Setting the language / time zone / time / date manually The reception of DCF radio signal where the temperature station has been positioned may become degraded or interrupted. If this hap- pens you can set the device manually.  1. Press and hold down the CLOCK button

for about 3 seconds.38 GB/IE  2. Press the SET / RESET button

to switch between the 12- and 24-hour clock dis- play modes.  3. Press the CLOCK button to confirm your settings. The language option flashes. Tip: If you press and hold down the SET / RESET button, you accelerate the process and reach the desired value more quickly. This quicker method can also be used for making the following settings. If during a period of 30seconds no buttons are pressed, the LC display returns automati- cally to the default display.  4. Press the SET / RESET button to set the desired language (GE = German, FR = French, SP = Spanish, IT = Italian, EN = English).  5. Press the CLOCK button to confirm your settings. The time zone display flashes.  6. Press the SET / RESET button to set the desired time zone for time zone 2 (–12 hours to +12hours). Note: Should you be in a country in which the DCF signal can be received but the time is different to your current local time, you can use the time zone setting to have the clock display your current local time. If you find yourself in a country in which, for example, the local time is an hour ahead of Central European Time (CET), you set the time zone to +01. The clock is now still controlled by DCF but shows the time as one hour ahead of39 GB/IE CET. If you wish to know what the time is in the USA for example, then simply by setting the time zone value to e.g. –10 you will obtain the current local time in Los Angeles etc.  7. Press the CLOCK button to confirm your settings. The hour display flashes.  8. Press the SET / RESET button to set the desired value.  9. Press the CLOCK button to confirm your settings.

11. After this, the LC display returns to the de-

fault display. Displaying summer time Summer time is indicated by the DST symbol

the LC display. The temperature station au- tomatically detects from the DCF radio signal whether it is summer time or not. Calling up the time zone The default display shows the time zone ac- cording to the information provided by the DCF signal. Press the CLOCK button

appears in the LC display.40 GB/IE Press the CLOCK button again to return to the default display. Setting the alarm time You can set two different alarm times.  1. Press and hold down the ALARM button

for about 3 seconds. Note: If an alarm time has been set be- fore, then that previously set alarm time appears in the LC display. If not, then the display shows 0:00 or AM 12:00.  2. The hour display flashes. Press the SET / RESET button

to set the desired value.  3. Press the ALARM button to confirm your settings. The minute display flashes.  4. Press the SET / RESET button to set the desired value.  5. Press the ALARM button to confirm your settings.  6. Repeat steps 2 to 5 to set the time for Alarm 2. Calling up the alarm times Press ALARM button

once or twice to call up the set time for Alarm 1 or Alarm 2 respectively. Press the ALARM button again to return to the default display. Switching the alarm on / off Press the SET / RESET button

once to activate Alarm 1. Press the SET / RESET41 GB/IE button twice to activate Alarm 2. Press the SET / RESET button three times to activate Alarm1 and Alarm 2. Note: The symbol or appears in the LC display. The alarm signal sounds as soon as the set alarm time is reached. The alarm signal ceases automatically after a period of 2minutes. Press the SELECT

to switch off the alarm signal before it switches off automatically. Note: The alarm signal sounds every day at the set time. Press the SET / RESET button three times to deactivate Alarm 1. Press the SET / RESET button twice to deactivate Alarm

2. Press the SET / RESET button once to

while the alarm signal is sounding to activate the snooze function. The alarm signal is silenced and the displays or and Z

flash. The alarm signal sounds again after approx. 5 minutes. Press the SELECT button

to deactivate the snooze function.42 GB/IE Displaying temperature The LC display shows the indoor temperature

and the outdoor temperature

for approx. 3 seconds. The °C dis- play flashes. Press the SET / RESET button

to switch between the °C (Celsius) and °F (Fahr- enheit) temperature scales. Press the SELECT button to confirm your settings. Calling up the minimum / maximum values The temperature station stores the maximum and minimum values of the outdoor sensor and of the temperature station itself. Press the SELECT button

to display the maximum values of the indoor and out- door temperature. Press the SELECT button again to display the minimum values of the indoor and outdoor temperature. Press the SET / RESET button

while the maximum and minimum values, are being displayed to reset the values. Press the SELECT button, to return to the default display.43 GB/IE Displaying temperature trends After successfully connecting with the outdoor sensor, the temperature station can display the temperature trend (outdoor)

and the temperature trend (indoor)

You may see the following displays: = The temperature is rising. = The temperature is constant. = The temperature is falling. Battery state display The

symbols appear in the temperature station’s LC display if the batteries in the outdoor sensor or the temperature station are weak. Replacing the batteries Open the battery compartment

Remove the exhausted batteries. Insert two new 1.5 V batteries ( AA) into the battery compartments. Note: Make sure you fit the batteries the right way round (polarity). This is shown in the battery compartments (see Figs. B + D)

Symbol / (alarm 1 / alarm 2)
