USER MANUAL FS 45 R ECG

1. Front grill
2. Safety nut of the fan blade
3. Fan blade
4. Safety nut of the fan grill
5. Rear grill
6. Control panel
7. Telescopic pole
8. Fixed pedestal
9. Base feet
10. Safety nut of the telescopic pole
11. Cover of the base and pedestal joint
12. Safety screw of the fan body
13. Fan body
14. Motor shaft
15. Remote control

HR/BIH

1. Prednja mrežica
2. Sigurnosna matica kola ventilatora
3. Lopatice i kolo ventilatoria
4. Osiguravajuca matica mreze ventilatora
5. Stražnja mrežica
6. Upravljacka ploča
7. Teleskopska noga
8. Fiksna noga
9. Nogari stalka
10. Osiguravajuca matica teleskopske noge
11. Ukrasna rozeta spoja stalka i noge
12. Osiguravajuci vijak tijela ventilatora
13. Tijelo ventiladora
14. Osovina motora
15. Daljinski upravljač

SI

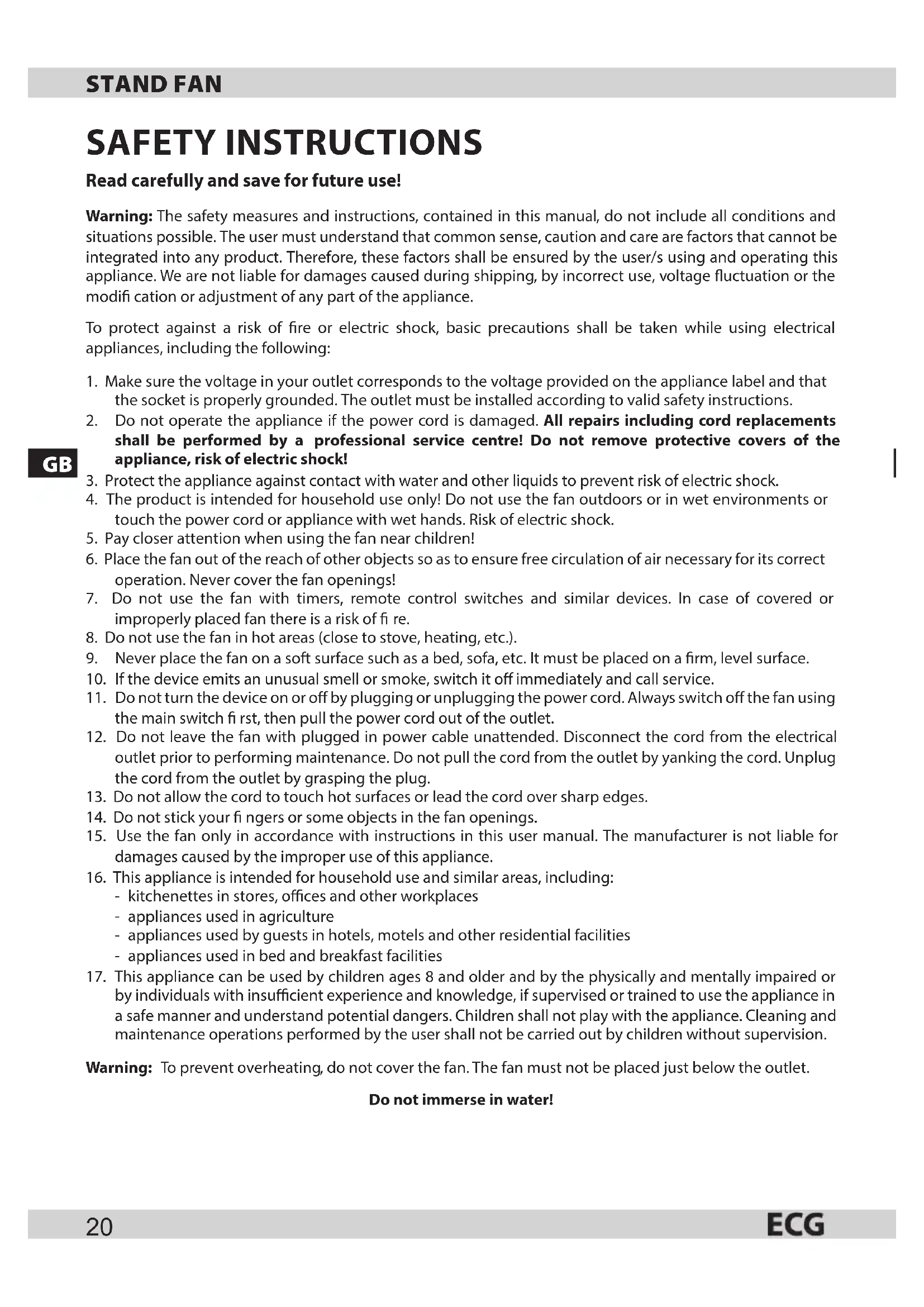

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
2. Do not operate the appliance if the power cord is damaged. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!
3. Protect the appliance against contact with water and other liquids to prevent risk of electric shock.
4. The product is intended for household use only! Do not use the fan outdoors or in wet environments or touch the power cord or appliance with wet hands. Risk of electric shock.
5. Pay closer attention when using the fan near children!
6. Place the fan out of the reach of other objects so as to ensure free circulation of air necessary for its correct operation. Never cover the fan openings!
7. Do not use the fan with timers, remote control switches and similar devices. In case of covered or improperly placed fan there is a risk of fire.
8. Do not use the fan in hot areas (close to stove, heating, etc.).
9. Never place the fan on a soft surface such as a bed, sofa, etc. It must be placed on a firm, level surface.
10. If the device emits an unusual smell or smoke, switch it off immediately and call service.
11. Do not turn the device on or off by plugging or unplugging the power cord. Always switch off the fan using the main switch first, then pull the power cord out of the outlet.
12. Do not leave the fan with plugged in power cable unattended. Disconnect the cord from the electrical outlet prior to performing maintenance. Do not pull the cord from the outlet by yanking the cord. Unplug the cord from the outlet by grasping the plug.
13. Do not allow the cord to touch hot surfaces or lead the cord over sharp edges.
14. Do not stick your fingers or some objects in the fan openings.
15. Use the fan only in accordance with instructions in this user manual. The manufacturer is not liable for damages caused by the improper use of this appliance.

16. This appliance is intended for household use and similar areas, including:

17. kitchenettes in stores, offices and other workplaces

18. appliances used in agriculture
19. appliances used by guests in hotels, motels and other residential facilities

20. appliances used in bed and breakfast facilities

21. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children without supervision.

Warning: To prevent overheating, do not cover the fan. The fan must not be placed just below the outlet.

Do not immerse in water!

ASSEMBLY

Notice: The fan may be used only if it is properly and completely assembled, including the base and the guard grill. If you have any doubt, have the appliance inspected or assembled by a qualified professional.

Stand

1. Assemble the cross legs ⑨ and using the 4 included screws attach the fixed pedestal to this base ⑧ .
2. Unscrew the safety nut of the telescopic part from the pedestal to enable to put cover on the pedestal, which covers the joint of the base and the pedestal.
3. Extend the telescopic pole ⑦ to required height and secure it with the safety nut 10.

Fan

1. Put the rear grill ⑤ on the body of the motor and attach it so that the tabs fit into the matching openings. Secure with nut ④ .
2. Attach the fan propeller ③ on the shaft ④ of the motor so that the notches match the grooves on the shaft. Secure with nut ② . Tighten the nut counterclockwise.
3. Attach the front grill ① to the rear part of the grill ⑤ and lock it using clamps. For safety reasons, the grill has to be secured using the included nuts and bolts screwed into the holes around the perimeter of the grill (holes for the screws must be at the bottom).
4. Attach the body of the fan to the telescopic part of the pedestal and secure it with locking screw ②

USE

Make sure prior to each use that the fan is in good condition and the power cord is not damaged. The appliance must not be used when the power cord is damaged.

You can control the functions of the fan either using the buttons on the control panel ⑥, or using remote control ⑤. You have to point the remote control at the control panel. Before you use the remote control, insert in it two AAA batteries (size AAA, not included). Pay attention to correct polarity of the batteries.

Ventilation:

1. Plug the fan into an electrical outlet and switch it on by pressing ON-SPEED button on the remote control or on the panel of the device. The fan starts at lowest speed.
2. Select the desired speed by repeatedly pressing the ON-SPEED. The indicator of the control panel shows the selected speed: LOW (minimal), MID (medium), HIGH (maximum).
3. To turn off the fan, press on the remote control or panel of the device the OFF button. Then unplug the power cord.

Horizontal oscillation (left-right)

Operated by the "SWING" button on the remote control or panel of the device. The proper indicator lights up on the panel. If you want the movement stopped, press the button again. The indicator "SWING" switches off.

Vertical tilt (up/down)

To set it, grasp the head of the motor and tilt it in the desired direction. You will hear a click indicating the locking of the head in the chosen position.

Timer

This feature allows you to set the time after which the fan is automatically turned off .

• Set the timer by repeatedly pressing the button TIMER on the remote control or on the panel of the device. Every pressing of the button extends the set time by half an hour until the maximum 7,5 hours. The LEDs on the panel show the set time (0,5h, 1h, 2h, 4h). The time is given as a sum of LEDs (for example if the timer is set for 5,5 hour the LEDs show 0,5h + 1h + 4h ).
• If you want to deactivate the timer, set the maximum time and press TIMER once again (all LEDs turn off).
• To turn off the fan, press on the remote control or panel of the device the OFF button. Then unplug the power cord.

When you are not using the device, always unplug the power cord from the electrical outlet.

CLEANING AND MAINTENANCE

• Before cleaning pull out the plug of the power cord from the outlet!
• Use soft, dry cloth for cleaning. Do not use solvents or other chemicals.
• Make sure that no liquid seeped into the motor.
• If the fan is not used for long time, it is necessary to protect it from dust and moisture. We recommend that you store it in its original packaging.
• When dismantling the fan, proceed in reverse order of the assembly.

We recommend to keep the packaging for possible transportation or storage of the fan.

TECHNICAL SPECIFICATIONS

Nominal voltage: 220 - 240V 50Hz

Nominal input power: 50 W

Noise level: 52 dB

Fan diameter 40 cm

Remote control: 2 × AAA batteries (not included)

GB

WARRANTY: The following situations void the warranty:

Incorrect or inappropriate handling of the device, failure to observe safety measures applicable to the device, the use of force, alterations or repairs made by a party other than authorized service center.

Components subject to normal wear and tear are not covered under warranty.

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard - deliver to scrapyard. Packing foil, PE bags, plastic elements - throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.

08/05

SIGURNOSNEUPUTE

Procitajte pazljivo i sačuvajte za buduću upotrebu!

Pozor: Mjere opreza i upute nePokrivaju sve moguce situacije i opasnosti do kojih moze doci. Korisnik treba biti svestan da faktore sigurnosti kao sto su oprezno, brižno i razumno rukovanje ici moguce ugraditi u proizvod. Stoga sám korisnik ovog uredaja treba osigurati prisutnost tih sigurnosnih faktora. Nismo odgovorni za štete nastale prijevozom, nepravilnim koristenjem, promjenama napona te modificiranjem ili zamjenom bilo kojeg lijela uredaja.
