Product Type	Table Fan
Model	FT 30a
Brand	ECG
Fan Diameter	30 cm (12 inches)
Rated Voltage	230 V ~ 50 Hz
Rated Power	40 W
Noise Level	63 dB
Speed Settings	3 (Low, Medium, High)
Oscillation	Yes, with push-button control
Tilt Adjustment	Yes, via vertical setting nut
Safety Features	Overheat protection; automatic shut-off
Cleaning Instructions	Wipe with damp cloth; do not immerse in water
Assembly Required	Yes, base and guard grille
Intended Use	Household and similar indoor areas
Disposal	Recycle as electronic waste; do not dispose with household waste

Frequently Asked Questions - FT 30a ECG

How do I assemble the ECG FT 30a fan?

First, install the shaped base by snapping it onto the base pins and securing with the 3 included screws. Then, mount the back screen and propeller according to the manual: remove the plastic protector, slide the propeller onto the motor shaft, and secure with the nut. Finally, attach the front screen and tighten the screws.

How do I clean the fan?

Always unplug the fan before cleaning. Wipe plastic parts with a damp cloth or sponge dipped in mild soap, then dry thoroughly. Do not immerse the fan in water.

What are the speed settings and how do I use them?

The fan has 3 speed settings: 1 (low), 2 (medium), and 3 (high). Turn the speed control knob to the desired setting. Position 0 turns the fan off.

How do I enable oscillation?

Push the automatic rotation control down to start oscillation. Pull it up to stop the rotation.

Can I adjust the tilt of the fan head?

Yes, loosen the vertical setting nut, adjust the fan head to the desired angle, then retighten the nut securely.

What should I do if the fan stops working?

First, check that the fan is plugged in and the outlet has power. If the fan has overheated, the heat protection may have activated; unplug and let it cool down. If the problem persists, contact a professional service center.

Is the fan safe to use near children?

Close supervision is required when operating near children. Ensure the fan is placed on a stable surface out of reach of children to prevent tipping or injury.

What does the noise level of 63 dB mean?

63 dB is comparable to normal conversation or background music. It is a moderate noise level for a table fan.

Can I use the fan outdoors?

No, the fan is intended only for indoor household use. Do not use it outdoors or in moist environments to avoid electric shock.

What should I do with the fan at the end of its life?

Dispose of the fan as electronic waste. Do not throw it in household trash. Take it to a designated recycling center for electrical and electronic equipment.

USER MANUAL FT 30a ECG

White ECG desktop fan with three blades and mesh grille (no visible text or symbols)

FT 30

STOLNÍ VENTILÁTOR

NÁVOD K OBSLUZE

STOLOVÝ VENTILÁTOR

NÁVOD NA OBSLUHU

WENTYLATOR BIURKOWY

INSTRUKCJA OBSŁUGI

ASZTALI VENTILÁTOR

HASZNÁLATI ÚTMUTATÓ

TISCHVENTILATOR

BEDIENUNGSANLEITUNG

TABLE FAN

INSTRUCTION MANUAL

STOLNI VENTILATOR

UPUTE ZA UPORABU

LAUAVENTILAATOR

KASUTUSJUHEND

GALDA VENTILATORS

ROKASGRÂMATA

CZ

SK

PL

HU

DE

GB

HR/BIH

ET

LV

BEZPEČNOSTNÍ POKYNY

Do not immerse in water! – Neponořovat do vody!

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.

2. Do not operate the device with a damaged cord. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!

3. Protect the device against direct contact with water and other liquids, to prevent potential electric shock.

4. The product is intended only for household use! Do not operate the fan outdoors or in a moist environment and do not touch the cord or appliance with wet hands. Risk of electric shock.

5. Close supervision is necessary for operating the fan near children!

6. Place the fan out of reach of other objects to ensure sufficient air circulation needed for its proper operation. Do not cover the fan vents!

7. Do not use this fan with a program, timer, independent remote control system or any other device, which switches the fan on automatically. Risk of fire if the fan is covered or incorrectly positioned.

8. Do not use the fan in the immediate vicinity of places, where heat is accumulated (near the stove, heater etc.).

9. Do not place the fan on to a soft surface, such as a bed, sofa etc. It must be placed on a stable and flat surface.

10. If an unusual smell or smoke begins to come from the device, disconnect the device immediately and visit a service centre.

11. Do not turn the device on or off by plugging or unplugging the power cord. Always turn the fan off using the main switch; afterwards you may unplug the cord from the outlet!

12. Leaving the fan cord connected to outlet unattended is not recommended. Disconnect the cord from the electrical outlet prior to performing maintenance. Do not pull the cord from the outlet by yanking the cord. Unplug the cord from the outlet by grasping the plug.

13. Do not allow the cord to touch hot surfaces or lead the cord over sharp edges.

14. Do not put your fingers or other objects into the openings of the fan.

15. Use the fan only in accordance with the instructions given in this manual. The manufacturer is not liable for damages caused by the improper use of this appliance.

16. This appliance is intended for household use and similar areas, including:

17. kitchen corners in markets, offices and other workplaces

18. appliances used in the agricultural industry
19. appliances used by guests in hotels, motels and other residential areas

20. appliances used in bed and breakfast businesses

21. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children without supervision.

Do not immerse in water!

Warning: To prevent overheating, do not cover the fan. The fan must not be placed directly under an outlet.

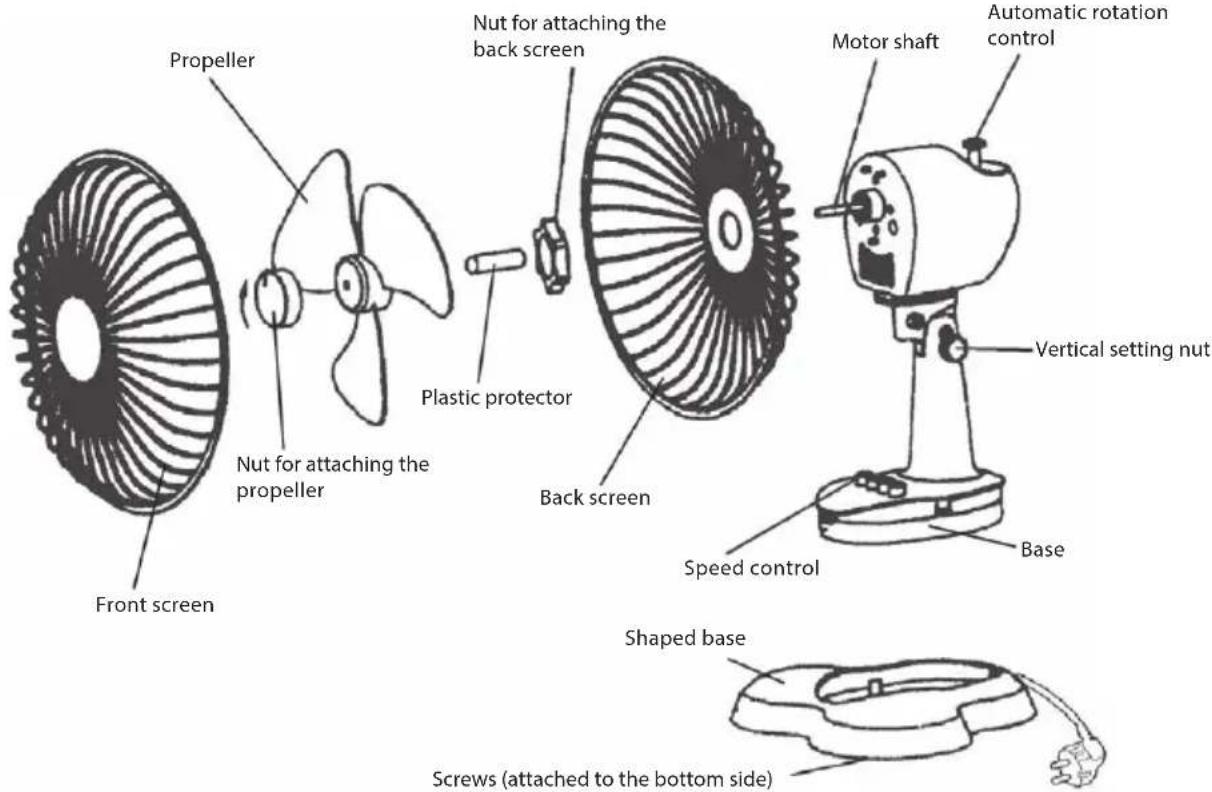

INSTALLATION

1. Unscrew the nut that attaches the propeller from the motor shaft by turning it clockwise.
2. Continue by unscrewing the nut that attaches the back screen by turning it counter-clockwise.
3. Place the back screen against the front screen of the motor with the handle facing upward. Make sure the guide pins of the motor cover are properly inserted into the screen holes.
4. Screw the nut for attaching the back screen firmly by turning it clockwise.
5. Remove the plastic protector from the shaft.
6. Place the propeller on the motor shaft by carefully sliding it on the guiding pin of the motor shaft.
7. Screw the nut for attaching the propeller to the motor shaft by rotating it counter-clockwise and tighten firmly.
8. Attach the front screen to the back screen. Insert the screws in the holes of the ring and screw nuts on to these. Do not tighten the nuts completely at this time.
9. Move the screen pins so they fall into place.
10. Finally, tighten the small screws.

GB

Note: You may register radio interference while switching fan speeds, this effect is normal for this kind of product.

Base installation

This fan includes a shaped base, which must be installed prior to using the fan for the first time. The shaped base comes with 3 screws (in a small bag taped to the bottom side of the shaped base).

Remove the bag of screws and place the shaped base on the base pins and snap on. Make sure the shaped base is secured by the pins on the fan base and screw the 3 included screws into the holes in the middle of the base. Do not tighten the screws too tightly.

HEAT PROTECTION

Heat protection is activated if an actuating unit is overloaded. The fan switches off automatically. In this case, refer to a professional service centre.

USE

The fan has 3 speeds, its rotating head ensures smooth rotation. It is quiet, with a low energy consumption, reliable and safe and at the same time, ensures effective air circulation.

0 - Fan is off.

1 - Fan is running at low speed.
2 - Fan is running at medium speed.
3 - Fan is running at high speed.

• The fan can rotate during operation.
• For the fan head to rotate, push the automatic rotation control down.
• To stop the rotation of the fan head, pull the automatic rotation control up.
• The fan head can be set up or down. Loosen the vertical setting nut, adjust the desired angle of the fan and tighten the nut again.

CLEANING AND MAINTENANCE

1. The fan must be switched off and the cord disconnected from the outlet prior to cleaning.
2. Wipe the plastic parts with a towel or moist sponge dipped into a soap agent. Wipe dry. Do not immerse the fan into water!
3. To dismantle the fan, proceed in the opposite sequence as for the assembly process.
   We recommend keeping the package for transporting the fan or storage.

TECHNICAL INFORMATION

Diameter 30 cm

Nominal voltage: 230 V\~50 Hz

Nominal input power: 40 W

Noise level: 63 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other Europe countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

and other Europ

08/05

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.
