Thank you for purchasing this product.

Please read these instructions carefully before using this product, and save this manual for future use.

For the U.S.A. and Canada

If you have any questions, visit:

U.S.A.: www.shop.panasonic.com/support

Canada: www.panasonic.ca/english/support

Register online at www.shop.panasonic.com/register(U.S. customers only)

For the United Kingdom and Ireland customers

Sales and Support Information

Customer Communications Centre

For customers within the UK: 0333 222 8777
For customers within Ireland: 01 447 5229
- Monday-Friday 9:00 am - 5:00 pm, (Excluding public holidays).
For further support on your product, please visit our website: www.technics.com/uk/

Safety precautions

WARNING

• Do not disassemble or modify the product. Doing so may cause damage or fire.
• Do not place the speakers in unstable locations, such as on a wobbly table or sloping surface. Do not place the speakers on high or uneven surfaces or on surfaces vulnerable to vibrations or shocks. If the speakers tip over or fall, personal injury may result.
• Keep small accessories out of reach of children. If accidentally ingested, there will be adverse physical effects. Should you suspect that small accessories have been ingested, consult your physician immediately.
• Do not hang the speakers from the ceiling or on the wall. Doing so may cause the speaker to fall off, causing personal injury.
• Do not insert objects into the holes of the bass reflex ports on the rear side. Doing so may cause a fire or personal injury. Be extra cautious when children are near.

CAUTION

• Do not stand on or hang down from the speakers. If the speakers tip over or are damaged, personal injury may result.
• Do not use the speakers over a long period of time when the sound is distorted. Doing so may cause the speakers to overhear, resulting in a malfunction or fire.

• Do not place heavy or large items on the speakers. If the speakers tip over or fall, personal injury may result.

• Do not touch the diaphragms. Doing so may deform the diaphragms, and as a result, sound may not be output correctly.

• Keep the speakers out of reach of children, including infants. Not doing so may cause personal injury if the speakers tip over.
• Do not place the speakers in locations subject to extremely high temperatures. In particular, avoid locations exposed to direct sunlight and near heating equipment. Please also note that doing so may cause the outer casing or internal components to deteriorate.
• Do not place the speakers in locations subject to greasy fumes or steam, or in humid or dusty locations. Doing so may cause electricity to be conducted through oil, moisture or dust, resulting in a fire or electric shock.
• Keep magnetic items away from the product. Powerful magnets inside the speakers and speaker nets may damage debit cards, travel cards (transit passes), clocks and other objects.
• Do not insert a finger into the bass reflex ports on the rear of the speakers. Pay close attention to children as doing so may cause personal injury.
• Do not connect the speakers to an amplifier with an output greater than their allowable input. Doing so may cause the speakers to overheat, resulting in a fire.
  Each speaker must be carried and installed by at least two people. Dropping it may cause injury.
• Secure the speakers against tipping over. If they tip over in a disaster such as a powerful earthquake or in an accident, personal injury may result.
• Before use, be sure to attach the base plates and either the spikes or the rubber foot. Otherwise, the product may tip over, causing injury.

13/14

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Table of contents

Safety precautions. 06

Accessories. 07

About this unit. 08

Installation 09

Connections 16

Attaching the speaker nets 18

Notes on use. 19

Unit care. 19

Specifications 19

Limited Warranty (ONLY FOR U.S.A.) 160

Limited Warranty (ONLY FOR CANADA) 161

About descriptions in this Owner's Manual

The illustrations shown may differ from your unit.

Accessories

4 Spikes (TBLA40861)

4 Spike shoes (TYL0079)

4 Rubber feet (TBLG32691)

12 Base plate screws (THEL155Z)

2 Base plates A (TBLA40852)

2 Base plates B (TBLA41091)

4 Spacers (TMKK653)

1 Speaker net (TTJ0006-A)

1 Cleaning cloth (TXFPE01LHUU)

Before use, be sure to attach the base plates and either the spikes or the rubber foot.

• Keep small accessories out of reach of children to prevent swallowing.

Product numbers provided in this Owner's Manual are correct as of February 2017. These may be subject to change.
- The speakers are not supplied with speaker cables. For connection, use commercially-available speaker cables.

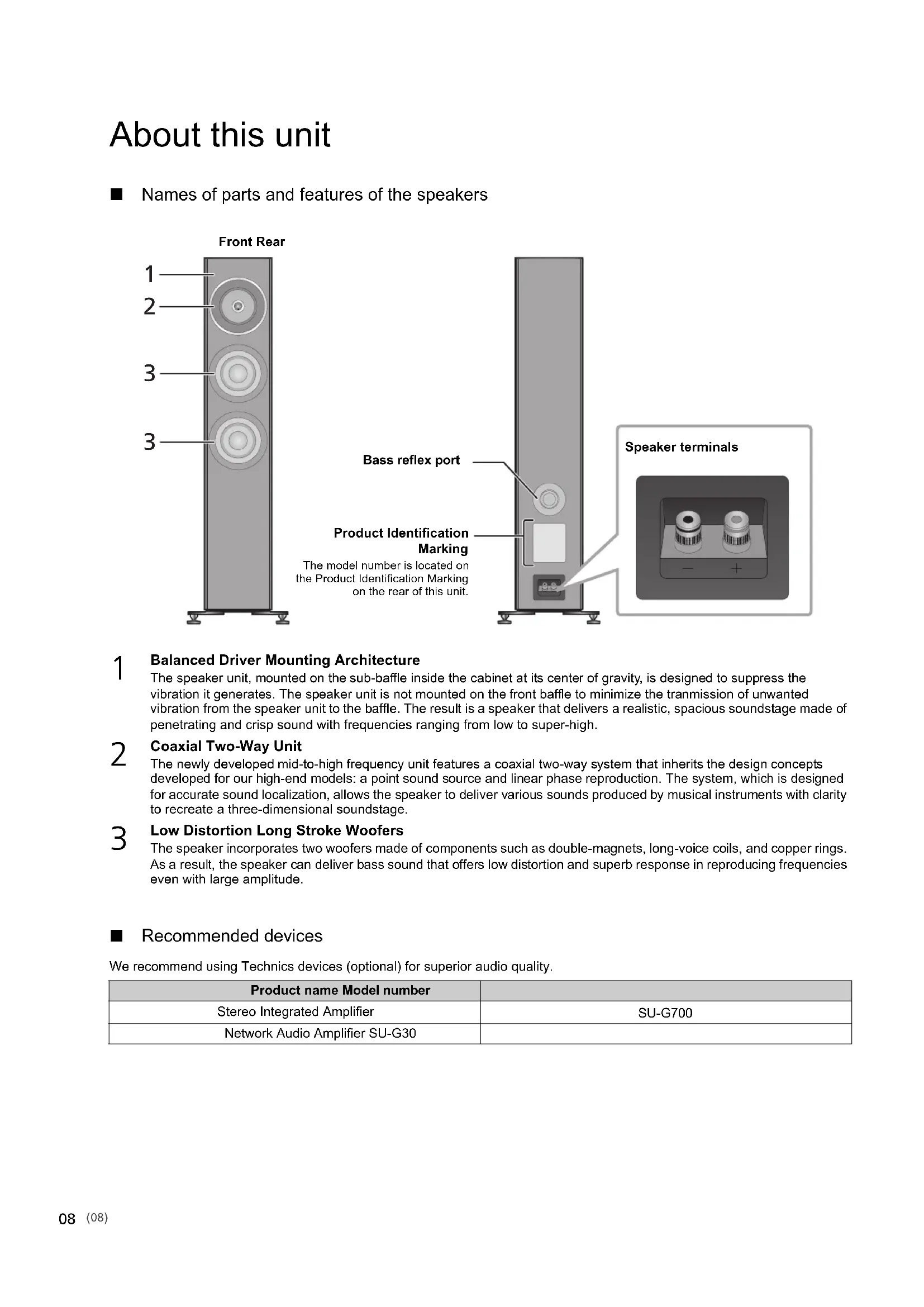

About this unit

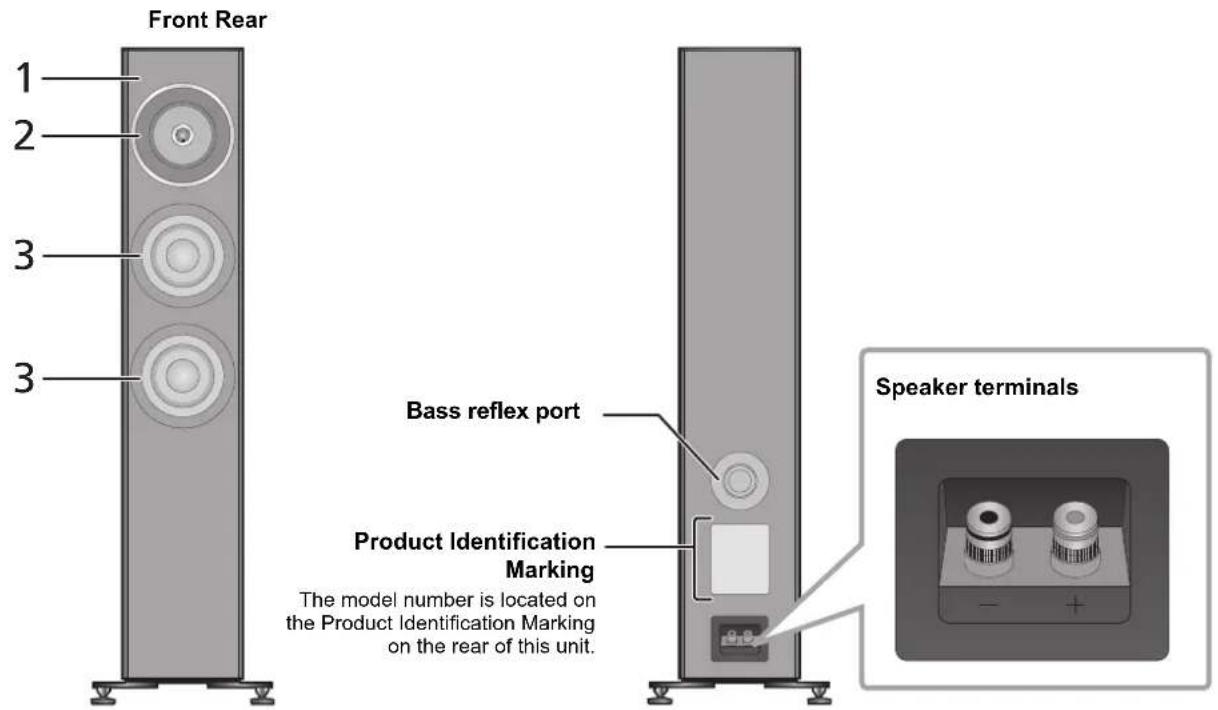

Names of parts and features of the speakers

1 Balanced Driver Mounting Architecture

The speaker unit, mounted on the sub-baffle inside the cabinet at its center of gravity, is designed to suppress the vibration it generates. The speaker unit is not mounted on the front baffle to minimize the transmission of unwanted vibration from the speaker unit to the baffle. The result is a speaker that delivers a realistic, spacious soundstage made of penetrating and crisp sound with frequencies ranging from low to super-high.

Coaxial Two-Way Unit

The newly developed mid-to-high frequency unit features a coaxial two-way system that inherits the design concepts developed for our high-end models: a point sound source and linear phase reproduction. The system, which is designed for accurate sound localization, allows the speaker to deliver various sounds produced by musical instruments with clarity to recreate a three-dimensional soundstage.

3 Low Distortion Long Stroke Woofers

The speaker incorporates two woofers made of components such as double-magnets, long-voice coils, and copper rings. As a result, the speaker can deliver bass sound that offers low distortion and superb response in reproducing frequencies even with large amplitude.

Recommended devices

We recommend using Technics devices (optional) for superior audio quality.

Product name Model number
Stereo Integrated Amplifier	SU-G700
Network Audio Amplifier SU-G30

Installation

e.g.,

※ Speaker units

Each speaker must be carried and installed by at least two people.
- Do not touch the speaker units. Doing so may result in incorrect audio quality.
- Place the speakers at approximately the same distance from the listening position.
- The speakers produce bass sound from the bass reflex ports on the rear as well as from the front. Install the speakers at least 5cm ( 2'' ) away from the walls so that they do not cover the bass reflex ports on the rear.
- Keep the amplifier or any other device and the speakers at least 1cm (^13 / 32^ ) away from each other.

For optimum position

The quality and volume of the bass sound, sound localisation performance, sound ambience, and other factors that determine the audio quality vary depending on the installation location of this unit, listening position, room conditions, and other factors. Refer to the information below when installing the speakers.

Determining an installation location.

Each speaker has a mass of approximately 32kg (71 lbs). Check that the installation location is strong enough to bear this mass.
If you need to secure the speakers against tipping over, consult an installation specialist. The strength of the floor and wall must be verified. (→ 15)
- Put the speakers on a flat safe surface.

If the speakers wobble when placed, use the spacers. (→ 13, 14)

To minimise the gap in audio quality between the left and right speakers, install them so that acoustic conditions (reflection and absorption of sound) around them are the same.

Adjusting the distances between the rear of the speakers and the walls

If you install the speakers close to a wall or in a corner, the bass sound will be more powerful; however, when the speakers are too close to it, sound localisation performance and sound ambience may deteriorate. If this occurs, adjust the distance between the speakers and the front wall, which should be between 30~cm (12^ ) to 60~cm (24^ ) . (Please note that the distance between the speakers and the side walls should be greater than 60~cm (24^ ) .)

• Do not drag the speakers by force. Doing so may damage the speaker and the floor.

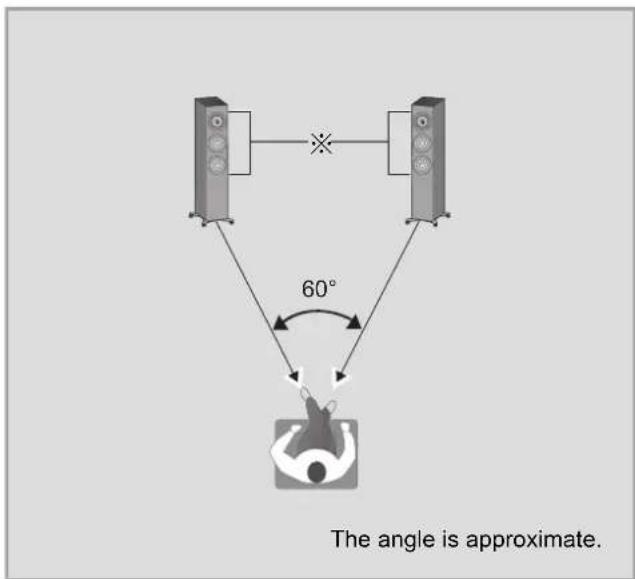

Adjusting the angle of the speakers

Angle the front side of the speakers toward the listener. Following these steps will help the speakers deliver more precise sound localisation.

Adjusting the acoustics of the room and speaker layout

Depending on the room environment (including the size and shape of the room, distance to the walls and reverberation level), certain sounds may be exaggerated or suppressed, making them difficult to hear. In such cases, adjusting the reverberation level by moving the speakers, changing your listening position or covering the walls and windows with thick curtains may help resolve the problem.

The spikes may enhance the audio quality. ( 12)

Attaching the base plates

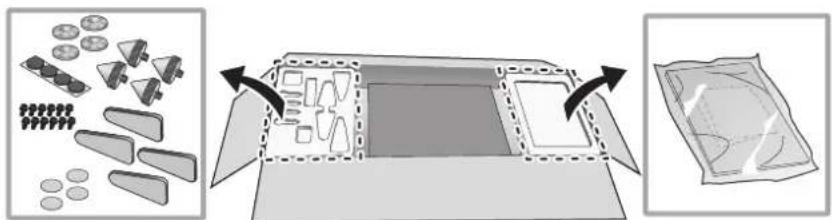

① Remove the accessories.

• Remove the accessories from the styrofoam blocks, and place them in a location away from children.

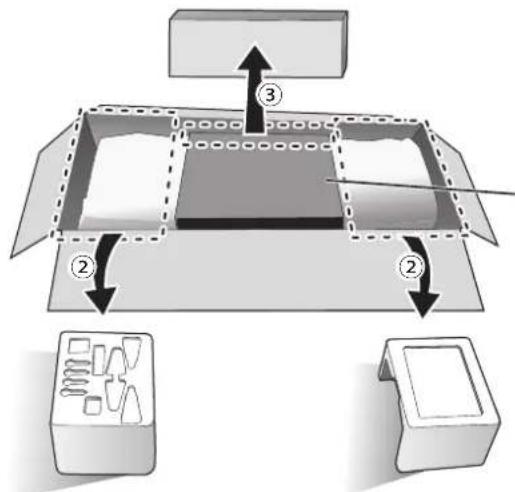

② Place the styrofoam blocks in an area suitable for work.
③ Remove the packaging box of the speaker net.

Leave the cardboard in place to protect the speaker unit.

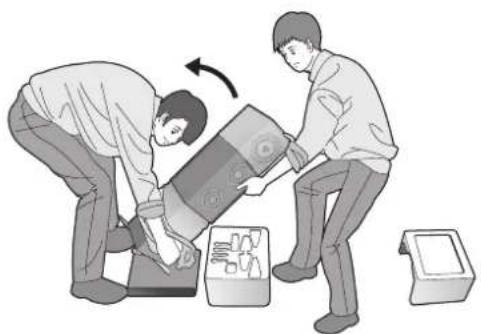

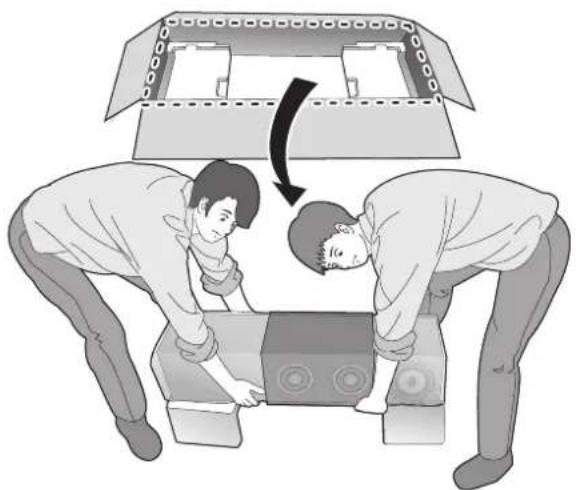

④ Place the speaker on the styrofoam blocks removed in Step ②.

• Keep the following points in mind when lifting up the speaker.
• Hold the bottom so that your hands do not slip.

⑤ Roll up the protective bags (2 pcs) to uncover the bottom of the speaker.

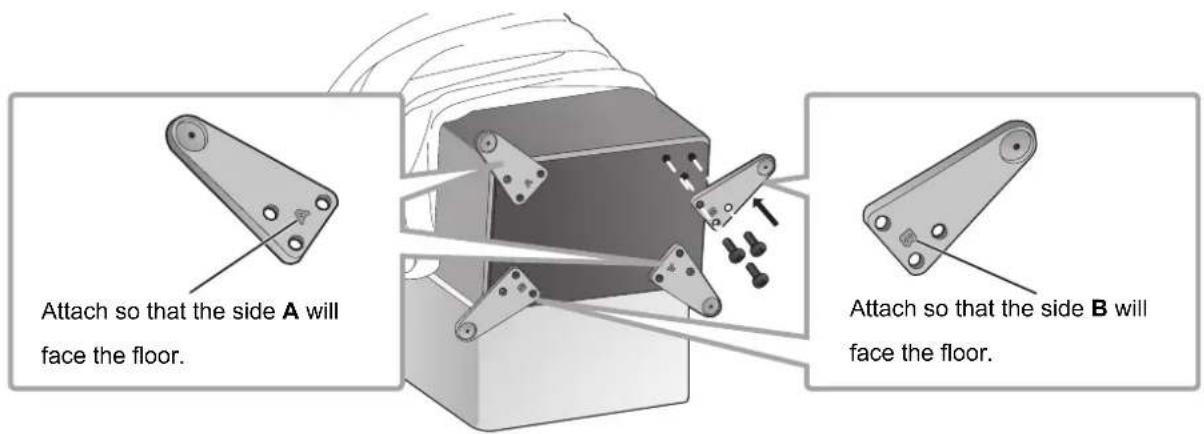

⑥ Attach the base plates (4 pcs) to the speaker securely with the supplied screws.

Placing the speaker using the rubber foot

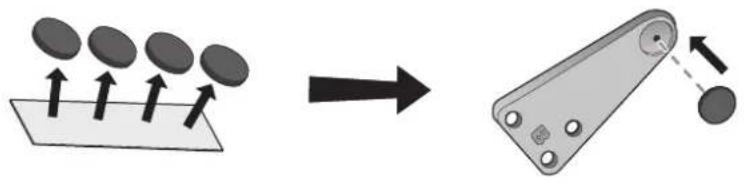

Attach the rubber feet (4 pcs) to the recesses on the base plates in advance.

• Peel off the backing paper from the rubber feet, and push them firmly into the base plates without touching the adhesive surface of the rubber feet.

• Loosely pre-mount the three screws with your hands first, and then tighten them with a screwdriver.

• After attaching the base plates, ensure that they do not wobble.

Placing the speaker using the spikes ( 12)

Placing the speaker using the rubber foot (→ 14)

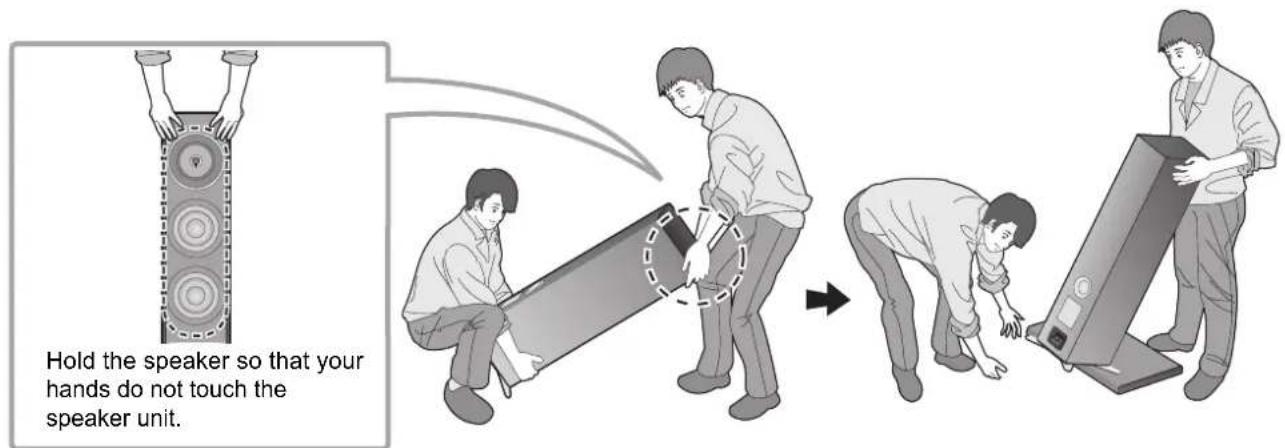

Placing the speakers using the spikes

The spikes may enhance the audio quality.

• Panasonic is not responsible for any accidents or damage caused by improper assembly or handling of the product. Do not attach the accessories in any other way than instructed in this Owner's Manual.
  Each speaker has a mass of approximately 32kg (71 lbs). When tilting the speakers to attach the spikes, ensure that the work is done by at least two people. When attaching the spikes, exercise caution to avoid catching your fingers or toes between the speakers and floor or tipping the speakers over. In addition, ensure that you spread a thick mat or similar item on the side of the floor where you will be tilting the speakers to prevent damage to the floor.
• Since each spike supports a mass of at least approximately 8kg (17.6 lbs), the spikes may leave marks and indentations on the installation location. To prevent the spikes from damaging the area, use the supplied spike shoes or purchase spike shoes with large contact surfaces and adequate strength.
• Moving the speakers with the spikes attached may cause damage to the floor. Before changing the installation location, remove the spikes.

To avoid floor damage, have two thick mats (or similar) available. Place them in the unpacking location and the installation location in advance.

① Place the speaker vertically on a thick mat (or similar).

② Remove the protective bags (2 pcs) and the cardboard covering the speaker.
③ Carry the speaker to the installation location while tilting it forward, and place it on a thick mat (or similar).

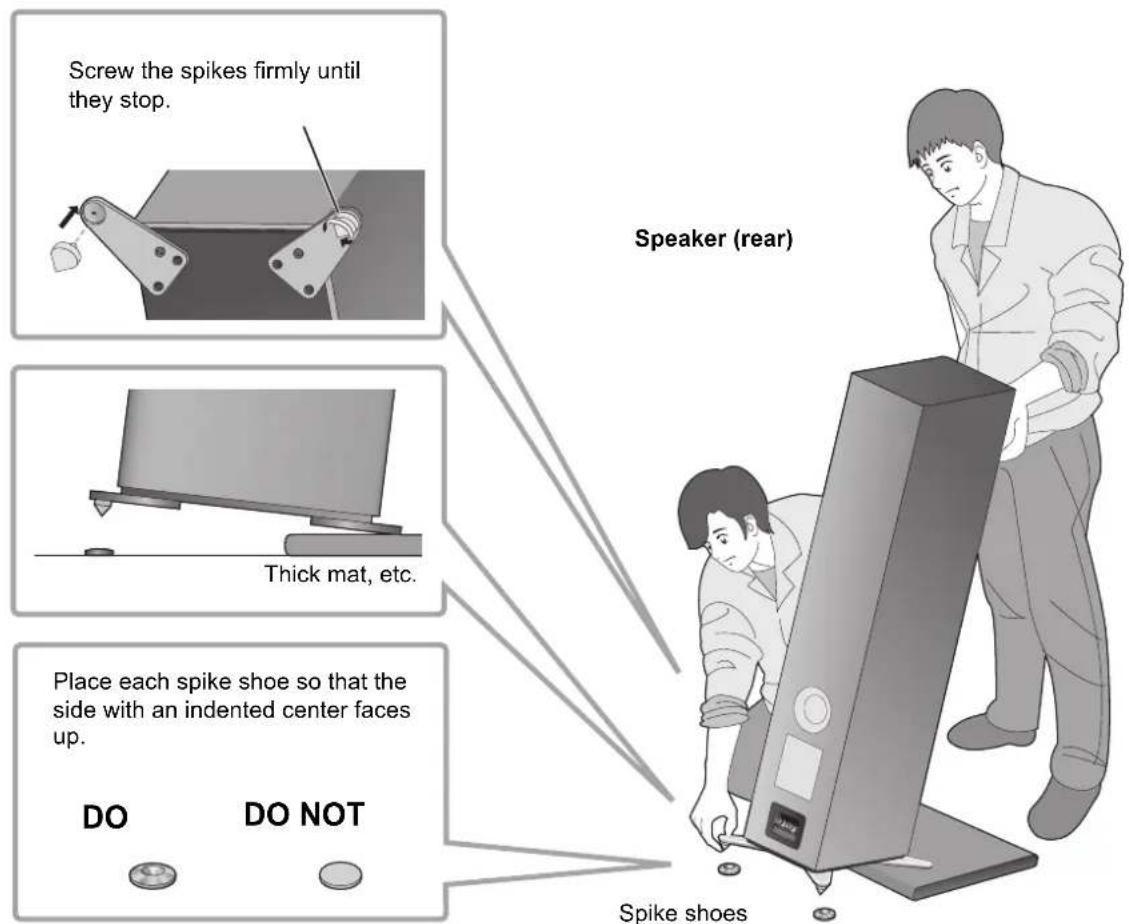

④ Tilt the speaker forward, and screw the spikes into the two rear-side base plates. When using the spike shoes, place them under the spikes.

⑤ While aligning the tips of the spikes with the indentations on the spike shoes, slowly bring the speaker back to the upright position.

⑥ In the same way as Step ④, tilt the speaker backwards and remove the thick mat (or similar).
⑦ Screw the spikes into the two front-side base plates.

When using the spike shoes, place them under the spikes.

If the speakers wobble, place the spacers under the spike shoes.

Placing the speakers using the rubber feet

Attach the rubber feet (4 pcs) to the recesses on the base plates in advance. ( 11)

• Panasonic is not responsible for any accidents or damage caused by improper assembly or handling of the product. Do not attach the accessories in any other way than instructed in this Owner's Manual.
  Each speaker weighs approximately 32kg (71 lbs). Ensure that the work is done by at least two people. Be careful not to catch your fingers or toes between the speaker and the floor or tip over the speaker.
• Since each rubber foot supports a weight of at least approximately 8kg (17.6 lbs), the rubber feet may leave marks and indentations on the installation location.
• Dragging the speaker along the floor may cause the rubber feet to peel off.
  When changing the installation location of the speaker, always use at least two people to lift it.

To avoid floor damage, have a thick mat (or similar) available. Place it in the unpacking location in advance.

① Place the speaker vertically on a thick mat (or similar).

② Remove the protective bags (2 pcs) and the cardboard covering the speaker.

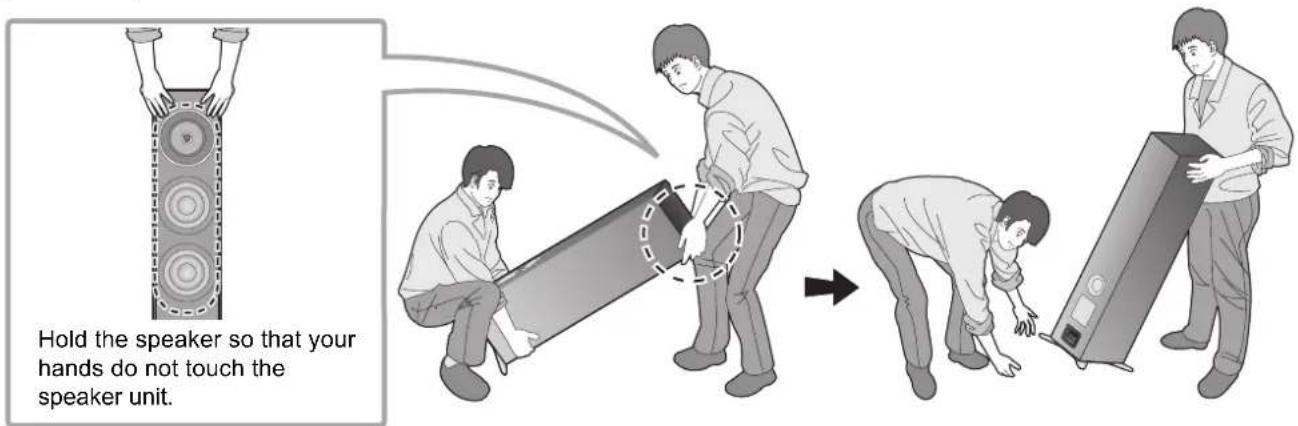

Hold the speaker so that it is tilted forward and move it to the installation location.

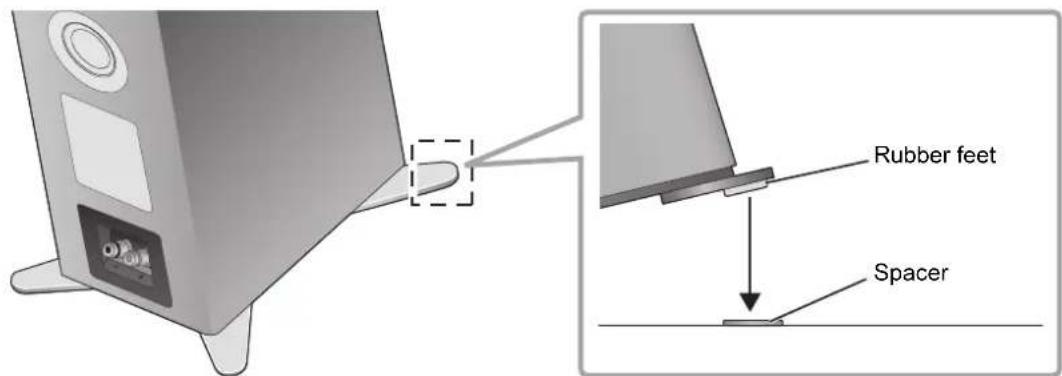

④ If the speakers wobble after being placed, place the spacers under the rubber feet. This will prevent the rubber feet from wobbling on the installation surface.

Preventing the speakers from tipping over

The speakers may tip over in a disaster such as a powerful earthquake or in an accident. For your safety, be sure to secure the speakers against tipping over.

Each speaker weighs approximately 32kg (71 lbs) in total. Verify that the speaker locations are strong enough to withstand this weight.

For details, consult an installation specialist.

When securing the speakers to a horizontal surface (floor, etc.)

Secure each speaker to the floor with wires or similar items as shown in the illustration.

When securing the speakers to a vertical surface (wall, etc.)

Loop a band or similar item around each speaker, and connect it to a sturdy wall or column with a stout wire, chain or similar item, as shown in the illustration.

#

• The measures described above do not guarantee protection against all disasters and accidents, including earthquakes. Please note that Panasonic is not responsible for any damage to the speakers, their installation locations or other objects caused by the work performed to secure the speakers from tipping over.
• Use of the spikes will make the speakers more vulnerable to tipping over.

Connections

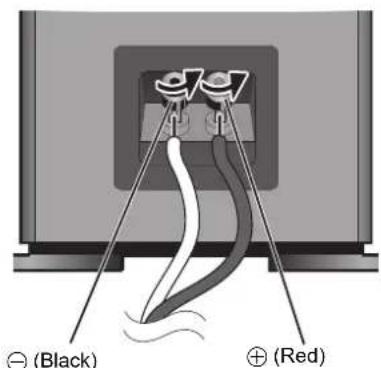

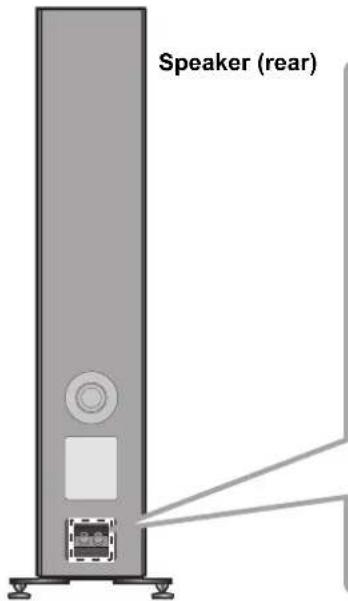

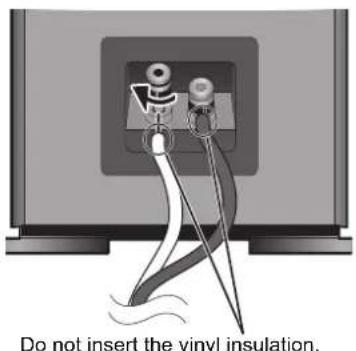

Connecting the speaker cables

The speakers are not supplied with speaker cables. For connection, use commercially-available speaker cables.

① Turn the knobs to loosen them, and insert the core wires into the holes.

② Tighten the knobs.

If it is difficult to connect the speaker cables, remove the knobs before connecting them.

• Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the amplifier.

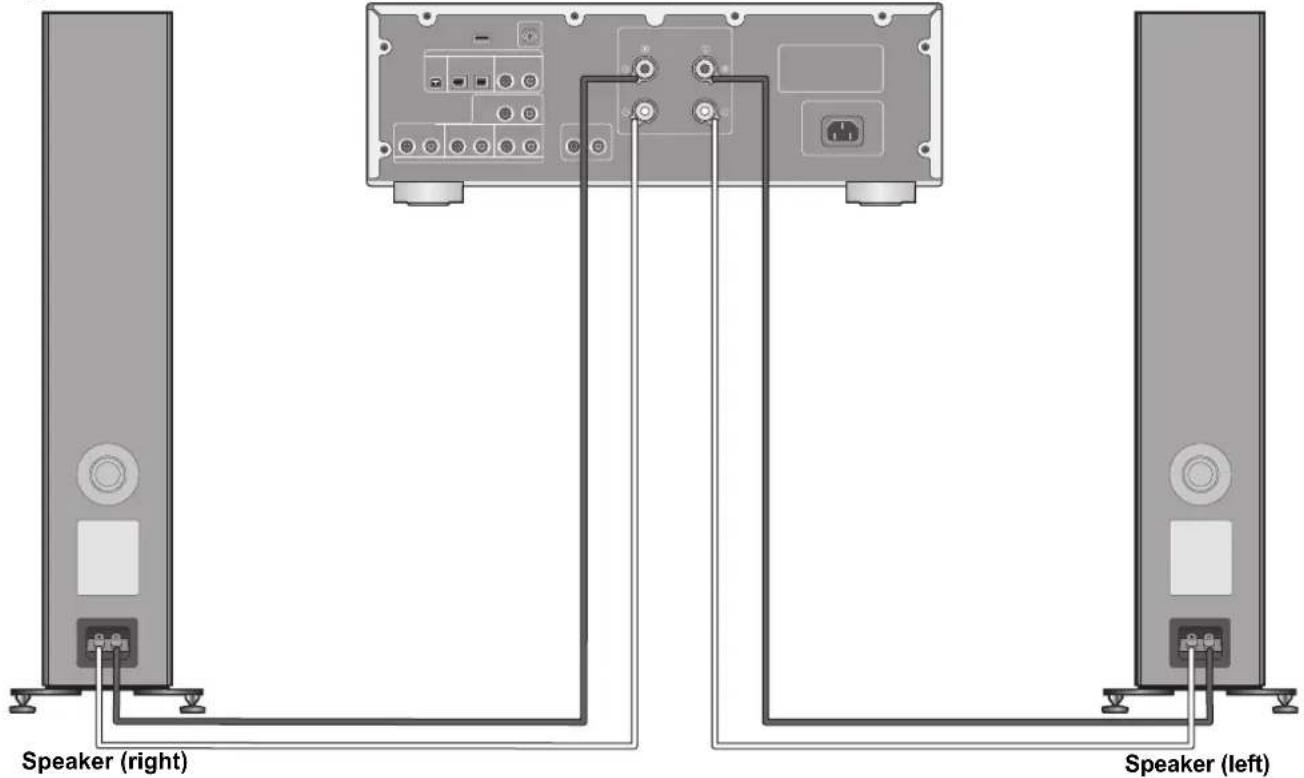

Connecting with an amplifier

• Before connection, turn off the amplifier and disconnect its power cord.
• For details, refer to the operating instructions of the amplifier.

Connect the amplifier and speakers with speaker cables (commercially-available).

e.g.,

• Do not move the speaker while the speaker cables are connected. This may cause a short circuit.
• When the connections are completed, pull the speaker cables lightly to check that they are connected firmly.
• Wire the polarity (+/-) of the terminals correctly. Not doing so may adversely affect stereo effects or cause malfunction.

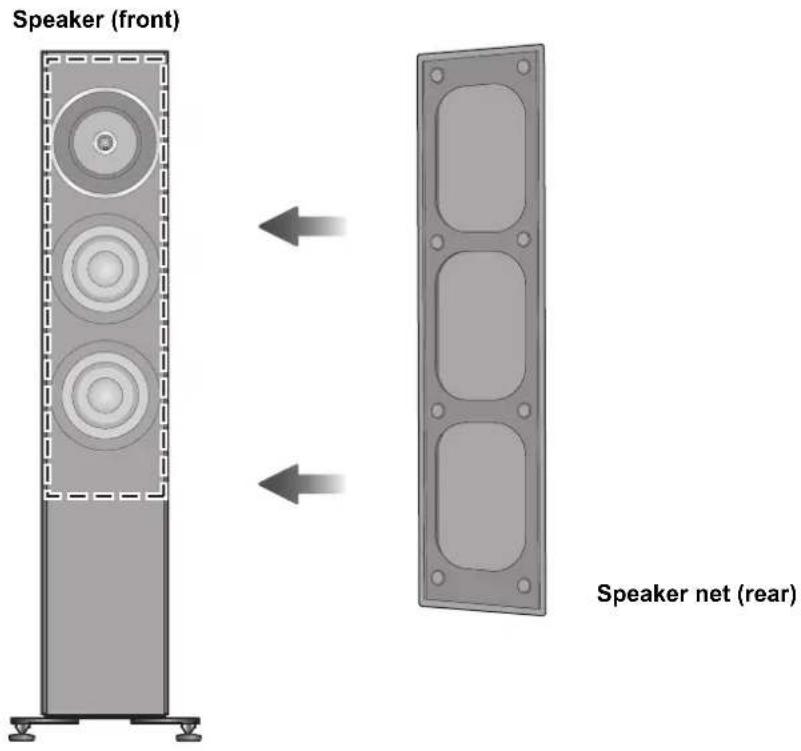

Attaching the speaker nets

The speakers are supplied with speaker nets, which protect the speaker units from dust. Use the magnets to fix the speaker nets to the speaker units.

• You can enjoy superior quality audio by removing the speaker nets before playback.

Notes on use

To protect the speakers from damage caused by excessive input, observe the following precautions:

• Reduce the volume in the following cases to avoid damage:

-When playing distorted sound.

• When the speakers are receiving howling from a microphone or record player, noise from FM broadcasts, or continuous signals from an oscillator, test disc, or electronic instrument.

• When adjusting the sound quality.

• When turning the amplifier on or off.

• Avoid raising the volume level too much when enhancing the treble sound with a graphic equalizer or any other controls.

• Avoid outputting excessively loud sound with a small power amplifier. Doing so will increase the amplifier's harmonic distortion and may damage the speakers.
• You can damage your speakers and shorten their useful life if you play sound at high levels over extended periods.
• Do not touch the speaker terminals with your hands or other objects while the speakers are in use. Depending on the conditions of use, doing so may expose you to high voltage.

Unit care

Wipe the speakers with the supplied cleaning cloth.

• When dirt is heavy, wring a wet cloth tightly to wipe the dirt, and then wipe it with a dry cloth.
• Do not use solvents including benzine, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This might cause the exterior case to be deformed or the coating to come off.

Specifications

Type 3-way 4 speakers, bass-reflex type

(coaxial 2-way midrange/built-in tweeters)

Speaker unit

Woofer 16 cm (6

12'' cone type × 2

Midrange/Tweeter Coaxial 16 cm (6

12^ cone type × 1 / 2.5cm(1^ ) dome type × 1

Impedance 4 Ω

Input power (IEC) 200 W (MAX)

100 W (RATED)

Sound pressure level 88 dB (2.83 V/m)

85 dB (W/m)

Frequency range

27 Hz to 100 kHz (-16 dB)

32 Hz to 85 kHz (-10 dB)

Crossover frequency 480 Hz, 3.2 kHz

Dimensions (W× H× D)

With the spikes

With the rubber feet

Mass (Weight)

Operating temperature range

Operating humidity range

302mm× 1,114mm× 375mm (11^7 / 8'' × 43^27 / 32'' × 14^3 / 4)

302 mm×1,093 mm×375 mm (11 7/8"×43 1/32"×14 3/4")

Approx. 32kg (71 lbs)

0^ to +40^ (+32^ to +104^)

20% to 80% RH (no condensation)

• Specifications are subject to change without notice.
  Mass and dimensions are approximate.

4 supports a pointe (TYL0079)

4 pieds en caoutchouc (TBLG32691)

4 Spikes (TBLA40861)

□ 4GummifüBe (TBLG32691)

2 Bodenplatten A (TBLA40852)

2 Embases A (TBLA40852)

2 Embases B (TBLA41091)

4 Boulons d'espacement (TMKK653)

4valilevya (TMKK653)

1 kaiutinverkko (TTJ0006-A)

Limited Warranty (ONLY FOR U.S.A.)

Technics Products - Limited Warranty

Limited Warranty Coverage

(For USA Only)

If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as "the warrantor") will, for the length of the period indicated on the chart below, which starts with the date of original purchase ("warranty period"), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.

Product or Part Name Parts Labor
Technics Network Audio Amplifier	3 (three) years	3 (three) years
Technics Music Server
Technics CD Stereo System
Technics Turntable System
Technics Speaker System

During the "Labor" warranty period there will be no charge for labor. During the "Parts" warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold "as is".

Mail-In Service-Online Repair Request

Online Repair Request

To submit a new repair request and for quick repair status visit our Web Site at

http://shop.panasonic.com/support

When shipping the unit, carefully pack, include all supplied accessories listed in the Owner's Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping Lithium Ion batteries please visit our Web Site at http://shop.panasonic.com/support as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits and Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation,

set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.

MODEL NUMBER SB-G90

SERIAL NUMBER TELEPHONE NUMBER

THERE ARE NO EXPRESS WARRANTY EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE".

THE WARRANTYOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.

(As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTYES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to:

Consumer Affairs Department

Panasonic Corporation of North America

661 Independence Pkwy

Chesapeake, VA 23320

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

Shop

Accessories!

for all your Technics gear

Go to

http://shop.panasonic.com/support

Get everything you need to get the most out of your Technics products

Accessories & Parts for your Camera, Phone, A/V products, TV, Computers & Networking, Personal Care, Home Appliances, Headphones, Batteries, Backup Chargers & more...

Customer Services Directory

For Product Information, Operating Assistance, Parts, Owner's Manuals, Dealer and Service info go to http://shop.panasonic.com/support

For the hearing or speech impaired TTY: 1-877-833-8855

As of December 2015

User memo:

DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS

Limited Warranty (ONLY FOR CANADA)

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

TECHNICS PRODUCT - LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Technics Stereo Power Amp	5 (five) years parts and labourTechnics Network Audio Control Player
Technics Speaker System

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Technics brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold "as is", and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than an Authorized Servicer, or damage that is attributable to acts of God.

Dry cell batteries are also excluded from coverage under this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTYES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.

WARRANTY SERVICE

For product operation, repairs and information assistance, please visit our Support page on: www.panasonic.ca/english/support

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton. Include details of the defect claimed, and proof of date of original purchase.

Certificat de garantie limitee

Panasonic Canada Inc.

5770, Ambler Drive, Mississauga (Ontario) L4W 2T3

PRODUIT TECHNICS - GARANTIE LIMITEE

Headquarter Address/Adresse du siege social: Panasonic Corporation

Kadoma, Osaka, Japan

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

For the U.S.A.

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

www.shop.panasonic.com

For Canada/ Pour le Canada

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario,

L4W 2T3

www.panasonic.com

For the United Kingdom and Ireland

For Continental Europe

Panasonic Corporation

Web Site: http://www.panasonic.com

En Cf Ge Fr It Sp Da Du Sw Fi Po
