Product type	Rechargeable 2-in-1 upright vacuum cleaner
Brand	Grundig
Model	VCP 3930
Power supply	Battery Li-ion 25.2 V, 2000 mAh; mains adapter 100-240 V~ 50-60 Hz
Rated power	150 W
Charging time	4 to 6 hours
Maximum runtime	18 minutes in maximum power mode; up to 42 minutes in minimum power mode
Dust container capacity	700 ml
Main functions	Adjustable power mode, 2-in-1 vacuum (upright + handheld), turbo electric brush, crevice tool, 2-in-1 accessory (brush/nozzle)
Maintenance and cleaning	Dust container and cyclone filter washable with water; regular cleaning of roller brush to remove hair; do not use solvents or metal objects
Safety	Unplug before cleaning; do not use on wet surfaces; keep out of reach of children under 8 without supervision; use only the supplied adapter
Spare parts and repairability	Use exclusively original Grundig accessories; repairs must be carried out by an approved professional; battery replaceable only by a competent technician
Supplied accessories	Crevice tool, 2-in-1 accessory (brush/nozzle), turbo electric brush, wall hook, mains adapter MC2805A-V
Warranty	Warranty void if used for industrial or commercial purposes
General information	Household use only; WEEE and RoHS compliance; recyclable packaging

Frequently Asked Questions - VCP 3930 GRUNDIG

How long does it take to fully charge the Grundig VCP 3930 vacuum cleaner?

Full charging takes 4 to 6 hours. The indicator light flashes during charging and turns off when the battery is full.

What is the runtime of the vacuum cleaner in normal use?

In maximum power mode, the runtime is about 18 minutes. In minimum power mode, it can reach up to 42 minutes.

How to clean the filter and dust container?

Stop and unplug the appliance. Disassemble the cyclone and container, rinse them with clean water. Let them dry completely before reassembling. Never use solvents or hard brushes.

What to do if suction weakens?

Check that the dust container and filter are not clogged (clean them if necessary). Also check that the roller brush is not tangled with hair or debris.

Can I use the vacuum cleaner on wet floors?

No. The appliance is designed for use on dry surfaces. Never use it on wet floors or to vacuum liquids. This would damage the appliance and pose a risk of electric shock.

How to detach the tube to use the handheld vacuum?

Press the tube release button (mark G on the diagram) located on the vacuum body. Then pull the tube upwards to separate it. This gives you a handheld vacuum.

Can the appliance be used by children?

The vacuum can be used by children aged 8 years and older under adult supervision, provided they have received safety instructions. Children must not play with the appliance or perform cleaning without supervision.

How to store the vacuum cleaner properly?

Unplug the appliance. Store it out of reach of children, preferably in a dry place. Use the supplied wall hook to attach it to the wall. Avoid placing heavy objects on the appliance.

What to do if the vacuum does not charge?

Check that the adapter is properly connected to the appliance and the mains socket. Try another socket. If the problem persists, contact customer service.

Can I replace the battery myself?

The battery is internal and can only be replaced by an approved professional or the manufacturer. Do not attempt to open it; this would void the warranty and could be dangerous.

USER MANUAL VCP 3930 GRUNDIG

2 In 1 Cordless Vacuum Cleaner

User Manual

VCP 3930

DE-EN-TR-ES-FR-HR-PL-SV-NO-FI-DA

DEUTSCH 08-16

ENGLISH 17-24

TÜRKCE 25-36

ESPANOL 37-44

FRANCAIS 45-52

HRVATSKI 53-60

POLSKI 61-68

SVENSKA 69-76

NORSK 77-84

SUOMI 85-92

DANISH 93-100

DE	BETRIEB REINIGUNG UND PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMİZLEME VE BAKIM
ES	FUNCIIONAMIENTO LIMPIEZA Y CUIDADOS
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
HR	RAD ČIŠÇENJE I ODRŽAVANJE
PL	OBSLUGA CZYSZCZENIE I KONSERWACJA
SV	ANVÄNDNING RENGÖRING OCH SKÖTSEL
NO	DRIFT RENGJÖRING OG PLEIE
FI	KAYTTÖ ČIŠÇENJE I ODRŽAVANJE
DA	BETJENING RENGÖRING OG VEDLIGEHOLDELSE

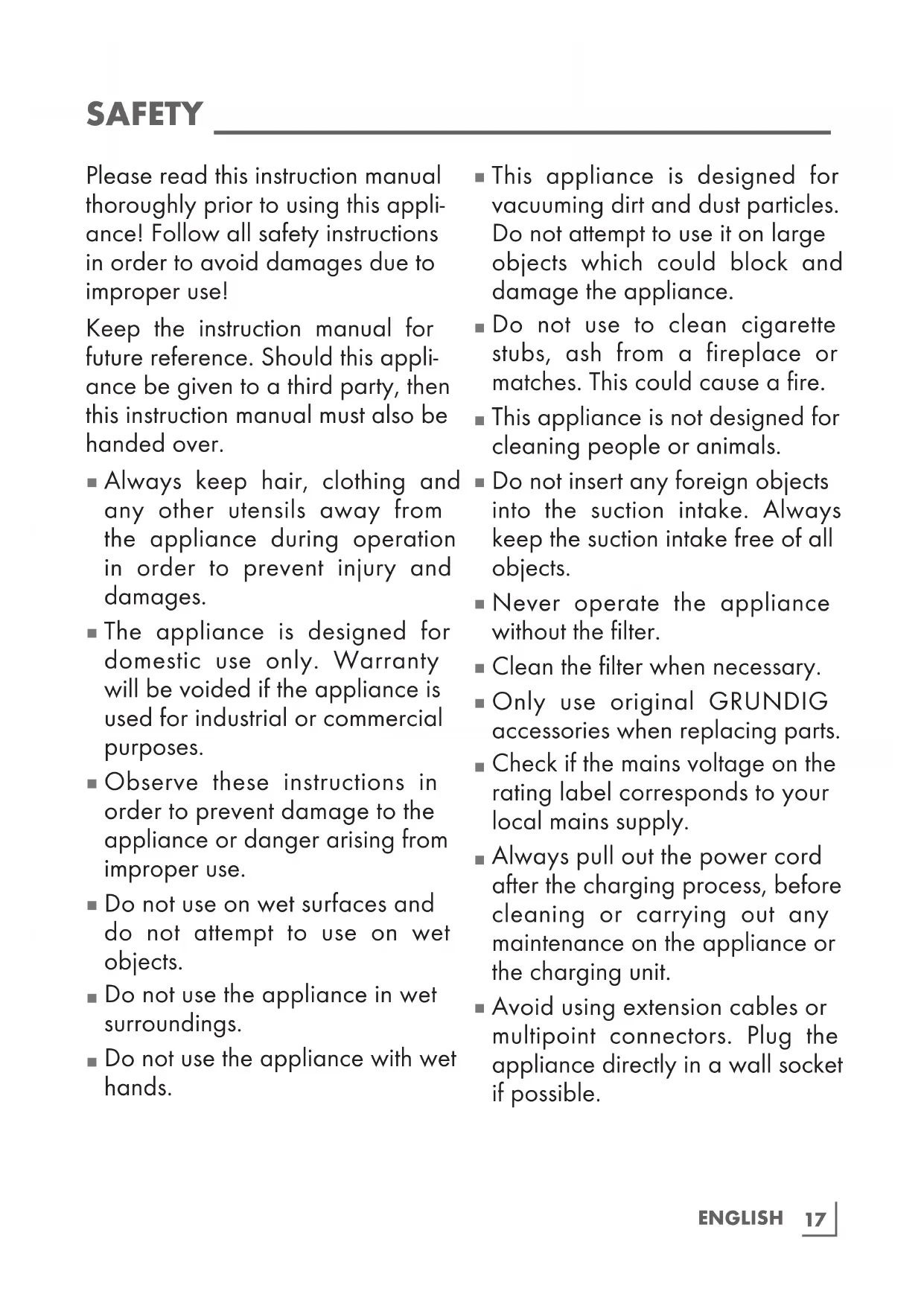

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.
The appliance is designed for domestic use only. Warranty will be voided if the appliance is used for industrial or commercial purposes.
- Observe these instructions in order to prevent damage to the appliance or danger arising from improper use.
- Do not use on wet surfaces and do not attempt to use on wet objects.
- Do not use the appliance in wet surroundings.
- Do not use the appliance with wet hands.

• This appliance is designed for vacuuming dirt and dust particles. Do not attempt to use it on large objects which could block and damage the appliance.
• Do not use to clean cigarette stubs, ash from a fireplace or matches. This could cause a fire.
  This appliance is not designed for cleaning people or animals.
• Do not insert any foreign objects into the suction intake. Always keep the suction intake free of all objects.
• Never operate the appliance without the filter.
  Clean the filter when necessary.
• Only use original GRUNDIG accessories when replacing parts.
• Check if the mains voltage on the rating label corresponds to your local mains supply.
  Always pull out the power cord after the charging process, before cleaning or carrying out any maintenance on the appliance or the charging unit.

• Avoid using extension cables or multipoint connectors. Plug the appliance directly in a wall socket if possible.

• For additional protection, this appliance should be connected to a household residual current device with a maximum rating of 30mA . Consult your electrician for advice.

• Do not disconnect the plug by pulling on the cable.
• Never use the appliance if it or the power cord is visibly damaged. This also applies if the appliance has accidentally become wet. Please contact a service centre in this case.
• Our GRUNDIG Household Appliances meet all applicable safety standards; thus if the appliance or the power cord is damaged, it must be replaced by the dealer, a service centre or a similarly qualified and authorised service person to avoid any danger arising. Faulty or unqualified repair work may cause danger and risk to the user.
• Keep the appliance away from children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.
- Do not use the appliance if the air duct and the ventilation slot are blocked. Always keep the air duct and ventilation slot free of dirt, hair and any other elements which could obstruct or block the air flow.
Only use the power cord provided.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
- Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner.
The battery must be removed from the appliance before it is scrapped;

• Please dispose of used batteries according to local laws and regulations.
  This appliance contains batteries that are only replaceable by skilled persons.
  WARNING: For the purposes of recharging the battery, only use the detachable supply unit MC2805A-V provided with this appliance.
• Exhausted batteries are to be removed from the appliance and safely disposed of.
  The supply terminals are not to be short-circuited.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG 2-in1 cordless vacuum cleaner VCP 3930.

Please read the following user notes carefully so that you can enjoy your quality Grundig product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers, as well as on the efficient use of raw materials with continual waste reduction of

several tonnes of plastic each year - and availability of at least 5 years for all accessories.

For a future worth living. Grundig.

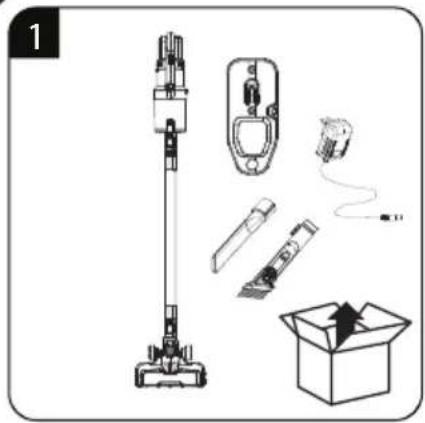

Controls parts

See image on page 3.

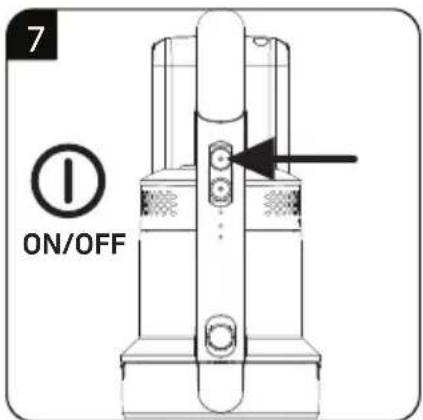

A On/off button

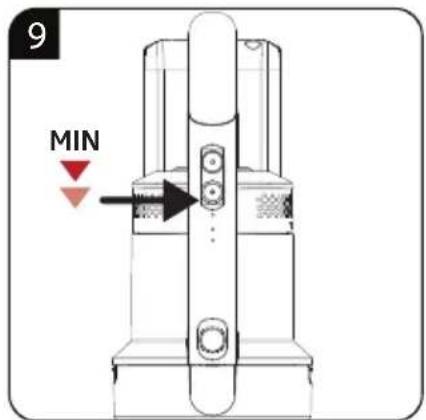

Mode button

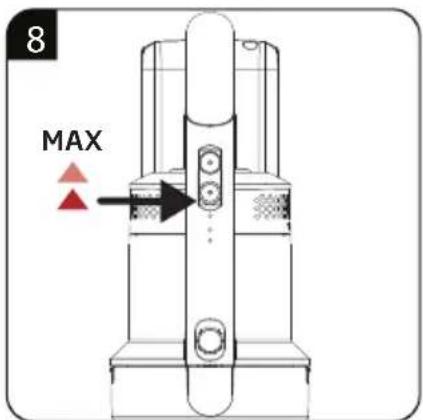

Max mode indicator
D Charging level indicator
E Charging indicator light

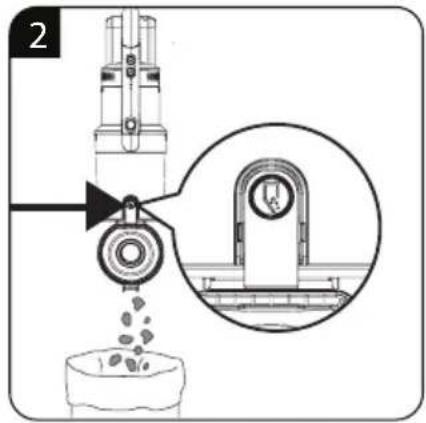

F Dust bin release button

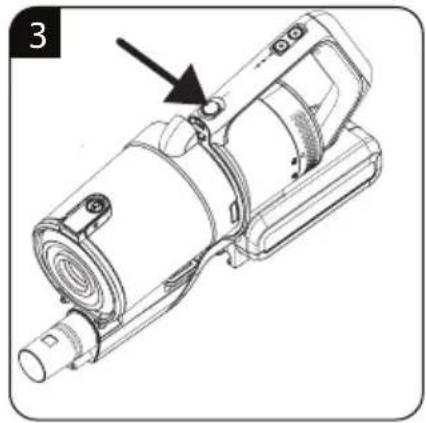

G Dust bin cover release button
H Tube release button
Brush release button
J Electrical turbo brush

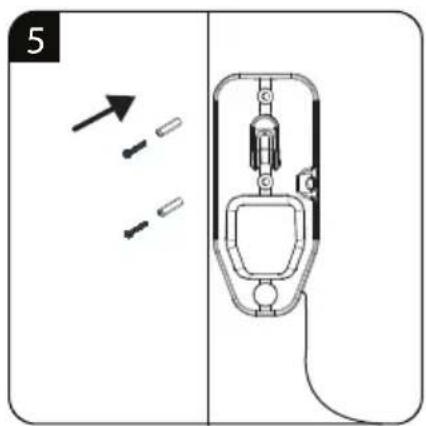

K Wall hook
Power supply plug
M Crevice tool
N Two-in-one accessory

PART ASSEMBLING

Crevice tool

Suitable for cleaning the surfaces which are difficult to clean, such as areas remaining under sofas and furniture.

Two-in-one accessory

Push the brush head of fine the two-in-one accessory backwards, until "click" locking sound is heard. It is suitable for cleaning narrow slits, dead corners of doors and windows and other various small gaps. It is ready for vacuuming the gaps of wall corner, ladders and keyboard, etc. Push the brush head of two-in-one accessory forwards, until "click" locking sound is heard. It is suitable for cleaning furniture, bookshelf and curtains, etc.

Insert the two-in-one accessory to the metal tube to operate on higher places such as ceiling, etc.

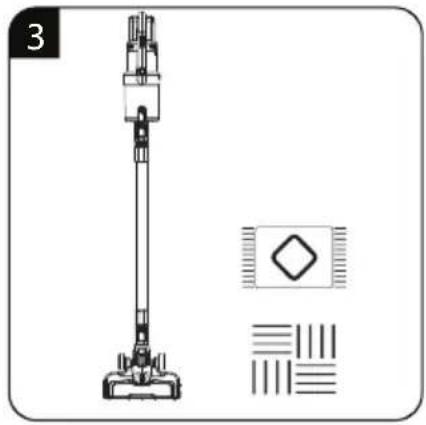

USE

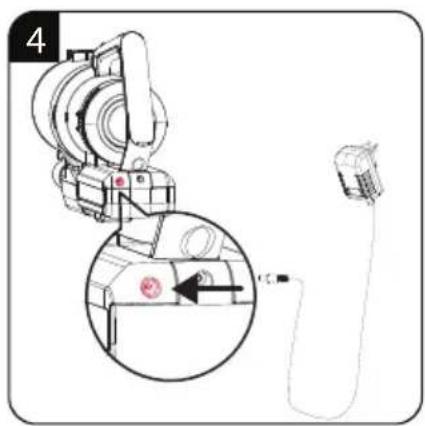

Charging

Battery is not full when leaving factory, please remember to charge up before first usage.

1 Put the body on horizontal surface.
2 When charing, power indicator will twinkle continuously.
3 1 min after charging up, indicator will shut off.

INFORMATION

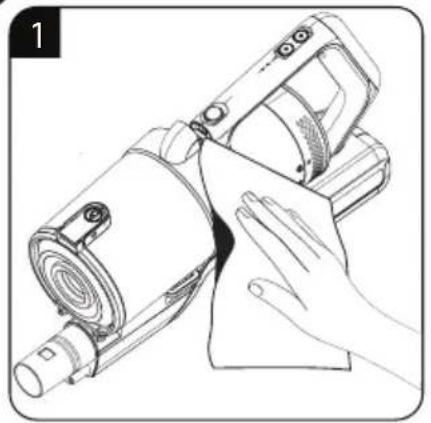

Cleaning and care

Switch off and unplug the appliance, before cleaning it.

Warning

• Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

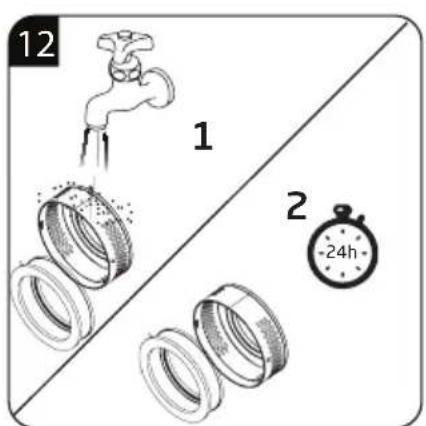

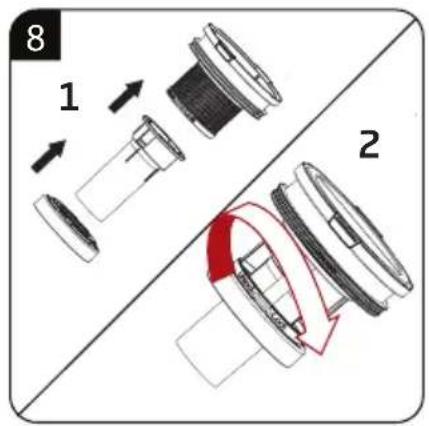

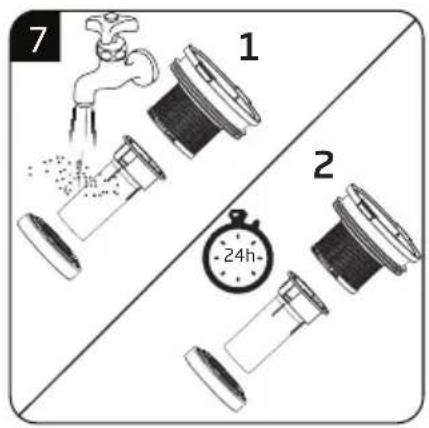

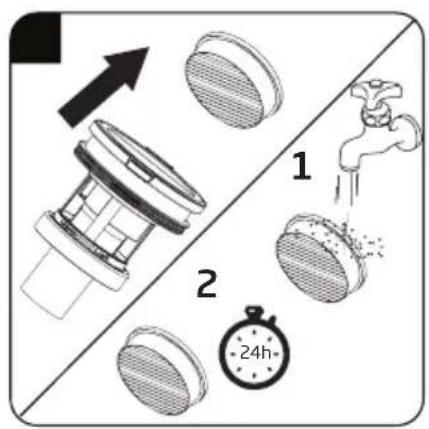

Cleaning of filtration system

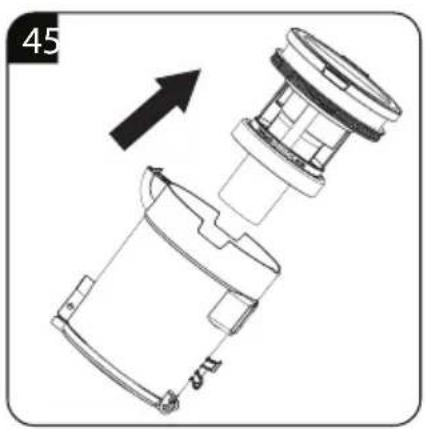

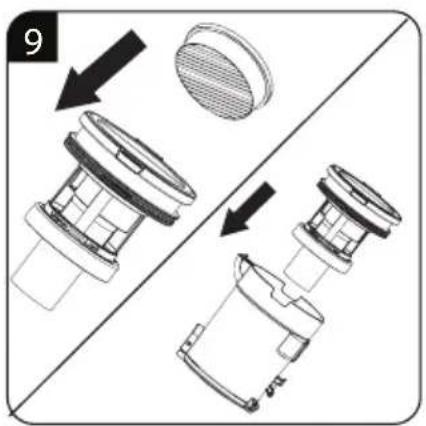

Disassemble cyclone and clean, all parts are washable. (5)

Warning

Long-term no use, please keep the battery intact, stored in a cool dry place, and let the battery in the semi-state of charge. Not full or empty. Please enclose the battery with non-conductive material to avoid the metal touching the battery directly, causing the battery to be damaged.

Storage

If you do not intend to use the appliance for a long time, store it carefully.
7 Unplug the appliance.
7 Keep the appliance out of the reach of children.

Handling and transportation

During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
7 Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
7 Dropping the appliance may render it non-operational or cause permanent damage.

Information on waste batteries

This symbol on rechargeable batteries/ batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain re

chargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005% mercury or more than 0,004% lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).This

symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the

domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Rated input power : 150 W

Adaptor input:

100-240V~ 50-60 Hz 0.5A

Adaptor output : 25-29V

Charging time : 4-6 hours

Running time

max. power : 18 min.

Running time min.

power to up to : 42 min.

Dust bin volume: 700ml

Battery type : 25,2V, 2000mAh

Li-ion battery

Technical and design modifications reserved!

Common failure Possible cause Solutions
The vacuum doesn't work	Product is power off or battery is low	Please charge the product before use
	Product suction port is blocked. Cleaning product suction mouth
Suction is too weak	Dust barrel & filter assembly is dusty	Clean the dustbin and filter material
	Rolling brush is wrapped around the hair and other objects	Clean roller brush
	Situation still remains	Please contact with our after sales team
Different motor operation sound	The aluminum tube is blocked Clean up the obstacles
	Situation still remains	Please contact with our after sales team
Vacuum cleaner in trouble at work	Too many obstacles in the cleaning area	Manually remove obstacles
	Product suction port is blocked Clean product suction mouth
	Situation still remains	Please contact with our after sales team
Product can not be charged	Charger not connected well Please check and contact well
	Charger or receptacle is not fully charged or loose	Check it and put away
	Situation still remains Please contact with us

For commissioning, general use and cleaning, please observe the instructions on pages 5-6-7 of this operating manual.
