USER MANUAL AD1576B BRANDT

EN GUIDE TO INSTALLATION

FR GUIDE D'UTILISATION

SE GUIDE FÖR INSTALLATION

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning :

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

ENT

1 /NOTICES TO THE USER

• Safety recommendations 4
  • Environmental protection 9
  • Description of your appliance 10

2 / INSTALLING YOUR APPLIANCE

• Environmental protection 11

3 / USING YOUR APPLIANCE

• To use your cooker hood ____ 12

4 / CARING FOR AND CLEANING YOUR APPLIANCE

• Changing and cleaning the anti-grease filters 14
• Installing the carbon filter 14

- Changing the light bulb 14

- Maintaining your appliance 15

5 / TROUBLESHOOTING 16

6 / AFTER-SALES SERVICE 16

EN

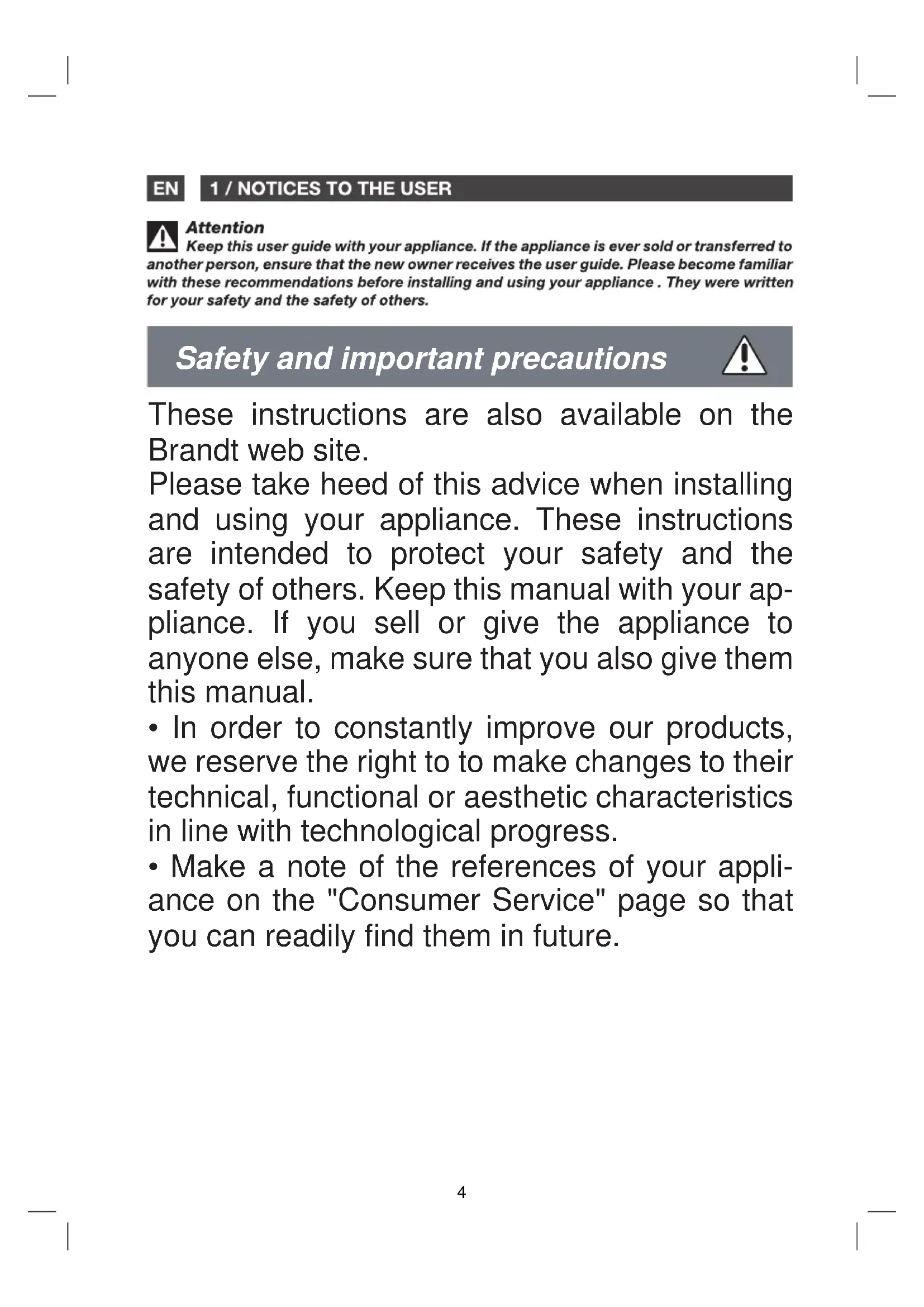

1 / NOTICES TO THE USER

Attention

Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your appliance. They were written for your safety and the safety of others.

Safety and important precautions

These instructions are also available on the Brandt web site.

Please take heed of this advice when installing and using your appliance. These instructions are intended to protect your safety and the safety of others. Keep this manual with your appliance. If you sell or give the appliance to anyone else, make sure that you also give them this manual.

- In order to constantly improve our products, we reserve the right to to make changes to their technical, functional or aesthetic characteristics in line with technological progress.

- Make a note of the references of your appliance on the "Consumer Service" page so that you can readily find them in future.

1 / NOTICES TO THE USER EN

Important precautions

- This appliance is designed for use by consumers in the home. Do not use it for commercial or industrial purposes or for any other purpose for which it is not intended.

- Unpack the appliance as soon as you receive it. Check its general appearance. Make a note of any reservations on the delivery slip and keep a copy.

- This appliance can be used by children aged under 8 and by persons with diminished physical, sensory or mental capacities, or persons without any experience or knowledge, provided that they are properly attended to or are given the instructions on how to use the appliance in complete safety and that any potential risks are anticipated. Children must not play with this appliance. The appliance must not be cleaned and maintained by unattended children.

- Caution: The accessible parts of this appliance may become hot when used with cooking equipment.

Electrical risks

- All the power supply circuits must be disconnected before touching the connection terminals. If the power cord is damaged, it must be

1 / NOTICES TO THE USEREN

replaced by the manufacturer, its after-sales service or a similarly qualified person in order to avoid any danger.

• The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.
• Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous.
• The appliance must only be repaired by an approved specialist.
  • Always disconnect the hood before cleaning or maintaining it.
• Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety).
• The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.
• Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous.
• The appliance must only be repaired by an approved specialist.
  • Always disconnect the the hood before clean

1 / NOTICES TO THE USER EN

ing or maintaining it.

- Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety).

Risk of asphyxiation

- The regulations applying to the evacuation of air must be obeyed. The air must not be sent into a duct used to evacuate fumes from appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

- The room must be suitably ventilated when the range hood is used at the same time as appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

Risk of fire

- It is forbidden to flambé food or to turn on gas rings that are not covered by a cooking recipient beneath the hood, as the flames may sucked in and damage the appliance.

- Keep a constant eye on fryers used beneath the hood. When heated to very high temperatures, oil and fat can catch fire.

- Clean the appliance and replace the filters at

1 / NOTICES TO THE USEREN

the recommended frequency. Accumulated deposits of grease can cause a fire.

• It is forbidden to use the hood above a fuel fire (wood, coal, etc.).
• If the hood is installed above a gas-fired appliance, leave at least 70 cm between the top of the range and the underside of the hood. If the instructions of the range installed under the hood specify a distance greater than 70 cm, then this distance must be respected.

Warning

In the case of a kitchen heated by a device connected to a chimney (a stove, for example) the "recycling" version of the hood should be installed. Do not use the hood without metal filters.

Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel.

1 / NOTICES TO THE USER EN

• ENVIRONMENTAL PROTECTION

— This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.
- Your appliance also contains a great amount of recyclable material. It is marked with

this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.

— We thank you doing your part to protect the environment.

Warning

Installation should only be performed by installers and qualified technicians.

Warning

Remove the protective fi lm from the cartridge fi iter before use.

1 / NOTICES TO THE USEREN

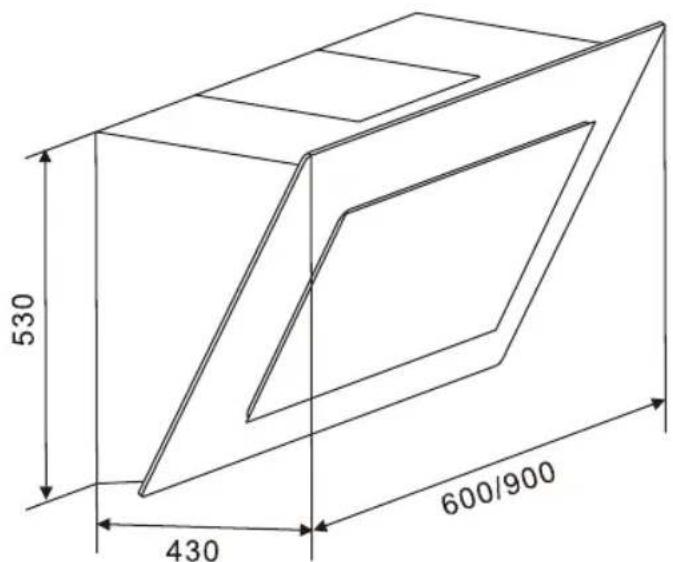

• DESCRIPTION OF YOUR APPLIANCE

530 430 600/900

2 / INSTALLING YOUR APPLIANCE EN

• ENVIRONMENTAL PROTECTION

— The cooker hood should be placed at a distance of 65-75cm (26-30inch) from the cooking surface for the best effect. See Pic 1.
— Install the hook on a suitable place once the installation height is fixed, and keep it in line. See Pic 2.
— Install the extension tube and chimney on the cooker hood. See Pic 3.
— Put the cooker hood on the hook. After adjusting the position, fi x the body with safty screw. See Pic 4.

Note

The two safety vents are positioned on ack casing, with diameter of 6mm

Note

— Any installation work must be caried out by a qualified electrician or competent person.

— Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.
— The angle of the bend of the ventilation pipe should not be less than 120^ ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.
— After the installation, make sure that the cooker hood is level to avoid greasecollection at on end. See Pic. 5

Advice on how to save energy

To make optimal use of your appliance, keep the length of the duct and the number of bends in the duct to a strict minimum.

65cm 75cm

Pic 1

Honk

Pic 2

Extension tube

Pic 3

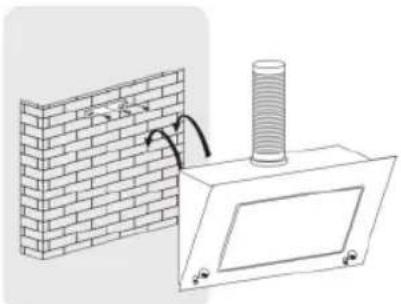

Diagram showing a brick wall and a microwave oven with a cylindrical component, no text or symbols present.

Pic 4

Right Wrong

Pic 5

EN 3 / USING YOUR APPLIANCE

• TO USE YOUR COOKER HOOD

How to use the control panel, See Pic. 6:

1. Plug the hood: When power-on, the backlight is lit. Then showing the "24-hour system", the output is off, and the machine standby. Without any operation, the backlight disappear automatically after 30 seconds.
2. Press the "button once, the lamp and the "is lit. Press the button again, the lamp and the "is lit will be disappear.
3. To use the Speed press the "☐" button. The motor has three speeds: Low, Medium, High.

— Press "💡" button once, the motor starts to work at LOW speed.
— Press "💡" button again, the motor works at MEDIUM speed.
— Press "button one time more, the motor works at HIGH speed.
— When working, press "?" button can select the speed of motor: "LOW-MEDIUM HIGH - LOW - MEDIUM..." circularly

1. Press the Power " Button once, the motor of hood starts to work at the speed it worked last time. Press " button again, the motor stops working.

2. To use the Timer "💡" button:

The standard time setting is 12:00. When the hood is cut off, the time will return to 12:00 automatically, and you have to reset the time.

— When both "button and "button don't work, "button is used for time-setting.
— Press "☐" button for 2 to 5 seconds, time segment "88:88", and the first two number for hour setting will flash. Press "☐" button, the number increases by degrees, and press "☐", the number

Timer Light Power Speed Timer Lamp Speed Power P1= 6

3 / USING YOUR APPLIANCE

EN

decreases by degrees. Namely, the variability is 01 each time when it is pressed once; And the largest digit is 23, the "button can't work when exceeded. If it is equal to 00, the "button can't work.

— Press the Timer “💡” button for the second time, time segment “08:08”, and the last two number for minute setting will flash. Press “💡” button, the number increases by degrees, and press “💡”, the number decreases by degrees. Namely, the variability is 01 each time when it is pressed once; And the largest digit is 59, the “💡” button can’t work when exceeded. If it is equal to 00, the “💡” button can’t work.

— Press the Timer "⑤" button for the third time, and it means time setting exit and confirmation.

— Long press the Timer "☐" button for 2-5 seconds under mode, it is for hour setting. Press it for the second time: minute setting. Press it for the third time: time setting exit and confirmation. And it will repeat the action again and again when it is pressed.(It can't run this procedure, if the first time pressing doesn't exceed 2 seconds).

Advice on how to save energy

Adjust the speed to the cooking method and the number of pans in use. It is preferable to use the rings at the back of the range.

4 / CARING FOR AND CLEANING YOUR APPLIANCEEN

• CHANGING AND CLEANING THE ANTI-GREASE FILTERS

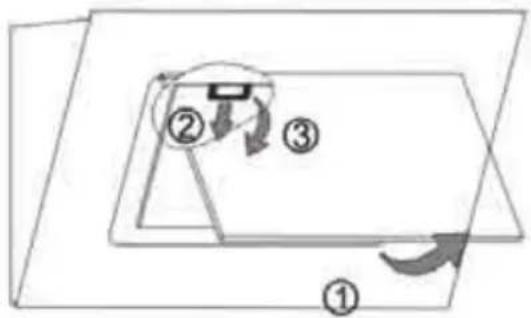

— Tear down your cooker hood as per the approach shown on Pic. 7
— You can clean the fi Iter as below:

1. Soak them for about 3 minute in hot water (40-50 degrees) with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it.
2. It can be put into a dishwasher with detergent, set the temperature at around 60 degrees.

— Please do not use abrasive detergent for it will damage the hood.

Diagram showing three labeled steps (①, ②, ③) of a mechanical or architectural component with directional arrows indicating motion.

Pic 7

Note

Make sure that cooker hood is shut down before cleaning.

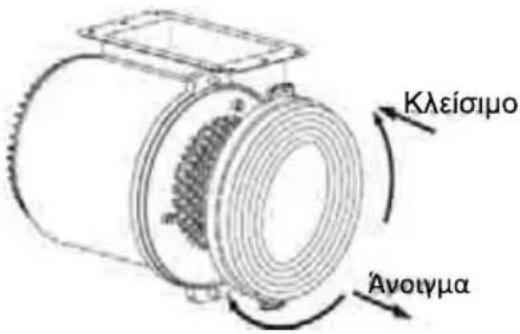

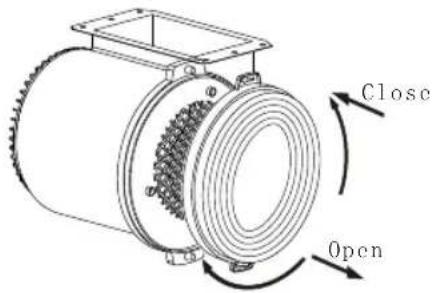

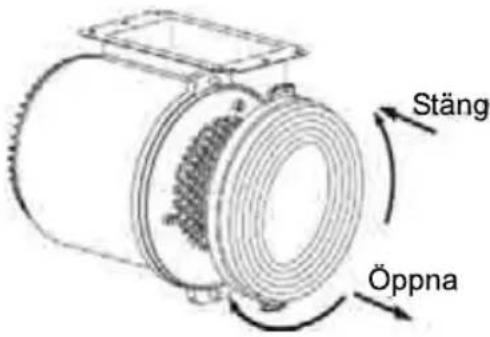

• INSTALLING THE CARBON FILTER (OPTINAL), SEE PIC.8

— Remove the filters see Pic.7.
— The charcoal filters (Pic.8) are located at either end of the motor. Turn the charcoal fi Iters anti-clockwise until they are unscrewed.
— Apply reverse procedure to uninstall the charcoal filter.

Warning:

the charcoal cannot be washed or recycled. It should be changed at at three or six months according to your cooking habit

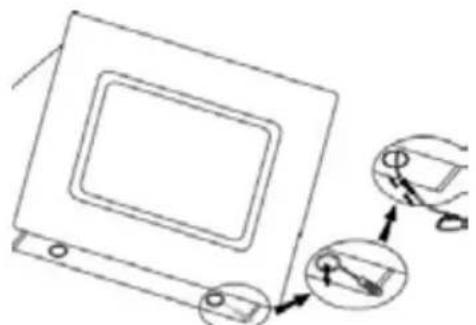

• CHANGING THE LIGHT BULB

Take the bracket and glass off and then take the broken light bulb off, See Pic 9.

Fix the new light bulb, glass and bracket on. Attention: Before changing the lights, ensure that the appliance is not live.

Close Open

Pic 8

Technical line drawing of a mechanical component with mounting holes and a close-up inset showing a tool interacting with a bracket (no text or symbols)

Pic 9

4 / CARING FOR AND CLEANING YOUR APPLIANCE EN

Warning

Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

• MAINTAINING YOUR APPLIANCE

MAINTENANCE WHAT TO DO		PRODUCTS / ACCESSORIES TO USE
Top surface and accessories	Never use metal scouring pads, abrasive products or excessively stiff brushes.	To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth.
Filter cartridge	This fi lter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood. In the event of tough stains, use a non-abrasive cream, then rinse with clean water.	Use a commercial household cleaning product then rinse abundantly and dry. These fi Iters can be cleaned in a vertical position in your dishwasher.(Do not allow them to touch dirty dishes or silverware.)
Activated carbon fi lter	This fi lter traps odours and must be changed at least once a year depending on your level of use. You should order these fi Iters from your dealer (quoting the reference shown on the identifi cation plate located inside the hood) and note the date the fi lter was changed.

To preserve your appliance, we recommend that you use Clearit cleaning products.

Professional expertise

serving individuals

Clearit offers you professional products and solutions designed for the daily care of your household appliances and kitchens.

They are on sale at your regular retailer, along with a complete line of accessories and consumable products.

5 / TROUBLESHOOTINGEN

SYMPTOMS	SOLUTIONS
The hood is not working...	Ensure that:• The power is not cut off.• A speed has been selected.
The hood is not operating effectively...	Ensure that:• The selected motor speed is suffi cient for the quantity of smoke and vapours to be cleared.• The kitchen is suffi ciently ventilated to allow for fresh air intake.• The carbon fi Iter is not worn (hood operating in recycling mode).
The hood stopped working	Ensure that:• The power is not cut off.• The single-pole cut-off device was not activated.

6 / AFTER-SALES SERVICEEN

Any maintenance on your equipment should be undertaken by:

• either your dealer,
• or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

This device complies with the delegated regulations (EU) 65/2014 and 66/2014 of the European Commission on the eco design requirements and energy labeling of household hoods.

symbol Value Unit

Brand	Brandt
Model number	AD1576B
Annual energy consumption	AEC	90.8	kWh/annum
Energy efficiency index	EEi	82.7	-
Fluid dynamic efficiency index	FDE	15.4	-
Lighting efficiency index	LE	47.0	-
Grease filtering efficiency	GFE	53.6	-
Time increase factor	f	1.4	-
Maximum volumetric airflow of the cooker hood	Q_max	591.0	m^3/h
Volumetric airflow at best efficiency point	Q_BEP	309.6	m^3/h
Static pressure at the best efficiency point	P_BEP	307	P
Power consumption at the best efficiency point	W_BEP	170.9	W
Nominal power consumption of lighting system	W_L	1.0	W
Average illumination of the lighting system	E_middle	47	Lux/W
Power consumption in off mode	P_o	--	W
Power consumption in standby mode	P_s	0.41	W
Volumetric airflow at the highest speed setting in normal use -		555.0	m^3/h
Volumetric airflow at the lowest speed setting in normal use -		412.2	m^3/h
Volumetric airflow in intensive or boost mode -		--	m^3/h
Sound power emissions at the highest speed setting in normal use -		70	dB(LwA)
Sound power emissions at the lowest speed setting in normal use -		63	dB(LwA)
Sound power emissions in intensive / boost mode -		--	dB(LwA)

EN Ecodesign information / Technical product fiche

symbol Value Unit

Brand	Brandt
Model number	AD1579B
Annual energy consumption	AEC	89.1	kWh/annum
Energy efficiency index	EEi	79.6	-
Fluid dynamic efficiency index	FDE	17.1	-
Lighting efficiency index	LE	49.6	-
Grease filtering efficiency	GFE	54.7	-
Time increase factor	f	1.4	-
Maximum volumetric airflow of the cooker hood	Q_max	610.0	m^3/h
Volumetric airflow at best efficiency point	Q_BEP	354.6	m^3/h
Static pressure at the best efficiency point	P_BEP	303	P
Power consumption at the best efficiency point	W_BEP	174.8	W
Nominal power consumption of lighting system	W_L	1.0	W
Average illumination of the lighting system	E_middle	50	Lux/W
Power consumption in off mode	P_o	--	W
Power consumption in standby mode	P_s	0.34	W
Volumetric airflow at the highest speed setting in normal use -		482.0	m^3/h
Volumetric airflow at the lowest speed setting in normal use -		396.0	m^3/h
Volumetric airflow in intensive or boost mode -		--	m^3/h
Sound power emissions at the highest speed setting in normal use -		69	dB(LWA)
Sound power emissions at the lowest speed setting in normal use -		63	dB(LWA)
Sound power emissions in intensive / boost mode -		--	dB(LWA)

FR\$

1 / A L'ATTENTION DE L'UTILISATEUR

Simple line drawing of a mechanical component with a cylindrical shaft and circular base (no text or symbols)

Image 3

Diagram showing a brick wall next to a microwave oven with a cylindrical tube, no text or symbols present.

Image 4

Droit Tort

Image 5

3 / UTILISATION DE VOTRE APPAREIL FR

• DESCRIPTION DES COMMANDES

Diagram showing three labeled steps (①, ②, ③) of a mechanical or architectural component with directional arrows indicating motion.

Image 7

Attention

Technical line drawing of a square electronic device with mounting holes and a close-up inset showing internal components (no text or symbols)

Image 9

FR / NETTOYAGE ET ENTRETIEN DE L'APPAREIL

Attention :

RELATIONS CONSOMMATEURS

Extension tube

Imagem 3

Diagram showing a brick wall next to a microwave oven with a cylindrical tube, no text or symbols present

Imagem 4

Bem Mal

Imagem 5

Diagram showing three labeled steps (①, ②, ③) of a mechanical or architectural component with directional arrows indicating motion.

Imagem 7

Nota

Technical line drawing of a square electronic component with mounting holes and a close-up view of its internal structure (no text or symbols)

Imagem 9

4 / CUIDADO E LIMPEZA DO SEU APARELHO PT

Advertência

Extension tube

Abbildung 3

Simple line drawing of a microwave oven with a wall-mounted dish and a cylindrical tube, no text or symbols present.

Abbildung 4

Two simple rectangular outlines with a vertical line and a horizontal base, no text or symbols present.

Diagram showing three labeled steps (①, ②, ③) of a mechanical or architectural component with directional arrows indicating motion.

Abbildung 7

Hinweis

Diagram of a device with a screen and directional arrows indicating movement or assembly (no text or symbols)

Abbildung 9

2 / INSTALACE VAŠEHO PŘÍSTROJE

2 / INSTALACE VAŠEHO PŘÍSTROJE

CZ

• OCHRANA ŽIVOTNÍHO PROSTŘEDÍ

Diagram of a cylindrical object being compressed onto a rectangular base, with directional arrows indicating motion (no text or symbols)

Obrázek 3

Diagram showing brick wall and air vent with a cylindrical component mounted on a cabinet (no text or symbols)

Obrázek 4

Diagram showing three labeled steps (①, ②, ③) of a mechanical or architectural component with directional arrows indicating motion.

Obrázek 7

Poznámka

Diagram of a device with two labeled components and directional arrows indicating movement (no text or symbols)

Obrázek 9

4 / ÚDRŽBA A ČIŠTĚNÍ VAŠEHO PRÍSTROJE

CZ

Varování

• ÚDRŽBA VAŠEHO PŘÍSTROJE

2 / INSTALLATION AF APPARATET

Extension tube

Illustration 3

Diagram showing a brick wall next to a microwave oven with a glass on top (no text or symbols)

Illustration 4

Two identical rectangular outlines with a vertical centerline, no text or symbols present

Diagram showing three labeled steps (①, ②, ③) of a mechanical or architectural component with directional arrows indicating motion.

Illustration 7

Note

Diagram of a device with a square panel and two circular components, no text or symbols present

Illustration 9

5 / FEJLFINDING

DK

INNEHÅLLSFÖRTECKNING

SE

1 / INFORMATION TILL ANVÄNDAREN

Simple line drawing of a cylindrical object on a rectangular base with a circular arrow indicating rotation (no text or symbols)

Bild 3

Diagram showing a brick wall with a cylindrical object and a fan-shaped component, no text or symbols present.

Bild 4

Two identical rectangular shapes with centerlines, no text or symbols present

Rätt
Fel
Bild 5

Diagram showing three labeled steps (①, ②, ③) of a mechanical or architectural component with directional arrows indicating motion.

Bild.7

Diagram of a device with a square panel and two circular components, showing directional arrows (no text or symbols)

Bild.9

4 / RENGÖRING OCH UNDERHÅLL FÖR DIN APPARAT

SE

Varning

Simple line drawing of a mechanical component with a rotating shaft and circular motion arrow (no text or symbols)

Eik 3

Simple line drawing of a microwave oven with a cylindrical tube and brick wall (no text or symbols)

Eik 4

Two rectangular shapes with vertical centerlines, one outlined and one filled, placed on a horizontal line (no text or symbols)

Σωστό Λάθος

Eik 5

Diagram showing three labeled steps (①, ②, ③) of a mechanical or architectural component with directional arrows indicating motion.

Eik.7

Kleísiµo Avonµa

Eik.8

Diagram of a square electronic device with an attached component and directional arrows indicating motion (no text or symbols)

Eik.9

GR

Diagram of a cylindrical object being compressed onto a rectangular base, with directional arrows indicating motion (no text or symbols)

Pic 3

Diagram showing a brick wall next to a mounted air vent with a cylindrical component, no text or symbols present.

Pic 4

Right Wrong

Pic 5

3 / USO DE SU APARATO

ES

• PARA USAR SU CAMPANA DE COCINA

Close Open

Pic 8

Diagram of a device with a square frame and two circular components, showing directional arrows (no text or symbols)

Pic 9

ES

4 / CUIDADO Y LIMPIEZA DE SU APARATO

Advertencia
