USER MANUAL WX424.2 WORX

*Not all the accessories illustrated or described are included in standard delivery.

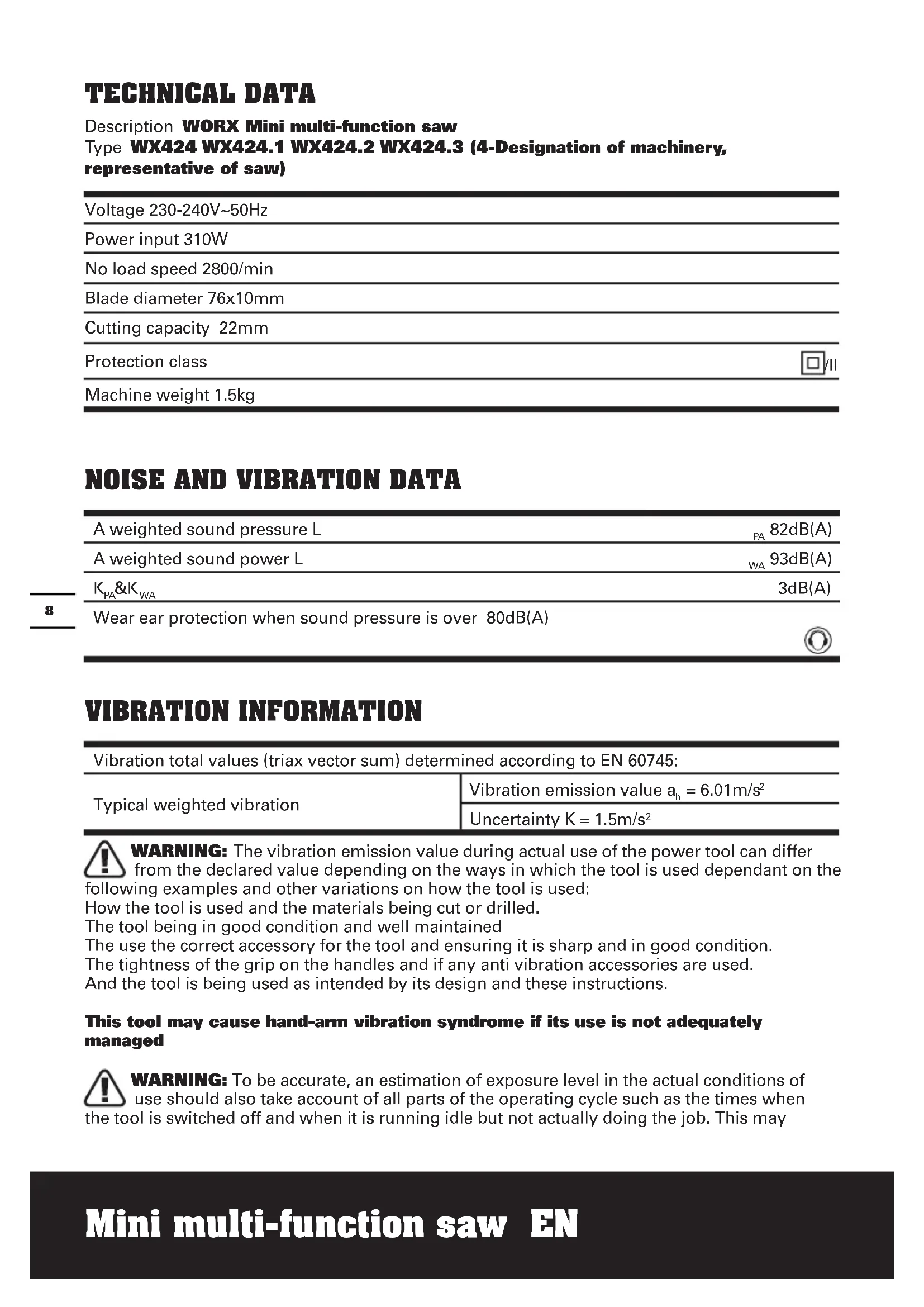

TECHNICAL DATA

Description WORKX Mini multi-function saw

Type WX424 WX424.1 WX424.2 WX424.3 (4-Designation of machinery, representative of saw)

Voltage 230-240V~50Hz

Power input 310W

No load speed 2800/min

Blade diameter 76x10mm

Cutting capacity 22mm

Protection class

Machine weight 1.5kg

NOISE AND VIBRATION DATA

A weighted sound pressure L	82dB(A)
A weighted sound power L	93dB(A)
KPA&KWa	3dB(A)
Wear ear protection when sound pressure is over 80dB(A)

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 60745:
Typical weighted vibration	Vibration emission value ah = 6.01m/s2
	Uncertainty K = 1.5m/s2

WARNING: The vibration emission value during actual use of the power tool can differ

from the declared value depending on the ways in which the tool is used dependant on the

following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained

The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed

WARNING: To be accurate, an estimation of exposure level in the actual conditions of

use should also take account of all parts of the operating cycle such as the times when

the tool is switched off and when it is running idle but not actually doing the job. This may

significantly reduce the exposure level over the total working period.

Helping to minimise your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration accessories.

Avoid using tools in temperatures of 10^ or less.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSIONS

		wx424	wx424.1	wx424.2	wx424.3
Vacuum adaptor 1 1 1
Non-scratch base cover 1 1 1
Parallel guide 1 1 1
Hex key 2 2 2
Hex key	24T TCT for wood 1 2 1
	44T HSS for general blade 1 1	/
	50grit diamond disc	1 1 /

We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

ADDITIONAL SAFETY RULES FOR YOUR MINI MULTI-FUNCTION SAW

1. Always wear a dust mask, hearing protection and eye protection.
2. Only use saw blades recommended for use with this model.
3. Always wear gloves when handling saw blades and rough material. Saw blades shall be carried in a holder whenever practicable.
4. Fully unwind cable drum extension to avoid potential overheating.
5. When an extension cable is required you must ensure it has the correct ampere rating for your power tool and is in a safe electrical condition.
6. Ensure your mains supply voltage is the same as indicated on the rating plate.
7. Your mini multi-function saw is a hand held tool, do not clamp your mini multi-function saw to a workbench.
8. Before cutting, ensure the work piece is free of nails, screws, etc.
9. Do not cut small work pieces with a mini multi-function saw. If possible, use a jigsaw.
10. Only make cuts with the blade direction downwards, never upwards or at the side.
11. Do not use a blade unless the rated blade speed exceeds the saw no load speed.
12. Never remove the guard system. Never use the saw if the guard system does not function correctly. Never lock the moving guard open. The guard must move freely.
13. Always check walls, floors and ceilings to avoid hidden power cable and pipes.
14. After long working periods external metal parts and accessories could be hot.
15. Do not cut material containing asbestos.
16. Do not use mini multi-function saw to cut tree limbs or logs.
17. Do not use any abrasive wheels.

SAFETY INSTRUCTIONS FOR ALL SAWS

WARNING

1. Keep hands away from the cutting area and the blade. Keep your second hand on the motor housing. If both hands are holding the saw, they can not be cut by the blade.
2. Do not reach underneath the work

piece. The guard cannot protect you from the blade below the work-piece.

1. Adjust the cutting depth to the thickness of the work-piece. Less than a full tooth of the blade teeth should be visible below the work-piece.
2. Never hold piece being cut in your hands or across your leg. Secure the work-piece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control.
3. Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.

Contact with a "live" wire will Iso make exposed metal parts of the power tool "live" and shock the operator.

1. When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding.
2. Always use blades with correct size and shape of arbor holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
3. Never use damaged or incorrect blade washers or bolt. The blade washers and bolt are specially designed for your saw, for optimum performance and safety of operation.

FURTHER SAFETY INSTRUCTIONS FOR ALL SAWS.

CAUSES AND OPERATOR PREVENTION OF KICKBACK:

• Kickback is a sudden reaction to pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the work-piece toward the operator;
• When the blade is pinched or bound tightly by the work piece being cut, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;
• If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the material being cut and jump back toward the operator.

KICKBACK IS THE RESULT OF SAW MISUSE AND/OR INCORRECT OPERATING PROCEDURES OR CONDITIONS AND CAN BE AVOIDED BY TAKING PROPER PRECAUTIONS AS GIVEN BELOW.

1. Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.
2. When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
3. When restarting a saw in the workpiece, center the saw blade in the work piece cut and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the work-piece as the saw is restarted.
4. Support large panels to minimize the risk of blade pinching and kickback.

Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.

1. Do not use dull or damaged blades. Unsharpened or improperly set blades can cause excessive friction, blade binding and kickback.
2. Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
3. Use extra caution when making a "plunge cut" into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.

SAFETY INSTRUCTION FOR MINI MULTIFUNCTION SAW WITH LOWER GUARD

1. Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other parts, in all angles and depths of cut.
2. Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use.

Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.

1. Assure that the guide plate of the saw will not shift while performing the "plunge cut" when the blade bevel setting is not at 90^ . Blade shifting sideways will cause binding and likely kick back.
2. Always observe that the lower guard is covering the blade before placing saw down on bench or floor. An

unprotected, rotating blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for blade to stop after ON/OFF switch is released.

GENERAL SAFETY WARNINGS FOR YOUR LASER

WARNING: Read all safety warnings and all instructions. Failure to follow

the warnings and instructions may result in serious injury.

Save all warnings and instructions for future reference.

These lasers do not normally present an optical hazard although staring at the beam may cause flash blindness.

Do not stare directly at the laser beam. A hazard may exist if you deliberately stare

into the beam, please observe all safety rules as follows:

1. The laser shall be used and maintained in accordance with the manufacturer's instructions.
2. Never aim the beam at any person or an object other than the work piece.
3. The laser beam shall not be deliberately aimed at another person and shall be prevented from being directed towards the eye of a person for longer than 0.25 seconds.
4. Always ensure the laser beam is aimed at a sturdy work piece without reflective surfaces, e.g wood or rough coated surfaces are acceptable. Bright shiny reflective sheet steel or similar is not suitable for laser applications as the reflective surface may direct the laser beam back at the operator.
5. Do not change the laser device with a different type. Repairs must be carried out by the manufacturer or an authorized agent.
6. CAUTION: Use of controls or adjustments other than those specified herein may result in hazardous radiation exposure.

Additional safety warning for class 2 laser

The laser device fitted to this tool is class 2 with a maximum radiation of 1mW and 650nm wavelength.

CLASS 2 LASER RADIATION, DO NOT STARE INTO BEAM

SYMBOLS

To reduce the risk of injury, user must read instruction manual

Warning

Double insulation

Wear eye protection

Wear ear protection

Wear dust mask

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

Laser radiation

Do not stare into beam

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE:

The machine is intended for lengthways and crossways cutting of wood with straight cutting lines, aluminium, PVC pipe and tile, etc., while resting firmly on the work piece.

1. INSTALL/CHANGE THE BLADE (See Fig. A)

WARNING: Be sure to wear protective work gloves while handling a saw blade. The blade can injure unprotected hands.

WARNING: This tool will be extremely hot after use. Be sure to let saw, blade and blade spindle clamping screw cool before changing blades.

a. Unplug the saw.

WARNING: To prevent personal injury, Always disconnect the plug from power source before assembling parts, making adjustments or changing blades.

b. Loosen the blade spindle clamping screw using the two hex keys included. Place one key into the blade spindle clamping screw and the other key into the back of the spindle assembly. (See Fig. A)
c. Turn the key that is in the clamping screw clockwise while holding the other key stationary.
d. Remove the screw and the blade clamping washer. (See Fig. B)
e. Set the depth of cut scale to the maximum depth of 22mm . Release the blade release lever and rasie the base with the finger lift bracket to expose the blade below the base.
f. Grasp the blade with your gloved hand and remove the blade, or install the blade, through the blade slot in the base.
g. Place the new saw blade through the blade slot in the base and onto the spindle shaft.

NOTE: The teeth of the blade should

point upward at the front of the saw as shown in (See Fig. B).

NOTE: The warning copy and the Blade Rotation Arrow shown on the blade should face outward towards the operator so it can be viewed (See Fig. C).

h. Replace the blade clamping washer .

i. Replace the spindle screw and hand tighten it in a counterclockwise direction.
j. Use the two hex keys to tighten the spindle clamping screw thoroughly.
k. Place the two hex keys back in the case.

NOTE: Never use a blade that is too thick to allow the blade clamping washer to engage with the flat side of the spindle.

2. MAKING DEPTH OF CUT ADJUSTMENTS (See Fig. D)

NOTE: Always use the correct blade depth setting. The correct blade depth setting for all cuts should not be more than 6mm below the material being cut. Allowing more depth will increase the chance of kickback and cause the cut to be rough. Your saw is equipped with a depth of cut scale that provides increased depth of cut accuracy. The depth of cut scale is located on the top of the upper blade guard (See Fig. D).

Our suggest cut depth:

	Max. cut depth
Wood 0-22mm
Alu 0-3mm
PVC pipe 0-12mm
Tile 0-8mm

TO SET THE BLADE DEPTH (Fig. E1, E2)

Determine the desired depth of cut. Unlock the depth of cut and length of cut Indicator adjustment/Lock lever. Slide the depth of cut indicator to the desired depth of cut. Lock down the depth of cut adjustment / lock lever. The length of cut indicator (See Fig.D) is ideal for plunge or pocket cutting into the middle (or interior) of the work piece when you need to know where the cut will begin and where it will end. This feature allows you to pinpoint the location where the blade will plunge into the work piece, based on the blade depth that

was selected. Always practice in a scrap work piece to become familiar with this cutting operation. The selected depth of cut is now set. When the saw's blade is manually lowered (See Fig. Ka, Kb), the blade will be below the base at the selected depth.

3. ADJUSTING THE 3-POSITION HANDLE (See Fig. F)

Your saw has handle/motor housing with soft-grip that adjusts to 3 different cutting angles, 0^ , 15^ , and 30^ . This feature provides more efficient cutting angles for various applications and added gripping comfort with maximum control.

Grasp the handle with one hand and push the handle adjustment button "IN" to release the handle for adjustment. Move the handle forward or backward (See Fig. F) to locate the 3 different positions. When the handle moves into 1 of the 3 positions the adjustment button will snap out and the handle will lock into position. When adjusting the handle, Always be sure that the button has snapped out and the handle is locked in position. If the handle still moves forward or backward, repeat the process until the handle is locked securely in position.

WARNING: Do not operate the saw if the handle IS not locked in position and can still move forward or backward. Failure to lock the handle in 1 of 3 cutting positions could cause loss of control of saw and result in serious injury.

4. TRIGGER SWITCH (See Fig. G)

To activate the trigger switch to turn the saw "ON", place your index and middle fingers into the molded finger grip trigger safety release switch, and the other two fingers on the trigger paddle (See Fig. G). Squeeze the finger grip "back" until it "clicks", then depress the trigger paddle to turn the saw "ON". To stop the saw, release your grip on the trigger paddle, and the finger grip safety release switch will move back into the "OFF" position.

5. USING THE LASER LIGHT FEATURE AND LED WORKLIGHT (See Fig. H, I)

WARNING: DO NOT stare into beam. Only turn laser beam on when the saw is on the work piece.

Your saw has a built-in laser light. To activate laser light switch, saw must be plugged into power source.

a. Do not turn the laser beam on until the saw is on the work piece.
b. Mark the line of cut on the work piece.
c. Adjust the cutting angle and cutting depth as needed.
d. Plug in the saw and push the laser switch forward to turn on the laser.
e. Always shut off the laser light when you are finished cutting.
f. Your circular saw has a built-in work light for better visibility when cutting. To turn on the LED work light, the saw must be plugged in. Push the switch from OFF to LED.

6. STARTING A CUT (See Fig. J,K,L1,L2)

a) Set-up and clamp your work piece and mark your cut line.
b) Set the handle on the saw to the desired angle for your cutting application.
c) Set the depth of cut (with corresponding length of cut).
d) Position the front of the saw's base onto the leading end (edge) of the work piece that is solidly supported. Align the center of the "V" notch on the front of the base with the cut line (See Fig. J).
e) Manually release the blade guard release lever while holding the finger lift bracket on the rear of the base (See Fig. Ka, Kb) as you lower the saw's handle and blade to the selected depth.

Make sure the blade is not making contact with the workpiece.

f) With both hands on the handle, squeeze the trigger's molded finger grip safety release "backward" while squeezing down on the paddle switch to turn the saw "On".
g) Let the blade reach full speed before you enter the work piece, starting your cut.
h) Press down on the saw, keeping the front

of the base flat against the work piece as you slowly push the saw's blade into the work piece (See Fig. Kc).

i) Carefully guide the saw through the line of cut. Do not bind the blade in the cut; push the saw blade forward at a rate where the blade is not laboring. When the cut is complete, release the trigger safety release and paddle switch and let the blade come to a complete stop. Do not remove the saw and blade from the work piece while the blade is moving. This could damage your cut, cause kickback, loss of control and result in serious injury.
j) When the blade and saw are clear of and removed from the work piece (See Fig. Kf), the lower blade guard and base will be able to automatically drop down and the blade guard release lever will engage the upper blade guard, locking the blade above the base (See Fig. Kg).

Fig. L2.

WARNING: Never use the saw with your hands positioned as shown in

7. MAKING CROSS CUTS AND RIP CUTS (See Fig. M1, M2)

a) ALWAYS use your saw with your hands positioned correctly (See Fig. M1, M2).

WARNING: Always maintain proper control of the saw to make long safer and easier. Loss of control, if the saw could cause an accident, eating in possible serious injury.

b) When making cross or rip cuts, align your line of cut with the center of the "V" notch located on the front of the saw's base (See Fig. J).
c) Since the thickness of blades varies, make a trial cut in scrap material along the guideline to determine how much, if any, you should offset the blade from the guideline to allow for the blade thickness to get an accurate cut.

Making rip cuts (See Fig. M2)

Always use a guide when making long or wide rip cuts with your saw. You can use either a straight edge (sold separately), or use the parallel guide that is included with your saw.

8. CUTTING WITH A STRAIGHT EDGE (See Fig. M1)

You can make an efficient rip guide by clamping a straight edge to your work piece.

a) Mark the position of the side edge of the saw's base (cutting platform) and then securely clamp the straight edge (sold separately) on the mark and parallel to the cut line.
b) As you cut, keep the edge of the saw's base flush against the straight edge and flat on the work piece.
c) Always let the blade reach full speed, then carefully guide the saw into the work piece. Do not bind the blade in the cut. Push the saw forward at a speed where the blade is not laboring.

9. INSTALLING AND USING THE PARALLEL GUIDE (See Fig. N1,N2,N3)

Your saw comes with a parallel guide that is 7-inches long on the guide edge. It allows you to make accurate parallel cuts when trimming a work piece. It attaches to the saw's base. The arm of the parallel guide is stamped, on both sides, 0 to 7 inches in 1/4-inch increments and 1 to 18 centimeters in 10-mm increments for easy adjustment of your cut. The parallel guide can be used with the guide edge turned down to guide along the edge of a work piece for rip or cross cuts (See Fig. N2), or turned up to guide against a wall for inside cuts (See Fig. N3).

a) Position the parallel guide so the arm can slide into the mounting slots at the front of the saw's base (See Fig. N1), and loosen the retaining screw.
b) Adjust the parallel guide to the desired length of cut.
c) Tighten the parallel guide locking screw(20).
d) Clamp and support the work piece securely before making your cut.
e) Place the parallel guide firmly against the edge of the work piece (See Fig.N2), or against a wall (See Fig.N3). Doing this will help give you a true cut without pinching the blade.
f) Be sure that the guiding edge of the work piece, or the wall, is straight so you can

produce a straight cut (See Fig. N2,N3).

g) Always let the blade reach full speed, then carefully guide the saw into the work piece. Do not bind the blade in the cut. Push the saw forward at a speed where the blade is not laboring.

Cutting into a solid base surface

One of the major benefits of this saw is its ability to make plunge cuts directly into the middle, or interior of a work piece, or plunge cut directly into a solid base surface such as sub-flooding, siding, paneling and hardwood or laminate flooring that is mounted on top of sub-flooding.

a) Mark the cut line on the surface to be cut.
b) Set the depth of cut to the thickness of the material to be cut, (sub/floor, siding, laminate flooring, etc.)
c) Align (position) the saw base on the work piece to your mark, using the length of cut guide (so that your starting point lines up with the mark corresponding to the depth of cut setting (See Fig. D).
d) Activate the trigger safety release and paddle switches and turn the saw "On".
e) Let the blade reach full speed.
f) Manually release the blade guard release lever while holding the finger lift bracket on the rear of the base (See Fig. Oa).
g) A. Slowly lower the blade into the work piece.

B. Carefully guide the saw through the line of cut until the forward depth marking on the length of cut guide located on the saw's base aligns with the end of cut marking on your work piece. (Do not bind the blade in the cut; push the saw blade forward at a rate where the blade is not laboring).
C. When the cut is complete, release the trigger safety release and paddle switch and let the blade come to a complete stop. Do not remove the saw and blade from the work piece while the blade is moving. This could damage your cut, cause kickback and loss of control, resulting in serious injury.
h) When the blade and saw are clear of and removed from the work piece, the lower

blade guard and base will be able to automatically drop down and the blade guard release lever will engage the upper blade guard, locking the blade above the base.

11. SAWDUST REMOVAL (See Fig. Q)

Your saw includes a hose adapter tube that attaches to the built-in dust extraction port (7) on the saw (See Fig. 0). This adapter tube can be attached to a wet/dry vacuum cleaner (sold separately). This will help remove dust, chips and cutting debris away from the cutting area.

12. NON-SCRATCH BASE COVER (See Fig. R)

Your saw includes a non-scratch base cover (19). Attach it to your saw's base when you are cutting work pieces that have delicate surfaces (finishes) such as vinyls, plastics, fiberglass, laminate flooring and tiles that could easily be scratched or scraped with the steel base on the saw.

WORKING HINTS FOR YOUR TOOL

If your power tool becomes too hot, please run your circular saw no load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds.

Protect saw blades against impact and shock. Excessive feed significantly reduces the performance capability of the machine and reduces the service life of the saw blade.

Sawing performance and cutting quality depend essentially on the condition and the tooth form of the saw blade. Therefore, use only sharp saw blades that are suited for the material to be worked.

MAINTENANCE

Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never

use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste.

Please recycle where facilities exist.

Check with your local authorities or retailer for recycling advice.

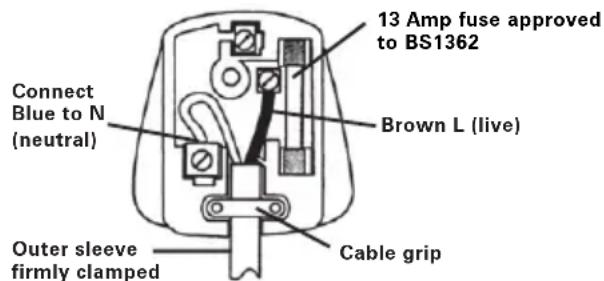

PLUG REPLACEMENT (UK & IRELAND ONLY)

If you need to replace the fitted plug then follow the instructions below.

IMPORTANT

The wires in the mains lead are colored in accordance with the following code:

Blue = Neutral

Brown = Live

As the colors of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured

blue must be connected to the terminal which is marked with N. The wire which is coloured brown must be connected to the terminal which is marked with L.

WARNING: Never connect live or

neutral wires to the earth terminal of the

plug. Only fit an approved BS1363/A plug and the correct rated fuse.

NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Declare that the product,

Description WORX Mini multi-function saw

Type WX424 WX424.1 WX424.2

WX424.3 (4-Designation of machinery, representative of saw)

Function Cutting various materials with a rotating toothed blade

Complies with the following directives,

Machinery directive 2006/42/EC

Electromagnetic compatibility directive

2004/108/EC

RoHS directive 2011/65/EU

Standards conform to

EN 55014-1

EN 55014-2

EN 61000-3-2

EN 61000-3-3

EN 60745-2-5

EN 60745-1

EN 847-1

The person authorized to compile the technical file,

Name Russell Nicholson

Address Positec Power Tools (Europe)

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2012/10/22

Leo Yue

POSITEC Quality Manager

Typ WX424 WX424.1 WX424.2

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2012/10/22

LeoYue

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVE AUX VIBRATIONS

SYMBOLS FONCTIONNEMENT

Modèle WX424 WX424.1 WX424.2

Directive RoHS 2011/65/EU

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2012/10/22

Leo Yue

Responsible qualite POSITEC

1. IMPUGNATURA MORBIDA
2. ALLOGGIAMENTO MOTORE
3. IMPUGNATURA SUPPLEMENTARE
4. SCALA DI PROFONDITA DI TAGLIO
5. LEVA RILASCIO PROTEZIONE
6. STAFFA SOLLEVAMENTO AZIONABILE CON DITO
7. TUBO PER ASPIRAZIONE POLVERI (Vedere Figura Q)
8. PROTEZIONELAMA INFERIORE
9. PROTEZIONE SUPERiore DELLA LAMA
10. SCALA INDICATORE LUNGHEZZA DEL TAGLIO
11. RONDELLA BLOCCAGGIO LAMA
12. VITE BLOCCAGGIO ASSE
13. APERTURE PER IL MONTAGGIO DELLA GUIDA PARALLELA
14. PROFONDITA' DELLA LEVA PER IL BLOCCO TAGLIO
15. GUIDA LASER E LUCE LED
16. PULSANTE REGOLAZIONE IMPUGNATURA
17. INTERRUPTORE ON/OFF LASER E LED
18. PIASTA
19. COPERTURA BASE ANTIGRAFFIO (Vedere Figura R)
20. VITE BLOCCAGGIO GUIDA PARALLELA (Vedere Figura N1)

Codice WX424 WX424.1 WX424.2

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2012/10/22

Leo Yue

Modelo WX424 WX424.1 WX424.2

WX424.3 (4-Denominaciones de

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2012/10/22

Leo Yue

Tipo WX424 WX424.1 WX424.2

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2012/10/22

Leo Yue

Gestor de Qualidade POSITEC

1. ZACHTE HANDGREEP
2. MOTORBEHUIZING
3. AAN/UIT-SCHAKELAAR
4. SCHAAL VOOR ZAAGDIEPTE
5. VERGRENDELKNOP VAN DE KAP
6. BEUGEL OM MET DE VINGER OP TE TILLEN
7. STOFBUISJE (Zie Afbeelding Q)
8. ONDERSTE BESCHERMKAP
9. BOVENSTE MESKAP
10. LENGTHEN ZAAGINDICATORSCHAAL
11. RING VAN MESKLEM
12. SCHROEF OM AS VAST TE KLEMMEN
13. MONTAGEGLEUVEN VOOR PARALLELGELEIDER
14. BLOKKEERHENDEL VOOR ZAAGDIEPTE
15. LASERGELEIDING EN LEDVERLIGHTING
16. INSTELKNOP VAN HANDVAT
17. SCHAKELAAR VOOR LADER EN LED
18. VOETPLAAT
19. VOETBESCHERMERS (Zie Afbeelding R)
20. BLOKKEERSCHROEF VAN PARALLELLE GELEIDER (Zie Afbeelding N1)

WAARSCHUWING! Lees alle

TIPS VOOR HET WERKEN MET UW APPARAAT

Type WX424 WX424.1 WX424.2

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2012/10/22

Leo Yue

Type WX424 WX424.1 WX424.2 WX424.3 (4- Udpegning af maskiner, representant for saw)

2.INDSTILLING AF SAVEDYBDE (Se Fig.D)

Type WX424 WX424.1 WX424.2

WX424.3 (4-UdPEGing af maskiner,

representant for saw)

Funktion Skaering forskeigige materialer

med en roterende tandede savklinge

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2012/10/22

Leo Yue

Type WX424 WX424.1 WX424.2 WX424.3 (4-Betegner maskin, angir sag)

A stille inn bladdybde (Se E1, E2)

9. MONTERING OG BRUK AV PARALLELLSKINNE (Se N1,N2,N3)

Sagen leveres med en parallellskinne som er nesten 18 cm lang pa skinnekanten. Den kan brukes til a lage noyaktige parallelle kutt n ar du beskjærer et arbeidsemne. Den festes til sagens sukkel. Armen pa kantskinnen har pa begge sider merker fra 0 til 7 tommer med 1/4 tommers-intervaller og 1 til 18 centimeter med 10 mm-intervaller for lett justering av kuttet. Parallelskinnen kan brukes med skinnekanten nedover for en kant pa et arbeidsemne enten for kapping ellr for klvying (Se N2), men ogsa oppover som en styreskinne mot en vegg forindre kutt (Se N3).

a) Plasser parallelskinnen slick at armen kan smette inn i monteringshullene foran på sagens sukkel (Se N1), og Iøsne festeskruen.
b) Juster parallelskinen til riktig skjærelengde.
c) Stram til festeskruen pa parallellskinnen(20).
d) Klem fast arbeidsemnet for du begyinner skjaeringen.
e) Plasser parallelskinen skikkelig mot kanten på arbeidsemnet (Se N2), aller mot en vegg (Se N3). Ved Å gjore dette kan du få et riktig kutt uten Å klemme bladet.
f) Kontroller at styrekanten på arbeidsemnet aller veggen er rett, sik at det gir et rett kutt (Se N2,N3).
g) La alltid bladetkommenoppifull hastighet,ogfordet sa forsiktig gjennom arbeidsemnet. Ikke sett fast bladetikuttet. FOr sagen fremover med en hastighet som gjor at bladet icke sliter.

10. SENKINGS- ELLER LOMMESKJAERING (Se Oa,Ob,Oc)

ARBETSTIPPS FÖR DIT VERKTYG

Typ WX424 WX424.1 WX424.2 WX424.3

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2012/10/22

Leo Yue

POSITEC Kvalitetsdirektor

136

1. YUMUŞAK TUTMA YERİ
2. MOTOR YERI
3. EMNIYET ACMA/KAPAMA ANAHTARI
4. KESME SKALASI DERINLIGI I
5. KORUYUCU SERBEST BIRAKMA KOLU
6. PARMAK KALDIRMA BRAKETI
7. TOZ BORUSU (Bkz. Sek Q)
8. ALT BICAK SIPERLIJI
9. ÜST BICAK KORUYUCU
10. KESME GÖSTERGE ÖLÇEGİNIN UZUNLUğU
11. BICAK KENETLEME RONDELASI
    12.IG KENETLEME VIDASI
12. PARALEL KILAVUZ IÇIN TAKMA YUVALARI
13. KESME DERINLIGI KILIT MANDALI
14. LAZER REHBERI VE LED ÇALİŞMA LAMBASI
15. KOL AYARLAMA DÜGMESI
16. LAZER VE LED AÇMA/KAPAMA DÜGMESI
17. ALT PLAKA
18. ÇIZILMEZ TABAN KAPAGI (Bkz. Sek R)

19. PARALEL KILAVUZ TESPIT CIVATASI (Bkz. Sek N1)

20. Tasvir edilen veya açıklanan aksesuarlying hepsi standard paketlemelerde dahildehydigildir.

TEKNIK VERILER

XPHSH SYM3QNA METON NPOOPIMO:

To unxavnma Tpoopicieta iia kTeAeon eUthetaiw KOTIW 山 OAU KA t a NKO s KAI KATAaTOs IIOEC yapuces KOINc, aoumuivou, oWvPVC KAI PAAKAIwV, K.AT. EVw akoupiaeI Otaepa 10KoMPATI Epyaioac.

1. TONOOETHsH KAI AAArH MIAA ANIADAANPIIONIOY(EK A)

PPOXH:Na φopáte
πpootateutiká yávtia tav
aλaete tov πpivobioko. H εηαφη με
tov πpivobioko δημioupyéi kivduvo
tpaupatioóu.

BHIMAHNE: Bn6paun, npoun3BODmam npn pa6oTe mexaHn3IPOBaHHoro IHCTpyMeHTa,

MOKETOTJINuATbcrOT3aBnHbIX3HaueHmB3aBNCIMOCTNOTCNOcO6OBNCIOJIb30BaHn

ycTpOncTb. Hnke nepeuucneHbI HeKOToPbI yCNoBn, OT KOToPbIX 3aBNCIT INHTeHCNBHOCTb Bn6paun:

IcnoJIb3OBAHHe INHCTpyMeHTa N o6pa6aTbIbAemblc MaTePnAbI.

CocToHHe INHcTpymeHTa I ypoBeHb Texo6cIyXnBaHnA

TINNCNOJb3yeMbIX pInHaIeXHOCTe N IX TEXHNueCKOE COCTOHNHe.

Cnla ydepkaHn pykortok n Hauuue npOTNB0B6paunOHbIX cpeCTB.

IcnoJIb3yEmblpe pa6OuHnHCTpyMeHTbl, COOTBETCTBHe npIMeHeHnHnHCTpyMeHTOB INx Ha3HaueHnHO.

При Нелразильnom obpaшени данhoe yctpoicTBO MOKeT CTaTb npuHnOH cnHdPOMApDpOxAHnpyk

BHUMAHNE:ДЯTOUHON OUeHKn BO3dEiCTBnBn6paunn BO BpeM 3KcNpyaTauHn Heo6xOIMO TAKKe yuHTbIBaTb BCE 3TaIbI pa6oyero npouceca, BkIouyA BpeM, KOrda

MhorocyHKnOHaJIbHa MHHn-Pla RU

yCTpoIcTBo BbIKHoyeHO IIN BKNIOyeHO, HO 6e3deiCTByeT. 3TN nepepbBbl 3HaHTeJIbHO CHIXKaIOT oBuee BnIaHHe Bn6paunB XOJe BCero paOohero uNKla.

CJeDyUoIe peKOMeHdaunn NOMOry cHn3NTb ONaCHOCTb BO3DeiCTBn Bn6paun np pa6ote.

BCEΓДA NOJb3yTEcB TOJIbKO OCTpbIMN INHCTpyMeHTAMN (pe3aMn, CBepJamn, INJamn n T.D.).

IpoBOnTe TexO6cnyKuBaHne B COOTBeTCTBnC yKa3aHnA M, TuaTeJbHO Cma3bBaIe yCTpOiCTBO B COOTBeTCTByUoX MecTaX.

Ecn yctpoiCTBO nCnoJIb3yeTcpeYyIaHPO, npno6peTne npoTnOBn6paunOHhie cpeIcTBA.

I36eTaIe npImeHEny yCtpoiCTBa npi Tempeatypax Hnke 10C.

PacnpedeIte 3aauTak, yTo6bI pa6tbl, cOnpOBoXdaUoIeC8 BbICOKM ypoBHeM Bn6paun, npoBOdInncb uepe3 BoIbIne npomExyTKn BpeMeH.

ПРИНадлесхости

HaJeHbTe 3aUHTbIe HayuHnKIn

HaendhepepecnnpaTop

OTxOdbI 3NeKtpoTeXHnuecko npOdykun He cJeDyeT yTIN3nPoBaTb C 6bITOBbIMN OTxODaMn. OH DOnJXHbI 6bITb DOCTaBHeHb IMcTHbI CEHTp yTIN3aCm n dJa HaDJIeXaUe npepea60TKn.

Ja3epHoe n3JyueHne

He cmOTpuTe Bnyu

3KcPJIyATAU

BHIMAHNE: Ipeed nCnoJIb3ObaHneMHCTpyMeHTa, BHIMaTeJbHO npoHTaTte

pykoBOdCTBO NO 3KcNJaTaAU.

HA3HA4EHNE

Данhoe yctpoicTBO npedHa3NaueHo ДяпрдьHorOи пonepeuHoro pa3pe3aHnЯ ПпразмОЛHHIN lecomatepnaIOB, aIbOMHnY,NBX Tpy6, keramueckoПNTKIn T.IN. prn erOyctahOBKe Ha obpa6aTbIBaEMoJ DeTaJIi.

BHIMAHNE: He haçelnbaite lyu lyasepa Ha IIOdei n dpyrne npedMeTbI Kpome o6pa6aTbIBaEMoN nobepxHocTH. BkIouaIte lyu lyasepa, TOLbKO ecIn NiJa yCTaHOBJeHa Ha o6pa6aTbIBaEMoJ DeTaJIH. DaHHa ZnRPKylpHaN NiJa NMeet BCtpoEHnbI lyasep. YTO6bl NCIOJIb3OBA Tb lyasep, NiJa DOJXHa8 6bITb NOkJIIOUeHa K NcToCHNKy NHTaHNA.

a. He BkIIOuYaTe Jla3ep, ecn nIIa He pacnoIOnOKeHa Ha o6pa6aTbIbAeMoI DeTaJI.
b. HAmTe JINHIO npOnnHa Ha deTaII.
c. Otperynupyte yro n rnybiny nponna, kak Bam Tpe6yeTc.
d.ДЯВКЛIOUeHINJa3epaNoKJIIOUHTeNIny IN HaxMNTe BnpeEd BbIKIIOuHaTeJbJa3epa.
e. IIO OKOHuaHn NIIeHnB BcERda OTKIOUaIte Na3epHbI JyU.
f. DaaHHa NIIa NMeET BCTpoEHbI CBETNJbHKn IINyUyUeHnBvDnMoCTn PnNIneHn. UTo6bl BKIOuHTb CBeTOdNOHbI CBETNJbHKn, NIIa DOJXHa 6bITb NOKJIouHeHa K CeTI. YcTaHOBtE BbIKIOuTeIb n3 NoOKeHnR OFF (BbIKJ.) B noOKeHne LED (CBET).

6. HauJIO NIIeHn (Cm.Pnc.J,K,L1,L2)

a) YcTaHOBnTe n 3aФNKCnpyIte 6pa6aTbIBaEmyO DeTaJIb n HAmEtbTe JINHIO npOnnla.
b) YcTaHOBnTe pyKoTky Ha nIIe noId HxKhbIM yrJOM dIraDaHHoN onepaun.
c) YctaHOBnte rny6nHy npoNna (c COOTBeTCTByUoSei DInHoi npoNna).
d) NomeCTnTe nepeHIOU qactb nIbI Ha nepeHnKoHeC (kpaI) o6pa6aTbIbAemOi DeTaII, KOTOPa DOJXHa HAdEJKHO NODePxABaTbcra. CoBMeCTnTe MeTKy "V" Ha nepeHne Yactu OCHOBaHnC JINHei npOnnla (CM.Pnc.J).
e)Пидерхьаг кронштейн понгтуна Ha 3аднч actn ochobahna, Bpychnyo ocna6bTe pyharocbo6oxdengn pejxuero noToHa (Cm.Pnc.Ka,Kb) npn onyckanru ykoarTkn nIbI u yctahOBke pejxuero noToHa ha Tpe6yemyo rnybHy npOnnla.

Y6eHNTecb, yTo peKyuIee noIoTHo He cOnpNKacaTcra c o6pa6aTbIbAemoi DeTaIbIO.

f)ДерхаобeyукнHa pyKoTKe HaKMnTe Ha 3aHIOU YacTb pyKoTKn ChrTna 3aUnTbIC OndHOBpeMeHHbIM HaxKaTHeM Ha NpactHy 3aUeKN, YTO6bl BkNIOuHTb NINy (NepeBeCTN B noIooKeHne «BKl.»).
g)do o6pa6oTKn DeTaJIH cKOpocTb BpaueHnpeKyuIero NOnOTHa DoJXHa DoCTNbMaKcImaJIbHOJ cKOpocTn, NocJe YeRo MoXHo npIcTynIT K NiIeHIO.
h) HappaBnB NpeDnH KOHeu PIOCKoCTN OCHOBaHnHa o6pa6aTbIbAeMyo DeTaNb I MeDneHnTOJkA pexyUee NOJNTHO B DeTaNb, HaxMnte Ha nNy (Cm. Pnc. Kc).
i) Octopoxho Beinte Nny no NnHn npOnnla. He donyckaite 3axmamna IonoTHa B npOnne; nepemeeaite NoIOTHO nIbI BpeepcoKOpCTbIO, He npNBOJaue K neperpy3ke noIOTHa. 3akOHnuB nIeHne, OTyctnte 3auneKy cHrtna 3aunTbI n IIaCTNHky BbIKJouateJIry n DoXdntecb IONHO OCTaHOBKn peKyuero IonoTHa. He cHImaTe Nny u He BbIHMaIte peKyuiee noIOTHO n3 o6paBaIBaEMoI DeTaN pN Brpauoemcra IonoTHe. 3To MOKeT IOBpeDnTB npOnn, Bb3BaTb OTCKOK INCTpyMeHTa, pINBeCTN K NOTepe KOHTPOJRA

Ha 6pa6aTbIbAeMoI DeTaJI.

a) OTMeTbTe nOLOXeHne 6OKOBOro kpa OCHOBaHnI pNJIbI (peKyuIa pa6Oua IIOUaDKa), a 3aTeM HaJeJHo 3aKePnITe NOBepOHyIO JInHeiKy (pnpO6peTaemyIO OTdEINHO)Ha MeTke N npapJIeJIbHO JInHn IpnOnJa.
b) B npocece nIeHn npKImaTe kpa OCHOBAHn IINbIK NOBepOHyON HHeKe IN NIOCKOCTN 6pa6aTbIBaEMoJ DeTaJI.
c) Bcerda daBaIte peKyuIeMy noToHy DoCTnUbNoIHOckOpocTNBpaUeHna, 3aTeM OCTOpOxHo HApPaBbTe Nnly Ha o6pa6aTbIBaEmyO Detanb. HE dOnyckaIte 3aJIMa NooTHa B npOnHe. IpeMeuaIte NnIy BnepeDcoCKOpocTbIO, He npNBOJaIe K nepeRpy3Ke peKyuIeNoIoTHa.

9. YCTAHOBKA И NGNoJIb3OBAHNE ПAPAJIJIeJIbHOH HANPABJIIOUcEi (Cm.Pnc.N1,N2,N3)

you've got the power

Copyright © 2012, Positec. All Rights Reserved.

2PSC09CPK11000A7
