RG 2346 - Grill plate SEVERIN - Free user manual and instructions

Brand	SEVERIN
Model	RG 2346
Product type	Grill plate / Raclette grill with natural cooking stone
Use	Cooking with low fat of meat, fish, vegetables and gratinated raclette cheese
Power supply voltage	220-240 V ~ 50/60 Hz (grounded outlet required)
Stone material	Natural stone (possible fine cracks and normal discoloration)
Thermostat	Adjustable with heating indicator light
Included accessories	Cooking stone, several mini pans, wooden spatulas
Cleaning	Body: damp cloth; stone: running water without detergent; pans: warm soapy water
Safety	Do not immerse, keep out of reach of children, unplug after use, risk of burns
Warranty	2 years against material and manufacturing defects
After-sales service	Addresses in Austria, Luxembourg, Macedonia, Hungary, Algeria
Preheating temperature	About 25 minutes at maximum thermostat
Precautions	Do not place cold stone on hot heating element; avoid frozen or vinegared foods
Disposal	Separate collection of electronic waste (crossed-out wheelie bin symbol)

Frequently Asked Questions - RG 2346 SEVERIN

How to clean the cooking stone?

Let the stone cool completely, then clean it under running water with a synthetic sponge without detergent. Dry it thoroughly with a soft cloth. Never immerse the stone in water.

What to do if the appliance does not heat up?

Check that the plug is properly inserted and that the thermostat is not on the minimum setting. If the indicator light does not come on, contact after-sales service. Do not attempt to repair yourself.

Can we use frozen foods?

It is recommended to thaw frozen foods before grilling to avoid damaging the stone and ensure even cooking.

What is the power of the appliance?

The power is not specified in the manual. For similar appliances, it is generally between 1200 and 1500 W.

Is the cooking stone covered by warranty?

Yes, the stone is covered by the 2-year warranty against material defects, but normal wear (fine cracks, discoloration) is excluded.

Can I use other pans than those provided?

Only original accessories are recommended to avoid any risk of overheating or damage. Use exclusively the mini pans provided.

How to adjust the temperature?

Turn the thermostat to the right to increase heat (max position = continuous heating). To the left, the heating element turns off then on intermittently. The red indicator light shows that the element is heating.

Can the appliance be used outdoors?

No, use is strictly for indoor use on a stable, flat, heat-resistant surface.

How long does preheating take?

Preheat the appliance for about 25 minutes with the thermostat at maximum before placing food.

What to do if the stone breaks?

Stop using the appliance immediately. The stone is a consumable accessory; contact after-sales service for replacement. Do not use a cracked stone.

USER MANUAL RG 2346 SEVERIN

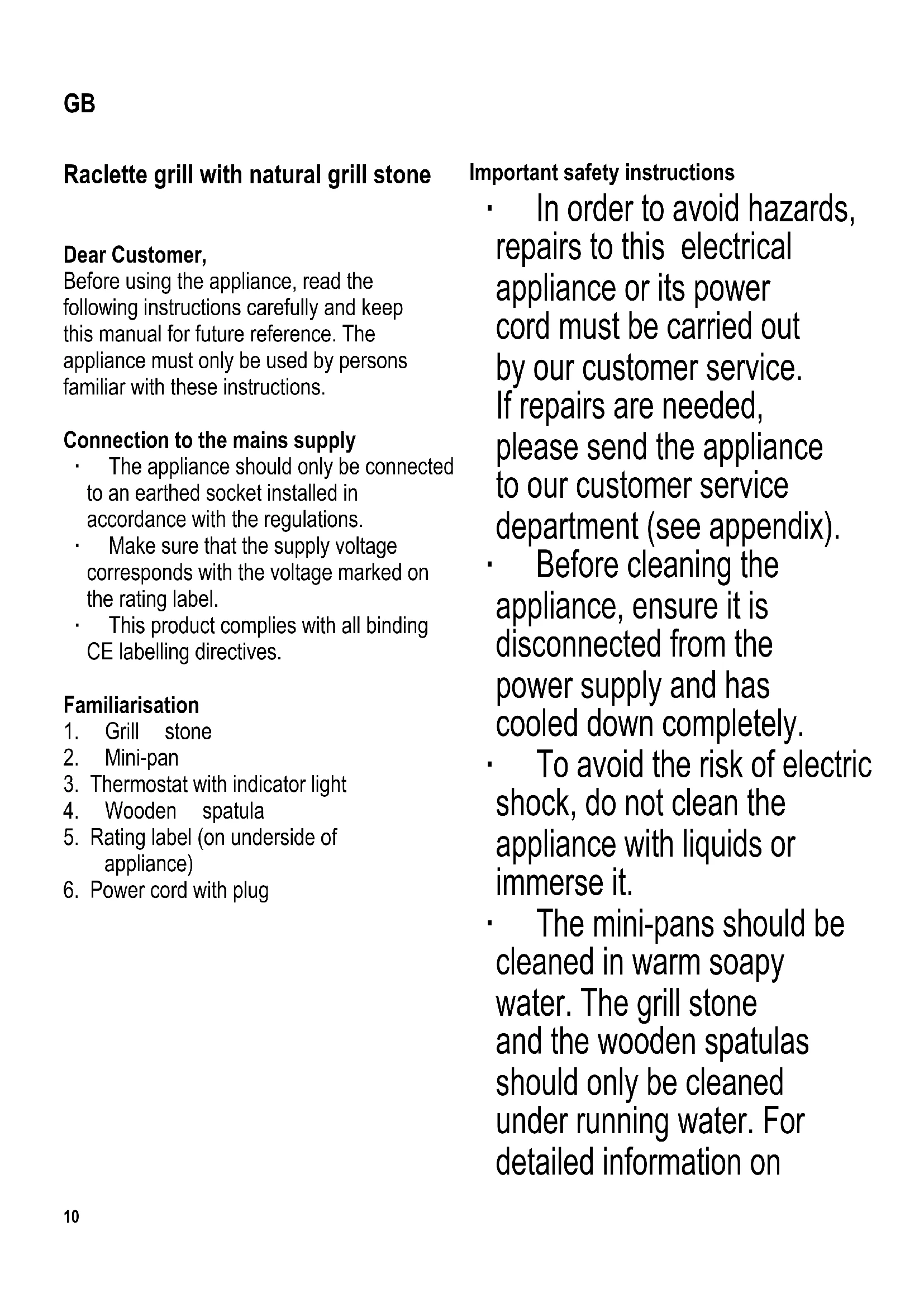

GB Instructions for use Raclette grill with natural grill stone 10

Raclette grill with natural grill stone

Dear Customer,

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations.
Make sure that the supply voltage corresponds with the voltage marked on the rating label.
This product complies with all binding CE labelling directives.

Familiarisation

1. Grill stone
2. Mini-pan
3. Thermostat with indicator light
4. Wooden spatula
5. Rating label (on underside of appliance)
6. Power cord with plug

Important safety instructions

In order to avoid hazards repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).
Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
- To avoid the risk of electric shock, do not clean the appliance with liquids or immerse it.
- The mini-pans should be cleaned in warm soapy water. The grill stone and the wooden spatulas should only be cleaned under running water. For detailed information on

cleaning the appliance, please refer to the section Cleaning and care.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.
This appliance is intended for domestic or similar applications, such as - in staff kitchens in shops, offies and other similar working environments, - in agricultural working environments, - by customers in hotels, motels etc. and similar accommodation, - in bed-and breakfast type environments.
This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental

capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

Children must not be permitted to play with the appliance.
Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
The appliance and its power cord must be kept well away from children under 8 at all times.
- Caution: Keep children away from any packaging materials—these are a potential source of danger, e.g. of suffocation.
Every time the appliance is used, the main body including the power cord as

well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

• The surfaces of the appliance, grill stone and mini-pans become hot during use. Caution: There is a danger of burns.

Do not leave the appliance unattended while in use.

• Do not allow the power cord to touch any hot part of the appliance.

During operation, the appliance must be placed on a heat-resistant, stable and level surface, impervious to splashes and stains. When cooking food with a high fat or moisture content, splashes are not always avoidable.

• Do not position the grill next to a wall or corner, and ensure that no inflammable materials are stored near it.

• Do not position the appliance on or near hot surfaces, open fl ames or infl ammable vapours.

• Caution: Do not operate the appliance outdoors.

• Before use, the grill stone must be placed on top of the appliance over the heating element.

Always remove the plug from the wall socket

• after use,
  -in case of any malfunction, and

• before cleaning the appliance.

• When removing the plug from the wall

socket, never pull on the power cord; always grip the plug itself.

• Caution: This appliance should only be used with the attachments provided by the manufacturer.
  Always allow sufficient time for the appliance to cool down before removing the grill stone, and before cleaning or storing the unit.
• No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

Applications

This appliance is an electric raclette grill, suitable for low-fat grilling of meat, fish and vegetables and for cheese 'au gratin'. Any use other than that described in these instructions must be considered improper and may lead to personal injury or material damage.

Before first use

• Remove any packing materials completely.
• Before using the grill for the first time, clean the grill stone, the wooden spatulas and mini-pans with a damp cloth.
• Heat up the appliance with the stone and mini-pans for about 10 minutes, without any food, to eliminate the smell typically encountered when first switching on a grill (a small amount of smoke may be noticeable). For that reason, adequate ventilation should be ensured by opening windows or balcony doors.
• Allow the appliance to cool down, and then clean it as described in Cleaning and care.

Grill stone

• Before use, fit the stone on the appliance with the smooth side facing up. Caution: Avoid placing a cold stone onto a hot element.
• The stone can be used for cooking vegetables, sliced meat or fish etc. as required.
• This stone is entirely natural material. Small cracks resulting from natural expansion and contraction during heating and cooling, as well as a change to a darker colour are normal and have no detrimental effects.
• Do not place any frozen food or items containing vinegar (such as pickled gherkins or mustard) on the stone.

Variable thermostat and indicator light

• If the thermostat control is set all the way to the right, the heating element remains on. But if the thermostat is moved to the left, the element will switch off and on alternately.
• The red indicator light remains lit as long as the heating element is on.
  After use, return the thermostat to its lowest setting and unplug the appliance from the mains supply.

Operation

Hint: For the very best results, meat should be taken from the refrigerator about half an hour before grilling, covered and left to stand.

• Place the stone on the appliance with the smooth side facing up.
• Insert the plug into a suitable wall socket and turn the thermostat all the way to the right.
• Let the appliance preheat for about 25 minutes to reach the required temperature.
• Place the food to be cooked on the stone, as required.
• Put the raclette cheese into the mini-pans. Place the mini-pans in the appliance, under the heating element, and leave them until the cheese has melted.
• Use the wooden spatulas to take the food from the mini-pans.
• Warning: Do not place empty mini-pans in the appliance while it is switched on.
• When cooking is finished, turn the thermostat all the way to the left and unplug the appliance from the mains.

How to prepare raclette cheese

Use about 200 to 300 grams of cheese per person. Cut the cheese into slices of about 3 to 5mm thickness and put them into the mini-pans. It is preferable to use original raclette cheese. Any other fast melting cheese, however, is also suitable.

Practical hints

• Frozen food should always be properly thawed before it is cooked.
• To avoid damage to the coating of the mini-pans, use only non-abrasive utensils.
• When grilling larger amounts of food, accumulated fat should be carefully removed from time to time, using suitable kitchen towels or similar.

Cleaning and care

• Before cleaning the appliance, always make sure that the plug has been removed from the wall socket and allow the appliance to cool down.
• To avoid any risk of electric shock, do not clean the appliance with liquids or immerse it in a liquid.
• Do not use abrasives or harsh cleaning solutions.
• Wipe the outer surfaces of the grill with a clean damp cloth.
• Remove the pans once they have cooled down, and rinse in a little hot water. If necessary, some mild detergent may be used. Wipe thoroughly dry again with a soft cloth.
  Clean the wooden spatulas under running tap water, drying them thoroughly afterwards.
  Before the stone is removed for cleaning, ensure it has cooled down completely. Clean the stone with a synthetic sponge under running water without detergent. Wipe thoroughly dry afterwards with a soft cloth. Do not immerse the stone in water.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

Chere cliente, Cher client,

PpOeToiuaTou Tupoiu paKkEeT

Xpnoiopoioiote Tepiou 200 ews
300 ypaumapia tupiou yia katheta atoo.
Koptye to tupi oe fetec me npaxoc 3 ews
5 Tepiou xiaooTakai tontoetnoTe to
Ota mikpa taia.Eivai Tpoitipotepo va
xpnoiopoieite auEvtiko tupipakk.
Omu, kae tupi Tou Iwvei evai Etnionc
kataaannlo.

PpakTKeCs OuouaEs

• Πρέπει πάντα va ξεπαγώνετε καλά τα κατεψυμένα τρόφιμα πρίν τα μαγειρεύετε.
  Tia va mny Tpokaolete Znmuia otnv ETTIKAALUyn Twv MIKpwv TaWv,va XpnoiopoIOIEte movo OKeun Tou dev Tpokaov ypatouuviEc.
  OtauynvTe meyalutepeC TPOOOTNTc TPOPIWv, 0a PpETeI va aqaipEITE TEPiotaiaKaTO OUGoWpeUmuEvo AITOC. Na xPnoiopoIEite KATALNAE C TEToETc KOUZivaç n papOioa.
