Original Instructions.

Symbols, abbreviations and terms used.

Symbol, character Explanation
	Do not touch the rotating parts of the power tool.
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
	Observe the instructions in the text or graphic opposite!
	General prohibition sign. This action is prohibited.
	Before commencing this working step, remove the battery from the power tool. Otherwise there may be danger of injury caused by unintentional starting of the power tool.
	Use eye protection during operation.
	Use ear protection during operation.
	Use protective gloves during operation.
	Do not charge damaged batteries.
	Keep the battery away from fire. Protect the battery against heat, e. g. against continuous intense sunlight.
	Observe the information in the adjacent text!
	Additional information.
	Gripping surface
	Switching on
	Switching off
	Confirms the conformity of the power tool with the directives of the European Community.
	This symbol confirms the certification of this product for the USA and Canada.
WARNING	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
Li-Hon	Recycling symbol: designates recyclable materials
	Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling.
	Battery type
	Weight according to EPTA-Procedure 01
	Low speed
	High speed
Symbol, character	Explanation
—	Torque gradient for applications with hard backing, e. g., screws with nuts and washers (dependent of screw diameter and strength)
— —	Torque gradient for resilient applications, e. g., wheel rims, spring washers, disc springs, stud bolts, extensions
— —	Torque gradient for applications with soft backing, e. g., wood (dependent of screw diameter and length), lead or fibre discs, packings
* The power tool can additionally be operated with deviating performance data in the 12 V and 14.4 V voltage classes.
(**) may contain numbers and letters

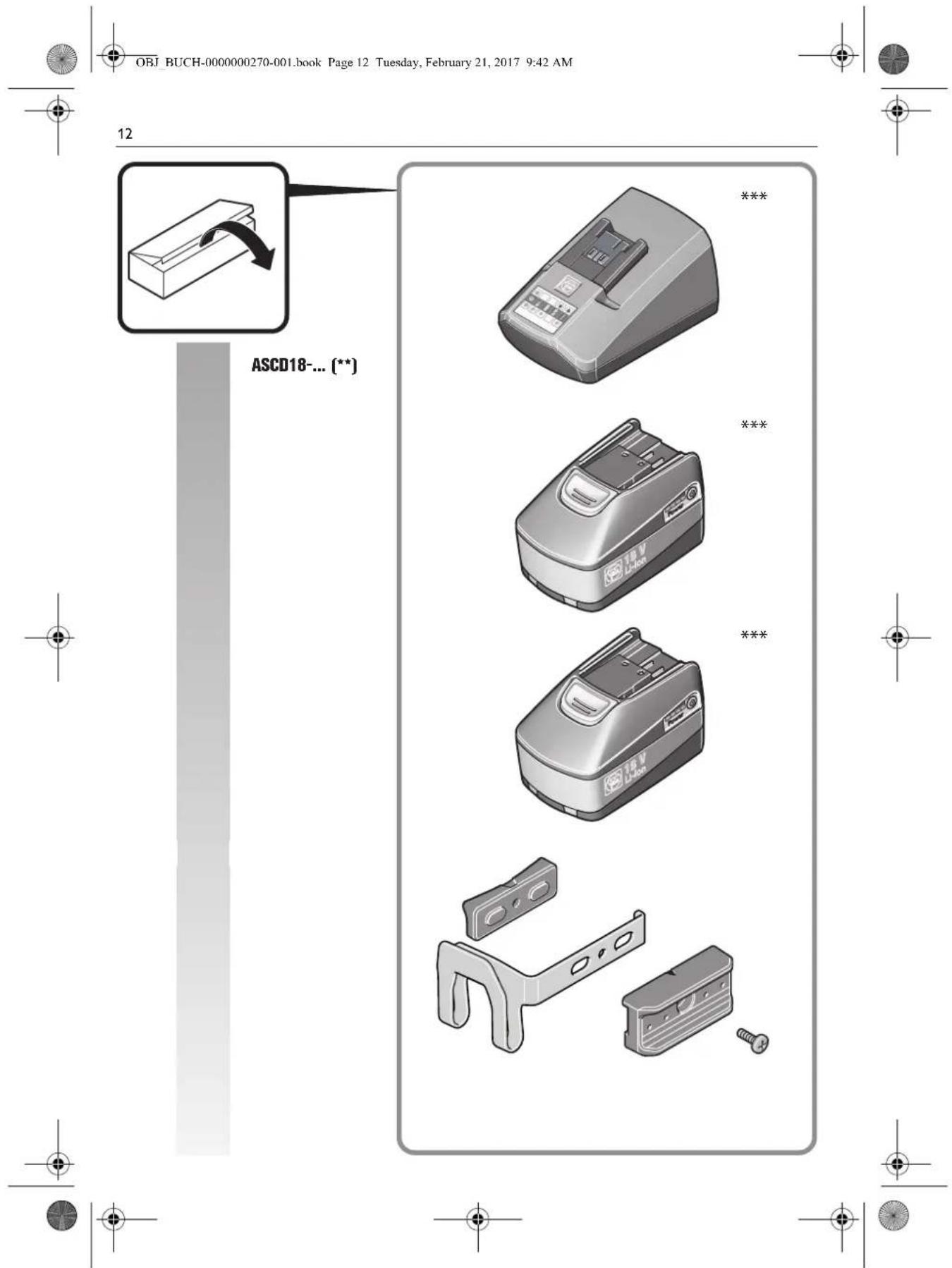

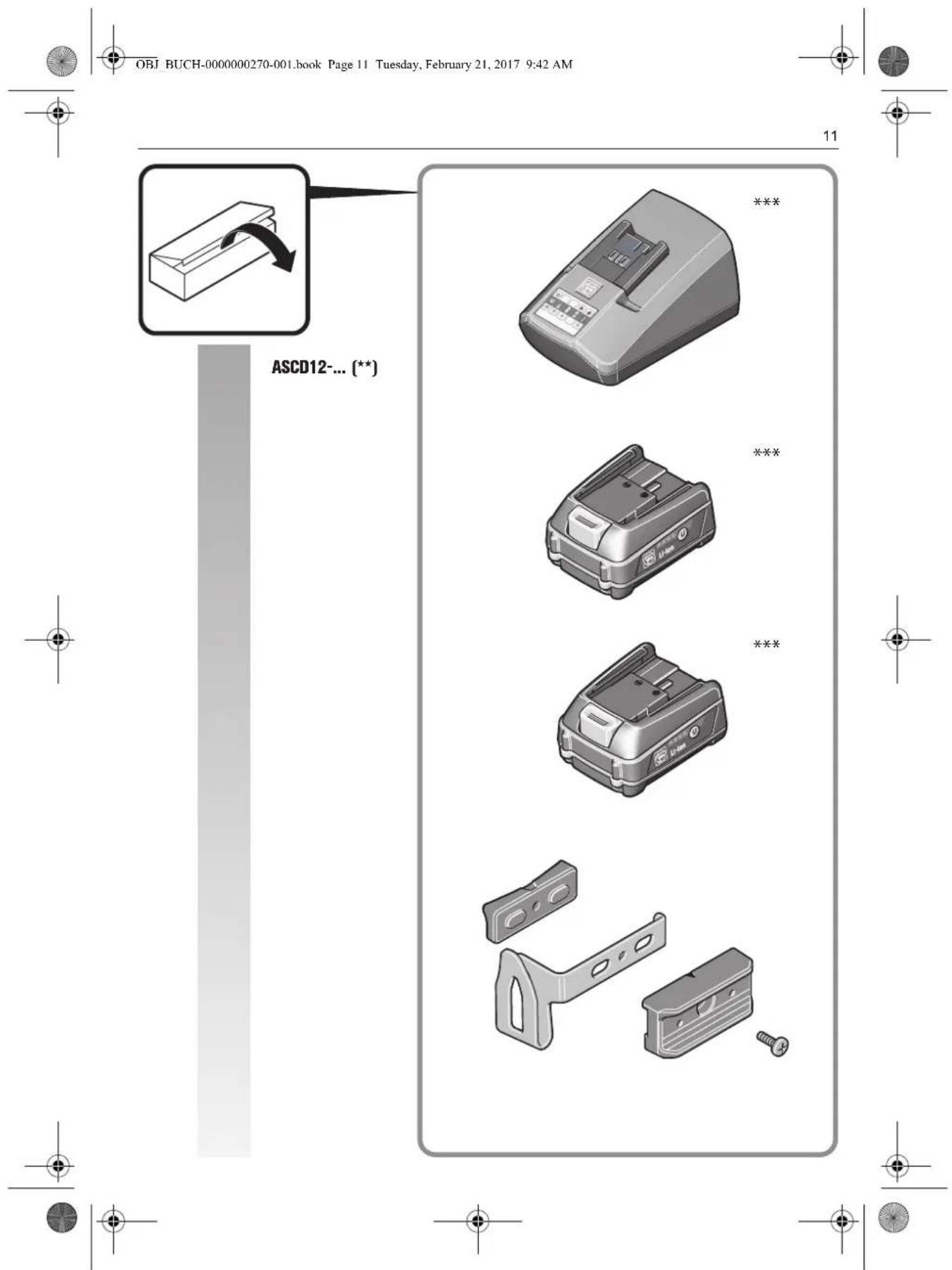

*** Partially in delivery scope

Character Unit of measurement, international		Unit of measure- ment, national	Explanation
UV	V	D	Cv
/Hz Hz Frequency
\( {n}_{0} \)	/min, min \( {}^{-1} \) ,rpm,r/min rpm No-load speed (with fully charged battery)
\( {n}_{S} \)	/min, min \( {}^{-1} \)	/min Impact rate
M...	Nm	Nm	Torque (hard screwdriving application)
O	inch	inch Hexagon socket tool holder
I	Inch	Inch External square tool holder
0	mm	mm	Diameter of a round part
LpA	dB	dB	Sound pressure level
LwA	dB	dB	Sound power level
LpCpeak	dB	dB	Peak sound pressure level
K...			Uncertainty
a	\( \mathrm{m}/{\mathrm{s}}^{2} \)	\( \mathrm{m}/{\mathrm{s}}^{2} \)	Vibrational emission value according to EN 60745 (vector sum of three directions)
\( {\mathbf{a}}_{h} \)	\( \mathrm{m}/{\mathrm{s}}^{2} \)	\( \mathrm{m}/{\mathrm{s}}^{2} \)	Arithmetic mean value of the vibration total values
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, \( \mathrm{m}/{\mathrm{s}}^{2} \)	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, \( \mathrm{m}/{\mathrm{s}}^{2} \)	Basic and derived units of measurement from the international system of units SI.

For your safety.

WARNING

Read all safety warnings and all

instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General

Safety Instructions" (document number

34130054061).The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the power tool:

Hand-held impact wrench for screwing in and unscrewing screws and nuts in weather-protected environments without water supply using the application tools and accessories recommended by FEIN.

Special safety instructions.

Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Beware of any concealed electric cables, gas or water conduits. Check the working area before commencing work, e.g. with a metal detector.

Use ear protection during operation.

Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand.

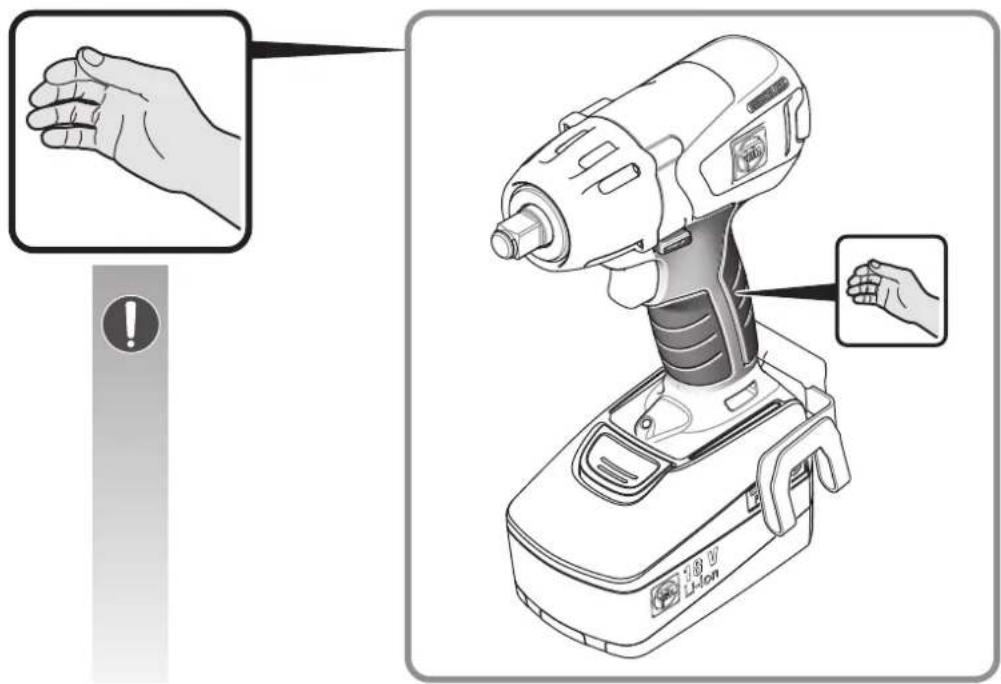

Hold the power tool firmly. High reaction torque can briefly occur.

Do not machine any material containing asbestos. Asbestos is cancerogenic.

Do not rivet or screw any name-plates or signs onto the power tool. If the Insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended.

Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.

Clean the ventilation openings on the power tool at regular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accumulation of metallic dust can cause an electrical hazard.

Never look or stare into the light of the power tool's lamp from a short distance. Never point the light of the lamp into the eyes of other persons in close vicinity. The radiation produced by the lamp can be harmful for the eye.

Do not direct the power tool against yourself, other persons or animals. Danger of injury from sharp or hot application tools.

Use and handling of the battery (battery pack).

To avoid hazardous situations such as burns, fire, explosion, skin injuries, and other injuries when handling the battery, observe the following instructions:

Batteries must not be disassembled, opened or reduced in size. Do not subject batteries to mechanical impact or shock. Hazardous vapours and fluid can escape in case of damage and improper use of the battery. The vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns.

When battery fluid from a damaged battery has come into contact with objects close by, check the respective components, clean them or replace them as required.

Keep the battery away from heat and fire. Do not store the battery in direct sunlight.

Do not remove the battery from its original packaging until it is going to be used.

Before any work on the machine itself, remove the battery from the power tool. If the power tool accidentally starts, there is danger of injury.

Remove the battery only when the power tool is switched off.

Keep the battery away from children.

Keep the battery clean and protect it against moisture and water. Clean contaminated battery terminals and power tool connections with a dry, clean cloth.

Use only intact original FEIN batteries that are intended for your power tool. When working with and charging incorrect, damaged, repaired or reconditioned batteries, imitations or other brands, there is danger of fire and/or explosion.

Follow the safety warnings in the operating instructions of the battery charger.

Hand/arm vibrations

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ.

This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Handling hazardous dusts

For work procedures with this power tool where material is removed, dusts develop that can be hazardous to one's health.

Contact with or inhaling some dust types, e.g. asbestos and asbestos-containing materials, lead-containing coatings, metal, some wood types, minerals, silicate particles from materials containing stone, paint solvents, wood preservatives, antifouling paints for vessels, can trigger allergic reactions to the operator or bystanders and/or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment and provide for good ventilation of the workplace. Leave the processing of asbestos-containing materials to specialists.

Wood and light-metal dust, hot mixtures of grinding dust and chemical materials can self-ignite under unfavourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the power tool and the materials being sanded, empty the dust collector/container in time, observe the material manufacturer's working instructions, as well as the relevant regulations in your country for the materials being worked.

Operating Instructions.

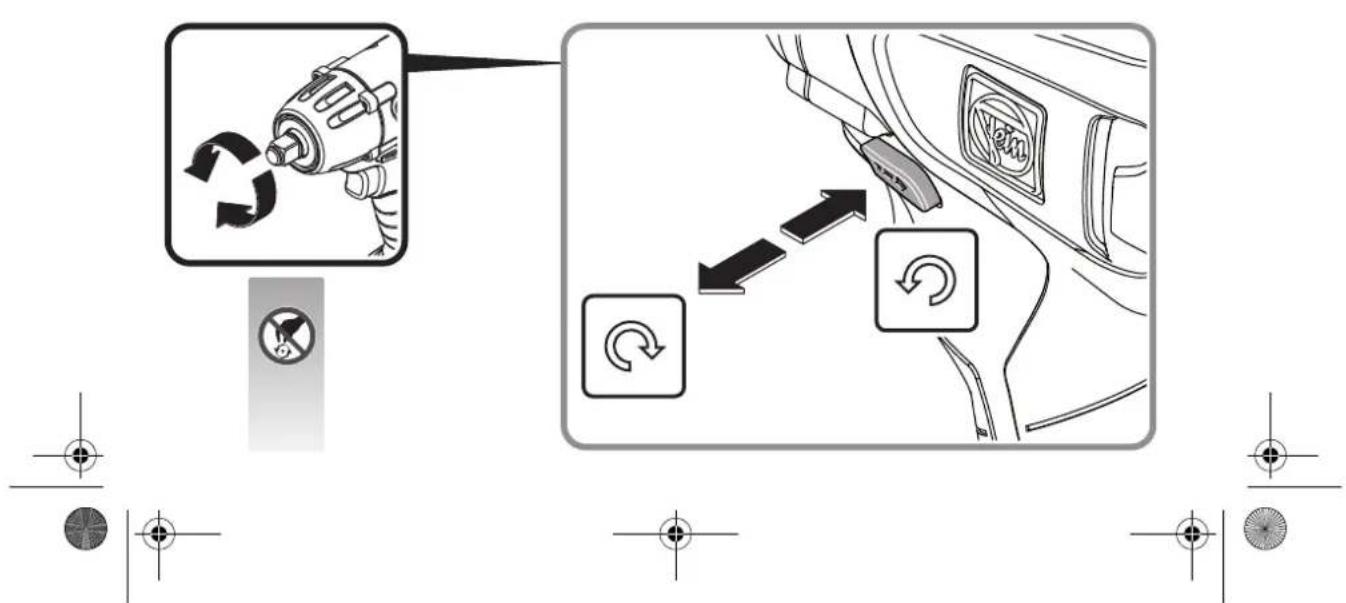

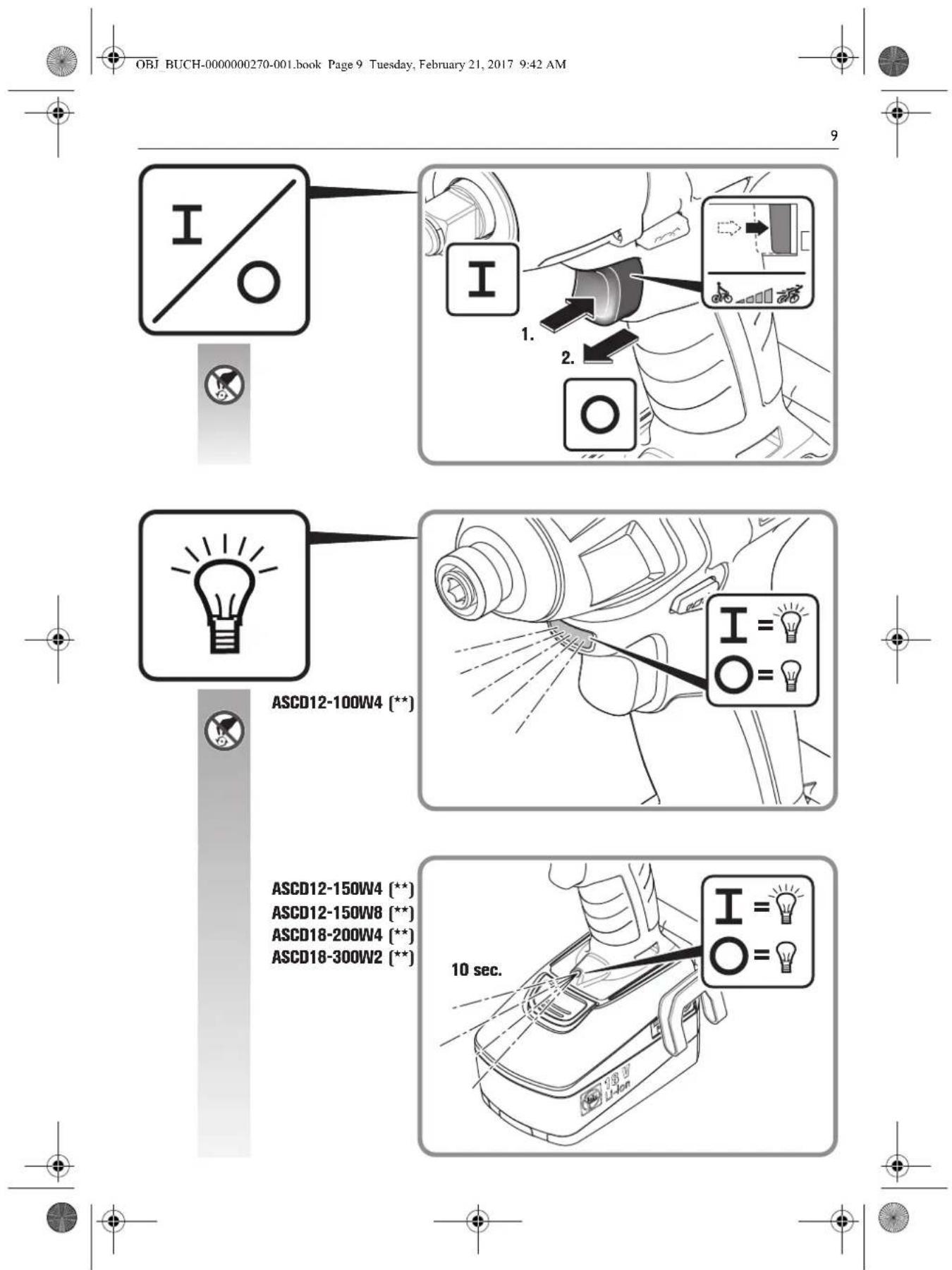

Adjust the rotation selector switch only when the machine is at a complete stop.

Thermal overload of the power tool is indicated through flashing of the LED in the handle. In case of overload, the machine switches off.

To avoid accidental starting, e.g., during transport, set the rotation selector switch to the centre position.

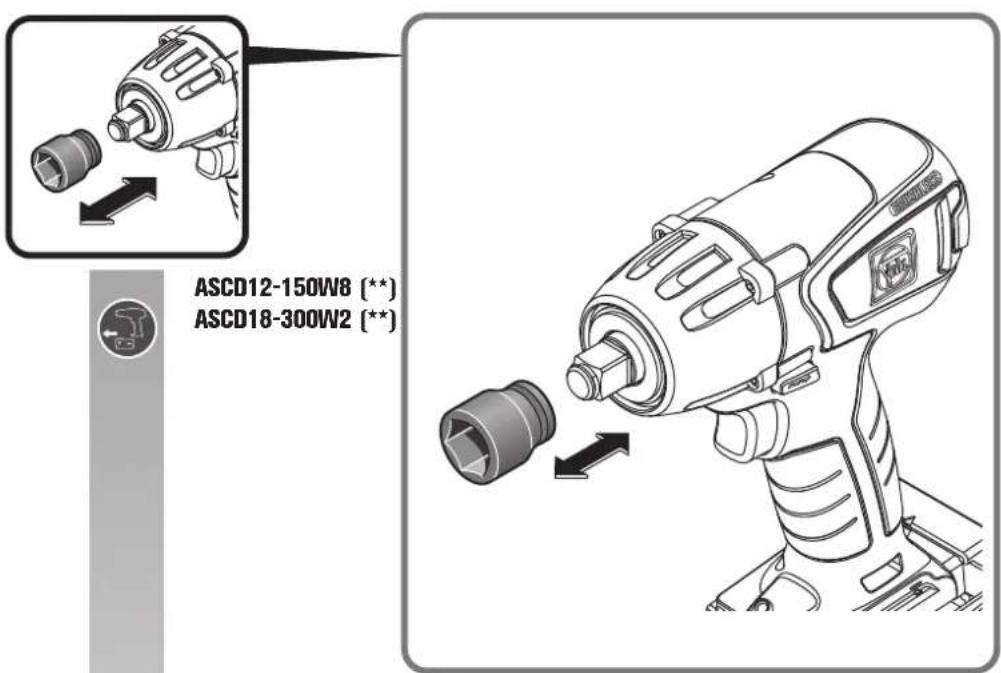

Apply the power tool to the nut or screw only when switched off, as a rotating application tool could slip off. An unnecessary long impact period increases the wear of the power tool.

en

Determine the impact duration for the respective screwdriving application and check the actually reached tightening torque with a torque wrench.

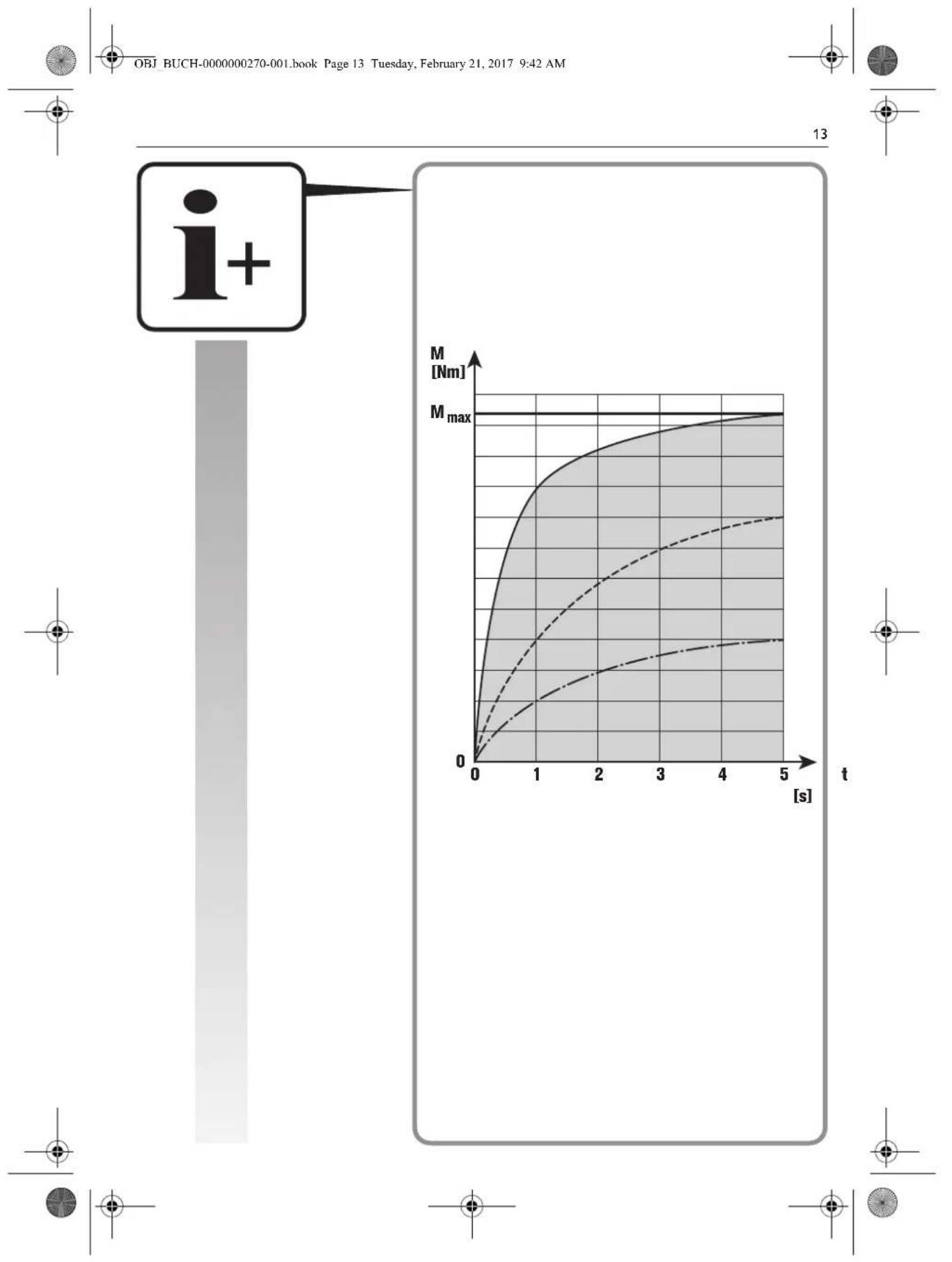

Orientation values for the impact duration are shown in the diagram on page 13.

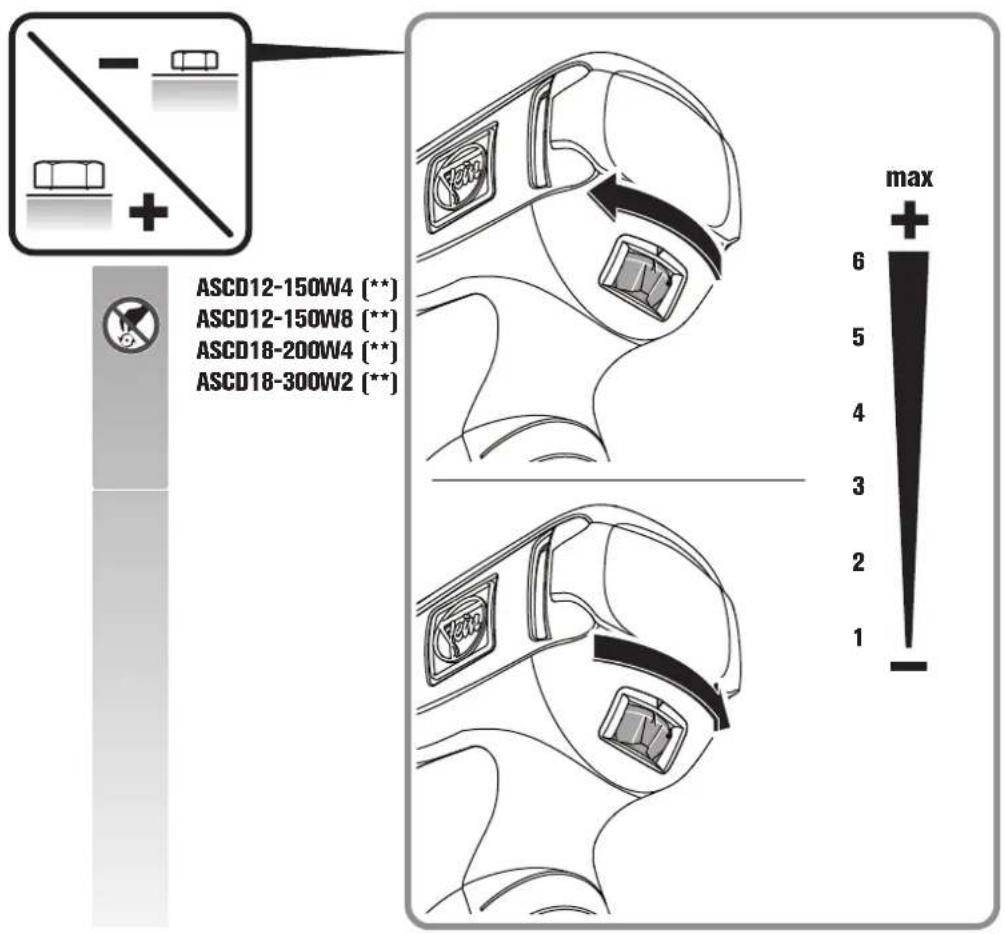

Recommendations for impact wrench adjustment by screw size:

ASCD18-300W2 (**)
Setting	M max[Nm]	Screw/bolt Ω	Property class
6 290 ≥	M 18 ≥ 8.8
5 210 ≥	M 16 ≥ 8.8
4 135 ≥	M 14 ≥ 8.8
3	8 5	≥	M 1
2	5 0	≥	M 1
1	2 5	≥	M 8

Repair and customer service.

When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power tool.

Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air. The current spare parts list for this power tool can be found in the Internet at www.fein.com.

If required, you can change the following parts yourself: Application tools, battery, belt hook, bit garage

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual.

ASCD12-150W8 (*)Setting M max[Nm] Screw/bolt Θ Property class
6 135 ≥ M 14 ≥ 8.8
5	8 5	≥	M 1
4	5 0	≥	M 1
3	2 5	≥	M 8
2	1 0	≥	M 6
1	6 ≥	M	5 ≥

Declaration of conformity.

FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.

Technical documents at: C. & E. F. in GmbH, C-DB_1A, D-73529 Schwabisch Gmünd 8

Environmental protection, disposal.

Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling. 8 Dispose of batteries only when discharged.

For batteries that are not completely discharged, insulate the terminals with tape as a protective measure against short-circuiting.

Handling the battery.

Operate and charge the battery only within the battery operating-temperature range of 0^ - 45^ (32^- 113^) . At the beginning of the charging procedure, the battery temperature must be within the battery operating-temperature range.

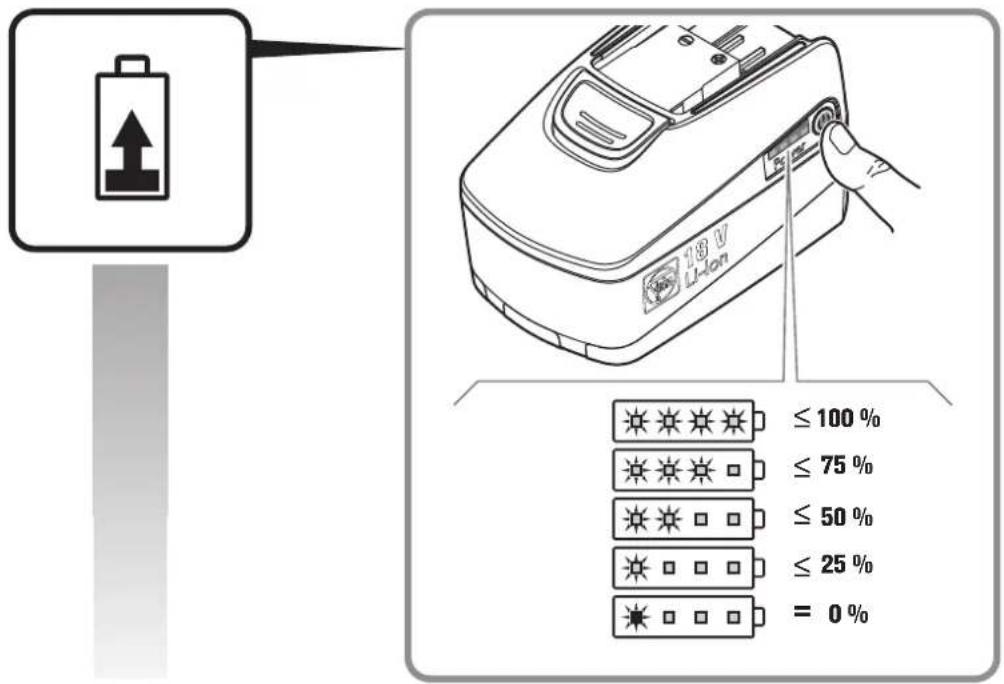

LED indicator	Meaning Activity
1-4 green LED	Percentage of charge condition	Operation
Continuous red light	Battery is almost empty	Charge battery
Red flashing light	Battery is not ready for operation	Bring the battery into the battery operating temperature range, then charge

The real percentage of the battery charge condition is only indicated when the power tool motor is stopped. The electronics automatically switch off the motor prior to the battery being deep discharged.

Miljøvern, deponering.
