USER MANUAL GigaView 911 UHD MARMITEK

• Do not use the product in a damp environment or near water.

• Do not expose the product to extremely high or low temperatures, strong light sources or direct sunlight.

• This product is not a toy. Keep out of reach of children.

• Connect the adapter to the mains only after you have verified that the line voltage corresponds to the value specified on the type plates.

• Never connect a power adapter if it's damaged. In such cases, please contact your supplier.

• Disconnect the AC/DC power adapter from the mains when this device is not in use for prolonged time.

• Never open the product: the device may contain parts with deadly voltage.

• Repairs or service should only be performed by qualified personnel.

• Improper use, self-installed modifications or repairs will void any and all warranties.

• Marmitek does not accept any product responsibility for incorrect use of the product or use other than for which the product is intended.

• Marmitek does not accept liability for any consequential damage other than the legal product responsibility.© MARMITEK

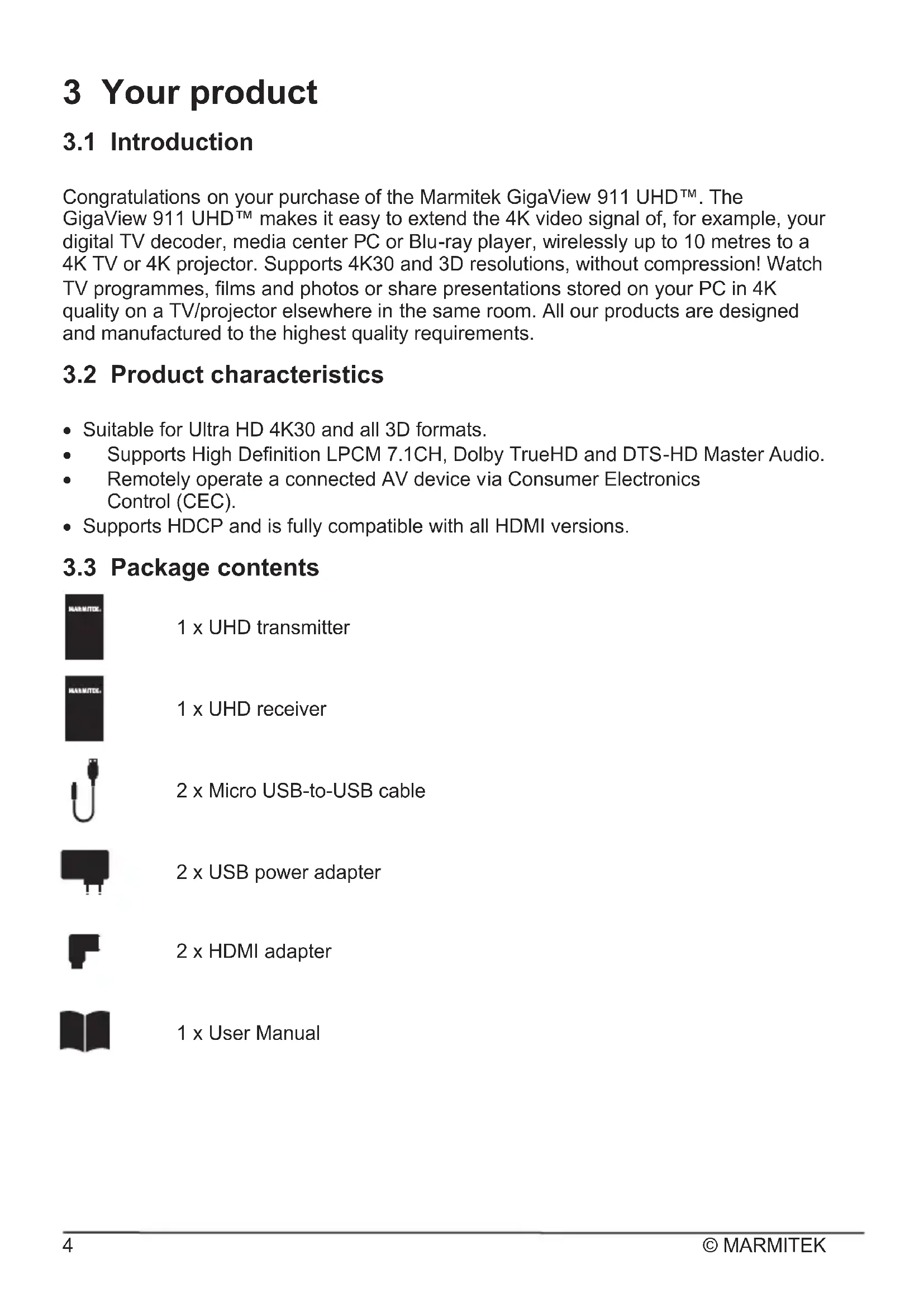

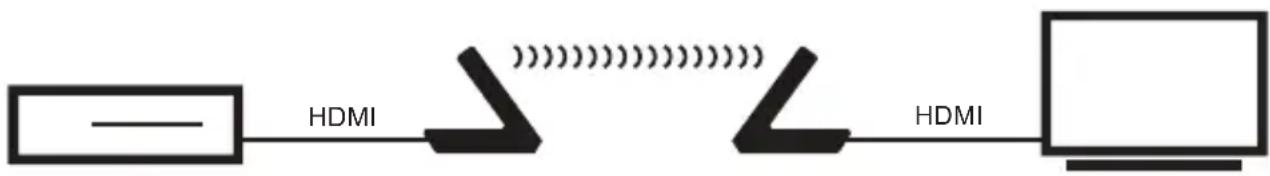

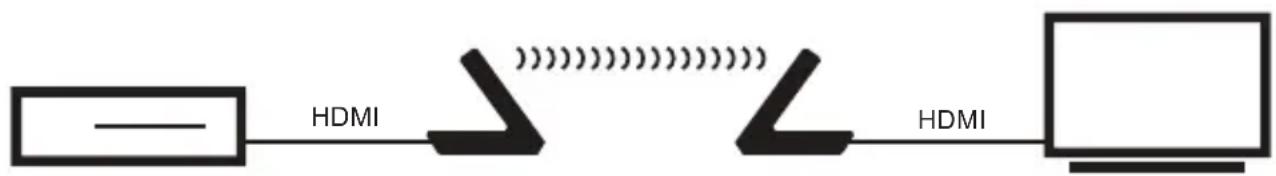

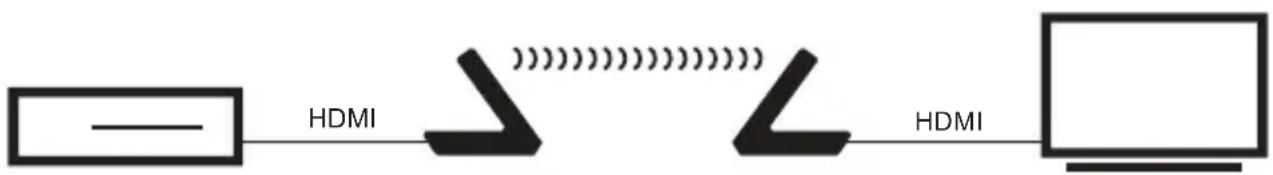

Congratulations on your purchase of the Marmitek GigaView 911 UHD™. The GigaView 911 UHD™ makes it easy to extend the 4K video signal of, for example, your digital TV decoder, media center PC or Blu-ray player, wirelessly up to 10 metres to a 4K TV or 4K projector. Supports 4K30 and 3D resolutions, without compression! Watch TV programmes, films and photos or share presentations stored on your PC in 4K quality on a TV/projector elsewhere in the same room. All our products are designed and manufactured to the highest quality requirements.

3.2 Product characteristics

Suitable for Ultra HD 4K30 and all 3D formats. Supports High Definition LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio. Remotely operate a connected AV device via Consumer Electronics Control (CEC). Supports HDCP and is fully compatible with all HDMI versions.

ENGLISH 4 Getting started

4.1 Installation tips

The GigaView 911 UHD™ uses a very high wireless frequency (60GHz) to transmit the HDMI signal wirelessly. A limitation of this high frequency is that it is not suitable for sending a signal through walls, floors or objects.

• When installing, try to create a clear line of sight between the transmitter and receiver as much as possible and aim both front ends towards each other.

• Also, do not place the receiver behind a TV, as this may disrupt the wireless connection, making the range very short.

• For the best image and audio quality, only use High Speed HDMI® certified cables.

• Please be careful when connecting your HDMI cables. These can damage easily.

4.2 Installing the transmitter and receiver

Switch off all devices (TV and HDMI source) prior to starting the installation. If a device cannot be turned off, please remove its plug from the wall socket.

1. Connect the HDMI source (Blu-ray player, TV decoder, media center PC, etc.) to

the transmitter [2] using an HDMI cable (not included).

2. Connect the receiver [7] to your TV or projector using an HDMI cable (not

3. If desired, use the supplied HDMI adapters. This makes it possible to tidy up the

HDMI cables to the back of the transmitter and receiver.

4. Connect the micro USB power cable [3] to the "5V DC" jack of the transmitter and

receiver and use a free USB port on another device or the USB power adapters to power the transmitter and receiver. Please note! Never use the conventional power connector [1] and the micro USB power connector [3] simultaneously. Do not place the transmitter or receiver in an enclosed space such as a TV cabinet or equivalent. Provide adequate ventilation to ensure that the product is functioning properly and to protect it against overheating.© MARMITEK

4.3 Status of the lights

4. Transmission light (green)

• Lights up continuously: there is a connection between the transmitter and the receiver and there is an HDMI connection between the two.

• There is a connection between the transmitter and the receiver, but no TV and/or HDMI source is connected and/or enabled.

• The HDMI source does not provide the correct resolution to the transmitter. Refer to chapter 6.

• Flashing slowly on transmitter: receiver is off

• Flashing slowly on receiver: transmitter is off

• OFF: There is no supply voltage present [3]

5. Power light (blue)

• Lights up continuously: supply voltage is present [3]

• OFF: There is no supply voltage present [3] When working properly, the transmission light and the power light will both light up continuously. 5 Usage

5.1 UHD transmitter and UHD receiver

1. Switch ON the TV or projector and select the correct HDMI input to which the

receiver is connected.

2. Switch ON the HDMI source.

3. During system start up, the green transmission light on both the transmitter and

the receiver will flash until the signal connection between the two has been established.

4. When the connection is established and the HDMI source is properly connected, a

video signal will appear on the TV.

5. When working properly, the transmission light and the power light will both light up

6. If no video signal appears, check the lights according to the overview in section

ENGLISH 6 Technical specifications Video Supported resolutions Max. 4K@30Hz and 1080p@60Hz HDMI standards HDMI 1.4, DVI, CEC, EDID and all 3D formats. HDCP standards HDCP 1.4 Colour formats RGB and YCbCr 4:4:4 Data transfer Without compression Video bandwidth 10.2Gbps Clock frequency 340 MHz Technology Operational frequency 60 GHz Range Up to 10 metres LOS (line of sight) and up to 5 metres through floors and walls Latency (delay) None (< 1 ms) Transmitter AV input 1 x HDMI USB connection 1 x Micro-USB (power supply) Dimensions (H x B x D) 90 x 54 x 60 mm Weight 148 g Receiver AV output 1 x HDMI USB connection 1 x Micro-USB (power supply) Dimensions (H x B x D) 90 x 54 x 60 mm Weight 148 g Audio Audio formats DTS-HD Master Audio, Dolby TrueHD, Dolby Digital/AC3, DTS 5.1 and PCM stereo General Ambient temperature 0 ~ +40°C Ambient humidity 0 ~ 90% Power supply 100-240VAC @50-60Hz, 5V DC / 1A Specifications may change without prior notice.© MARMITEK

7 Frequently asked questions (FAQs) No (or poor) image and sound on TV or projector

• Ensure that the micro USB power cables are connected to a free USB port on another device or to the USB power adapters.

• Ensure that all HDMI cables are connected properly or replace them.

• For the best image and audio quality, only use High Speed HDMI® certified cables.

• Do not use HDMI cables longer than those specified in the technical data.

• Check the HDMI cables and/or connectors for damage.

• Ensure that the HDMI source is turned ON and the correct HDMI input is selected on the TV.

• Ensure that the HDMI source is set to a correct video resolution (4k@30Hz or lower). If necessary, consult the user manual of your HDMI source. Both the HDMI source and your TV or projector should fully support HDMI.

No or bad connection between the UHD transmitter and UHD receiver

• Move the transmitter and/or the receiver from the immediate vicinity of the connected HDMI sources and Wi-Fi equipment. These may affect the range.

• Avoid large obstacles, floors and walls between the transmitter and receiver as much as possible.

• The best position of the transmitter and receiver is facing each other with the logo on the front.

• Too much distance between transmitter and receiver. If needed, please test with shorter distances.

• Ensure that the HDMI source and TV are both connected and/or switched on.

• Reset the transmitter and receiver to factory settings by pressing and holding the reset button for more than 10 seconds on both the transmitter and the receiver. Do you have any questions that are not answered here? Please check www.marmitek.comGigaView 911 UHD™

8.1 Declaration of conformity

Hereby, Marmitek BV declares that this GigaView 911 UHD ™ is in compliance with the essential requirements and other relevant provisions of the following Directives: Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast) Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits. Directive 2011/65/eu of the European parliament and of the council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. Commission Regulation (EC) No 278/2009 of 6 April 2009 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to eco-design requirements for no-load condition electric power consumption and average active efficiency of external power supplies. You can read the full Declaration of Conformity at http://www.marmitek.com

Environmental Information for Customers in the European Union and other European countries with separate collection systems. This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.© MARMITEK

Marmitek is a trademark of Germatron B.V. GigaView 911 UHD ™ is a trademark of Marmitek B.V. All rights reserved. Every effort has been made to ensure that the information in this manual is accurate. Marmitek is not responsible for printing or clerical errors. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions. Other company and product names mentioned herein may be trademarks of their respective companies. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Marmitek assumes no responsibility with regard to the performance or use of these products. Marmitek BV - PO Box 4257 - 5604 EG Eindhoven The NetherlandsGigaView 911 UHD™
