USER MANUAL Split 614 UHD 2.0 MARMITEK

ALL RIGHTS RESERVED MARMITEK ©

2 Safety instructions Please read these instructions thoroughly before you use the device and keep them for future reference. x Only for indoor use. x Do not use the product in a damp environment or near water. x Do not expose the product to extremely high or low temperatures, strong light sources or direct sunlight. x This product is not a toy. Keep out of reach of children. x Do not open the product: the device may contain live parts. x Connect the adapter to the mains only after you have verified that the line voltage corresponds to the value specified on the type plates. x Never connect a power adapter if it's damaged. In such cases, please contact your supplier. x Repairs or service should only be performed by qualified personnel. x Disconnect the AC/DC power adapter from the mains when this device is not in use for prolonged time. x Improper use, self-installed modifications or repairs will void any and all warranties. x Marmitek does not accept any product responsibility for incorrect use of the product or use other than for which the product is intended. x Marmitek does not accept liability for any consequential damage other than the legal product responsibility. 3 Your product

Congratulations on your purchase of the Marmitek Split 614 UHD 2.0™! This active HDMI splitter connects 4 TVs (TV or projector) with a single HDMI source. Unlike passive HDMI splitters, it can do this without any loss of signal or encryption, while maintaining optimal image quality. It's also ideal for use with HDMI Extenders, for example, to another room. The Split 614 UHD 2.0™ supports Ultra HD (4k), Full HD (1080p) and all 3D formats, making it suitable for all your existing and future equipment. All our products are designed and manufactured to the highest quality requirements. Please read this manual first and follow the instructions in order to fully enjoy the possibilities of this product.SPLIT 614 UHD 2.0™

x Allows video and audio from your digital TV decoder, satellite receiver, game console or Blu-ray player to be simultaneously displayed on 4 TVs (TV or projector). x Enjoy the latest Ultra HD content and watch Netflix or a Blu-ray movie in 4K, while maintaining ultimate contrast and beautiful colours. x Eliminates the need to change HDMI cables if you want to watch films or play games on another TV. x With built-in repeater and equaliser to correct any signal loss. x If required, set the HDMI output's maximum video resolution using the unique EDID switch. x Supports HDCP 2.2 for playing protected 4K Ultra HD content

x The maximum throughput speed is 18 Gbit/s (gigabits per second). This allows HDMI 2.0 to display Ultra HD 4K images at 60 fps (frames per second). x Suitable for the latest Ultra HD 4K60 resolution (3840 x 2160 / 60Hz), High Dynamic Range (HDR), Deep Color and 4:4:4 chroma colours. x Supports all 3D formats (suitable for use with your own 3D equipment) x Deep Color 36-bit (billions instead of millions of colours, better reproduction of subtle differences in gradation and a higher contrast ratio). x Supports Dolby Atmos and DTS:X and all other common audio formats.

4.1 Before installation:

x Turn off all devices (TV and HDMI sources) before connecting them to the Split 614 UHD 2.0™. If a device cannot be turned off, please remove the plug from the socket. x Only use High Speed HDMI® certified cables for the best picture and sound quality. Using too much force to connect or disconnect the HDMI cables may damage them. x Please be careful when connecting your HDMI cables. These damage easily.

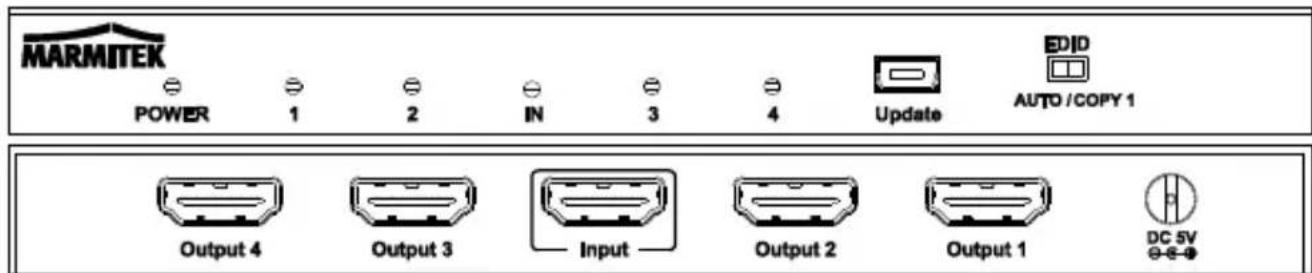

1 Use an HDMI cable to connect the HDMI source (such as a game console, Blu-ray player or digital TV decoder) to the HDMI port marked "Input". 2 Use an HDMI cable to connect the TV or projector to the HDMI ports marked “Output”. 3 Preferably, connect the TV or projector with the highest resolution (e.g. UltraHD) to "Output 1" and those with a lower resolution TV (e.g. Full HD) to "Output 2". 4 Connect the power adapter to the "DC 5V" input and insert the plug into the socket.SPLIT 614 UHD 2.0™

EDID stands for Extended Display Identification Data and is used for communication between HDMI sources and TVs, enabling you to determine the supported display resolutions and audio formats. The HDMI source requests this information from the TV and determines the best resolution or audio format. When using multiple TVs (TVs or projectors), the best resolution and audio format that is supported by all connected TVs is determined. This may cause problems in some situations, for example, when one of the connected sources or TVs does not fully support EDID.

5.2 EDID Auto or Copy 1

Use the EDID button to choose the following options: x AUTO: automatically detects the highest possible common image resolution and audio format that is supported by both TVs. Sound and image will be displayed on both TVs. x COPY 1: only detects the resolution and audio format of the display connected to "Output 1". This prevents problems with playing, for example, 3D or UltraHD (4k). Tip: In standard situations, always use the automatic setting, which will result in sound and image on all connected TVs. With manual settings, no image or sound may be displayed on one or more TVs if the appropriate setting is not supported© MARMITEK

6.1 Technical specifications

ENGLISH 7 Frequently asked questions (FAQs) No (or poor) image and sound If you experience poor or no picture after connecting the HDMI splitter, please try to identify the problem by connecting the devices to your TV, monitor or projector one by one. This allows you to determine whether the problem is with the HDMI sources, the HDMI cables, the HDMI splitter or the TV. x Make sure the power adapter is connected and plugged in. x For the best picture and sound quality, only use High Speed HDMI® certified cables. x Do not use HDMI cables longer than those specified in the technical data. x Check the HDMI cables and/or connectors for damage. x Both the HDMI source and your TV should fully support HDMI. x Check that your HDMI sources and TV support HDCP 2.2 (High Bandwidth Digital Content Protection) copy protection. Incorrect 3D display x Please check whether the HDMI source is set to display 3D and/or it is set to automatic. x Both the HDMI source and your HD TV should support the same 3D formats. x Please check that 3D is displayed correctly by connecting the HDMI source directly to the HD display with an HDMI cable. Do you have other questions that have not been resolved by the above information? Please go to www.marmitek.com© MARMITEK

8.1 Declaration of Conformity

Hereby, Marmitek BV, declares that this Split 614 UHD 2.0™ is in compliance with the essential requirements and other relevant provisions of the following Directives: Directive 2004/108/EC of the European parliament and of the council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment Commission Regulation (EC) No 278/2009 of 6 April 2009 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to Eco design requirements for no- load condition electric power consumption and average active efficiency of external power supplies

Environmental Information for Customers in the European Union European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

Marmitek is a trademark of Germatron B.V. Split 614 UHD 2.0™ is a trademark of Marmitek B.V. All rights reserved. Every effort has been made to ensure that the information in this manual is accurate. Marmitek is not responsible for printing or clerical errors. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions. Other company and product names mentioned herein may be trademarks of their respective companies. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Marmitek assumes no responsibility with regard to the performance or use of these products.
