USER MANUAL Split TS14 MARMITEK

Black square electronic device labeled 'OPTICAL LIGHT' with four ports and a logo (no readable text beyond branding)

3 User manual
11 Gebrauchsanleitung
19 Guide utilisateur
27 Modo de empleo
35 Manuale d'istruzioni
43 Gebruiksaanwijzing

1 Table of contents

1 Table of contents ....3
2 Safety instructions....4
3 Introduction....5
4 Package contents: 5
5 Features....5
6 Connections....5
6.1 Top 5
6.2 Left....6
6.3 Right 6
6.4 Back....6
7 Connection diagram....6
8 Technical specifications ....7
9 Notification....8
9.1 Declaration of Conformity....8
9.2 Recycling 9
9.3 Copyrights....10

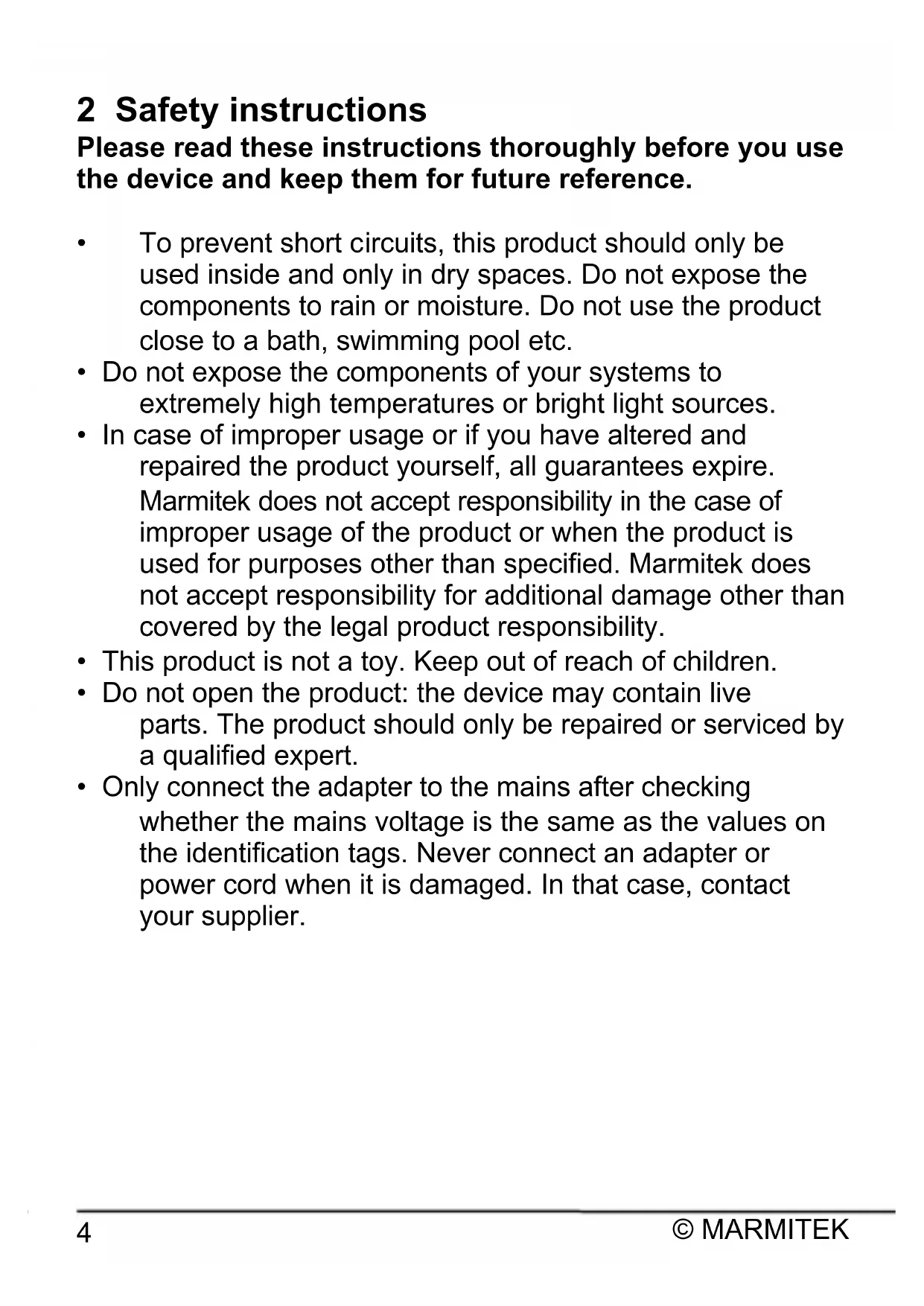

2 Safety instructions

Please read these instructions thoroughly before you use the device and keep them for future reference.

• To prevent short circuits, this product should only be used inside and only in dry spaces. Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.
- Do not expose the components of your systems to extremely high temperatures or bright light sources.
- In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.

- This product is not a toy. Keep out of reach of children.

- Do not open the product: the device may contain live parts. The product should only be repaired or serviced by a qualified expert.

- Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the identification tags. Never connect an adapter or power cord when it is damaged. In that case, contact your supplier.

3 Introduction

Congratulations on the purchase of your Split TS14™. The Optical (Toslink) Digital Audio Splitter can split a single optical digital input to four outputs without delay or loss of quality.

4 Package contents:

1 x Digital Audio Splitter
1 x Power Adapter
1 x User Manual

5 Features

• Ideal for presentation or distribution to another room.
• With improved 192kHz sample rate for the best sound reproduction
  • Supports the S/PDIF and Toslink standard
  • Supports uncompressed 2-channel LPCM (Linear Pulse Code Modulation) audio signal
  • Supports compressed 2-channel and multi-channel Dolby Digital and DTS audio signals

6 Connections

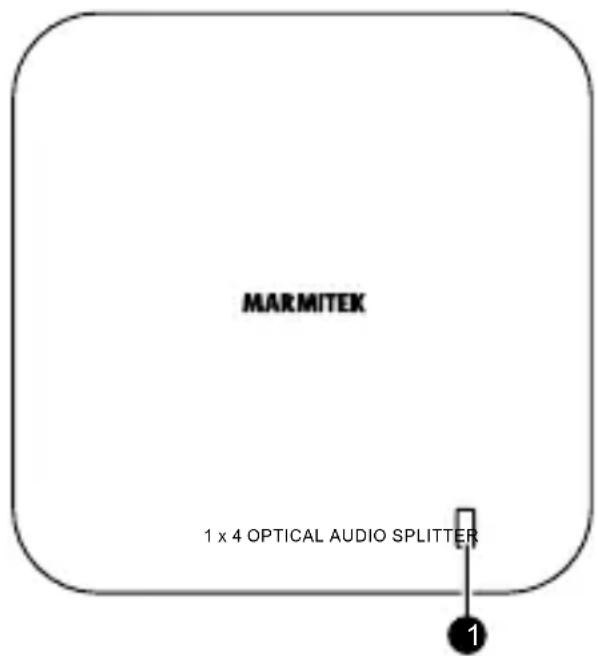

6.1 Top

1. Power LED: This LED lights up when the audio splitter is connected to a power adapter.

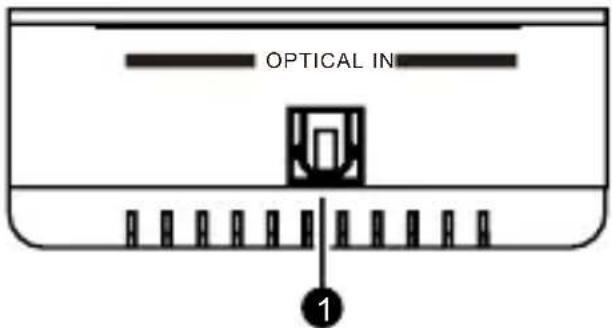

6.2 Left

1. Optical In: Connect your audio source to these inputs with an optical (Toslink) digital audio cable (not supplied).

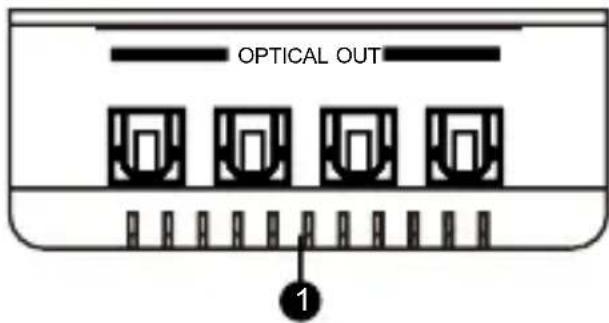

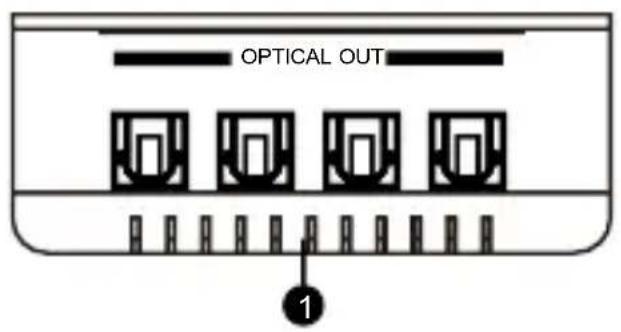

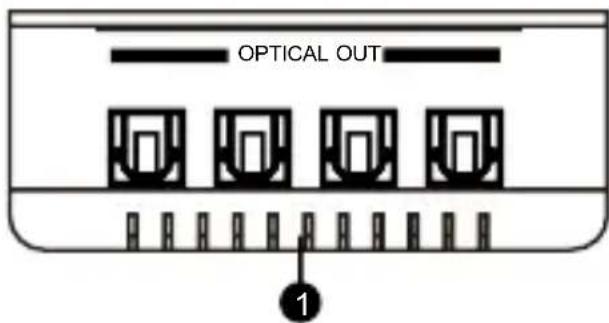

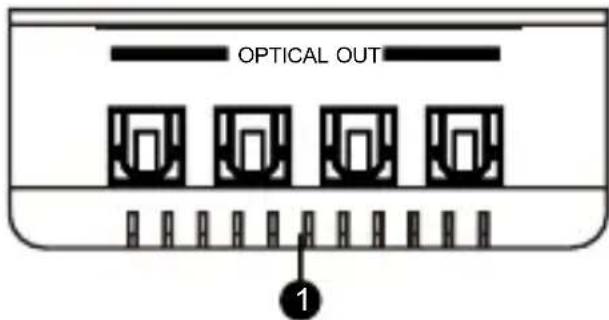

6.3 Right

1. Optical Out: Connect your audio amplifier or powered speakers to these outputs using an optical (Toslink) digital audio cable (not supplied).

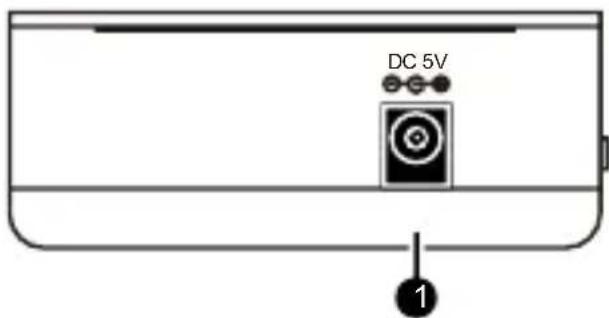

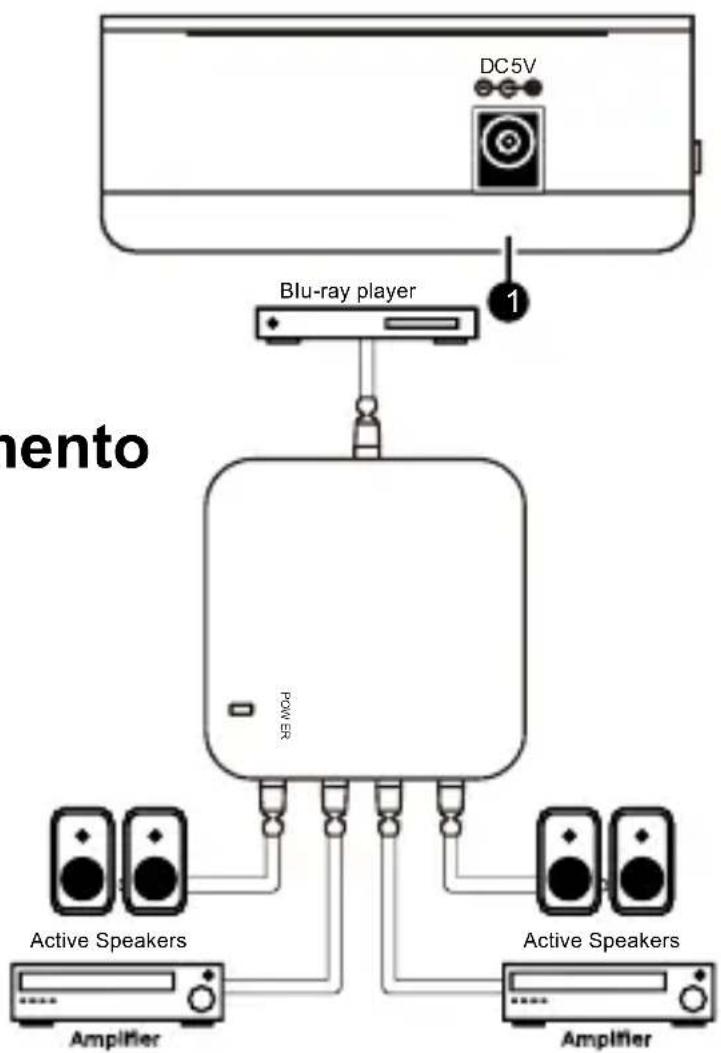

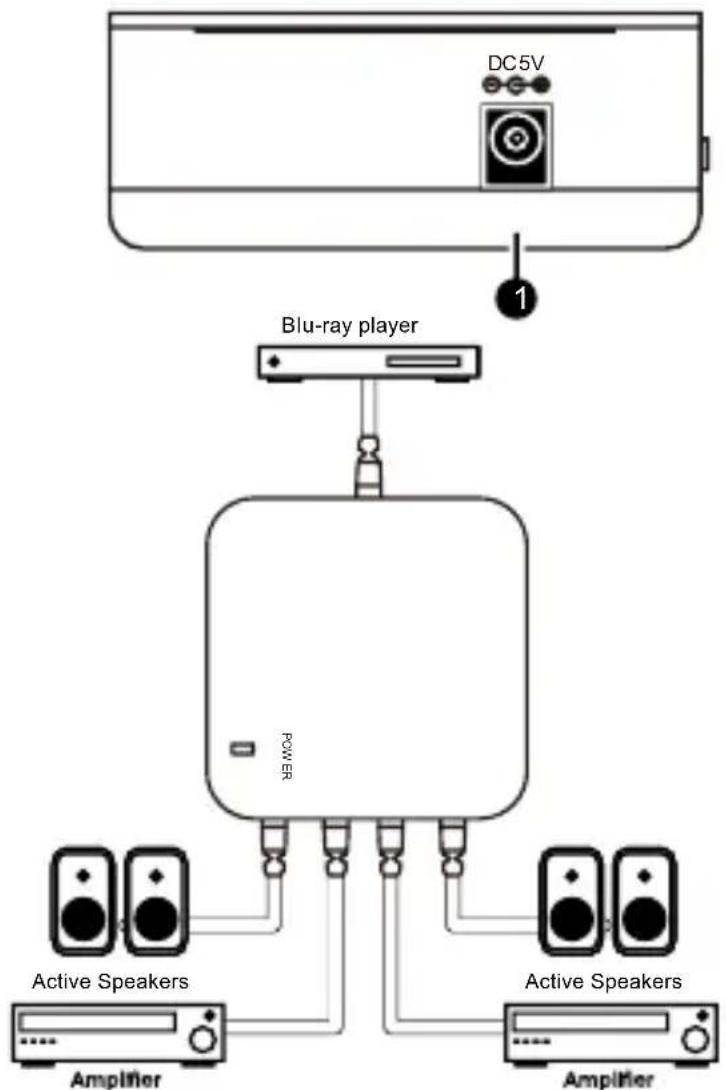

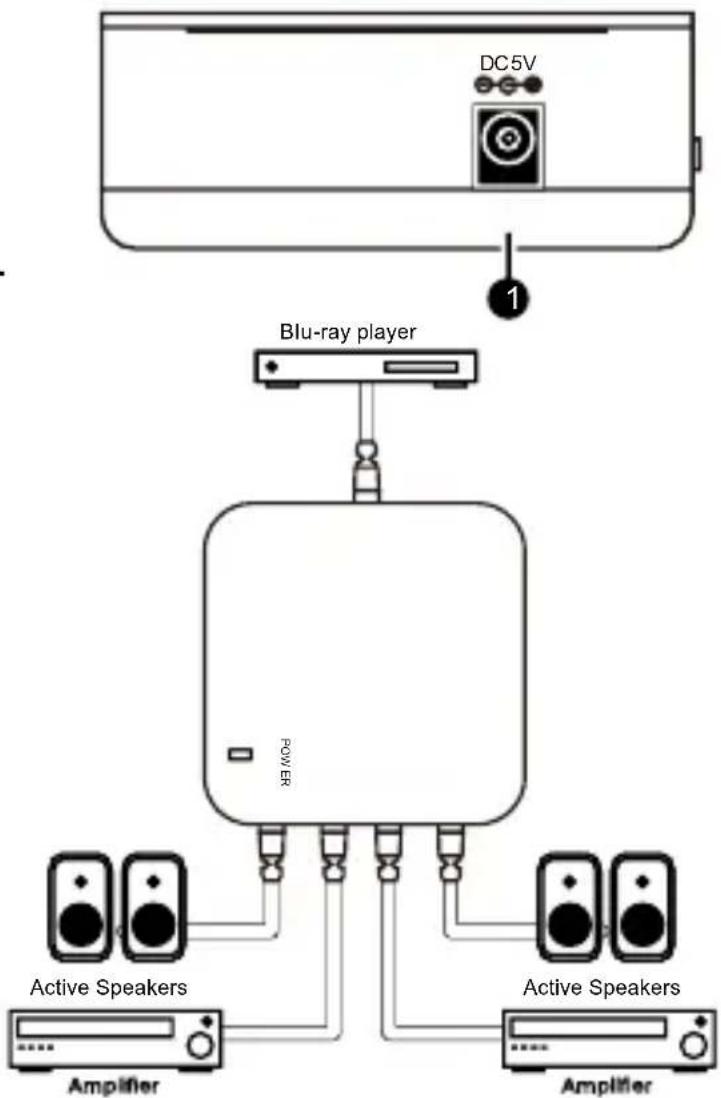

6.4 Back

1. DC 5V: Connect the power adapter (included) and plug it into the mains.

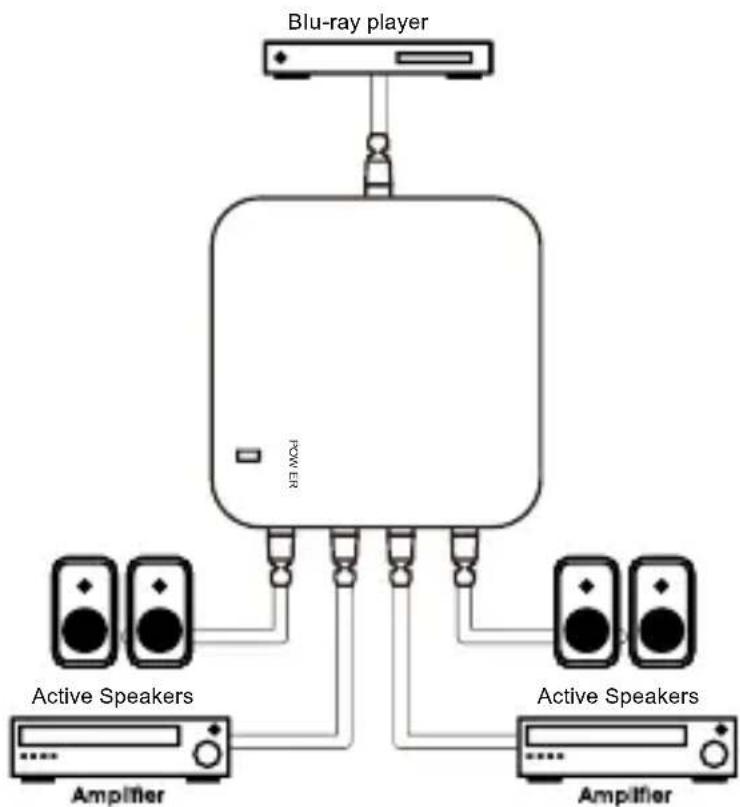

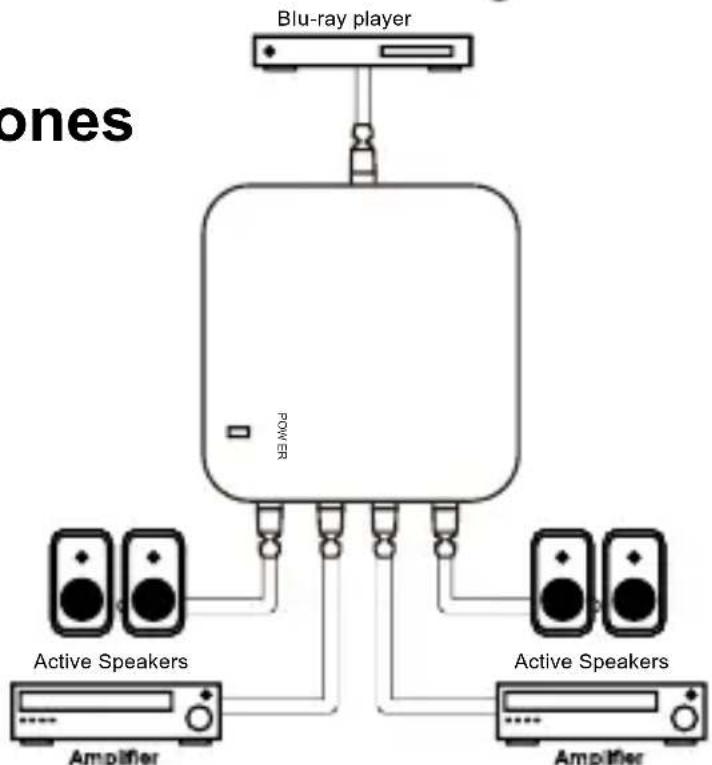

7 Connection diagram

8 Technical specifications

Audio Output 4x Optical (Toslink)

Audio Input 1x Optical (Toslink)

Supported Audio PCM2, Dolby Digital 5.1 & DTS 5.1

Sample rate up to 192kHz

Power 100-240VAC @ 50-60Hz

Dimensions 46 x 46 x 24mm

Weight 22 gr

Environment

Temperature +0 tot +40°C

Humidity 10% tot 85%

Specifications may change before prior notice.

9 Notification

9.1 Declaration of Conformity

CE

Hereby, Marmitek BV, declares that this

Split TS14 ^TM is in compliance with the essential

requirements and other relevant provisions of the

following Directives:

Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast)

Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits.

Directive (EU) 2017/2102 of the European Parliament and of the Council of 15 November 2017 amending Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Commission Regulation (EU) 2019/1782 of 1 October 2019 laying down Ecodesign requirements for external power supplies pursuant to Directive 2009/125/EC of the European Parliament and of the Council and repealing Commission Regulation (EC) No 278/2009.

You can read the full Declaration of Conformity at http://www.marmitek.com

9.2 Recycling

Environmental Information for Customers in the European Union and other European countries with separate collection systems.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

9.3 Copyrights

Marmitek is a trademark of Vogel's Holding B.V. Every effort has been made to ensure that the information in this manual is accurate. Marmitek is not responsible for printing or clerical errors. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution,

reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions. Other company and product names mentioned herein may be trademarks of their respective companies.

Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Marmitek assumes no responsibility with regard to the performance or use of these products.

Marmitek BV - PO Box 4257 - 5604 EG Eindhoven The Netherlands
