Split 612 UHD 2.0 - Distributor MARMITEK - Free user manual and instructions

Product type	Active HDMI splitter 2 outputs
Brand	Marmitek
Model	Split 612 UHD 2.0
HDMI inputs	1 x HDMI (19-pin female)
HDMI outputs	2 x HDMI (19-pin female)
HDMI version	HDMI 2.0b
Supported resolutions	4K (4096x2160)@24/30/50/60 Hz, 1080p@120 Hz, 3D, etc.
Maximum bandwidth	18 Gbit/s
HDCP	HDCP 2.2 and HDCP 1.4
Audio formats	Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, PCM
EDID	Auto or Copy 1 (switch)
Power supply	Power adapter 100-240V ~ 50/60Hz, output 5V DC 1A
Operating temperature	0°C to +40°C
Humidity	20% to 90%
Maximum HDMI cable length	15 meters
Package contents	1 splitter, 1 HDMI cable, 1 power adapter, 1 manual
Maintenance and cleaning	Unplug before cleaning; use a dry, soft cloth. Do not use harsh products.
Safety	Indoor use only. Do not expose to moisture or extreme temperatures. Keep out of reach of children.
Dimensions (approx.)	10 cm x 7 cm x 2.5 cm
Weight (approx.)	200 g

Frequently Asked Questions - Split 612 UHD 2.0 MARMITEK

How to install the Marmitek Split 612 UHD 2.0?

Turn off all devices. Connect the HDMI source (Blu-ray player, console, etc.) to the "Input" port. Connect the two TVs/projectors to the "Output 1" and "Output 2" ports. Plug the power adapter into the DC 5V input and into the electrical outlet. Preferably use certified High Speed HDMI cables.

How to use the EDID switch?

The EDID switch offers two modes: AUTO (detects the common resolution and audio format of both screens) and COPY 1 (uses only the data displayed on output 1). In AUTO, the image shows on both screens; COPY 1 is useful if screen 2 does not support 4K resolution.

What maximum resolution does this splitter support?

It supports Ultra HD 4K (3840x2160) at 60 Hz, with HDR and 36-bit Deep Color. Also compatible with 1080p@120 Hz and all 3D formats.

Can I use this splitter with HDMI cables longer than 15 meters?

The recommended maximum length is 15 meters. Beyond that, signal loss may occur. Use certified High Speed HDMI cables. For longer distances, consider an active HDMI extender.

Why do I have no image or poor quality image?

Check that the power adapter is plugged in and the splitter is powered on. Test each cable and device one by one. Use fast and short HDMI cables (≤15 m). Make sure the source and display support HDCP 2.2 for protected 4K content.

What audio formats are supported?

The splitter passes through advanced HDMI audio formats: Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital/AC3, DTS 5.1 and stereo PCM.

How to switch between EDID modes?

The splitter has a small physical switch (button) marked EDID. Set it to AUTO or COPY 1 as needed. The change does not affect current settings but may require restarting the source.

Is this splitter compatible with 4K gaming consoles?

Yes, it is compatible with consoles outputting 4K (PS4 Pro, Xbox One X, etc.) thanks to HDMI 2.0b and HDCP 2.2. Be sure to use an Ultra High Speed HDMI cable.

Can I connect two displays with different resolutions?

Yes. In AUTO mode, the splitter selects the highest common resolution supported by both displays. If you want to display full 4K on one screen and a lower resolution on the other, use COPY 1 mode and connect the 4K screen to Output 1.

How to maintain the splitter?

Unplug the power before any cleaning. Use a dry, soft cloth to remove dust. Do not use solvents or liquid products. Store the device in a dry place, away from sunlight and heat sources.

USER MANUAL Split 612 UHD 2.0 MARMITEK

1 Table of contents 3
2 Safety instructions 4
3 Your product 5

3.1 Introduction 5
3.2 Benefits 5
3.3 HDMI properties 5
3.4 Set contents 5

4 Getting started 6

4.1 Before installation: 6
4.2 Installation 6

5 Use 7

5.1 EDID 7
5.2 EDID Auto or Copy 1 7

6 Product details 8

6.1 Technical specifications 8

7 Frequently asked questions (FAQs) 9
8 Notification 10

8.1 Declaration of Conformity 10
8.2 Recycling 10
8.3 Copyrights 10

2 Safety instructions

Please read these instructions thoroughly before you use the device and keep them for future reference.

• Only for indoor use.
• Do not use the product in a damp environment or near water.
• Do not expose the product to extremely high or low temperatures, strong light sources or direct sunlight.
• This product is not a toy. Keep out of reach of children.
• Do not open the product: the device may contain live parts.
• Connect the adapter to the mains only after you have verified that the line voltage corresponds to the value specified on the type plates.
• Never connect a power adapter if it's damaged. In such cases, please contact your supplier.
• Repairs or service should only be performed by qualified personnel.
• Disconnect the AC/DC power adapter from the mains when this device is not in use for prolonged time.
• Improper use, self-installed modifications or repairs will void any and all warranties.
• Marmitek does not accept any product responsibility for incorrect use of the product or use other than for which the product is intended.
• Marmitek does not accept liability for any consequential damage other than the legal product responsibility.

3 Your product

3.1 Introduction

Congratulations on your purchase of the Marmitek Split 612 UHD 2.0^TM ! This active HDMI splitter connects 2 TVs or projectors with a single HDMI source. Unlike passive HDMI splitters, it can do this without any loss of signal or encryption, while maintaining optimal image quality. It's also ideal for use with HDMI Extenders, for example, to another room. The Split 612 UHD 2.0^TM supports Ultra HD (4k), Full HD (1080p) and all 3D formats, making it suitable for all your existing and future equipment.

All our products are designed and manufactured to the highest quality requirements. Please read this manual first and follow the instructions in order to fully enjoy the possibilities of this product.

3.2 Benefits

• Allows video and audio from your digital TV decoder, satellite receiver, game console or Blu-ray player to be simultaneously displayed on 2 TVs or projectors.
• Enjoy the latest Ultra HD content and watch Netflix or a Blu-ray movie in 4K, while maintaining ultimate contrast and beautiful colours.
• Eliminates the need to change HDMI cables if you want to watch films or play games on another TV.
• With built-in repeater and equaliser to correct any signal loss.
  If required, set the HDMI output's maximum video resolution using the unique EDID switch.
  Supports HDCP 2.2 for playing protected 4K Ultra HD content

3.3 HDMI properties

• The maximum throughput speed is 18 Gbit/s (gigabits per second). This allows HDMI 2.0 to display Ultra HD 4K images at 60 fps (frames per second).
• Suitable for the latest Ultra HD 4K60 resolution (3840 x 2160 / 60Hz), High Dynamic Range (HDR), Deep Color and 4:4:4 chroma colours.
  Supports all 3D formats (suitable for use with your own 3D equipment)
• Deep Color 36-bit (billions instead of millions of colours, better reproduction of subtle differences in gradation and a higher contrast ratio).
  Supports Dolby Atmos and DTS:X and all other common audio formats.

3.4 Set contents

1 x HDMI splitter
1 x HDMI cable
1 x Power adapter
1 x User manual

4 Getting started

4.1 Before installation:

• Turn off all devices (TV and HDMI sources) before connecting them to the Split 612 UHD 2.0^TM . If a device cannot be turned off, please remove the plug from the socket.
• Only use High Speed HDMI® certified cables for the best picture and sound quality. Using too much force to connect or disconnect the HDMI cables may damage them.
  Please be careful when connecting your HDMI cables. These damage easily.

4.2 Installation

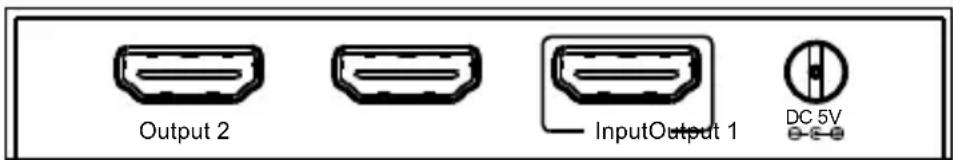

1 Use an HDMI cable to connect the HDMI source (such as a game console, Blu-ray player or digital TV decoder) to the HDMI port marked "Input".
2 Use an HDMI cable to connect the TV or projector to the HDMI ports marked "Output".
3 Preferably, connect the TV or projector with the highest resolution (e.g. UltraHD) to "Output 1" and those with a lower resolution (e.g. Full HD) to "Output 2".
4 Connect the power adapter to the "DC 5V" input and insert the plug into the socket.

5 Use

5.1 EDID

EDID stands for Extended Display Identification Data and is used for communication between HDMI sources and TVs, enabling you to determine the supported display resolutions and audio formats. The HDMI source requests this information from the TV and determines the best resolution or audio format. When using multiple TVs (TVs or projectors), the best resolution and audio format that is supported by all connected TVs is determined.

This may cause problems in some situations, for example, when one of the connected sources or TVs does not fully support EDID.

5.2 EDID Auto or Copy 1

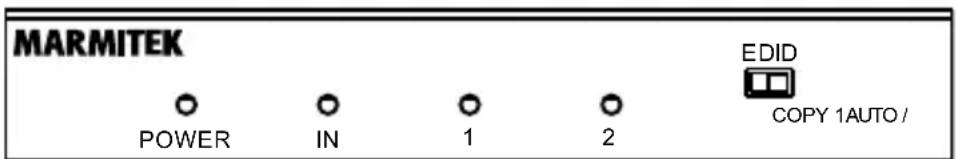

Use the EDID button to choose the following options:

AUTO: automatically detects the highest possible common image resolution and audio format that is supported by both TVs. Sound and image will be displayed on both TVs.
COPY 1: only detects the resolution and audio format of the display connected to "Output 1". This prevents problems with playing, for example, 3D or UltraHD (4k).

Tip: In standard situations, always use the automatic setting, which will result in sound and image on all connected TVs. With manual settings, no image or sound may be displayed on one or more TVs if the appropriate setting is not supported

6 Product details

6.1 Technical specifications

Connections

HDMI input 1x HDMI (19-pin female)
HDMI output 2x HDMI (19-pin female)
HDMI cable length max. 15 metres

Video

Supported resolutions 4K (4096x2160)@24/30/50/60Hz, 480i~1080p@50/60Hz,1080p@120Hz and 3D@1080p/60Hz.
Supported PC resolutions max.QSXGA (2560x2048@60Hz).
HDMI standards HDMI 2.0b, HDR, EDID, DVI, all 3D formats and Deep Color 36-bit.
HDCP standards HDCP 2.2 and HDCP 1.4
Colour formats RGB and YCbCr 4:4:4, 4:2:0 or 4:2:2.
Colour depth max. 36-bit.
Throughput speed max.18 Gbit/s.
Clock frequency max.600 MHz.

Audio

HDMI audio formats DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/ AC3, DTS 5.1 and PCM stereo.

Housing

Dimensions (H x W x D) 100 x 56 x 17 mm Weight 158 g

Environment

Ambient temperature +0 to +40^ C Humidity 20% to 90%

Power

External power adapter 100-240VAC @50-60Hz, 5VDC @ 1A

Specifications may change without prior notice.

7 Frequently asked questions (FAQs)

No (or poor) image and sound

If you experience poor or no picture after connecting the HDMI splitter, please try to identify the problem by connecting the devices to your TV, monitor or projector one by one. This allows you to determine whether the problem is with the HDMI sources, the HDMI cables, the HDMI splitter or the TV.

Make sure the power adapter is connected and plugged in.
- For the best picture and sound quality, only use High Speed HDMI® certified cables.
- Do not use HDMI cables longer than those specified in the technical data.
- Check the HDMI cables and/or connectors for damage.
Both the HDMI source and your TV should fully support HDMI.
- Check that your HDMI sources and TV support HDCP 2.2 (High Bandwidth Digital Content Protection) copy protection.

Incorrect 3D display

• Please check whether the HDMI source is set to display 3D and/or it is set to automatic.
  Both the HDMI source and your HDTV should support the same 3D formats.
• Please check that 3D is displayed correctly by connecting the HDMI source directly to the HD display with an HDMI cable.

Do you have other questions that have not been resolved by the above information? Please go to www.marmitek.com

8 Notification

8.1 Declaration of Conformity

Hereby, Marmitek BV declares that this Split 612 UHD 2.0^TM is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast)

Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits.

Directive (EU) 2017/2102 of the European Parliament and of the Council of 15 November 2017 amending Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Commission Regulation (EU) 2019/1782 of 1 October 2019 laying down Ecodesign requirements for external power supplies pursuant to Directive 2009/125/EC of the European Parliament and of the Council and repealing Commission Regulation (EC) No 278/2009.

You can read the full Declaration of Conformity at http://www.marmitek.com

8.2 Recycling

Environmental Information for Customers in the European Union and other European countries with separate collection systems.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

8.3 Copyrights

Marmitek is a trademark of Germatron B.V. Split 612 UHD 2.0^TM is a trademark of Marmitek B.V. All rights reserved. Every effort has been made to ensure that the information in this manual is accurate. Marmitek is not responsible for printing or clerical errors. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions. Other company and product names mentioned herein may be trademarks of their respective companies. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Marmitek assumes no responsibility with regard to the performance or use of these products.

Marmitek BV - PO Box 4257 - 5604 EG Eindhoven - The Netherlands
