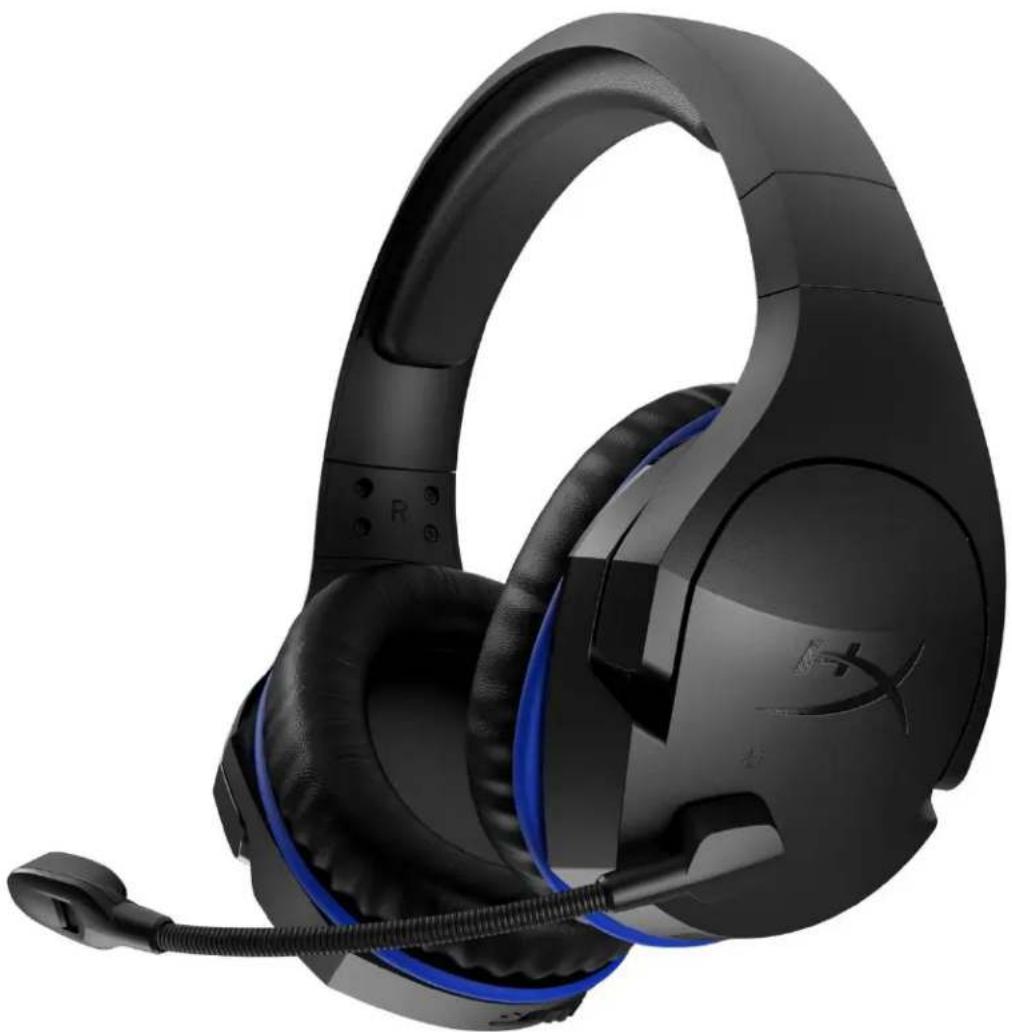

USER MANUAL Cloud Stinger Wireless HYPERX

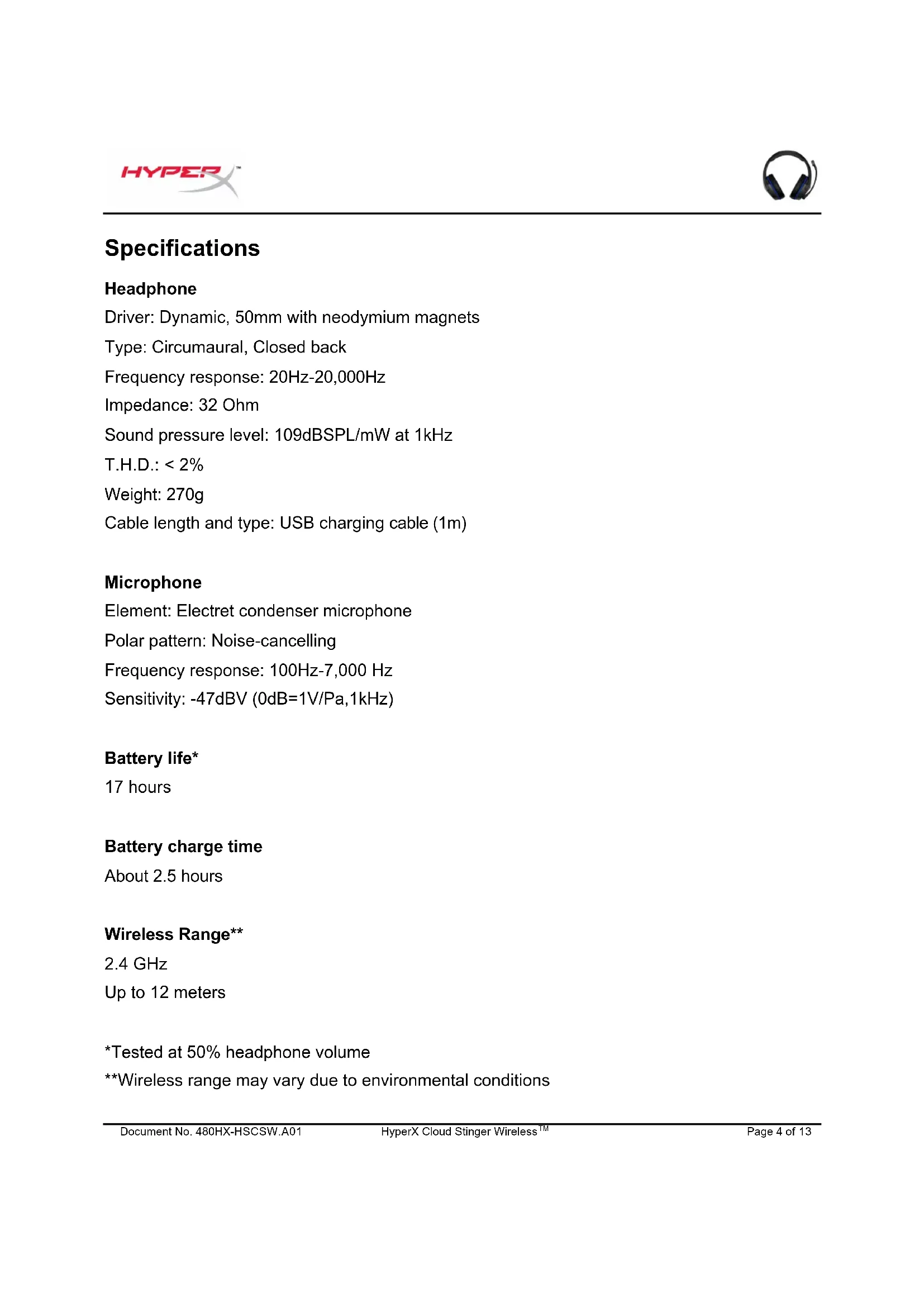

Specifications Headphone Driver: Dynamic, 50mm with neodymium magnets Type: Circumaural, Closed back Frequency response: 20Hz-20,000Hz Impedance: 32 Ohm Sound pressure level: 109dBSPL/mW at 1kHz T.H.D.: < 2% Weight: 270g Cable length and type: USB charging cable (1m) Microphone Element: Electret condenser microphone Polar pattern: Noise-cancelling Frequency response: 100Hz-7,000 Hz Sensitivity: -47dBV (0dB=1V/Pa,1kHz) Battery life* 17 hours Battery charge time About 2.5 hours Wireless Range**

Up to 12 meters *Tested at 50% headphone volume **Wireless range may vary due to environmental conditionsDocument No. 480HX-HSCSW.A01 HyperX Cloud Stinger Wireless

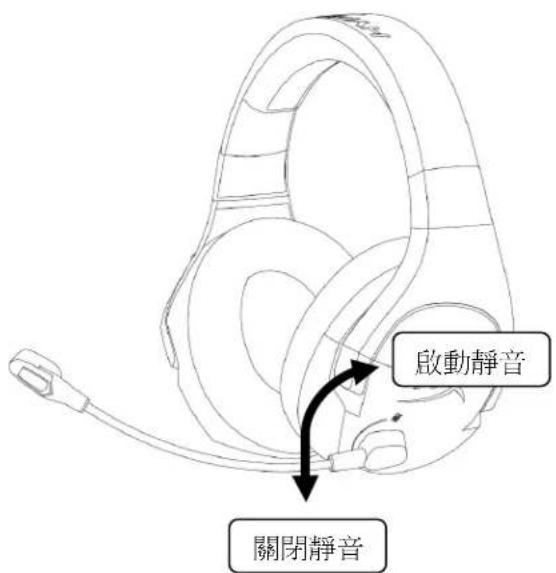

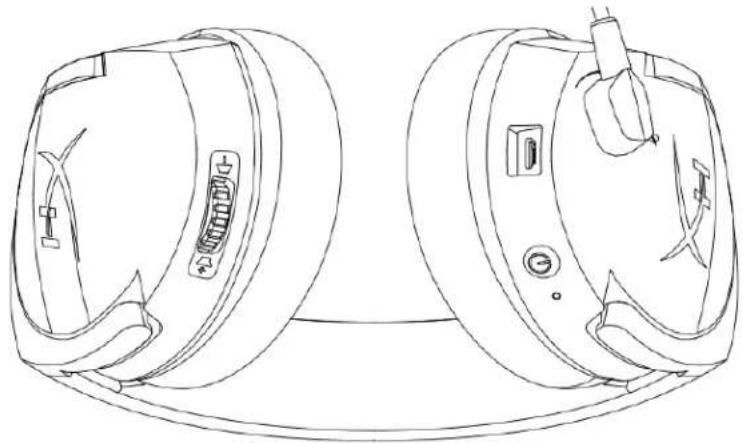

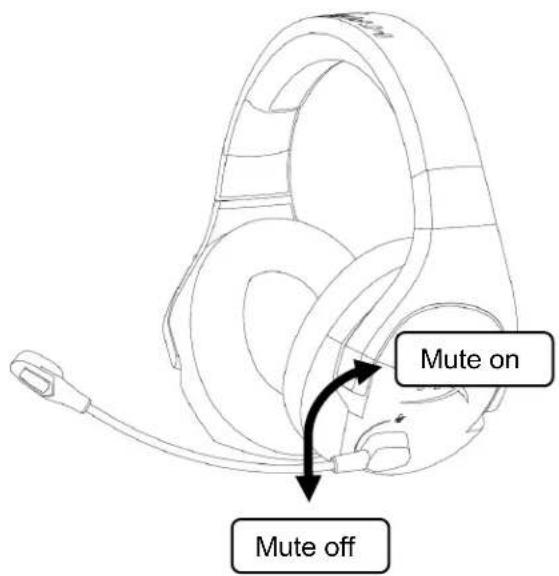

Headset Controls Power button Hold the power button for 3 seconds to power on/off the headset. Volume wheel Move the volume wheel towards the + sign to increase the volume. Move the volume wheel towards the – sign to decrease the volume. Microphone mute Swivel the microphone upwards to mute the microphone. Swivel the microphone downwards to unmute the microphone.

Mute on Mute offDocument No. 480HX-HSCSW.A01 HyperX Cloud Stinger Wireless

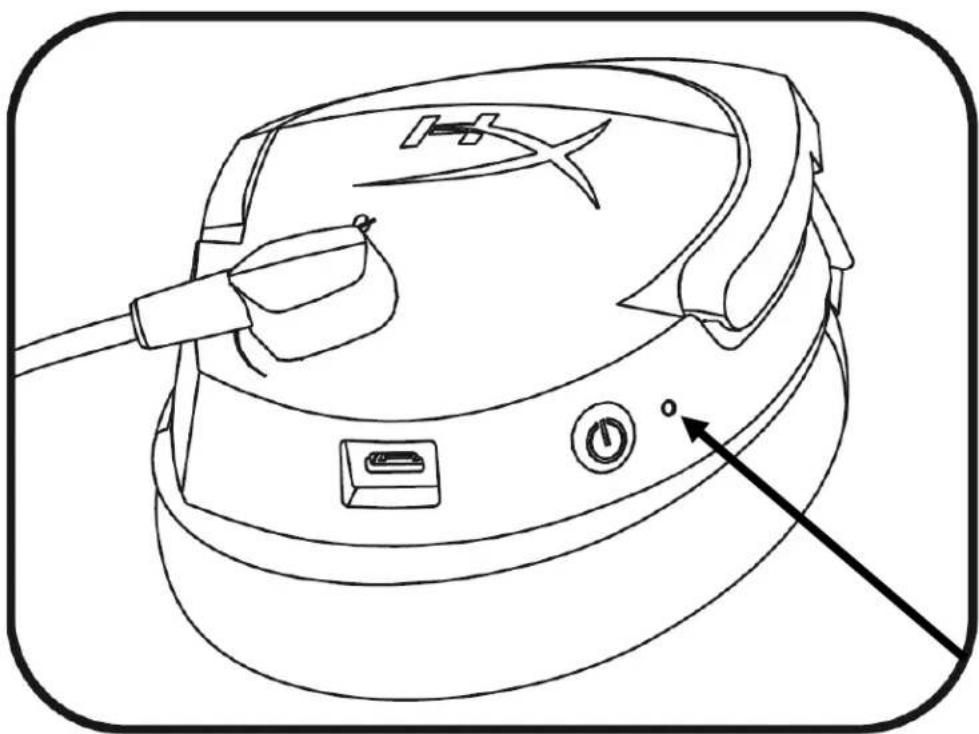

Headset Battery Indicator LED States The headset battery indicator LED indicates the current state of the headset. Battery Indicator LED Headset Status Slow breathing orange Searching for wireless adapter Fast blinking red and green Pairing mode Solid green 90% – 100% battery remaining Blinking green 50% – 90% battery remaining Blinking orange 25% – 50% battery remaining Blinking red <25% battery remainingDocument No. 480HX-HSCSW.A01 HyperX Cloud Stinger Wireless

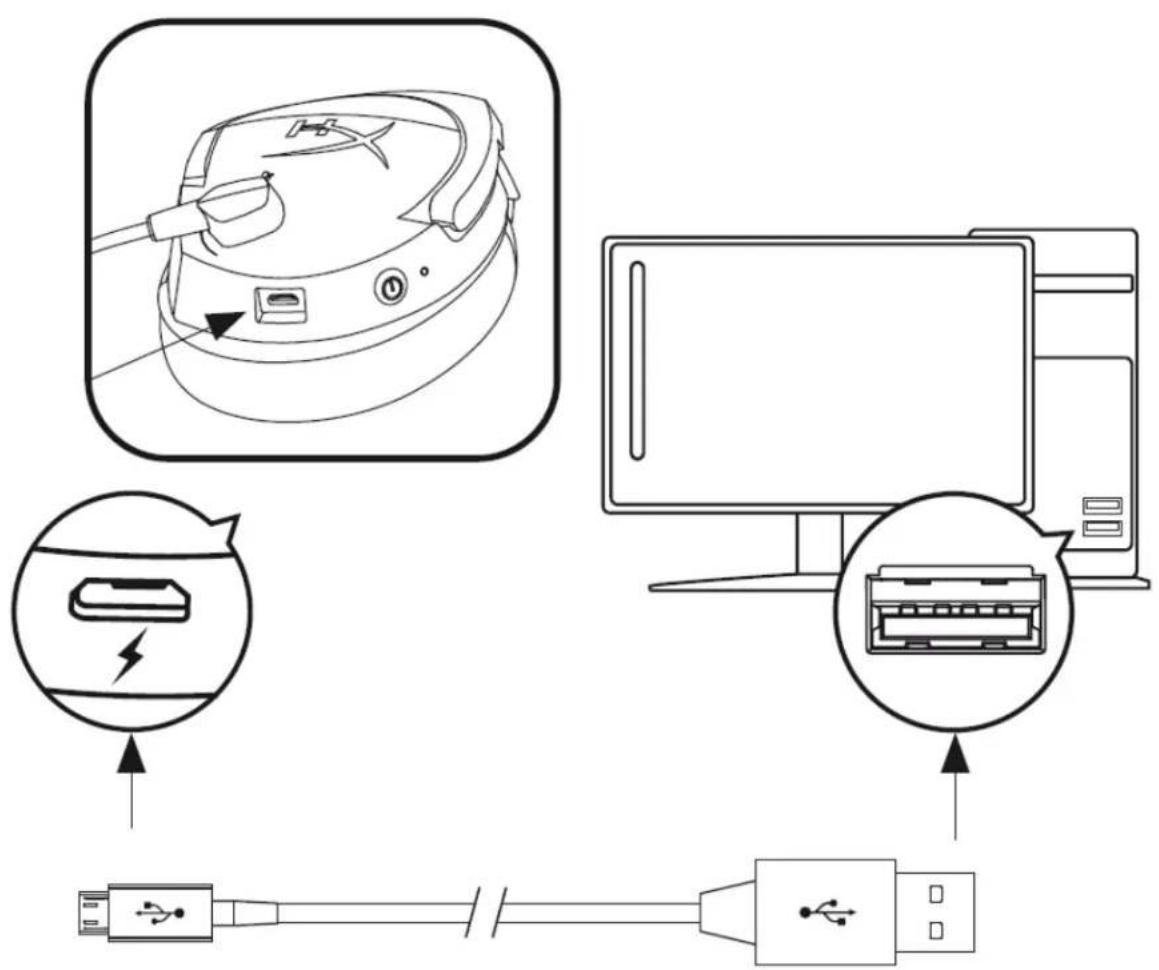

Headset Charging When the headset is connected to a charger with the USB charge cable, the battery indicator LED will indicate the charge status. The headset will take approximately 2.5 hours to fully charge. Battery Indicator LED Charging Status Solid green 100% charged Breathing green 50% – 99% charged Breathing orange 25% – 50% charged Breathing red <25% chargedDocument No. 480HX-HSCSW.A01 HyperX Cloud Stinger Wireless

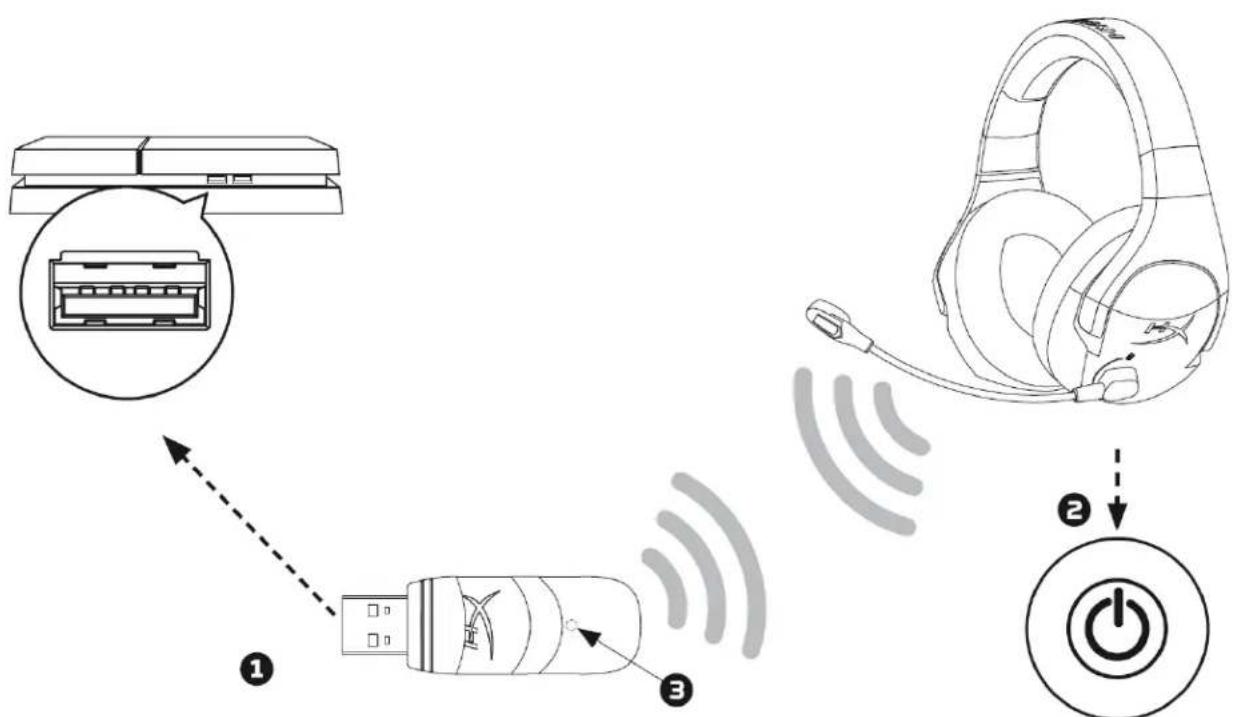

1. Connect the wireless adapter to a front USB port on the PS4™ system.

2. Power on the headset.

3. When the wireless adapter status light is solid, the headset is now connected to the adapter.

To ensure the headset is configured with the most optimal settings on the PS4, follow the steps below:

1. From the PS4 main menu, go to Settings > Devices > Audio Devices

2. Set Input Device to USB Headset (HyperX Cloud Stinger Wireless)

3. Set Output Device to USB Headset (HyperX Cloud Stinger Wireless)

4. Set Output to Headphones to All Audio

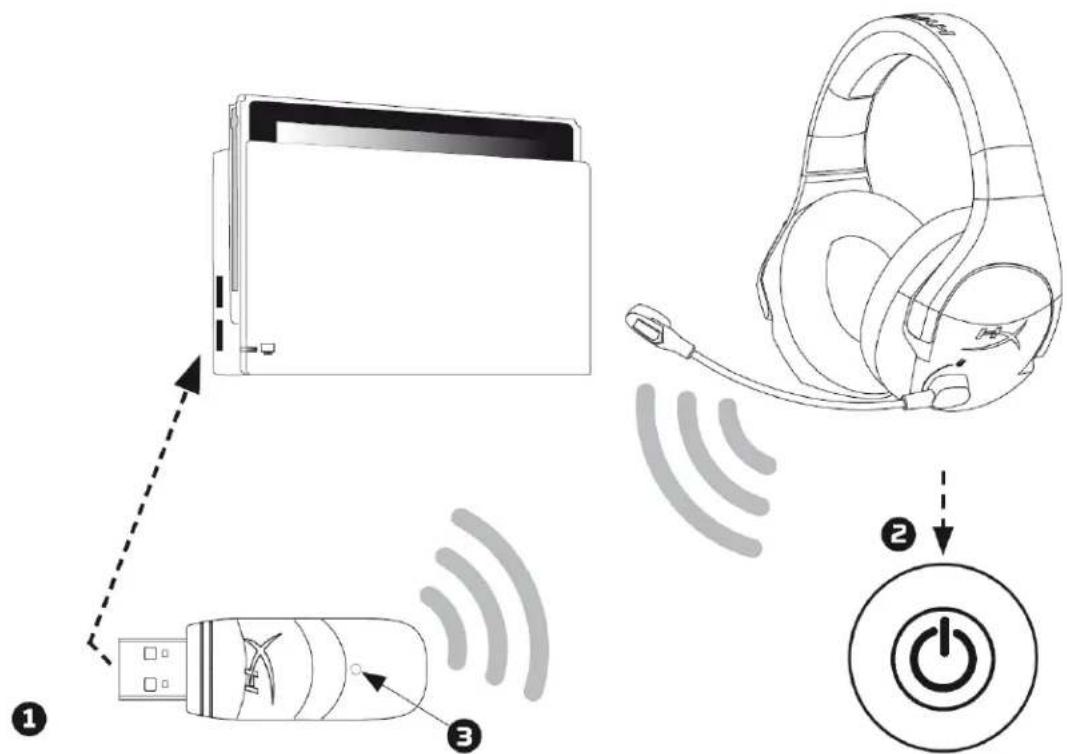

Using with Nintendo Switch™

1. Connect the wireless adapter to a side USB port on the Nintendo Switch dock.

2. Power on the headset.

3. When the wireless adapter status light is solid, the headset is now connected to the adapter.

You may set the USB audio volume on Switch to maximum by using the volume buttons on the Switch console, then adjust the volume with the headset volume wheel.Document No. 480HX-HSCSW.A01 HyperX Cloud Stinger Wireless

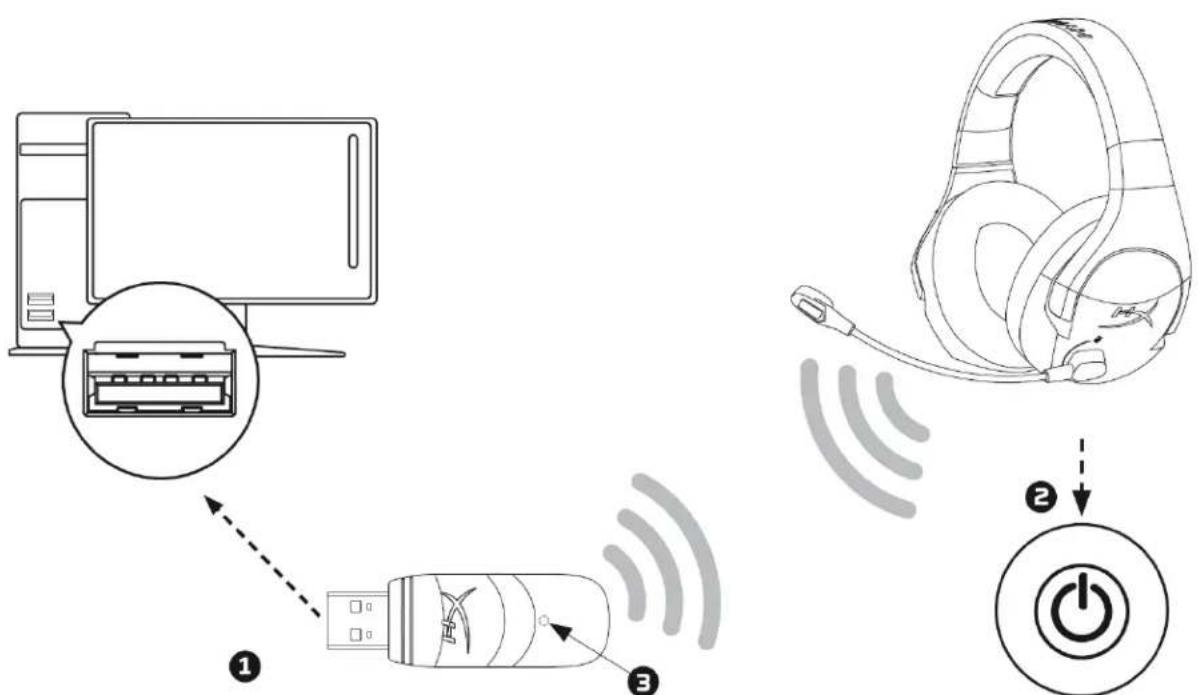

1. Connect the wireless adapter to a USB port on the PC.

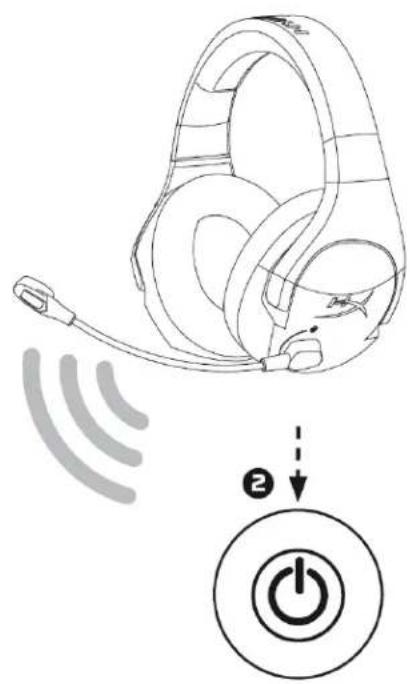

2. Power on the headset.

3. When the wireless adapter status light is solid, the headset is now connected to the adapter.

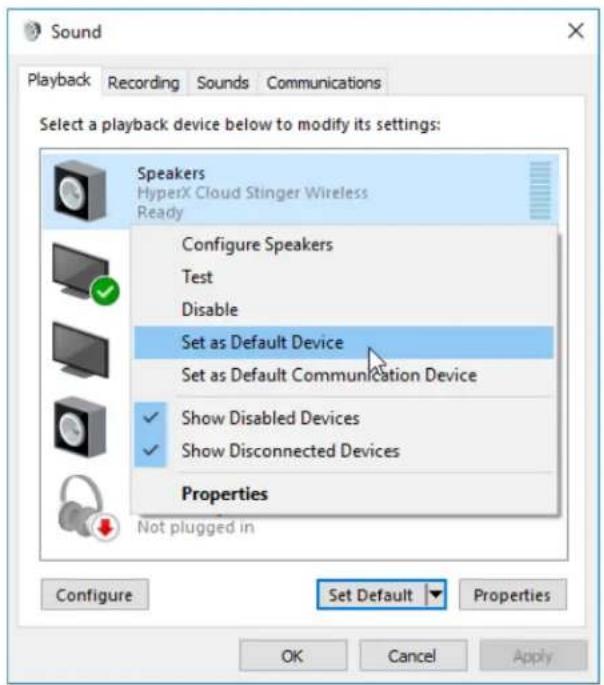

To ensure the headset is configured correctly on the PC, follow the steps below:

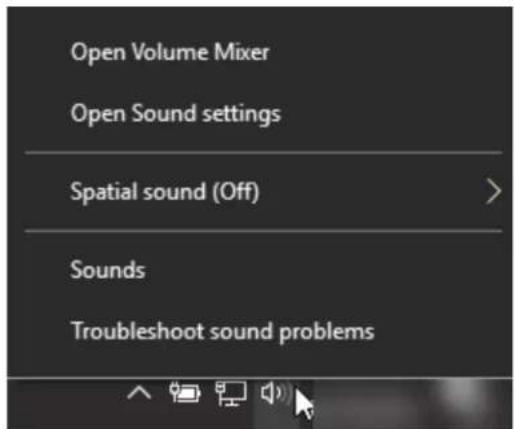

1. Right-click on the sound icon on the system

Speakers HyperX Cloud Stinger Wireless and select Set as Default Device.

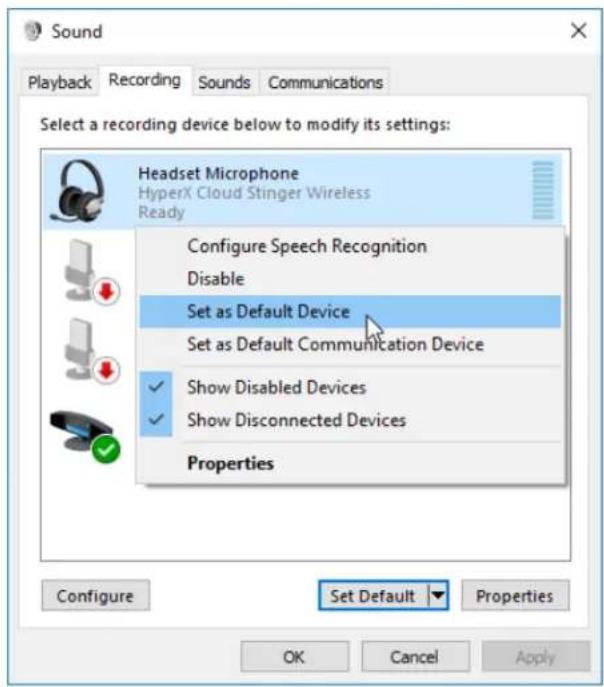

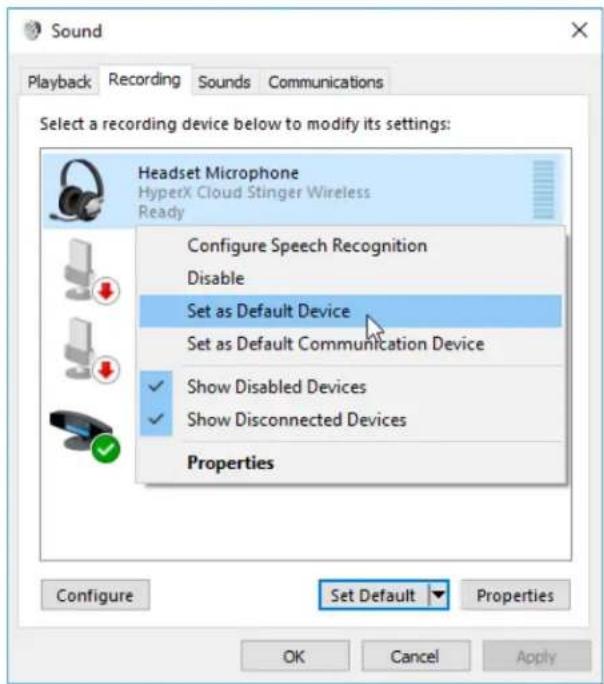

3. On the Recording tab, right-click on

Headset Microphone HyperX Cloud Stinger Wireless and select Set as Default Device.Document No. 480HX-HSCSW.A01 HyperX Cloud Stinger Wireless

Manually Pairing Headset and Wireless Adapter The headset and wireless adapter are already paired together for first time use. If manual pairing is necessary, follow the steps below to pair the headset and wireless adapter together.

1. Make sure the headset is powered off.

2. Plug the USB wireless adapter into the PC or PS4™ system.

3. Use a small pin to press the small button on the back side of the USB wireless adapter for 3

seconds. The USB wireless adapter LED will be fast blinking.

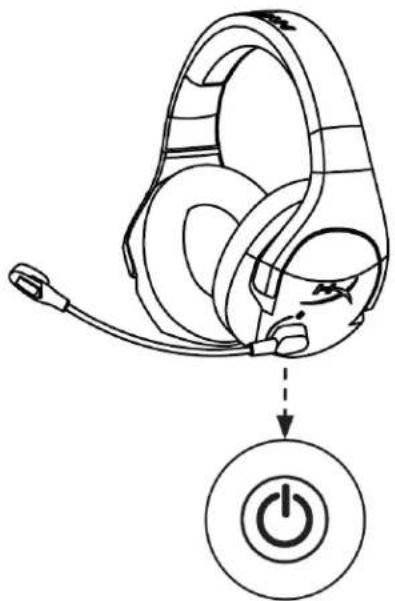

4. Long press the headset power button for 10 seconds to enter the pairing mode. The headset

battery indicator LED will be fast blinking.

5. When both the USB wireless adapter LED and the headset battery indicator LED are both solid,

pairing is completed.Document No. 480HX-HSCSW.A01 HyperX Cloud Stinger Wireless

Output to Headphones All Audio

Playback Speakers HyperX Cloud Stinger Wireless Set as Default Device

Recording Headset Microphone HyperX Cloud Stinger Wireless Set as Default Device480HX-HSCSW.A01 HyperX Cloud Stinger Wireless
