Profi Curls & Volume HS7880 - Hair Straightener GRUNDIG - Free user manual and instructions

USER MANUAL Profi Curls & Volume HS7880 GRUNDIG

Profi Curls & Volume Hair Styler

User Manual

HS7880

DE-EN-FR-IT-PT-ES-PL-CS-TR-EL-HU

DEUTsCH 04-12

ENGLISH 13-16

FRANÇAIS 17-21

ITALIANO 22-28

PORTUGUES 29-34

ESPANOL 35-40

POLSKI 41-46

CESKY 47-51

TÜRKCE 52-60

EAAHNIKA 61-67

MAGYAR 68-72

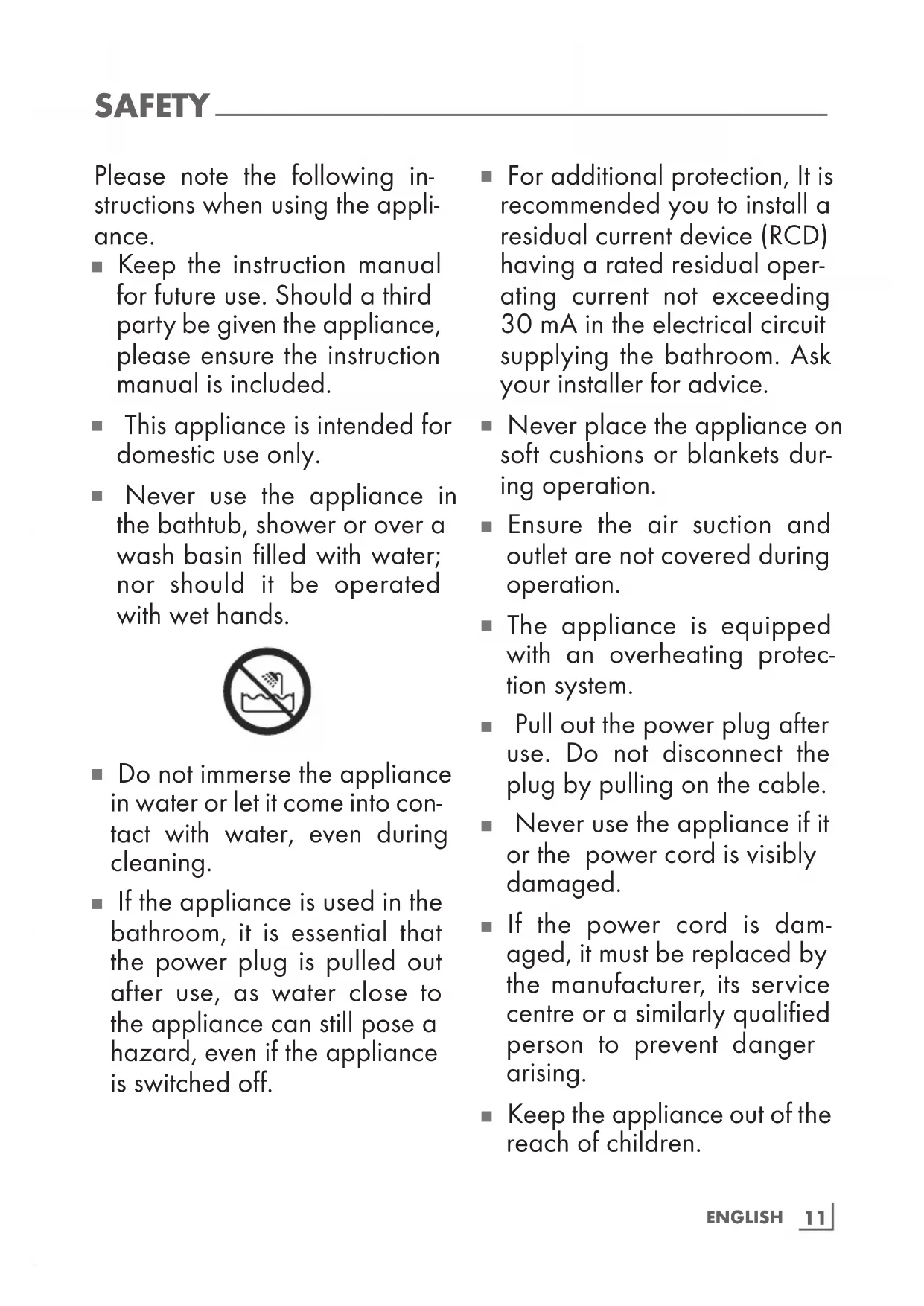

Please note the following instructions when using the appliance.

• Keep the instruction manual for future use. Should a third party be given the appliance, please ensure the instruction manual is included.

This appliance is intended for domestic use only.

• Never use the appliance in the bathtub, shower or over a wash basin filled with water; nor should it be operated with wet hands.

• Do not immerse the appliance in water or let it come into contact with water, even during cleaning.

If the appliance is used in the bathroom, it is essential that the power plug is pulled out after use, as water close to the appliance can still pose a hazard, even if the appliance is switched off.

For additional protection, It is recommended you to install a residual current device (RCD) having a rated residual operating current not exceeding 30mA in the electrical circuit supplying the bathroom. Ask your installer for advice.

• Never place the appliance on soft cushions or blankets during operation.

• Ensure the air suction and outlet are not covered during operation.

The appliance is equipped with an overheating protection system.

Pull out the power plug after use. Do not disconnect the plug by pulling on the cable.

• Never use the appliance if it or the power cord is visibly damaged.

If the power cord is damaged, it must be replaced by the manufacturer, its service centre or a similarly qualified person to prevent danger arising.

• Keep the appliance out of the reach of children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Do not open the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.
A warm flow of air is required to achieve a perfect result. Please note that a metallised brush can become extremely hot during prolonged or intensive use. To avoid injury, please adjust the usage time of the device to the accessory being used.

Dear customer,

congratulations on the purchase of your GRUNDIG Profi Curls & Volume Hair Styler HS 7880.

Read the following user notes carefully to ensure you can enjoy your quality product from Grundig for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers, as well as on the efficient use of raw materials

with continual waste reduction of several tonnes of plastic each year - and availability of at least 5 years for all accessories.

For a future worth living. Grundig.

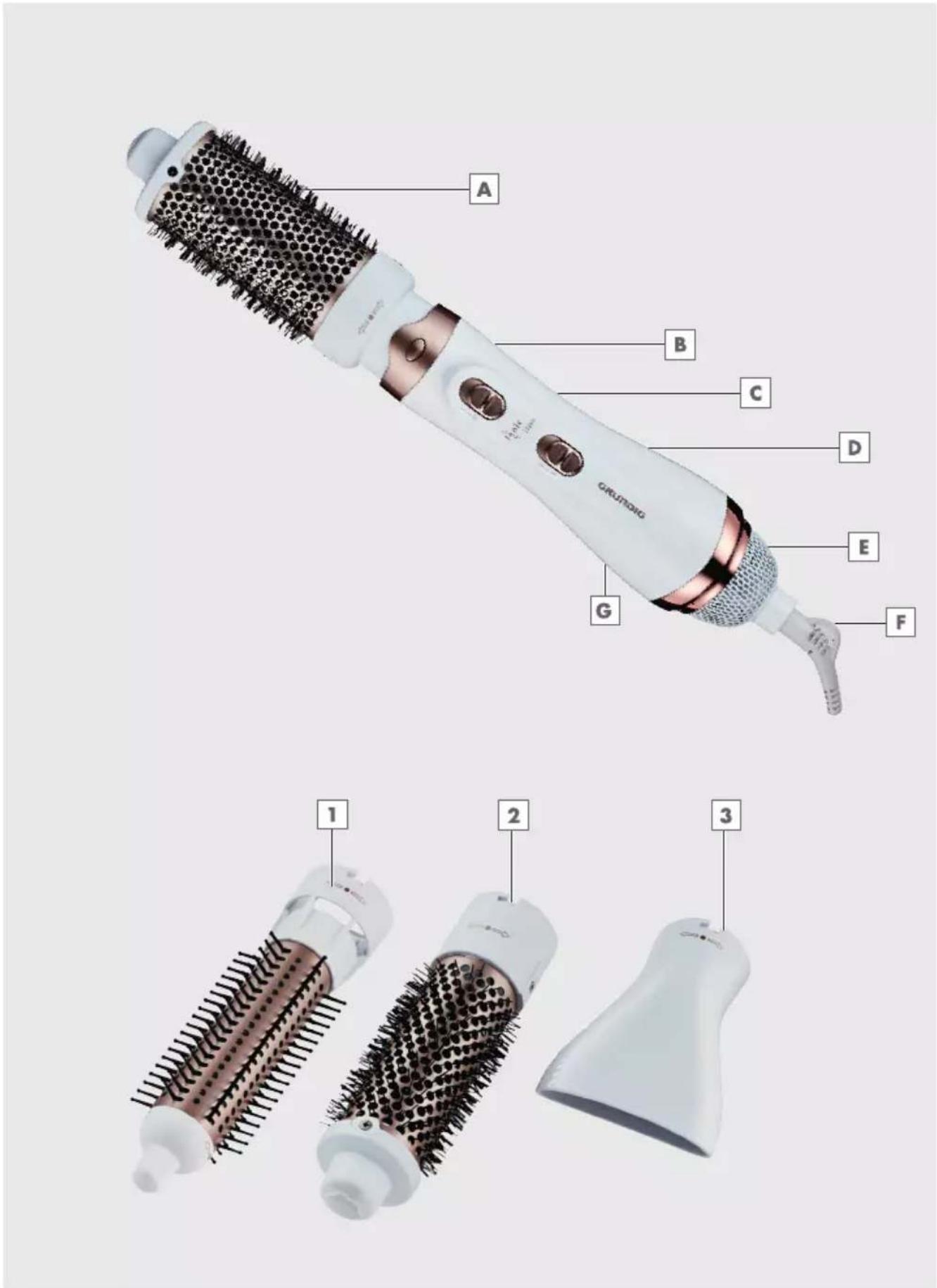

Controls

A Styling attachment, large 50mm
Catch for releasing the attachment
Switch for temperature settings (cold setting, two temperature settings)
D Switch for switching the appliance on and off and selecting the two speed settings
E Air inlet grille
F Cable with swivel joint and hanging loope
G Handle

Accessories

Styling attachment, small 25mm with retractable brushes
2 Styling attachment, medium 38 mm
3 Styling nozzle

Settings

Your appliance has the following setting options:

Speed level D

-0:Off
-1: Gentle air flow
-2: Stronger airflow

Cold setting and temperature setting c

• : Interrupts the hot air supply with cool air for setting the style of the hair
• 1: Moderate temperature for gently drying and styling
  -2:High temperature for fast drying

The separate temperature and speed settings allow you to control the temperature individually according to your hair type (fine, straight, curly or thick).

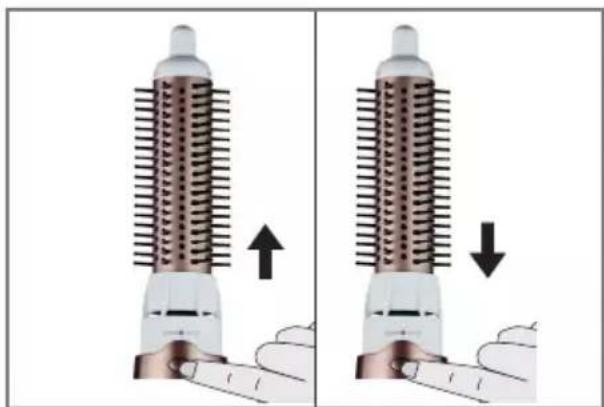

Changing the styling attachments

1 Remove the attached styling attachment by pressing catch B and twisting the attachment to the right slightly.

2 Place the required styling attachment over the catch in line with the recess, press catch B and let the styling attachment latch into place.

Notes:

The diameter of the styling attachment determines the size of the curls.

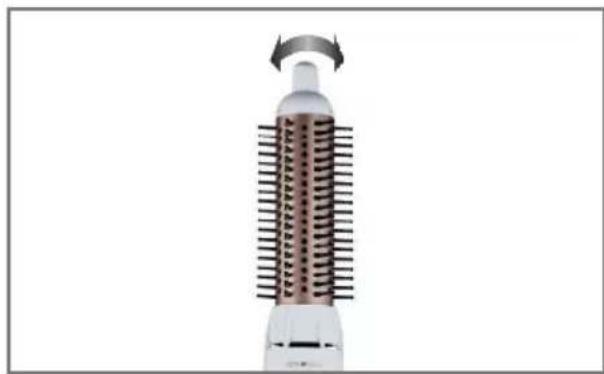

The styling attachment with 25mm is suitable for smaller curls and waves. The retractable bristles make it easy to remove from your hair and ensure long-lasting styling results. To retract the bristles, turn the knob at the top on the styling attachment.

The 38mm styling attachment is suitable for softly cascading hair styles or medium curls and waves.
By using the 0.50mm styling attachment, you can create an especially large volume for long hair, as well as large curls and waves.

Using as a stylist

Check if the mains voltage on the type plate (on the handle of the device) corresponds to your local mains supply.

1 Towel dry your hair thoroughly after washing.
2 Plug the power cord into the wall socket. - The 3 metre salon length of the power cord ensures freedom of movement when styling.
3 Turn on the appliance with switch D and set the speed level.
4 Set the temperature level with switch C.
5 If required, you can interrupt the hot air supply when drying by turning switch to (cold setting).

Note

The cold setting interrupts the hot setting with a flow of cool air. This allows you to fix your hairstyle better and more lastingly.

6 After use, switch off the appliance with the D switch and pull out power cordF from the wall socket.

Caution

• Never wind the power cord around the appliance, as this can result in damage. Check the power cord and the appliance regularly for visible damage.

Using as a hairdryer

When using as a hair dryer, attach the small concentrator nozzle 3

INFORMATION

Cleaning and care

Pull the plug out before cleaning.

Never submerge the appliance in water.

Use a soft dry cloth for cleaning the housing. Remember to clean the air inlet grille occasionally with a soft brush to remove any hair and dust.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for

recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do

not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply: 220 - 240V 50Hz

Power: 1200 W

Electrical insulation class: II

Technical and design modifications reserved.

Chere cliente, cher client,

Nosyouremercionsd'avoirchoisi la brossesoufflanteHSZ880GRUNDIG.

Alimentation electrode: 220-240 V~, 50 Hz

Puissance: 1200 W
