HS 7130 - Hair Straightener GRUNDIG - Free user manual and instructions

Brand	Grundig
Model	HS 7130
Category	Straightener
Power Supply	100 - 240 V~, 50-60 Hz
Output Power	50-52 W
Insulation Class	II
Temperature Range	160°C to 220°C (adjustable in steps)
Display	LED
Plates	Floating plates with ceramic coating infused with pink lotus oil
Turbo Function	Yes (220°C)
Plate Lock	Yes (lock button)
Auto Shut-off	After 60 minutes
Recommended Temperatures	Fine/blonde hair: 160-180°C; Normal hair: 180-200°C; Thick hair: 200-220°C
Cleaning	With a soft, damp cloth after complete cooling
Safety	Auto shut-off, overheat protection, unplug after use
Included Accessories	Cable hanging loop
Usage	Household use only

Frequently Asked Questions - HS 7130 GRUNDIG

What is the temperature range of this straightener?

The temperature range is 160°C to 220°C, adjustable in steps according to your hair type.

How to adjust the temperature?

Use the +/- buttons on the device. The temperature flashes on the LED screen until the temperature is reached. The setting locks automatically after 5 seconds. To change, press and hold the button for 2 seconds to unlock.

What is the Turbo function?

The Turbo function allows you to instantly switch to the maximum temperature of 220°C by pressing the dedicated button.

Does the device turn off automatically?

Yes, the straightener turns off automatically after 60 minutes of inactivity for safety reasons.

How to clean the plates?

Wait for the device to cool completely (up to 45 minutes), then clean the plates with a soft, damp cloth. Never immerse in water.

Can I use this straightener on wet hair?

No, never use the device on wet hair or in the bathroom near a water source. The straightener should be used only on dry hair.

How to lock the plates for storage?

Use the lock button on the device to keep the plates closed. This makes storage easier and protects the plates.

What are the important safety precautions?

Never use near water (bathtub, shower), unplug after use, do not wrap the cable around the device, keep out of reach of children, and let it cool on a heat-resistant surface.

Can I use this straightener abroad?

Yes, the device operates on a voltage range of 100-240 V, making it compatible with most outlets worldwide. However, check the plug adapter if necessary.

How to store the straightener properly?

Unplug the device, let it cool completely, lock the plates, and store it in a dry and cool place. Do not wrap the cable around the device.

USER MANUAL HS 7130 GRUNDIG

Hair Styler Straight & Curls

User Manual

Silhouette of a human head in profile with curved lines, no text or symbols present

HS 7130

DE - EN - PL - FR - NO - RO - HR - SR - IT - BS - MK - SL

CONTENTS

DEUTSCH 06-19
ENGLISH	20-31
POLSKI	32-44
FRANÇAIS	45-57
NORSK	58-68
ROMÂNA	69-82
HRVATSKI	83-94
Српски 95-105
ITALIANO	106-117
BOSANSKI	118-129
MAKEДОНСКИ	130-143
SLOVENŠČINA	144-154

1 2 3 4 7 6 5

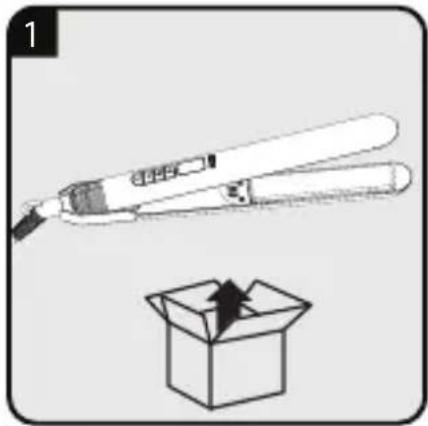

Illustration of a hand holding a pen or tool above an open box with an arrow, no text or symbols present.

Illustration of a woman with long hair holding her chest, marked with a red prohibition symbol (no text or labels)

3 1 1 1 1 1

4

8 2 sec. -/+ lock

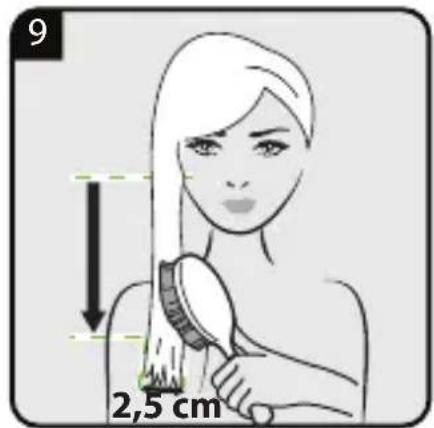

9 2,5 cm

Illustration of a person brushing her hair with a comb (no text or symbols)

11

Diagram illustrating a hair styling tool with temperature and electrical outlet, showing a magnified view of the circuit.

Illustration of a hand cleaning a clean surface with a hair iron (no text or symbols)

Diagram of a U-shaped device with a lock and padlock, no text or symbols present

DE BETrieb REINIGUNG UND PFLEGE
EN OPERATION CLEANING AND CARE
PL OBSŁUGA CZYSZCZENIE I KONSERWACJA
FR FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
NO FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
RO FUNCTIONARE CURĂȚAREA ȘI ÎNTRETINEREA
HR RAD ČIŠĆENJE I ODRŽAVANJE
SR RAD ČIŠĆENJE I ODRŽAVANJE
IT FUNZIONAMENTO PULIZIA E CURA
BS RAD ČIŠĆENJE I ODRŽAVANJE
MK	РАБОТЕЊЕ	ЧИСТЕЊЕ И ГРИЖА
SL DELOVANJE	ČIŠĆENJE IN NEGA

Symbol of a crossed-out electrical device with no text or labels

Please read this manual first!

Dear Customer,

Thank you for purchasing a Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electrical insulation class.

1 Important safety and environmental instructions

Please read these instructions carefully before using the device! Please follow all the safety instructions! Damage may be caused by using the device incorrectly.

Please keep these instructions for future reference. In the event that the device is passed on to a third party, these instructions must also be passed on to the new owner or user.

1.1 General safety

• This device is intended for domestic use only.
• Never use the device in a bath or shower, over a sink or in basin filled with water. Never use with wet hands.
• Do not immerse the device in water or allow contact with water, even when cleaning the device.
• If you use this device in the bathroom, it must be unplugged after use, as water near the device can still be hazardous even when the device has been turned off.

1 Important safety and environmental instructions

• Always unplug the device before cleaning it or carrying out any maintenance.
- For additional protection, install an RCD (Residual Current Device) with residual current rating no higher than 30 mA in the circuit. Ask your electrician about this.
- The device must never be covered by anything, e.g. towels.
- During operation, never place the device on any soft upholstery, cushions or blankets, paper or cardboard, plastics or combustible or unprotected polished surfaces.
- The device can become very hot. Never leave hair between hot styling plates for more than a few seconds.
- Never let the hot styling plates touch your face, neck or scalp. Do not touch with bare hands.

1 Important safety and environmental instructions

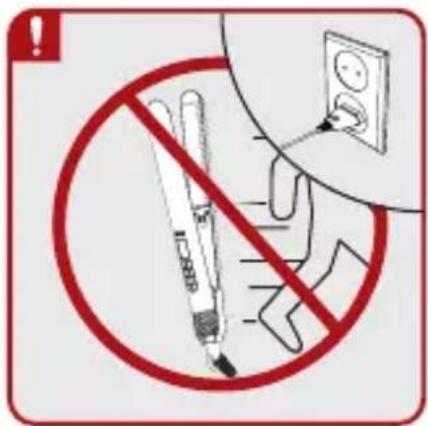

• Unplug the device immediately after use. Do not unplug by pulling on the power cord. Place the device on a heat-resistant surface and allow it to cool down.
• Do not use the device if there is visible damage to it.
• Our GRUNDIG household appliances all comply with current valid safety standards. If there is any damage to the device or to its power cord, it must be repaired by a Service Centre or replaced, to avoid any potential risk of danger. Any repair performed incorrectly by an unqualified person could present safety risks and endanger the user.
• The cable must be positioned so that there is no risk of accidentally pulling on it or tripping over it.
• Always keep the device out of reach of children.

1 Important safety and environmental instructions

- In the event that this device is to be used by children aged 8 and over or by persons with reduced physical, sensory or mental capabilities or with lack of experience or knowledge, the user must be supervised or instructed regarding the safe use of the device and must have an understanding of the consequent potential risks of danger. Children must not play with this device. In the event that children carry out cleaning of the device or perform user maintenance, they must be fully supervised.

• When the device is on, it must never be left un-attended.
• Never open the device, under any circumstances. No liability shall be accepted for damage caused by incorrect use.

1 Important safety and environmental instructions

• Please check that the voltage on the rating plate (on the device handle) corresponds to the local power supply voltage. The only way to disconnect the device from the power supply is to unplug it.
• Never wrap the power cord around the device.
• Never use the device on or near combustible or flammable areas or furniture. Do not allow the device to be touched or covered by flammable materials, such as curtains, fabric, walls etc. Ensure that the device is always kept at a safe distance away from flammable materials and furniture.

- WARNING Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

- Burn hazard. Keep appliance out of reach from young children, particularly during use and cool down.

1 Important safety and environmental instructions

- Always place the appliance with the stand, if any, on a heat-resistant, stable flat surface.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Symbol of a fuel pump crossed out by a diagonal line, with no text or labels present.

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was puchased.

Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1 Important safety and environmental instructions

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

20verview

2.1 Controls and parts

See picture on page 3.

1. On/Off button
2. Temperature touch control
3. Turbo Function Button
4. LED Display
5. Pink Lotus Oil infused ceramic coated floating plates
6. Plate locking button
7. Power cord with hanging loop

2.2 Technical data

Power supply:

100–240 V\~, 50–60 Hz

Output: 50-52W

Electrical insulation class: ||

Technical and design modifications reserved.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

30operation

3.1 Hair structure

The device allows for individual temperature settings. The following individual settings are recommended to work best with the specific hair structures listed:

• For fine, brittle, colour-treated, blonde hair: 160 °C to 180 °C
• For normal hair: 180 °C to 200 °C
• For strong, resistant, thick hair: 200 °C to 220 °C

3.2 Auto Shut Off

- The device will switch off automatically one hour after you finish using it.

3.3 Styling Possibilities

With your Hair Styler HS 7130, you can:

— Straighten hair
- Style the ends (turning in or out)
- Form soft cascading waves and curls

3.4 Temperature setting

1. If you touch the temperature selection (2) and move it from a lower to a higher setting, the corresponding temperature will flash on the LED display. Once the styling plates reach the required temperature, the temperature display stops flashing and is on continuously.

2. If you touch the temperature selection (2) and move it from a higher to a lower setting, the corresponding temperature will flash on the LED display. The temperature display will light continuously once the plates have reached the required temperature.

30operation

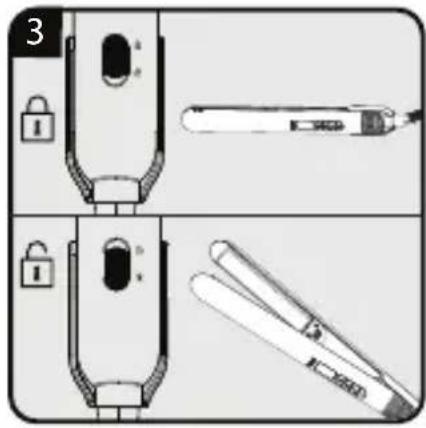

3.5 Lock Setting

The temperature setting is locked automatically 5 seconds after the required temperature has been set. This means that the temperature setting cannot be changed once the device is in use. If you want to change the temperature setting, simply press and hold the +/- button for 2 seconds to unlock temperature setting.

3.6 Turbo Function (3)

When the Turbo function button is pressed, the temperature level will be set to 220^ C, which is the highest temperature level.

4Information

4.1 Cleaning and care

1. Switch off the device and unplug (7) from the power supply.
2. Before cleaning, allow the device to cool down completely. The device can become very hot; it may take up to 45 minutes to cool down.
3. Clean the housing and the styling plates only using a soft damp cloth.

4.2 Storage

• If you do not plan to use the appliance for a long period of time, please store it carefully.
• Make sure that it is unplugged, has completely cooled and is completely dry.
• Do not wrap the power cord around the appliance.
• Keep it in a cool, dry place.
• Make sure that the appliance is kept out of the reach of children.

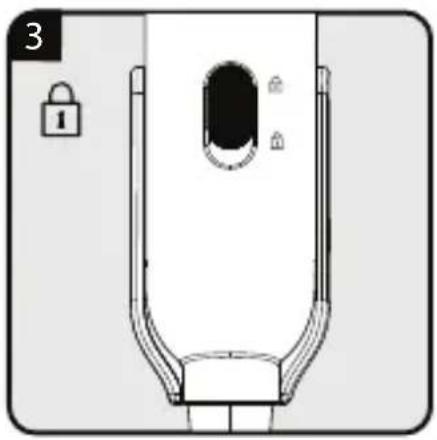

• Lock the device's styling plates in position, using the plate locking button (6).

For commissioning, general use and cleaning, please observe the instructions on pages 4-5 of this operating manual.

Warning sign with crossed and uncorrected symbols, indicating no readable text or labels

Prohibition sign showing a shower stroke over water with no text or symbols

Warning sign with crossed-out electrical device and a black rectangle below, indicating no hazard or absence of any technical hazard.

Symbol of a waste bin with crossed and unshaded lanes, no text or numbers present

Prohibition sign showing a shower stroke over water with no text or symbols

Prohibition sign with crossed-out machine and battery icon, indicating no liability or prohibition

For commissioning, general use and cleaning, please observe the instructions on pages 4-5 of this operating manual.

CE

CERTIFICAT DE GARANTIE

Symbol of a vehicle crossed with a diagonal line, indicating no crossing or restriction (no text present)

Ovaj simbol označava da se ovaj proizvod ne smije odlagati zajedno s ostalim kućanskim otpadom na kraju njegovog radnog vijeka. Rabljeni uređaj mora se vratiti na službeno sabirno mjesto za recikliranje električnih i elektroničkih uređaja. Da biste pronašli te sustave za prikupljanje, obratite se lokalnim vlastima ili prodavaču gdje je proizvod kupljen. Svako kućanstvo igra važnu ulogu u uporabi i recikliranju starih uređaja. Odgovarajuće odlaganje iskorištenog aparata pomaže u sprečavanju mogućih negativnih posljedica za okoliš i ljudsko zdravlje.

1.3 Usklađenost s Direktivom o zabrani uporabe određenih opasnih tvari u električnoj i elektroničkoj opremi (RoHS):

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

Ovaj simbol označava da se ovaj proizvod ne sme odlagati zajedno s ostalim kućnim otpadom na kraju njegovog radnog veka. Korišćeni uređaj mora se vratiti na službeno mesto za sakupljanje za recikliranje električnih i elektronskih uređaja. Da biste pronašli ove sisteme za sakupljanje, obratite se lokalnim nadležnim telima ili prodavcu gde je proizvod kupljen. Svako domaćinstvo igra važnu ulogu u obnavljanju i recikliranju starog uređaja. Odgovarajuće odlaganje korišćenog uređaja pomaže u sprečavanju potencijalnih negativnih posledica po životnu sredinu i zdravlje ljudi.

1.3 Usaglašenost sa RoHS Direktivom

Prohibition sign with crossed-out machine and battery symbol, indicating no liability or prohibition

Symbol of a fuel pump crossed out by a diagonal line, with no text or labels present.

Ovaj simbol označava da ovaj proizvod ne treba odlagati sa ostalim otpadom iz domaćinstva na kraju vijeka upotrebe. Korišćeni uređaj mora se vratiti u službeno zbirno mjesto za recikliranje električnih i elektronskih uređaja. Da biste pronašli ove sisteme za prikupljanje, obratite se lokalnim nadležnim organima ili prodavaču kod kojeg je proizvod kupljen.

Svako domaćinstvo igra važnu ulogu u obnavljanju i recikliranju starog aparata. Odgovarajuće odlaganje korišćenog aparata pomaže u sprječavanju potencijalnih negativnih posljedica po životnu sredinu i zdravlje ljudi.

1.3 Usklađenost sa RoHS direktivom

Prohibition sign with crossed-out machine and battery symbol, indicating no use or prohibition

Prohibition sign showing a showerhead spraying water, with no text or symbols beyond the prohibition symbol.

Symbol of a waste bin with no text or numbers present
